Installation manual:

Parrot MKi + Parrot

CK3100 range

The brand name KIA PICANTO and the KIA logo are the property of KIA MOTORS.

This document is only valid for the vehicle model PICANTO® year 2011, excluding all other models in the same range and excluding later

modifications made to the vehicle by the manufacturer.

The Parrot brand name and logos are the exclusive property of Parrot SA.

This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

the authorisation of Parrot SA. Pictures for information only.

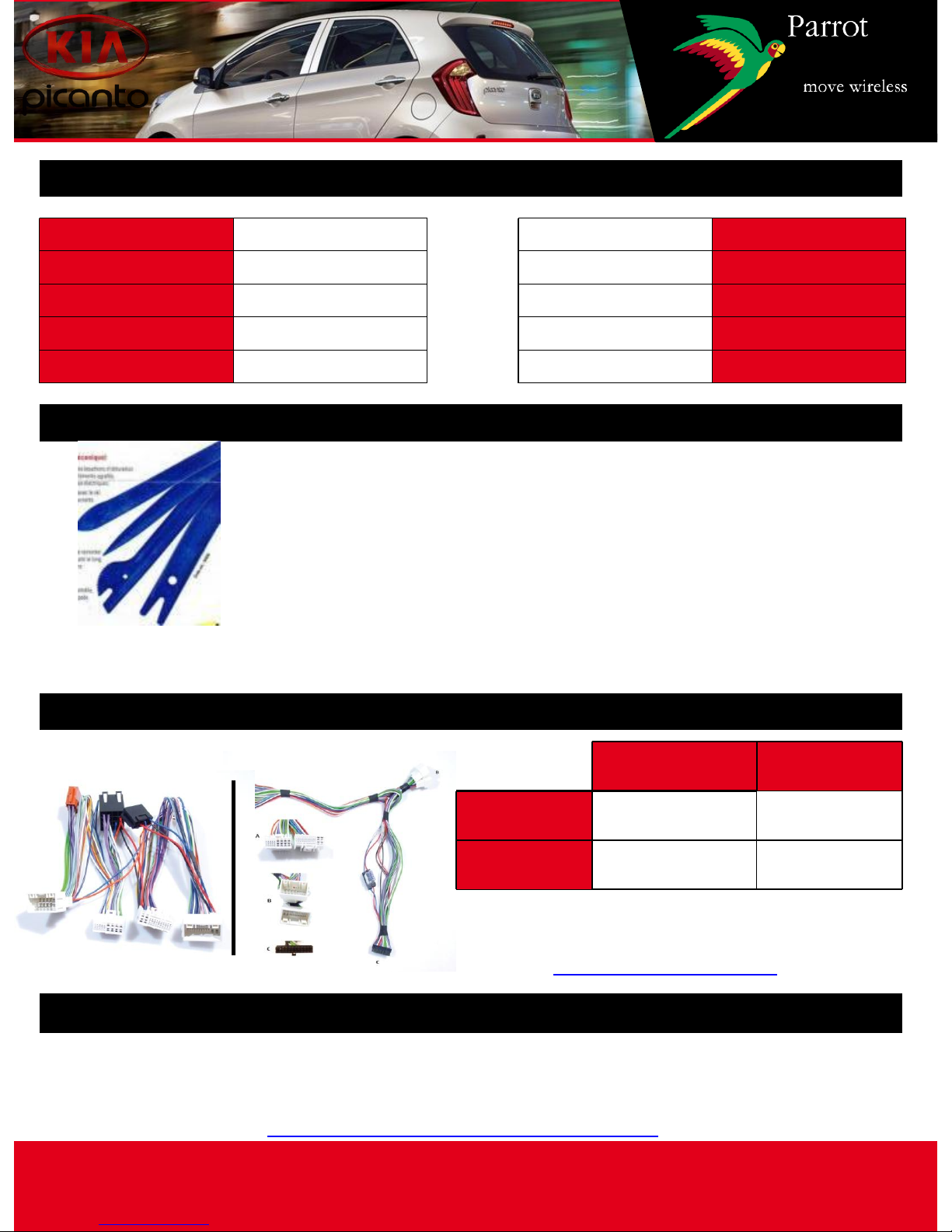

Accessories required

Disassembly 20min

Mounting kit 30min

Refitting 20min

Testing 15min

Total 1h25min

YES +APC

NO ISO

N/A UNIKA

FRONT SPEAKER TEL mode

ALL MUSIC mode

Fitting time (estimated) / Main features

Tools

- Phillips screwdriver

- Multimeter or Test lamp

- Wire tie

- Round file (or a knife)

"Please contact your wholesaler to purchase

accessories. List of wholesalers available at

www.certified.parrot.com." »

Kram ref. Dealer ref.

CK range 86394 N/A

MKi range 84394X389 N/A

Photos for illustration purposes

CK range MKi range

To get the most out of your hands-free kit, we recommend that you update your software

regularly. The procedure for doing this can be found at

www.parrot.com/usa/support/downloads

Updating

Plastic trim removal tools

FACOM / BOJO

This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

the authorisation of Parrot SA. Pictures for information only.

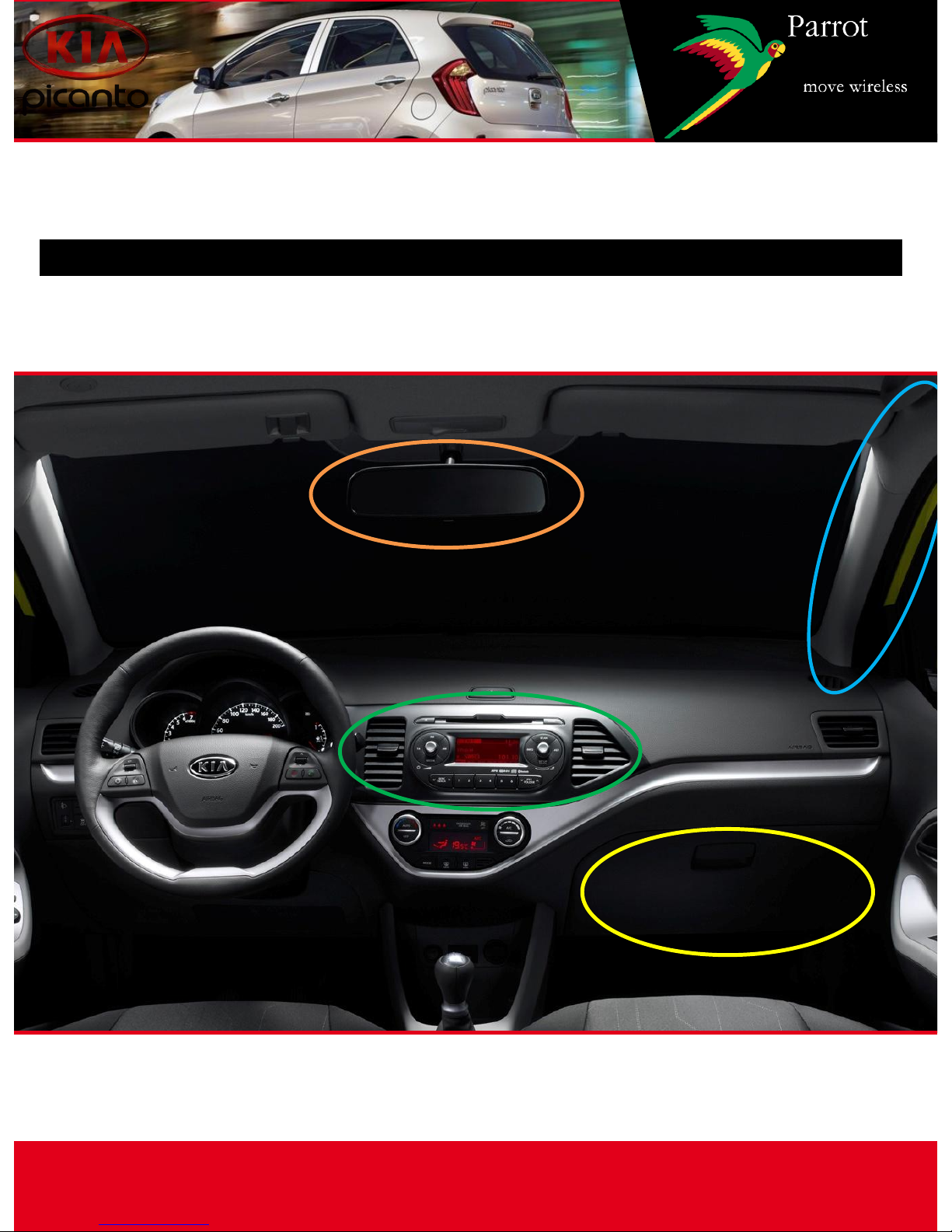

Disassembly

This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

the authorisation of Parrot SA. Pictures for information only.

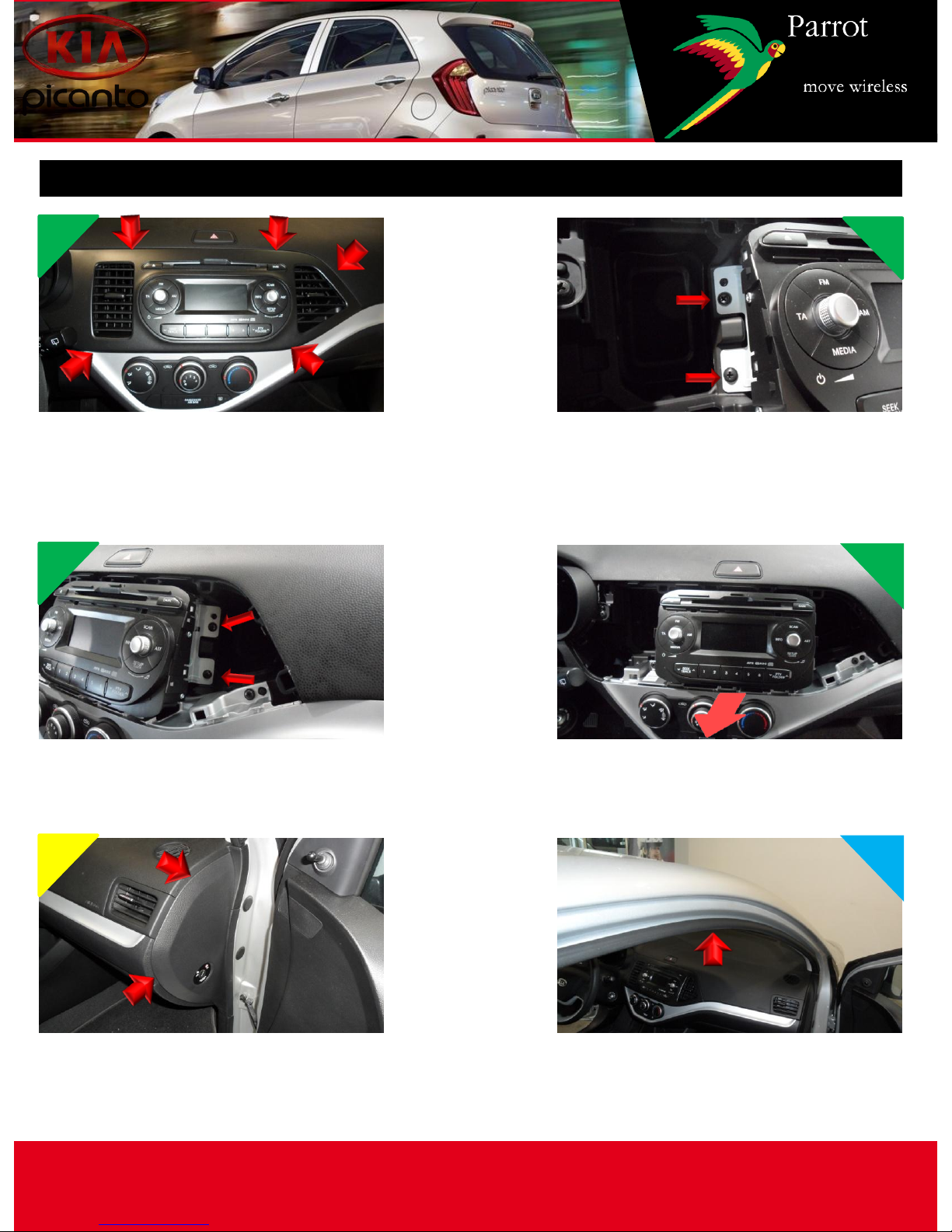

Disassembly

Using the plastic trim tools, firmly

unclip the radio cover and the air

vents and remove the radio

Unscrew screws 1 and 2 located

on the left side of the radio

Unscrew screws 3 and 4 located on

the right side of the radio

Pull and lift the radio

disconnecting the connectors

and the antenna

Using the plastic trim tools,

unclip the cover located on the

right side of the dashboard

Remove the passenger side door

seal

5 6

This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

the authorisation of Parrot SA. Pictures for information only.

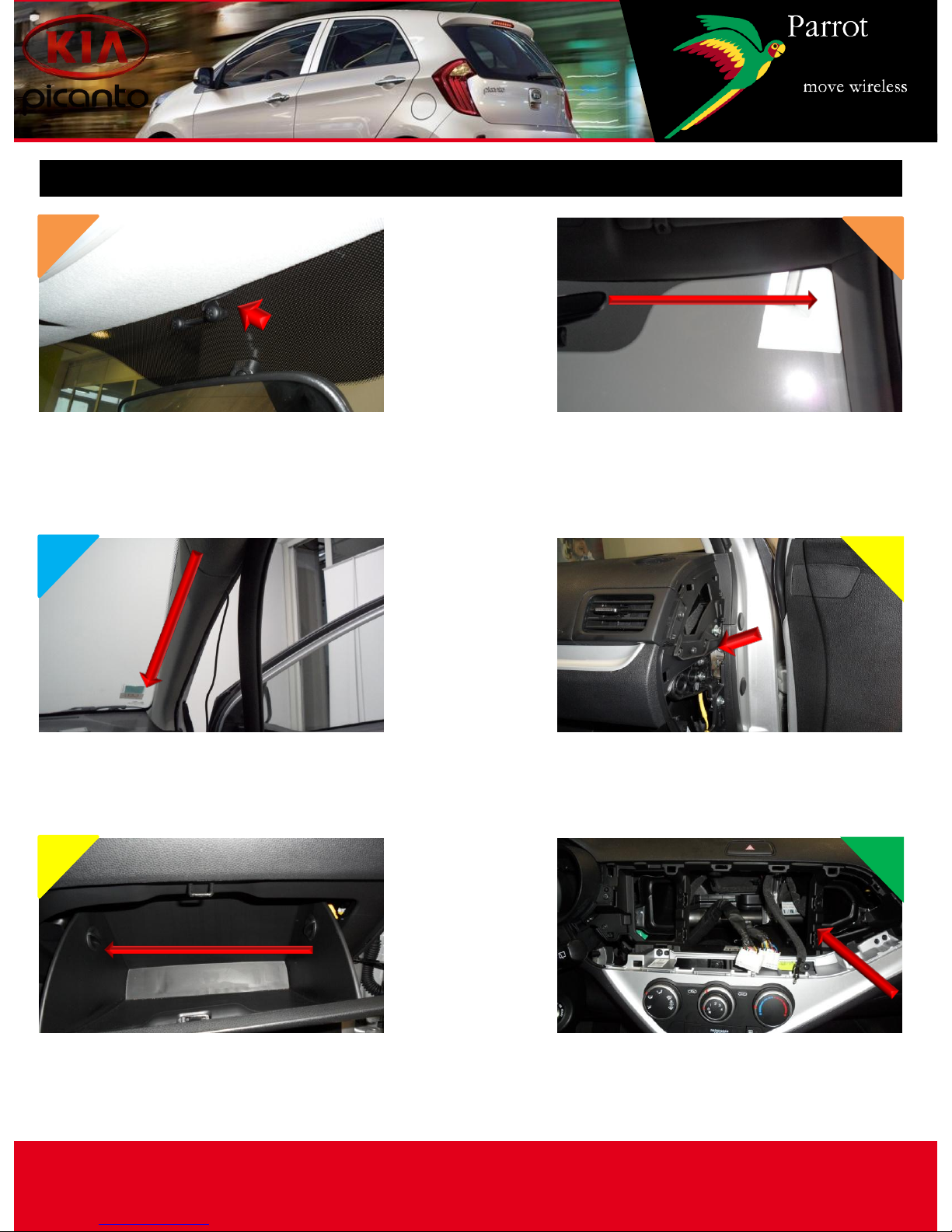

Using the plastic trim tools, run

the cable under the head liner

Microphone passage

Glue the bracket (supplied) to

the windscreen, after having

thoroughly degreased the

surface

Run the cable replacing the seal

on the passenger door

Pass the cable into the

dashboard on the right side

Run it behind the glove box Then pass the cable towards the

radio

5 6

This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

the authorisation of Parrot SA. Pictures for information only.

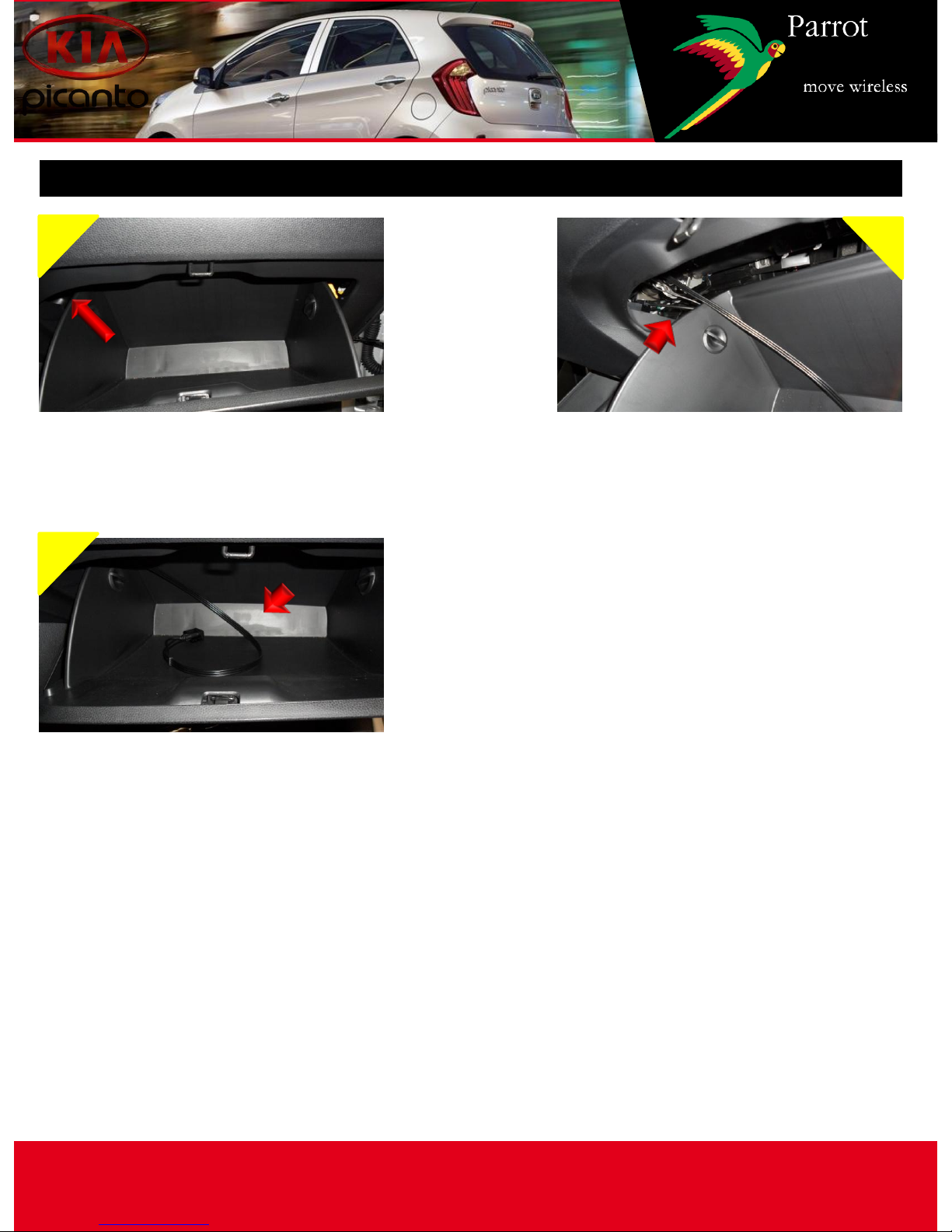

Feeding the accessory cable

In the glove box, using a semi-

rigid guide

Pass the cable from the top right

towards the radio

Be careful to leave enough

length

1 2

This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

the authorisation of Parrot SA. Pictures for information only.

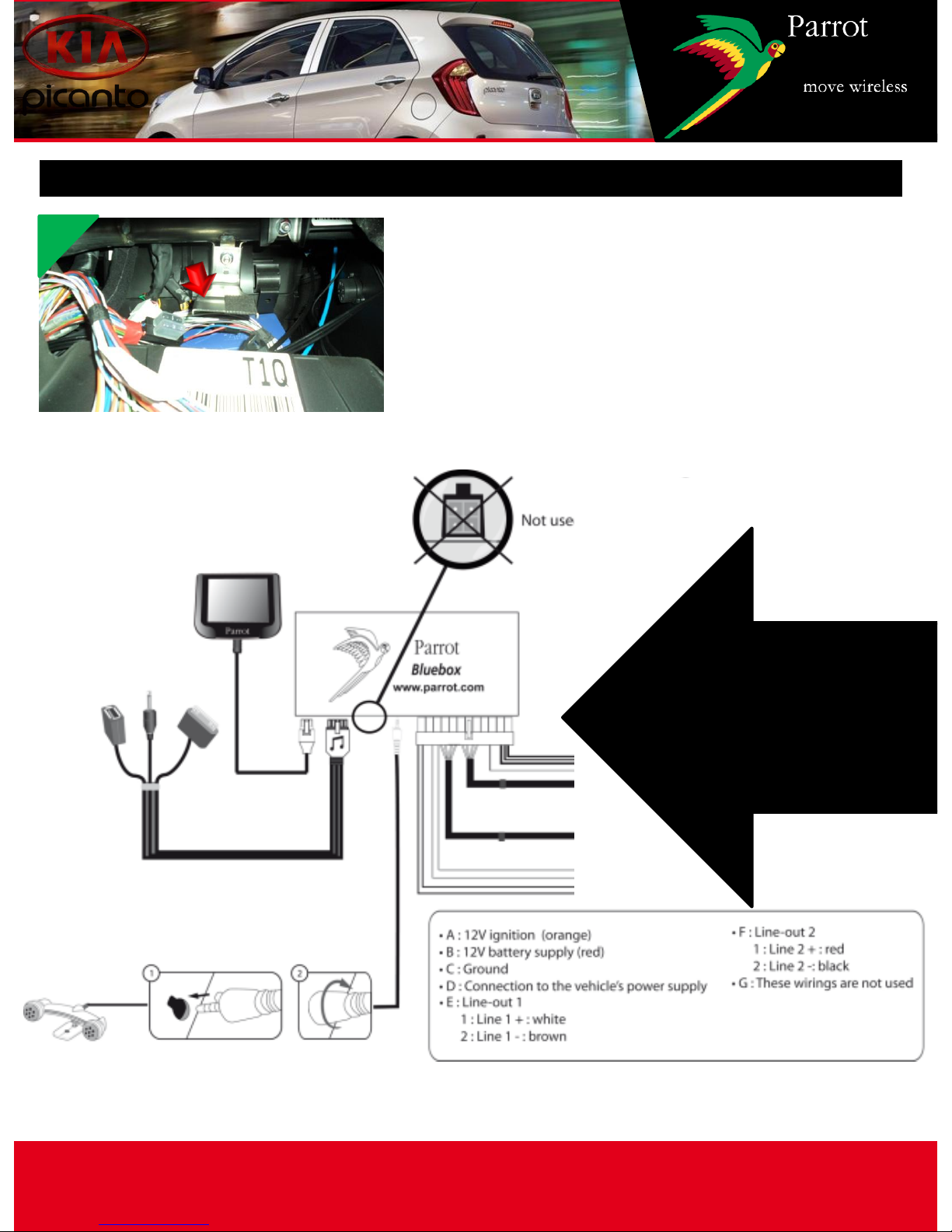

ISO adapter

Fitting the hands-free system 1 / 2

Connect the adaptor (86394 for the CK or

84394X389 for the Mki) to the original connector

and connect all of the wires to the blue box as

shown in the diagram below. Test the assembly

before reassembly and then slide everything

behind the air conditioning control unit

This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

the authorisation of Parrot SA. Pictures for information only.

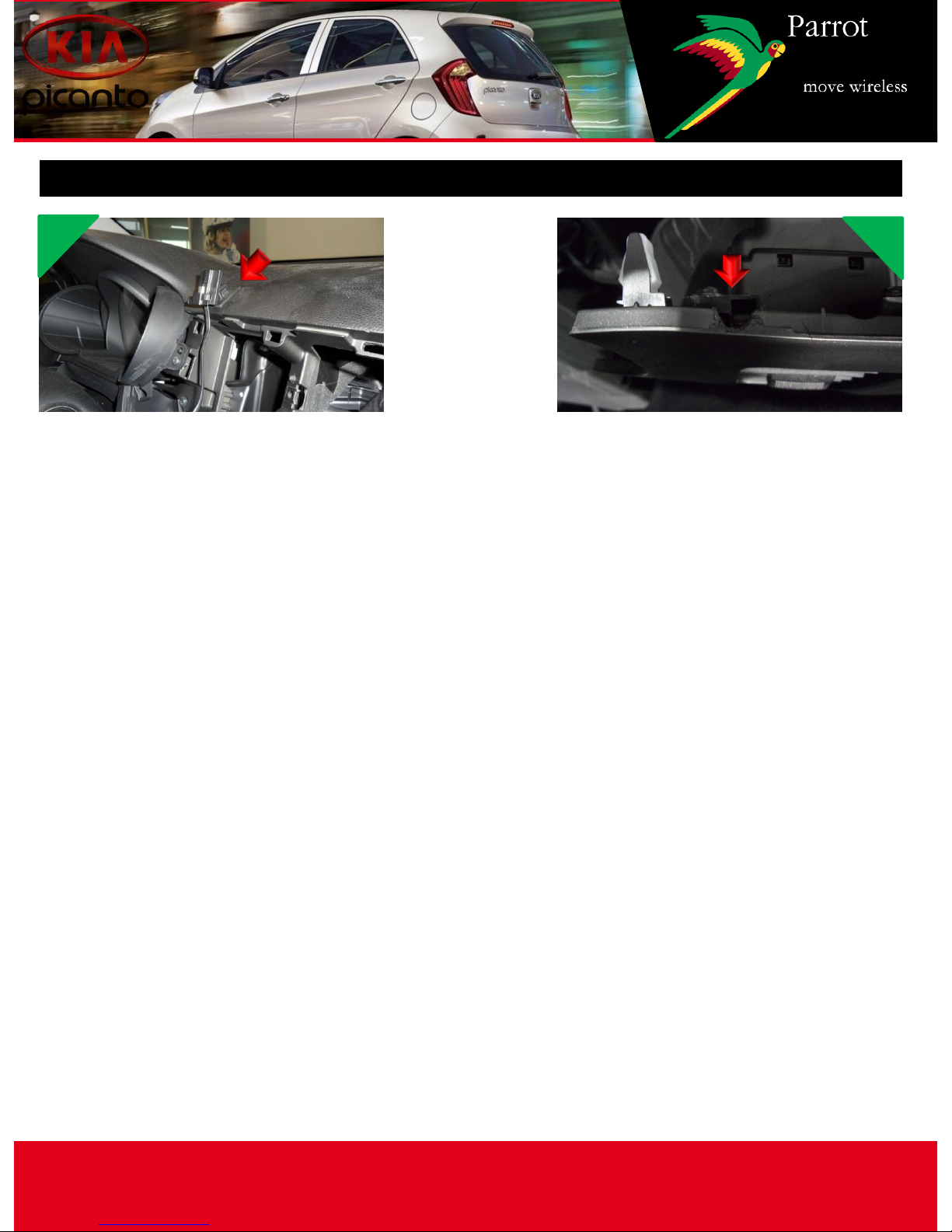

Fitting the hands-free system 2 / 2

Glue the bracket to the top left of

the screen, after carefully

degreasing the surface

Using a drill or file, make a notch in

the air vent cover at the top

opposite the screen mounting

2 3

This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

the authorisation of Parrot SA. Pictures for information only.

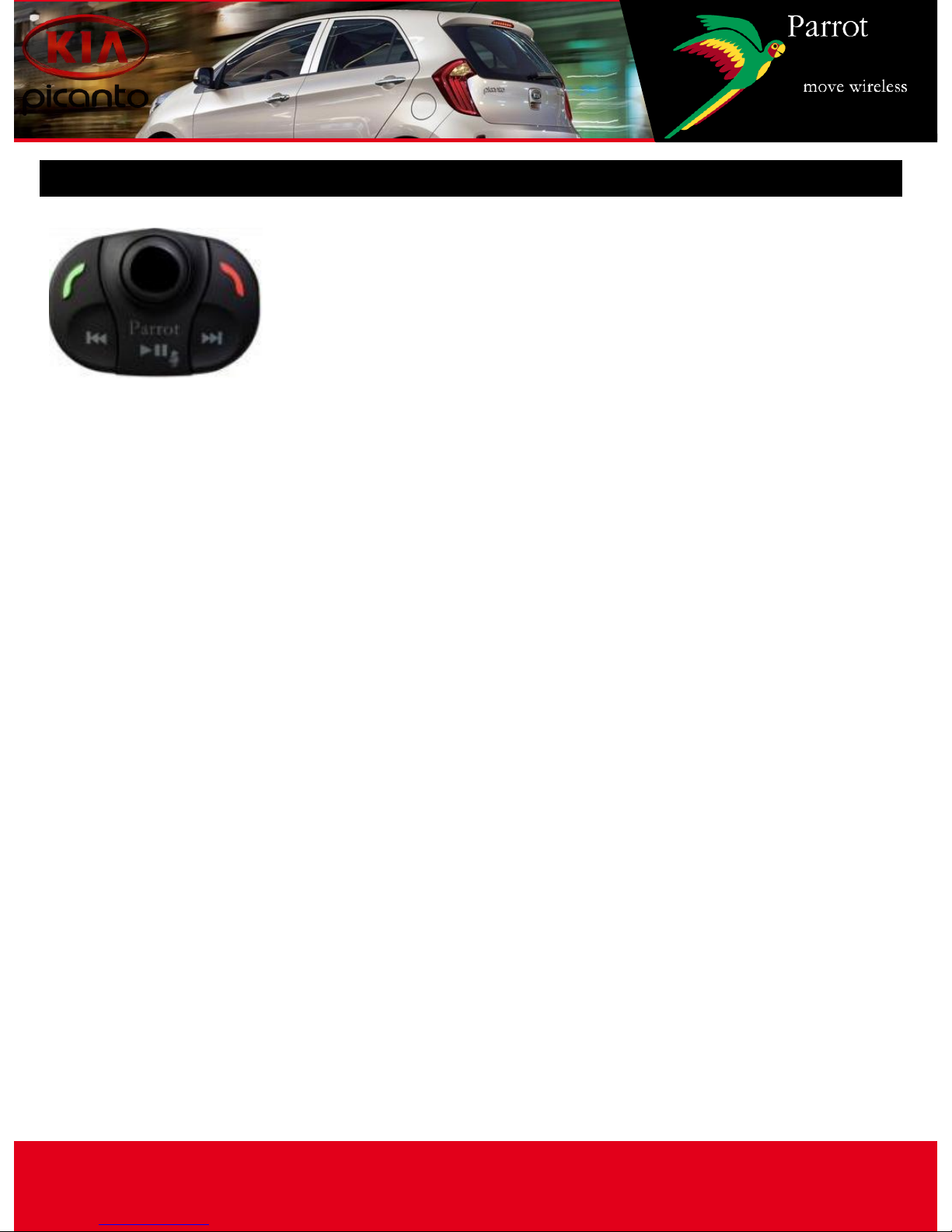

Testing

Before refitting the system, switch the kit on using the

ignition (or by starting the car). By pushing the central knob

of the remote control, check:

1 - that the menu is displayed on the screen (language or

iPod etc)

2 - that the radio system is muted when the kit is in use (click

in the blue box)

3 - that the sound through all speakers is properly muted

4 - that there is sound through the front speakers for spoken

menus

5 - then turn off the ignition, verify that the kit turns off and

that the message “goodbye” is displayed on the screen

(otherwise reverse the fuses on the kit power supply

harness)

6 - pair a telephone with the kit and make a call (check that

both the microphone and the kit are working)

This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

the authorisation of Parrot SA. Pictures for information only.

Refitting

Refit the system using the following procedure:

1 - reinstall the radio reconnecting the adaptor and the antenna

2 - refit the 4 screws (1, 2, 3 and 4) around the radio

3 - re-clip the cover with the air vents placing the screen cable in the notch (pay

ATTENTION to avoid cutting the cable)

4 - refit the right dashboard panel
