Parkinson Cowan SIG 340 Manuel utilisateur
Owners handbook
and
Installation instructions
SIG 340
Introduction
This gas cooker has been designed and manufactured to all the
necessary British Standards. This cooker carries the C.E. mark.
It is important that you understand how to use and care for the
cooker properly before you use it for the first time.
We have written this booklet with your safety in mind. Read the
booklet thoroughly before you use the cooker. Keep the booklet in a
safe place so that anyone who uses the cooker can read it. Pass the
booklet on with the cooker if you give or sell it to someone else.
We have included several drawings to show the right and wrong way
of doing things.
The right way will have a smiling face by it.
A sad face shows something is wrong.
Do not remove the rating plate from the cookers as this may
invalidate the guarantee.
For your safety
The cooker is designed to cook food and you must not use it for
any other purpose.
Keep children, babies and toddlers away from the cooker at all
times.
The installation instructions tell you how and where it can be
fitted. If the cooker is already installed you must make sure that
all instructions have been followed. If you are in any doubt ask a
registered person. More details on installation on page 31.
2
S I G 3 4 0
I
n
t
ro
d
uc
ti
on
Contents
Page
Lighting the cooker 4
The grill 7
The hotplate 10
The ovens 13
Oven cooking chart - main oven 16
- second oven 19
Slow cooking 22
Care and cleaning 24
Installing the cooker 30
General information 32
What is wrong and why? 34
Servicing 35
Installation instructions 37
Technical Data 38
Safety requirements/ventilation 39
Location of appliance/installation 40
Testing 42
S I G 3 4 0
3
Contents
Lighting the cooker
The system works by means of a battery. Details on how to replace the
battery are given on page 32.

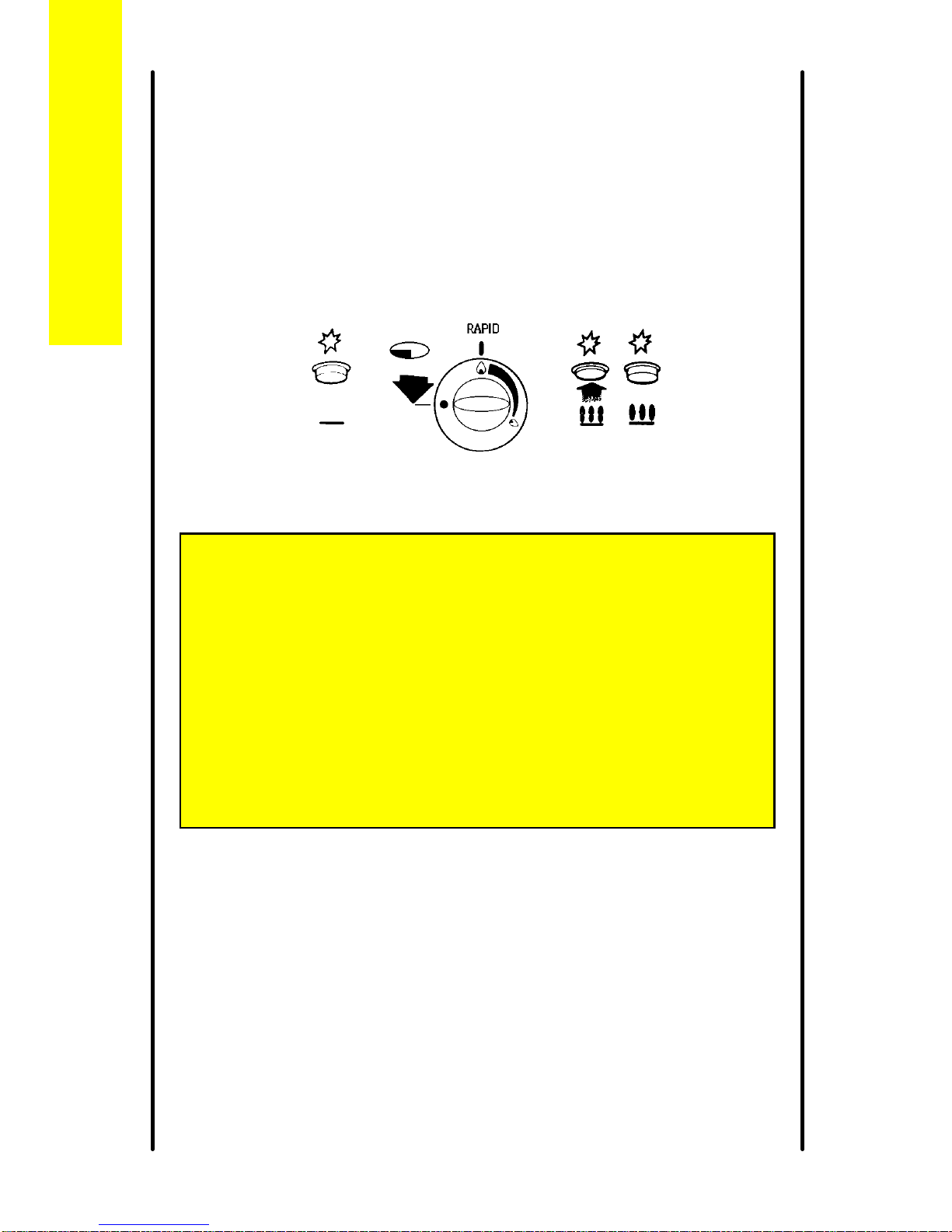

Hotplate
To light:
1 Lift up the lid. You cannot use the hotplate when the lid is down.
2 Push in the control knob and turn to the large flame symbol (highest
setting), and press the ignition button immediately. When the burner
has lit release the button.
Warning: If the ignition button is not pressed immediately a build up of gas
may cause the flame to spread.
Please note: If you have any trouble lighting a hotplate burner turn all the
hotplate control knobs off. Make sure that the burner parts have been
replaced correctly. See page 25 for more information.
Grill/second oven
The grill and the second oven are operated by the same control so you
cannot use them both at the same time.
S I G 3 4 0
4
Lighting the cooker
For your safety
If you close the lid of the cooker while any of the hotplate burners
are lit the gas will go out. This is because it would be dangerous if
the burners stayed on when the lid was closed.
Always use the control knob to turn off a burner. Do not use
the lid as a cut-off device. This will only cut off the gas when
the lid is closed. The gas will flow again when the lid is
opened.

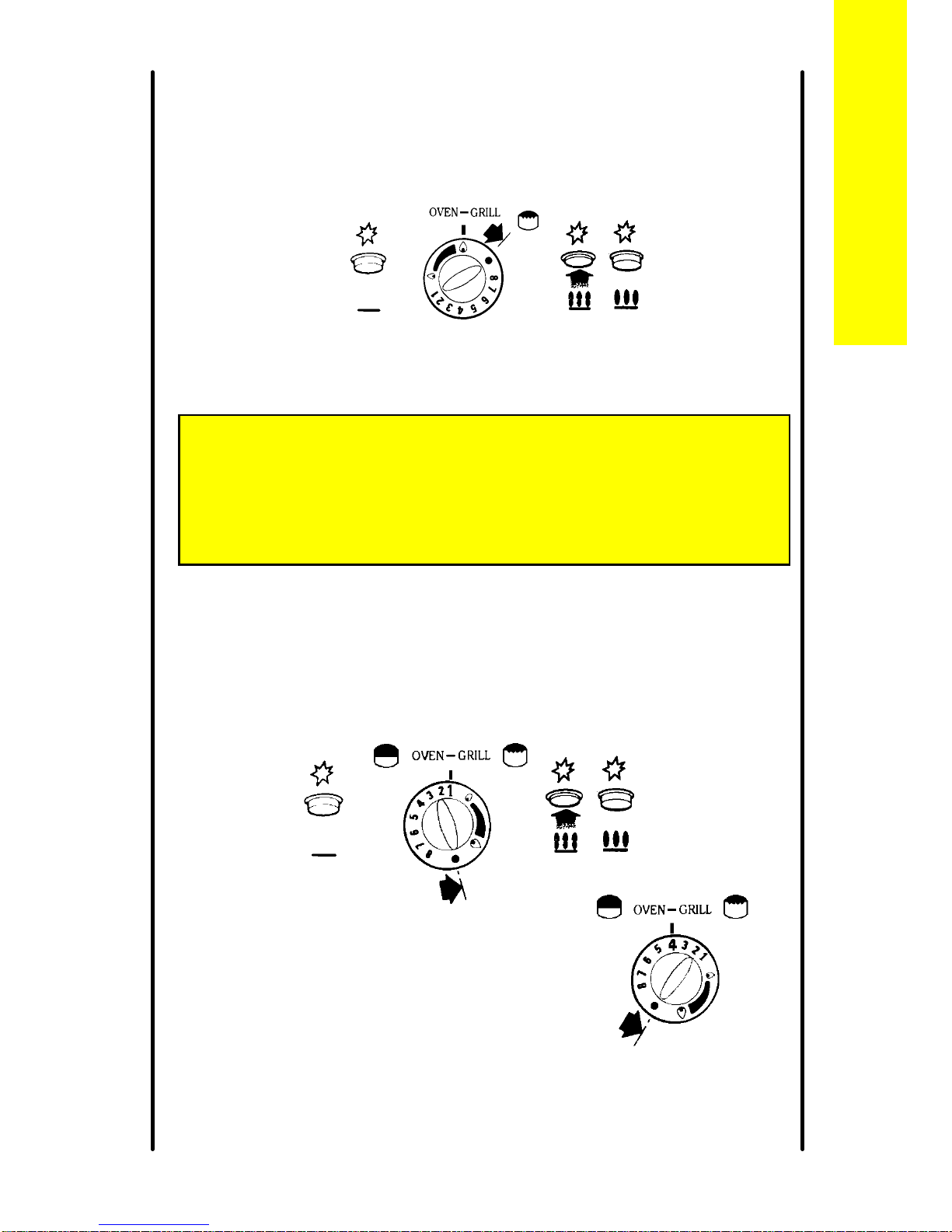

Grill
To light:
1 Push in the control knob and turn it to the right to the large flame
symbol (highest setting), and press the ignition button immediately.
When the burner has lit release the button.
2 Leave the grill door open when you are using the grill.
Warning: If the ignition button is not pressed immediately a build up of gas
may cause the flame to spread from the grill cavity.
Second oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to the left to gas mark 1, and press
the ignition button immediately. When the burner has lit release the
button. There will only be small flames at first.
3 Now turn the control knob to the
gas mark you want.
4 Wait until the burner is showing
large flames.
5 Close the oven door.
Important: Remember to remove the grill pan handle before you use the
second oven.
S I G 3 4 0
5
Lighting the cooker
For your safety
Never cover the grill pan or grid with foil as this can lead to grill
fires.

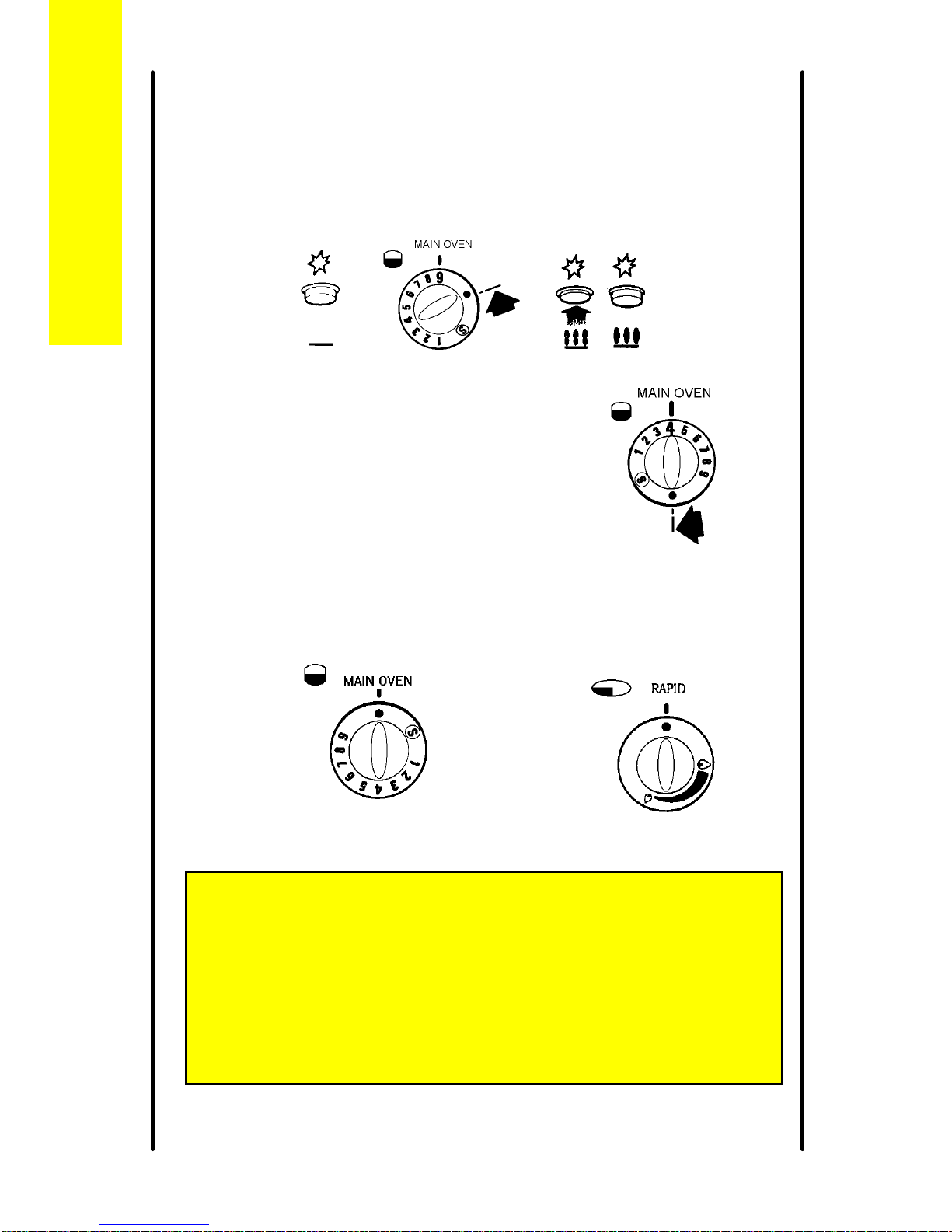

Main oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to gas mark 9, and press the
ignition button immediately. When the burner has lit release the button.
There will only be small flames at first.
3 Now turn the control knob to the gas mark
you want.
4 Wait until the burner is showing large
flames.
5 Close the oven door.
To turn off any burner
1 Push in the control knob and turn it to the off position. This is shown
by a large dot.
S I G 3 4 0
6
For your safety
When you are lighting any burner check that it has lit before you
leave the cooker.
When you are turning off a burner, do not leave the cooker until
the flame has gone out.
Lighting the cooker
The grill
The grill is a high-speed grill. The instructions below tell you how to vary
the heat setting and how to change the height of the grid to suit the food
you are cooking. You should remember to turn the food regularly.
You should not use the grill to keep food warm as it will continue to
cook the food.

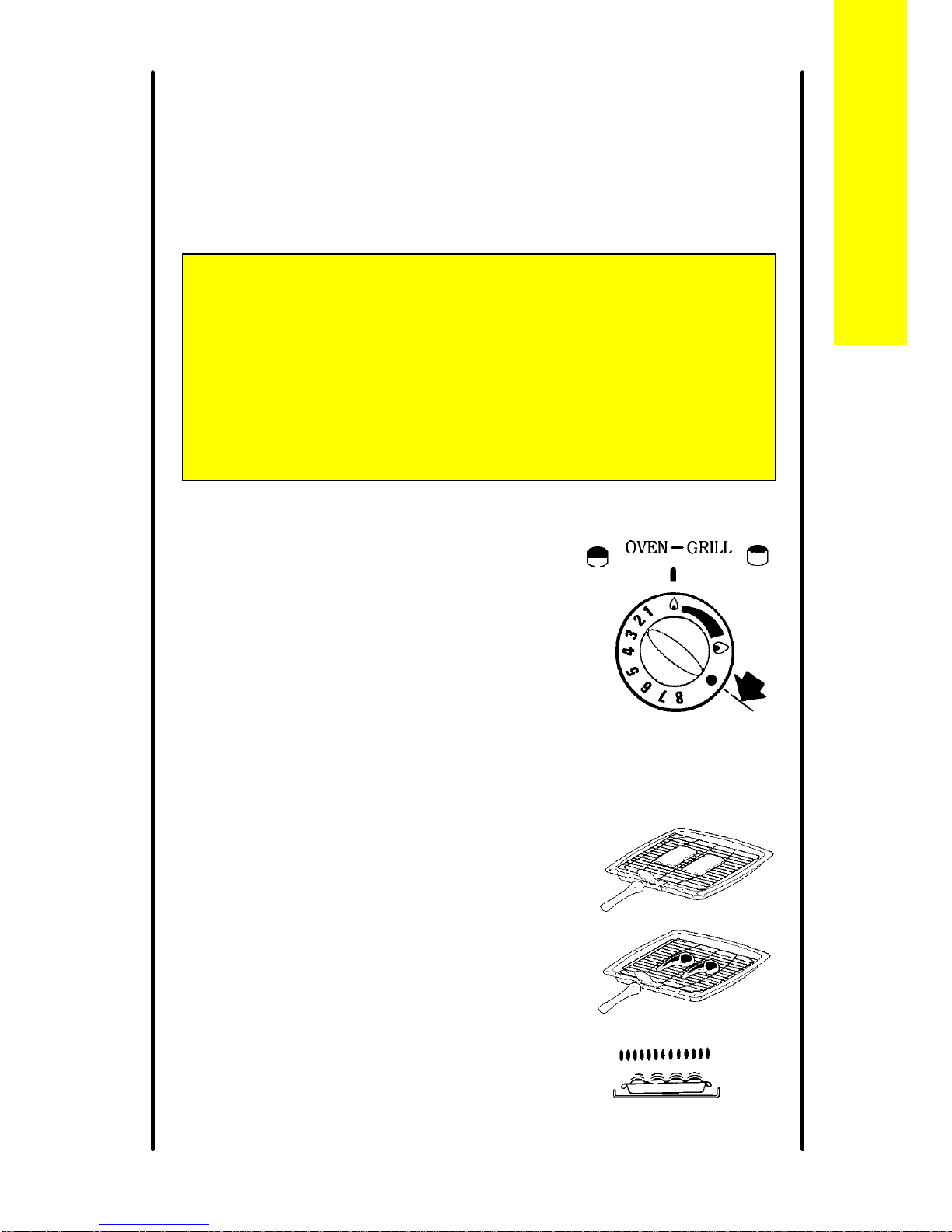

Heat control
The grill control has two heat settings.
The control knob turns to the right from 'OFF'
to 'HIGH' and then to 'LOW'. Use the high setting
for fast cooking such as toast. Use the low setting
to cook thicker food such as chicken after you
have browned it on the high setting.
Cooking positions
You can put the grill shelf in either of the two
positions.
Most food should be cooked on the grid in the
grill pan. You can turn the grid over to suit
different thicknesses of food.
You can place some dishes straight on to the
grill shelf. This is useful when you are browning
the top of food such as cauliflower cheese.
S I G 3 4 0
7
For your safety
You must keep the grill door open when the grill burner is lit.
Accessible parts may be hot when the grill is used. Young
children should be kept away.
Never cover the grill pan or grid with foil as this can lead to grill
fires.
The grill
General
The shelf in the grill/second oven is different from the shelves in the main
oven. It is important that you do not swap them over. Only use the shelf
with the solid metal plate underneath it in the grill/second oven.
When you are not using the grill pan you should remove the handle
and store the pan on the shelf in the grill. Turn the grill burner off before
you store the pan. Remember that the pan will get hot when you are using
the main oven.
You can use the grill compartment to warm plates when you are using
the main oven.
Preheating
You don't usually need to preheat the grill. You may wish to preheat it for a
couple of minutes when you are cooking steak or browning food.
Putting food on
the grid

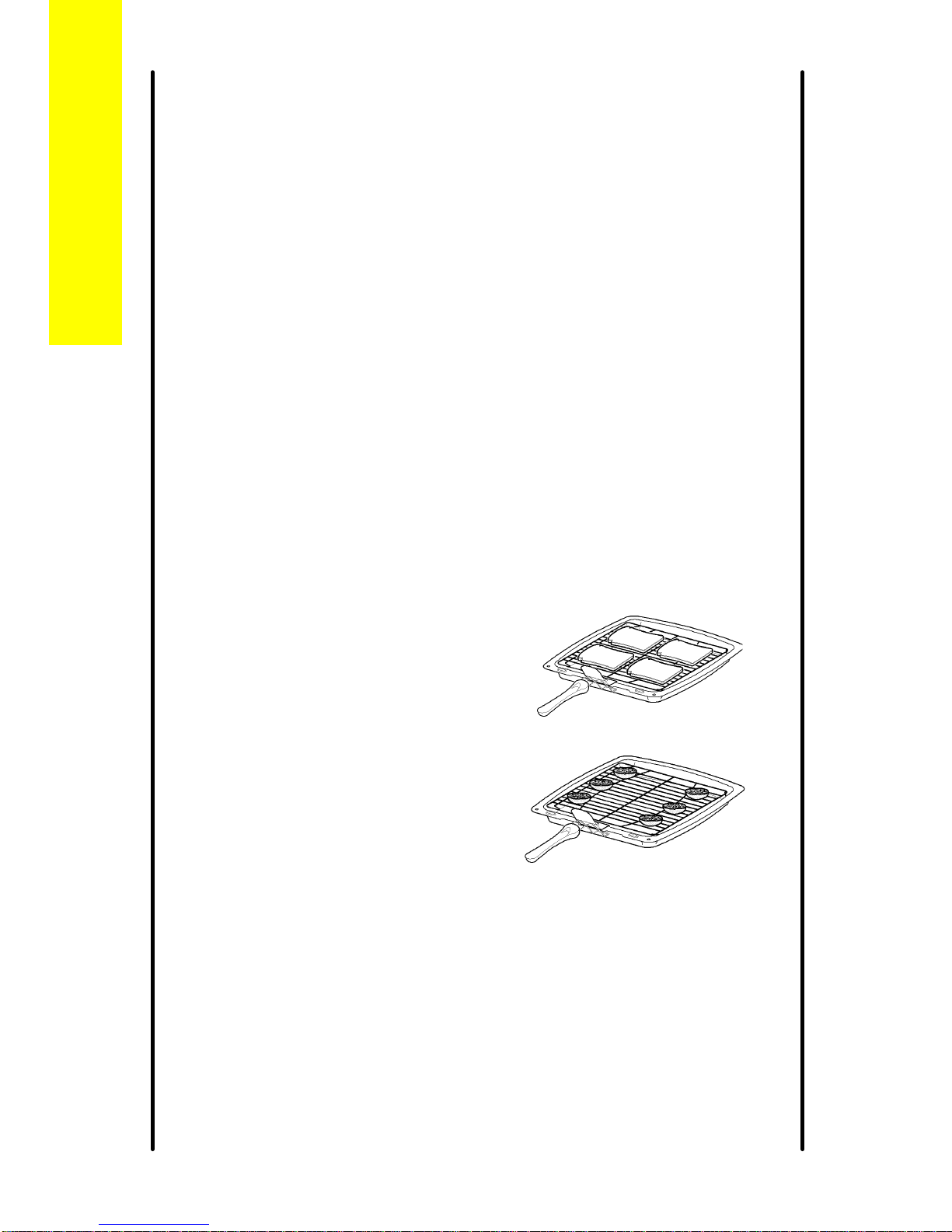

Place food such as toast, tea-cakes
and muffins towards the centre of the
grid.
Place food which needs a gentle
heat, such as tomatoes and
mushrooms towards the edge of the
grid.
Arrange meat, meat products and
fish to suit their thickness and how
you like them cooked.
S I G 3 4 0
8
The grill
The grill pan and handle

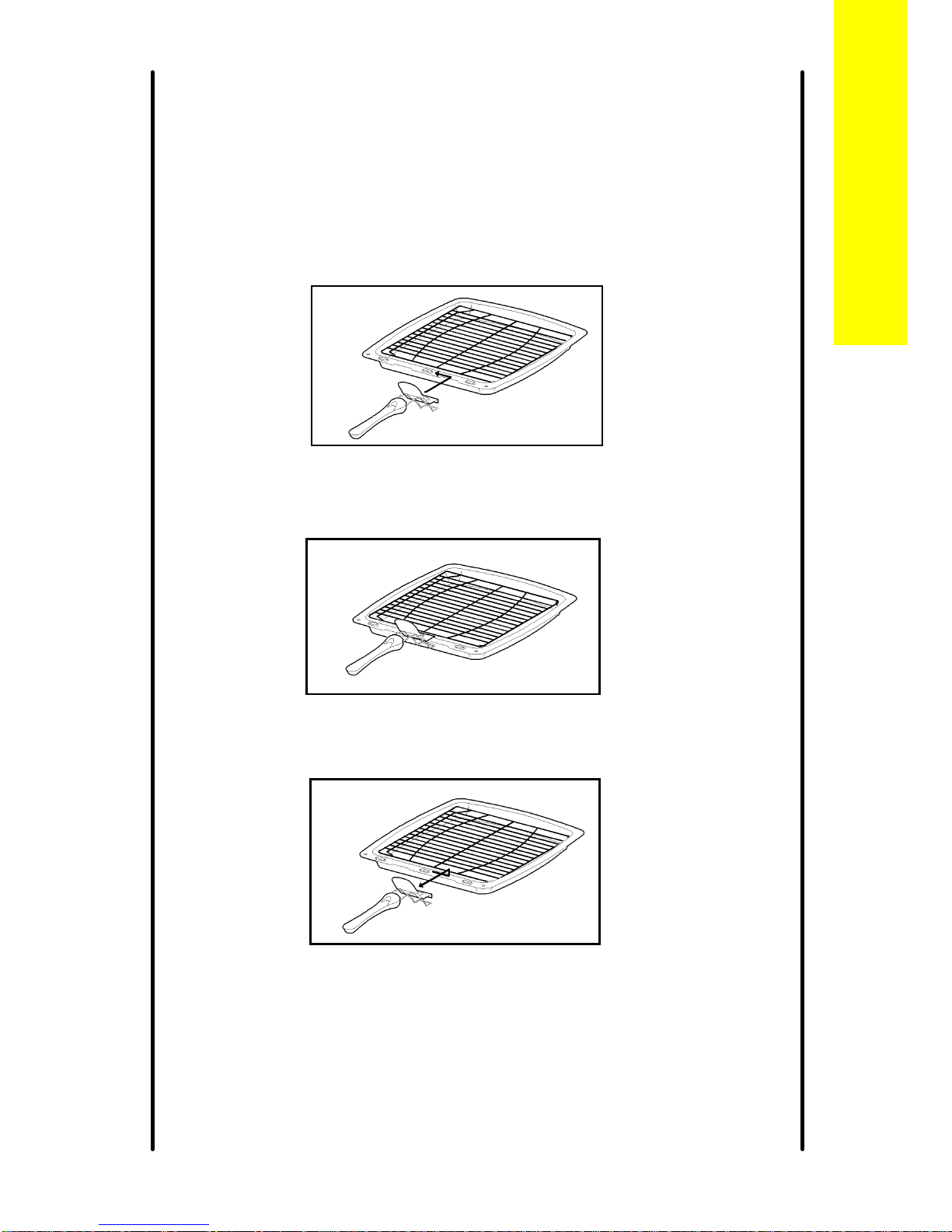

The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the cut out in the pan so
that the metal plate hooks over the top of the grill pan.
Slide the handle to the left and over the central bump on the grill pan.
Ensure the handle is correctly located. It is not necessary to
remove the grill pan handle during grilling.
Place the grill pan on the shelf so that the pan is positioned centrally
beneath the grill.
To remove the handle, slide the handle to the right and lift the handle
away from the cut out on the grill pan.
Note
If you require an additional handle for your grill pan, this can be ordered
from Parkinson Cowan by quoting part number 311479800\6.
S I G 3 4 0
9
The grill
The hotplate
You can only use the hotplate when the lid is open. If you have any
trouble lighting a hotplate burner, turn all hotplate control knobs off and
make sure that the burner parts have been replaced correctly. Now light
the burner in the usual way. See page 25 for more detailed information.
Heat control
The hotplate control knobs turn anticlockwise
from 'OFF' to 'HIGH' and then to 'LOW'. You
can adjust the heat by turning the control
between the highest and lowest settings.
These are shown as a large and a small flame
symbol.

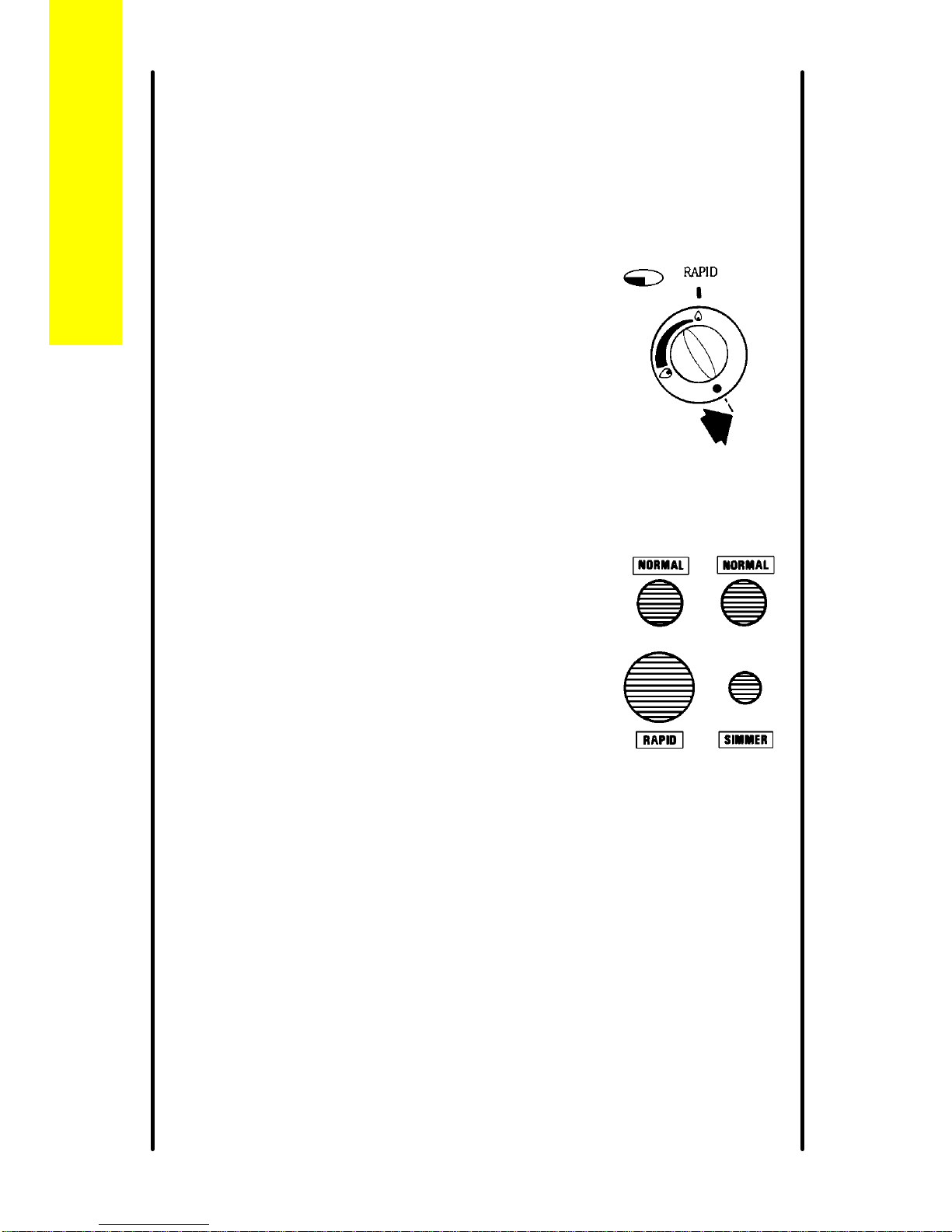

Burner sizes
The hotplate has three burner sizes to suit
different types of cooking:
Largest burner (Rapid) - use a large pan for
food such as chips.
Medium burners (Normal) - use for everyday
cooking.
Small burner (Simmer) - use for simmering food
such as soups and stews.
The largest pan which you should use on any burner is 230mm (9").
The base of the smallest pan should not measure less than 100mm (4").
S I G 3 4 0
10
