Parkinson Cowan SIG 320 Manuel utilisateur
Owners handbook
and
Installation instructions
SIG 320
Introduction
This gas cooker has been designed and manufactured to all the
necessary British Standards. It also carries the C.E. mark. The cooker
complies with European Council Directive 90/396/EEC.
It is important that you understand how to use and care for the
cooker properly before you use it for the first time.
We have written this booklet with your safety in mind. Read the
booklet thoroughly before you use the cooker. Keep the booklet in a
safe place so that anyone who uses the cooker can read it. Pass the
booklet on with the cooker if you give or sell it to someone else.
We have included several drawings to show the right and wrong way
of doing things.
The right way will have a smiling face by it.
A sad face shows something is wrong.
Do not remove the rating plate from the cooker as this may
invalidate the guarantee.
For your safety
This cooker is designed for domestic use to cook food. You must
not use it for any other purpose. It is not designed for commercial
use.
Keep children, babies and toddlers away from the cooker at all
times.
The installation instructions that came with the cooker tell you
how and where it can be fitted. If the cooker is already installed
you must make sure that all instructions have been followed. If
you are in any doubt ask a registered person. More details on
installation on page 25.
2
S I G 3 2 0
I
n
t
ro
d
uc
ti
on
Contents
Lighting the cooker 4
The grill 7
The hotplate 10
The oven 13
Oven cooking chart 15
Slow cooking 18
Care and cleaning 20
Installing the cooker 25
General information 27
What is wrong and why? 29
Servicing 30
/Installation instructions 32
Technical data 33
Safety requirements/ventilation 34
Location of appliance 35
Testing 37
3
S I G 3 2 0
Contents
Page
Lighting the cooker
The ignition system works by means of a battery. Details on how to
replace the battery are given on page 27.
Hotplate

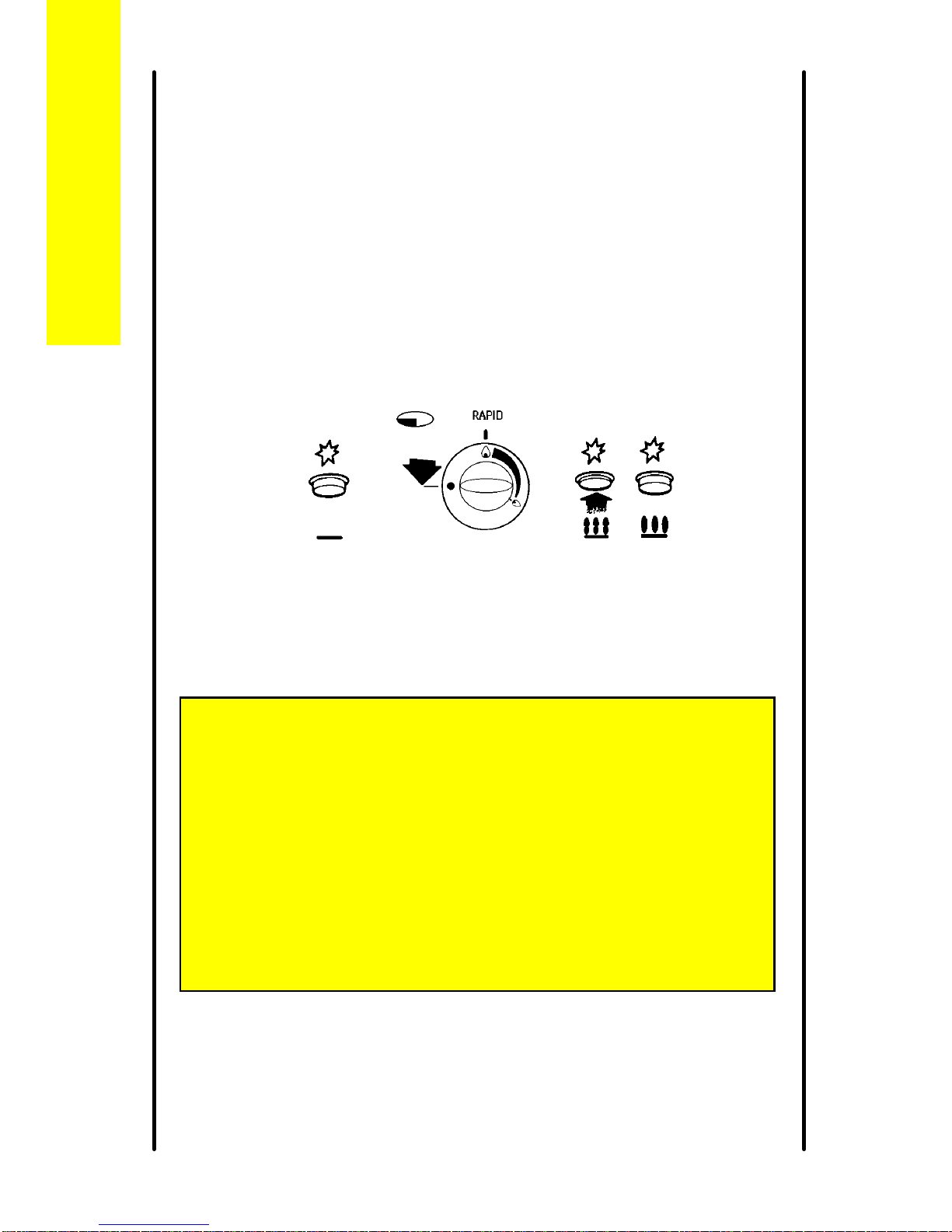

To light
1 Lift up the lid. You cannot use the hotplate when the lid is down.
2 Push in the control knob and turn to the large flame symbol (highest
setting), and press the ignition button immediately. When the burner
has lit release the button.
Warning: If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
4
S I G 3 2 0
Lighting the cooker
For your safety
If you close the lid of the cooker while any of the hotplate burners
are lit the gas will go out. This is because it would be dangerous if
the burners stayed on when the lid was closed.
Always use the control knob to turn off a burner. Do not use
the lid as a cut-off device. This will only cut off the gas when
the lid is closed. The gas will flow again when the lid is
opened.
Grill
To light:
1 Push in the control knob and turn it to the large flame symbol
(highest setting), and press the ignition button. When the burner has
lit release the button.
2. Adjust setting as required.
Warning: If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
Oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to gas mark 9. Press the ignition
button. When the burner has lit release the button. There will only be
small flames at first.
3 Now turn the control knob to the
gas mark you want.
4 Wait until the burner is showing
large flames.
5 Close the oven door.
5
S I G 3 2 0
Lighting the cooker
For your safety
Never cover the grill pan or grid with foil as this can lead to grill
fires.
To turn off any burner
1 Push in the control knob and turn it to the off position. This is shown
by a large dot.
6
S I G 3 2 0
Lighting the cooker
For your safety
When you are lighting any burner check that it has lit before you
leave the cooker.
When you are turning off a burner, do not leave the cooker until
the flame has gone out..
The grill
The grill is a high-speed grill. The instructions below tell you how to vary
the heat setting and how to change the height of the grid to suit the food
you are cooking. You should remember to turn the food regularly.
You should not use the grill to keep food warm as it will continue to
cook the food.
Heat control
The grill control has two heat
settings.
The control knob turns to the left
from 'OFF' to 'HIGH' and then to
'LOW'. Use the high setting for fast
cooking such as toast. Use the low
setting to cook thicker food such as
chicken after you have browned it
on the high setting.
Cooking positions
You can put the grill shelf in either
of the two positions.
Most food should be cooked on
the grid in the grill pan. You can turn
the grid over to suit different
thicknesses of food.
You can place some dishes
straight on to the grill shelf. This is
useful when you are browning the
top of food such as cauliflower
cheese.
7
S I G 3 2 0
For your safety
You must keep the grill door open when the grill burner is lit.
Accessible parts may be hot when the grill is used. Young
children should be kept away.
Never cover the grill pan or grid with foil as this can lead to grill
fires.
The grill
General
When you are not using the grill you should remove the handle and
store the pan on the shelf in the grill. Turn the grill burner off before you
store the pan. Remember that the pan will get hot when you are using
the oven.
You can use the grill compartment to warm plates when you are
using the oven.
Preheating
You don't usually need to preheat the grill. You may wish to preheat it for
a couple of minutes when you are cooking steak or when browning food.
Positioning food on
the grid
Place food such as toast, tea-cakes
and muffins towards the centre of
the grid.
Place food which needs a more
gentle heat, such as tomatoes and
mushrooms towards the edge of the
grid.
Arrange meat, meat products
and fish to suit their thickness and
how you like them cooked.
8
S I G 3 2 0
The grill
The grill pan and handle
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the cut out in the pan so
that the metal plate hooks over the top of the grill pan.
Slide the handle to the left and over the central bump on the grill pan.
Ensure the handle is correctly located. It is not necessary to
remove the grill pan handle during grilling.
Place the grill pan on the shelf so that the pan is positioned centrally
beneath the grill.
To remove the handle, slide the handle to the right and lift the handle
away from the cut out on the grill pan.
Note
If you require an additional handle for your grill pan, this can be ordered
from your local Service Force Centre by quoting part number
311479800\6.
9
S I G 3 2 0
The grill
The hotplate
You can only use the hotplate when the lid is open. If you have any
trouble lighting a hotplate burner turn all hotplate control knobs off and
make sure the hotplate burner parts have been replaced correctly. See
page 21 for more information.
Heat control
The hotplate control knobs turn
anticlockwise from 'OFF' to 'HIGH'
and then to 'LOW'. You can adjust
the heat by turning the control
between the highest and lowest
settings. These are shown as a
large and a small flame symbol.
Burner sizes
The hotplate has three burner sizes
to suit different types of cooking:
Largest burner (Rapid) - use a large
pan for food such as chips.
Medium burners (Normal) - use for
everyday cooking.
Small burner (Simmer) - use for
simmering food such as soups and
stews.
The largest pan which you should use on any burner is 230mm (9"). The
base of the smallest pan should not measure less than 100mm (4").
10
S I G 3 2 0
The hotplate
