Parkinson Cowan 311330813 Manuel utilisateur
Owners handbook
and
Installation instructions
(L.P.G.)
Introduction
This cooker has been designed and manufactured to all the necessary
British Standards. The cooker complies with European Council Directive
90/396/EEC. It also carries the C.E mark.
It is important that you understand how to use and care for the
cooker properly before you use it for the first time.
We have written this booklet with your safety in mind. Read the
booklet thoroughly before you use the cooker. Keep the booklet in a
safe place so that anyone who uses the cooker can read it. Pass the
booklet on with the cooker if you give or sell it to someone else.
We have included several drawings to show the right and wrong way
of doing things.
The right way will have a smiling face by it.
A sad face shows something is wrong.
Do not remove the rating plate from the cooker as this may invalidate
the guarantee.
I
n
t
ro
d
uc
ti
on
R E N O W N D E L U X E
2
For your safety
This cooker is designed for domestic use to cook food. You must
not use it for any other purpose. It is not designed for commercial
use.
Keep children, babies and toddlers away from the cooker at all
times and do not allow them to sit or climb onto the drop down
oven door. The installation instructions tell you how and where it
can be fitted. If the cooker is already installed you must make
sure that all instructions have been followed. If you are in any
doubt ask a registered person. More details on installation on
page 24.
Contents Page
Lighting the cooker 4
The grill 6
The hotplate 8
The oven 11
Oven cooking chart 13
Slow cooking 16
Care and cleaning 19
Installing the cooker 24
General information 26
What is wrong and why? 28
Servicing 29
Installation Instructions 30
Technical Data 31
Safety requirements/ventilation 32
Location of appliance/installation 33
Testing 35
R E N O W N D E L U X E
3
Contents
Lighting the cooker
The ignition system works by means of a battery. Details on how to
replace the battery are given on page 26.

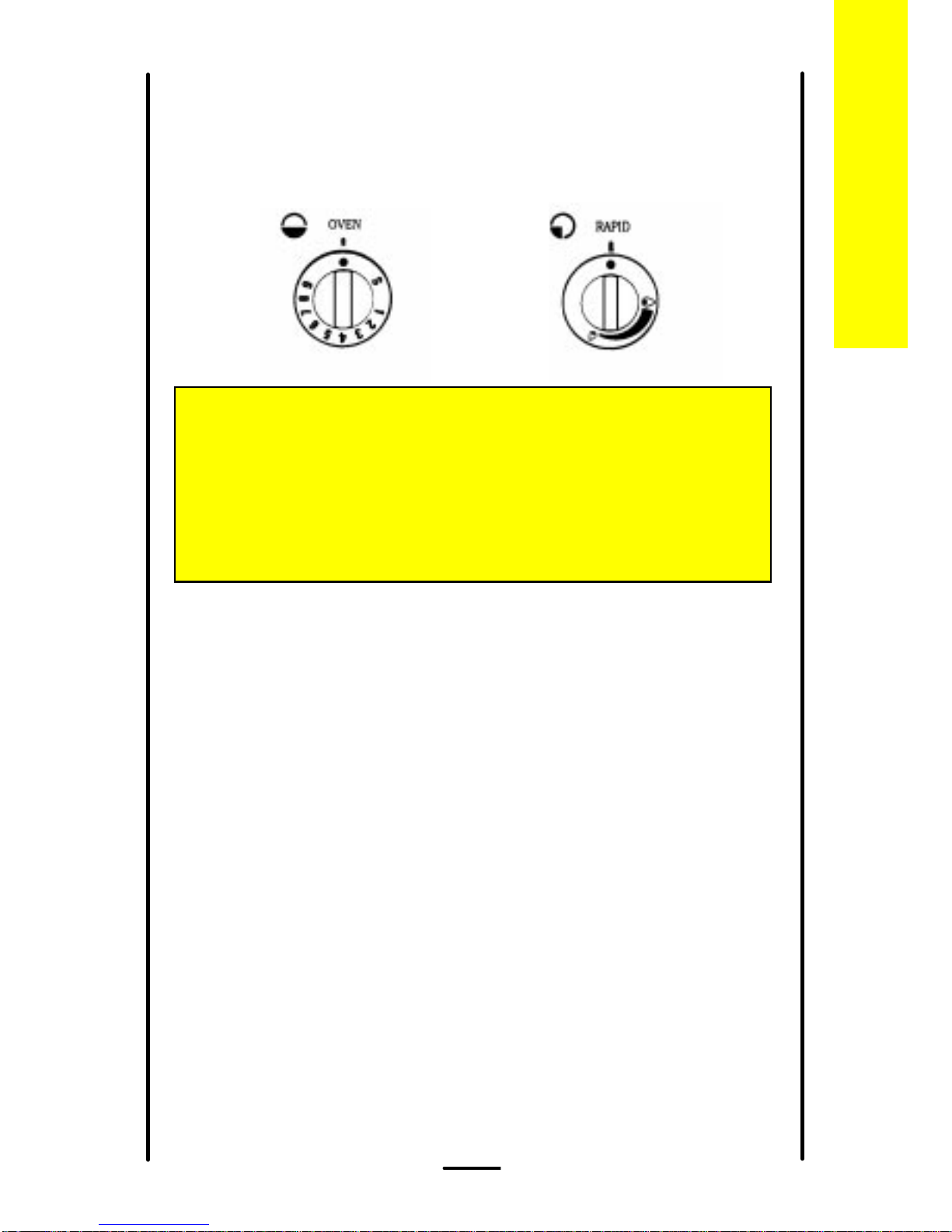

Grill and hotplate

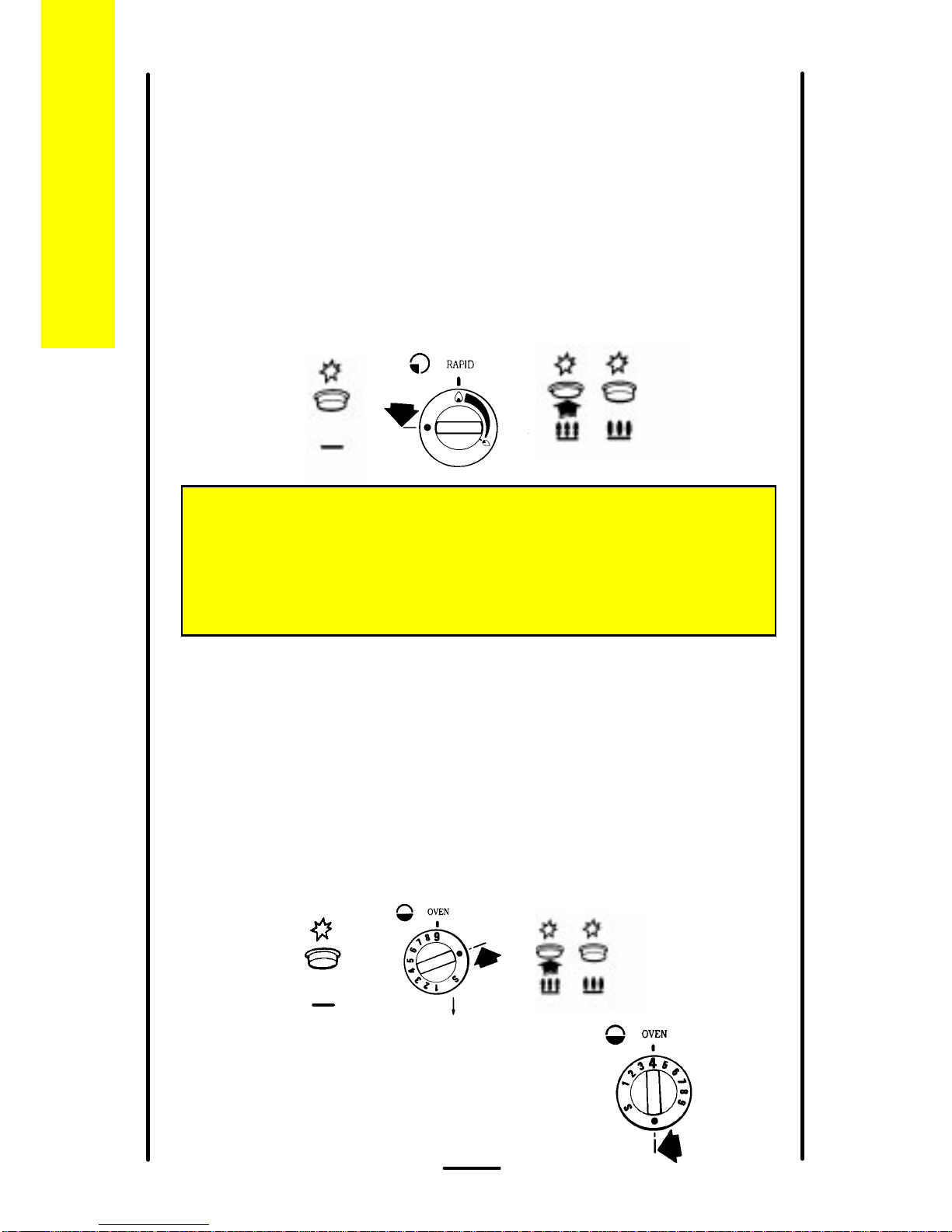

To light:
1 Push in the control knob and turn to the large flame symbol (highest
setting), and press the ignition button immediately. When the burner
has lit release the button.
Warning: If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
Oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to gas mark 9, and press the
ignition button immediately. When the burner has lit release the
button. There will only be small flames at first.
3 Now turn the control knob to the gas
mark you want.
4 Wait until the burner is showing large
flames.
5. Close the oven door.
R E N O W N D E L U X E
4
Li
g
hti
ng
th
e coo
k
er
For your safety
Never cover the grill pan or grid with foil as this can lead to
grill fires.
To turn off any burner
1 Push in the control knob and turn it to the off position. This is shown
by a large dot.
R E N O W N D E L U X E
5
For your safety
When you are lighting any burner check that it has lit before you
leave the cooker.
When you are turning off a burner, do not leave the cooker
until the flame has gone out.
Lighting the cooker
The grill
The grill is a high-speed grill. The instructions below tell you how to vary
the heat setting and how to change the height of the grid to suit the food
you are cooking. You should remember to turn the food regularly.
You should not use the grill to keep food warm as it will continue to
cook the food.

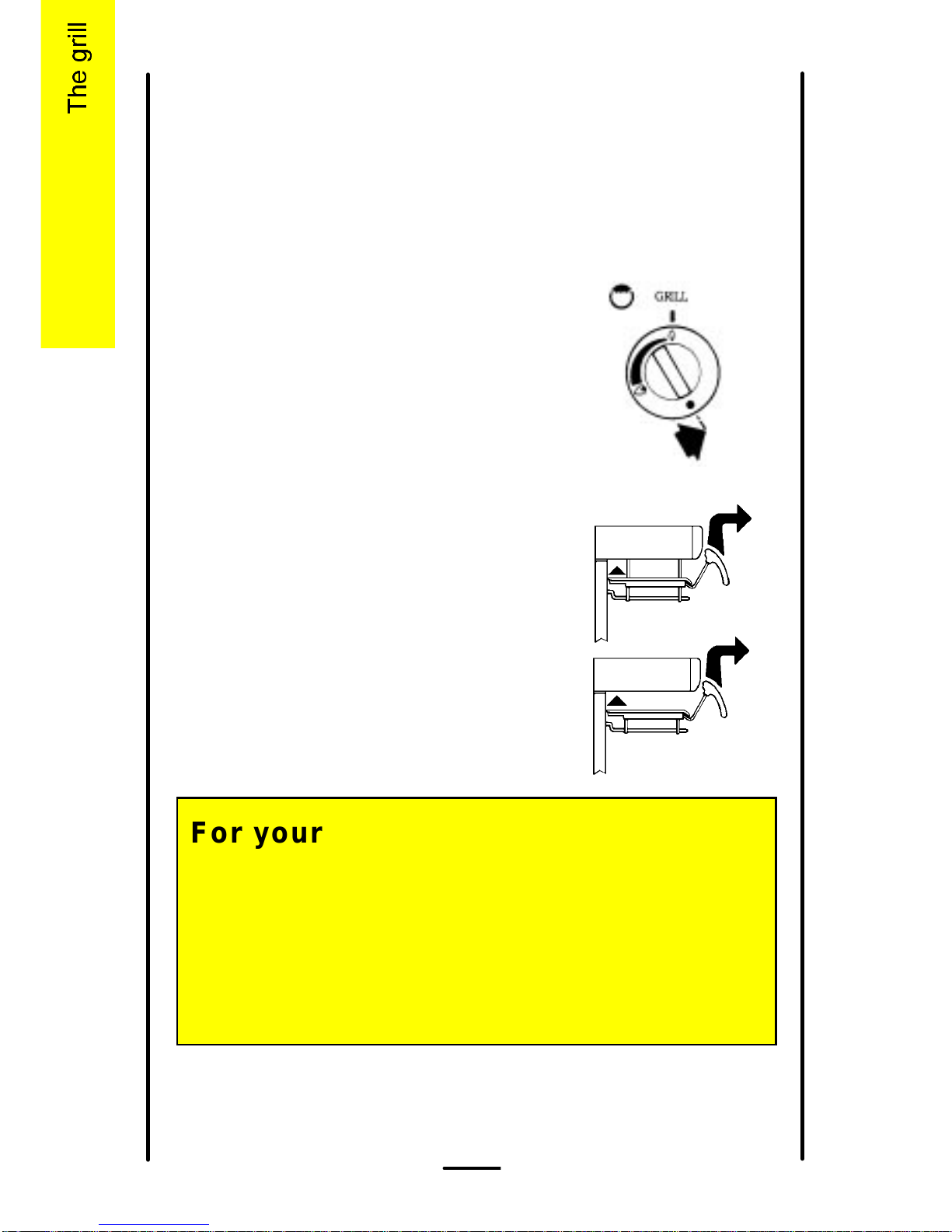

Heat control
The grill control gives two heat settings.
The control knob turns to the left from
'OFF' to 'HIGH' and then to 'LOW'. The high
setting should be used for fast cooking such
as toast. Use the low setting to cook thicker
food such as chicken after it has been
browned on the high setting.
Grill pan
The pan is designed so you can pull it
forward but it will stay supported. To remove
the pan push it back as far as possible and
lift it off. Replace it in reverse order.
R E N O W N D E L U X E
6
Thegrill
For your safety
After replacing the pan, pull it out to make sure it has fitted back
properly.
Caution
Accessible parts may be hot when the grill is used. Young children
should be kept away.
Never cover the grill pan or grid with foil as this can lead to grill fires.

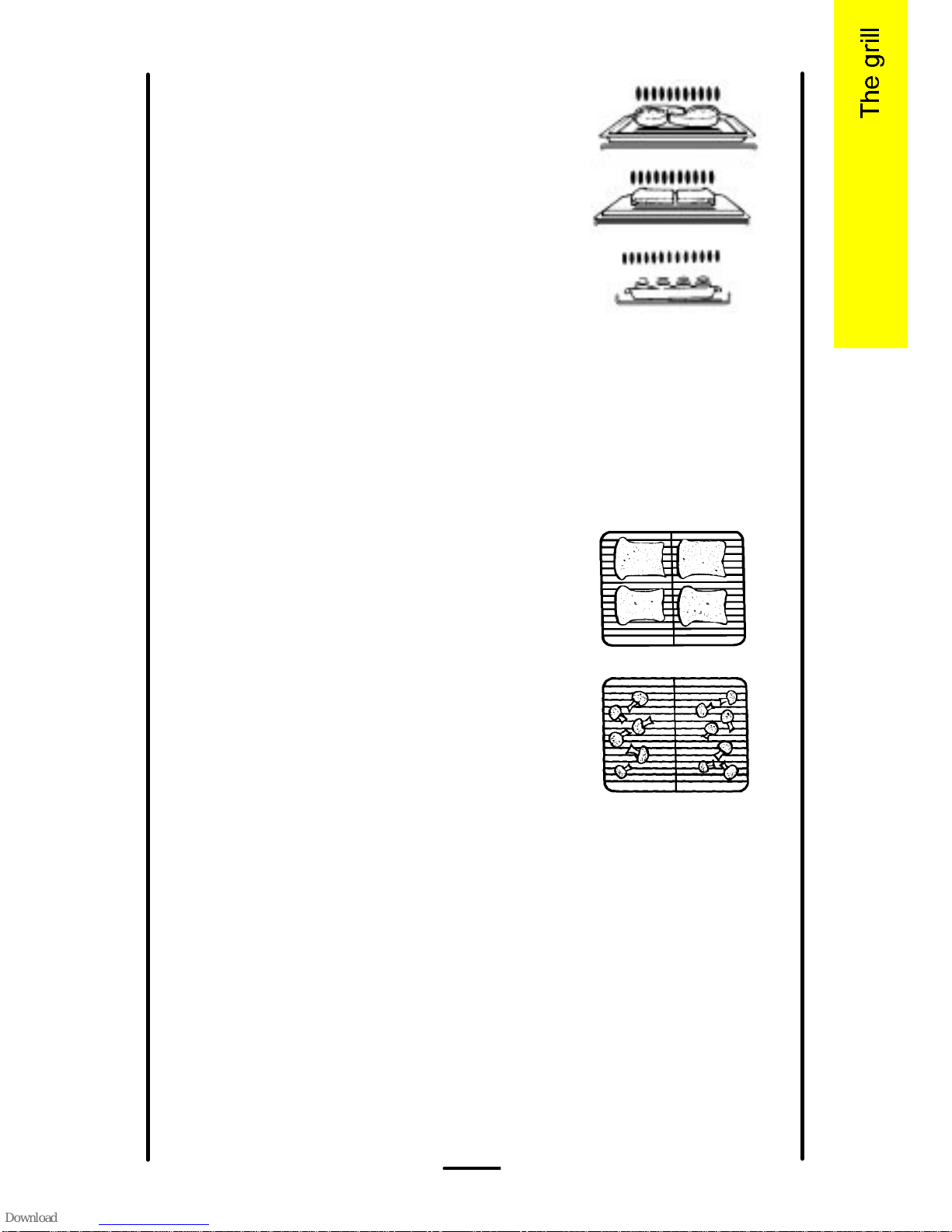

Cooking positions
Most food should be cooked on the grid
in the grill pan. The grid can be turned over
to suit different thicknesses of food.
You can place some dishes straight on to
the grill shelf. This is useful when you are
browning the top of food such as cauliflower
cheese.
Preheating
You don't usually need to preheat the grill. You may wish to preheat it
for a couple of minutes when you are cooking steak or when browning
food.
Positioning food on the grid
Place food such as toast, teacakes and
muffins towards the centre of the grid.
Place food which needs a more gentle heat
such as tomatoes and mushrooms towards
the edge of the grid.
Arrange meat, meat products and fish to
suit their thickness and how you like them
cooked.
R E N O W N D E L U X E
7
Thegrill
The hotplate
Heat control
The hotplate control knobs turn to the left
from 'OFF' to 'HIGH' and then to 'LOW'. You
can adjust the heat by turning the control
between the highest and lowest settings.
These are shown as a large and a small
flame symbol.
Burner sizes
The hotplate has three burner sizes to suit
different types of cooking:
Largest burner (Rapid) - use a large pan for
food such as chips.
Medium burners (Normal) - use for everyday
cooking.
Small burner (Simmer) - use for simmering
food such as soups and stews.
The largest pan which you should use on any burner is 230mm (9").
The base of the smallest pan should not measure less than 100mm (4").
R E N O W N D E L U X E
8
Th
e
h
otp
l
ate
R E N O W N D E L U X E
9

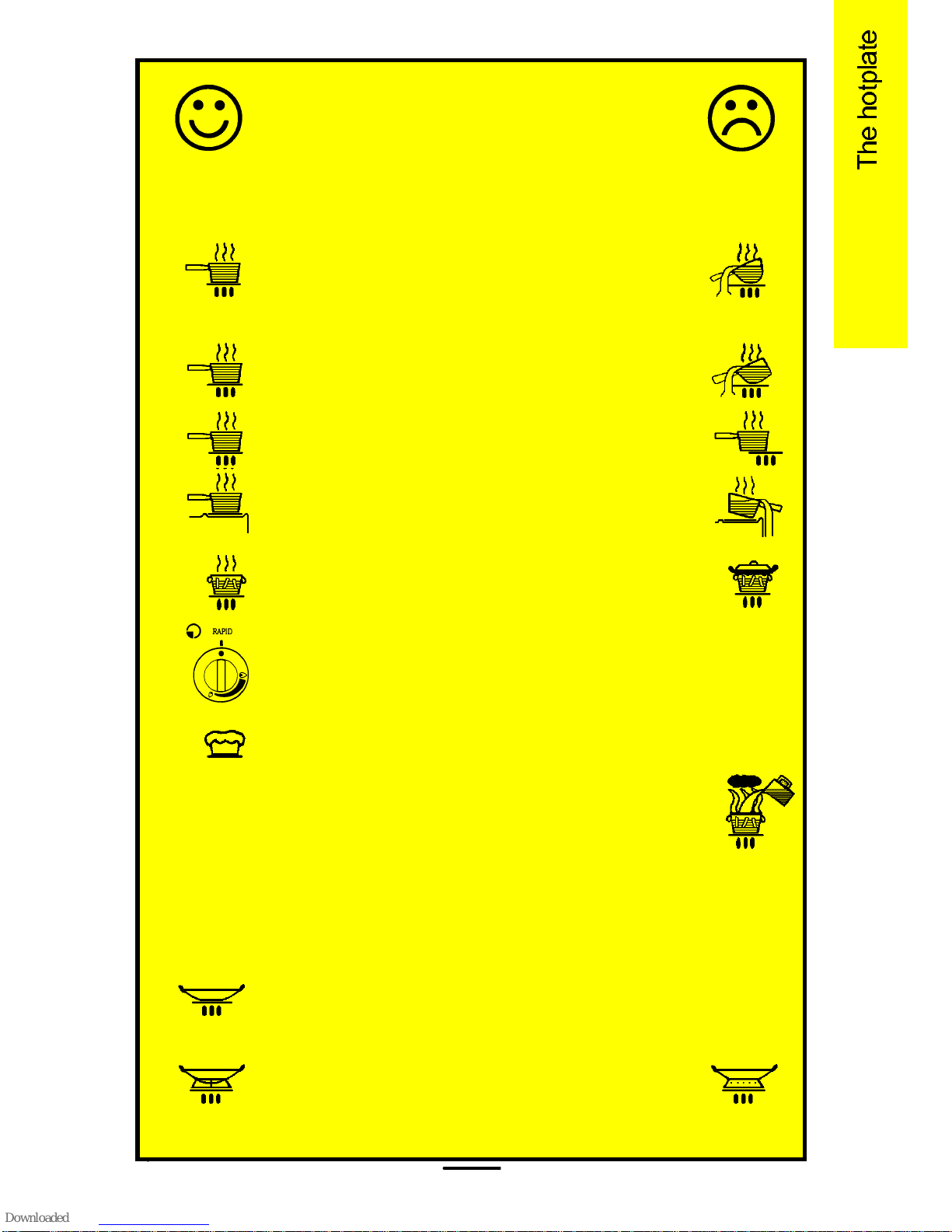

For your safety
1 Take care to avoid burns and scalds when you
are reaching across the hotplate.
2 Use pans with flat bases. They are more stable
than pans which are warped.
3 Do not use pans with very heavy handles which
cause the pan to tip.
4 Put pans on the centre of the burners.
5 Position pan handles so they cannot be
accidentally knocked.
6 Take extra care when you are deep fat frying. Do
not cover the pan with a lid.
Do not leave a pan unattended. If the pan
catches fire, leave it where it is and turn off all
controls.
Place a damp cloth or a fitting lid over the pan to
smother the flames.
Never put water on the fire.
Leave the pan to cool for 30 minutes.
7 If you are using a Wok we recommend it has a flat
base as it will stand stable on the pan supports. If
you use a round based Wok with a collar support,
the collar must be of the open wire work type. A
closed collar will affect the performance of the
burner. Before you use the Wok make sure that
the collar is stable on the pan supports. Always
follow the instructions that come with the Wok.
Thehotplate

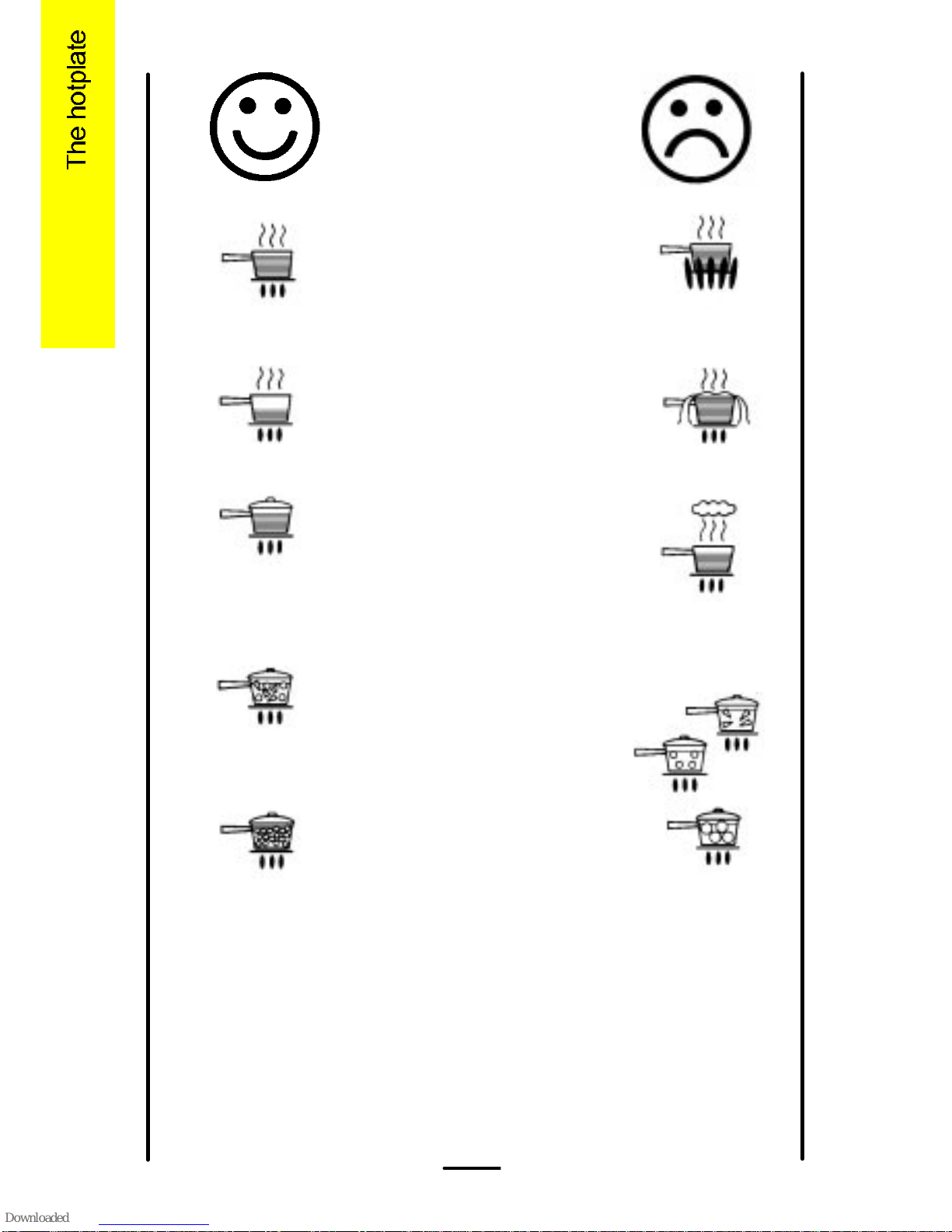

Helpful hints
1 Keep flames under the base of
pans. If the flames lick round the
sides of the pans you are wasting
gas.
2 Only heat the amount of liquid you
need. Do not overfill pans.
3 Cover pans with a lid whenever
possible. The food will heat up
more quickly and there will be less
steam in the kitchen.
4 Try cooking more than one
vegetable in the same pan, for
example potatoes and carrots.
5 Cut vegetables into smaller pieces.
This way they will cook more
quickly.
6 A pressure cooker will save time
and energy.
R E N O W N D E L U X E
10
Th
e
h
o
t
p
l
a
t
e
