Parkinson Cowan SiG320WL2 Manuel utilisateur

SIG 320

Operating

and

Installation Instructions

Introduction

This gas appliance has been designed and manufactured to all the

necessary British Standards. It also carries the C.E. mark. The

appliance complies with European Council Directive 90/396/EEC.

It is important that you understand how to use and care for the appliance

properly before you use it for the first time.

We have written this booklet with your safety in mind. Read the booklet

thoroughly before you use the appliance. Keep the booklet in a safe

place so that anyone who uses the appliance can read it. Pass the

booklet on with the appliance if you give or sell it to someone else.

We have included several drawings to show the right and wrong way

of doing things.

The right way will have a smiling face by it.

A sad face shows something is wrong.

RATING PLATE

This is situated on the lower front frame of the appliance and can be

seen upon opening the top oven cavity door. Alternatively the rating

plate may also be found on the back or top of some models (Where

applicable). Do not remove the rating plate from the appliance as

this may invalidate the guarantee.

For your safety

This appliance is designed for domestic use to cook food. You

must not use it for any other purpose. It is not designed for

commercial use.

Keep children, babies and toddlers away from the appliance at all

times.

The installation instructions that came with the appliance tell you

how and where it can be fitted. If the appliance is already

installed you must make sure that all instructions have been

followed. If you are in any doubt ask a registered person. More

details on installation on page 26.

S I G 3 2 0

Contents

Lighting the appliance 4

The grill 7

The hotplate 10

The oven 13

Oven cooking chart 15

Slow cooking 18

Care and cleaning 20

Installing the appliance 26

General information 28

What is wrong and why? 30

Servicing 31

Installation instructions 33

Technical data 34

Safety requirements/ventilation 35

Location of appliance 36

Testing 38

S I G 3 2 0

Contents

Page

Lighting the appliance

The ignition system works by means of a battery. Details on how to

replace the battery are given on page 28.

Hotplate

To light

1 Lift up the lid. You cannot use the hotplate when the lid is down.

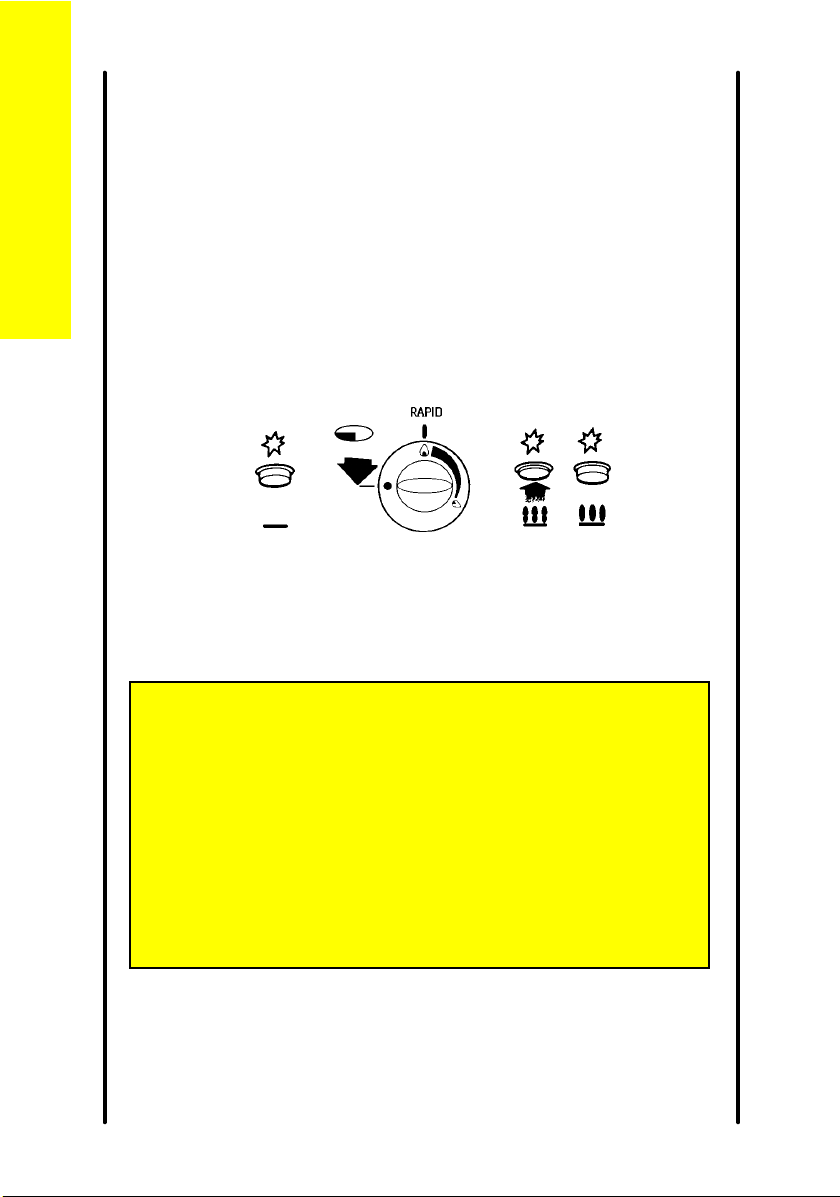

2 Push in the control knob and turn to the large flame symbol (highest

setting), and press the ignition button immediately. When the burner

has lit release the button.

Warning: If the ignition button is not pressed immediately a build up of

gas may cause the flame to spread.

S I G 3 2 0

For your safety

If you close the lid of the appliance while any of the hotplate

burners are lit the gas will go out. This is because it would be

dangerous if the burners stayed on when the lid was closed.

Always use the control knob to turn off a burner. Do not use

the lid as a cut-off device. This will only cut off the gas when

the lid is closed. The gas will flow again when the lid is

opened.

Lighting the appliance

Grill

To light:

1 Open the door.

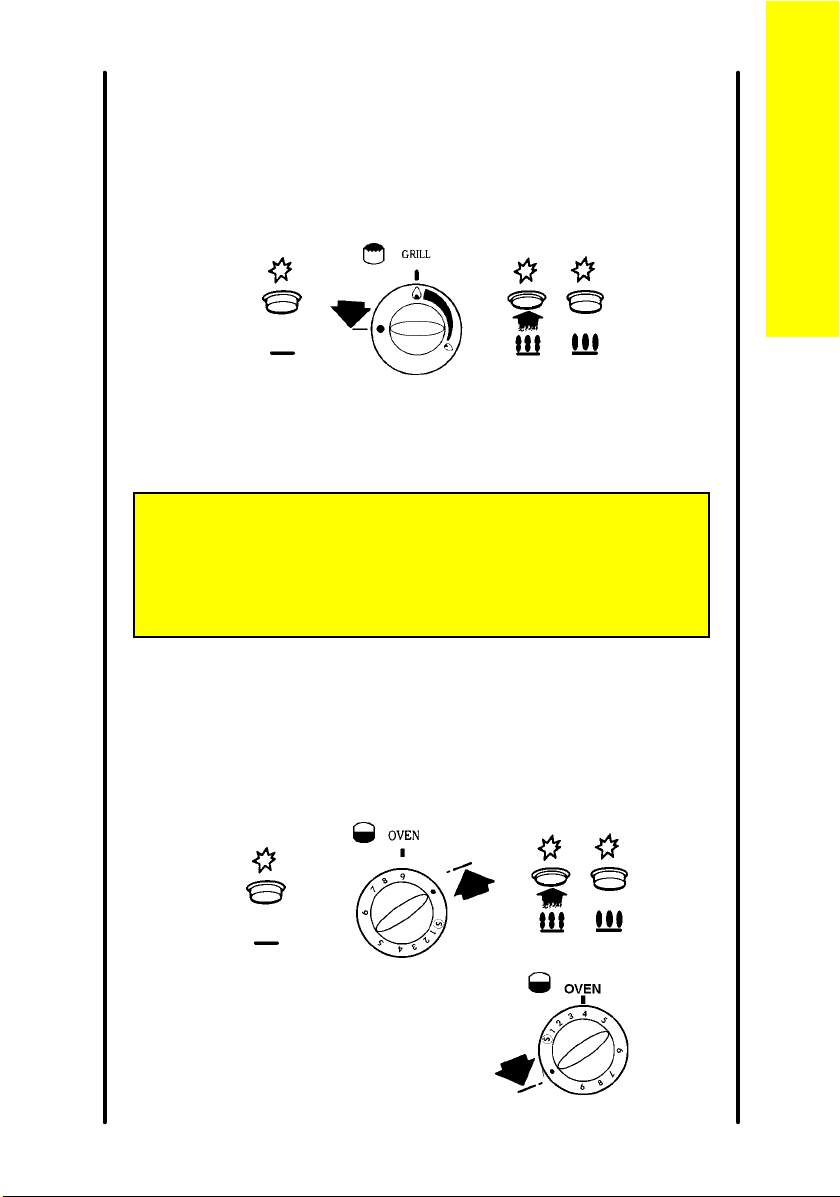

2 Push in the control knob and turn it to the large flame symbol

(highest setting), and press the ignition button immediately. When

the burner has lit release the button.

3 Leave the grill door open when you are using the grill.

Warning: If the ignition button is not pressed immediately a build up of

gas may cause the flame to spread.

Oven

To light:

1 Open the oven door.

2 Push in the control knob and turn it to gas mark 9. Press the ignition

button. When the burner has lit release the button. There will only be

small flames at first.

3 Now turn the control knob to the

gas mark you want.

4 Wait until the burner is showing

large flames.

5 Close the oven door.

S I G 3 2 0

For your safety

Never cover the grill pan or grid with foil as this can lead to grill

fires.

Lighting the appliance

To turn off any burner

1 Push in the control knob and turn it to the off position. This is shown

by a large dot.

S I G 3 2 0

For your safety

When you are lighting any burner check that it has lit before you

leave the appliance.

When you are turning off a burner, do not leave the appliance

until the flame has gone out.

Lighting the appliance

The grill

The grill is a high-speed grill. The instructions below tell you how to vary

the heat setting and how to change the height of the grid to suit the food

you are cooking. You should remember to turn the food regularly.

You should not use the grill to keep food warm as it will continue to

cook the food.

Prior to using the grill

We suggest that you operate the grill for approximately 5 - 10 mins to

burn off any residue from the surface. During this period a slight odour

may be emitted, it is therefore advisable to open a window for

ventilation.

When you first operate the grill you may hear some sounds as the

burner heats up, this is quite normal and is not a fault on the appliance.

Heat control

The grill control has two heat

settings.

The control knob turns to the left

from 'OFF' to 'HIGH' and then to

'LOW'. Use the high setting for fast

cooking such as toast. Use the low

setting to cook thicker food such as

chicken after you have browned it

on the high setting.

S I G 3 2 0

For your safety

The grill pan and handle must be in place before igniting the grill.

You must keep the grill door open when the grill burner is lit.

Accessible parts may be hot when the grill is used. Young

children should be kept away.

Never cover the grill pan or grid with foil as this can lead to grill

fires.

The grill

Cooking positions

You can put the grill shelf in either

of the two positions.

Most food should be cooked on

the grid in the grill pan. You can turn

the grid over to suit different

thicknesses of food.

You can place some dishes

straight on to the grill shelf. This is

useful when you are browning the

top of food such as cauliflower

cheese.

General

When you are not using the grill you should remove the handle and

store the pan on the shelf in the grill. Turn the grill burner off before you

store the pan. Remember that the pan will get hot when you are using

the oven.

You can use the grill compartment to warm plates when you are

using the oven.

Preheating

You don't usually need to preheat the grill. You may wish to preheat it for

a couple of minutes when you are cooking steak or when browning food.

Positioning food on the grid

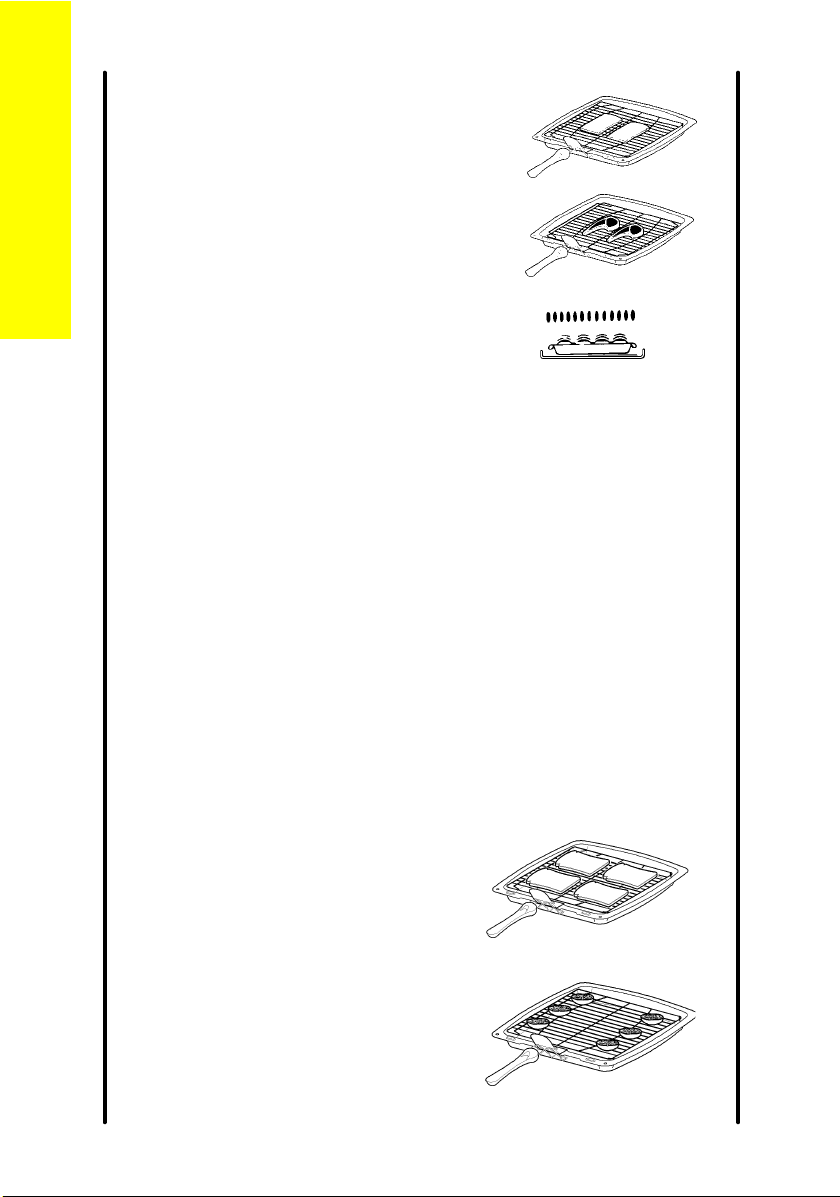

Place food such as toast, tea-cakes

and muffins towards the centre of

the grid.

Place food which needs a more

gentle heat, such as tomatoes and

mushrooms towards the edge of the

grid.

Arrange meat, meat products

and fish to suit their thickness and

how you like them cooked.

S I G 3 2 0

The grill

The grill pan and handle

The grill pan is supplied with a removable handle.

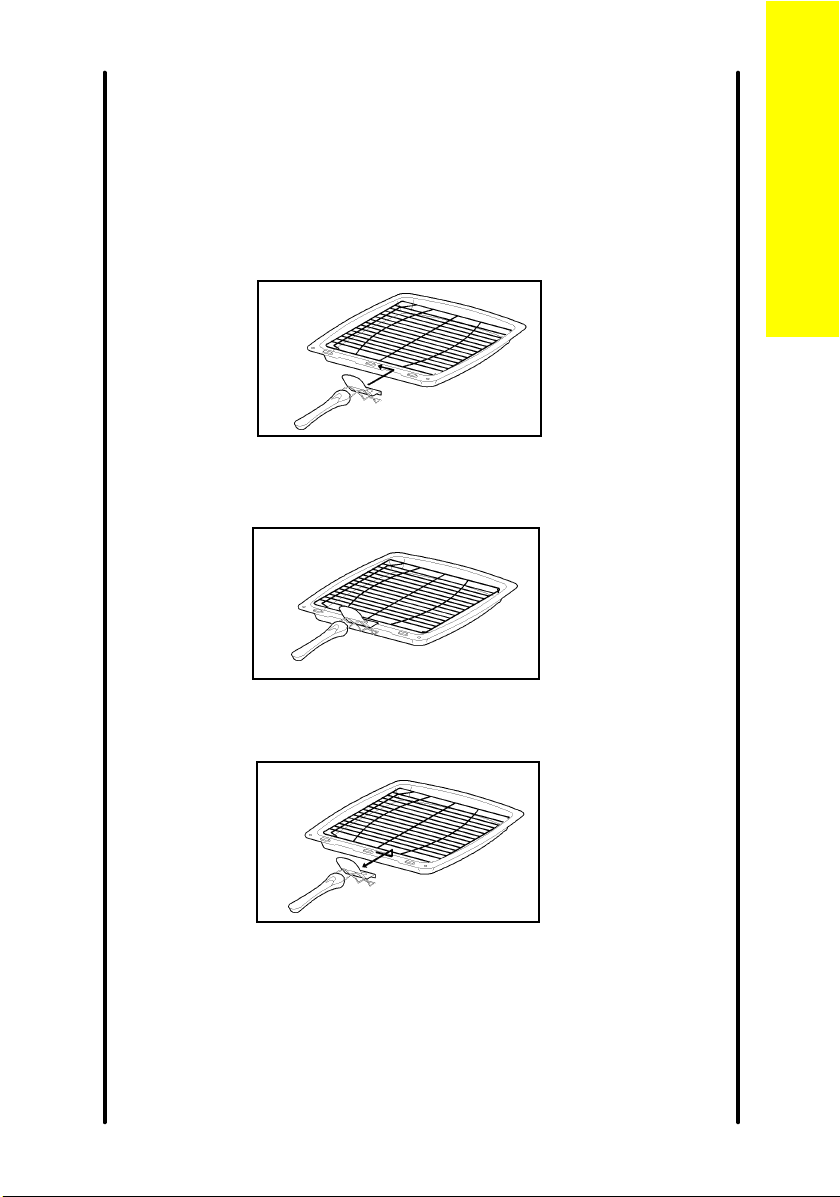

To attach the handle, place the wirework under the cut out in the pan so

that the metal plate hooks over the top of the grill pan.

Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to

remove the grill pan handle during grilling.

Place the grill pan on the shelf so that the pan is positioned centrally

beneath the grill.

To remove the handle, slide the handle to the right and lift the handle

away from the cut out on the grill pan.

Note

If you require an additional handle for your grill pan, this can be ordered

from your local Service Force Centre by quoting part number

311479800\6.

S I G 3 2 0

The grill

The hotplate

You can only use the hotplate when the lid is open. If you have any

trouble lighting a hotplate burner turn all hotplate control knobs off and

make sure the hotplate burner parts have been replaced correctly. See

page 21 for more information.

Heat control

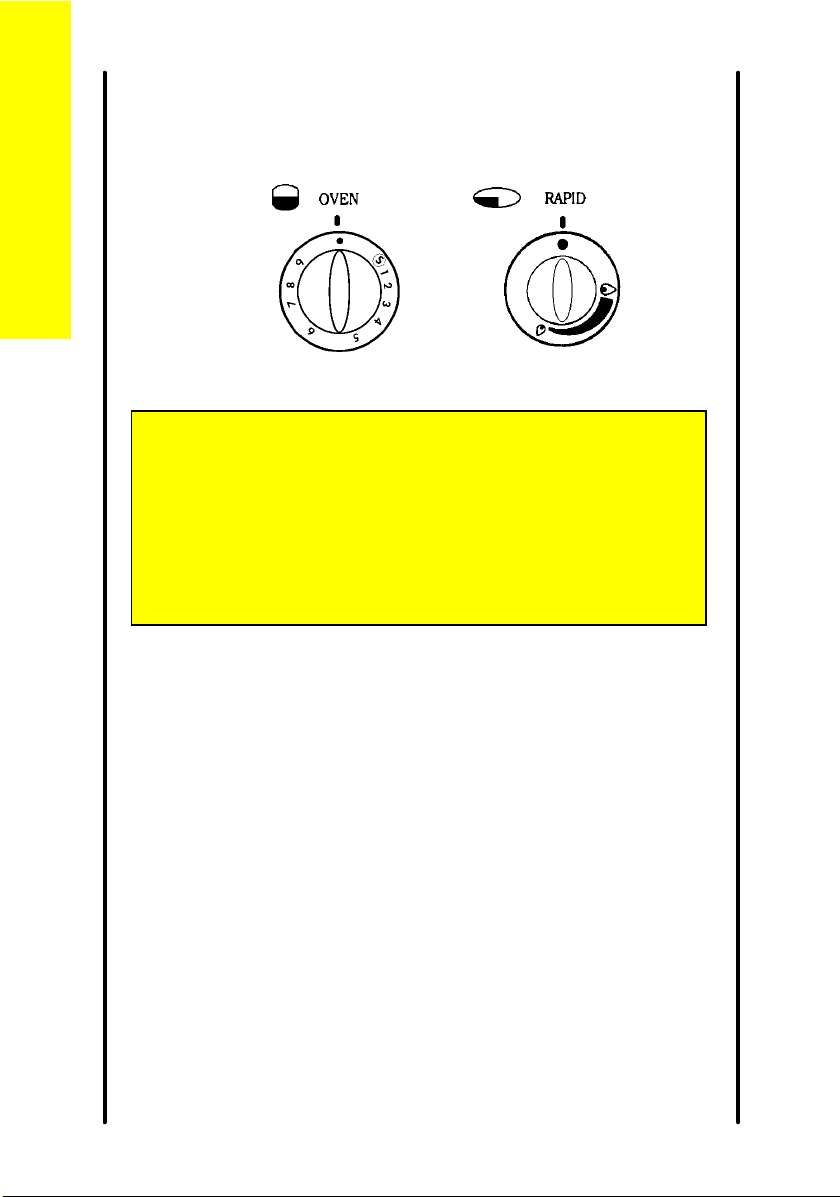

The hotplate control knobs turn

anticlockwise from 'OFF' to 'HIGH'

and then to 'LOW'. You can adjust

the heat by turning the control

between the highest and lowest

settings. These are shown as a

large and a small flame symbol.

Burner sizes

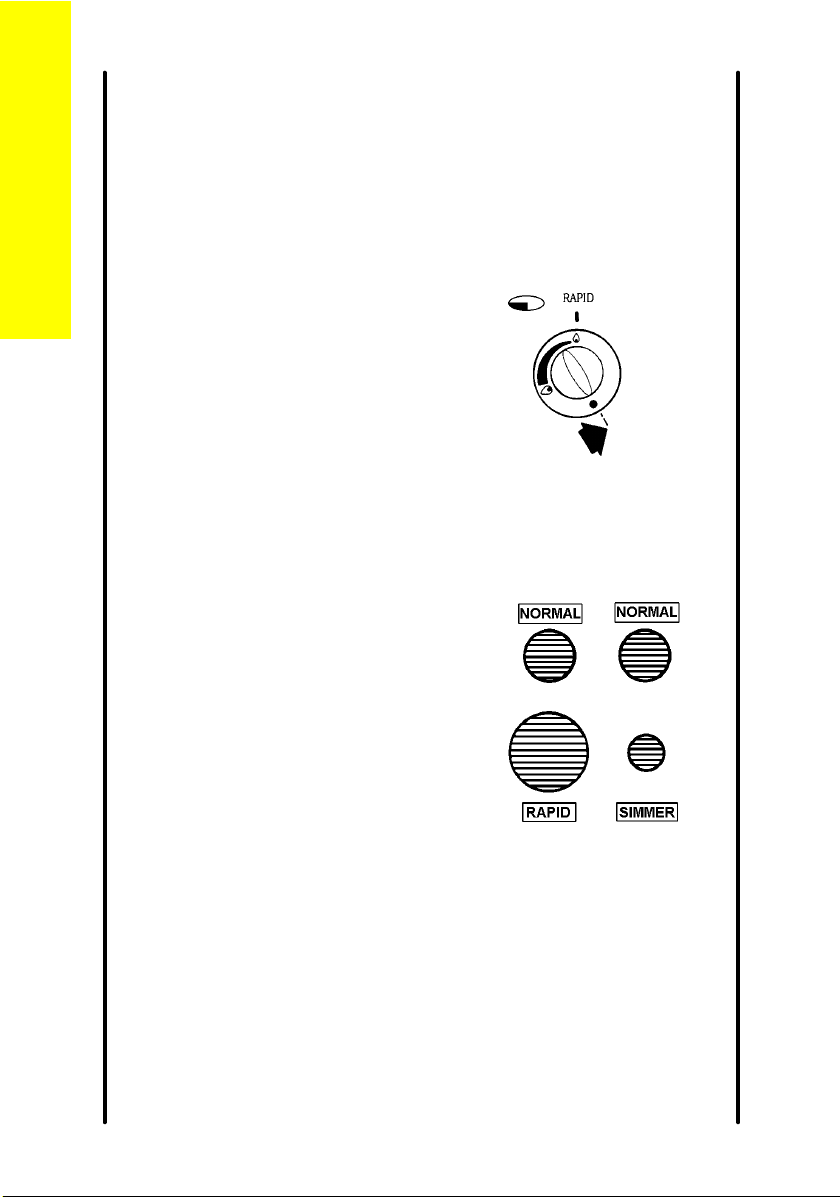

The hotplate has three burner sizes

to suit different types of cooking:

Largest burner (Rapid) - use a large

pan for food such as chips.

Medium burners (Normal) - use for

everyday cooking.

Small burner (Simmer) - use for

simmering food such as soups and

stews.

The largest pan which you should use on any burner is 230mm (9").

The base of the smallest pan should not measure less than 100mm (4").

S I G 3 2 0

The hotplate
