PARK WAREHOUSE 537br130 Manuel utilisateur
Space doesn’t have to be a limiting
factor when it comes to making a DIY,
public-use bicycle repair area. The Wall
Mount Work Stand is a super tough,
wall-mounted option for providing
access to the most commonly used
bicycle repair tools. When paired with
a manual or Electric Pump, you’ve got a
VXSHUVSDFHHIéFLHQW',<ELF\FOHUHSDLU
area that cyclists will love!

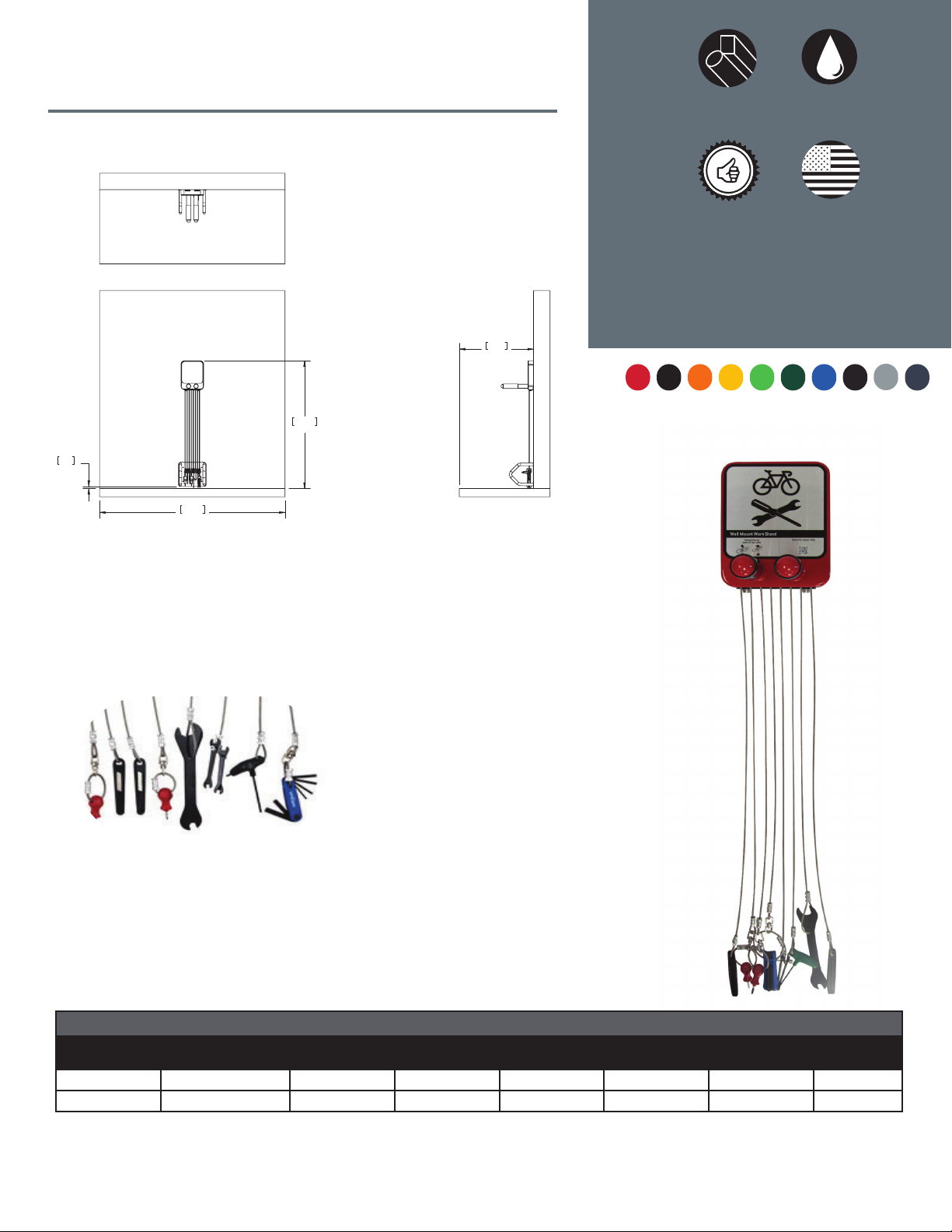

Product Specifications
WALL MOUNT
WORK STAND
• Optional galvanized Wall Plate to protect the wall from tool
strikes and meets ADA compliance
• Designed for Indoor or Outdoor use
• Wall mount design; small footprint is perfect for small spaces
• Pairs perfectly with manual or Electric Public Bike Pump
• Tools securely attached by braided stainless steel cables
Sku: 537br130
Made in
the USA
2 year
warranty
Thick-walled steel Powder Coat
Recommended Setbacks
Wall Mount Work Stand
Dimensions
Model # Description Type of Mount Weight Length Width Height Space
Requirement
537br130 Wall Mount Work Stand Wall Mount 29 lbs. 16” 11” 61” See Setback
The Wall Mount Work Stand is very versatile in where it can be installed.
We recommend that it is placed in a location that allows a bicycle to
access it either perpendicular or horizontal to the wall.
• Philips & standard screwdrivers
• Steel core tire levers (2)
• Headset/pedal wrench
• 8/10mm cone wrench
• 9/11mm cone wrench
• Torx T-25
• Hex key set
Tools Included
Standard Colors
Tools Needed Recommended Setbacks:
Figure 1: Setbacks
See Figure 1 below for minimum space requirements. It is possible to
mount a manual or electric pump within this setback region as well.
Drill and drill bits (mounting hard-
ware dependent)
Phillips Screwdriver
Mounting Hardware (location
dependent)
Penta Nut Socket (included)
3/8” drive ratchet
Marker or Pencil
Level
Tape Measure
Wall Mounting Instructions
1. Identify mounting location and be sure to follow recommended setbacks. The top of the work stand should be
mounted at 62” (157.5cm) from the ground. If installing on a vending machine, mount in a position that does
not inhibit the door opening (we usually mount on the left side of the machine).
2. Choose appropriate fasteners for your mounting surface.
a. If mounting to sheet metal, we recommend using #14 sheet metal screws no longer than 3/4” (20mm). If
mounting into concrete, we recommend using a ¼” masonry screw.
b. If mounting into wood framing, we recommend using #14 wood screws.
c. If installing into drywall, we recommend drywall toggle anchor (typically rated to 100+ lbs. each) that uses at
least a #12 screw size (and installing all 4).
d. If installing into a stud wall, it is possible to use a #14 wood into 1 stud and toggle anchors into the other 2
holes that do not line up with a stud.
3. Once the back plate is secured, load the tools to the front cover as shown.
4. Lift the front cover onto the back plate so that the tabs fit into the slots.
5. Install and tighten penta nuts to approximately 5-6 Nm. Be careful not to over tighten.
Optional ADA compliance wall plate
For some locations, it may be necessary to install the
optional ADA compliance wall plate. This plate also
protects the wall from tool damage.
1. Locate the wall plate directly below the work
stand at a distance of 1” (2.54cm) off the floor.
2. If mounting to sheet metal, we recommend using
#14 sheet metal screws no longer than 3/4”
(20mm). If mounting into concrete, we recom-
mend using a ¼” masonry screw. If mounting
into wood framing, we recommend using #14
wood screws.
WARNING: Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or loss,
whether direct, indirect, or incidental, resulting from the incorrect attachment or inappropriate placement, improper use,
inadequate maintenance, or neglect of this product. Placement of this product is beyond control of the manufacturer. It is
the end users reasonability to place this product so as to avoid potential pedestrian or playground accidents.
