Paradox K07C Manuel utilisateur
K07C: Grafica Color Keypad
V1.0
Reference and Installation Manual
Warranty
For complete warranty information, please visit www.paradox.com/terms.
Your use of the Paradox product signifies your acceptance of all warranty
terms and conditions. Imperial, Grafica, BabyWare, EVO and WinLoad
are trademarks or registered trademarks of Paradox Security Systems
Ltd. or its affiliates in Canada, the United States and/or other countries.
For the latest product approvals, such as UL and CE, please visit
www.paradox.com. © 2009 Paradox Security Systems Ltd. All rights
reserved. Specifications may change without prior notice.
Patents
One or more of the following US patents may apply: 7046142, 6215399,
6111256, 6104319, 5920259, 5886632, 5721542, 5287111, 5119069,
5077549 and RE39406 and other pending patents may apply. Canadian
and international patents may also apply.
Table of Contents
Overview ................................................................ 5
Description .............................................................................. 5
Features.................................................................................. 5
Installation .............................................................. 6
Viewing Angle.......................................................................... 6
Keypad Cover Clearance........................................................ 6
Mounting the Metal Wall Plate................................................. 7
Connecting Grafica.................................................................. 7
Keypad Input........................................................................... 9
Temperature Sensors.............................................................. 9
Mounting Grafica................................................................... 10
Removing Grafica.................................................................. 11
Firmware Upgrade................................................................. 12
Imperial System Programming ............................... 12
EVO/DGP System Programming............................. 12
Entering Module Programming Mode.................................... 13
Programming Methods.......................................................... 13
Feature Select Programming ................................................ 13
Decimal Programming........................................................... 13
Hexadecimal Programming................................................... 13
Keypad Options..................................................................... 14
Temperature Broadcast......................................................... 18
EVO/DGP Programming Sections......................................... 20
Specifications
Power input Typically 12 to 16 Vdc
Current
consumption 120 mA (at maximum backlight setting)
Number of inputs 1
Temperature
sensors 1 built-in, 1 optional external temperature sensor
(TEMP07)
Locate indication Blue LED flashes
Multibus/Combus
fault indication Fault indication message will appear on the LCD screen.
Anti-tamper switch Yes (optional)
Display TFT screen (Thin Film Transistor). Under electrostatic-
discharge (ESD) conditions the screen may go blank. To
reset the screen press any key or wait one minute.
Screen size: 9cm (3.5”)
Screen resolution: 320x240
Colors: 64k colors
Compatibility Imperial V32
EVO48/192
DGP-NE96
DGP-848
NOTE: Imperial systems require BabyWare V1.0.300 and
higher. Refer to the Imperial System Guide.
Overview PAGE 5
Chapter 1: Overview
1. SD memory card slot
2. Color LCD screen
3. Scroll keys - navigation
4. Temperature sensor
5. Action keys - selection
6. Panic keys
7. Alphanumeric keys
A) Power light:
On = AC power
Off = Power failure
Flash = System is locating the
keypad
Description
Grafica sets a new milestone for
keypads in the security industry.
With its full color LCD screen,
Grafica offers the unique ability to
view zone locations on floor plan
drawings.
Other features include a photo
screensaver, downloadable tunes
and bitmaps for many functions, a
smart search engine for users and
zones, and an alarm clock.
Features
• Photo screensaver
• Downloadable tunes and
bitmaps
• Smart search engine for users
and zones
• Alarm clock
• Indoor temperature sensor
• Outdoor temperature sensor
(optional)
• 14 one-touch action buttons
• 3 keypad-activated panic
alarms
• Adjustable backlight and
volume
4
6
7
5
3
2
A
1
PAGE 6 Installation
Chapter 2: Installation
Viewing Angle
Grafica’s graphic LCD screen is best viewed from an angle between 20°
and -10° (see Figure 1). Be sure to install the Grafica keypad at a height
and in a direction that provides the best viewing angle.
Figure 1
Keypad Cover Clearance
Grafica’s keypad cover requires sufficient space in order to open
properly. Ensure a clearance of approximately 9cm (3.5in) between the
bottom of the keypad and possible obstructions such as a light switch
that may prevent the keypad from opening properly (see Figure 2).
Figure 2
-10°
0°
+20°
A
- 9cm (3.5”)
B
- Obstruction
A
B
Installation PAGE 7
Mounting the Metal Wall Plate
1. Place metal wall plate to desired position.
2. Drill and insert screws into holes labeled “A” (see Figure 3). Both the
top and bottom center holes “C” can be used for an electrical box.
Figure 3
Connecting Grafica
Grafica connects to the control panel’s Multibus/Combus in a star and/or
daisy chain configuration. The Multibus/Combus consists of four wires
that provide power and two-way communication between the control
panel and all modules connected to it. Connect the four terminals
labelled RED, BLK, GRN and YEL of the module to the corresponding
terminals on the control panel (see Figure 4 on page 8). For the
maximum allowable installation distance, refer to the Imperial System
Guide or the EVO/DGP Reference & Installation Manual.
A
A A
C
C
A
- Mounting holes
B
- For clip
C
- Can be used for
electrical box
B
PAGE 8 Installation
Figure 4
Figure 5
A
- * The keypad zone follows the control panel’s EOL definition. The zone speed is set
at 600mS and cannot be programmed.
Grafica
B
C
Multibus/
Combus
1 K9*
EOL
Connecting Grafica with Keypad Input
A
- To other modules
B
- To control panel
C
- Door Contact
A
- To other modules
B
- To control panel
C
- Temperature Sensor (TEMP07)
Grafica
A
B
C
Multibus/
Combus
Connecting Grafica with Temp. Sensor
30.5m (100ft) max.
Installation PAGE 9
Keypad Input
Grafica’s keypad input can be utilized as a zone input or as an input for
the optional temperature sensor (see Optional External Temperature
Sensor). Refer to Figure 5 on page 8 for connection instructions.
Temperature Sensors
Grafica offers a built-in temperature sensor and an optional external
temperature sensor.

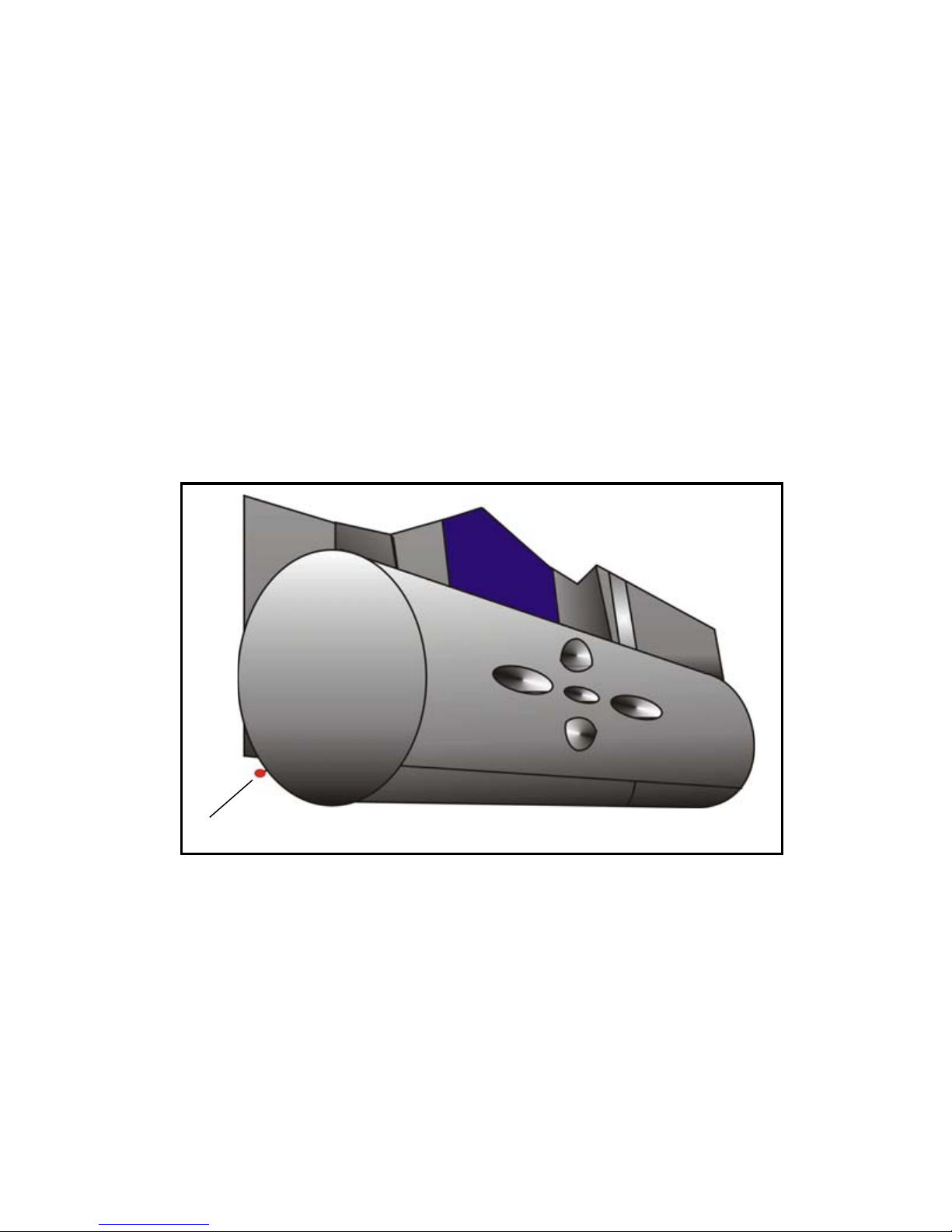

Built-in Temperature Sensor
If the Inside Temp. ON option is enabled, the built-in temperature
sensor’s (see Figure 6) reading will display on the System Status
screen next to the word “IN”. If another temperature sensor is
required, see Optional External Temperature Sensor.
Figure 6
Optional External Temperature Sensor
Grafica offers an optional external temperature sensor (TEMP07)
that connects to Grafica’s keypad input (see Keypad Input). If the
Outside Temp. ON option is enabled, the sensor’s reading will display
on the System Status screen next to the word “OUT”.
Built-in Temperature Sensor
PAGE 10 Installation
Mounting Grafica
1. Place Grafica’s back plate flush against the mounted metal wall plate
“B” (see Figure 7).
Figure 7
2. Slide Grafica’s open slots labeled “A” (see Figure 8) onto the metal
wall plate’s tabs labeled “A” (see Figure 7).
Figure 8
3. Gently apply downward pressure to snap Grafica onto the metal wall
plate.
A
- Metal wall plate tabs
B
- Metal wall plate
C
- Optional screw
A
B
C
A
A
Clip
Grafica back view
