Paradigm DOES NOT supply hardware for mounting Paradigm Prestige 25S

speakers to the wall. Always use screws appropriate for wall type and

weight of speakers.

If installing into drywall, install into 1/2˝ (13 mm) or 5/8˝ (16 mm) drywall

only. Screws must be long enough to go through anchor bolts (not supplied) and

firmly into drywall.

IMPORTANT! READ BEFORE WALL-MOUNTING PARADIGM

PRESTIGE 25S SURROUND/REAR SPEAKERS:

Wall mount your Paradigm Prestige 25S speakers securely enough that they

cannot fall and cause personal injury or damage to property.

NON LIABILITY: We are aware that the mounting assemblies provided for speakers

in this manual could be used for purposes and in ways other than those for which

they were intended. The manufacturer, distributor, retailer and their respective agents

cannot be held responsible or liable for injuries or property damage—direct, indirect

or consequential—arising from the use of or inability to use these products safely

and properly. Every effort has been made to provide accurate, error-free installation

instructions. Paradigm Electronics Inc. disclaims liability for difficulties that may arise

from the misinterpretation of information contained in these instructions.

RECYCLING AND REUSE GUIDELINES (Europe)

In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive

effective August 13, 2005, we would like to notify you that our speakers may contain regulated

materials which, upon disposal, require special reuse and recycling processing. For this reason

Paradigm Electronics Inc. (the manufacturer of Paradigm speakers and Anthem electronics prod-

ucts) has arranged with its distributors in European Union member nations to collect and recycle

this product at no cost to you. To find your local distributor please contact the dealer from whom

you purchased this product or go to our website at paradigm.com.

Please note that only the product falls under the WEEE directive. When disposing of packaging and

other shipping material we encourage you to recycle through the normal channels.

paradigm.com

MAN0099 | 012815

Paradigm Electronics Inc.,

205 Annagem Boulevard,

Mississauga, ON, Canada L5T 2V1

PARADIGM, PARADIGM REFERENCE COLLECTION, PRESTIGE and all associated proprietary and

patented designs and technologies are registered trademarks of Paradigm Electronics Inc. Copyright

respective owner(s). Paradigm Electronics reserves the right to change specifications and/or features

without notice as design improvements are incorporated.

INTRODUCTION

Thank you for purchasing Paradigm® Prestige™ Series speakers; we are confident that

you will hear a stunning difference in your music and home theater system listening

experience.

Paradigm’s Comprehensive R&D, leading-edge technology, use of the finest materials

and sophisticated manufacturing and quality control techniques provide vastly superior

performance for each component part and at every stage of design. Paradigm® Prestige™

speakers will provide you with unparalleled listening pleasure for many years to come.

To achieve all of the exceptional sound that these speakers are capable of providing

requires care in installation and operation. Please take the time to read this manual and

follow all instructions. If you have further questions, contact your Authorized Paradigm®

Reference Collection Dealer or visit the Frequently Asked Questions page in the Support

section of our website at paradigm.com.

TABLE OF CONTENTS

Introduction ........................ 1

Unpacking Instructions (Floorstanding

Speakers) Securing Rubber Feet (Floor)

or Spikes (Carpet) ................... 2

General Tips ....................... 3

Break in ........................... 3

Cleaning ........................... 3

Preventing Speaker Damage ......... 3

Amplifier Distortion — The #1 Culprit! . . 3

More Powerful Amplifiers are Safer ... 3

Volume Control ..................... 3

There is a Limit! .................... 4

The Right Amount of Power .......... 4

Your Listening Room ................ 4

Stand Mounting (Optional) ............ 5

Attaching Bumper Pads to Bookshelf/

Center/Surround Speakers .......... 6

Bookshelf and Center Speakers ....... 6

Surround Speakers ................. 6

Placement: Front Left &

Right Speakers ..................... 7

Accurate Timbre .................... 8

Balanced Bass ..................... 9

Optimal Imaging ................... 10

Optional On-Wall Mounting

of Front Speakers .................. 10

Placement: Center Speaker .......... 11

Placement: Surround / Rear Speakers . 12

5.1 Surround Configuration .......... 12

7.1 Surround Configuration .......... 12

Wall-Mounting ..................... 12

Stand Mounting .................... 12

Speaker Connection ............... 13

Minimum Gauge Requirements . . . . . . 13

Standard Connection for Prestige 15B . . 14

Standard Connection for All Speakers

(Except Prestige 15B) ................ 15

Bi-Wire Connection ................ 16

Bi-Amp Connection ................ 17

Horizontal Bi-Amplification .......... 18

Fine Tuning ....................... 18

Basic Troubleshooting ............. 19

Specifications ..................... 20

Limited Warranty .................. 23

UNPACKING INSTRUCTIONS (FLOORSTANDING SPEAKERS)

Securing Rubber Feet (Floor) or Spikes (Carpet)

STOP!OPEN FR OM OTHEREND

ARRÊTEZ! OUVRIR DE CE CÔTÉ

PIANOBLACK /

NOIRPIANO

MIDNIGHTCHERRYGLOSS /

BRILLANTCERISEDEMINUIT

DARKWALNUT /

NOIXFONCÉE

BLACKAS H /

NOIRCENDRÉ

180°

123

Floor (Wood or Tile)

Carpet

Turn Key to Level Speaker

180°

IMPORTANT! Follow These Steps Before Proceeding!

IMPORTANT! When removing the speaker from the carton, ensure

belt buckles, rings or other jewellery do not come into contact with

the speaker and scratch the finish.

GENERAL TIPS

Break-In

Although Paradigm Prestige speakers sound great “out of the carton,” they will sound

even better once they are “broken in.” Allow them to play for several hours before you

begin any critical listening.

NOTE: If your speakers have been transported or stored in the cold, let them warm to

room temperature before use.

Cleaning

Prestige speakers have a durable premium finish. To clean, use a damp soft cloth. Do not

use a strong or abrasive cleaner. Avoid getting any part of the speaker system wet. Do not

place wet objects (drinking glasses, potted plants, etc.) on top of the speakers—if allowed

to soak in, even a small amount of water may permanently damage the speaker enclosure.

PREVENTING SPEAKER DAMAGE

Paradigm Prestige speakers are efficient and can be driven to loud listening levels with

moderate amplifier power. They are also able to handle the output of very powerful

amplifiers. To prevent damage to your speakers, please read the following guidelines

before hooking them up.

Amplifier Distortion — The #1 Culprit!

Amplifier distortion is the principal cause of speaker damage. When listening at loud

levels your amplifier may run out of clean power. It will then begin to produce distorted

power several times greater than its rated output power. This will damage any brand of

speaker very quickly! (Ask your Dealer for amplifier recommendations.)

More Powerful Amplifiers are Safer

A 40 watt/channel amplifier will have substantial distortion above 40 watts. If driven to

50 watts, this amplifier will deliver distorted power—which will damage the speaker! A

100 watt/channel amplifier will have substantial distortion above 100 watts, but very low

distortion below 100 watts. Therefore, when the speaker requires 50 watts, this more

powerful amplifier will deliver clean power and speaker damage is less likely to occur.

Volume Control

Do not be fooled by the Volume Control of your receiver/preamplifier. It only adjusts

listening level—it is not a “power-output” dial. The amount of amplifier power actually

used at a given Volume Control setting depends solely on the nature of the music you

are listening to.

At a given Volume Control setting a quiet section of music will use less amplifier power

than a loud section. With typical pop-rock, jazz or large scale classical music, the rated

output power of many receivers/amplifiers is often reached when the Volume Control

is between the “11 and 1 o’clock” settings (with bass/treble and loudness controls not

used—otherwise rated power may be reached at even lower Volume Control settings).

PREVENTING SPEAKER DAMAGE (continued)

Remember, all amplifiers produce distortion when operated beyond their rated output

power. The resulting distortion will damage all speakers! Exercise caution! If you listen

at loud levels, be careful to listen for the point of audible distortion—if the speakers

begin to sound distressed turn the Volume Control down or your speakers and/or

amplifier(s) will be damaged! This type of damage constitutes abuse and is not covered

by the warranty. If louder volumes are desired, obtain a more powerful amplifier.

There is a Limit!

Although more powerful amplifiers are safer, there is a point at which you could have

more power than the speaker can handle. At that point you will overpower the speaker

and damage it. Exercise caution! At loud levels do not increase bass/treble controls

from zero and ensure that all loudness/contour/bass EQ buttons are off (otherwise rat-

ed output power will be reached at lower volume control settings). If you listen at loud

levels, watch for excessive visible cone excursion (grille movement) from the woofer—

then turn the Volume Control down.

The Right Amount of Power

A power-range rating is given as a guide to indicate the approximate minimum and

maximum power input of your Paradigm Prestige speakers. Amplifiers that exceed your

speaker’s power-range rating are recommended. Their greater power reserves provide

better sound. However, exercise caution! Use the speakers within their power-range

rating to prevent damage (keep listening levels below the point of excessive woofer

cone excursion).

YOUR LISTENING ROOM

Paradigm Prestige speakers are designed to provide superior high-end sound in a

wide variety of domestic settings. However, it is important to note that listening room

construction, dimensions and furnishings all play a part in the quality of sound you

will ultimately achieve. Your listening room will impose its own character on the

performance capabilities of any speaker system. The extra care you take in correctly

positioning the speakers will result in greater listening enjoyment. Keep the following

guidelines in mind when deciding on the best.

• Mid and high frequencies are affected by the amount of soft furnishings in your

room—curtains, carpets, sofas, wall coverings, etc. An excess of such items can

result in a somewhat dull sound. The same room without any soft furnishings can

produce a bright overall sound. The typical quantity of soft furnishings found in most

living situations provide the right acoustic characteristics to allow the speakers to

sound balanced;

• Concrete floors and walls tend to aggravate low-frequency standing wave problems

and are less preferred;

• Rooms where height, width and length are similar should be avoided as they can

exhibit significant low-frequency standing wave problems. This may result in reduced

clarity. If no other room is possible, experiment with speaker placement to minimize

acoustic problems.

STAND MOUNTING (optional)

The Paradigm Prestige 55C and Prestige 45C center channel speakers can be mounted

to Paradigm’s J-18C stand if desired. Ask your Paradigm dealer for details.

Stand Mounting a Center Channel Speaker (Prestige 55C Shown)

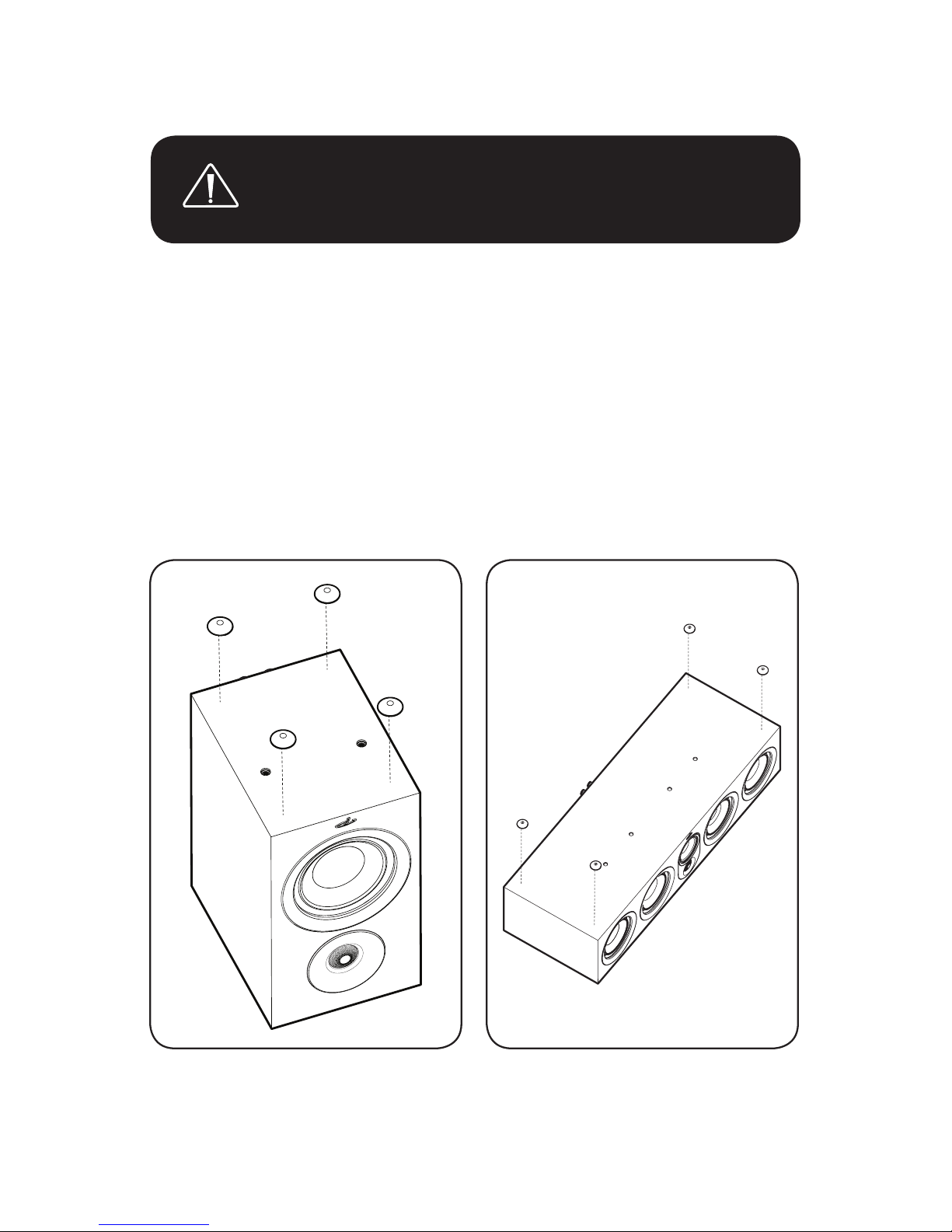

ATTACHING BUMPER PADS TO BOOKSHELF/CENTER/

SURROUND SPEAKERS

Bookshelf and Center Speakers

Self-adhesive bumper pads (included) should be applied to the bottom corners of

Paradigm Prestige bookshelf and center-channel speakers (see illustrations below)

when placed on a shelf or other flat surface. This will isolate your speakers from the

solid surface, improving overall sound quality.

NOTE: As an alternative, you may choose to stand mount your Paradigm Prestige 15B

bookshelf speakers using Paradigm stands. Ask your Paradigm dealer for details.

Surround Speakers

As an option, you may choose to apply the self-adhesive bumper pads to the back of the

Paradigm Prestige 25S surround speaker. This application prevents acoustic resonance

from the wall your speaker is mounted to.

Bookshelf Speaker

(Prestige 15B Shown)

Center Channel Speaker

(Prestige 55C Shown)

IMPORTANT! To prevent damage to your speaker’s finish, place the top

side of your speaker on a soft surface (rug, blanket, etc.) before applying

the bumper pads to the bottom side corners.

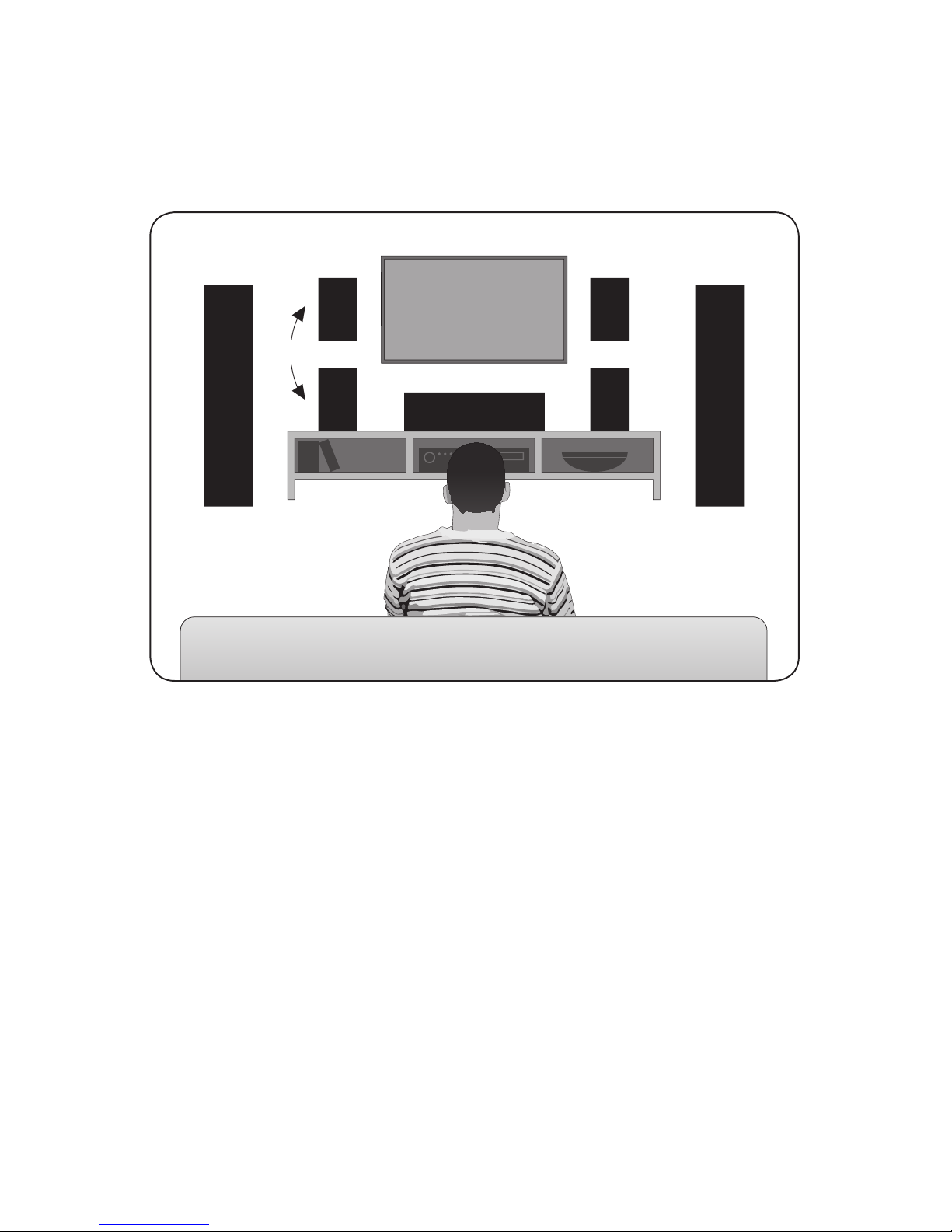

PLACEMENT: FRONT LEFT & RIGHT SPEAKERS

Pardigm Prestige front speakers are designed to allow flexible placement while

providing a very large window of sound throughout your listening room. To ensure the

best performance possible we strongly recommend that you observe the placement

guidelines on the following pages …

Ideal placement of left and right speakers

PLACEMENT: FRONT LEFT & RIGHT SPEAKERS (continued)

Accurate Timbre

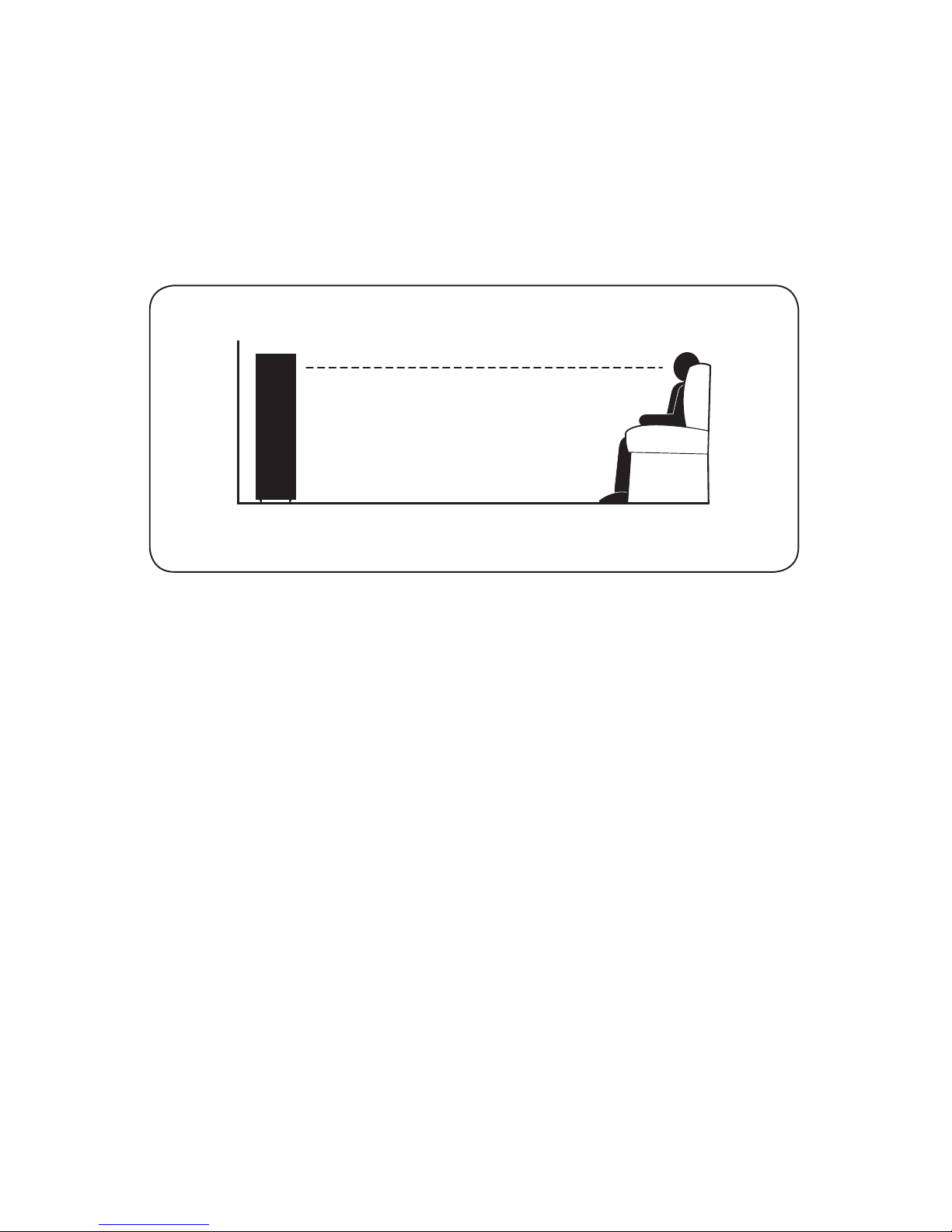

For the most accurate and natural timbre, place front speakers so that their high-

frequency drivers are approximately at ear level, as shown below.

Placing bookshelf models on Paradigm speaker stands (sold separately) or bookshelves

raises their high-frequency drivers to approximately ear level, thereby ensuring the

best performance possible.

8” (20 cm) 8po (20 cm)

3/4 “x”

“x”

Table des matières

Langues :

Autres manuels Paradigm Intervenants

Paradigm

Paradigm SE series Manuel utilisateur

Paradigm

Paradigm OM-571 Manuel utilisateur

Paradigm

Paradigm OM-140 Manuel utilisateur

Paradigm

Paradigm SOUNDSCAPE Manuel utilisateur

Paradigm

Paradigm GO4 Manuel utilisateur

Paradigm

Paradigm OM-581 Manuel utilisateur

Paradigm

Paradigm CS-60R Dimensions

Paradigm

Paradigm Paradigm Manuel utilisateur

Paradigm

Paradigm OM-102 Manuel utilisateur

Paradigm

Paradigm PREMIUM WIRELESS Series Manuel utilisateur

Paradigm

Paradigm OM-104 Manuel utilisateur

Paradigm

Paradigm PW 300 Manuel utilisateur

Paradigm

Paradigm CI Home Series Manuel utilisateur

Paradigm

Paradigm Shift A2 Manuel utilisateur

Paradigm

Paradigm PW 800 Manuel utilisateur

Paradigm

Paradigm PW 800 Manuel utilisateur

Paradigm

Paradigm OM-131 Manuel utilisateur

Paradigm

Paradigm SOUNDSCAPE Manuel utilisateur

Paradigm

Paradigm OM-100 Manuel utilisateur

Paradigm

Paradigm OM-1000 Manuel utilisateur

Paradigm

Paradigm CI PRO Series Manuel utilisateur

Paradigm

Paradigm Millenia One CT Manuel utilisateur

Paradigm

Paradigm Decor 2SC Manuel utilisateur

Paradigm

Paradigm OM-121 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
