INSTRUCTIONS CM429A
© Panduit Corp. 2010
FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp
(1) Switch Ducting
(with hinged Perforated Door)
Page 1 of 4
Component Guide
TOOL LIST
#2 Philliips Screwdriver
5/16” Socket Wrench
3/8” Socket Wrench
1/4” Socket Driver
(1) Hardware Kit
(not shown)
(1) Switch Support Bracket
CDE2
(installed in Net-Access
Server Cabinet)
Modular ToR Switch Inlet Duct
(CDE2)
Cisco Nexus 2000 Series Switch
(reference)
INSTRUCTIONS CM429A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 2 of 4

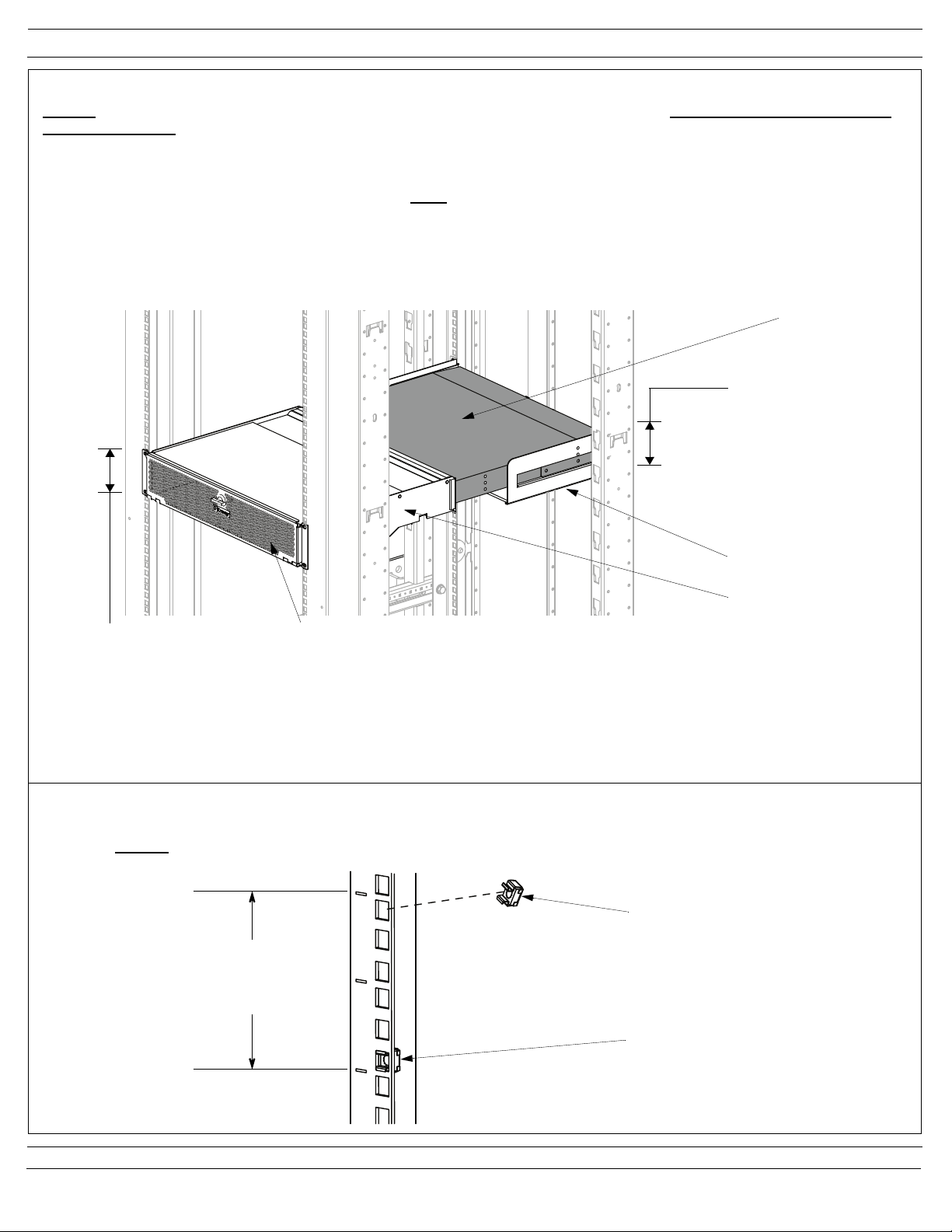

Determine Location of Switch Ducting and Switch Support Bracket
NOTES: Front to back span of equipment rails may need to be adjusted to accomodate your switch. See table below for front to rear rail
spacing requirements. Equipment installed directly below CDE2 may impede routing of switch power cord if installed prior to CDE2.
Switch Ducting and Switch Support Bracket components of CDE2 require two (2) rack spaces for installation. Switch Ducting and Switch
Support Bracket are to be installed at the same vertical rack position. CDE2 components are to be installed prior to switch installation and
are designed to support the switch. (CDE2 ducting system ONLY requires use of primary Cisco rack mount brackets. Cisco supplied
switch cradle or extension brackets are not compatible with CDE2.)
Grounding Cage Nut
(green)
Cage Nut
(installed)
Intended
Mounting
Location
(2 rack spaces)
1 RU Switch
(reference; port side of
switch faces Hot Aisle)
Install Cage Nuts
Insert (2) cage nuts per equipment rail at CDE2 component mounting locations (8 total cage nuts are to be installed). (1) grounding cage
nut (green) must be installed in each equipment rail. The view below depicts cage nut locations for (1) intended mounting location.
Switch Ducting
Switch Support Bracket
Intended
Mounting
Location
(2 rack spaces)
Intended Mounting Location
(2 rack spaces)
Perforated Door of Switch Ducting
(faces Cold Aisle)
FRONT OF
CABINET
REAR OF
CABINET
INSTRUCTIONS CM429A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 3 of 4
Install Switch Ducting
Position Switch Ducting so that the perforated door of ducting faces the cold aisle and the mounting holes of Switch Ducting align with
cage nuts in equipment rails (installed on page 2). Secure Switch Ducting to equipment rails using (1) #12-24 Phillips screw and (1) hex
head grounding screw (green; use 5/16” socket wrench) per rail. Ensure that hex head grounding screws fasten into grounding cage nuts.
(2) #12-24 Hex Head
Grounding Screws
(use 5/16” socket wrench)
Switch Ducting Perforated Door of Switch Ducting
(faces Cold Aisle)
Install Switch Support Bracket
Position Switch Support Bracket so that the mounting holes of Switch Support Bracket align with cage nuts in equipment rails (installed on
page 2). Secure Switch Support Bracket to equipment rails using (1) #12-24 Phillips screw and (1) hex head grounding screw (green; use
5/16” socket wrench) per rail. Ensure that hex head grounding screws fasten into grounding cage nuts.
Grounding Cage Nuts
(green)
Cage Nuts
(installed)
(2) #12-24 Phillips Screws
(2) #12-24 Hex Head
Grounding Screws
(use 5/16” socket wrench)
(2) #12-24 Phillips Screws
Cage Nuts
(installed)
Grounding Cage Nuts
(green)
Switch Support
Bracket
FRONT OF
CABINET
REAR OF
CABINET
FRONT OF
CABINET
INSTRUCTIONS CM429A
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
E-mail:
Fax:
(708)444-6448
www.panduit.com
Page 4 of 4
Routing of Switch Power Cable
NOTE: Dashed outline of 1 RU Switch is shown for power cord routing reference only.
DO NOT INSTALL SWITCH AT THIS TIME. Cabinet and equipment rails are not shown to add clarity to view.
Prior to switch installation, route power cord through Switch Ducting and Switch Support Bracket as shown. Slit grommet(s) along guide
lines as needed to allow for power cord pass-through. Use bridge features on Switch Support Bracket as tie-down point(s) to secure
switch power cord to Switch Support Bracket with cable tie.
Switch Ducting
Switch
Support
Bracket
Install Switch
NOTE: Cabinet and equipment rails are not shown to add clarity to view.
Slide the 1 RU Switch onto positioning flanges of Switch Support Bracket. Carefully insert inlet side of switch into rear opening of Switch
Ducting. Position holes of 1 RU Switch rack mount brackets over threaded studs of Switch Support Bracket. Secure switch to Switch Sup-
port Bracket with (4) #10-32 acorn nuts (use 3/8” socket wrench).
Switch Power Cord
(to rear-mounted power
outlet unit)
FRONT OF CABINET REAR OF CABINET
Slit Grommet(s) along guide lines as needed
to allow for power cord pass-through
Bridge Feature
(use as tie-down
point for cable tie)
FRONT OF CABINET 1 RU Switch
(reference; port side of
switch faces Hot Aisle)
Positioning
Flange
Rear Opening of
Switch Ducting
(4) #10-32 Acorn Nuts
(use 3/8” socket wrench)
Positioning
Flange
Switch Power Cord
REAR OF
CABINET
