Panduit Basic Rack PDU Manuel utilisateur

Release 1.0

Issue 1.0

Panduit Basic Rack PDU

User Manual

Basic Rack PDU User Manual

-2-

by any means, electronic, mechanical, photocopying, recording or otherwise, without written permission from Panduit. No patent liability

is assumed with respect to the use of the information contained herein.

Although every precaution has been taken in the preparation of this book, Panduit assumes no responsibility for errors or omissions.

Neither is any liability assumed for damages resulting from the use of the information contained herein.

Basic Rack PDU User Manual

-3-

Table of Contents

Basic Rack PDUs 4

Contacting Panduit 4

Symbols Used 4

Equipment Overview 5

Model Numbering Format 5

Part Numbering Format 6

Pre-Installation 7

Product Inspection 7

Installation 8

Before You Begin 8

Hardwire PDU installation instructions 8

Unterminated Cord PDU installation instructions 10

Standard Accessories 10

Additional Required Items 10

Basic Rack PDU User Manual

-4-

Basic Rack PDUs

Panduit Basic Rack PDUs provide reliable power distribution to devices installed within

a cabinet.

This equipment has been designed for connection to an IT power distribution system.

Contacting Panduit

For technical support on PDU hardware and associated software, please contact Pan-

duit Technical Support using one of the following methods:

l1-866-721-5302 (toll-free), Monday-Friday, 7:30 am - 5:00 pm CST

lsystemsupport@panduit.com

Symbols Used

Symbol Description

Danger – Electric Shock Hazard

Warning – Possible Safety Hazard

Primary Earth Ground

Secondary Earth Ground

| ON

O OFF

Basic Rack PDU User Manual

-5-

Equipment Overview

The power inlet/cord(s) connects the PDU to the electrical power source. The LCD dis-

plays the current load for each input feed or electrical phase per input feed.

For IEC C-20 inlet PDUs, a customer-supplied cord is used for connection to the power

source.The connection end to the PDU has an IEC C-19 plug for connection to the

PDU.

The opposite end of the cord has a plug suitable for connecting to the customer-supplied

receptacle.The cord and plug shall be rated for 20A in North America and 16A outside

of North America.Make the connection to the PDU before connecting to the power

source

Model Numbering Format

This section describes the model numbering format used to identify equipment in the

PDU series. PDU model numbers are:

lHD-YYYVZZA

lHE-YYYVZZA

lVD-YYYVZZA

lVE-YYYVZZA

The letters in the series represent values as defined in the table below.

Letter What It Represents

H Horizontal series

V Vertical series

D Basic - no monitoring or display provided

E Metered - on board display only

YYY May be any number, 120-415, representing rated voltage

ZZ May be any number, 10-63, representing rated current

Basic Rack PDU User Manual

-6-

Part Numbering Format

This section describes the part numbering format used to identify equipment in the PDU

series. PDU devices are numbered using one of the following formats:

lH1M-ABCDEFGHJKLM

lV1M-ABCDEFGHJKLM

The H1M prefix indicates that the model is intended for horizontal mounting.

The V1M prefix indicates that the model is intended for vertical mounting.

The remaining letters in the series represent values as defined in the table below.

Letter What It Represents

AAny numeral, 1-8, indicating the phase wiring for the output circuit break-

ers and receptacles

B Any letter, A-F, indicating input cord configuration

CD* Any numeral, 1-5, and any letter, A-Z, indicating input plug type and

rated voltage

E Any numeral, 1-7, indicating the number of output circuit breakers

FAny letter, A-Z, indicating the type of overload protection provided for

the outlets

GH Any two numerals, 01-45, indicating the number of output receptacles

provided

JK The letter ‘A’ or ‘B’ followed by any letter, A-Z, indicating the type and

quantity of output receptacles provided

LAny numeral, 0-9, or any letter, A-Z, indicating the length of the power

supply cord

M Any numeral, 0-9, indicating the color of the enclosure

* Voltage and amperage ratings:

l120V, single-phase, 10A, 12A, 15A, 16A, 20A, 24A or 30A

l208V, single-phase, 10A, 12A, 13A, 15A, 16A, 20A, 24A, 30A, 48A or 60A

l230V, single-phase, 16A, 32A, or 48A

l208V, three-phase (delta), 16A, 20A, 24A, 30A, 40A, 48A, 50A or 60A, 3W + PE

l208V, three-phase (wye), 16A, 20A, 24A, 30A, 48A or 60A, 3W + N + PE

l400V, three-phase (wye), 16A, 20A, 24A, 30A, 32A, 48A or 60A, 3W + N + PE

Basic Rack PDU User Manual

-7-

Pre-Installation

The Rack PDU products covered by this guide are designed to be installed within EIA

racks and cabinets.Use of this product in other applications is acceptable, but other pre-

cautions may be required to allow for specific installations not covered by this guideline.

Product Inspection

Inspect the product prior to installation. If the product has any visible signs of damage,

please contact the supplier.

Basic Rack PDU User Manual

-8-

Installation

Before You Begin

Before installing your PDU, refer to the following lists to ensure that you have all the

items shipped with the unit as well as all other items required for proper installation.

Hardwire PDU installation instructions

This product is intended to be hardwired by the customer must be installed by a qualified

electrician AND adhere to all national & local electrical codes.

1. To install, remove the (4) securing screws on the removable user panel.

2. Unscrew strain relief grommet cap (indicated below) and feed the power cable

through the grommet cap & the input gland.

3. Ensure conductors are stripped adequately, exposing 15mm of copper.

4. Conductors shall be connected in-line with the terminal markings provided as

shown below (Line 1 = X; Line 2 = Y; Line 3 – Z). Ensure screws are secure for

each conductor by applying a torque of 2.3 N-m (20 in-lb.).

Basic Rack PDU User Manual

-9-

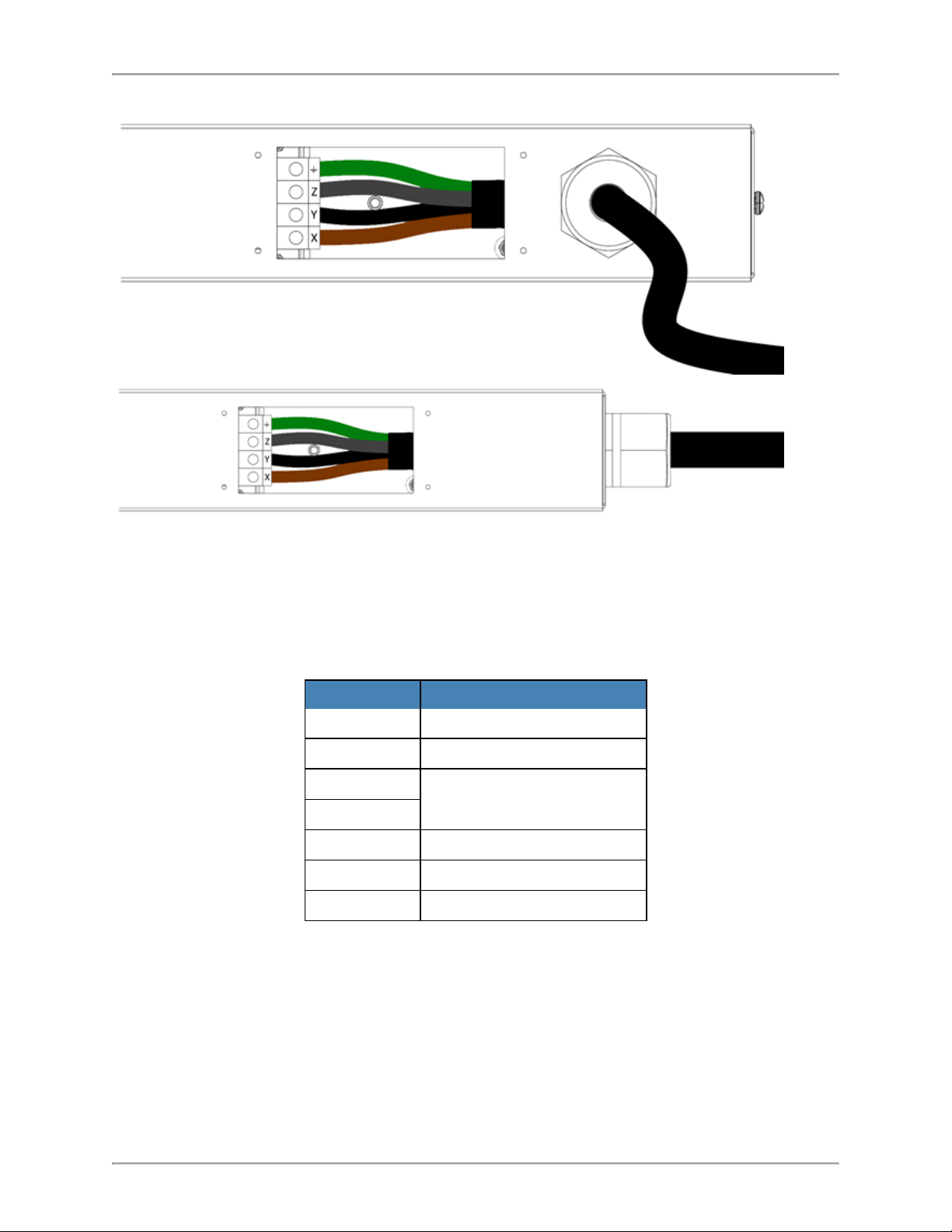

5. Ensure conductors have enough slack (none should be under tension).

6. Feed grommet cap down cord and secure to input gland. Reference the table

below to ensure the grommet cap is torqued correctly.

Gland Size Grommet Cap Torque

M16 1.5 N-m (13 in-lb.)

M20 3.0 N-m (27 in-lb.)

M25 4.0 N-m (35 in-lb.)

M32

M40 15 N-m (132 in-lb.)

M50 20 N-m (177 in-lb.)

M63 30 N-m (266 in-lb.)

7. Re-install removable cover plate with the screws removed in step 1.

8. Connect the other end of the power cord to a suitably rated disconnect device.

9. Switch utility circuit breaker “On”.

Basic Rack PDU User Manual

-10 -

Unterminated Cord PDU installation instructions

This product is intended to be hardwired by the customer must be installed by a qualified

electrician AND adhere to all national & local electrical codes.

To install, match the corresponding conductor color to the matching phase in your facil-

ity. Reference the color guide below:

Conductor Insulation Color Line Number / Phase

Brown Line1 / X

Black Line 2 / Y

Grey Line 3 / Z

Blue Neutral

Green (may include Yellow stripe) Ground

Standard Accessories

Mounting hardware:

lVertical models:

Affixed button mounts

lHorizontal models:

Appropriate local mounting brackets and screws

Additional Required Items

lFlathead and Phillips screwdrivers

lAppropriate local AC power receptacle to power the PDU
