INSTALLATION GUIDE

CURVE

1











CURVE HOOD

ATTENTION!

Please read the User Manual before installing and using the range hood.

The hood must be centered over the cooking area. If this requirement is

not fulfilled, correct aspiration is NOT GUARANTEED.

Before begin the installation, please verify that the diameter of the flue,

the engine and the SEC tube are the indicated in their respectives characteristics

table.

Do not use the SEC tube as a cover of another tube smaller.

Do not connect the hood to the main supply until the installation. (Step 8).

2

1– Unpack the range hood CURVE. Verify the condition of the range hood.

2– Drill the holes in the wall how is indicated in the fig.1, mantaining the axis in the middle

of the cooking area. Put the decorative flue's mounting bracket furring to the ceiling,

and in the middle of the axis, and drill the holes necessaries to fix it.

Advertise: This measures are the recommended for the installation, therefore for the

CURVE C version as for the CURVE L version.

Fig. 1

AXIS CABINET

CABINET

3

3- Insert the plugs, and put the hood support by screws.

4- Hang the hood, aligning the wall support to the hook in the rear of the hood.

4

5- Screw the hood by the holes as in the figure.

6- Intube the engine and the flue with the SEC tube, by following the tips of the User,

Installation Manual. Fix the connections hermetically with the flanges.

5

7- Turn off the residual current device, connect the hood to the mains supply,

then turn on the residual current device. Check the correct installation of the hood.

8- Put the decoratives flues in the upper of the hood, as in the figure, so that

the holes in the external of the set coincide with the box's holes.

6

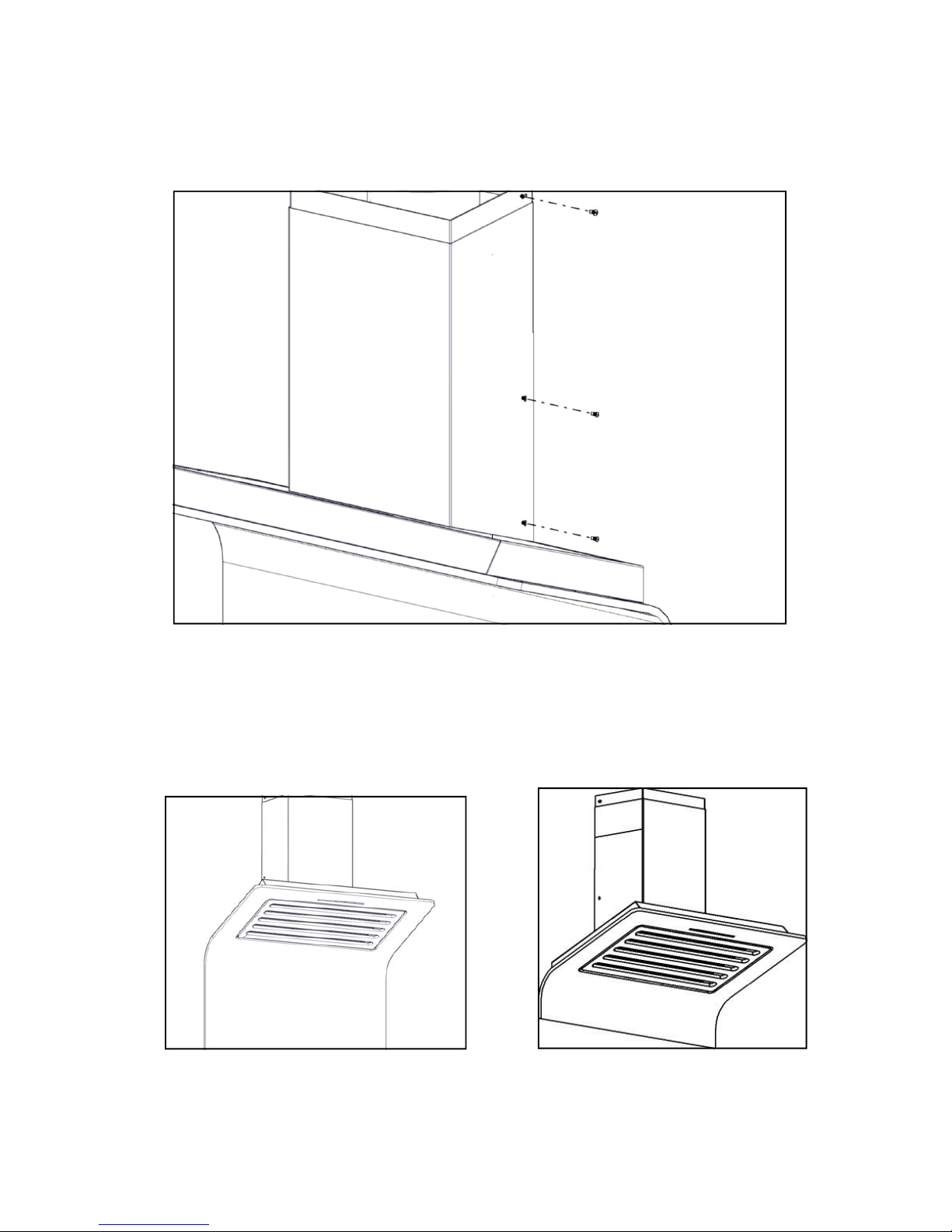

9- Screw the external part of the decoratives flues at the body of the hood, and push up the

internal flue till align the holes in with the others in the decorative flues's mounting bracket.

It must cover totally the flexible flue. Then, screw the upper decorative flue.

10- Verify the correct installation and function on the CURVE hood. Remove the

non-scratch plastic and enjoy your new Pando hood.
