Before connecting the device, operating it or adjusting settings please read these

operating instructions completely; especially the safety precautions on pages 2-3.

Video Cassette Recorder

Operating Instructions

NV-MV21EB/EBL

(Model suffix: 'EB' for UK model, 'EBL' for Ireland model)

Contents Page

Included Accessories 4

FrontPanelVCR 5

Rear Panel VCR 5

Remote control functions 6-7

Connecting with RF cable 8

VCR Auto Setup with RF cable

Connecting with 21-pin Scart cable 10

VCR Auto Setup with 21-pin Scart cable

Connecting to Satellite Receiver, Set Top Box 12

CheckingtheSettingsafterAutoSetup 13

RemovingInterference /Changing RF-outputchannel 14

Menu System 15

Playback 16

Tracking control 17

General convenient functions / Tape Care 18-19

Recording 20-26

Instant recording 20

Timer recording 21-22

Recording with INTELLIGENT TIMER 23

Recording with VIDEO Plus+ 24-25

Recording with external recording controls 26

Manual Functions 27-32

Manual Tuning 27

Changing the name of TV stations 28

Changing the order of TV stations or deleting a station 28

Creating a new station table 29

Shipping condition/factory defaults 29

Others Menu 30

Owner ID 31

Clock setting 32

Before requesting service 33

Specifications 35

Index last page

Important Safety Warnings

CAUTION! 3

Care and Maintenance

Panasonic Sales and Support Information 34

Important Safety Warnings

!The moulded three pin mains plug is supplied for your safety and convenience and must

NOT be cut off.

!A 5 amp fuse is fitted in the mains

plug. If the fuse has to be replaced,

it must be of the same rating and

approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the

BSI mark on the body of the fuse.

!To prevent electric shock, do not remove cover. No user serviceable parts inside.

Refer servicing to qualified service engineer only.

!Do not insert metal object into the slots or openings of the unit.

!This unit is not disconnected from a.c. mains while it remains connected

to a live mains outlet, even if it has been turned off.

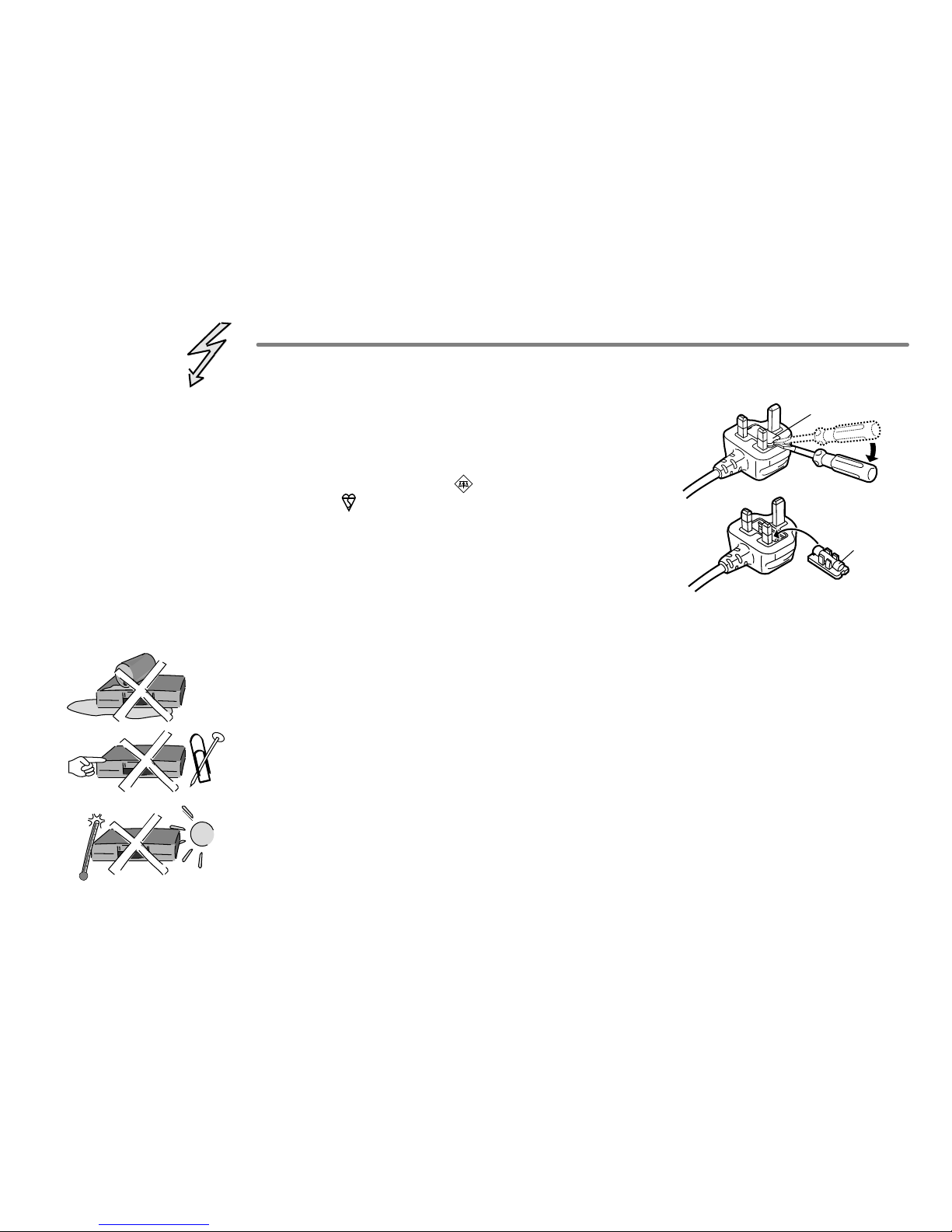

1.Open the fuse

cover with a

screwdriver.

Fuse cover

Fuse

(5 ampere)

2.Replace the

fuse and close

or attach the

fuse cover.

To replace the fuse, open the fuse

compartment with a screwdriver as

shown and replace the fuse and the

cover securely.

!WARNING: To reduce the risk of fire, electric shock or product damage, do not expose

this apparatus to rain, moisture, dripping or splashing and that no objects filled with

liquids, such as vases, shall be placed on the apparatus.

!The socket outlet shall be installed near the equipment and easily accessible or the mains

plug or an appliance coupler shall remain readily operable.

!This unit is intended for use in moderate climates.

Caution

!Avoid exposing the unit to direct sunlight or other heat sources.

!Avoid sudden change in temperature or humidity, dew or condensation may

form, causing malfunction.

!Dispose of batteries in accordance with the instructions given in this book.

!Your attention is drawn to the fact that recording of pre-recorded tapes or discs

or other published or broadcast materials may infringe copyright laws.

!This unit is designed for indoor use only.

!Place the unit on a flat, stable surface. Do not place heavy object on top of the unit.

!Do not use in area with strong magnetic fields, e.g. near transmitting antenna.

Care and Maintenance

!The cabinet can be wiped clean with a damp cloth, disconnect from mains before

cleaning. Do not use detergent or solution containing benzol or petroleum.

!Video heads clogging can occur with use, when this happens picture and sound

will become distorted during playback. Purchase a head cleaning tape or consult

your dealer. Note that video head cleaning is not covered by the warranty.

!This product may receive radio interference caused by mobile telephones during

use. If such interference is apparent, please increase separation between the

product and the mobile telephone.

!Do not install or place this unit in a bookcase, built-in cabinet or in another

confined space. Ensure the unit is well ventilated. To prevent risk of electric

shock or fire hazard due to overheating, ensure that curtains and any other

materials do not obstruct the ventilation vents.

!Do not obstruct the unit’s ventilation openings with newspapers, tablecloths,

curtains, and similar items.

!Do not place sources of naked flames, such as lighted candles, on the unit.

!Dispose of batteries in an environmentally friendly manner.

Included Accessories

Check that you have

the accessories and

items shown

Quick Start Guide

RQCAD0015

AC Mains Lead

RJA0044-3C

RF cable

Batteries for the

Remote Control

R6 size

Operating Instructions

RQTD0104-B

Guarantee Card

ccessories

Included

Remote control

N2QAJB000089 K2KF2BA00001, VJA0728-A

or K1TWACC00001

Inserting batteries into the remote control unit:

The batteries last for about a year, depending on how often you use the RC unit.

!Do not mix old with new batteries or batteries of different types.

!Only use batteries without any harmful substances (such as lead, cadmium, mercury).

!Do not use rechargeable type batteries.

!Remove the batteries if the remote control unit will remain unused for longer

periods of time.

!Do not heat or short-circuit the batteries.

!Immediately remove used-up batteries and replace with batteries

of type AA, UM3 or R6.

!Be sure to put in the batteries the right way round (+and -).

Dispose of batteries, packaging material and the unit

according to statutory regulations. They must not

be thrown into the household refuse.

ENTER

VCR

INPUT SEL

VIDEO Plus+

AUDIO

RESET/CANCEL

REC MODE

OFF-TIMER

PROG PLAY

I-TIMER

MENU EXIT

JET REW

EXT LINK

STATUS

RECTIMER

INDEX

VOL

TRACKING/V-LOCK

N2QAJB000089

123

456

789

PROG

/CHECK

PAUSE/SLOW

VCR/TV

"Some functions may not be

applicable to your VCR."

Rear Panel VCR

AC IN~(Power supply)

AV (21-pin Scart socket)

RF IN = Aerial input

RF OUT = Aerial output

AV (TV)

AC IN~

RF IN

RF OUT

Rear Panel Connectors

QUICK ERASE

EJECT

REC

Front Panel VCR

JET REW

TIMER REC

Fast winding / JET SEARCH

Erases a cassette.

Ejects the cassette.

Fast rewind to the

beginning of the tape.

Stand-by/on switch /I

VCR= Video Cassette Recorder

Page

Detailed information

is available on the

specified pages.

1 2 34

67 8 9 10 11

Fast winding / JET SEARCH

Starts recording.

Starts playback.

Stop button

Activates the recording timer

Selects a channel

JET REW

INDEX

Remote control functions

Some Panasonic television sets may be controlled with the remote control

unit of this VCR. However, some of old Panasonic TVs cannot be operated

using this remote control.

Search beginning of a recording session.

Normal playback

Fast forward/rewind when stopped,

search forward or backwards during playback.

Stop ends recording, playback, or winding.

Eject: Press and hold for more than 3 seconds.

Stop a recording session.

Still playback.

To adjust the volume of the TV.

VCR Playback Control

TV Controls

Press to switch the TV from on to stand-by mode or vice versa.

Fast rewind to beginning of tape.

TV Channel selector.

Selects the TV set´s AV port.

VOL

ENTER

VCR

INPUT SEL

VIDEO Plus+

AUDIO

RESET/CANCEL

REC MODE

OFF-TIMER

PROG PLAY

I-TIMER

MENU EXIT

JET REW

EXT LINK

STATUS

RECTIMER

INDEX

VOL

TRACKING/V-LOCK

N2QAJB000089

123

456

789

PROG

/CHECK

PAUSE/SLOW

VCR/TV

"Some functions may not be

applicable to your VCR."

PAUSE/SLOW

Stand-by/on switch

Press to switch the unit from on to stand-by

mode or vice versa.

In stand-by mode, the unit is still consuming a

small amount of power.

REC

8 9

RESET/CANCEL

OFF-TIMER

EXIT

AUDIO

EXT LINK

VCR

I-TIMER

Displays the menu.

VCR Recording Controls

This button has no function.

Sets the tape speed (SP/LP/EP).

Record

Activate the recording timer mode.

Quits a menu.

Programming TV programmes

broadcasted at the same time and on

the same channel.

Switches the VCR into stand-by mode

after a preset period of time during

recording, playback or stop mode. Press repeatedly to display the time,

tape counter or tape remain.

Displays the VIDEO Plus+ menu

Menu navigation buttons.

Selecting or storing settings.

VCR Standard Controls

Select programme storage position

or enter the VIDEO Plus+ number.

E.g.: 18 =

Channel select buttons.

Tracking control of VCR picture disturbance.

Activates the recording timer for

externally controlled recording.

Displays the menu Timer recording.

Switches between AV input and TV station.

Plays back programmed recordings.

RESET : Resets the counter to 0:00.00.

CANCEL: Clears an entry you made.

INPUT SEL

PROG PLAY

REC MODE

TIMER

STATUS

TRACKING/V-LOCK

PROG

/CHECK

VIDEO Plus+

Delete highlighted station.

Move highlighted station.

ENTER

Aerial

RF IN

(Aerial input)

RF OUT

(Aerial output)

Aerial input

RF cable

VCR

AC IN~

AC mains lead

Connecting with RF cable

Connect aerial to the RF IN

(Aerial input) connector of the VCR.

Connect the VCR´s RF OUT

(Aerial output) to the TV

set’s aerial in connector.

Connect VCR and TV set to the

AC mains socket.

Follow the steps described below.

Ensure TV Power is disconnected

from AC Mains socket.

You can connect the VCR to your TV

set by using a RF cable.

(supplied)

AC mains socket

VCR Auto Setup with RF cable (Automatic tuning)

!Turn on your television set.

!With the Stand-by/on switch turn on the VCR. Automatic tuning for all

available TV stations begins. Approximate duration is 5 minutes.

!After Automatic tuning has finished, press EXIT. The Owner ID screen will appear.

- While Auto Setup is running the first digit of the VCR display will flash. After a

while it will stop flashing and the RF output channel number will be displayed.

- Select an unused channel pre-set on your TV and tune it to the RF output

channel number shown on the VCR display (or until you can clearly see the

Auto Setup screen). Store the new video playback channel (refer to the

instructions for your TV).

VCR Display

You can complete the Owner ID now or skip this step and do it later. To do it

later, press the EXIT button. Your VCR is now ready to use.

!To set the Owner ID now, press the Numeric buttons or to enter a four-

digit PIN number.

!Press , to correct the digit.

!Make sure that you will remember the PIN number (make a note of it).

!Press the ENTER button twice to confirm.

!Enter the [Name], [House No] and [Postcode] in the same way.

!Press the ENTER button to confirm each entry.

!Press the EXIT button to leave the Owner ID screen.

!You will now see the TV picture. Your VCR is now ready to use.

Owner ID

PIN number : ****

Name : **************

House No : ***********

Postcode : ***********

:select : store

: exit

ENTER

EXIT

You now have the opportunity

to enter your details and

help the police crack crime

see instruction book.

Owner ID

Datum / ZeitClock set

Time : 12 : 00 : 00

Date : 11. 6. 04

MANUAL !Press to set the correct time and date.

!Press the ENTER button to finish this setting.

If the clock setting menu appears

(Auto clock set was not possible due to a weak signal)

DMind that a wrong date or time will influence the programmed recording of TV

programmes (don't forget to change summer time and winter time).

DIn some cases, the RF output channel may interfere with the TV stations

transmitted in your area. This may prevent you from seeing the On-Screen

Display clearly. Please see page 14 for removing the interference before

restarting Auto Setup (page 29).

Auto Setup

: exit

EXIT

Tuning : Ch 21

5AC mains lead

Connecting with 21-pin Scart cable (Fully wired)

Connect the VCR’s AV socket

(21-pin Scart socket) to the TV

set’s Scart In socket.

Connect VCR and TV set to the

AC mains socket.

VCR

2Aerial

AC IN

RF IN

(Aerial input)

21-pin Scart socket

RF OUT

(Aerial output)

AC mains lead

Aerial input

RF cable

21-pin Scart cable

AC IN~

2Connect aerial to the RF IN

(Aerial input) connector of the VCR.

Follow the steps described below.

3Connect the VCR´s RF OUT

(Aerial output) to the TV set’s

Aerial in connector.

(supplied)

Ensure TV Power is disconnected

from AC Mains socket.

AC mains socket

Autres manuels pour NV-MV21EB

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Système de magnétoscope

Panasonic

Panasonic NV-MV21GH Manuel utilisateur

Panasonic

Panasonic NV-L20A Manuel utilisateur

Panasonic

Panasonic Omnivision PV-4660 Manuel utilisateur

Panasonic

Panasonic AJD220 - DVC PRO DESCKTOP PLA Manuel utilisateur

Panasonic

Panasonic Omnivision PV-9661 Manuel utilisateur

Panasonic

Panasonic NV-H65 Series Manuel utilisateur

Panasonic

Panasonic AG5210 - VIDEO CASSETTE RECORDER Manuel utilisateur

Panasonic

Panasonic AJ-D230P Manuel utilisateur

Panasonic

Panasonic PV-V4022-A Manuel utilisateur

Panasonic

Panasonic OmniVision PV-Q920 Manuel utilisateur

Panasonic

Panasonic Omnivision VHS PV-7664 Manuel utilisateur

Panasonic

Panasonic AG-DV1000P Manuel utilisateur

Panasonic

Panasonic Quasar W-1301 Manuel utilisateur

Panasonic

Panasonic NV-HV61GH Manuel utilisateur

Panasonic

Panasonic NV-SJ412EE Manuel utilisateur

Panasonic

Panasonic NV-HD642EE Manuel utilisateur

Panasonic

Panasonic Omnivision PV-V4611 Manuel utilisateur

Panasonic

Panasonic OmniVision PV-M1326 Manuel utilisateur

Panasonic

Panasonic NV-HD670 Series Manuel utilisateur

Panasonic

Panasonic PV-8665S Manuel utilisateur

Panasonic

Panasonic AG-6740P Manuel utilisateur

Panasonic

Panasonic ProLine AG-1340P Manuel utilisateur

Panasonic

Panasonic PV-V462 Manuel utilisateur

Panasonic

Panasonic AJ-D455 Manuel utilisateur

Manuels Système de magnétoscope populaires d'autres marques

Toshiba

Toshiba M-662 Manuel utilisateur

Sony

Sony GV-500 Primary Manuel utilisateur

JVC

JVC HR-J282EU Manuel utilisateur

Sony

Sony HDCAM-SR SRW5800 Manuel utilisateur

Magnavox

Magnavox VRU242AT Manuel utilisateur

Sony

Sony HVR-M10C Manuel utilisateur

RCA

RCA VR634HF - Hi-Fi VCR Manuel utilisateur

JVC

JVC HR-5910U Manuel utilisateur

JVC

JVC HR-S8600EU Manuel utilisateur

JVC

JVC HR-FS1U Manuel utilisateur

Sharp

Sharp VC-H9888U Manuel utilisateur

FUNAI

FUNAI LC-950 Manuel utilisateur

Sharp

Sharp VC-S2000GM Manuel utilisateur

Sony

Sony Video8 EV-A60 Manuel utilisateur

Aiwa

Aiwa HV-E212 Manuel utilisateur

JVC

JVC HR-J3006UM Manuel utilisateur

GE VG4271 Manuel utilisateur

RCA

RCA VR678HF Manuel utilisateur
