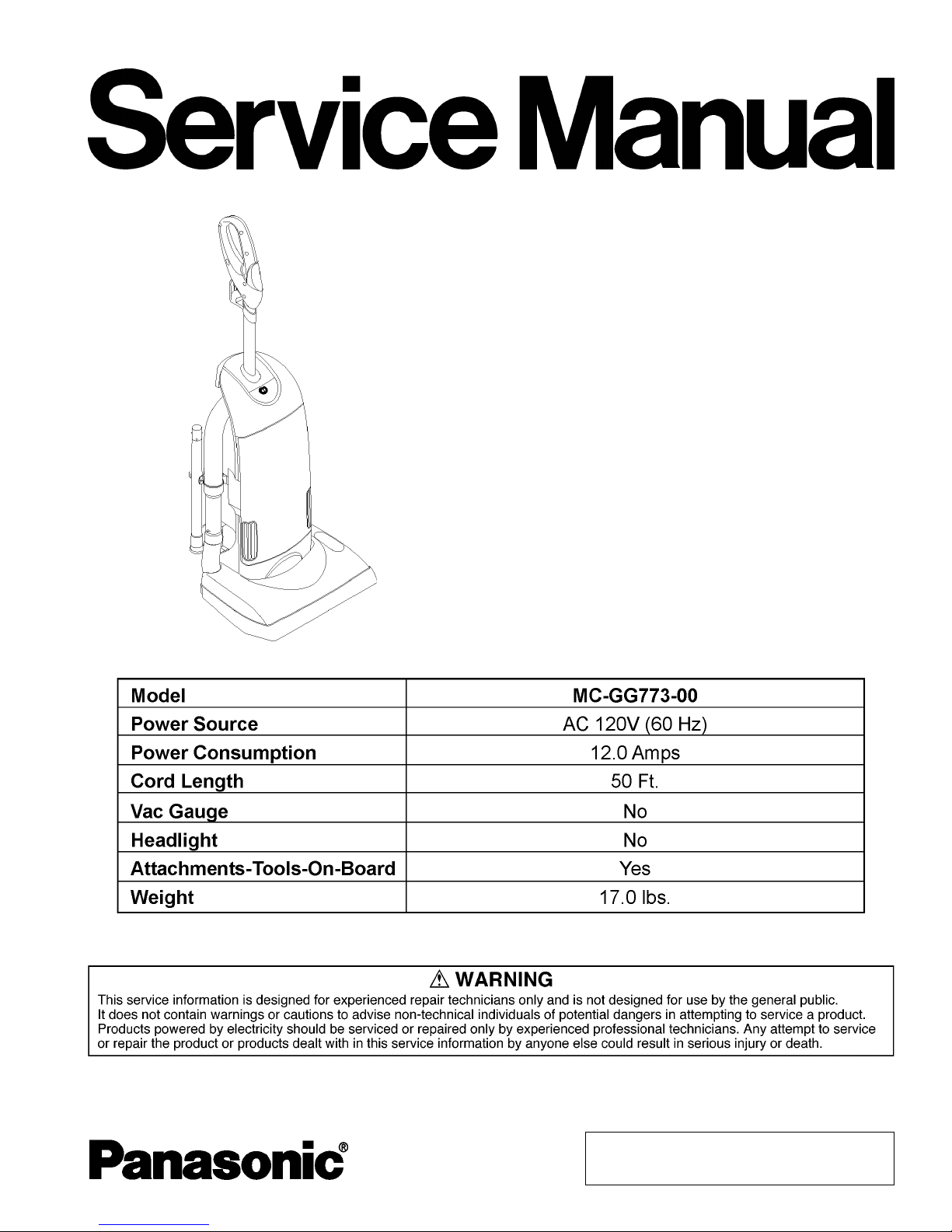

Panasonic MC-GG773-00 Manuel utilisateur
© 2007 PANASONIC HOME APPLIANCES
COMPANY, DIVISION OF PANSONIC
CORPORATION OF NORTH AMERICA. All rights
MC-GG773-00
Vacuum Cleaner
Specifications are subject to change without notice for further improvement.
Order Number MAC0712002CE
1 WIRING DIAGRAM AND DRAWING 3
1.1. Wiring Diagram 3
1.2. PICTORIAL DIAGRAM 4
2 EXPLODED VIEW AND PARTS LIST 5
2.1. Body 5
2.2. Nozzle Housing 7
2.3. Handle 9
2.4. Packing Materials 10
3 REPLACEMENT INSTRUCTIONS 11
3.1. Lower Plate Replacement 11
3.2. Agitator Assembly Replacement 11
3.3. Brush Replacement 11
3.4. Belt Replacement 12
3.5. Power Cord Replacement 13
3.6. Switch ON-OFF Replacement 13
3.7. Handle Release Assembly 13
3.8. Motor Replacement 14
3.9. Motor Protector Replacement 14
CONTENTS
Page Page
2
MC-GG773-00
1 WIRING DIAGRAM AND DRAWING

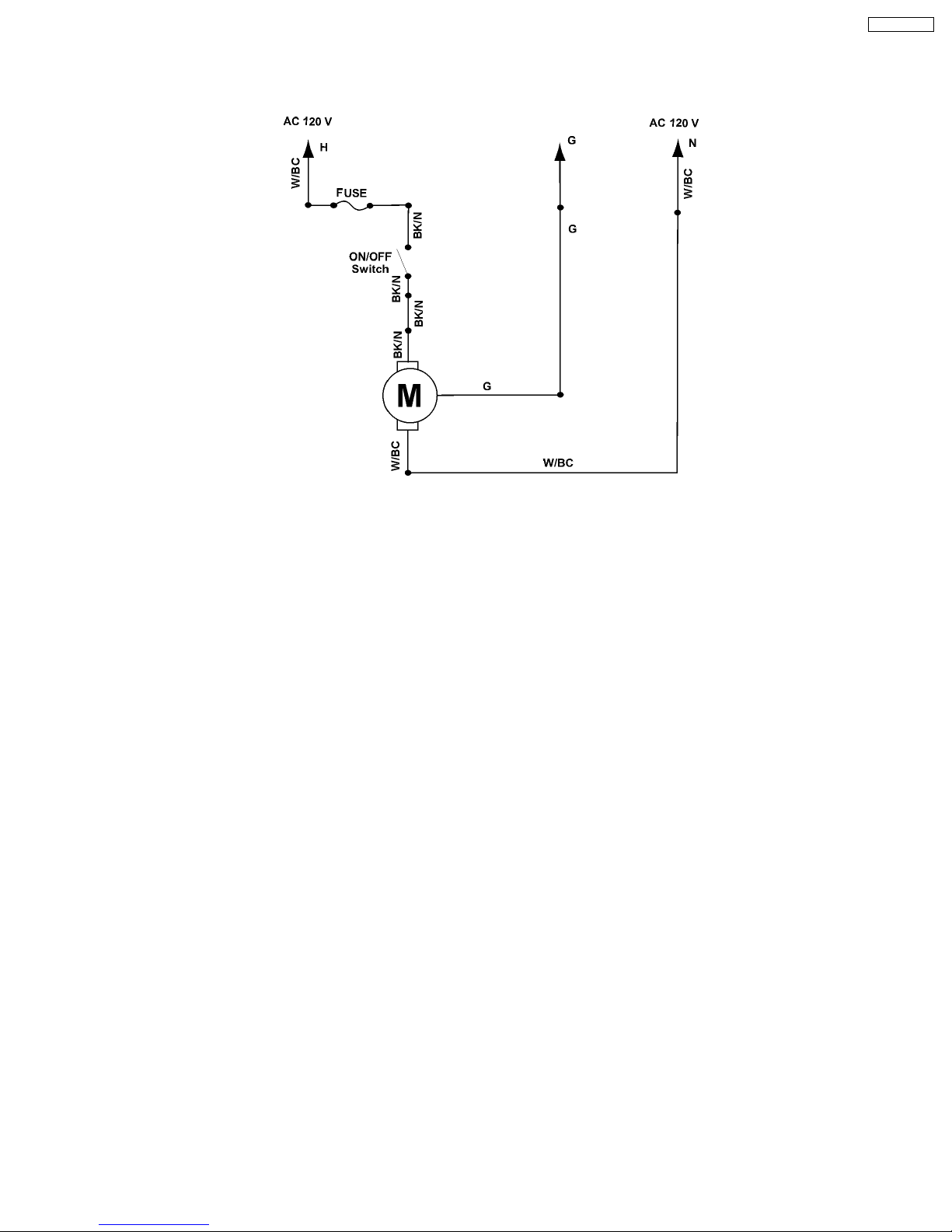

1.1. Wiring Diagram
3
MC-GG773-00

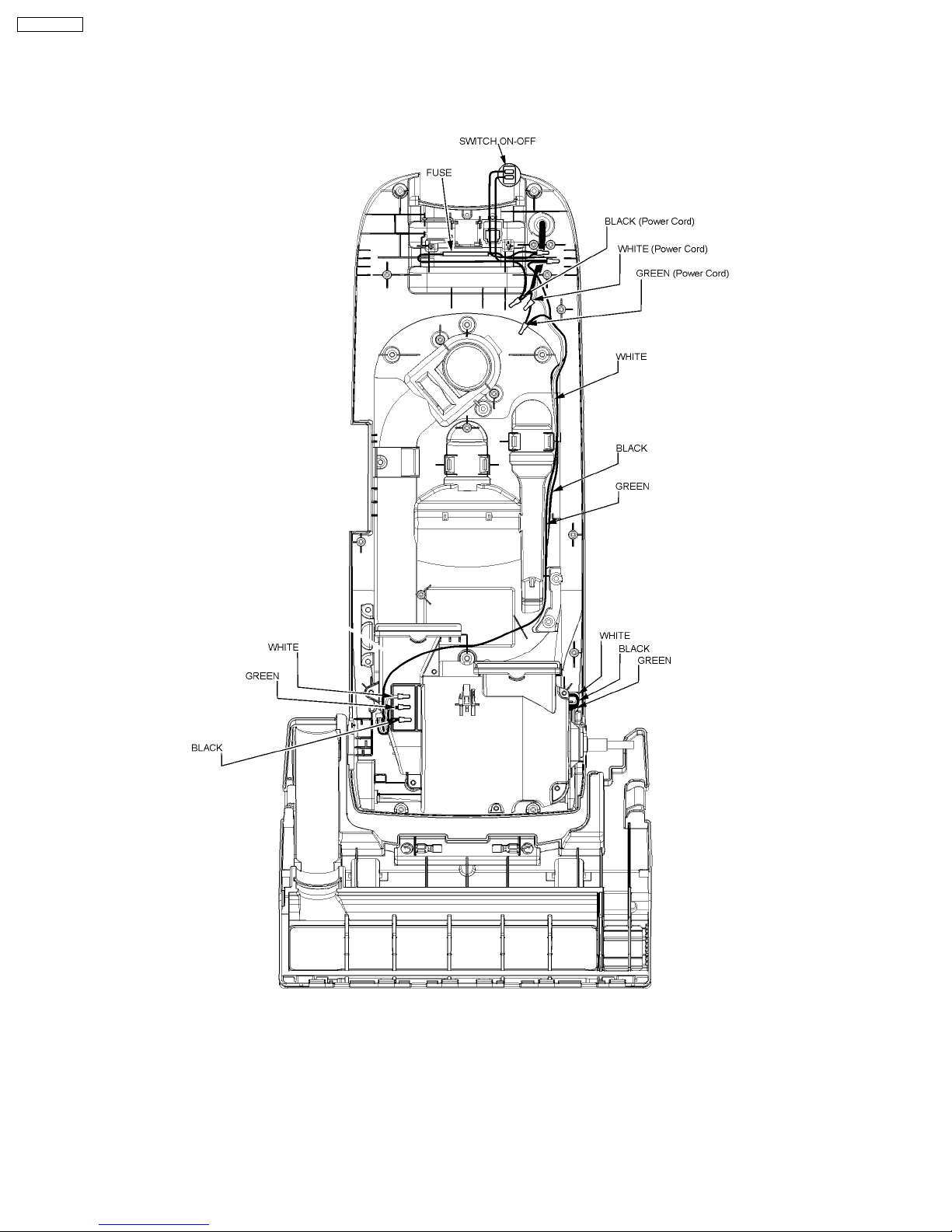

1.2. PICTORIAL DIAGRAM
NOTE:
For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical
component or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage.
4
MC-GG773-00
2 EXPLODED VIEW AND PARTS LIST

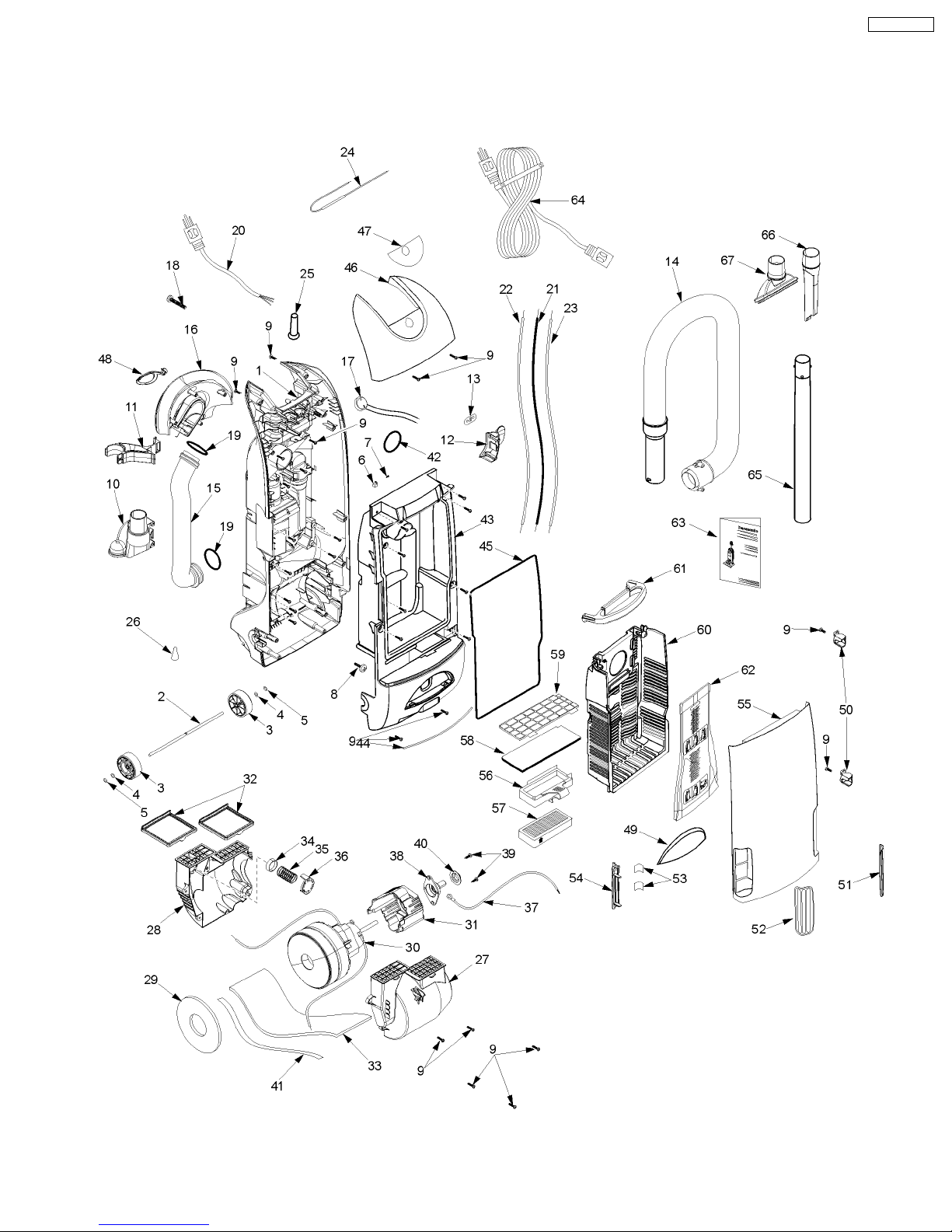

2.1. Body
2.1.1. Exploded View
5
MC-GG773-00
2.1.2. Parts List (Body)
Ref. No. Part No. Part Name & Description Quantity Remarks
1 AC40KDEKZV07 DUST COMPARTMENT 1
2 AC16CDDWZ000 ROLLER SHAFT 1
3 AC01CV0ZV06 WHEEL UNIT 2
4 AXWG6E115FY WASHER 2 Shipped 10 per package
5 AC74SUSZ00 STOPPER WHEEL 2 Shipped 10 per package
6 AC83DDAAZU00 LOCKING CAM 1
7 AXTS3+8BFY SCREW 1 Shipped 10 per package
8 AC68AZAZ00 SCREW, LOWER PLATE 1 Shipped 10 per package
9 AXTN4+16BFY SCREW 31 Shipped 10 per package
10 AC70PDDWZV07 WAND HOLDER 1
11 AC32RDDWZV07 ATTACHMENT HOLDER 1
12 AC24PDDWZV07 HOSE FITTING (HOSE SUPPORT) 1
13 AMC62E-J20 CORD STOPPER (C62EJ2) 1
14 AC84PDDWZV07 HOSE UNIT 1
15 AC52PDDWZV07 CONNECTOR PIPE 1
16 AC23PDDWZV07 HOSE HOLDER 1
17 AC01EDDXZ000 ON-OFF SWITCH 1
18 AXTN4+45BFY SCREW 1
19 AC74EDDWZ000 SEAL (AIR PATH) 2
20 AC94EDEKZY02 POWER CORD 1
21 AC85GDDWZ000 BLACK LEAD WIRE UNIT 1
22 AC85WDDWZ000 WHITE LEAD WIRE UNIT 1
23 AC39GDEKZ000 GREEN LEAD WIRE UNIT 1
24 AC99WCYKZ000 LEAD ASSEMBLY FUSE 1
25 AC51E4GZU01 RUBBER PROTECTOR 1
26 AMC-1CTCE23 WIRE NUT 8 Shipped 10 per package
27 AC54LDDWZU01 AIR GUIDE LEFT 1
28 AC55LDDWZU01 AIR GUIDE RIGHT 1
29 AC4154151 SEAL-IMPELLER 1
30 AC90FDEKZ000 MOTOR ASSEMBLY 1
31 AC26FDDWZU01 MOTOR CAP 1
32 AC45LDDWZV07 AIR OUTLET PACKING 2
33 AC99GAMMZ00 NOISE SUPPRESSOR 1
34 AC69KJMZV06 PROTECTOR 1
35 AC70KCNFZG00 PROTECTOR SPRING 1
36 AC68KAJDZV06 PROTECTOR CASE 1
37 AC39GDDXZ000 GREEN LEAD WIRE UNIT 1
38 AC25SBSKZ000 FLANGE 1
39 AXTN4+8JFY SCREW TAPTITE 2 Shipped 10 per package
40 AC03FAFYZ00 MOTOR SUPPORT RUBBER 1
41 AC39ADDWZ000 BODY PACKING, RIGHT 1
42 AC64HARTZ000 SUCTION INLET PACKING 1
43 AC85KDDXZU01 DUST BOX UNIT 1
44 AC66KDDXZ000 DUST COMPARTMENT PACKING 1
45 AC66KCRCZ000 DUST COVER PACKING 1
46 AC80FDDXZU01 SWITCH COVER 1
47 AC21TDDXZ000 ORNAMENTAL PLATE 1
48 AC02HDDWZV07 COVER LID 1
49 AC21HDEKZU01 WINDOW 1
50 AC44HDDWZU01 LID HOLDING BRACKET 2
51 AC28LDDXZU01 AIR OUTLET GUIDE 1
52 AC28LDDWZU01 AIR OUTLET GUIDE 1
53 AC18DDDWZ000 SPRING, RELEASE BUTTON 2
54 AC15KDDWZU01 FASTENER 1
55 AC48HDEKZUU1 COVER (DECO) 1
56 AC42KDDWZM0H FILTER CASE 1
57 AC38KBRMZ000 EXHAUST FILTER, HEPA 1
58 AC37KDDWZ000 FILTER SECONDARY (FOAM) 1
59 AC32KDDWZV07 FILTER SUPPORTER 1
60 AC03KDDWZV07 BAG BRACKET 1
61 AC64BDDWZM0H HANDLE 1
62 AC16KCRRZ000 DUST BAG 1
63 AC01ZDEKZ000 OPERATING INSTRUCTIONS 1
64 AC94EDDWZY02 POWER CORD 1
65 AC40PBRLZV06 EXTENSION WAND UNIT 1
66 AC60RCNFZV06 CREVICE TOOL 1
67 AC63RDDWZV06 COMBINATION BRUSH 1
6
MC-GG773-00

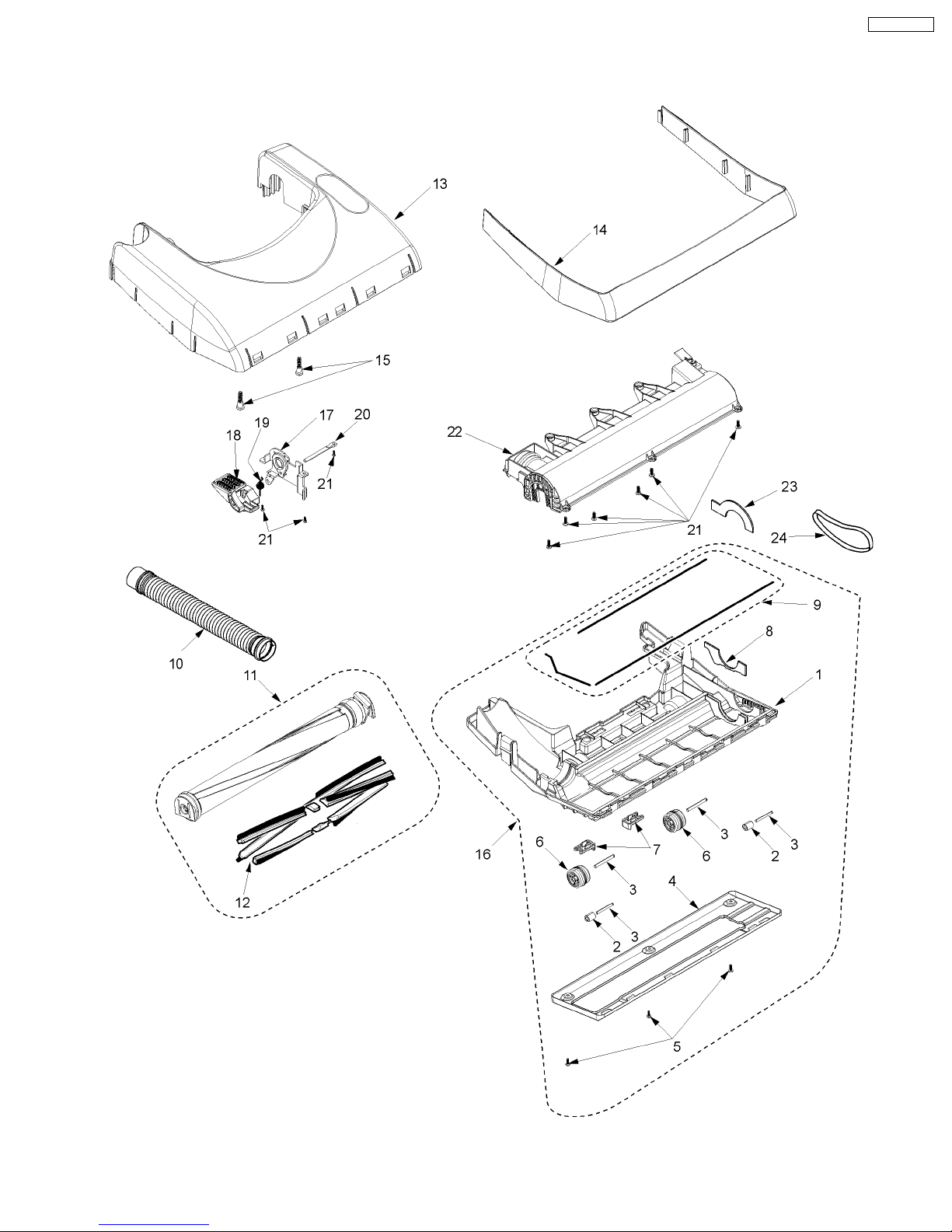

2.2. Nozzle Housing
2.2.1. Exploded View
7
MC-GG773-00
2.2.2. Parts List (Nozzle Housing)
Ref. No. Part No. Part Name & Description Quantity Remarks
1 AC97ADDWZV07 LOWER PLATE UNIT 1
2 AC01CDDWZV07 WHEEL 2
3 AC16CNXZ00 ROLLER SHAFT 4
4 AC27ADDWZ000 LOWER PLATE 1
5 AXTN4+10BFY SCREW 3 Shipped 10 per package
6 AC90QNGZV06 WHEEL UNIT 2
7 AC68NCYZZV06 LATCH 2
8 AC11ADDXZ000 FELT (LOWER) 1
9 AC19ACPSZ000 BODY PACKING 1
10 AC34PDDEZV06 NOZZLE HOSE 1
11 AC92SDDXZ000 AGITATOR ASSEMBLY 1
12 AC85RDDWZU01 BRUSH UNIT 6
13 AC01ADEKZYU2 BODY NOZZLE HOUSING 1
14 AC10ADDWZV07 FURNITURE GUARD 1
15 AMC68A-V30 SCREW (FOR BODY) 2
16 AC91ADDXZV07 LOWER PLATE UNIT 1
17 AC43AAFYZ00 BRACKET 1
18 AC47ADAAZM0E PEDAL 1
19 AC58AAFVZ00 PEDAL SPRING 1
20 AMC51A-YUZ0000 PEDAL SHAFT 1
21 AXTN4+16BFY SCREW 9 Shipped 10 per package
22 AC02ADDWZV07 UPPER BODY 1
23 AC11ADDWZ000 FELT (UPPER) 1
24 AC28SCZPZ000 BELT 1
8
MC-GG773-00

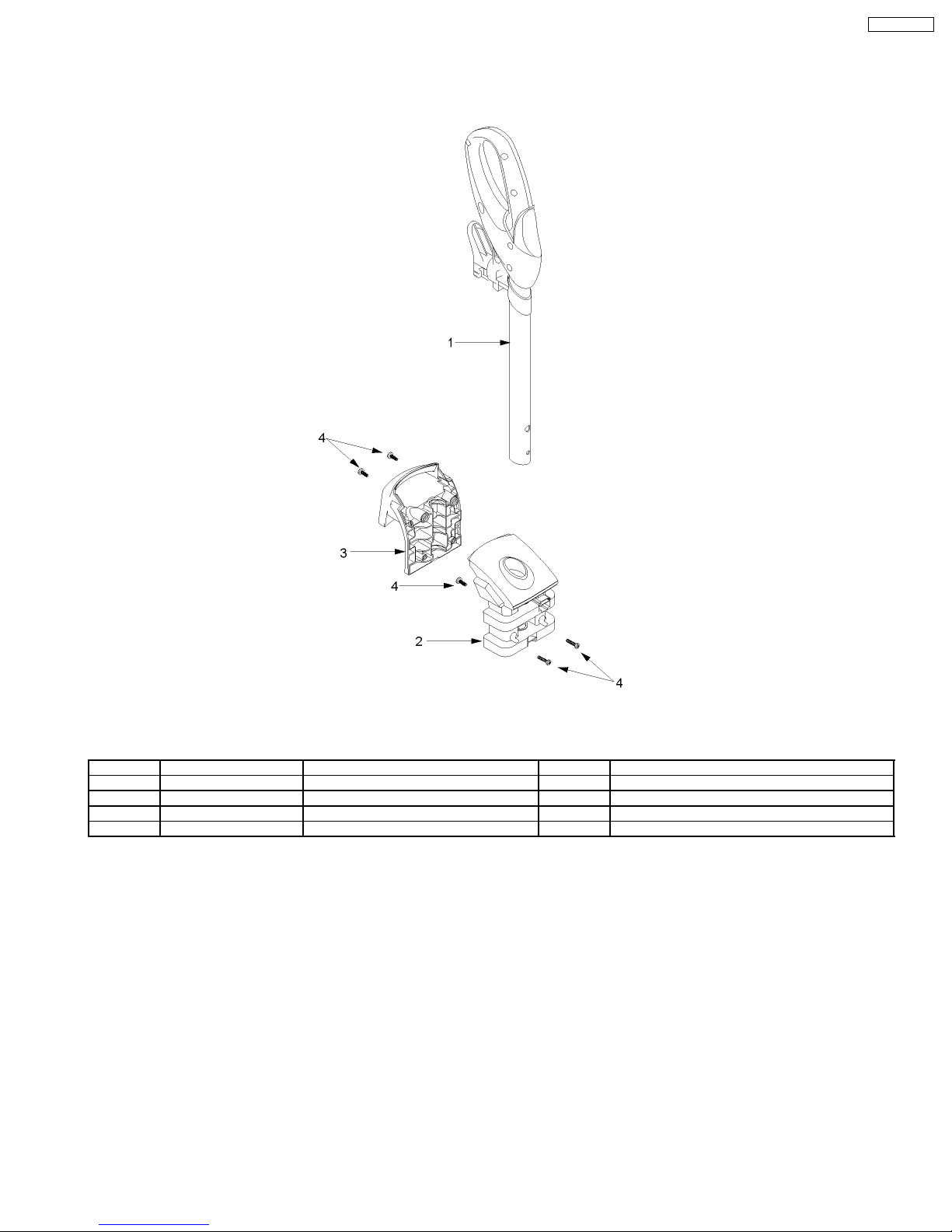

2.3. Handle
2.3.1. Exploded View
2.3.2. Parts List (Handle)
Ref. No. Part No. Part Name & Description Quantity Remarks
1 AC93BDDXZV07 HANDLE GRIP UNIT 1
2 AC06BDDXZV07 HANDLE COVER (A) 1
3 AC07BDDWZV07 HANDLE COVER (B) 1
4 AXTN4+16BFY SCREW 5 Shipped 10 per package
9
MC-GG773-00

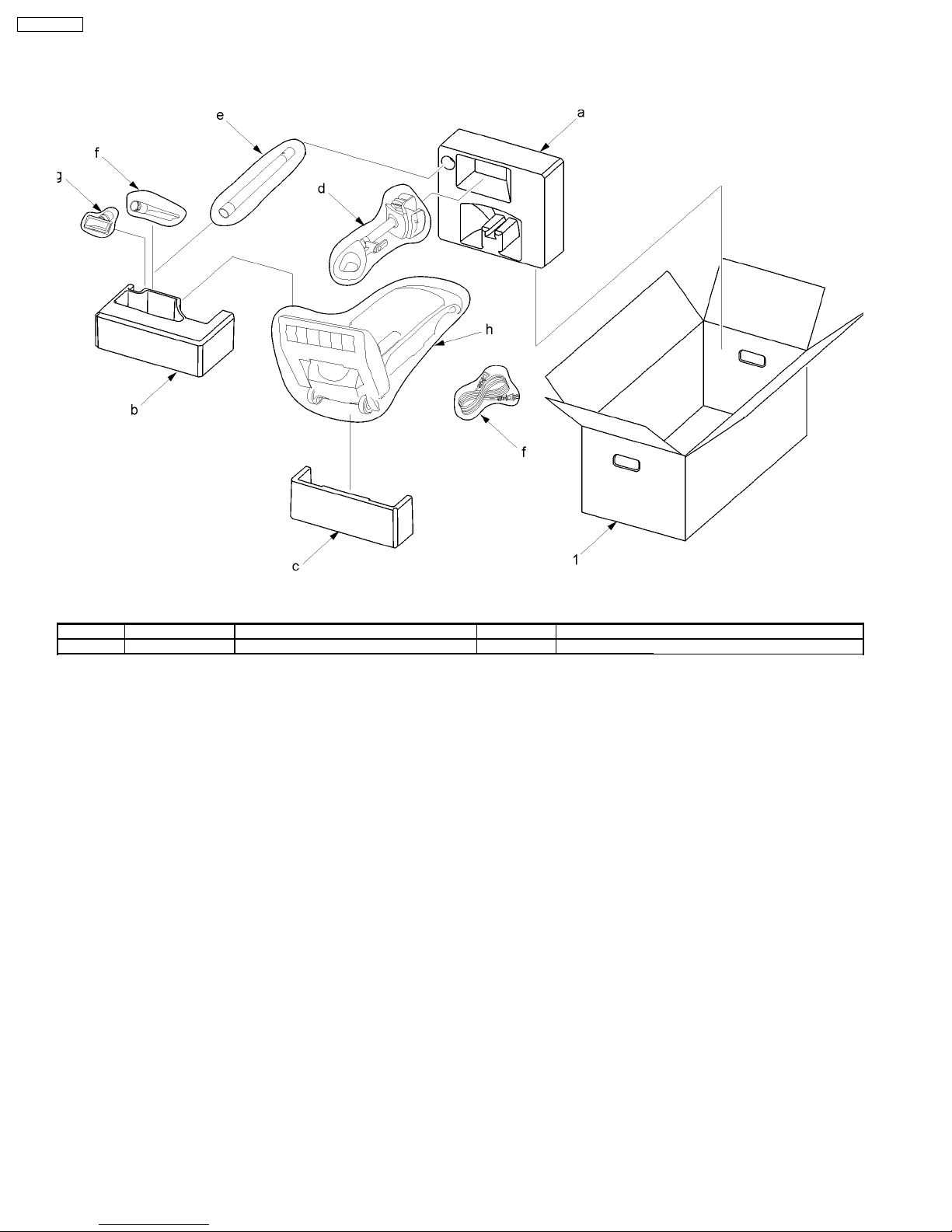

2.4. Packing Materials
2.4.1. Exploded View
2.4.2. Parts List (Packing Materials)
Ref. No. Part No. Part Name & Description Quantity Remarks
1 AC61ZDEKZ000 Packing Assembly 1 Includes 1 and items a thru g
10
