Operating Instructions

Integrated Telephone System

Model No. KX-TS880

Thank you for purchasing a Panasonic product.

Please read these operating instructions before using the unit and save them for

future reference.

This unit is compatible with Caller ID. You must subscribe to the appropriate

service offered by your service provider/telephone company.

For assistance, visit our website:

http://www.panasonic.com/help for customers in the USA or Puerto Rico.

Consulte “Guía Rápida en Español”, página 37.

Please register your product: http://www.panasonic.com/prodreg

KX-TS880.book Page 1 Friday, October 15, 2010 5:04 PM

2For assistance, please visit http://www.panasonic.com/help

Introduction

Accessory information................3

Important Information

For your safety ...........................4

Important safety instructions ......4

For best performance.................5

Other information .......................5

Specifications .............................5

Preparation

Controls......................................6

Display .......................................7

Battery installation and

replacement ...............................8

Connections ...............................9

Symbols used in these

operating instructions ...............10

Setting up the unit before

use ........................................... 11

Making/Answering Calls

Making calls .............................12

Answering calls ........................13

Useful features during a call.....14

One-Touch Dialer

One-touch dialer.......................15

Speed Dialer

Speed dialer .............................17

Phonebook

Phonebook ...............................18

Chain dial .................................19

Programming

Programmable settings ............20

Special instructions for

programmable settings.............22

Caller ID Service

Using Caller ID service.............23

Caller list ..................................24

Voice Mail Service

Voice mail service.................... 27

Useful Information

Optional headset ..................... 28

Desk mount setup.................... 29

Wall mount setup ..................... 30

Troubleshooting ....................... 32

FCC and other information ...... 35

Guía Rápida En Español

Guía rápida en español ........... 37

Appendix

Customer services................... 45

Warranty (For United States

and Puerto Rico)...................... 46

Index

Index........................................ 48

Table of Contents

KX-TS880.book Page 2 Friday, October 15, 2010 5:04 PM

For assistance, please visit http://www.panasonic.com/help

For your future reference

We recommend keeping a record of the following information to assist with any

repair under warranty.

Serial No. Date of purchase

(found on the bottom of the unit)

Name and address of dealer

Accessory information

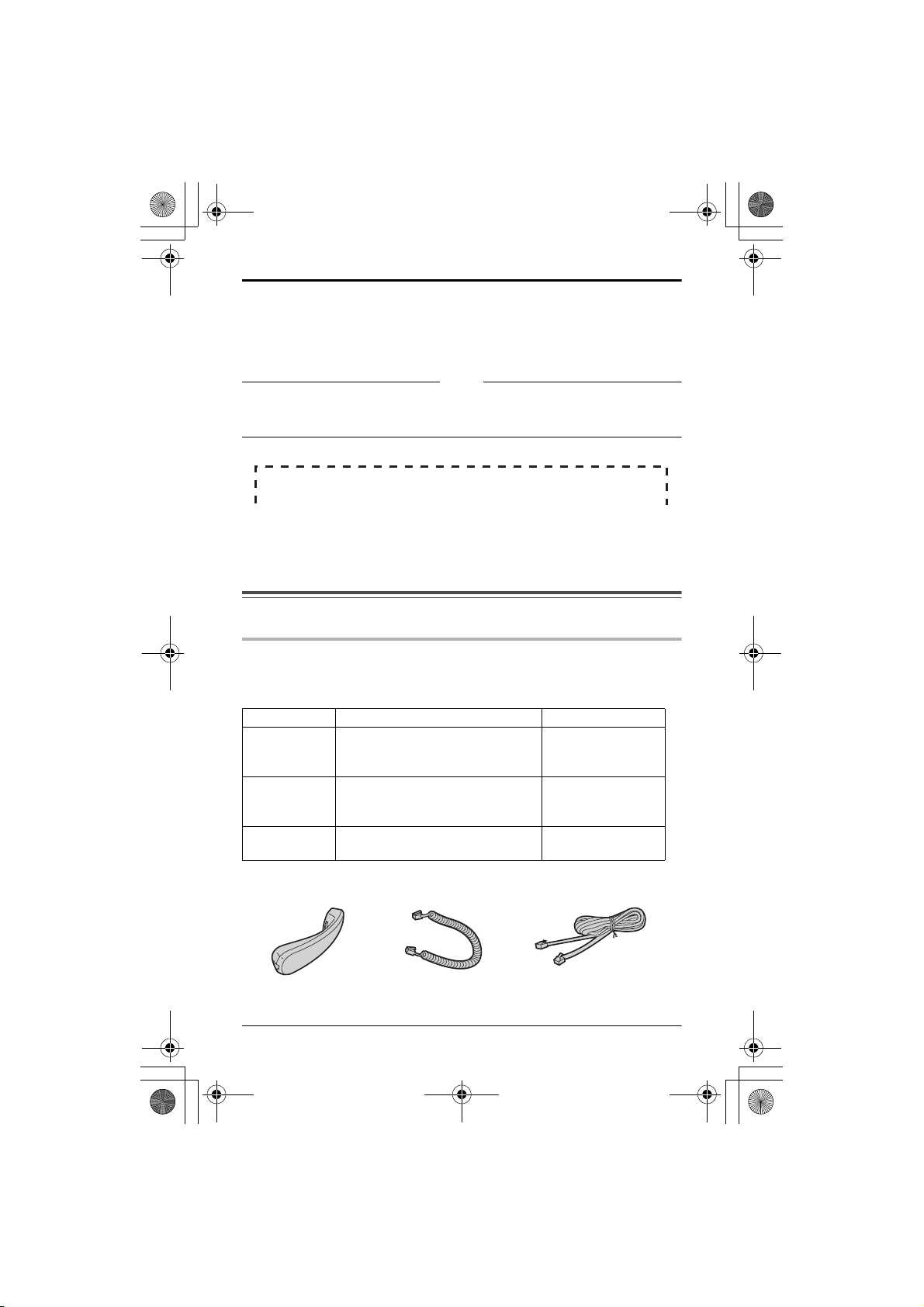

Supplied accessories

To order replacement accessories, please contact your nearest Panasonic

dealer for sales information (page 45).

No. Accessory item Quantity

Handset

Order no. : PQJXF0102Z (White)

PQJXF0101Z (Black)

Handset cord

Order no. : PQJA10152Z (White)

PQJA10152W (Black)

3Telephone line cord

Order no. : PQJA10075Z 1

123

Attach your purchase receipt here.

Introduction

KX-TS880.book Page 3 Friday, October 15, 2010 5:04 PM

4For assistance, please visit http://www.panasonic.com/help

For your safety

To prevent severe injury and loss of

life/property, read this section

carefully before using the product to

ensure proper and safe operation of

your product.

WARNING

Installation

≥To prevent the risk of fire or electrical

shock, do not expose the product to rain

or any type of moisture.

≥Unplug this unit from power outlets if it

emits smoke, an abnormal smell or

makes unusual noise. These conditions

can cause fire or electric shock. Confirm

that smoke has stopped and contact the

Panasonic Call Center at 1-800-211-

PANA (1-800-211-7262).

Operating safeguards

≥Do not disassemble the product.

≥Do not spill liquids (detergents,

cleansers, etc.) onto the telephone line

cord plug, or allow it to become wet at

all. This may cause a fire. If the

telephone line cord plug becomes wet,

immediately pull it from the telephone

wall jack, and do not use.

CAUTION

Installation and location

≥Never install telephone wiring during an

electrical storm.

≥Never install telephone line jacks in wet

locations unless the jack is specifically

designed for wet locations.

≥Never touch uninsulated telephone wires

or terminals unless the telephone line

has been disconnected at the network

interface.

≥Use caution when installing or modifying

telephone lines.

≥This product is unable to make calls

when the call restriction feature is turned

on (only phone numbers stored in the

unit as emergency numbers can be

called.)

Battery

≥We recommend using the batteries

noted on page 8.

≥Do not mix old and new batteries.

Important safety

instructions

When using your product, basic safety

precautions should always be

followed to reduce the risk of fire,

electric shock, and injury to persons,

including the following:

1. Do not use this product near water, for

example, near a bathtub, washbowl,

kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

2. Avoid using a telephone (other than a

cordless type) during an electrical

storm. There may be a remote risk of

electric shock from lightning.

3. Do not use the telephone to report a

gas leak in the vicinity of the leak.

4. Use only the batteries indicated in this

manual. Do not dispose of batteries in a

fire. They may explode. Check with

local codes for possible special disposal

instructions.

SAVE THESE

INSTRUCTIONS

Important Information

KX-TS880.book Page 4 Friday, October 15, 2010 5:04 PM

Important Information

For assistance, please visit http://www.panasonic.com/help

For best performance

Environment

≥The product should be kept free from

excessive smoke, dust, high

temperature, and vibration.

≥The product should not be exposed to

direct sunlight.

≥Do not place heavy objects on top of the

product.

≥The product should be kept away from

heat sources such as radiators, cookers,

etc. It should not be placed in rooms

where the temperature is less than 0°C

(32°F) or greater than 40°C (104°F).

Damp basements should also be

avoided.

Routine care

≥Wipe the outer surface of the product

with a soft moist cloth.

≥Do not use benzine, thinner, or any

abrasive powder.

Other information

Notice for product disposal,

transfer, or return

≥This product can store your private/

confidential information. To protect your

privacy/confidentiality, we recommend

that you erase information such as

phonebook, one-touch dial, speed dial or

caller list entries from the memory before

you dispose of, transfer, or return the

product.

Specifications

Power source:

From telephone line

From 3 AA (LR6, R6, UM-3) batteries

Dimensions (H x W x D):

Approx. 93 mm k172 mm k220 mm

(3 21/32"k6 77/100"k8 21/32")

Mass (Weight):

Approx. 550 g (1.21 lb.)

Operating conditions:

0 °C–40 °C (32 °F–104 °F),

20 %j80 % relative air humidity (dry)

Note:

≥Design and specifications are subject to

change without notice.

≥The illustrations in these instructions

may vary slightly from the actual product.

KX-TS880.book Page 5 Friday, October 15, 2010 5:04 PM

6For assistance, please visit http://www.panasonic.com/help

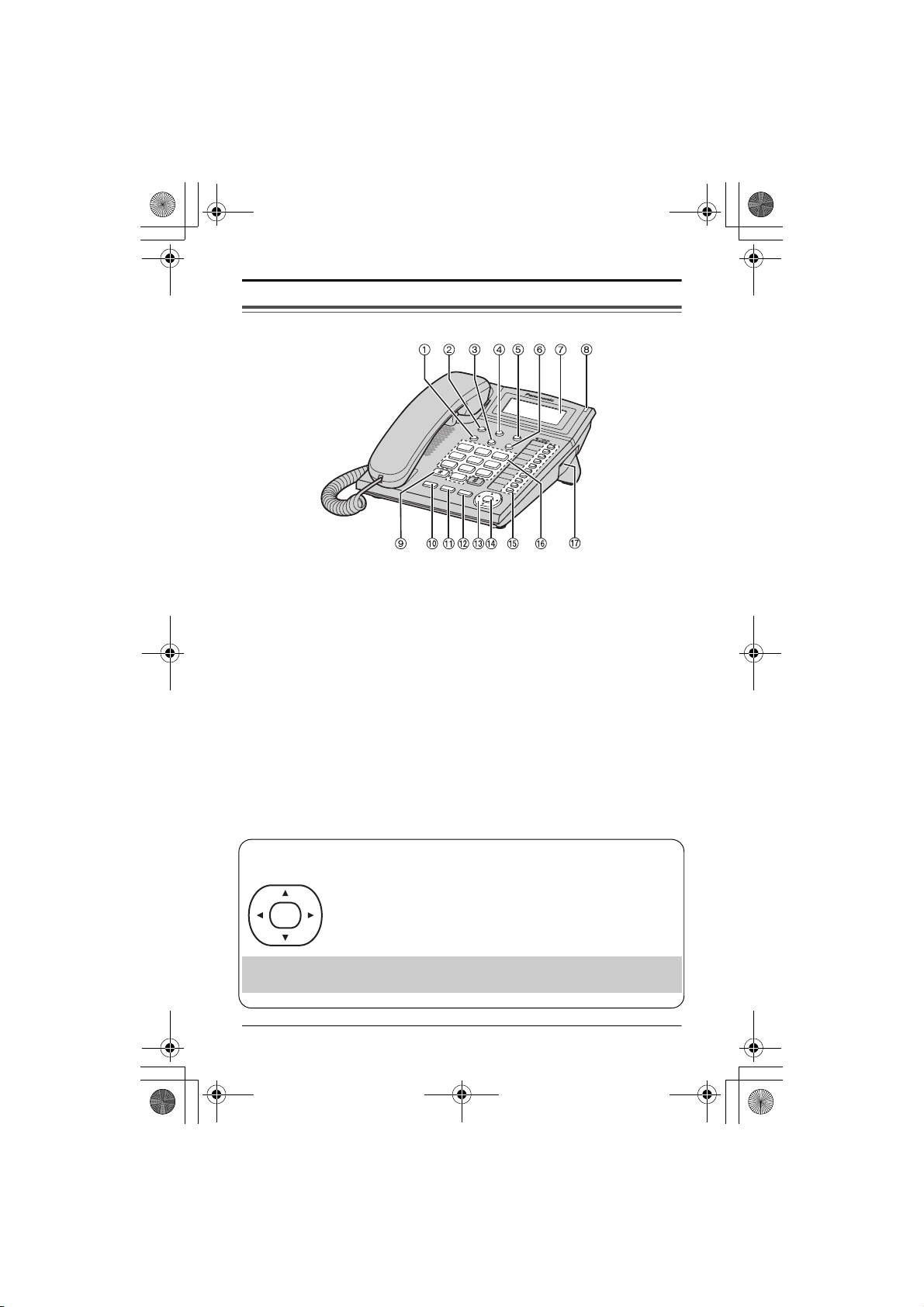

Controls

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

HOLD

FLASH

VOL.

TONE

MUTE

OPER

HEADSET

EDIT

REDIAL

PAU SE

AUTO/LOWER

CLEAR

PROGRAM/EXIT

ABC

SP-PHONE

789

1{HOLD}(page 14)

2{PROGRAM/EXIT}(page 11,

15, 17, 20, 22)

3{REDIAL}(page 12)

4{CLEAR}(page 12, 17, 18, 19,

22)

5{AUTO/LOWER}(page 15, 17)

6{PAU S E}(page 13)

7Display (page 7)

8RINGER indicator (page 13)

9{£}(TONE) (page 14)

:{FLASH}(page 14)

;{MUTE}(page 14)

<{SP-PHONE}(Speakerphone)

(page 12, 13, 15, 17, 24)

{HEADSET}(page 28)

=Navigator key ({3}, {4}, {2},

{1}) (page 18, 19, 24)

>{OK}(page 11, 15, 20, 22, 24)

?One-touch dial buttons

(page 15)

@Dial key buttons/memory

station numbers (page 17)

ARINGER selector (page 13)

How to use the Navigator key and {OK}button

This key has five active areas that are indicated by arrows and {OK}.

≥Pressing the up and down arrows allows you to enter the Caller List

and scroll through the function menu.

≥Pressing the right and left arrows allows you to enter the Phonebook

and move the cursor when entering items. The right arrow also use

to select the desired item.

≥The {OK}button is used to select and confirm desired item.

Throughout this Operating Instructions, the navigator key is indicated by the

arrows {4}, {3},{2}or {1}and {OK}.

Preparation

KX-TS880.book Page 6 Friday, October 15, 2010 5:04 PM

Preparation

For assistance, please visit http://www.panasonic.com/help

Display

Display items

Item Meaning

You have checked this caller information, answered the call or called

back the caller from the caller list (page 24).

The phone line is in SP-PHONE (speakerphone) call mode (page 12).

The display flashes when the battery power is low. To replace the

batteries, see page 8.

QThe second call has been received while talking (page 14).

P{PAUS E}was pressed while dialing or storing phone numbers.

F{FLASH}was pressed while storing phone numbers.

${£}was pressed while dialing.

}was pressed while dialing.

WThe phone line is in headset call mode.

KX-TS880.book Page 7 Friday, October 15, 2010 5:04 PM

Preparation

8For assistance, please visit http://www.panasonic.com/help

Battery installation and

replacement

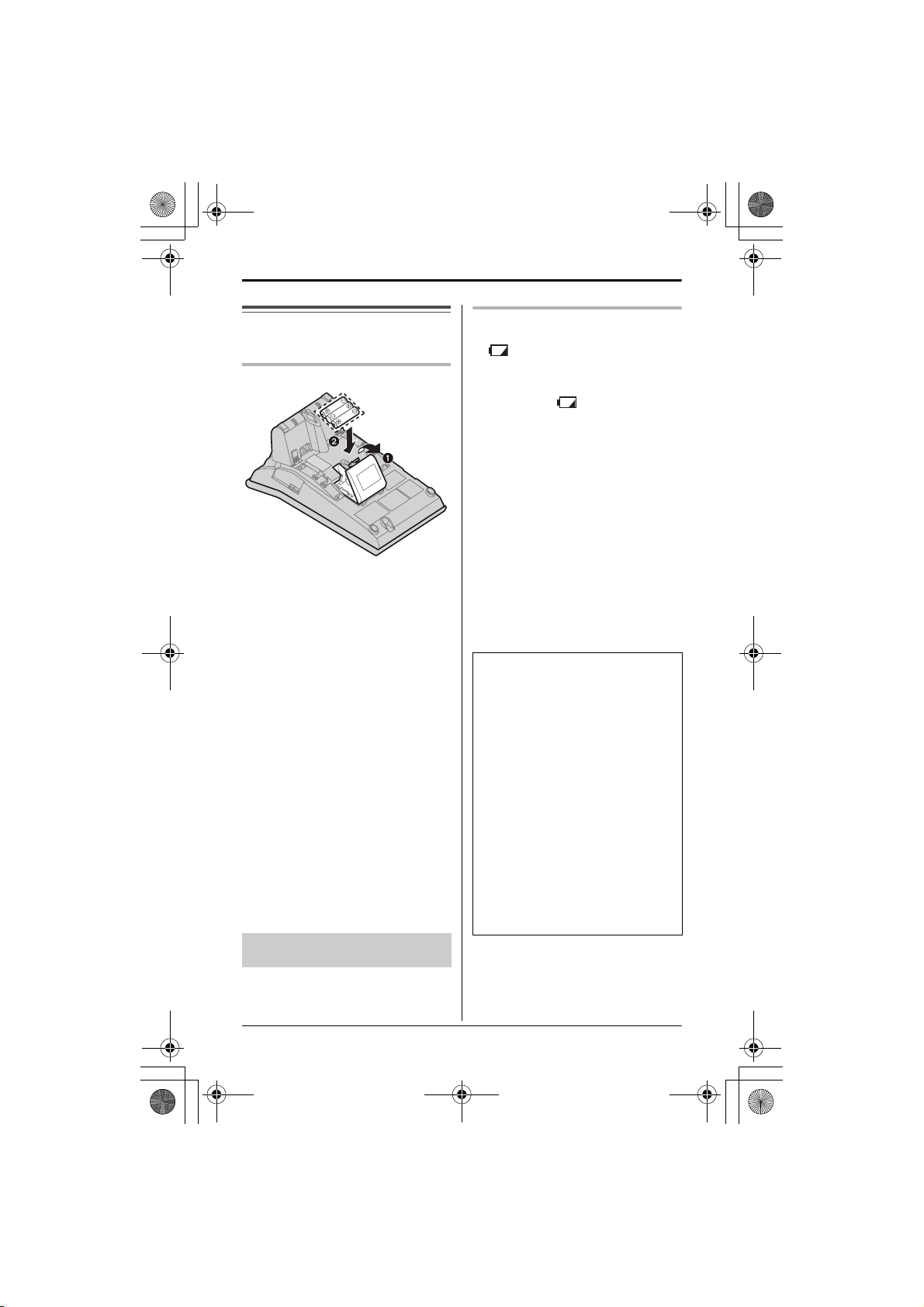

Installing the batteries

1Press down in the direction of the

arrow and open the cover (1).

2Install the batteries in the proper

order as shown (2), matching the

correct polarity.

3Close the battery cover.

≥After battery installation, the unit will

reset and “

Set clock

” will always

display until the time is set.

≥To set the clock, see page 11.

≥Batteries are not included with the unit.

≥Install three high quality “AA” size

Alkaline (LR6) or Manganese (R6, UM-3)

batteries. We recommend to use

Panasonic batteries.

Battery life is:

jabout six months when using Alkaline

batteries.

jabout three months when using

Manganese batteries.

≥Battery life may depend on usage

conditions and ambient temperature.

≥Make sure batteries were inserted

properly inphase to ensure the

functionality of this unit.

Replacing the batteries

If “ ” flashes, the battery power is

low. Install new batteries as soon as

possible. If batteries are not replaced

even after the “ ” is displayed, the

unit may not work properly.

≥Store the desired items in the

phonebook, because after the battery

replacement, the information stored in

the redial list will be cleared.

1Disconnect the telephone line

cord from the unit.

2Press down in the direction of the

arrow and open the cover.

3Replace the batteries with new

ones using correct polarity (+, –),

and close the cover.

4Connect the telephone line cord

to the unit.

THE UNIT MAY NOT WORK

PROPERLY WITHOUT BATTERIES.

Battery precautions:

The batteries should be used

correctly, otherwise the unit may be

damaged by battery leakage.

≥Do not mix different types of batteries.

≥Do not charge, short-circuit,

disassemble, heat or dispose of in fire.

≥Remove all the batteries when

replacing.

Note:

≥If you do not install the batteries or if

the battery power is low, the display will

become blank. Readjust the time after

the battery replacement.

≥Replace all the batteries every six

months if using Alkaline batteries, or

misoperation may occur. (When you

use Manganese batteries, replace all

of them every three months.)

≥Do not use nickel-cadium batteries.

KX-TS880.book Page 8 Friday, October 15, 2010 5:04 PM

Preparation

For assistance, please visit http://www.panasonic.com/help

Connections

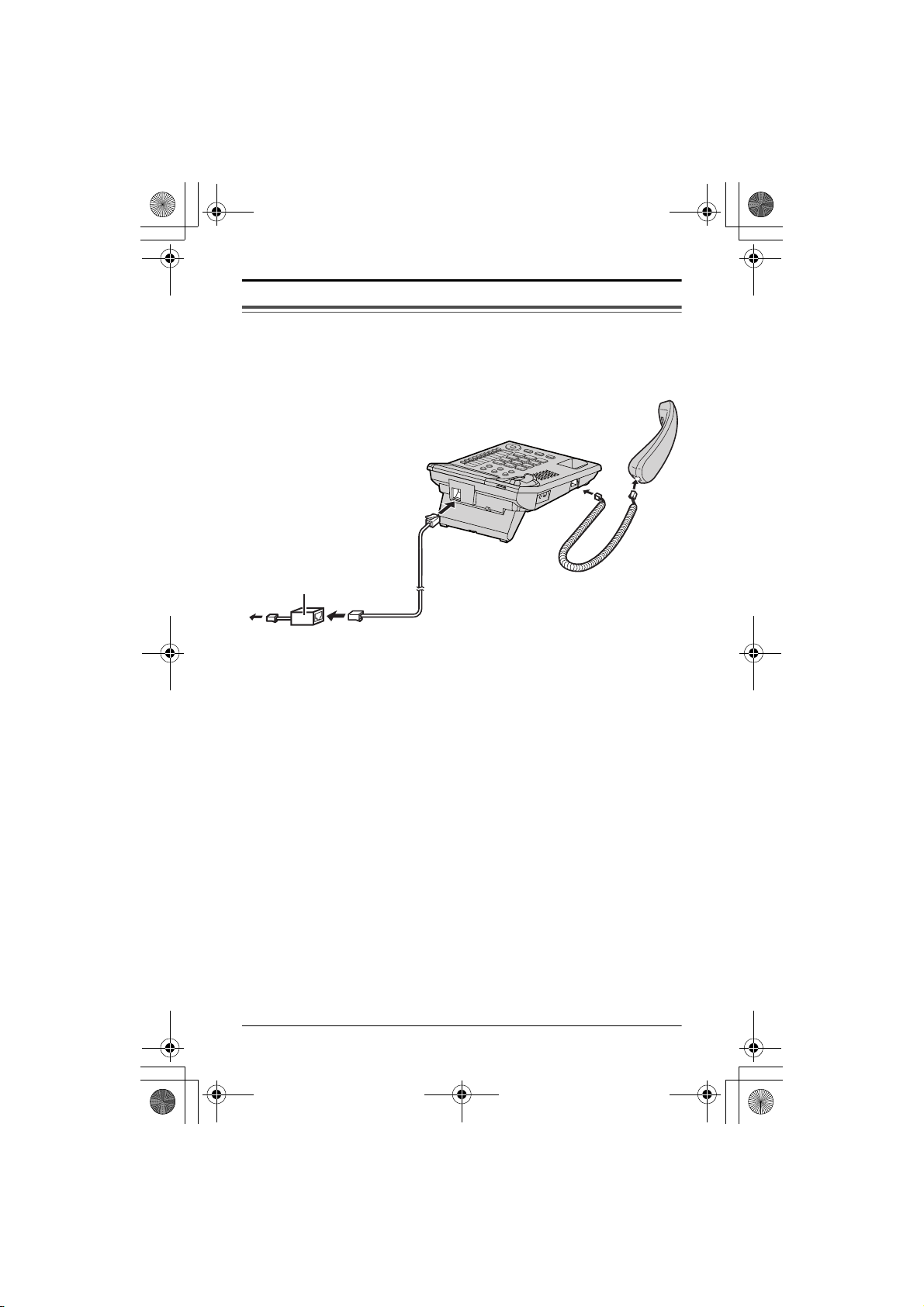

Connect the handset cord (1) to the handset and the unit. Connect the

telephone line cord until it clicks into the unit and telephone line jack (2).

After line connection, lift the handset to check for a dial tone.

≥Use only a Panasonic handset for KX-TS880.

≥Use only the supplied telephone line cord. Using another telephone line cord may not

allow the unit to work properly.

* For DSL/ADSL service users

Please attach a DSL/ADSL filter (contact your DSL/ADSL provider) to the

telephone line between the unit and the telephone line jack in the event of the

following:

snoise is heard during conversations.

sCaller ID features do not function properly.

DSL /ADSL filter *

(Not supplied)

To single-line telephone

jack (RJ11C)

KX-TS880.book Page 9 Friday, October 15, 2010 5:04 PM

Preparation

For assistance, please visit http://www.panasonic.com/help

Symbols used in these operating instructions

Symbol Meaning

{ } The words in the brackets indicate button names on the unit.

>Proceed to the next operation.

“ ” The words in quotations indicate the menu on the display.

Example: “

Save phonebook ?

”

{4}/{3}: “ ” Press {4}or {3}to select the words in quotations.

Example: {4}/ {3}: “

Off

”

KX-TS880.book Page 10 Friday, October 15, 2010 5:04 PM

Table des matières

Autres manuels Panasonic Téléphone

Panasonic

Panasonic KX-NT560 Manuel utilisateur

Panasonic

Panasonic KX-PRX120 Manuel utilisateur

Panasonic

Panasonic KX-TGH263C Manuel utilisateur

Panasonic

Panasonic HYBRID IP-PBX KX-TDA200 Manuel du propriétaire

Panasonic

Panasonic KX-TG2352W - 2.4 GHz DSS Expandable Cordless Phone... Instructions d'utilisation et d'installation

Panasonic

Panasonic KX-TSC11EX Manuel utilisateur

Panasonic

Panasonic KX-TDE600 Manuel utilisateur

Panasonic

Panasonic KX-TCD510RUM Manuel utilisateur

Panasonic

Panasonic KX-T7720E Manuel utilisateur

Panasonic

Panasonic KX-TS560ML Manuel utilisateur

Panasonic

Panasonic KXTD7690 - BTS 2.4 GHZ WIRELESS Manuel utilisateur

Panasonic

Panasonic KX-TC1711B - 900 MHz Cordless Phone Manuel utilisateur

Panasonic

Panasonic KX-NT6 Series Manuel utilisateur

Panasonic

Panasonic KX-TDA30 Manuel utilisateur

Panasonic

Panasonic Easa-Phone VA-123210 Instructions de montage

Panasonic

Panasonic KX-TCD505HKM Manuel utilisateur

Panasonic

Panasonic KX-TS500HG Manuel utilisateur

Panasonic

Panasonic DBS 38 Manuel utilisateur

Panasonic

Panasonic KX-TSC11MX Manuel utilisateur

Panasonic

Panasonic KX-TS500WX Manuel utilisateur

Panasonic

Panasonic KX-F50 Manuel utilisateur

Panasonic

Panasonic KX-TD308 Manuel utilisateur

Panasonic

Panasonic KX-TG6511C Manuel utilisateur

Panasonic

Panasonic KX-T7735 - 3 Line Backlit Display... Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur

Ericsson

Ericsson Dialog 3213 Manuel utilisateur

Yealink

Yealink VP530 Manuel utilisateur
