rights reserved. Unauthorized copying and

distribution is a violation of law.

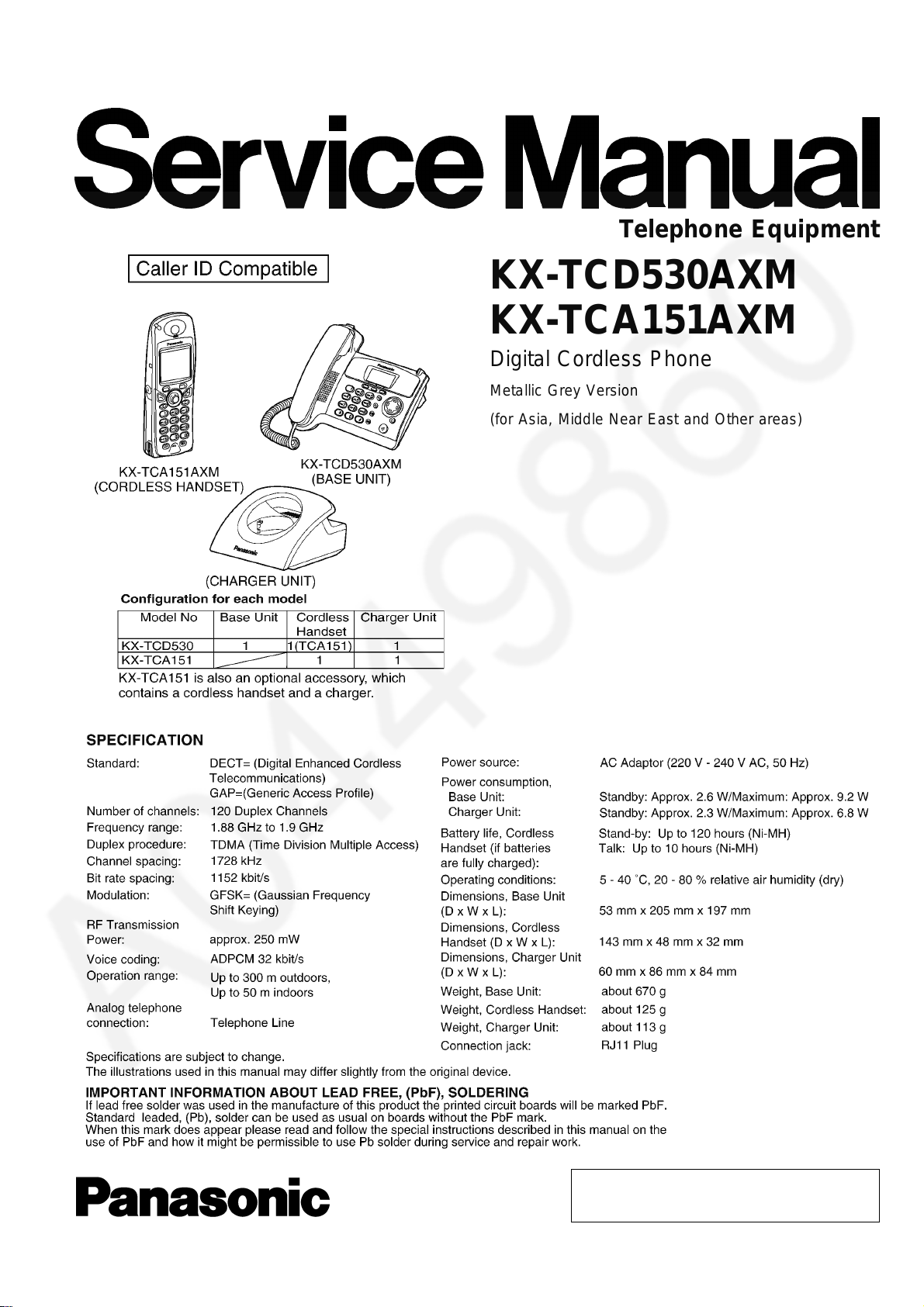

KX-TCD530AXM

KX-TCA151AXM

Digital Cordless Phone

Metallic Grey Version

(for Asia, Middle Near East and Other areas)

Telephone Equipment

ORDER NO. KM40311304C3

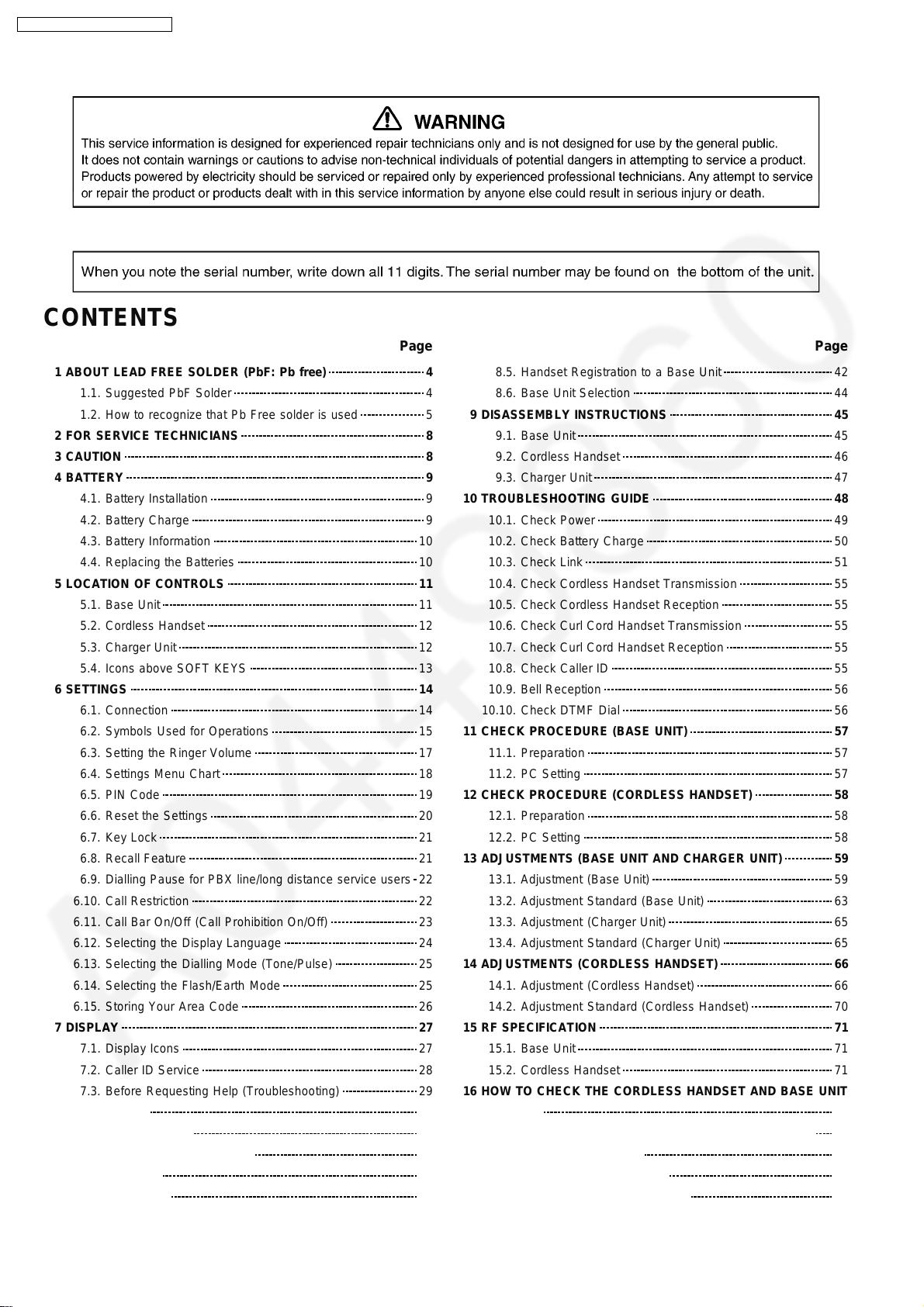

1 ABOUT LEAD FREE SOLDER (PbF: Pb free) 4

1.1. Suggested PbF Solder 4

1.2. How to recognize that Pb Free solder is used 5

2 FOR SERVICE TECHNICIANS 8

3 CAUTION 8

4 BATTERY 9

4.1. Battery Installation 9

4.2. Battery Charge 9

4.3. Battery Information 10

4.4. Replacing the Batteries 10

5 LOCATION OF CONTROLS 11

5.1. Base Unit 11

5.2. Cordless Handset 12

5.3. Charger Unit 12

5.4. Icons above SOFT KEYS 13

6 SETTINGS 14

6.1. Connection 14

6.2. Symbols Used for Operations 15

6.3. Setting the Ringer Volume 17

6.4. Settings Menu Chart 18

6.5. PIN Code 19

6.6. Reset the Settings 20

6.7. Key Lock 21

6.8. Recall Feature 21

6.9. Dialling Pause for PBX line/long distance service users

6.10. Call Restriction 22

6.11. Call Bar On/Off (Call Prohibition On/Off) 23

6.12. Selecting the Display Language 24

6.13. Selecting the Dialling Mode (Tone/Pulse) 25

6.14. Selecting the Flash/Earth Mode 25

6.15. Storing Your Area Code 26

7 DISPLAY 27

7.1. Display Icons 27

7.2. Caller ID Service 28

7.3. Before Requesting Help (Troubleshooting) 29

8 OPERATIONS 32

8.1. Power ON/OFF 32

8.2. Setting the Date and Time 32

8.3. Redialling 33

8.4. Phonebook 34

8.5. Handset Registration to a Base Unit 42

8.6. Base Unit Selection 44

9 DISASSEMBLY INSTRUCTIONS 45

9.1. Base Unit 45

9.2. Cordless Handset 46

9.3. Charger Unit 47

10 TROUBLESHOOTING GUIDE 48

10.1. Check Power 49

10.2. Check Battery Charge 50

10.3. Check Link 51

10.4. Check Cordless Handset Transmission 55

10.5. Check Cordless Handset Reception 55

10.6. Check Curl Cord Handset Transmission 55

10.7. Check Curl Cord Handset Reception 55

10.8. Check Caller ID 55

10.9. Bell Reception 56

10.10. Check DTMF Dial 56

11 CHECK PROCEDURE (BASE UNIT) 57

11.1. Preparation 57

11.2. PC Setting 57

12 CHECK PROCEDURE (CORDLESS HANDSET) 58

12.1. Preparation 58

12.2. PC Setting 58

13 ADJUSTMENTS (BASE UNIT AND CHARGER UNIT) 59

13.1. Adjustment (Base Unit) 59

13.2. Adjustment Standard (Base Unit) 63

13.3. Adjustment (Charger Unit) 65

13.4. Adjustment Standard (Charger Unit) 65

14 ADJUSTMENTS (CORDLESS HANDSET) 66

14.1. Adjustment (Cordless Handset) 66

14.2. Adjustment Standard (Cordless Handset) 70

15 RF SPECIFICATION 71

15.1. Base Unit 71

15.2. Cordless Handset 71

16 HOW TO CHECK THE CORDLESS HANDSET AND BASE UNIT

SPEAKER 71

17 HOW TO CHECK THE CORDLESS HANDSET RECEIVER 72

18 FREQUENCY TABLE (MHz) 73

19 BLOCK DIAGRAM (BASE UNIT) 74

20 CIRCUIT OPERATION (BASE UNIT) 75

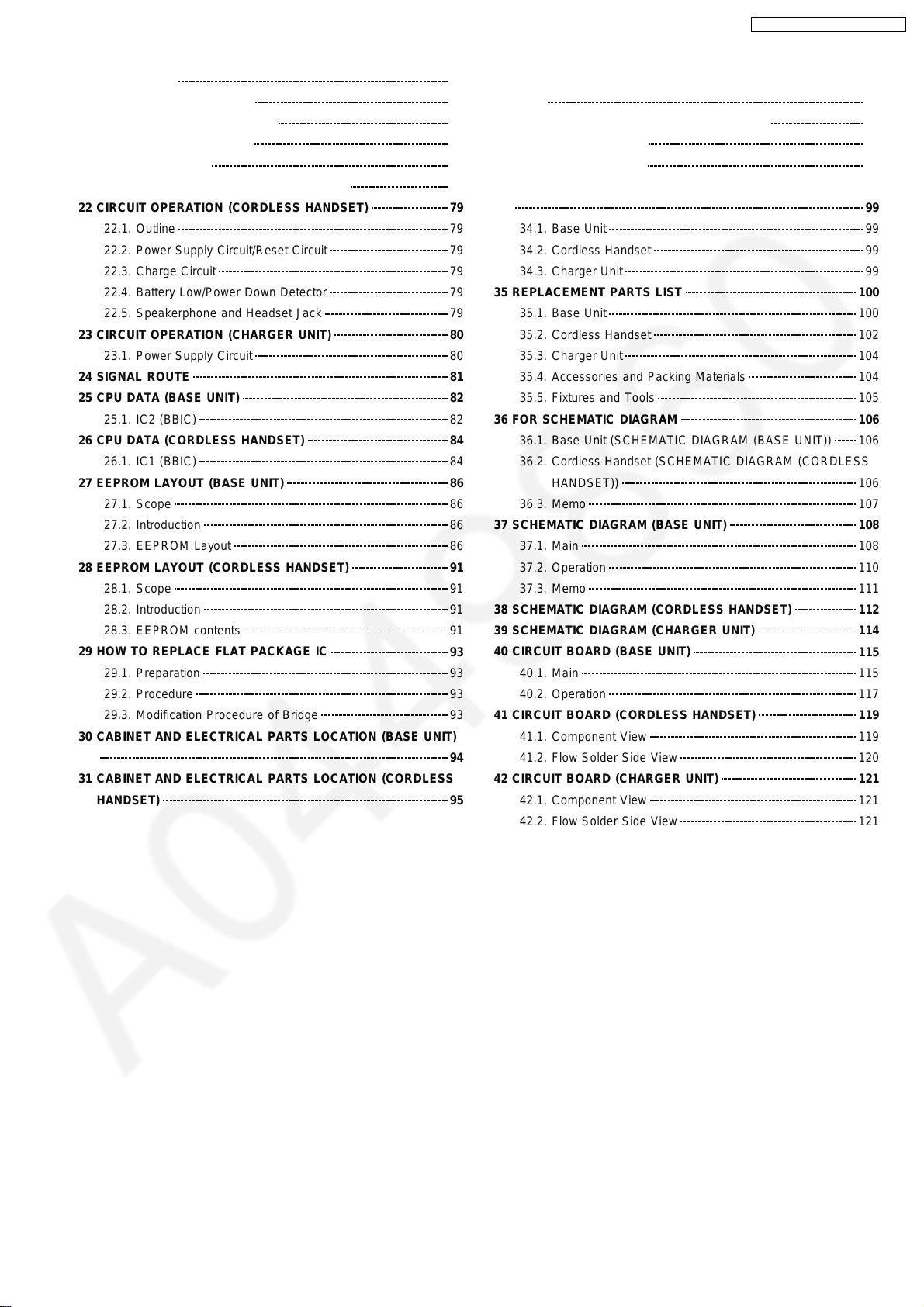

CONTENTS

Page Page

KX-TCD530AXM / KX-TCA151AXM

20.1. Outline 75

20.2. Power Supply Circuit 76

20.3. Telephone Line Interface 77

20.4. Transmitter/Receiver 77

20.5. Pulse Dialing 77

21 BLOCK DIAGRAM (CORDLESS HANDSET) 78

22 CIRCUIT OPERATION (CORDLESS HANDSET) 79

22.1. Outline 79

22.2. Power Supply Circuit/Reset Circuit 79

22.3. Charge Circuit 79

22.4. Battery Low/Power Down Detector 79

22.5. Speakerphone and Headset Jack 79

23 CIRCUIT OPERATION (CHARGER UNIT) 80

23.1. Power Supply Circuit 80

24 SIGNAL ROUTE 81

25 CPU DATA (BASE UNIT) 82

25.1. IC2 (BBIC) 82

26 CPU DATA (CORDLESS HANDSET) 84

26.1. IC1 (BBIC) 84

27 EEPROM LAYOUT (BASE UNIT) 86

27.1. Scope 86

27.2. Introduction 86

27.3. EEPROM Layout 86

28 EEPROM LAYOUT (CORDLESS HANDSET) 91

28.1. Scope 91

28.2. Introduction 91

28.3. EEPROM contents 91

29 HOW TO REPLACE FLAT PACKAGE IC 93

29.1. Preparation 93

29.2. Procedure 93

29.3. Modification Procedure of Bridge 93

30 CABINET AND ELECTRICAL PARTS LOCATION (BASE UNIT)

31 CABINET AND ELECTRICAL PARTS LOCATION (CORDLESS

HANDSET) 95

32 CABINET AND ELECTRICAL PARTS LOCATION (CHARGER

UNIT) 96

33 ACCESSORIES AND PACKING MATERIALS 97

33.1. KX-TCD530AXM 97

33.2. KX-TCA151AXM 98

34 TERMINAL GUIDE OF THE ICs, TRANSISTORS AND DIODES

34.1. Base Unit 99

34.2. Cordless Handset 99

34.3. Charger Unit 99

35 REPLACEMENT PARTS LIST 100

35.1. Base Unit 100

35.2. Cordless Handset 102

35.3. Charger Unit 104

35.4. Accessories and Packing Materials 104

35.5. Fixtures and Tools 105

36 FOR SCHEMATIC DIAGRAM 106

36.1. Base Unit (SCHEMATIC DIAGRAM (BASE UNIT)) 106

36.2. Cordless Handset (SCHEMATIC DIAGRAM (CORDLESS

HANDSET)) 106

36.3. Memo 107

37 SCHEMATIC DIAGRAM (BASE UNIT) 108

37.1. Main 108

37.2. Operation 110

37.3. Memo 111

38 SCHEMATIC DIAGRAM (CORDLESS HANDSET) 112

39 SCHEMATIC DIAGRAM (CHARGER UNIT) 114

40 CIRCUIT BOARD (BASE UNIT) 115

40.1. Main 115

40.2. Operation 117

41 CIRCUIT BOARD (CORDLESS HANDSET) 119

41.1. Component View 119

41.2. Flow Solder Side View 120

42 CIRCUIT BOARD (CHARGER UNIT) 121

42.1. Component View 121

42.2. Flow Solder Side View 121

KX-TCD530AXM / KX-TCA151AXM

1 ABOUT LEAD FREE SOLDER (PbF: Pb free)

Note:

In the information below, Pb, the symbol for lead in the periodic table of elements, will refer to standard solder or solder that

contains lead.

We will use PbF solder when discussing the lead free solder used in our manufacturing process which is made from Tin (Sn),

Silver (Ag), and Copper (Cu).

This model, and others like it, manufactured using lead free solder will have PbF stamped on the PCB. For service and repair

work we suggest using the same type of solder although, with some precautions, standard Pb solder can also be used.

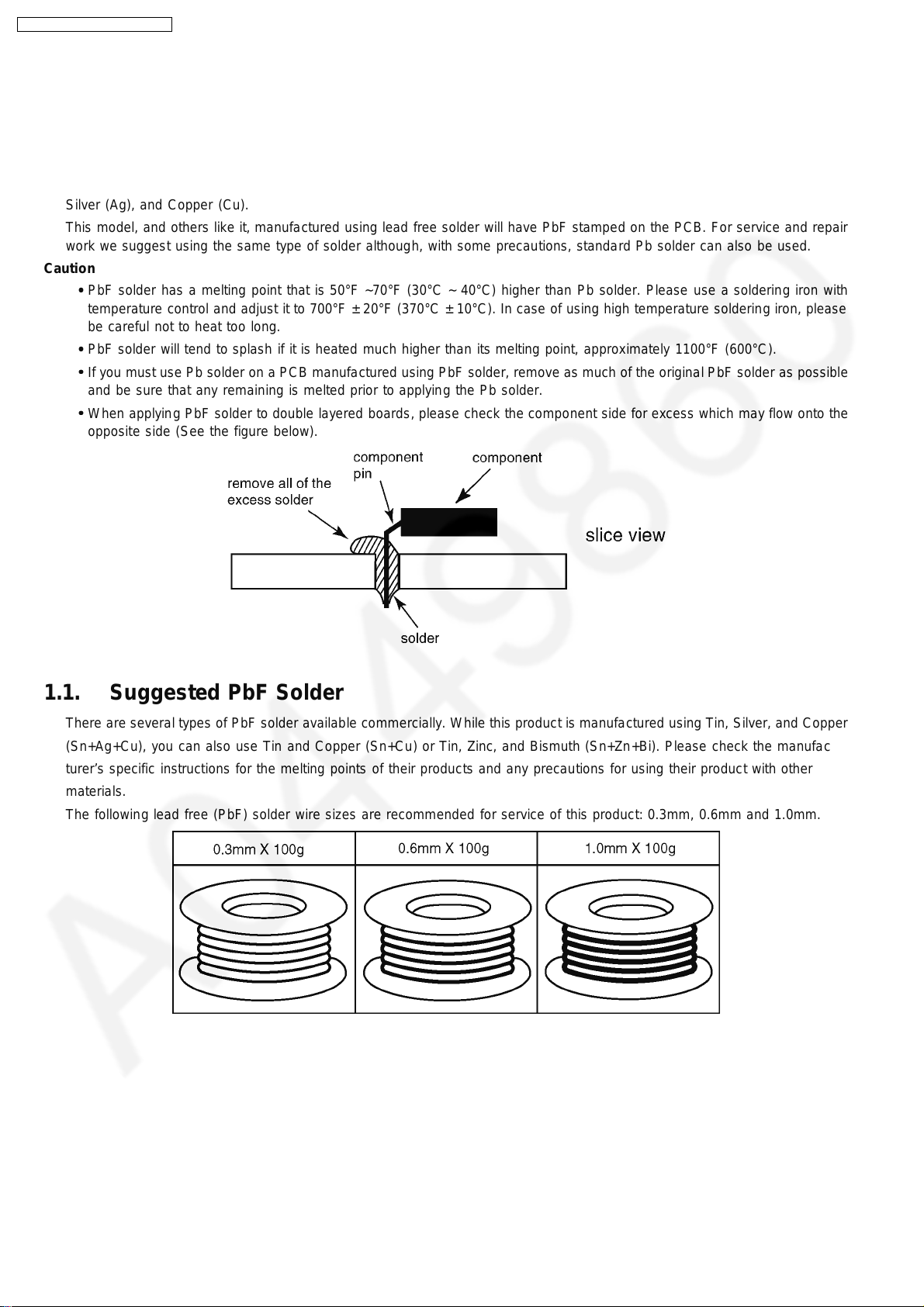

Caution

•

••

• PbF solder has a melting point that is 50°F ~70°F (30°C ~ 40°C) higher than Pb solder. Please use a soldering iron with

temperature control and adjust it to 700°F ± 20°F (370°C ± 10°C). In case of using high temperature soldering iron, please

be careful not to heat too long.

•

••

• PbF solder will tend to splash if it is heated much higher than its melting point, approximately 1100°F (600°C).

•

••

• If you must use Pb solder on a PCB manufactured using PbF solder, remove as much of the original PbF solder as possible

and be sure that any remaining is melted prior to applying the Pb solder.

•

••

• When applying PbF solder to double layered boards, please check the component side for excess which may flow onto the

opposite side (See the figure below).

1.1. Suggested PbF Solder

There are several types of PbF solder available commercially. While this product is manufactured using Tin, Silver, and Copper

(Sn+Ag+Cu), you can also use Tin and Copper (Sn+Cu) or Tin, Zinc, and Bismuth (Sn+Zn+Bi). Please check the manufac

turer’s specific instructions for the melting points of their products and any precautions for using their product with other

materials.

The following lead free (PbF) solder wire sizes are recommended for service of this product: 0.3mm, 0.6mm and 1.0mm.

KX-TCD530AXM / KX-TCA151AXM

1.2. How to recognize that Pb Free solder is used

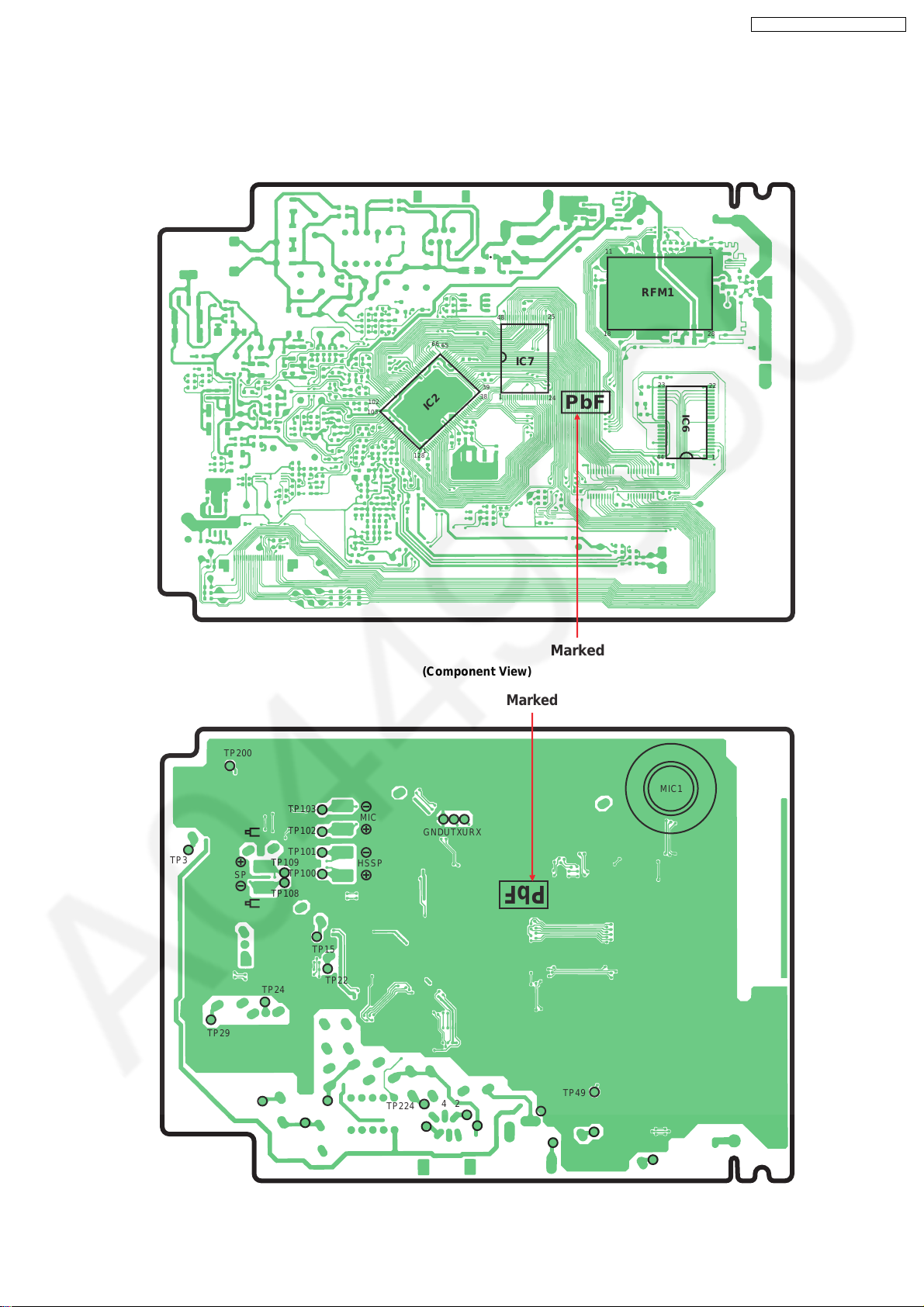

1.2.1. Base Unit PCB

1.2.1.1. Main

48 25

IC7

IC2

RFM1

IC6

102

103

128 44

18 28

11 1

PbF

Marked

(Component View)

PbF

TP14

ANT1

TP49

TP5

TP4

4 2

TP9

TP222

TP7

TP19

TP21

TP20

TP29

TP24 TP22

TP15

TP3

TP200

TP100

TP108

TP109 HSSP

URXUTXGND

MIC1

TP101

TP102

TP103

TP223

TP224

MIC

Marked

(Flow Solder Side View)

KX-TCD530AXM / KX-TCA151AXM

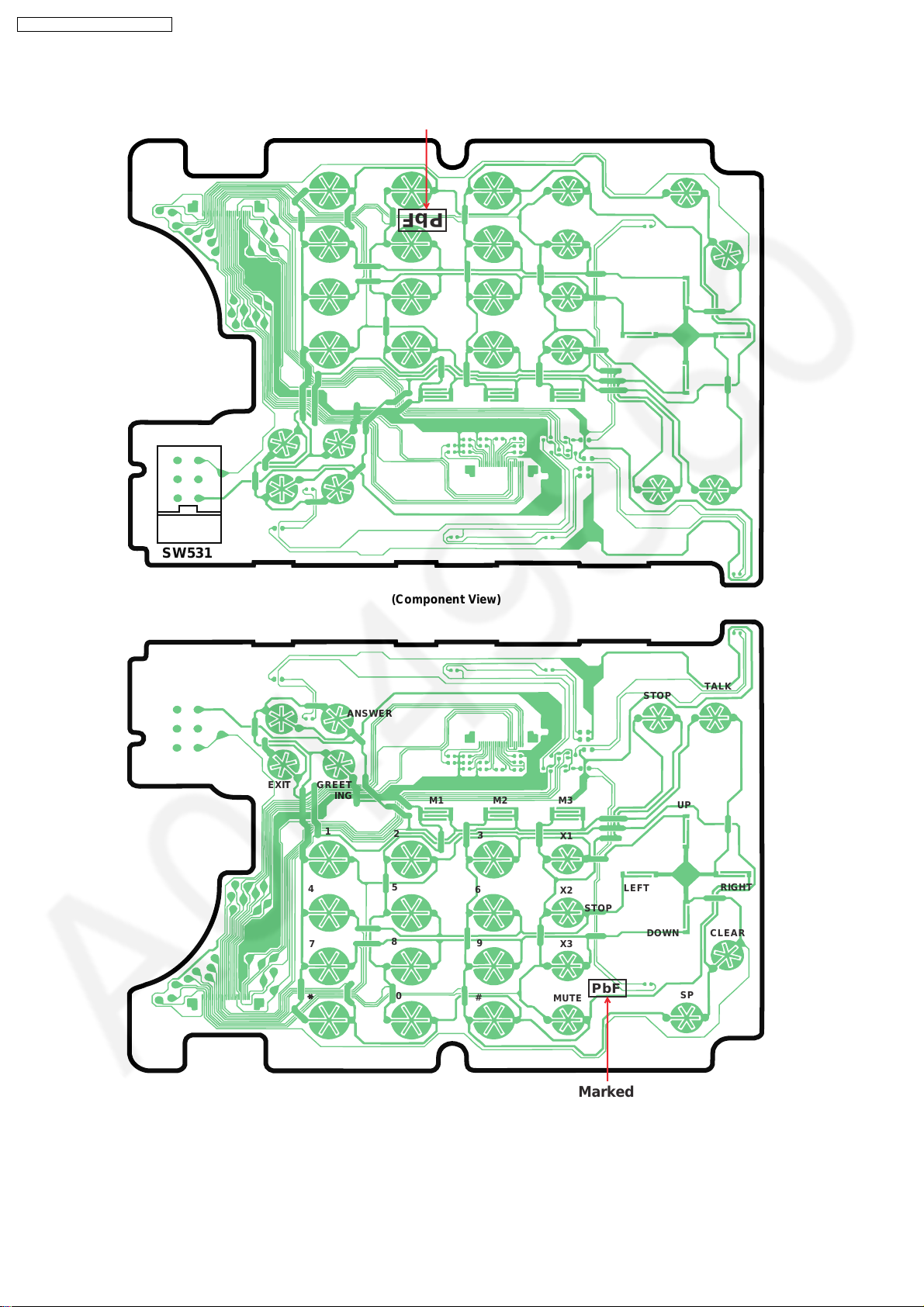

1.2.1.2. Operation

SW531

PbF

Marked

(Component View)

0SP

MUTE

EXIT GREET

ING

ANSWER

STOP

CLEAR

LEFT

TALK

STOP

DOWN

RIGHT

M1 M2 M3

PbF

Marked

(Flow Solder Side View)

Note:

The location of the “PbF“ mark is subject to change without notice.

KX-TCD530AXM / KX-TCA151AXM

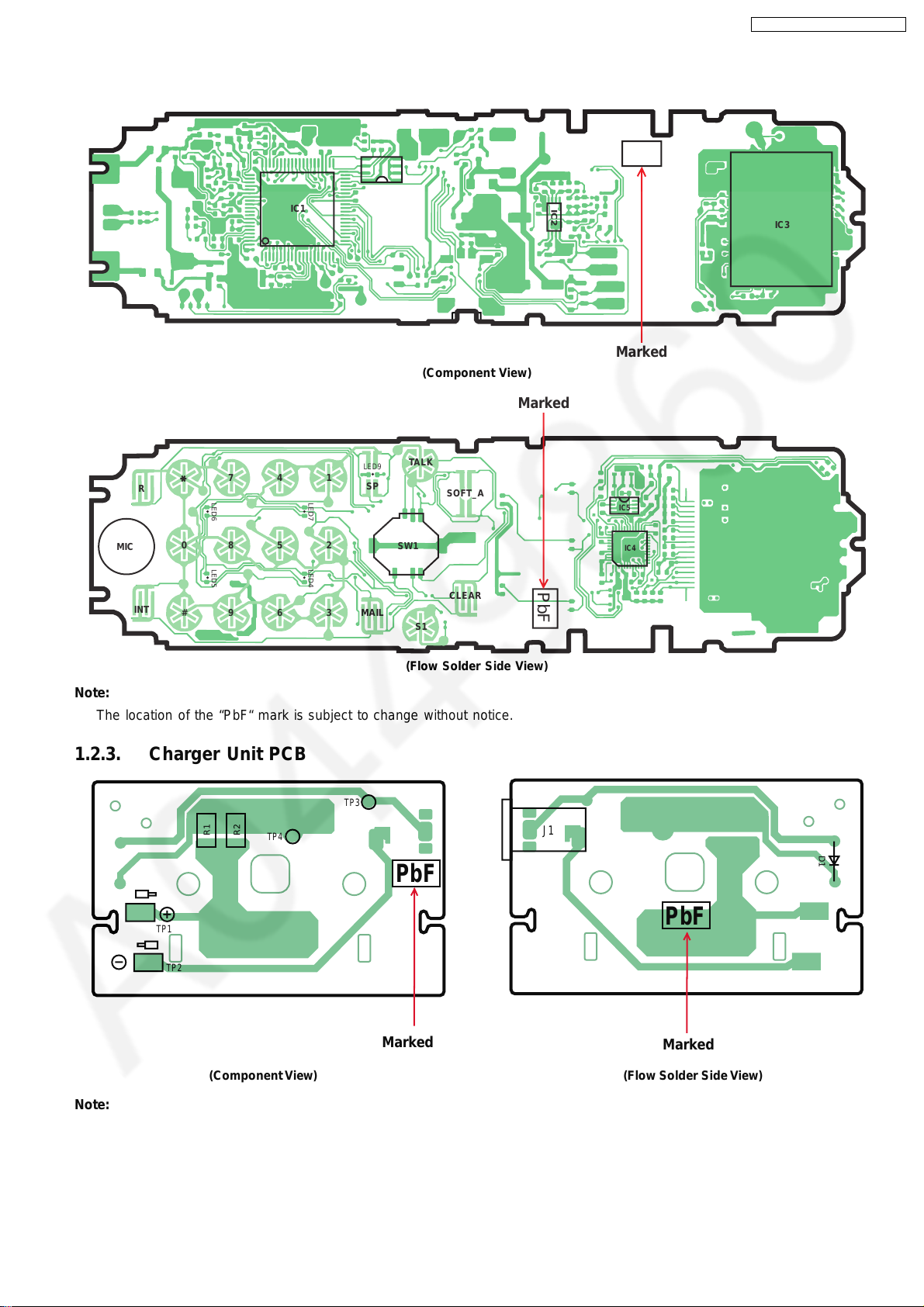

1.2.2. Cordless Handset PCB

IC3

IC2

IC1

IC10

PbF

Marked

(Component View)

MIC

INT # 9 6 3 MAIL

SW1

SOFT_A

CLEAR

TALK

08 5 2

741

LED7 LED4

LED9

IC4

IC5

LED6 LED5

PbF

Marked

(Flow Solder Side View)

Note:

The location of the “PbF“ mark is subject to change without notice.

1.2.3. Charger Unit PCB

PbF

Marked

PbF

TP4

TP1

TP2

TP3

Marked

(ComponentView) (Flow Solder SideView)

Note:

The location of the “PbF“ mark is subject to change without notice.

KX-TCD530AXM / KX-TCA151AXM

2 FOR SERVICE TECHNICIANS

ICs and LSIs are vulnerable to static electricity.

When repairing, the following precautions will help prevent recurring malfunctions.

1.Cover the plastic parts boxes with aluminum foil.

2.Ground the soldering irons.

3.Use a conductive mat on the worktable.

4.Do not touch IC or LSI pins with bare fingers.

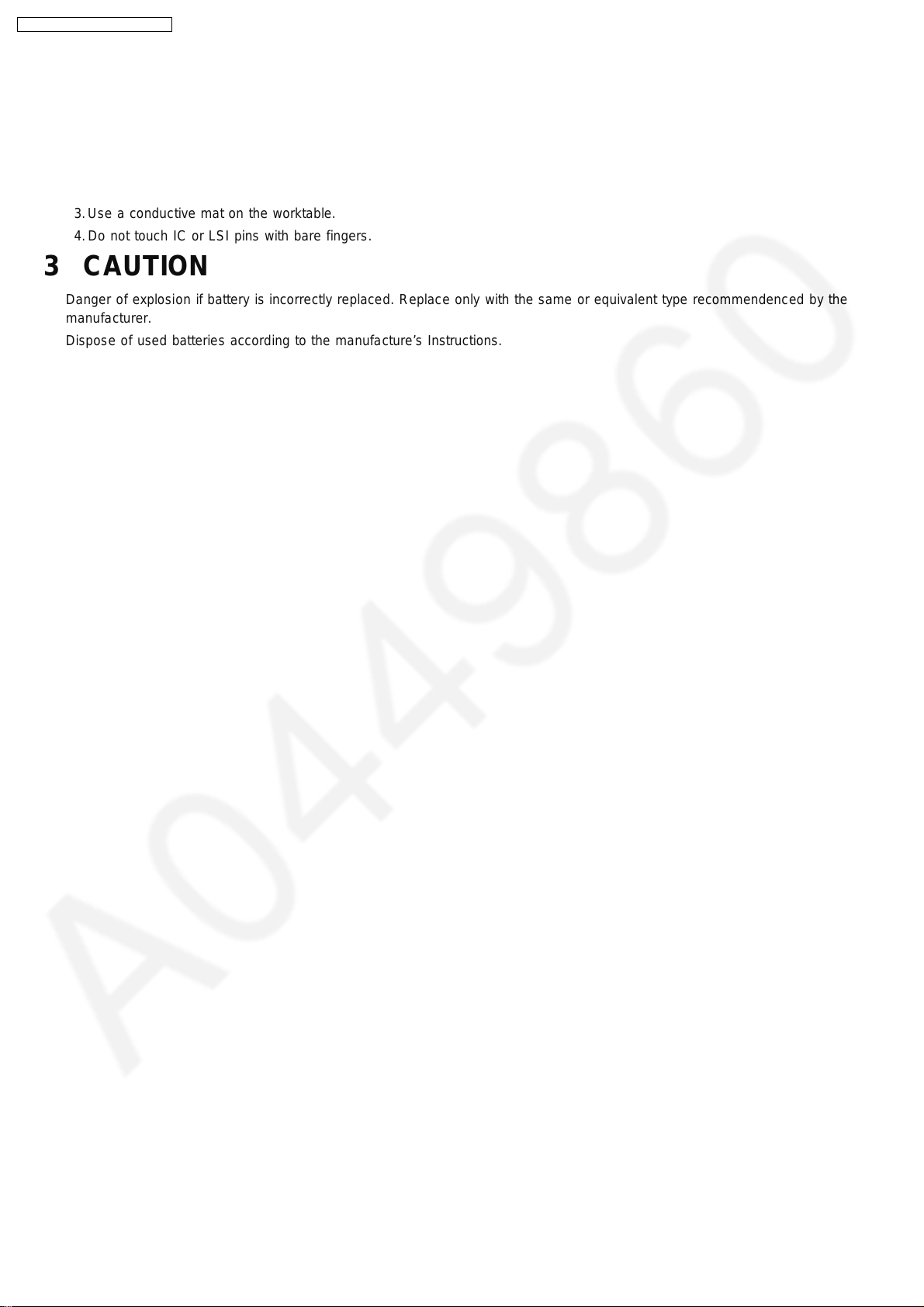

3 CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommendenced by the

manufacturer.

Dispose of used batteries according to the manufacture’s Instructions.

KX-TCD530AXM / KX-TCA151AXM

4 BATTERY

4.1. Battery Installation

Please ensure the batteries are inserted as shown. part should be inserted first.

Close the cover as indicated by the arrow.

•

••

• When you replace the batteries, part should be removed first.

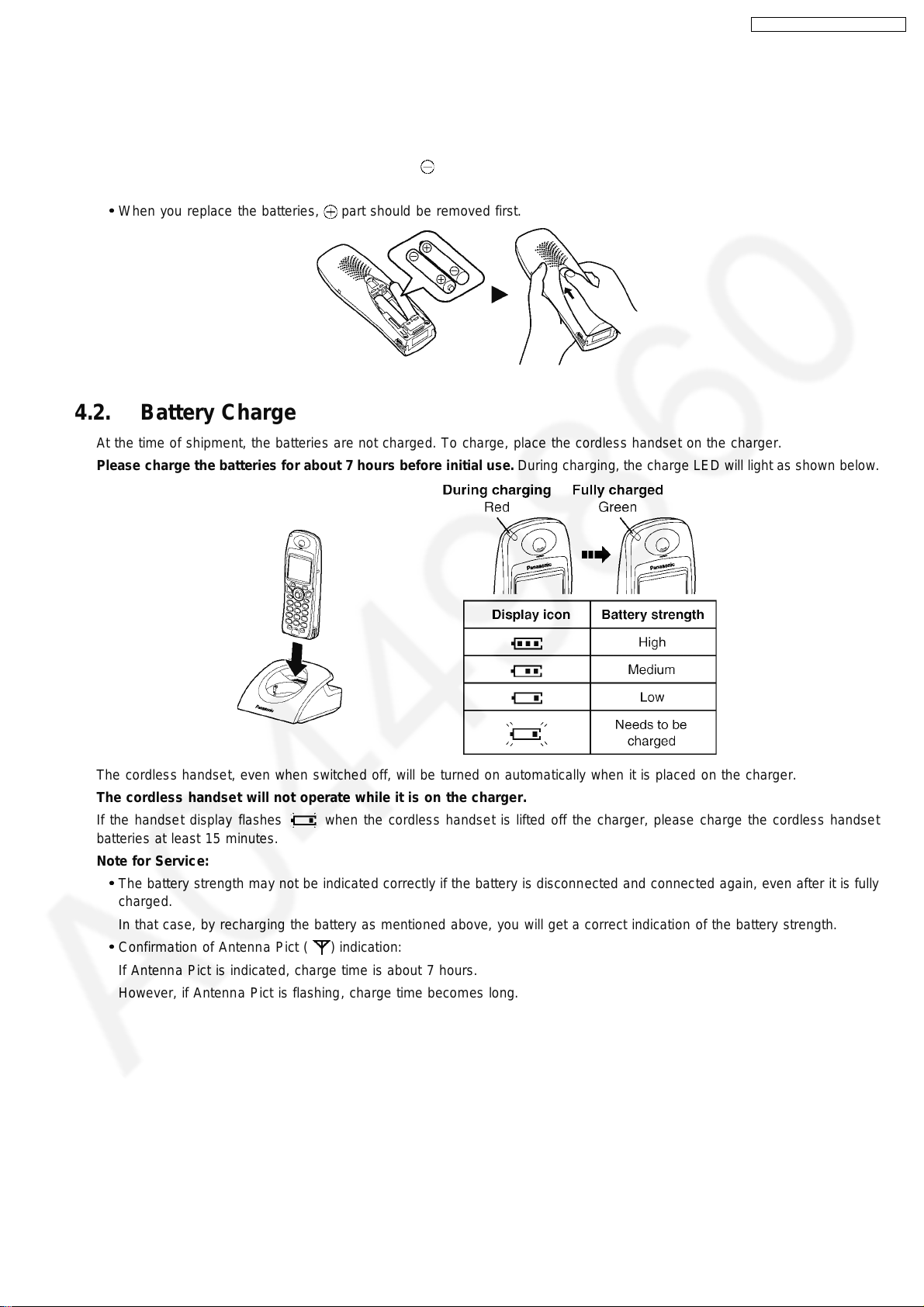

4.2. Battery Charge

At the time of shipment, the batteries are not charged. To charge, place the cordless handset on the charger.

Please charge the batteries for about 7 hours before initial use. During charging, the charge LED will light as shown below.

The cordless handset, even when switched off, will be turned on automatically when it is placed on the charger.

The cordless handset will not operate while it is on the charger.

If the handset display flashes when the cordless handset is lifted off the charger, please charge the cordless handset

batteries at least 15 minutes.

Note for Service:

•

••

• The battery strength may not be indicated correctly if the battery is disconnected and connected again, even after it is fully

charged.

In that case, by recharging the battery as mentioned above, you will get a correct indication of the battery strength.

•

••

• Confirmation of Antenna Pict ( ) indication:

If Antenna Pict is indicated, charge time is about 7 hours.

However, if Antenna Pict is flashing, charge time becomes long.

KX-TCD530AXM / KX-TCA151AXM

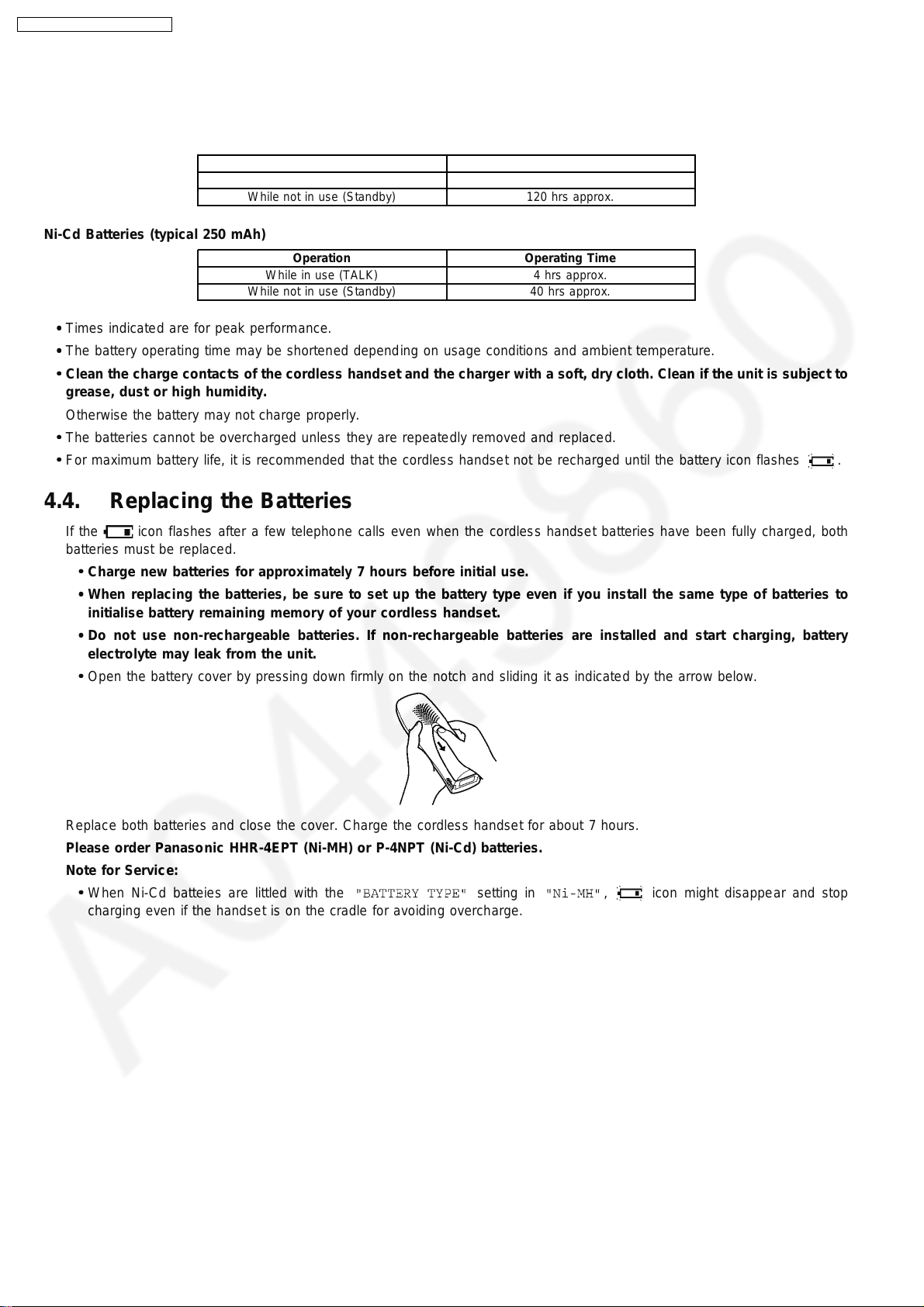

4.3. Battery Information

After your Panasonic battery is fully charged:

Ni-MH Batteries (typical 700 mAh)

Operation Operating Time

While in use (TALK) 10 hrs approx.

While not in use (Standby) 120 hrs approx.

Ni-Cd Batteries (typical 250 mAh)

Operation Operating Time

While in use (TALK) 4 hrs approx.

While not in use (Standby) 40 hrs approx.

•

••

• Times indicated are for peak performance.

•

••

• The battery operating time may be shortened depending on usage conditions and ambient temperature.

•

••

• Clean the charge contacts of the cordless handset and the charger with a soft, dry cloth. Clean if the unit is subject to

grease, dust or high humidity.

Otherwise the battery may not charge properly.

•

••

• The batteries cannot be overcharged unless they are repeatedly removed and replaced.

•

••

• For maximum battery life, it is recommended that the cordless handset not be recharged until the battery icon flashes .

4.4. Replacing the Batteries

If the icon flashes after a few telephone calls even when the cordless handset batteries have been fully charged, both

batteries must be replaced.

•

••

• Charge new batteries for approximately 7 hours before initial use.

•

••

• When replacing the batteries, be sure to set up the battery type even if you install the same type of batteries to

initialise battery remaining memory of your cordless handset.

•

••

• Do not use non-rechargeable batteries. If non-rechargeable batteries are installed and start charging, battery

electrolyte may leak from the unit.

•

••

• Open the battery cover by pressing down firmly on the notch and sliding it as indicated by the arrow below.

Replace both batteries and close the cover. Charge the cordless handset for about 7 hours.

Please order Panasonic HHR-4EPT (Ni-MH) or P-4NPT (Ni-Cd) batteries.

Note for Service:

•

••

• When Ni-Cd batteies are littled with the setting in ,icon might disappear and stop

charging even if the handset is on the cradle for avoiding overcharge.

KX-TCD530AXM / KX-TCA151AXM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Téléphone

Panasonic

Panasonic KX-A120EX/E Manuel utilisateur

Panasonic

Panasonic BB-GT1500C Manuel utilisateur

Panasonic

Panasonic KX T7431 - Speakerphone Telephone With Back Lit... Manuel utilisateur

Panasonic

Panasonic KX-TEM824 Fiche technique

Panasonic

Panasonic KX-THA12 Manuel utilisateur

Panasonic

Panasonic HYBRID IP-PBX KX-TDA100 Manuel utilisateur

Panasonic

Panasonic KX-T7668 Manuel utilisateur

Panasonic

Panasonic KX-TGP60 Manuel utilisateur

Panasonic

Panasonic KX-AT7730 Manuel utilisateur

Panasonic

Panasonic 4LINE KX-TGWA40 Manuel utilisateur

Panasonic

Panasonic KX-TC1503B - 900 MHz Digital Cordless Phone Manuel utilisateur

Panasonic

Panasonic DBS Section 570 TAPI Manuel utilisateur

Panasonic

Panasonic KX-T7665NE Manuel utilisateur

Panasonic

Panasonic KX-TG9471CB Manuel utilisateur

Panasonic

Panasonic KX-TG2257S - 2.4 GHz Digital Cordless... Manuel utilisateur

Panasonic

Panasonic KX-TGP551 T04 Manuel utilisateur

Panasonic

Panasonic KX-TDA600 - Hybrid IP PBX Control Unit Max. 1008... Manuel du propriétaire

Panasonic

Panasonic KX-DT543-B Manuel utilisateur

Panasonic

Panasonic DBS 576 Section 300 Manuel utilisateur

Panasonic

Panasonic KX-PRW130 Manuel utilisateur

Panasonic

Panasonic KX-TC1466AGB Manuel utilisateur

Panasonic

Panasonic KX-T7400 Series Manuel d'exploitation et d'entretien

Panasonic

Panasonic KX-NT551 Manuel utilisateur

Panasonic

Panasonic KX-UT133-B Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur

Ericsson

Ericsson Dialog 3213 Manuel utilisateur

Yealink

Yealink VP530 Manuel utilisateur
