Panasonic KX-NT551 Manuel utilisateur

Quick Reference Guide

IP Proprietary Telephone

Model No. KX-NT551/KX-NT553

KX-NT556

Thank you for purchasing an IP Proprietary Telephone (IP-PT). Please read this

manual carefully before using this product and save this manual for future use. For

more details, please refer to the manuals of the PBX.

This product supports the following PBX versions and CODEC

types:

RKX-NS1000: PCMPR Software File Version 3.0000 or later

RKX-NCP500/KX-NCP1000: PBMPR Software File Version 8.0000 or later

RKX-TDE100/KX-TDE200: PMMPR Software File Version 8.0000 or later

RKX-TDE600: PGMPR Software File Version 8.0000 or later

RCODEC: G.722, G.711, G.729A

Note

RIn this manual, the suffix of each model number is omitted unless necessary.

RThe illustrations may differ from the appearance of the actual product.

Trademarks

RPlantronics is a trademark or registered trademark of Plantronics, Inc.

RAll other trademarks identified herein are the property of their respective owners.

Document Version: 2014-01

Important Information

FCC and Other Information

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

RReorient or relocate the receiving antenna.

RIncrease the separation between the equipment and receiver.

RConnect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

RConsult the dealer or an experienced radio/TV technician for help.

CAUTION

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this device.

FCC Declaration of Conformity

Trade Name: Panasonic

Model Number: KX-NT551/KX-NT553/KX-NT556

Responsible Party:

Panasonic Corporation of North America

Two Riverfront Plaza

Newark, NJ 07102–5490 U.S.A.

Telephone No.: 1-800-211-PANA (7262)

WHEN PROGRAMMING EMERGENCY NUMBERS AND (OR) MAKING TEST

CALLS TO EMERGENCY NUMBERS:

a. Remain on the line and briefly explain to the dispatcher the reason for the call.

b. Perform such activities in the off-peak hours, such as early morning or late

evenings.

This equipment is hearing aid compatible.

Important Information

When you hold the phone to your ear, noise might be heard in your Hearing Aid.

Some Hearing Aids are not adequately shielded from external RF (radio frequency)

energy. If noise occurs, use the speakerphone option (if applicable) when using this

phone. Consult with your audiologist or Hearing Aid manufacturer about the

availability of Hearing Aids which provide adequate shielding to RF energy

commonly emitted by digital devices.

For users in Canada only

RThis Class B digital apparatus complies with Canadian ICES-003.

RThis product meets the applicable Industry Canada technical specifications.

Compliance with TIA-1083 standard:

Compatible with

Hearing Aid T-Coil

TIA-1083

Telephone handsets identified with this

logo have reduced noise and interference

when used with T-Coil equipped hearing

aids and cochlear implants.

Important Information

Accessory Information

Included Accessories

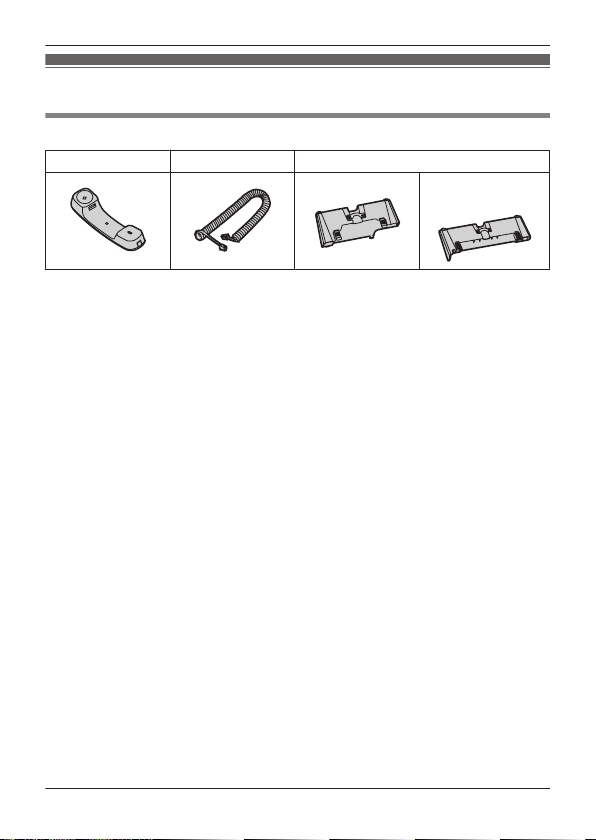

Handset (1) Handset Cord (1) Stand (1)

KX-NT551 KX-NT553/

KX-NT556

Note

For extra orders for the accessories, call toll-free: 1-800-332-5368. (For users in the

United States only)

Accessory Information

Optional Accessories

KX-NT551 KX-NT553 KX-NT556

AC adaptor*1 RFor users in the United States:

KX-A239 (PQLV206)

RFor users in Canada:

KX-A239X (PQLV206)

Wall mount kit KX-A432 KX-A433

Add-on 48 key module —KX-NT505*2

*1 To order an optional AC adaptor, please order using the "KX-A239" or

"KX-A239X" model number (not "PQLV206"). Can also be used with the

KX-NT505.

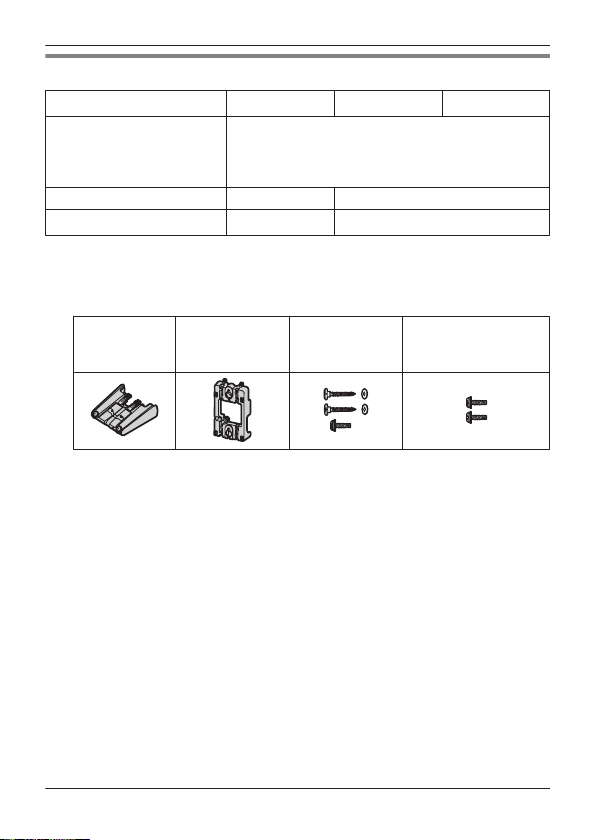

*2 KX-NT505 has the following accessories.

Stand (1) Wall mounting

adaptor (1)

Screws for

wall mounting

(3)*1

Screws for

attaching to the unit

(2)

*1 Two screws for attaching the KX-NT505 to a wall.

One screw for attaching the wall mounting adaptor to the unit.

Accessory Information

Location of Controls

KX-NT551

KX-NT553

KX-NT556

Location of Controls

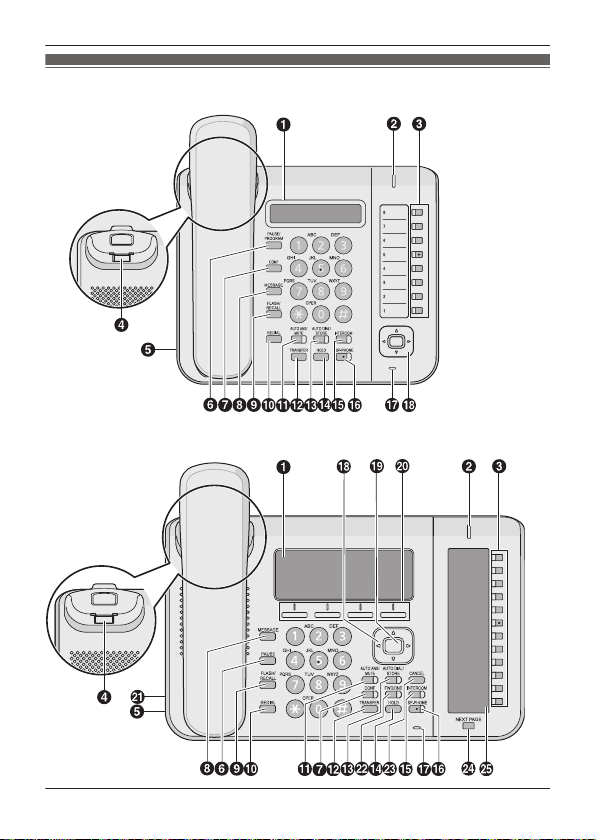

AMain LCD (Liquid Crystal Display):

KX-NT551: 1 line, KX-NT553: 3 lines, KX-NT556: 6 lines

BMessage/Ringer Lamp:

When you receive an intercom call, the lamp flashes green,

and on an outside call, the lamp flashes red. When someone

has left you a message, the lamp stays on red.

CFlexible CO Buttons: Used to seize an outside line or perform

a feature that has been assigned to the key.

DHandset Hook: Keeps the handset stable when the unit is

mounted on a wall.

EHeadset Jack

FPAUSE/PROGRAM (KX-NT551 only): Used to insert a pause

when storing a telephone number. This button is also used for

programming this unit.

PAUSE (KX-NT553/KX-NT556 only): Used to insert a pause

when storing a telephone number.

GCONF: Used to establish a multiple party conversation.

HMESSAGE: Used to leave a message waiting indication or call

back the party who left the message waiting indication.

IFLASH/RECALL: Used to disconnect the current call and

make another call without hanging up.

JREDIAL: Used to redial the last dialed number.

KAUTO ANS/MUTE: Used to receive an incoming call in

hands-free mode or mute the microphone/handset during a

conversation.

LTRANSFER: Used to transfer a call to another party.

MAUTO DIAL/STORE: Used for System/Personal Speed Dialing

or storing programme changes.

NHOLD: Used to place a call on hold.

OINTERCOM: Used to make or receive intercom calls.

PSP-PHONE (Speakerphone): Used for performing hands-free

operations.

Location of Controls

QMicrophone: Used for hands free conversations.

RNavigator Key: Used to adjust the volume and the display

contrast or select desired items.

SENTER*1: Used to assign the selected item.

TSoft Buttons (S1-S4)*1: S1-S4 (located from left to right) are

used to select the item displayed on the bottom line of the

display.

UEHS (Electronics Hook Switch) Jack*1

VFWD/DND*1: Used to switch Call Forwarding or Do Not Disturb

on your extension.

WCANCEL*1: Used to cancel the selected item.

XNEXT PAGE*1: Used to switch the page for the Self Labeling

feature.

YSub LCD*1: 12 lines

*1 KX-NT553/KX-NT556 only

Location of Controls

Before Operating the Telephone

Speaker volume

While in a hands-free conversation

Press [ ] or [ ] to adjust the volume.

Handset/Headset volume*1

While using the handset or headset

Press [ ] or [ ] to adjust the volume.

Ringer volume

While on-hook or receiving a call

Press [ ] or [ ] to adjust the volume.

LCD Contrast (For main LCD)*2

While on-hook

1. Press the

PROG

soft button (S1).*3

2. Enter .

3. Press [ENTER].*4

4. Press [ ] or [ ] to adjust the LCD contrast.

5. Press [ENTER].*4

6. Press [CANCEL].*3

*1 If you hear your own voice through the handset or headset, decrease the

volume.

*2 To change the sub LCD contrast of the KX-NT553/KX-NT556, enter in

Step 2.

*3 For KX-NT551, press [PAUSE/PROGRAM].

*4 For KX-NT551, press [AUTO DIAL/STORE].

Before Operating the Telephone

Ring Tone

1. Press the

PROG

soft button (S1).*1

2. Press a flexible CO button or [INTERCOM] 2 times.

3. Enter 2 digits (01-30) using the dial keys (0-9), or press [ ] or [ ] to

select the ring tone.

4. Press [ENTER].*2

5. Press [CANCEL].*1

LCD Backlight

While on-hook

1. Press the

PROG

soft button (S1).*1

2. Enter .

3. Press [ENTER].*2

4. Press a dial key to select the LCD backlight mode.

: Automatic

: Always ON

: Always OFF

5. Press [ENTER].*2

6. Press [CANCEL].*1

*1 For KX-NT551, press [PAUSE/PROGRAM].

*2 For KX-NT551, press [AUTO DIAL/STORE].

Before Operating the Telephone
