Quick Reference Guide

Model No. KX-T7710

Important Information

When using the KX-T7710, keep the following conditions in mind.

• If there is any problem, unplug the extension line and connect a known working phone.

If the known working phone operates properly, have the defective phone repaired.

If the known working phone does not

operate properly, check the Panasonic KX series Business Telephone System and the

internal extension wiring.

• Keep the unit away from heating appliances and electrical noise generating devices

such as fluorescent lamps and motors.

• The unit should be kept free of dust, moisture and vibration, and should not be exposed

to direct sunlight.

• Do not use thinner, or any abrasive powder to clean the cabinet. Wipe it with a

soft cloth.

• Do not disassemble this product. Dangerous electrical shock could result. The unit

must only be disassembled and repaired by qualified service technicians.

• Do not use any handset other than a Panasonic handset.

• The apparatus is designed to be installed and operated under controlled conditions of

ambient temperature and a relative humidity not greater than 60%.

• Avoid installing the apparatus in damp or humid environments, such as in bathrooms or

near swimming pools.

• 999 and 112 can be dialled on the apparatus after accessing the exchange line for the purpose

of making outgoing calls to the BT emergency (999) and (112) services.

WARNING:

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR ANY TYPE OF MOISTURE.

THIS HANDSET EARPIECE IS MAGNETISED AND MAY RETAIN SMALL FERROUS OBJECTS.

IMPORTANT NOTICE:

This product is designed for use in the U.K.

Note:

In this manual, the suffix of each model number is omitted.

Off-hook On-hook Feature number Talk

*"Location of Controls" is shown on page 5.

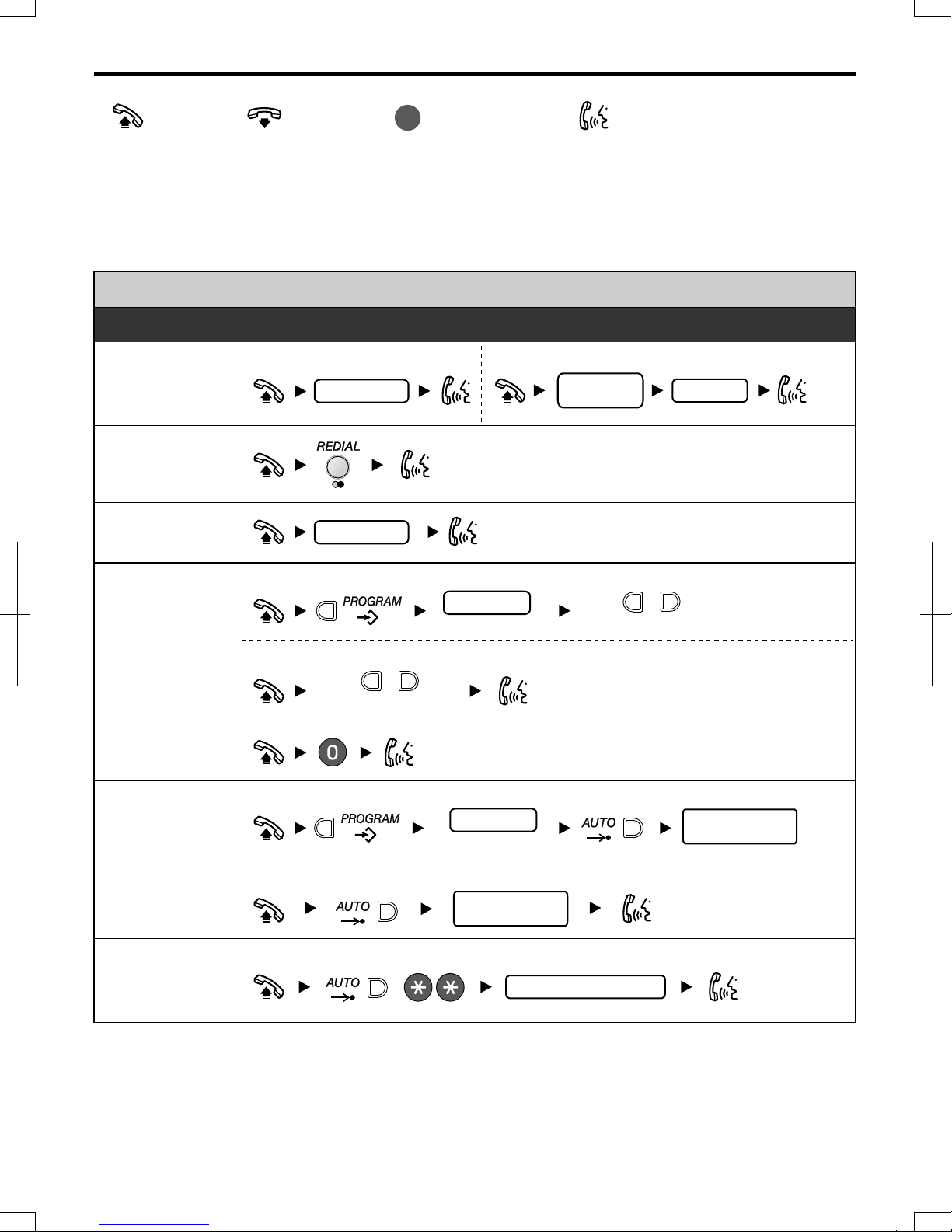

Desired Function Operation

Calling

Redial

One-touch

Dialling

Calling an

operator

Station Speed

Dialling

To an extension To an external party

phone no.

extension no.

To dial

System Speed

Dialling

Making Calls

The REDIAL will dial the last number you called manually.

line access

no.

Press One-touch button.

Quick Dialling

quick dial no.

To dial

Station speed

dial no. (0-9)

System speed dial no.

To store

*The Feature numbers described in this manual are for the Panasonic Hybrid IP-PBX

KX-TDA100/KX-TDA200. If you are connected to a different Panasonic KX series Business

Telephone System, please refer to its manuals.

To store

desired no.

(max., 22 digits)

Press One-touch button.

desired no.

(max., 22 digits)

Station speed

dial no. (0-9)

Features List

– 2 –

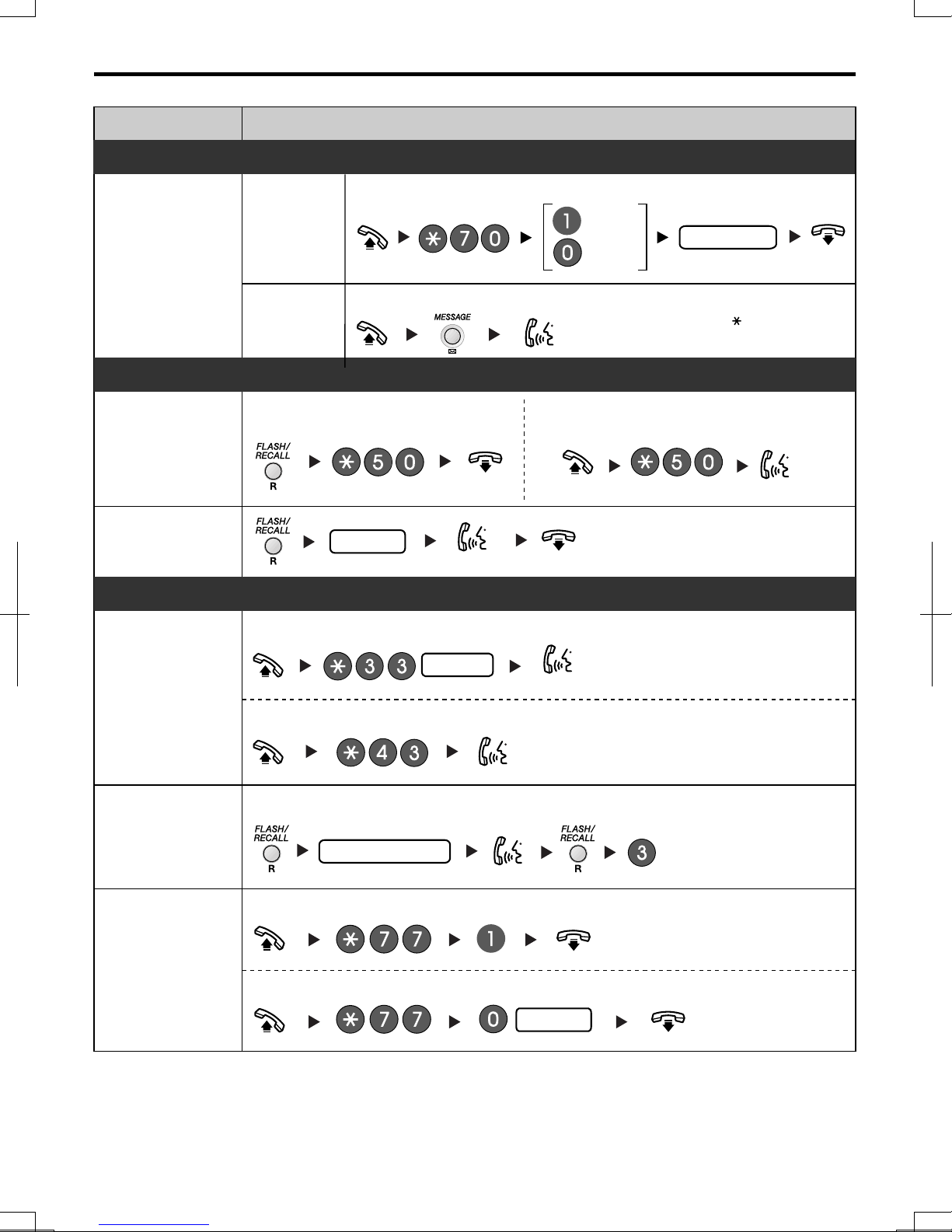

Desired Function

Operation

Holding To retrieve a call at the holding extension

Announce.

dial no.

Holding a call

Transferring

a call

During a Conversation

Paging

Announce.

group no.

To answer a page

To page

To lock

To unlock

Useful Features

desired phone no.

Three-party

Conference

During a conversation

Locking your

extension

lock code

Sender

Receiver

Message

Waiting

extension no.

Leave

Cancel

To leave/cancel a notification

To call back * In Normal Mode, you should change

the default setting to " 702" for

Message button. (See page 4.)

Features List

– 3 –

When the Dialled Extension is Busy/No Answer

– 4 –

Regarding other operations, please refer to the manuals

for the Panasonic KX series Business Telephone System

to which you are connected.

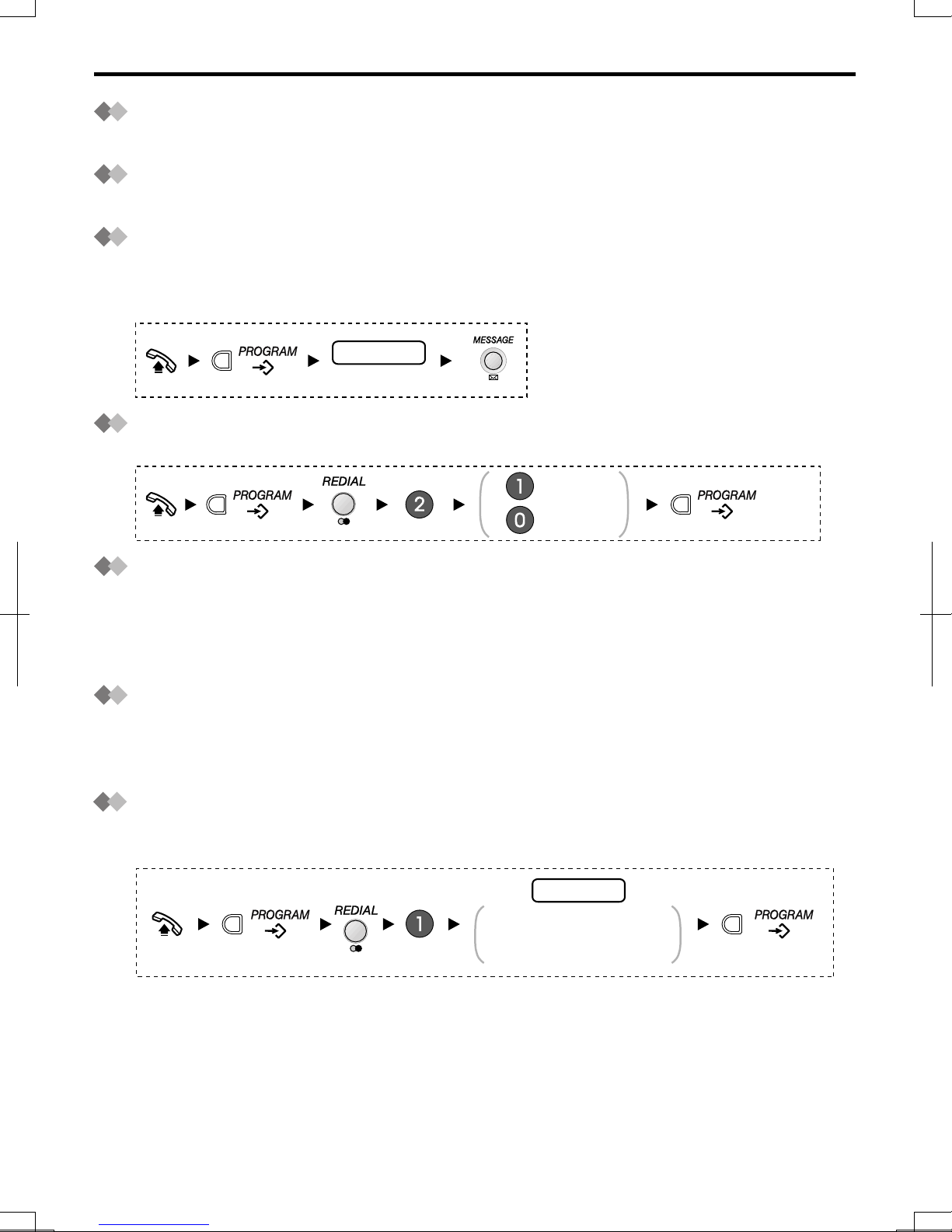

Setting Lock/Unlock

desired no.

(max., 22 digits)

You can lock the settings for one-touch buttons and MESSAGE button. [Default: Unlock]

To lock

To unlock

You can change the feature access number for the MESSAGE Button. [Default: 702]

For more detail, refer to the manual for the connected Panasonic KX series Business

Telephone Systems.

One-touch buttons

Station Speed Dialling

Five One-touch buttons can be used as speed dialling buttons or to access a features.

You can store up to 10 Station speed dial numbers.

MESSAGE Button

Confirmation in Programming Mode

When programming, you can confirm your entry by three types of beep sound.

• One long beep: Your entry is accepted.

• Two beeps: Your entry is same as a previous entry.

• Three beeps: Your entry is rejected.

Memory Back Up

If the telephone line is disconnected for more than three days, the stored numbers

for One-touch dialling and Speed dialling will be erased. Please store them again.

Also, the settings for MESSAGE and Flash time will return to the default settings.

selection no.

1: 80 ms, 2: 90 ms, 3: 100 ms,

4: 110 ms,

Flash Time

Operations in NORMAL Mode

Before programming the length of Flash time, make sure the position of the Mode

switch lever is "NORMAL". Enter the appropriate selection number for your country.

Printed in Japan PSQW2002ZA KK0103DH0 (E)

Confirming the Mode

Adjusting the RINGER Volume

Adjust the RINGER volume selector lever (at the bottom of the unit) to

the desired setting. ( – LOW, – MIDDLE, – HIGH)

[Default: MIDDLE]

You can confirm the current mode by the position of the Mode switch

lever (at the bottom of the unit). [Default: NORMAL]

PAUSE: Used to insert a pause when

storing a telephone number.

AUTO: Used for Station Speed dialling.

PROGRAM: Used to enter the

programming mode.

MESSAGE: Used to call back the party who left the message

waiting indication.

Handset Volume Control Buttons: Used to adjust the handset volume.

One-touch Buttons (M1-M5): Used to

access a feature or as a speed

dialling button.

FLASH/RECALL: Used to send a recall signal in order to access a

PBX feature (eg., Hold, Transfer, or Three-party Conference).

REDIAL: Used to redial the last dialled number.

PBX mode

NORMAL mode

Connecting a Communication Device

Telephone Card: Has two sides (NORMAL mode, PBX mode).

DATA PORT

To connect a communication device such as a computer modem

to the telephone line, please use the DATA PORT (at the right

side of the unit). RJ11 modular jack.

PBX ModeNORMAL Mode

Message/Ringer Lamp: Flashes when you receive a call or when

someone has left you a message.

One-touch Buttons

(1-8): Used as preset

feature buttons

set at the

Panasonic

KX series Business

Telephone System

; you

do not need to program

at your extension.

The KX-T7710 has two modes, NORMAL Mode and Panasonic PBX Mode*.

Please use the corresponding side of the Telephone Card depending on the mode.

*The PBX Mode may not be available depending on the model of the Panasonic KX series Business

Telephone Systems to which you are connected.

For more detail, please consult your dealer.

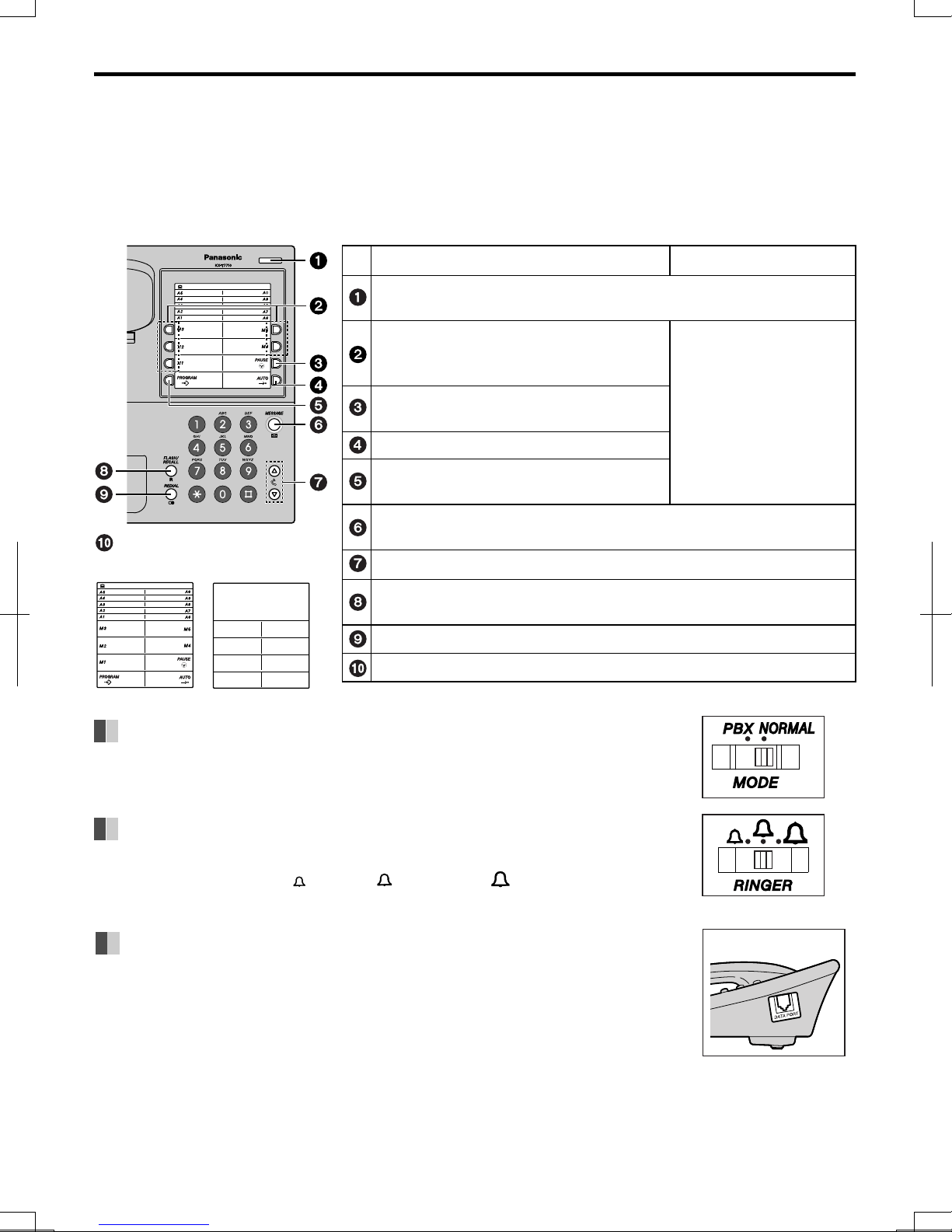

Location of Controls

– 5 –

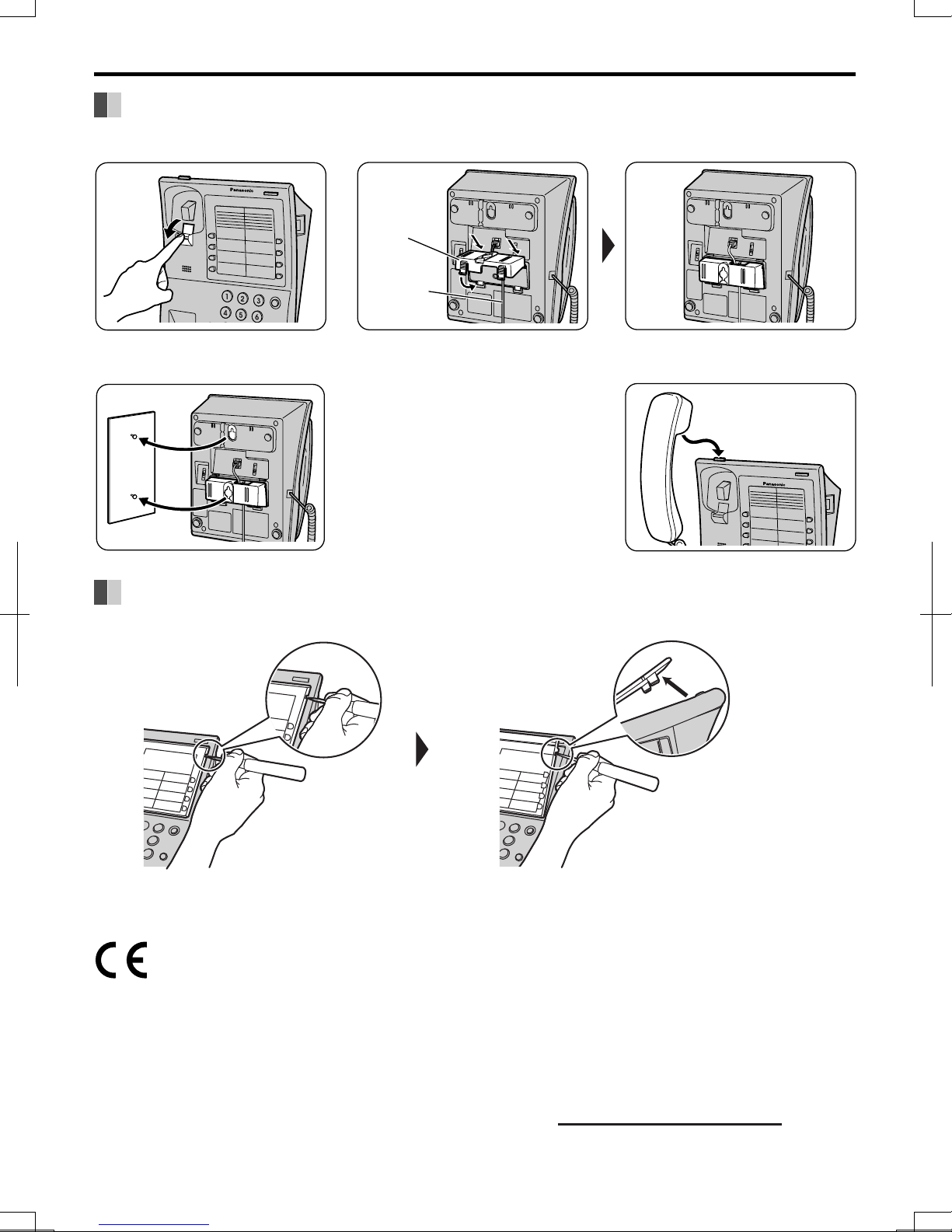

Removing the Telephone Card Cover

Telephone

line cord

Wall

mounting

adaptor

To temporarily

place the handset

down during a

conversation:

Wall Mounting

1 2

Things You Should Know

– 6 –

This product is intended to be connected to Panasonic KX series Business Telephone

Systems only.

We, Panasonic Communications Co., Ltd., declare that this equipment is in compliance with

the essential requirements and other relevant provisions of Directive 1999/5/EC.

If you want to get a copy of the original Declaration of Conformity of our products which

relates to the R&TTE, please use our web site: http://www.panasonic-tc.de
