SecurityLink®PlusTM

User’s Guide

K10059 6/04 Rev. A

SecurityPhone.book 1 ページ２００４年７月２１日　水曜日　午後６時５８分

This phone can be connected to an ADT Security System and used as an additional

keypad interface. You can program/control system functions using the buttons on

the telephone front panel.

The security system will provide the telephone line and power supply, and has

priority over the telephone functions.

Overview

NCommunication with the Security System

The phone functions as a user interface (keypad/display) for the security system.

NArming and Disarming the Security System

You can arm/disarm the security system or set other system functions by using

the function menu on the display.

NAlarms

When an alarm condition occurs, the base unit and cordless handset can sound

an audible alarm with the status being displayed and announced, then the alarm

report can be sent to the Customer Monitoring Center, if programmed so the

alarm system is monitored, and upon receipt of an alarm signal by the Customer

Monitoring Center.

NTwo Way Voice (SecurityLink®PlusTM)

In case of emergency, an operator in a Customer Monitoring Center can monitor/

announce/talk using the speakerphone on base unit and cordless handset, if

programmed.

NRemote Phone Control

You can remotely control the security system by entering function commands

from a touch tone phone located off the premises.

• ADT Monitoring Service must be in effect!

SecurityPhone.book 2 ページ２００４年７月２１日　水曜日　午後６時５８分

Location of Controls . . . . . . . . . 4

Security System Displays . . . . 5

Entry/Exit Delays . . . . . . . . . . . 6

Entry Delay . . . . . . . . . . . . . . . 6

Exit Delay . . . . . . . . . . . . . . . . 6

Exit Alarms . . . . . . . . . . . . . . . 6

Arming the System . . . . . . . . . . 7

Setting the Away mode . . . . . 8

Setting the Stay mode . . . . . . 9

Setting the Night-Stay

mode . . . . . . . . . . . . . . . . . 10

Setting the Instant mode . . . 11

Disarming the security

system . . . . . . . . . . . . . . . . . . 12

Bypassing Protection Zones . 14

Bypassing zones . . . . . . . . . 14

Quick Bypass . . . . . . . . . . . . 16

Chime Mode . . . . . . . . . . . . . . 17

Setting the Date and Time . . . 18

PANIC Keys . . . . . . . . . . . . . . . 20

Using the PANIC Keys . . . . . 20

Remote Phone Control . . . . . . 22

Selecting the Function

(Macro) . . . . . . . . . . . . . . . . . . 23

Device Commands . . . . . . . . . 24

Security Codes & Authority

Levels . . . . . . . . . . . . . . . . . . 25

Adding User Code . . . . . . . . 25

Deleting User Code . . . . . . . 27

Authority Level . . . . . . . . . . . 28

Access Group . . . . . . . . . . . . 30

RF User Number . . . . . . . . . 32

Pager . . . . . . . . . . . . . . . . . . 34

Schedules . . . . . . . . . . . . . . . . . 35

Viewing the Event Log . . . . . . 38

Testing the System . . . . . . . . . 39

Checking the Current Status . 40

Display Status . . . . . . . . . . . . 40

Voice Status . . . . . . . . . . . . . 41

Direct Commands . . . . . . . . . . 42

Mute Security . . . . . . . . . . . . . . 43

Two Way Voice Feature . . . . . 44

Listening Mode in Two Way

Voice . . . . . . . . . . . . . . . . . . 44

Talk Mode in Two Way

Voice . . . . . . . . . . . . . . . . . . 44

VOX Mode in Two Way

Voice . . . . . . . . . . . . . . . . . . 44

Function Menu Table . . . . . . . 45

If the Following Appear on Your

Display... . . . . . . . . . . . . . . . . 47

Troubleshooting . . . . . . . . . . . 48

Regulatory Statements and

Warnings. . . . . . . . . . . . . . . . . 48

LIMITATIONS OF THIS

SYSTEM . . . . . . . . . . . . . . . . . 51

PANASONIC PRODUCT

LIMITED WARRANTY. . . . . . . 52

Important:

Throughout these Operating Instructions, and are

used to indicate with which unit an operation can be performed.

: Perform with the handset.

: Perform with the base unit.

Handset Base Unit

Handset

Base Unit

Contents

SecurityPhone.book 3 ページ２００４年７月２１日　水曜日　午後６時５８分

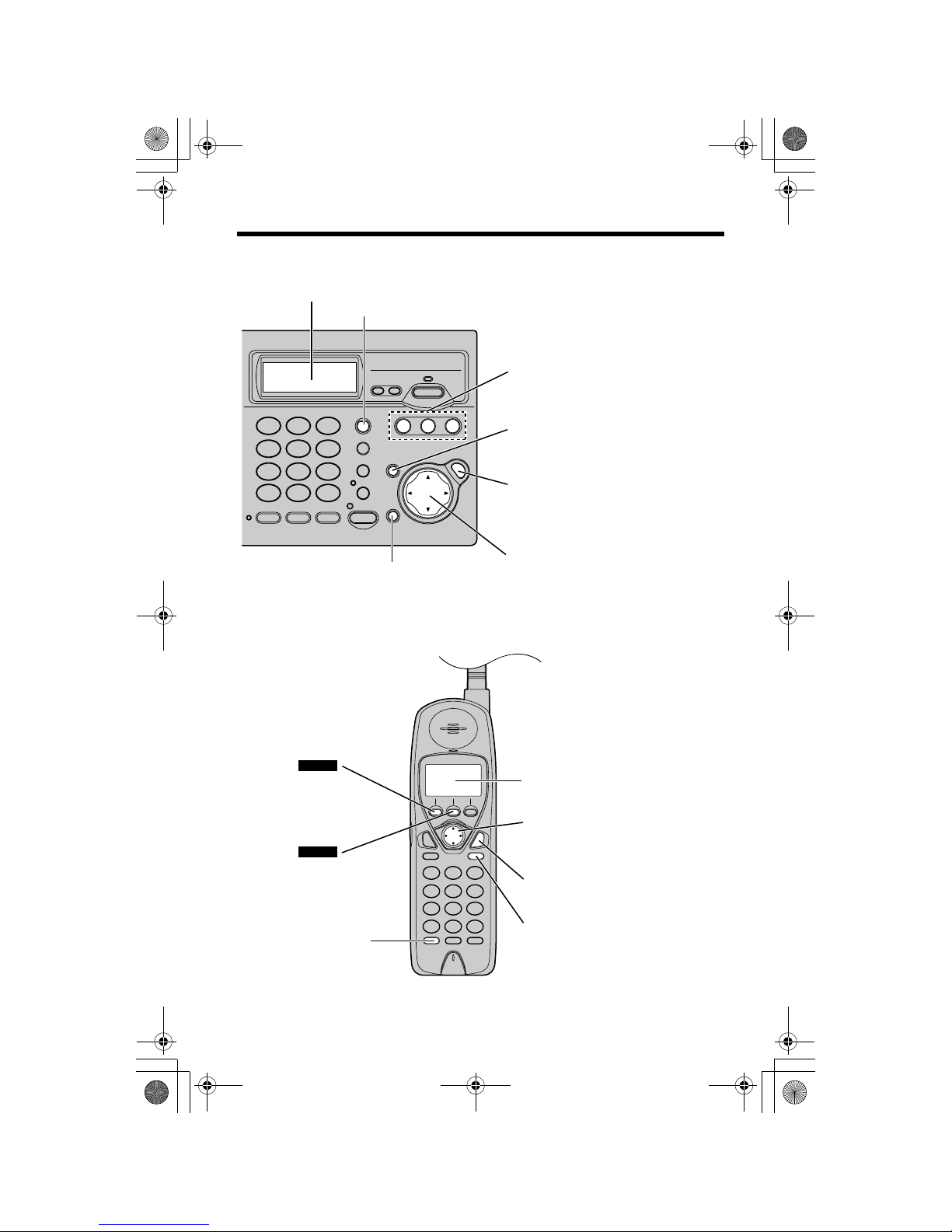

Location of Controls

Base Unit

Cordless Handset

PANIC keys

Press and hold for two seconds in

event of emergency (panic).

[STOP]

Press to exit programming or

terminate the function menu.

Navigator Key

Press the arrow to scroll through

menu or select items.

[FUNCTION/EDIT]

Press to enter the function menu for

the telephone and Answering

systems.

Display

[ERASE]

Press to erase the

entered code or number.

[ADT]

Press to enter the function menu for the

security system.

SAVE

Display

Soft Key

Press to enter the

function menu for the

security system.

ADT

[OFF]

Press to exit programming or

terminate the function menu.

Navigator Key

Press the arrow to scroll

through menu or select items.

[HOLD/CLEAR]

Press to erase the entered

code or number.

[CONF (Conference)/

FUNCTION]

Press to enter the function

menu for the telephone and

answering systems.

Soft Key

Press and hold in

event of emergency

(panic).

PANIC

SecurityPhone.book 4 ページ２００４年７月２１日　水曜日　午後６時５８分

Security System Displays

1The base unit and cordless handset display status icons below:

2While the phone is in the menu mode, the display

shows real time status, or the display shows the

screen to enter a number or set the date and time.

3“ ” is used to enter the function menu for the security system. To operate

“ ”, press the left soft key.

4“ ” is used in event of emergency (panic). To operate “ ”, press the

middle soft key, then press the appropriate emergency key (see page 20).

• ADT Monitoring Service must be in effect!

Base unit Cordless handset

Icon Meaning

The phone is ready to arm the security system.

The security system is armed.

The phone is not ready to arm the security system. The

protected doors/windows may be open (faulted). Close

them, or try bypassing the faulted zone if you want the zone

to remain unprotected.

12:00AM DEC.31

Received calls

READY

IN USE

MESSAGE

Received calls

IN USE

READY

[1]

ADT

PANIC PLAY

READY

ARMED

NOT RDY

Enter Sched No.

00=Quit

Example

ADT

PANIC PANIC

SecurityPhone.book 5 ページ２００４年７月２１日　水曜日　午後６時５８分

Entry/Exit Delays

Entry Delay

You can have time to re-enter your house from pre-selected door by programming

entry delay times. You must disarm the system before entry delay time expires. The

phone beeps until you disarm the system.

Confirm with your installer for your delay time.

Exit Delay

You can have time to go out through the exit door without cancelling an alarm. The

exit delay time starts immediately after you arm the system. The phone displays

“You may exit now”. After the message disappears, the system completes

arming and the phone alarms. If programmed, the phone beeps slowly after arming

the system, then beeps fast to alert you of the exit delay time end.

If you do not exit your house, you should disarm the system to stop an alarm and

rearm the system.

Confirm with your installer for your programmed exit delay time.

Exit Alarms

The exit delay starts after you arm the system. If the exit/entry door or interior zone

is faulted after the exit delay time expires, the phone alarms and the entry delay

starts. When you disarm the system before the entry delay time expires, an alarm

stops and the “Alarm Cancelled” and the faulted zone number are displayed.

The message is not sent to the Customer Monitoring Center. Then you can close

the displayed open zone and clear the message by entering your security code.

If the system is not disarmed, or the exit/entry door or interior zone is open before

the entry delay ends, the phone alarms and the exit alarm message and faulted

zone are displayed.

The exit alarm message is sent to the Customer Monitoring Center. You should

disarm the system to stop an alarm, and enter your security code and [1] on the

keypad to clear the display.

SecurityPhone.book 6 ページ２００４年７月２１日　水曜日　午後６時５８分

Arming the System

You can set the security mode through the function menu using the base unit or

handset. There are 4 modes, AWAY, STAY, Night-Stay and INSTANT.

If you want to change the security mode after you arm the system, disarm the

system, then set your required mode through the function menu.

Before arming the system, refer to the section “Entry/Exit Delays” on pages 12 to 13

and “Arming the System” on page 15 in the 3000EN Security Systems User’s Guide.

Make sure all perimeter doors and windows are closed and is

displayed.

• If protected windows and doors are opened when the system is armed:

— the phone alarms and a conversation or a call is disconnected, or an incoming

call is disconnected after you press [TALK] or the speakerphones to answer.

READY

SecurityPhone.book 7 ページ２００４年７月２１日　水曜日　午後６時５８分

Arming the System

Setting the Away mode

When nobody (including pets) remains at home, select this mode.

When you set the Away mode,

— the entire system (interior and perimeter) is armed, and

— exit delay begins so that you can leave through the entry/exit door.

: Press the soft key ( ), and follow steps 2 to 4 above, using

the cordless handset.

*The exit delay time depends on the system setting.

• To exit the menu, press [STOP] or [OFF].

To confirm the security mode you set, press [ADT] in the standby mode.

1Press [ADT].

2Press [

]at “ARM”.

3Scroll to “AWAY” by pressing [

]or [

4Press [

], then go out through the entry/exit

door during the exit delay time.*

• The armed AWAY message is displayed.

Base Unit

ARM

AWAY

Handset

ADT

SecurityPhone.book 8 ページ２００４年７月２１日　水曜日　午後６時５８分

Arming the System

Setting the Stay mode

When you want to arm the system while persons stay inside, select this mode.

When you set the Stay mode,

— the perimeter zones, such as protected windows and doors, are armed

— interior sensors are left disarmed

— exit delay begins so that you can leave through the exit/entry door, and

— if the protected perimeter windows and doors are opened, an alarm sounds

immediately.

: Press the soft key ( ), and follow steps 2 to 3 above, using

the cordless handset. Press [OFF] to go to the standby mode.

• To exit the menu, press [STOP] or [OFF].

To confirm the security mode you set, press [ADT] in the standby mode.

1Press [ADT].

2Press [

]at “ARM”.

3Press [

]at “STAY”.

• The armed STAY message is displayed.

4Press [STOP] to go to the standby mode.

Base Unit

ARM

STAY

ARMED

;;;

STAY

;;;

You may exit now

Example

Handset

ADT

SecurityPhone.book 9 ページ２００４年７月２１日　水曜日　午後６時５８分

Arming the System

Setting the Night-Stay mode

When you want to get more increased security than the Stay mode, select this

mode.

When you set the Night-Stay mode,

— the perimeter zones and pre-selected interior sensors (programmed by your

installer) are armed, and

— if the protected perimeter windows and doors are opened or interior zones are

violated, an alarm sounds immediately.

: Press the soft key ( ), and follow steps 2 to 4 above, using

the cordless handset. Press [OFF] to go to the standby mode.

• To exit the menu, press [STOP] or [OFF].

To confirm the security mode you set, press [ADT] in the standby mode.

1Press [ADT].

2Press [

]at “ARM”.

3Scroll to “Night-Stay” by pressing [

]or

[

], then press [

4Enter your security code.

• If you entered the wrong security code, the phone

will go back to the previous display. Try again from

step 2.

• The armed NIGHT-STAY message is displayed.

5Press [STOP] to go to the standby mode.

IMPORTANT:

When the Night-Stay mode is on, the selected interior zones are armed and

cause an alarm if anyone enters those areas (e.g., waking in the middle of the

night). To avoid sounding an alarm, you must disarm the system before any

activity takes place in those interior zones

Base Unit

ARM

Night-Stay

ENTER CODE

----

;;;

NIGHT-STAY

;;;

You may exit now

Example

Handset

ADT

SecurityPhone.book 10 ページ２００４年７月２１日　水曜日　午後６時５８分

Table des matières

Autres manuels Panasonic Téléphone

Panasonic

Panasonic KX-TG2970B - GigaRange SecurityLink Plus Expandable Answering... Manuel utilisateur

Panasonic

Panasonic KX-T336 Manuel utilisateur

Panasonic

Panasonic KX-NT560 Manuel utilisateur

Panasonic

Panasonic KX-TG2236S Manuel utilisateur

Panasonic

Panasonic KX-T7050 Manuel utilisateur

Panasonic

Panasonic Section750 Manuel utilisateur

Panasonic

Panasonic KX-TS550MEB Manuel utilisateur

Panasonic

Panasonic KX-PRS110FX Manuel utilisateur

Panasonic

Panasonic KX-THA11 - MULTI TALK V Digital Cordless... Manuel utilisateur

Panasonic

Panasonic KX-TD816 Manuel utilisateur

Panasonic

Panasonic NS700 Manuel d'installation

Panasonic

Panasonic KX-TDA50 Manuel du propriétaire

Panasonic

Panasonic KX-T7315 Manuel utilisateur

Panasonic

Panasonic KX-TD1232NL Manuel utilisateur

Panasonic

Panasonic KX-T7400 Series Manuel d'exploitation et d'entretien

Panasonic

Panasonic KX-T7625 - Digital Proprietary Speakerphone 24... Manuel utilisateur

Panasonic

Panasonic KX-NT265 Manuel utilisateur

Panasonic

Panasonic KX-NT6 Series Manuel utilisateur

Panasonic

Panasonic KX-TA824 Manuel utilisateur

Panasonic

Panasonic KX-TU301 E Manuel utilisateur

Panasonic

Panasonic KX-T7020E Manuel utilisateur

Panasonic

Panasonic KX-TCA175 Manuel utilisateur

Panasonic

Panasonic KX-TG6561BXT Manuel utilisateur

Panasonic

Panasonic TGP 550 Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur

Ericsson

Ericsson Dialog 3213 Manuel utilisateur

Yealink

Yealink VP530 Manuel utilisateur
