Technical Advisory

Updated: Nov. 16, 00

Subject: KX-TD194 Installation On KX-TD816/1232

Document Number: KXTD1232006

The KX-TD194 is an external device that allows the use of single line phones with message waiting lamps. This device uses a data pair from the KX-TD system

as control to turn on and off the lamps. The 16 ports on the KX-TD194 basically pass through the Tip and Ring and the KX-TD194 adds the AC voltage

necessary to light the message waiting lamps.

•You do not have to use jacks in consecutive order.

•You do not have to use up all 16 ports.

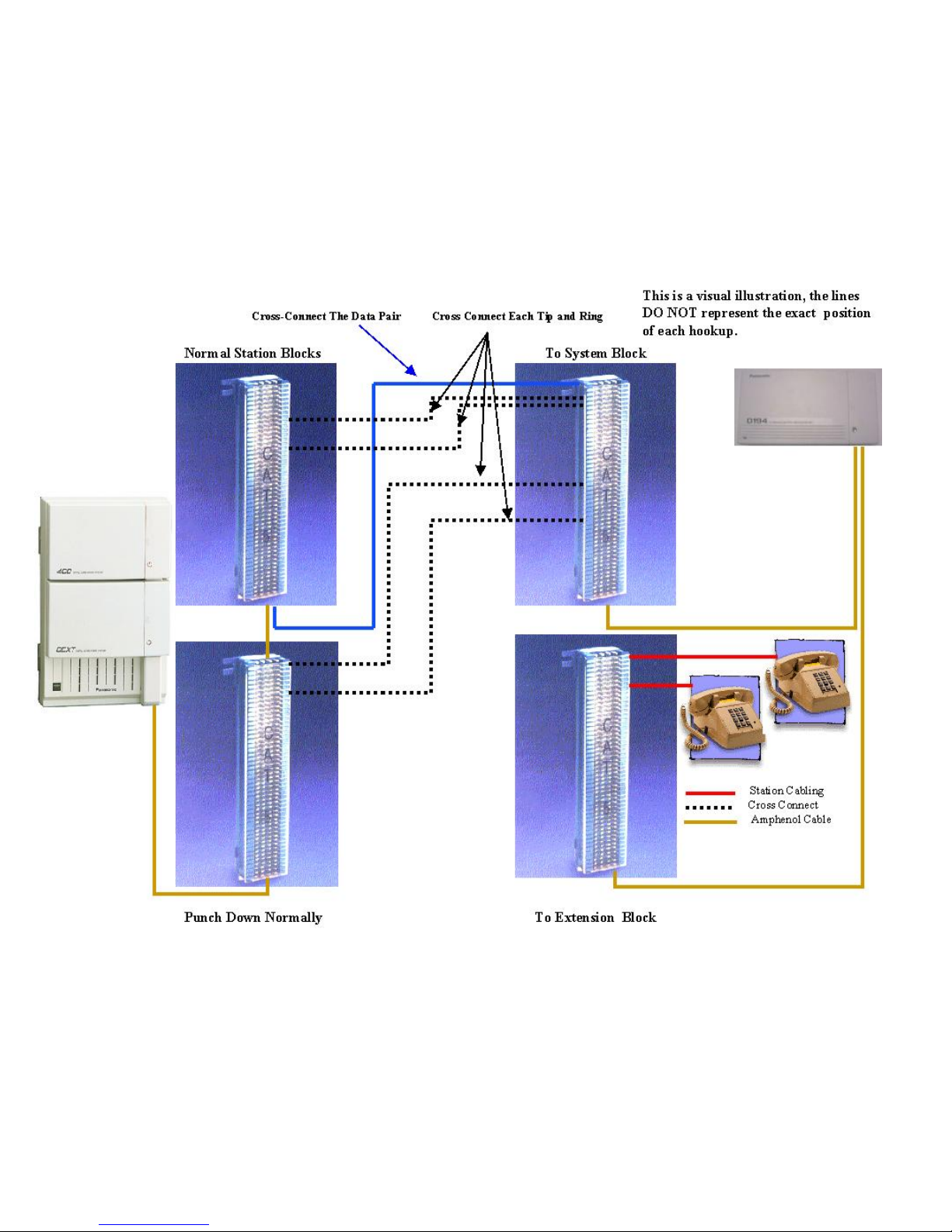

Wiring*

1. Connect the data pair of the port you will use for control to the first pair (Wht-Blu/Blu-Wht) of cable labeled “To System”. (You

can use any jack except Jack 01, a manager, Voice Mail, DSS, or already assigned to KX-TD194)

2. Connect each feed (From System) Tip and Ring pair for each phone to the punch down block labeled “To System” Starting with

the Second pair (Wht-Org/Org-Wht) for the First extension.

3. Connect the Tip and Ring from each extension to the block labeled “To Extension” Starting with the First pair (Wht-Blu/Blu-

Wht) for the First extension.

* Refer to page two for details.

Programming

1. In program 130 enter the jack you wired to the first pair (Wht-Blu/Blu-Wht) of the “To System” punch down block.

2. In program 131 set the message waiting light pattern.

3. In program 132 assign which standard telephone ports will have message waiting lamps. Be careful to enter the data correctly.

First chose the unit number, then enter the port number (This is the port on the KX-TD194 going to the extension), then enter the

feed port number from the system XX-X (This is the port on the system going to the KX-TD194).

Panasonic Telephone Systems

www.voicesonic.com

Phone 1 877-289-2829

Panasonic KX-TD1232, KXTD1232, KX TD1232, TD1232, KX-TD816, KXTD816, KX TD816, TD816

KX-TD816

KX-TD1232

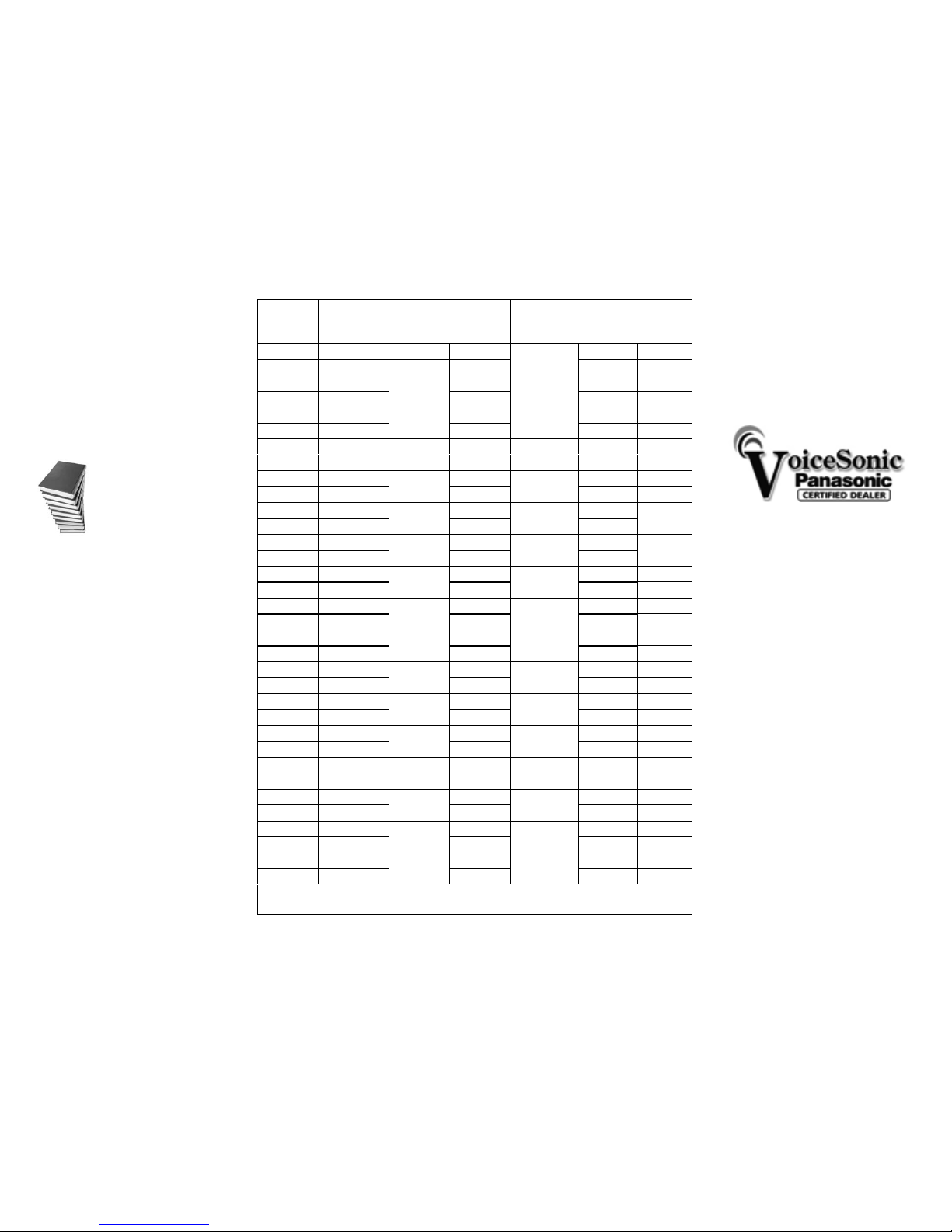

Connector

Number

Connector

Colors

To System Connector

(CN1) "Input

To Extension Connector (CN2)

"Output"

26 WHT-BLU APT D1 EXT. 1 T

1 BLU-WHT DATA D2 R

27 WHT-ORG EXT. 1 TEXT.2T

2ORG-WHT R R

28 WHT-GRN EXT. 2 T EXT. 3 T

3GRN-WHT R R

29 WHT-BRN EXT. 3 T EXT. 4 T

4BRN-WHT R R

30 WHT-SLT EXT. 4 T EXT. 5 T

5SLT-WHT R R

31 RED-BLU EXT. 5 T EXT. 6 T

6BLU-RED R R

32 RED-ORG EXT. 6 T EXT. 7 T

7ORG-RED R R

33 RED-GRN EXT. 7 T EXT. 8 T

8GRN-RED R R

34 RED-BRN EXT. 8 T EXT. 9 T

9BRN-RED R R

35 RED-SLT EXT. 9 T EXT. 10 T

10 SLT-RED R R

36 BLK-BLU EXT. 10 T EXT. 11 T

11 BLU-BLK R R

37 BLK-ORG EXT. 11 T EXT. 12 T

12 ORG-BLK R R

38 BLK-GRN EXT. 12 T EXT. 13 T

13 GRN-BLK R R

39 BLK-BRN EXT. 13 T EXT. 14 T

14 BRN-BLK R R

40 BLK-SLY EXT. 14 T EXT. 15 T

15 SLT-BLK R R

41 YEL-BLU EXT. 15 T EXT. 16 T

16 BLU-YEL R R

42 YEL-ORG EXT. 16 T NOT USED

17 ORG-YEL R

NOTICE HOW THE EXTENSION HOOKUP SHIFTS POSITION What goes in

on the Second position comes out on the First position.
