Panasonic KX-TD612 Manuel utilisateur

Thank you for purchasing a Panasonic Digital Super Hybrid System, Model KX-TD612.

Before connecting this product, please read this manual carefully and save this manual

for future use.

Model No.

KX-TD612

Digital Super Hybrid System

Getting Started

Version 3

Describes the included

accessoriesandrequired

tools for installation.

Shows you how to install

your system.

Describes the basic

programming to make/

receive calls.

Describes how to set the

system programming by

a personal computer

(PC).

Shows the contents of

the CD-ROM.

Preparation

Page 3

Connections

Page 4

Basic

Programming

Page 7

PC Programming

Page 11

Information on

the CD-ROM

Page 16

Contents

Check the package contents. The included materials and numbers

included are:

Main Unit ........... 1

Getting Started (This manual) ........... 1

CD-ROM (Including Manuals, etc.) ........... 1

Template (for wall mounting) ........... 1

Necessary user-supplied tools:

Solid wire for the extension connection:

∗The maximum length of the cable may vary depending on the type of the cables.

Solid wire for the CO line connection:

A Serial Interface (RS-232C) Connector for the PC connection.

Cross-head screwdriver and flathead screwdriver.

Electrician’s pliers.

Wall modular jacks to connect the telephone equipment, if required.

AC Cord [PSWAT206E] ........... 1 Screws [PQHE5004Z] and

Washers [XWG35FY] ........... 3

10-pin Terminal Block

[PSJS 0S07Z] ........... 1

(for external equipment)

8-pin Terminal Blocks

[PSJS08S08Z] ........... 3

(for extensions)

Pin Plugs [PQJP E Z]

........... 2

(for paging equipment/

external music source)

Diameter of conductor ø 0.4 mm - ø 0.6 mm

Maximum length of cable: Diameter Maximum length

Single Line Telephone ø 0.5 mm 620 m

Digital Proprietary Telephone ø 0.5 mm 240 m

Diameter of conductor ø 0.4 mm - ø 0.65 mm

Diameter coating ø 0.66 mm - ø 1.05 mm

Before installing your system

Preparation

System Connection Diagram

To ISDN (BRI) port 1 and 2 (initial)

To ISDN (BRI) port 3 (additional)

(Lightning Protectors)

3 ISDN (BRI) Lines

12 Extension lines

Door Openers

External Music Source

Amplifier Speaker

Printer or Computer

Single Line Telephone

Cordless Phone

Facsimile

Doorphones

KX-T30865

Panasonic

Car Batteries

Panasonic

Second Ringer Relay

External Relay

: needs optional card.

KX-T7436

KX-T7433

KX-T7431 KX-T7440

German type

Doorphone

Voice Processing System

POWER

VOICEPROCESSING SYSTEM KX-TVP50

1 Analogue CO Line (optional)

Connections

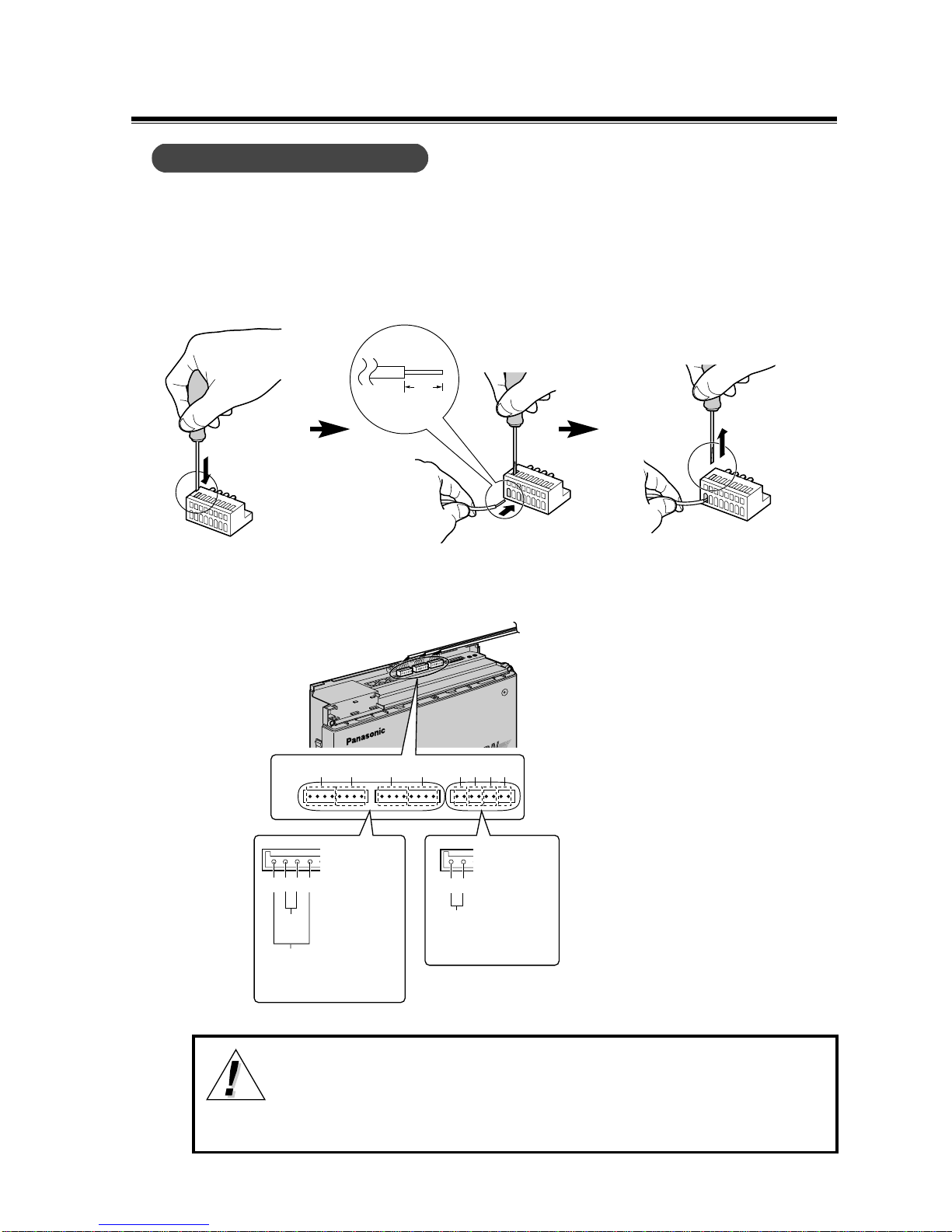

Use 8-pin terminal blocks (included) to connect the extension lines. Extension jacks 1 to 4 are available

for eXtra DevicePort (XDP) connection. Extension jacks 5 to 8 are only for digital proprietary telephones.

1. While pressing down on the hole at the top of the terminal block using a small flat type screwdriver,

insert the required telephone wire into the side hole as shown below.

2. Attach the terminal blocks to the extension connectors on the system.

Extension Connection

Push to open

Small flat type

screwdriver

Pull out

to fix

Push in the

Pealed Cable

5 mm - 6 mm

Jack no.

2 3 4 5 6 7 8

View of Extension

Connector (Jack 1

–

View of Extension

Connector (Jack 5

–

Jack X-1

Jack

X-2 Jack X

H: High

A: A-wire

B: B-wire

L: Low

H: High

L: Low

To Extensions

(Jack 1

4(-1/-2), 5

8(-1) )

LH..

LBAH..

•Before making the connection of the Extension Connector to the main unit,

extension lines should be checked carefully.

If the extension lines are connected to the main unit with those wires making a

short circuit between the H-L pins or A-B pins, it may cause a malfunction of

the system, or may damage the circuit of the system in the worst case.

Connections

1. Insert the modular plugs of the ISDN (BRI) CO line cords (8-conductor wiring) into the ISDN (BRI)

ports 1 and 2.

2. Connect the line cords to the terminal board or the modular jacks from the Central Office.

CO Line Connection

To Terminal Board or

Modular Jacks from

the Central Office

ISDN (BRI)

Port 1 ISDN (BRI)

Port 2 ISDN (BRI)

Port 3 TA RA RB TB

•When making a point-to-multipoint connection, we recommend you use

connection A above because your system has a terminal register (TR) included.

When making connection B, please consult your dealer to remove the TR in your

system.

Terminal

Equipment 7 Terminal

Equipment 1

To Central Office

Network

Termination

A. When your system is at the end of the connection

Terminal

Equipment 7 Terminal

Equipment 1

To Central Office

Network

Termination

B. When your system is not at the end of the connection

Connections

This chapter describes system programming necessary to enable receiving/making an outside call.

Setting Status of Extension: ISDN (BRI) port 1, Jack 1-1 (Extension no. 201)

The following items are required before the programming

Confirm your ISDN telephone number.

Confirm whether your connection type is point-to-point or point-to-multipoint.

Connect a digital proprietary telephone (DPT) with display (e.g. KX-T7436, KX-T7433, etc.) to

the Jack 1-1.

Put the overlay on the DPT connected to Jack 1-1.

Connect the ISDN (BRI) CO line to the ISDN (BRI) port 1.

Before Programming

To Enter the Programming Mode

Dial #.

Press PROGRAM.

You can change the user password.

(Default: 1234) Consult your dealer.

Dial 1234 (user password).

PROGRAM

#1 2

Basic Programming

[001 System Speed Dialling and Intelligent Call Handling Number Set

[623 CLIP/COLP Number Assignment for Extension

Basic Programming

2. Press NEXT.

NEXTCLRSKP+

SPD & CH Number

3. Dial .

NEXTCLRSKP+

SPD&CH Cod?

1. Dial .

NEXTCLR

SYS-PGM NO?→

NEXTSEL→

500:Not Stored

4. Enter your phone number. 6. Press NEXT.

NEXTSELSKP+

500: 0123456789

7. Repeat steps 4 though 6

until you store all of

your phone number.

NEXTSEL→

500: 0123456789

5. Press .

STORE

8. Press .

0 0 1

1005

END

3. Dial .

NEXTCLRSKP+

Jack NO?

1. Dial .

NEXTCLR

SYS-PGM NO?→

#1-1:5:BI:

SEL+ NEXTSEL→

#1-1:5:AL:

6. Press

→and then enter your

ISDN telephone number.

2. Press NEXT.

NEXTCLRSKP+

CLIP/COLP NO.

NEXTSEL→

#1-1:0:BI:

4. Dial and press

→

7. Press .

STORE

5. Keep pressing SEL+ until

AL is displayed.

SEL

→

#1-1:5:AL:012345

8. Press .

END

Basic Programming

[423 ISDN Layer 1 Active Mode

[424 ISDN Configuration

3. Dial .1. Dial .

NEXTCLR

SYS-PGM NO?

→

5. Press .

2. Press NEXT.

NEXTCLRSKP+

L1 Active Mode

NEXTCLRSKP+

Port NO?

→

NEXTSEL+

→

#1 :Call

4. Press SEL+ and then

press .

STORE

<If Your Contract is

Point-to-Multipoint>

NEXTSEL+ →

#1 :Permanent

<If Your Contract is

Point-to-Point>

4. Press .

STORE

2 34 1

END

1. Dial .

NEXTCLR

SYS-PGM NO?

→

2. Press NEXT.

NEXTCLRSKP+

Access Mode

NEXTCLRSKP+

Port NO?

→

NEXTSEL+ →

#1 :Multipoint

4. Press SEL+ and then

press .

STORE

If Your Contract is

Point-to-Multipoint

NEXTSEL+ →

#1 :Point

If Your Contract is

Point-to-Point

STORE

4. Press .

5. Press .

END

3. Dial .

Basic Programming

[425 ISDN Data Link Mode

[426 ISDN TEI Mode

System Restart

After setting the system programming, restart the system. You can restart the system by turning

the Power switch “OFF” and then “ON”.

3. Dial .1. Dial .

NEXTCLR

SYS-PGM NO?

→

5. Press .

2. Press NEXT.

NEXTCLRSKP+

Data Link Mode

NEXTCLRSKP+

Port NO?

→

NEXTSEL+ →

#1 :Call

4. Press SEL+ and then

press .

STORE

<If Your Contract is

Point-to-Multipoint>

NEXTSEL+ →

#1 :Permanent

<If Your Contract is

Point-to-Point>

4. Press .

STORE

2 54

END

NEXTCLR

SYS-PGM NO?

→

2. Press NEXT.

NEXTCLRSKP+

TEI Assign

NEXTCLRSKP+

Port NO?

→

NEXTSEL →

#1 :Automatic

<If Your Contract is

Point-to-Multipoint>

NEXTSEL →

#1 :Fix 0

<If Your Contract is

Point-to-Point>

STORE

4. Press . 4. Press and then

press CLR, and then

press .

STORE

SHIFT

1. Dial .

5. Press .

END

3. Dial .

Basic Programming
