AM1

ORDERING INFORMATION

TERMINAL VARIATION

Standard types, reversed action types and oil tight types are available in two terminal designs, solder and screw terminals, as shown

in the above columns:

Differences in dimension between solder and screw terminals are as follows;

HIGH CONTACT CAPACITY,

PRECISE OPERATION

AM1 (NZ BASIC)

SWITCHES

49.2

24.1

17.5

Compliance with RoHS Directive

FEATURES

• 10 A High current switching capacity

and high precision

• Wide allowance of operating speed

• Versatile variety of actuators

• UL/C-UL approved

TYPICAL APPLICATION

• General industrial machinery

• Medical equipment

• Measuring instruments

• Transportation equipment

• Home electric appliances

Type of

switch

NZ basic

(AM1)

switch

Remarks: Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.

Upper body cover shape & terminal Actuators

Basic

specifications

1: Flat, solder terminal

3: Flat, screw terminal

5: Grooved, solder terminal

7: Grooved, screw terminal

Upper body cover shape 0: Pin plunger

1: Hinge lever (leaf spring)

3: Hinge roller lever (roller, leaf, spring)

4: Hinge short roller lever

5: Overtravel plunger

6: Compact overtravel plunger

7: Panel mount plunger

811: Panel mount roller plunger

812: Panel mount cross roller plunger

Contact

F: Cadmium

free

0: Standard type

1: Oil tight type

3: Reversed

action type

4: One way type

Ex. AM 1 5 0 1 K F

Flat Grooved

Solder terminal

Screw terminal

N.O.

N.C.

CIRCUT

Terminal plate

17.5

6.3

49.2

17.5

20.219.8

CNONC

9.1

49.2

M4 screw P0.7

AM1

PRODUCT TYPES

1. Standard type

2. Oil tight types

Remarks: 1. Standard part number indicates UL/C-UL mark.

2. Standard packing for inner carton: 20cps.

SPECIFICATIONS

1. Contact Rating

2. Characteristics

Actuator Solder terminal Screw terminal

Pin plunger AM1100KF AM1300KF

Over travel plunger AM1105KF AM1305KF

Compact over travel plunger AM1106KF AM1306KF

Panel mount plunger AM1107KF AM1307KF

Panel mount roller plunger AM110811KF AM130811KF

Panel mount cross roller plunger AM110812KF AM130812KF

Flexible leaf lever AM1101KF AM1301KF

Flexible roller leaf lever AM1103KF AM1303KF

Rigid lever AM1501KF AM1701KF

Rigid short roller lever AM1504KF AM1704KF

Rigid roller lever AM1503KF AM1703KF

One way type•Rigid short roller lever AM1544KF AM1744KF

One way type•Rigid roller lever AM1543KF AM1743KF

Reversed action type•Rigid lever AM1531KF AM1731KF

Reversed action type •Rigid short roller lever AM1534KF AM1734KF

Reversed action type•Rigid roller lever AM1533KF AM1733KF

Actuator Solder terminal Screw terminal

Rigid lever AM1511KF AM1711KF

Rigid short roller lever AM1514KF AM1714KF

Rigid roller lever AM1513KF AM1713KF

Type Voltage Resistive load

(cos

= 1)

Inductive load

(cos

= 0.6 to 0.7)

Motor or lamp load

N.C. N.O.

Standard types

One way types

Reversed action types

125 V AC 10 A 6 A 3 A 1.5 A

250 V AC 10 A 6 A 2 A 1 A

480 V AC 1 A 0.5 A — —

125 V DC 0.5 A 0.05 A — —

250 V DC 0.25 A 0.03 A — —

Oil tight types

125 V AC 10 A 6 A 3 A 1.5 A

250 V AC 10 A 6 A 2 A 1.0 A

125 V DC 0.5 A 0.05 A — —

Item Speciﬁcations

Expected

life

Mechanical

Pin plunger types (O.T.: speciﬁed value) Min. 2 ×107(60 cpm) (at rated overtravel)

(Oil tight: Min. 1.5 ×106)

Other types (O.T.: speciﬁed value) Min. 5 ×106(60 cpm) (at rated overtravel)

(Oil tight: Min. 1.5 ×106)

Electrical (O.T.: Max.) Min. 5 ×105(20 cpm) (at rated load)

(Oil tight: Min. 1.5 ×105)

Insulation resistance Min. 100 MΩ(at 500 V DC)

Dielectric

strength

Between open terminals 1,000 Vrms for 1 min.

Between each terminal and other exposed metal parts 2,000 Vrms for 1 min.

Between each terminal and ground 2,000 Vrms for 1 min.

Contact resistance (initial) (by voltage drop, 1 A, 6–8 V DC) Max. 50 mΩ

Vibration resistance (Pin plunger type) Single amplitude: 0.75 mm, 10 to 55 Hz (contact opening: max. 1 msec.)

Shock

resistance

Pin plunger types Min. 300 m/s2(contact opening: max. 1 msec.)

Other types Min. 50 m/s2(contact opening: max. 1 msec.)

Allowable operating speed (at no load) 0.1 to 1,000 mm/sec. (at pin plunger position)

Max. operating cycle rate (at no load) 240 cpm

Ambient temperature –25°C to +80°C (no freezing at low temperature)

Weight Approx. 20 to 55 g

AM1

OPERATING CHARACTERISTICS

Standard types

Standard types (cont' d)

One way types

Reversed action types

Oil tight types

Types of actuator Pin plunger Overtravel plunger Compact overtravel

plunger Panel mount plunger

Operating force, max. 3.63 N

Release force, min. 1.12 N

Pretravel, max. mm 0.4

Movement differential, max. mm 0.05

Overtravel, min. mm 0.13 1.5 1.5 5.6

Operating position, mm 15.9±0.4 28.2±0.5 21.2±0.5 21.8±0.8

Types of actuator Panel mount roller

plunger

Panel mount cross roller

plunger Flexible leaf lever Flexible roller leaf lever

Operating force, max. 3.63 N 1.47 N

Release force, min. 1.12 N 0.14 N

Pretravel, max. mm 0.4 4

Movement differential, max. mm 0.05 1.3

Overtravel, min. mm 3.6 1.6

Operating position, mm 33.3±1.2 17.5±0.8 28.6±0.8

Types of actuator Rigid lever Rigid short roller lever Rigid roller lever

Operating force, max. 0.69 N 1.57 N 0.98 N

Release force, min. 0.14 N 0.42 N 0.2 N

Pretravel, max. mm 10 4.5 7.5

Movement differential, max. mm 1.3 0.7 1.3

Overtravel, min. mm 5.6 2.4 3.6

Operating position, mm 19.1±0.7 30.2±0.4 30.2±0.7

Types of actuator Rigid short roller lever Rigid roller lever

Operating force, max. 2.23 N 1.67 N

Release force, min. 0.42 N 0.42 N

Pretravel, max. mm 3.5 4.5

Movement differential, max. mm 0.4 0.5

Overtravel, min. mm 1.5 2.4

Free position, max. mm 31.8 43.3

Operating position, mm 30.2±0.4 41.3±0.4

Types of actuator Rigid lever Rigid short roller lever Rigid roller lever

Operating force, max. 1.67 N 5.30 N 2.35 N

Release force, min. 0.27 N 1.67 N 0.56 N

Pretravel, max. mm 5.0 2.5 3.6

Movement differential, max. mm 0.9 0.4 0.7

Overtravel, min. mm 5.6 2.0 4.0

Operating position, mm 19.1±0.8 30.2±0.5 30.2±0.8

Types of actuator Rigid lever Rigid short roller lever Rigid roller lever

Operating force, max. 0.69 N 1.67 N 0.98 N

Release force, min. 0.14 N 0.42 N 0.20 N

Pretravel, max. mm 10 4.5 7.5

Movement differential, max. mm 1.5 0.7 1.3

Overtravel, min. mm 5.6 2.4 3.6

Operating position, mm 19.1±0.7 30.2±0.4 30.2±0.7

AM1

DIMENSIONS mm General tolerance: ±0.4

1. Standard types

Pin plunger

AM1100KF (Solder terminal)

AM1300KF (Screw terminal)

2.4

14.6 15

17.5

9.1

5.4

23.3±0.3

4.5±0.1 25.4±0.1

49.2

11.9

O.P.

P. T.

4.2+0.1

−0.05 4.2 dia. hole

+0.1

−0.05

Operating force,

max. 3.63 N

Release force,

min. 1.12 N

Pretravel,

max. mm 0.4

Movement differential,

max. mm 0.05

Overtravel,

min. mm 0.13

Operating position,

mm 15.9±0.4

Overtravel plunger

AM1105KF (Solder terminal)

AM1305KF (Screw terminal)

8.4

4 dia.

6.35 dia.

23.3±0.3

O.P.

P. T. Plunger: Hardening steel

Operating force,

max. 3.63 N

Release force,

min. 1.12 N

Pretravel,

max. mm 0.4

Movement differential,

max. mm 0.05

Overtravel,

min. mm 1.5

Operating position,

mm 28.2±0.5

Compact over plunger

AM1106KF (Solder terminal)

AM1306KF (Screw terminal)

–0.05

+0.10

4.2

Plunger: Plastic

7.1 dia.

4.2

P.T.

0.4 max. 23.3 ±0.3

21.2

O.P. ±0.5 14.3 14.5

4.2 +0.10

–0.05 dia.

Operating force,

max. 3.63 N

Release force,

min. 1.12 N

Pretravel,

max. mm 0.4

Movement differential,

max. mm 0.05

Overtravel,

min. mm 1.5

Operating position,

mm 21.2±0.5

Panel mount plunger

AM1107KF (Solder terminal)

AM1307KF (Screw terminal)

8.25 dia.

Nut (2 thick)

Lock nut

(2 thick)

M12 ×P1

±0.5

–0.05

+0.10

4.2

Plunger: Plastic

P.T.

0.4 max. 23.3 ±0.3

21.8

O.P. ±0.8

14.3

13.1

4.2 +0.10

–0.05 dia.

R8 Operating force,

max. 3.63 N

Release force,

min. 1.12 N

Pretravel,

max. mm 0.4

Movement differential,

max. mm 0.05

Overtravel,

min. mm 5.6

Operating position,

mm 21.8±0.8

AM1

Panel mount roller plunger mm General tolerance: ±0.4

Dimensions and Operating characteristics are the same as those of Panel mount roller plunger type. However, the roller joins the switch body at an angle of 90°.

AM110811KF (Solder terminal)

AM130811KF (Screw terminal)

90°

: Plastic

M12 ×P1

Roller 12.7 dia. ×4.6

Nut (2 thick)

16±0.5 –0.05

+0.10

4.2

P.T.

0.4 max. 23.3 ±0.3

33.3

O.P. ±1.2

14.3

4.2 +0.10

–0.05 dia.

15.5

Operating force,

max. 3.63 N

Release force,

min. 1.12 N

Pretravel,

max. mm 0.4

Movement differential,

max. mm 0.05

Overtravel,

min. mm 3.6

Operating position,

mm 33.3±1.2

Panel mount cross roller plunger

AM110812KF (Solder terminal)

AM130812KF (Screw terminal)

90°

M12 ×P1

Nut (2 thick)

: Plastic

Roller 12.7 dia. ×4.6

16±0.5 –0.05

+0.10

4.2

P.T.

0.4 max. 23.3 ±0.3

33.3

O.P. ±1.2

14.3

4.2 +0.10

–0.05 dia.

15.5

Operating force,

max. 3.63 N

Release force,

min. 1.12 N

Pretravel,

max. mm 0.4

Movement differential,

max. mm 0.05

Overtravel,

min. mm 3.6

Operating position,

mm 33.3±1.2

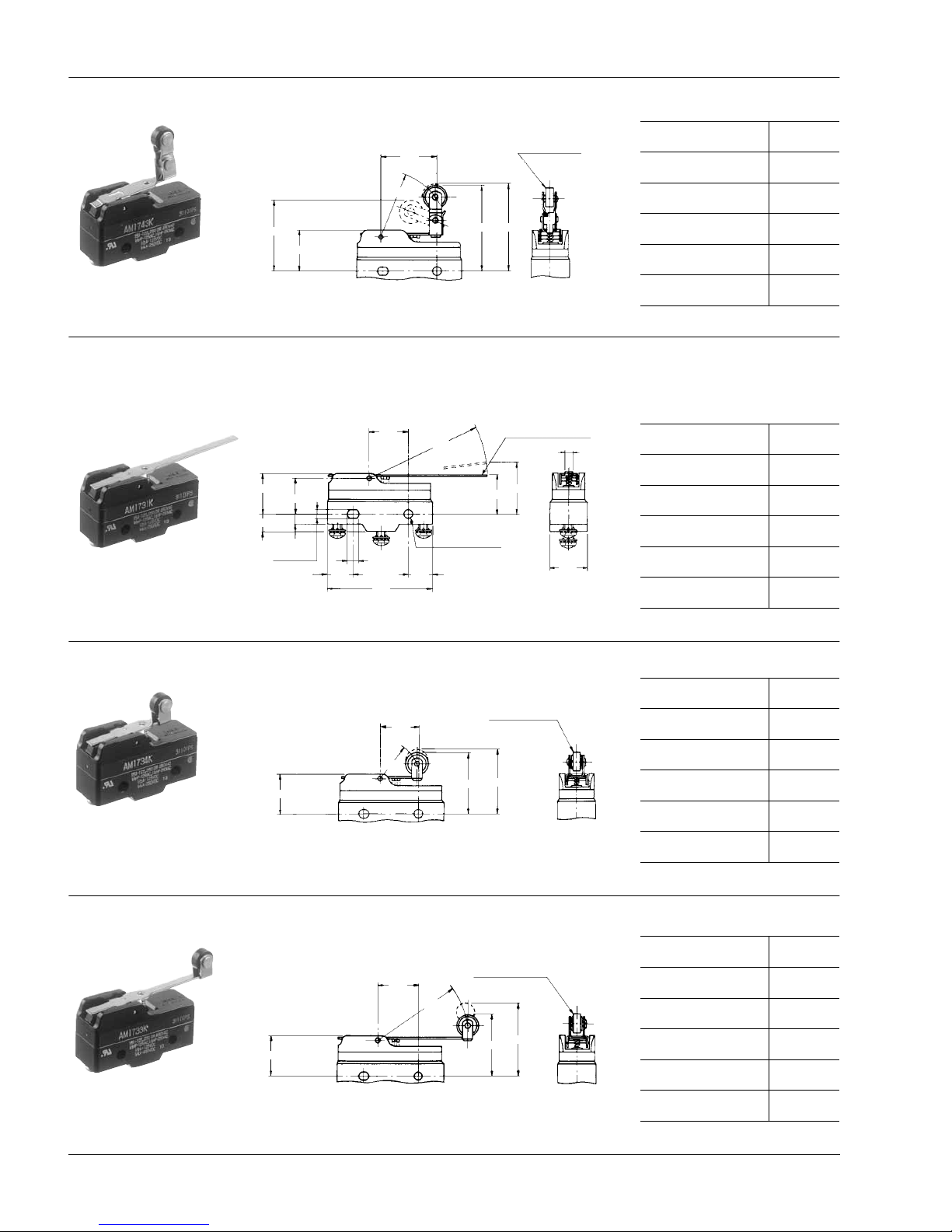

Flexible leaf lever

AM1101KF (Solder terminal)

AM1301KF (Screw terminal)

14.6

4.8

49.6±0.8

F. P. O.P.

Leaf: Stainless steel

Operating force,

max. 1.47 N

Release force,

min. 0.14 N

Pretravel,

max. mm 4

Movement differential,

max. mm 1.3

Overtravel,

min. mm 1.6

Operating position,

mm 17.5±0.8

Flexible roller leaf lever

AM1103KF (Solder terminal)

AM1303KF (Screw terminal)

14.6

46±0.8

F. P. O.P.

Leaf: Stainless steel

Roller 9.5 dia.×4:

Plastic

Operating force,

max. 1.47 N

Release force,

min. 0.14 N

Pretravel,

max. mm 4

Movement differential,

max. mm 1.3

Overtravel,

min. mm 1.6

Operating position,

mm 28.6±0.8

AM1

Rigid lever mm General tolerance: ±0.4

AM1501KF (Solder terminal)

AM1701KF (Screw terminal)

26.1

20.1±0.5 F. P.

O.P.

R63.5

Lever: Stainless steel

4.8

Operating force,

max. 0.69 N

Release force,

min. 0.14 N

Pretravel,

max. mm 10

Movement differential,

max. mm 1.3

Overtravel,

min. mm 5.6

Operating position,

mm 19.1±0.7

Rigid short roller lever

AM1504KF (Solder terminal)

AM1704KF (Screw terminal)

26.1

20.1±0.5

F. P.

O.P.

R26.7

Roller 9.5 dia.×4:

Plastic

Operating force,

max. 1.57 N

Release force,

min. 0.42 N

Pretravel,

max. mm 4.5

Movement differential,

max. mm 0.7

Overtravel,

min. mm 2.4

Operating position,

mm 30.2±0.4

Rigid roller lever

AM1503KF (Solder terminal)

AM1703KF (Screw terminal)

26.1

20.1±0.5

F. P.

O.P.

R48.3

Roller 9.5 dia.×4:

Plastic

Operating force,

max. 0.98 N

Release force,

min. 0.2 N

Pretravel,

max. mm 7.5

Movement differential,

max. mm 1.3

Overtravel,

min. mm 3.6

Operating position,

mm 30.2±0.7

2. One way types

This type is operated only to one direction, not to the reversed direction by the construction of the roller lever, pivoting away from the

cam on the return stroke.

Rigid short roller lever

AM1544KF (Solder terminal)

AM1744KF (Screw terminal)

26.1

27.8 max.

20.1±0.5

F. P.

O.P.

R21.1

Roller 4.75 dia.×4.75:

Plastic

Operating force,

max. 2.23 N

Release force,

min. 0.42 N

Pretravel,

max. mm 3.5

Movement differential,

max. mm 0.4

Overtravel,

min. mm 1.5

Operating position,

mm 30.2±0.4

AM1

Rigid roller lever mm General tolerance: ±0.4

AM1543KF (Solder terminal)

AM1743KF (Screw terminal)

26.1

34.1 max.

20.1±0.5

O.P. F. P.

R31

Roller 9.5 dia.×4:

Plastic

Operating force,

max. 1.67 N

Release force,

min. 0.42 N

Pretravel,

max. mm 4.5

Movement differential,

max. mm 0.5

Overtravel,

min. mm 2.4

Operating position,

mm 41.3±0.4

3. Reversed action types

When the actuator is operated, the switching mechanism returns to the free position. Extraordinary force by pushing the plunger too

much is not put on the switching mechanism, which means stability in life.

Rigid lever

AM1531KF (Solder terminal)

AM1731KF (Screw terminal)

18.7

17.5

20.1±0.5

4.5±0.1

25.4±0.1

9.1

11.9 11.9

49.2

16.9±0.8

F. P.

Lever: Stainless steel

O.P.

R56

4.2+0.1

−0.05

4.2 dia. hole

+0.1

−0.05

4.8

Operating force,

max. 1.67 N

Release force,

min. 0.27 N

Pretravel,

max. mm 5.0

Movement differential,

max. mm 0.9

Overtravel,

min. mm 5.6

Operating position,

mm 19.1±0.8

Rigid short roller lever

AM1534KF (Solder terminal)

AM1734KF (Screw terminal)

18.7

20.1±0.5

F. P.

O.P.

R19

Roller 9.5 dia.×4:

Plastic

Operating force,

max. 5.30 N

Release force,

min. 1.67 N

Pretravel,

max. mm 2.5

Movement differential,

max. mm 0.4

Overtravel,

min. mm 2.0

Operating position,

mm 30.2±0.5

Rigid roller lever

AM1533KF (Solder terminal)

AM1733KF (Screw terminal)

18.7

20.1±0.5

F. P.

O.P.

R41

Roller 9.5 dia.×4:

Plastic

Operating force,

max. 2.35 N

Release force,

min. 0.56 N

Pretravel,

max. mm 3.6

Movement differential,

max. mm 0.7

Overtravel,

min. mm 4.0

Operating position,

mm 30.2±0.8

AM1

4. Oil tight types mm General tolerance: ±0.4

The pushbutton part is sealed with the rubber cap and the connected part between the cap and body is also coated with resin so that

these parts are kept away from foreign matters. This type has resistance to oil.

Rigid lever

AM1511KF (Solder terminal)

AM1711KF (Screw terminal)

26.1

20.1±0.5 F. P.

O.P.

R63.5

Plunger seal

4.8

Lever: Stainless steel

Operating force,

max. 0.69 N

Release force,

min. 0.14 N

Pretravel,

max. mm 10

Movement differential,

max. mm 1.5

Overtravel,

min. mm 5.6

Operating position,

mm 19.1±0.7

Rigid short roller lever

AM1514KF (Solder terminal)

AM1714KF (Screw terminal)

26.1

20.1±0.5

16.9±0.8

F. P.

O.P.

R26.7

Plunger seal Roller 9.5 dia.×4:

Plastic

Operating force,

max. 1.67 N

Release force,

min. 0.42 N

Pretravel, max.

mm 4.5

Movement differential,

max. mm 0.7

Overtravel,

min. mm 2.4

Operating position,

mm 30.2±0.4

Rigid roller lever

AM1513KF (Solder terminal)

AM1713KF (Screw terminal)

26.1

20.1±0.5

16.9±0.8

F. P.

O.P.

R48.3

Plunger seal Roller 9.5 dia.×4:

Plastic

Operating force,

max. 0.98 N

Release force,

min. 0.20 N

Pretravel,

max. mm 7.5

Movement differential,

max. mm 1.3

Overtravel,

min. mm 3.6

Operating position,

mm 30.2±0.7

AM1

NOTES

1. Regarding fastening of switch body

1) In fastening the switch body, use M4

mounting screws to attach switches with

the torque 1.5 N·m or less.

2) After mounting and wiring, the

insulation distance between ground and

each terminal should be conﬁrmed as

sufﬁcient.

2. Adjustment of the operating device

The operating device should be

positioned so that it applies no stress to

the pushbutton or actuator when the

switch is in the open position. If this

condition is exceeded, the mechanical

and electrical performance will be

impaired. In addition, the force applied by

the operating device should be in a

perpendicular direction. Even if the

pushbutton is used in the full total travel

position, there will be no inﬂuence on the

life of the switch.

3. Soldering operations

Soldering should be done in less than 5

seconds, with a 60 watt iron (tip

temperature = 350°C max.). Care should

be taken not to apply force to the terminal

during soldering.

4. Avoid using switches in the

following conditions:

• In corrosive gases such as hydrogen

sulﬁde.

• In ﬂammable or explosive gases such

as gasoline or thinner etc.

• In a dusty environment.

• In an ambient humidity over 85%.

• In conditions where the perpendicular

operating speed is less than 0.1 mm/sec.

or more than 1,000 mm/sec.

• In a silicon atmosphere.

5. Others

Caution should be taken not to drop

switches.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Changer

Panasonic

Panasonic AVHS400AN - MULTI-FORMAT LIVE SWITCHER Manuel utilisateur

Panasonic

Panasonic PN23129A Manuel utilisateur

Panasonic

Panasonic PN36240E-TH Manuel utilisateur

Panasonic

Panasonic SG-P Series Manuel utilisateur

Panasonic

Panasonic ZEQUO 5410DL Manuel utilisateur

Panasonic

Panasonic EVQWH Manuel utilisateur

Panasonic

Panasonic EVQQ7 Manuel utilisateur

Panasonic

Panasonic PN28080i Manuel utilisateur

Panasonic

Panasonic AW-HS50 Series Manuel utilisateur

Panasonic

Panasonic KX-HNB600C Manuel utilisateur

Panasonic

Panasonic PN290496-NZ Manuel utilisateur

Panasonic

Panasonic GA-AS12TPoE+ Series Manuel utilisateur

Panasonic

Panasonic GA-AS16TPoE+ Manuel utilisateur

Panasonic

Panasonic AV4 Manuel utilisateur

Panasonic

Panasonic SG-C1-21-EG Manuel utilisateur

Panasonic

Panasonic AV-HS04M1 Manuel utilisateur

Panasonic

Panasonic WJAD550 - ADAPTOR Manuel utilisateur

Panasonic

Panasonic Arbitrator WV-TW37003 Manuel utilisateur

Panasonic

Panasonic AV-HS410N Manuel utilisateur

Panasonic

Panasonic KX-T206NZ Manuel utilisateur

Panasonic

Panasonic GA-AS48T Manuel utilisateur

Panasonic

Panasonic WJ-SW208 Manuel utilisateur

Panasonic

Panasonic ABV 1 Series Manuel utilisateur

Panasonic

Panasonic AW-HS50E Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
