© Panasonic Corporation 2012 Unauthorized copy-

ing and distribution is a violation of law.

Order Number PEWT1207A38CE

(Household) Multi-Styling Straightener

Model No. EH-HW58

Model No. EH-HW38

Model No. EH-HW18

Asia

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 5

4.1. Disassembly instruction---------------------------------- 5

4.2. ASSEMBLY instruction----------------------------------- 8

4.3. Lead wire of Iron Plate (Heater A , Heater B)

and Circuit arrangement points. ----------------------- 9

5 Wiring Connection Diagram ---------------------------------10

6 Schematic Diagram ---------------------------------------------10

7 Exploded View and Replacement Parts List ----------- 11

7.1. Exploded View for EH-HW58 ------------------------- 11

7.2. Parts List for EH-HW58--------------------------------- 12

7.3. Exploded View for EH-HW38 ------------------------- 13

7.4. Parts List for EH-HW38--------------------------------- 14

7.5. Exploded View for EH-HW18 ------------------------- 15

7.6. Parts List for EH-HW18--------------------------------- 16

2

1Warning

Caution:

- Pb free solder has a higher melting point that standard solder Typicall the melting point is 50 - 70°F (30 - 40°C) a higher.

Please use soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C).

In case of using high temperature soldering iron, please be careful not to heat too long.

- Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3

3 Troubleshooting Guide

Refer to WIRING CONNECTION DIAGRAM.

4

5

4 Disassembly and Assembly Instructions

4.1. Disassembly instruction

1. Remove Shaft Cover from Main Body by Slotted screw

driver (Minus Driver.)

2. Remove Torx screws at Shaft position by Phillips screw

driver (Plus driver).

3. Remove Shaft out by tiny-shaped Phillips screw drivers

(Plus Driver) and pull it out from the main body.

4. Remove Pivot spring by gripping and pulling it out from

the Main body.

5. Remove 6 screws for fitting Press Plate side by Phillips

screw drivers (Plus Driver).

6. Remove Press Plate Cover at the Hook part by Slotted

screw driver (Minus Driver).

6

7. Remove Lock Button and Lock Button Spring.

8. Remove Iron Plate of Heater B from Hook.

9. Remove Slide Plate and Slide Spring.

10. Take off Press Plate.

11. Remove 2 screws of the Housing side by Phllips screw

driver (Plus Driver).

12. Remove 6 Screws by Phllips screw driver (Plus Driver).

7

13. Remove Housing A from Housing B in Grip follow as

below drawing.

14. Take off Iron Plate and Circuit assembly b/k from Housing

A.

8

4.2. ASSEMBLY instruction

1. Shaft Cover fixing point.

2. Housing B Assembly Point.

9

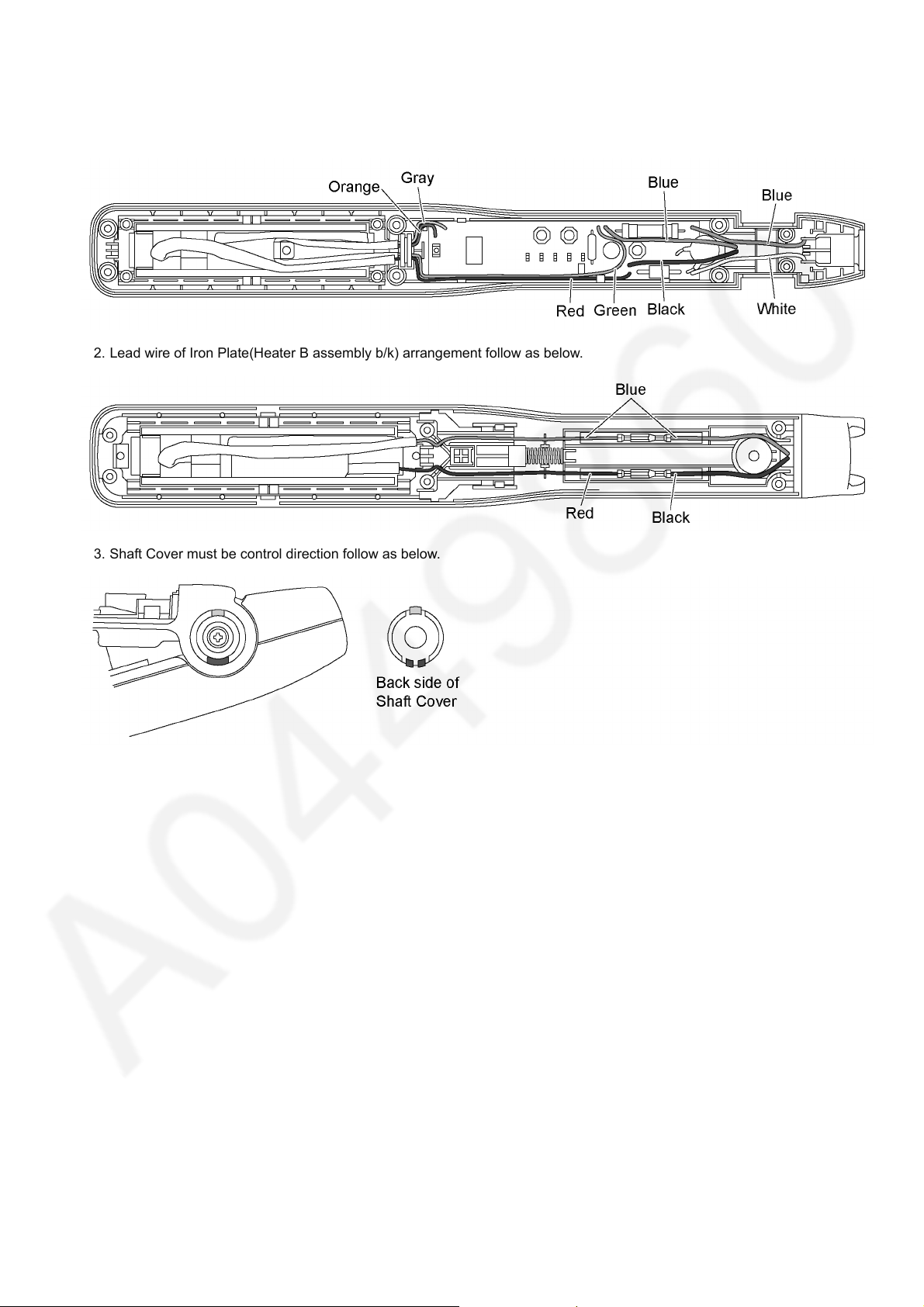

4.3. Lead wire of Iron Plate (Heater A , Heater B) and Circuit arrangement

points.

1. Lead wire of Iron Plate (Heater A assembly b/k) and Circuit assembly b/k arrangement follow as below.

2. Lead wire of Iron Plate(Heater B assembly b/k) arrangement follow as below.

3. Shaft Cover must be control direction follow as below.

10

5 Wiring Connection Diagram

6 Schematic Diagram
