TABLE OF CONTENTS

1 Safety Precautions

1.1. General Guidelines

1.3. Caution For Fuse Replacement

1.4. Before Repair and Adjustment

1.5. Protection Circuitry

1.6. Safety Parts Information

2 Warning

2.1. Prevention of Electrostatic Discharge (ESD)

to Electrostatic Sensitive (ES) Devices

2.2. Precaution of Laser Diode

2.3. Service caution based on Legal restrictions

2.4. Handling Precautions for Traverse Unit

3 Service Navigation

3.1. Service Information

4 Specifications

5 Location of Controls and Components

5.1. Main Unit Key Button Operation

5.2. Remote Control Key Button Operation

5.3. Media Information

6 Self-Diagnostic and Special Mode Setting

6.1. Cold-Start

6.2. Doctor Mode Table

6.3. Reliability Test Mode (CD Mechanism Unit

(BRS1C))

6.4. Self-Diagnostic Mode

6.5. Self-Diagnostic Error Code Table

6.6. Sales Demonstration Lock Function

Please refer to the original service manual for:

CD Mechanism Unit (BRS1C), Order No. PSG1102001CE

Speaker system SB-AKX12LM-K, Order No. MEX1105004CE

Nota: El idioma original de este Manual de Servicio es en idioma inglés, sin embargo algunas notas aquí mencionadas

serán escritas en español para mejor descripción para Centros de Servicio de México.

7 Troubleshooting Guide

7.1. Troubleshooting Guide for F61 and/or F76

7.2. Part Location

7.3. D-Amp IC Operation & Control

8 Disassembly and Assembly Instructions

8.1. Disassembly Flow Chart

8.2. Main Components and P.C.B. Locations

8.3. Disassembly of Top Cabinet

8.4. Disassembly of Tuner P.C.B

8.5. Disassembly of Front Panel Unit

8.6. Disassembly of Panel P.C.B.

8.7. Disassembly of Remote Sensor P.C.B.

8.8. Disassembly of LCD P.C.B.

8.9. Disassembly of USB P.C.B.

8.10. Disassembly of CD Lid

8.11. Disassembly of Main P.C.B.

8.12. Replacement of Voltage Regulator IC

(IC2010)

8.13. Replacement of Audio Digital Amp IC

(IC5902)

8.14. Disassembly of SMPS P.C.B

8.15. Replacement of Switching Regulator IC

(IC5701)

8.16. Replacement of Rectifier Diode (D5702)

8.17. Replacement of Rectifier Diode (D5801)

8.18. Replacement of Rectifier Diode (D5802)

8.19. Replacement of Regulator Diode (D5803)

8.20. Disassembly of CD Mechanism Unit (BRS1C)

8.21. Disassembly of Rear Panel

9 Replacement of Traverse Unit

9.1. Disassembly of Traverse Unit

9.2. Assembly of Traverse Unit

9.3. Disassembly of CD Servo P.C.B.

10 Service Position

10.1. Checking and Repairing of Main P.C.B.

10.2. Checking and Repairing of Panel P.C.B.

10.3. Checking and Repairing of LCD P.C.B.

10.4. Checking and Repairing of SMPS P.C.B.

10.5. Checking and Repairing of CD Servo P.C.B.

11 Voltage & Waveform Chart

11.1. CD Servo P.C.B.

11.2. Main P.C.B. (1/2)

11.3. Main P.C.B. (2/2)

11.4. LCD P.C.B.

11.5. Tuner P.C.B.

11.6. SMPS P.C.B.

11.7. Waveform Table

12 Illustration of ICs, Transistor and Diode

13 Simplified Block Diagram

13.1. Overall Simplified Block Diagram

13.2. Power Block Diagram

14 Block Diagram

14.1. Servo & System Control

14.2. Audio

14.3. Power Supply

15 Wiring Diagram

16 Schematic Diagram

16.1. Schematic Diagram Notes

16.2. CD Servo Circuit

16.3. Main Circuit -

16.4. Panel, LCD, Remote Sensor & USB Circuit

16.5. Tuner

16.6. SMPS Circuit

17 Printed Circuit Board

17.1. CD Servo P.C.B.

17.2. Main & Tuner P.C.B.

17.3. Panel, LCD, Remote Sensor & USB P.C.B.

17.4. SMPS P.C.B.

18 Terminal Function of ICs

18.1. IC2003 (MN101EF16KXW): IC MICRO-

PROCESSOR

18.2. IC900(C0HBA0000295): IC FL Driver-

19 Exploded View and Replacement Parts List

19.1. Exploded View and Mechanical replacement

Part List

19.2. Electrical Replacement Part List

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, carry out the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the two prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on

the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the

chassis, the reading should be between 1M7and 5.2M7.

When the exposed metal does not have a return path to the chassis, the reading must be

1.1.2. Leakage Current Hot Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

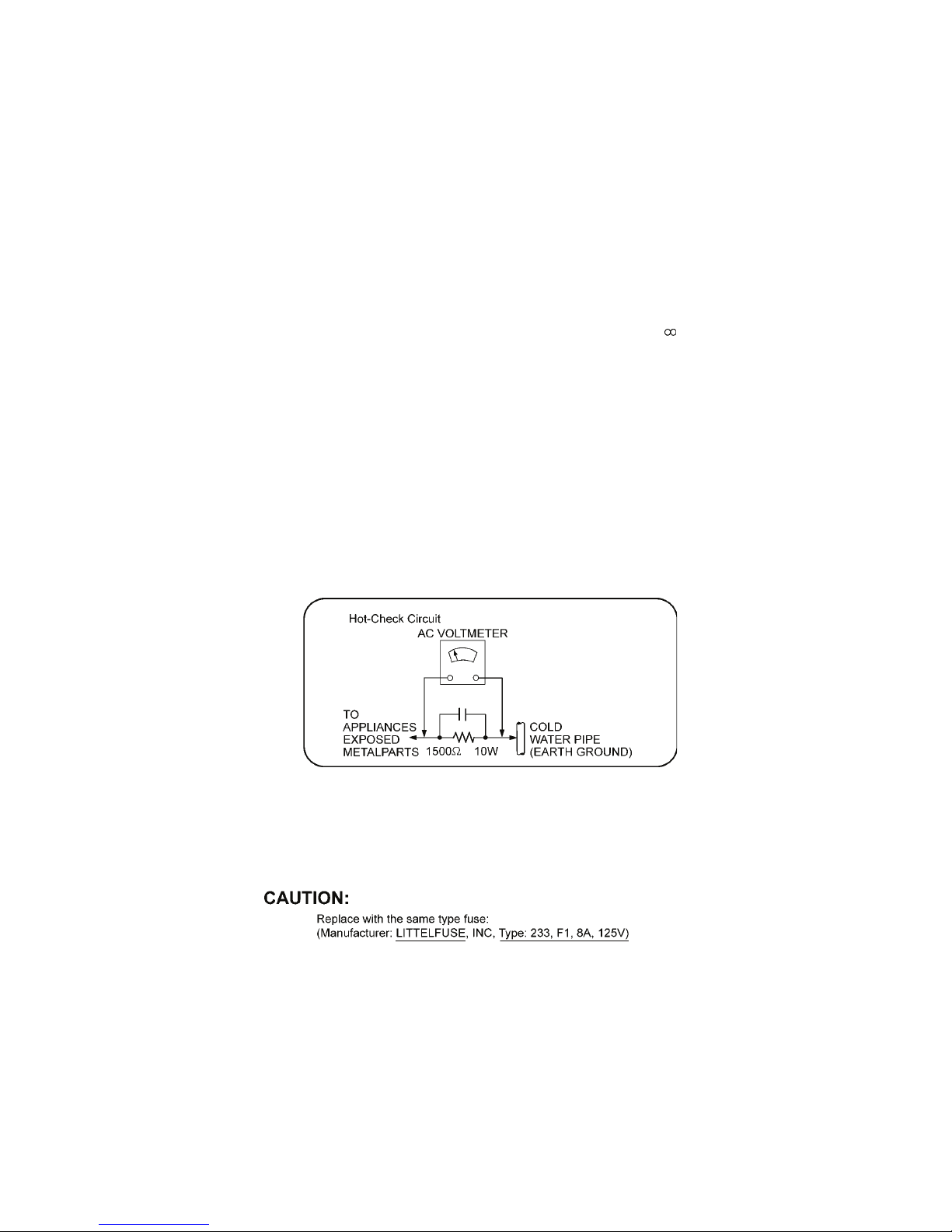

2. Connect a 1.5k7, 10 watts resistor, in parallel with a 0.15MF capacitors, between each exposed metallic part on the set and a

good earth ground such as a water pipe, as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.

6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent)

may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the

limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is

returned to the customer.

Figure 1

1.3. Caution For Fuse Replacement

1.4. Before Repair and Adjustment

Disconnect AC power to discharge unit AC Capacitors as such (C5700,C5701, C5703, C5704, C5705, C5708) through a 10 , 10

W resistor to ground.

Caution:

DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices.

After repairs are completed, restore power gradually using a variac, to avoid overcurrent.

Current consumption at AC 110~127 V, 60 Hz in Power ON, FM Tuner, No Signal, volume minimal mode should be ~ 400 mA.

Current consumption at AC 220~240 V, 50 Hz in Power ON, FM Tuner, No Signal, volume minimal mode should be ~ 300 mA.

1.5. Protection Circuitry

The protection circuitry may have operated if either of the following conditions are noticed:

• No sound is heard when the power is turned on.

• Sound stops during a performance.

The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are

“shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.

If this occurs, follow the procedure outlines below:

1. Turn off the power.

2. Determine the cause of the problem and correct it.

3. Turn on the power once again after one minute.

Note:

When the protection circuitry functions, the unit will not operate unless the power is first turned off and then on again.

1.6. Safety Parts Information

Safety Parts List:

There are special components used in this equipment which are important for safety.

These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these

critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the

original design without permission of manufacturer.

Modelo: SC-AKX12LM-

Safety

CAPACITOR DE AC F0CAF104A105

CAPACITOR DE AC F1BAF471A013

RXTM0002

Nombre del componente

SJA168-1A

ETS19AB2E6AG

K5D802APA008

CABLE TOMACORRIENTE.

CONECTOR TOMACORRIENTE

REAR PANEL

Numero de Parte

TRANSFORMADOR DE PODER

TRANSFORMADOR DE

RESPALDO

OPTOACOPLADOR

BRS1C CD UNIT

BOBINA PRIMARIO

FUSIBLE PRIMARIO

ZNR

CAPACITOR DE AC

ERZVA5Z471

PCB SMPS

F0CAF224A105

B3PBA0000503

RJBX0727A-1

GAB. MET. SIN DOBLAR

G0B612H00002

K2AA2B000017

ETS39AG4NGAD

RD-DDL081-PX

CAPACITOR DE AC F1BAF1020020

INSTRUCTIVO RQTM0182

RKMX1011Z-KL

2 Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive

(ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec-

trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage

caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi-

num foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara-

ble conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

Caution:

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the

brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) suf-

ficient to damage an ES device).

฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀M฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀

2.3. Service caution based on Legal restrictions

2.3.1. General description about Lead Free Solder (PbF)

The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this

equipment in considering the globally environmental conservation.

The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin

(Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30 degrees C (86!F) more than that

of the normal solder.

Definition of PCB Lead Free Solder being used

Service caution for repair work using Lead Free Solder (PbF)

• The lead free solder has to be used when repairing the equipment for which the lead free solder is used.

(Definition: The letter of “PbF” is printed on the PCB using the lead free solder.)

• To put lead free solder, it should be well molten and mixed with the original lead free solder.

• Remove the remaining lead free solder on the PCB cleanly for soldering of the new IC.

• Since the melting point of the lead free solder is higher than that of the normal lead solder, it takes the longer time to melt the

lead free solder.

• Use the soldering iron (more than 70W) equipped with the temperature control after setting the temperature at 350±30 degrees

C (662±86!F).

Recommended Lead Free Solder (Service Parts Route.)

• The following 3 types of lead free solder are available through the service parts route.

RFKZ03D01K-----------(0.3mm 100g Reel)

RFKZ06D01K-----------(0.6mm 100g Reel)

RFKZ10D01K-----------(1.0mm 100g Reel)

Note

* Ingredient: tin (Sn), 96.5%, silver (Ag) 3.0%, Copper (Cu) 0.5%, Cobalt (Co) / Germanium (Ge) 0.1 to 0.3%

The letter of “PbF” is printed either foil side or components side on the PCB using the lead free solder.

(See right figure)

2.4. Handling Precautions for Traverse Unit

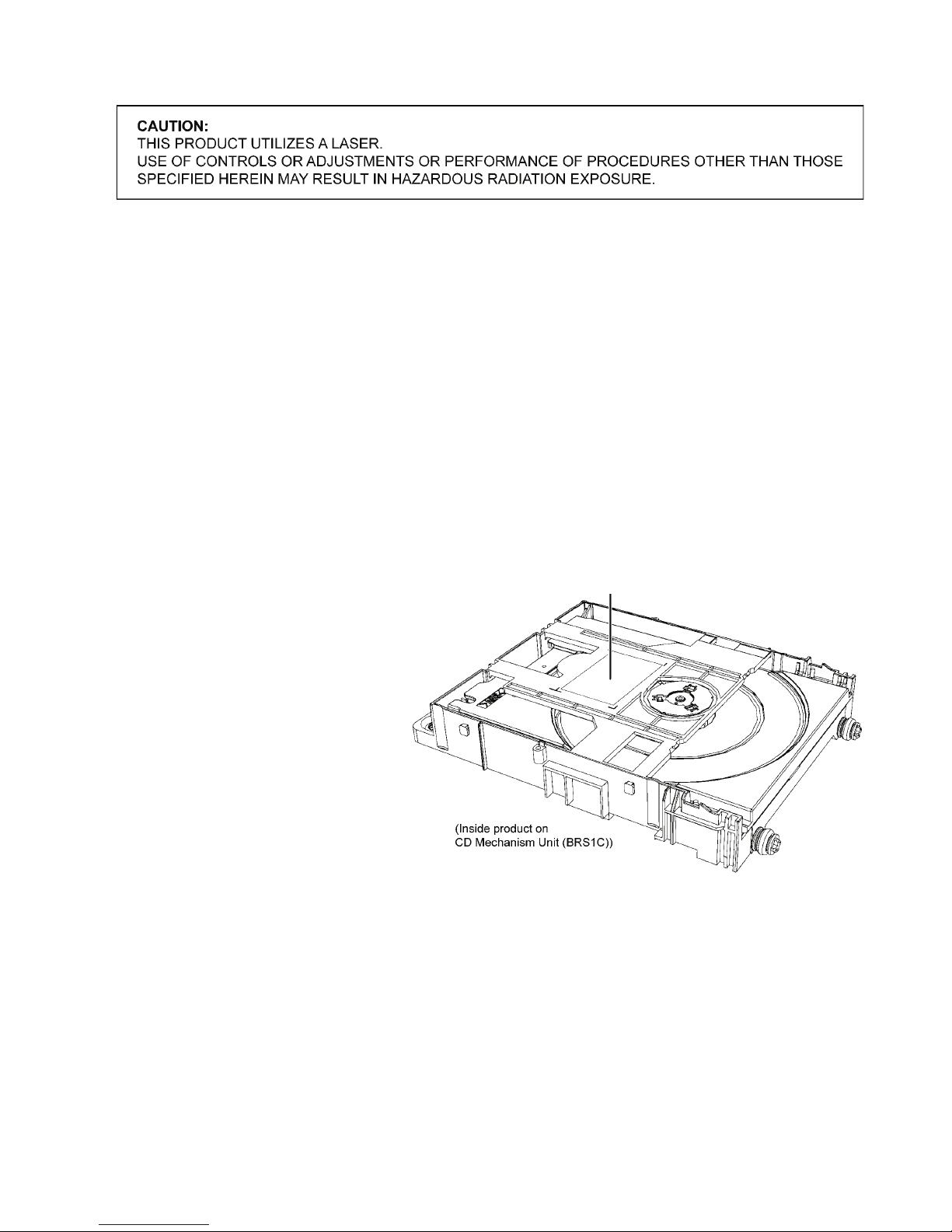

The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be

taken avoid caution to electrostatic breakdown when servicing and handling the laser diode in the traverse unit.

2.4.1. Cautions to Be Taken in Handling the Optical Pickup Unit

The laser diode in the optical pickup unit may be damaged due to electrostatic discharge generating from clothes or human body.

Special care must be taken avoid caution to electrostatic discharge damage when servicing the laser diode.

1. Do not give a considerable shock to the optical pickup unit as it has an extremely high-precise structure.

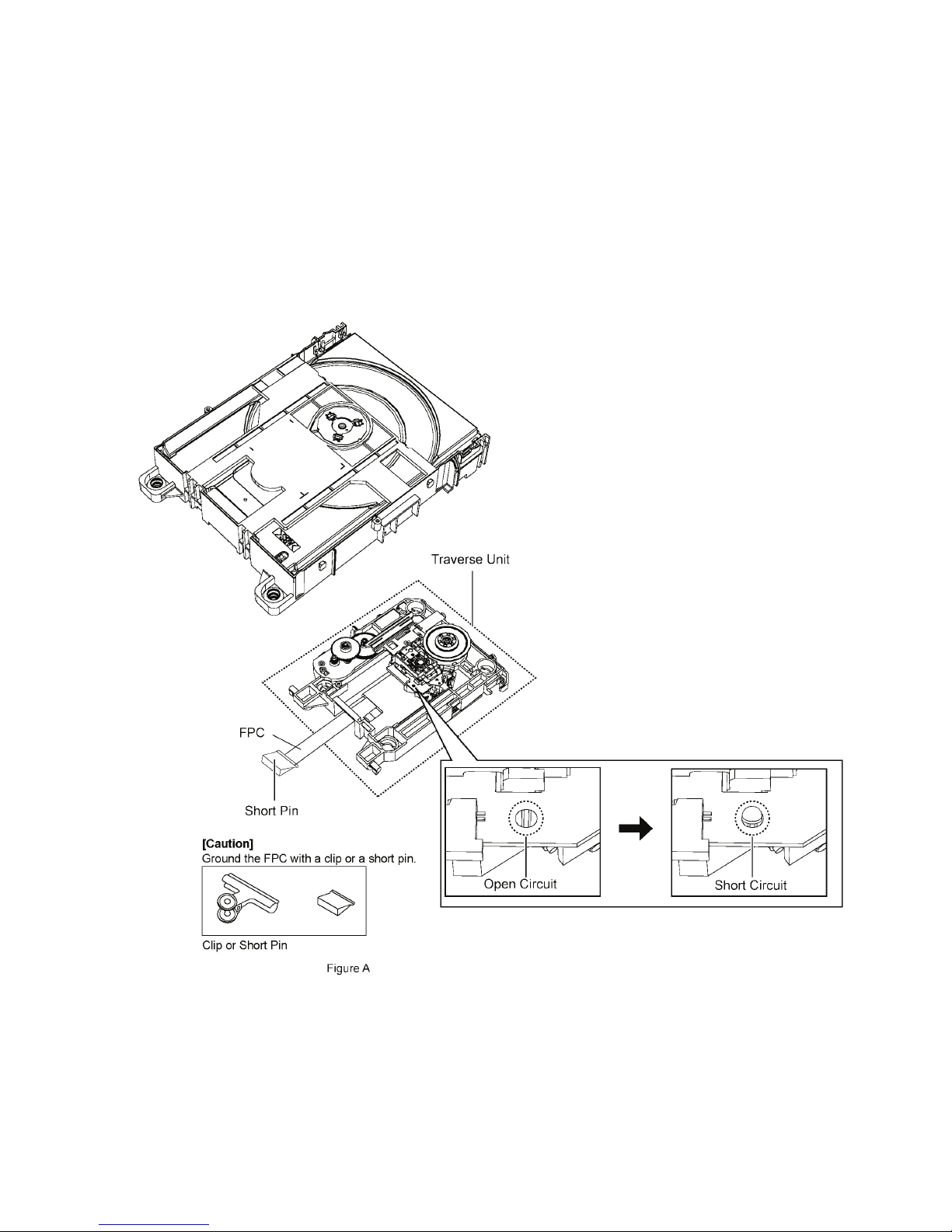

2. To prevent the laser diode from the electrostatic discharge damage, the flexible cable of the optical pickup unit removed

should be short-circuited with a short pin or a clip.

3. The flexible cable may be cut off if an excessive force is applied to it. Use caution when handling the flexible cable.

4. The antistatic FPC is connected to the new optical pickup unit. After replacing the optical pickup unit and connecting the flexi-

ble cable, cut off the antistatic FPC.

2.4.2. Grounding for electrostatic breakdown prevention

Some devices such as the DVD player use the optical pickup (laser diode) and the optical pickup will be damaged by static electric-

ity in the working environment. Proceed servicing works under the working environment where grounding works is completed.

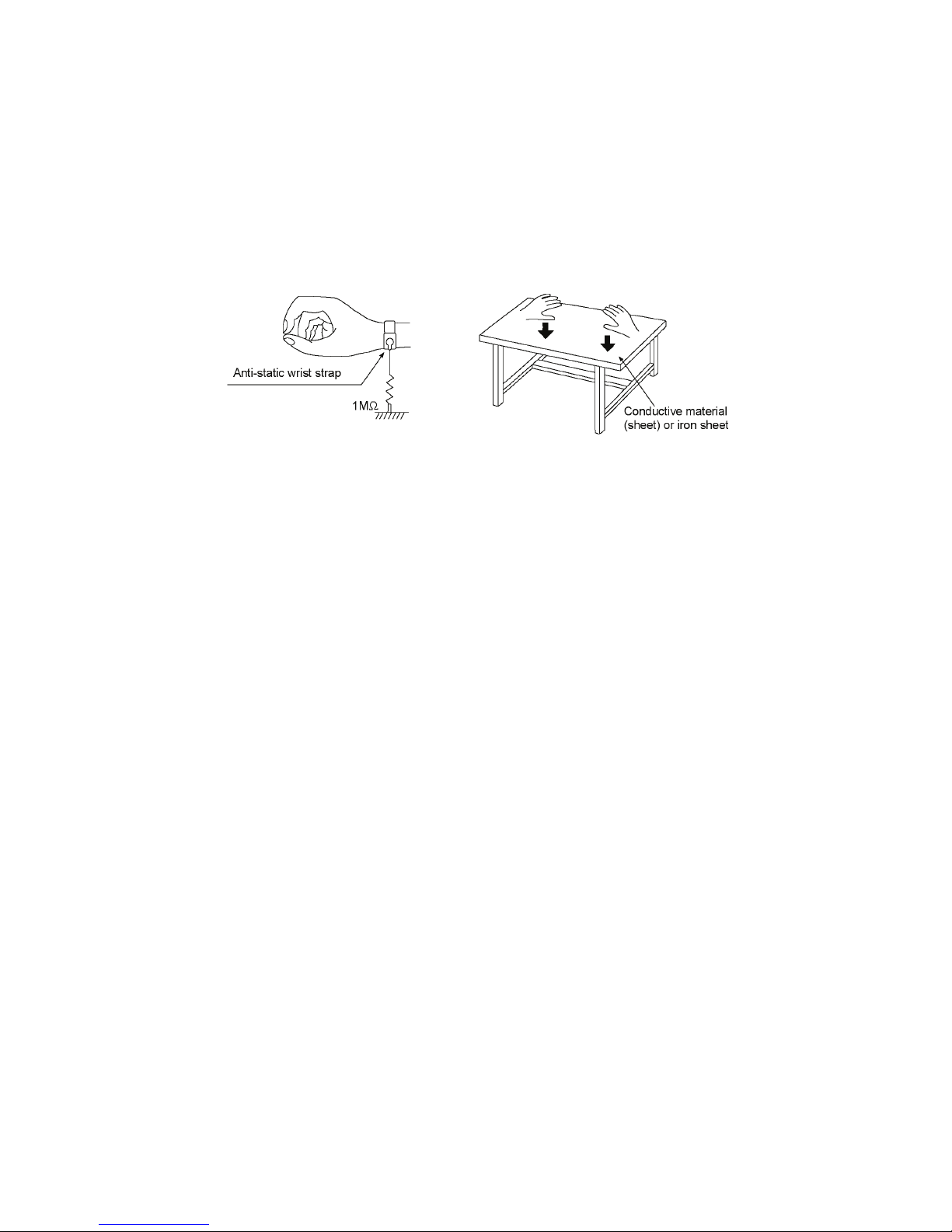

2.4.2.1. Worktable grounding

1. Put a conductive material (sheet) or iron sheet on the area where the optical pickup is placed, and ground the sheet.

2.4.2.2. Human body grounding

1. Use the anti-static wrist strap to discharge the static electricity form your body.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Système stéréo

Panasonic

Panasonic SC-PM45 Manuel utilisateur

Panasonic

Panasonic SA-AK87 Manuel utilisateur

Panasonic

Panasonic SC-AKX520 Manuel utilisateur

Panasonic

Panasonic SC-TM31 Manuel utilisateur

Panasonic

Panasonic SA-HD52 Manuel utilisateur

Panasonic

Panasonic SCPM22 - CD STEREO SYSTEM Manuel utilisateur

Panasonic

Panasonic RX-C37 Manuel utilisateur

Panasonic

Panasonic SCPM53 - HES MICRO SYSTEM Manuel utilisateur

Panasonic

Panasonic SC-PM12 Manuel utilisateur

Panasonic

Panasonic SC-EN38 - Micro-Stereo System With iPod... Manuel utilisateur

Panasonic

Panasonic SC-EN38 - Micro-Stereo System With iPod... Manuel utilisateur

Panasonic

Panasonic SA-VKX65GA Manuel utilisateur

Panasonic

Panasonic SC-PMX70 Manuel utilisateur

Panasonic

Panasonic SA-AK631PL Manuel utilisateur

Panasonic

Panasonic SA-PT850EE Manuel utilisateur

Panasonic

Panasonic SC-HC302 Manuel utilisateur

Panasonic

Panasonic SA-AK180PN Manuel utilisateur

Panasonic

Panasonic SC-MAX7000E Manuel utilisateur

Panasonic

Panasonic SC-CH72 Mode d’emploi

Panasonic

Panasonic SA-AK630EE Manuel utilisateur

Panasonic

Panasonic SCPM11 - CD STEREO SYSTEM Manuel utilisateur

Panasonic

Panasonic SC-HC49 Manuel utilisateur

Panasonic

Panasonic SC-AK48 Manuel utilisateur

Panasonic

Panasonic SA-AK230PL Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Sony

Sony SS-CEP50 Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur
