Panasonic SA-PM3E Manuel utilisateur

ORDER NO. MD0601004C2

CD Stereo System

SA-PM3E / SA-PM3EB / SA-PM3EG

Colour

(S)... Silver Type

SPECIFICATIONS

Specification

RMS OUTPUT POWER both channel driven simultaneously

10% total harmonic distortion 5.21 W per channel (6 )

Output impedance

HEADPHONE 16 to 32

Phone jack

Terminal Stereo, 3.5 mm

FM Tuner Section

Frequency range 87.50 to 108.00 MHz / (50 kHz

step)

Sensitivity 1.4 V (IHF)

S/N 26 dB 1.0 V

Antenna terminals 75 (unbalanced)

Preset station FM 15 stations

AM 15 stations

AM Tuner Section

Frequency range 522 to 1629 kHz / (9 kHz steps)

520 to 1630 kHz / (10 kHz steps)

Sensitivity

S/N 20 dB (at 999 kHz) 902 V/m

Cassette Deck Section

Track system 4-track, 2-channel

Heads

Record/playback Solid permalloy head

Erasure Double gap ferrite head

Motor DC servo motor

Recording system AC bias 100 kHz

Erase system AC erase 100 kHz

Tape speed 4.8 cm/s

Overall frequency response (+3 dB, -6 dB) at DECK OUT

Normal 35 Hz to 14 kHz

S/N RATIO 47 dB (A weighted)

Wow and flutter 0.09% (WRMS)

Fast-forward and rewind time Approx. 120 seconds with C-60

cassette tape

CD Section

Disc played [8 cm or 12 cm]

(1) CD-Audio (CD-DA)

(2) CD-R/RW (CD-DA, MP3 formatted disc)

(3) MP3

Sampling frequency

CD 44.1 kHz

MP3 32 kHz, 44.1 kHz, 48 kHz

Bit rate

MP3 32 kbps to 384 kbps

Decoding 16/20/24 bit linear

Pickup

Wavelength 785 nm

Beam source Semiconductor laser

Laser power CLASS 1

Audio output (Disc)

Number of channels 2 channel

Frequency response 20 Hz to 20 kHz (+1dB, -2dB)

Wow and flutter Below measurable limit

Digital filter 8 fs

D/A converter MASH (1 bit DAC)

General

Power supply AC 230 V, 50 Hz (E/EG)

AC 230 to 240 V, 50 Hz (EB)

Power consumption 30 W

1 kHz, 1% THD 36 W

Dimensions (W x H x D) 165 x 227 x 285 mm

Mass 2.8 kg

Operating temperature range +5 to +35°C

Operation humidity range 5 to 90% RH (no condensation)

Power consumption in standby

mode

0.8 W

Notes :

1. Specifications are subject to change without notices. Mass and

dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum

analyzer.

System : SC-PM3E-S Music center: SA-PM3E-S

Speaker: SB-PM3EG-M

System : SC-PM3EB-S Music center: SA-PM3EB-S

Speaker: SB-PM3EG-M

System : SC-PM3EG-S Music center: SA-PM3EG-S

Speaker: SB-PM3EG-M

Unauthorized copying and distribution is a violation of law.

1. Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is

found, replace all parts which have been overheated or damaged by the

short circuit.

2. After servicing, ensure that all the protective devices such as

insulation barriers, insulation papers shields are properly installed.

3. After servicing, check for leakage current checks to prevent from being

exposed to shock hazards.

1.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the two prongs on

the plug.

2. Using an ohmmeter measure the resistance value, between the

jumpered AC plug and each exposed metallic cabinet part on the

equipment such as screwheads, connectors, control shafts, etc. When

the exposed metallic part has a return path to the chassis, the reading

should be between 1M and 5.2 . / When the exposed metal does not

have a return path to the chassis, the reading must be .

Fig. 1

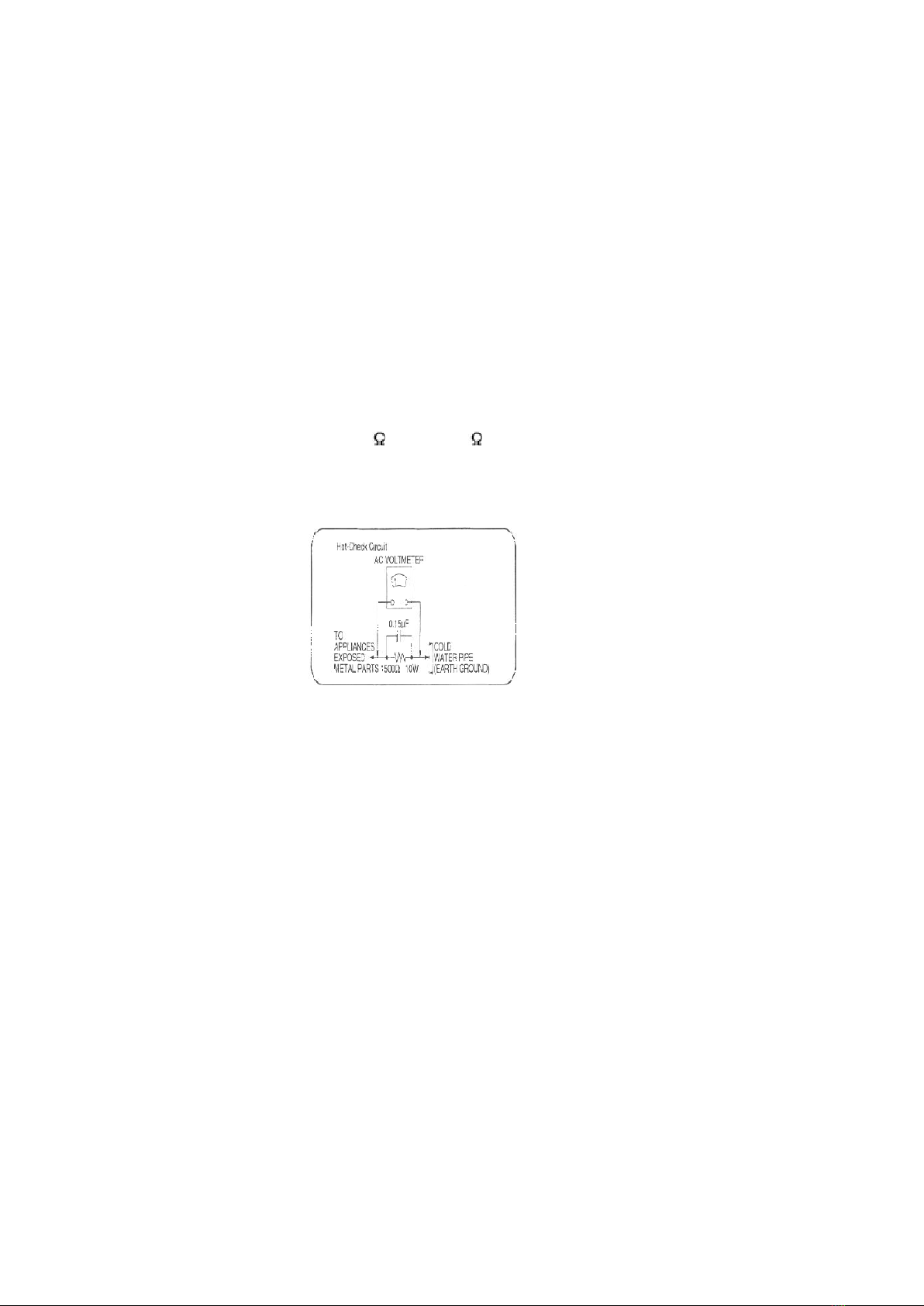

1.1.2. Leakage Current Hot Check (See Figure 1)

1. Plug the AC cord directly into the AC outlet. Do not use an isolation

transformer for this check.

2. Connect a 1.5k , 10 watts resistor, in parallel with a 0.15 F

capacitors, between each exposed metallic part on the set and a good

earth ground such as a water pipe, as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to

measure the potential across the resistor.

4. Check each exposed metallic part, and measure the voltage at each

point.

5. Reverse the AC plug in the AC outlet and repeat each of the above

measurements.

6. The potential at any point should not exceed 0.75 volts RMS. A leakage

current tester (Simpson Model 229 or equivalent) may be used to make

the hot checks, leakage current must not exceed 1/2 milliamp. should

the measurement is outside of the limits specified, there is a possibility

of a shock hazard, and the equipment should be repaired and re-

checked before it is returned to the customer.

1.2. Caution for AC Cord

1.3. Before Repair and Adjustment

Disconnect AC power, discharge Power Supply Capacitors C272, C472, C501, C909, C910, C911 & C923

through a 10 , 1W resistor to ground.

DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid

state devices.

After repairs are completed, restore power gradually using a variac, to avoid overcurrent.

- Current consumption at AC 230 V, 50 Hz in NO SIGNAL mode should be

~250 mA. (E/EG)

- Current consumption at AC 230-240 V, 50 Hz in NO SIGNAL mode

should be ~250 mA. (EB)

1.4. Protection Circuitry

The protection circuitry may have operated if either of the following conditions are noticed:

- No sound is heard when the power is turned on.

- Sound stops during a performance.

The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative

speaker connection wires are "shorted", or if speaker systems with an impedance less than the

indicated rated impedance of the amplifier are used.

If this occurs, follow the procedure outlines below:

1. Turn off the power.

2. Determine the cause of the problem and correct it.

3. Turn on the power once again after one minute.

Note:

When the protection circuitry functions, the unit will not operate unless the power is first turned off and

then on again.

2. Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by electricity. Such components

commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are

integrated circuits and some field-effect transistors and semiconductor “chip” components. The

following techniques should be used to help reduce the incidence of component damage caused by

electro static discharge (ESD).

1. Immediately before handling any semiconductor component or

semiconductor-equiped assembly, drain off any ESD on your body by

touching a known earth ground. Alternatively, obtain and wear a

commercially available discharging ESD wrist strap, which should be

removed for potential shock reasons prior to applying power to the unit

under test.

2. After removing an electrical assembly equiped with ES devices, place

the assembly on a conductive surface such as aluminium foil, to

prevent electrostatic charge build up or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES

devices.

4. Use only an anti-static solder remover device. Some solder removal

devices not classified as “anti-static (ESD protected)” can generate

electrical charge to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical

charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package

until immediately before you are ready to install it. (Most replacement

ES devices are packaged with leads electrically shorted together by

conductive foam, aluminium foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a

replacement ES device, touch the protective material to the chassis or

circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all

other safety precautions.

8. Minimize body motions when handling unpackaged replacement ES

devices. (Otherwise harmless motion such as the brushing together of

your clothes fabric or the lifting of your foot from a carpeted floor can

generate static electricity (ESD) sufficient to damage an ES device).

3. Precaution of Laser Diode

Caution :

This product utilizes a laser diode with the unit turned "ON", invisible

laser radiation is emitted from the pick up lens. / Wavelength : 780 nm /

Maximum output radiation power from pick up : 100 W/VDE / Laser

radiation from pick up unit is safety level, but be sure the followings:

1. Do not disassemble the optical pick up unit, since radiation from

exposed laser diode is dangerous.

2. Do not adjust the variable resistor on the pick up unit. It was already

adjusted.

3. Do not look at the focus lens using optical instruments.

4. Recommend not to look at pick up lens for a long time.

ACHTUNG :

Dieses Produkt enthält eine Laserdiode. Im eingeschalteten Zustand

wird unsichtbare Laserstrahlung von der Lasereinheit abgestrahlt. /

Wellenlänge : 780nm / Maximale Strahlungsleistung der Lasereinheit :

100 W/VDE / Die Strahlung an der Lasereinheit ist ungefährlich, wenn

folgende Punkte beachtet werden:

1. Die Lasereinheit nicht zerlegen, da die Strahlung an der freigelegten

Laserdiode gefährlich ist.

2. Den werkseitig justierten Einstellregler der Lasereinhit nicht verstellen.

3. Nicht mit optischen Instrumenten in die Fokussierlinse blicken.

4. Nicht über längere Zeit in die Fokussierlinse blicken.

ADVARSEL :

I dette a apparat anvendes laser.

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Use of Caution Labels

4. Handling Precautions For Traverse Deck

The laser diode in the traverse deck (optical pickup) may break down due to potential difference caused

by static electricity of clothes or human body.

So, be careful of electrostatic breakdown during repair of the traverse deck (optical pickup).

Handling of CD traverse deck (optical pickup)

1. Do not subject the traverse deck (optical pickup) to static electricity as

it is extremely sensitive to electrical shock.

2. The short land between the No.4 (LD) and No.5 (GND) pins on the

flexible board (FFC) is shorted with a solder build-up to prevent

damage to the laser diode.

3. Take care not to apply excessive stress to the flexible board (FFC

board) (Fig 4.1).

4. Do not turn the variable resistor (laser power adjustment). It has

already been adjusted.

Fig 4.1

Grounding for electrostatic breakdown prevention

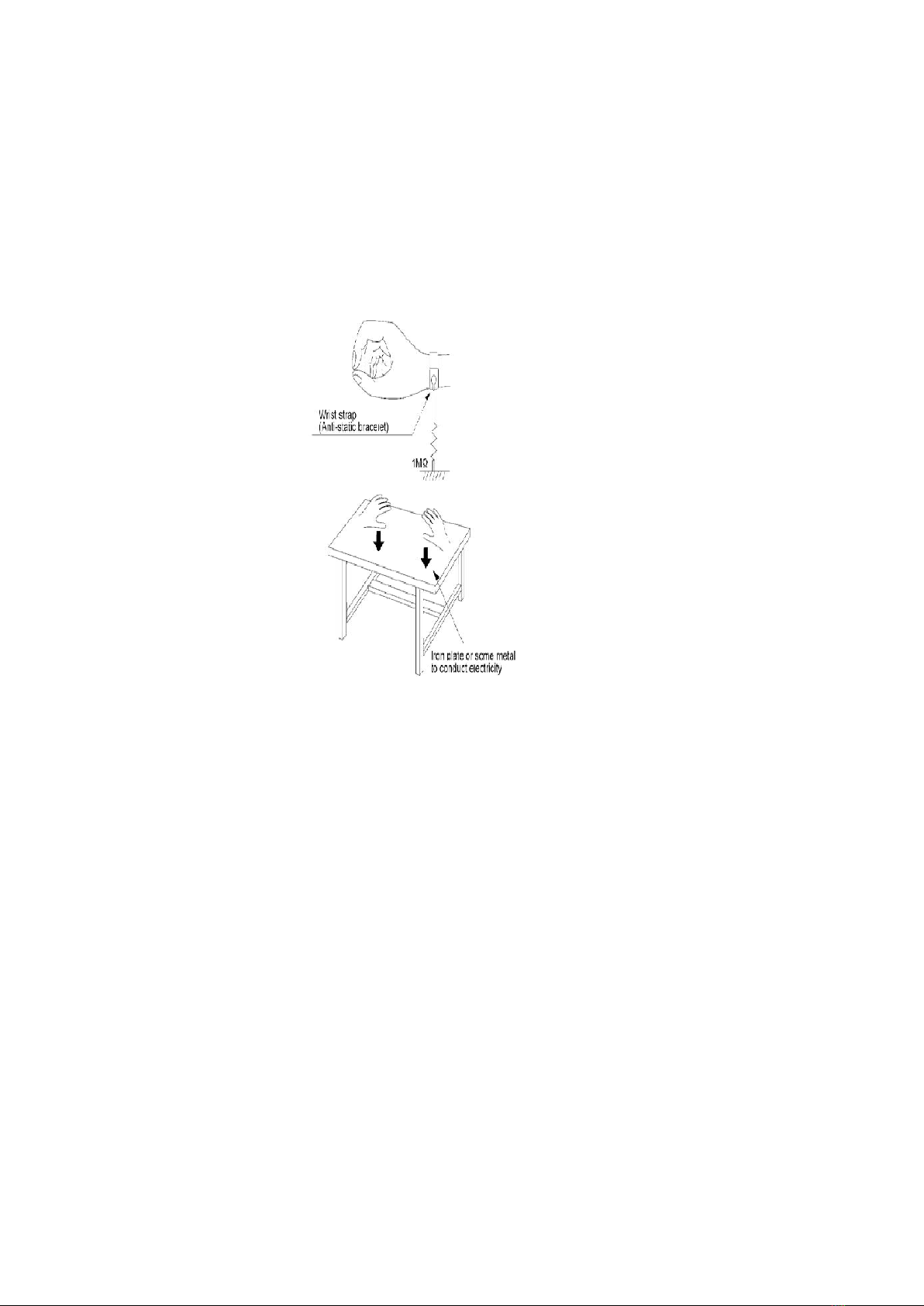

1. Human body grounding (Fig 4.2)

Use the anti-static wrist strap to discharge the static electricity from

your body.

2. Work table grounding (Fig 4.2)

Put a conductive material (sheet) or steel sheet on the area where the

traverse deck (optical pickup) is placed, and ground the sheet.

Caution :

The static electricity of your clothes will not be grounded through the

wrist strap. So, take care not to let your clothes touch the traverse deck

(optical pickup).

Fig 4.2

Caution when Replacing the Optical Pickup :

The traverse has a short point shorted with solder to protect the laser

diode against electrostatics breakdown. Be sure to remove the solder

from the short point before making connections.

5. Handling the Lead-free Solder

5.1. About lead free solder (PbF)

Distinction of PbF P.C.B.:

P.C.B.s (manufactured) using lead free solder will have a PbF stamp on the P.C.B.

Caution:

- Pb free solder has a higher melting point than standard solder; Typically

the melting point is 50 - 70°F (30 - 40°C) higher. Please use a high

temperature soldering iron. In case of soldering iron with temperature

control, please set it to 700 ± 20°F (370 ± 10°C).

- Pb free solder will tend to splash when heated too high (about 1100°F/

600°C).

- When soldering or unsoldering, please completely remove all of the

solder on the pins or solder area, and be sure to heat the soldering

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Système stéréo

Panasonic

Panasonic SC-PM18 - Micro System Manuel utilisateur

Panasonic

Panasonic SC-AK270 Manuel utilisateur

Panasonic

Panasonic SC-EN29 Manuel utilisateur

Panasonic

Panasonic SCHC40 - COMPACT STEREO SYSTEM Manuel utilisateur

Panasonic

Panasonic SCHC20 - COMPACT STEREO SYSTEM Manuel utilisateur

Panasonic

Panasonic SAAK66 - MINI HES W/CD PLAYER Manuel utilisateur

Panasonic

Panasonic SC-PMX802 Manuel utilisateur

Panasonic

Panasonic SC-UA4 Manuel utilisateur

Panasonic

Panasonic SA-AK52 Manuel utilisateur

Panasonic

Panasonic SA-AK78 Manuel utilisateur

Panasonic

Panasonic SC-HC200 Manuel utilisateur

Panasonic

Panasonic SAAK22 - MINI HES W/CD-PLAYER Manuel utilisateur

Panasonic

Panasonic SC-PM91D Manuel utilisateur

Panasonic

Panasonic SA-AKX92LM-K Manuel utilisateur

Panasonic

Panasonic SG-40 Manuel utilisateur

Panasonic

Panasonic SC-AK28 Manuel utilisateur

Panasonic

Panasonic SC-CH64M Manuel utilisateur

Panasonic

Panasonic SC-VK450 Manuel utilisateur

Panasonic

Panasonic RX-DT600 Manuel utilisateur

Panasonic

Panasonic SC-VK470 - 5 DISC CHANGER MINI COMPONENT SYSTEM. MULTI FORMAT... Manuel utilisateur

Panasonic

Panasonic SC-TM82AV Manuel utilisateur

Panasonic

Panasonic SC-HC05 Manuel utilisateur

Panasonic

Panasonic SA-PMX9 Manuel utilisateur

Panasonic

Panasonic SC-PM200 Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Sony

Sony SS-CEP50 Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur
