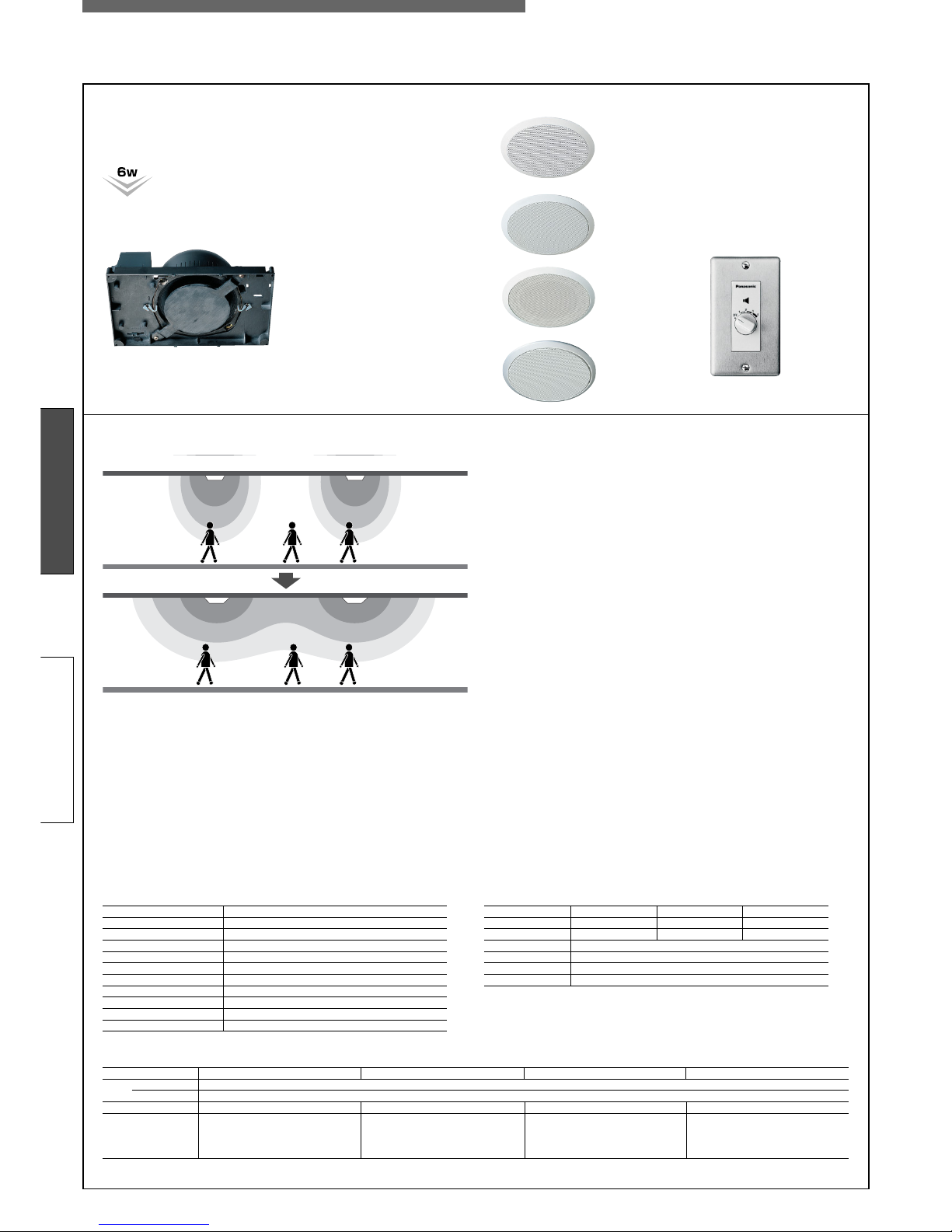

CEILING-MOUNTED SPEAKERS

PUBLIC ADDRESSRAMSA

•

6 W/30 W/60 W transformer type. Broad wattage range adapts

flexibly to wattage fluctuations while work is underway.

•5-level sound volume adjustment. Addition of –18 dB level

allows use in quieter environments.

•One-touch snap on insulator. For easier connecting and

insulation.

•Equipped with protective back cover to provide a safer

working environment.

•

Uses one-touch snap on terminals equipped with release buttons.

* Requires solid copper wire cabling ø0.8 mm - ø1.6 mm.

Flush-Mounted

Ceiling Mount Speaker

WS-TN13E

Speaker Volume Controllers

Speaker Panels

WS-TP10E

WS-TP12E

WS-TP13E

WS-TP14E

SPECIFICATIONS

Model No. WS-TP10E WS-TP12E WS-TP13E WS-TP14E

Dimensions ø180 x 10.5 mm

(Exposed height)

8.5 mm

Weight (approx.) 60 g 75 g 70 g 80 g

Finish Integrated PP Frame: ABS resin Frame: ABS resin Frame: Aluminum frame

Integrated white (Munsell 10Y9/1) Integrated white (Munsell 10Y9/1) Integrated white (Munsell 10Y9/1) Base color: Satin finish

Net: Punched aluminum Net: Expanded metal net Net: Punched aluminum

Integrated white (Munsell 10Y9/1) Integrated white (Munsell 10Y9/1) AV ivory (Munsell 7.9Y6.8/0.8)

Speaker Speaker

Tone level and quality

are even whether in

a position directly

under or away from

the speaker.

Speaker Speaker

Sound level is

too low to hear.

Sound is too

loud to hear.

Model No. WS-TN13E

Standard Inputs 6 W, 3 W, 1 W

Input Impedance 1.67 kΩ, 3.3 kΩ, 10 kΩ,

Sound Pressure Level

94 dB (1 m/ 1 W)

Frequency Response 120 Hz -15 kHz

Speaker Type 12 cm cone speaker

Operating Temperature Range –

˚C

Dimensions

134 mm (W) x 215.5 mm (H) x 88.5 mm (Internal Component Height)

Weight (approx.)

600 g

Required Opening ø

150 mm - 160 mm

Finish Black polystyrene

SPECIFICATIONS

Output level is defined in accordance with JISC5531 and differs from the security warning (Signal No. 2) level.

Model No. WZ-VC106E/F WZ-VC130E/F WZ-VC160E/F

Standard Inputs 0.5 W - 6 W 0.5 W - 30 W 0.5 W - 60 W

Input Impedance 20 kΩ- 1.67 kΩ20 kΩ- 330 Ω20 kΩ- 167 Ω

Volume Adjustment 5-level: OFF, 1 (–18 dB), 2 (–12 dB), 3 (–6 dB), 4 (0 dB) reduction

Dimensions 70 mm (W) x 120 mm (H) x 49 mm (D)

Weight (approx.) 210 g

Finish Milk White Plate: Aluminum brushed finish

SPECIFICATIONS

Speaker Volume Controllers

WZ-VC106E/F

(0.5 W ~ 6 W)

WZ-VC130E/F

(0.5 W ~ 30 W)

WZ-VC160E/F

(0.5 W ~ 60 W)

Pursuing uniformity of tone quality

A special diffuser radiates sound in both the downward and

horizontal directions. While optimizing the sound level directly

under the speaker, the diffuser delivers sufficient sound levels

in the higher frequencies to positions away from the speaker,

thus ensuring the delivery of clear sound.

Simple, easy installation

Wide-directional design is employed to cover a wide area with

Tone quality and level are almost flat.

WS-TN13E

Conventional ceiling-mounted speaker

a small number of speaker units, thus ensuring cost

reductions during installation work. Furthermore, quick

connection terminals are employed, ensuring one-touch

connection of cables without using any tools. The speaker

panel (option) is of a spring type, and all you have to do is to

hang it in the desired place.

Economical efficiency during remodeling

When remodeling your shop, you can change the interior

atmosphere just by replacing the speaker panels.

Ceiling-Mounted Speaker
