Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

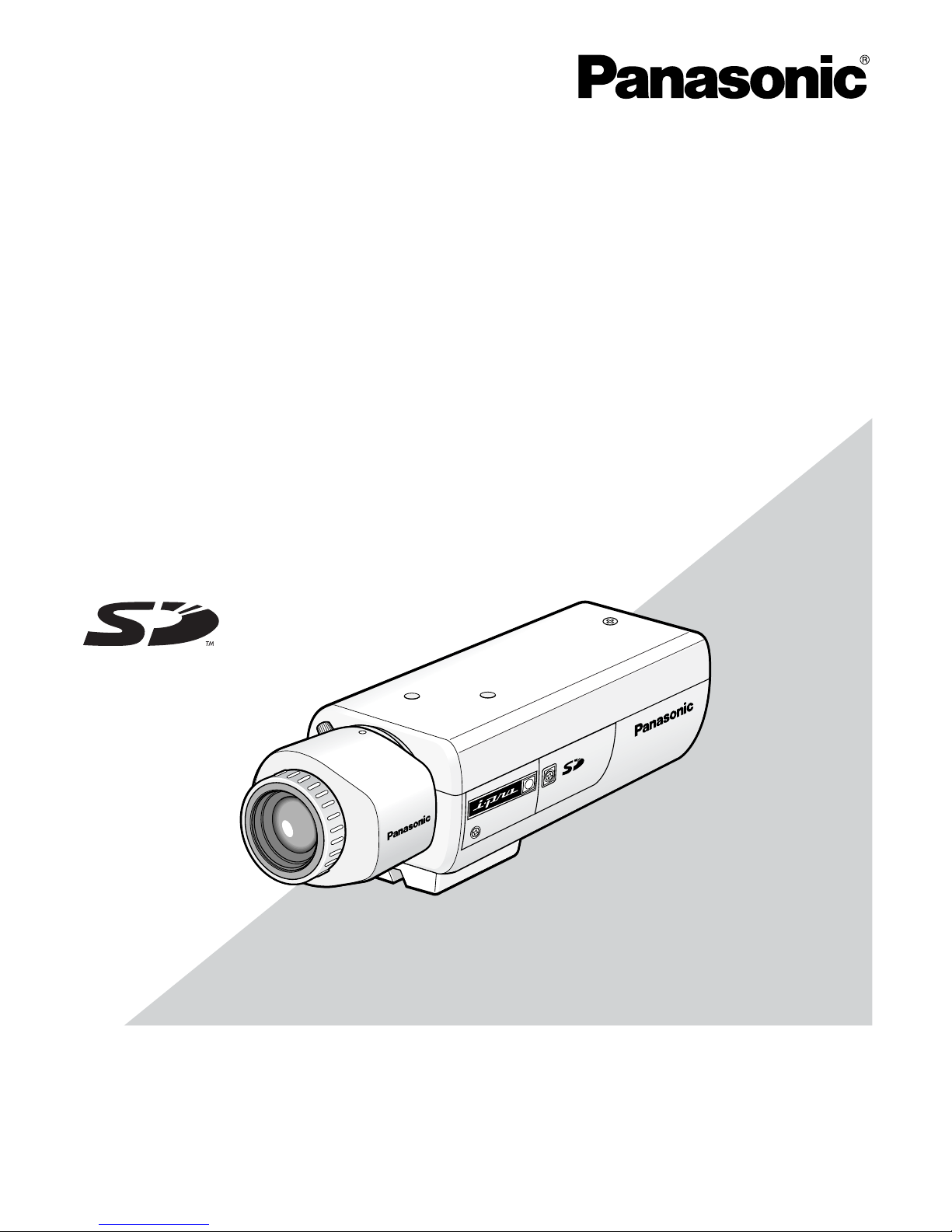

Network camera

Network Operating Instructions

Model No. WV-NP244

LOCK

WV-NP244

(Lens is option.)

CONTENTS

Preface ............................................................................................................................ 3

About these operating instructions .............................................................................. 3

Trademarks and registered trademarks ...................................................................... 3

Monitor Images on a PC .................................................................................................. 4

Monitor images from a single camera ......................................................................... 4

Monitor images from multiple cameras ....................................................................... 9

Action at an Alarm Occurrence ....................................................................................... 10

Transmit Images onto an FTP Server ............................................................................. 11

Transmit an alarm image at an alarm occurrence (Alarm image FTP transmission) .. 11

Transmit images at a designated interval or period (FTP periodic transmission) ....... 11

Save images on the SD memory card when failed to transmit images by the

FTP periodic transmission function ............................................................................ 12

About the Network Security of the Camera ..................................................................... 14

Equipped security functions ........................................................................................ 14

Display the Setup Menu and Configure the Settings of the Camera using a PC ............ 15

How to display the setup menu ................................................................................... 15

How to operate the setup menu .................................................................................. 16

Configure the basic settings of the camera [Basic setup] ........................................... 19

Configure the settings relating to images and audio [Camera setup] ......................... 22

Configure the multi-screen settings [Multi-screen setup] ............................................ 27

Configure the alarm settings [Alarm setup] ................................................................. 28

Configure the settings relating to the authentication [Authentication setup] ............... 35

Configure the settings of the servers [Server setup] ................................................... 37

Configuring the network settings [Network setup] ....................................................... 39

Maintenance of the camera [Maintenance] ................................................................. 45

About the Displayed System Log .................................................................................... 48

Troubleshooting ............................................................................................................... 50

Preface

About these operating instructions

There are 2 sets of operating instructions for the WV-NP244 as follows.

•Operating Instructions

•Network Operating Instructions

These network operating instructions contain descriptions of how to operate this product using a PC via a network

and of how to configure the settings. These network operating instructions also contain descriptions of how to dis-

play the SETUP menu on the video monitor connected to the VIDEO OUT connector of the camera and of how to

configure the settings on the SETUP menu using the operation buttons on the side of the camera.

Refer to the operating instructions for descriptions of how to install this product and of how to connect to a network.

Adobe®Reader is required to read PDF. When the Adobe®Reader is not installed on the PC, download the latest

Adobe®Reader from the Adobe web site and install it.

Trademarks and registered trademarks

•Adobe, Adobe logos, and Acrobat are registered trademarks of Adobe Systems Incorporated in the U. S. and/ or

other countries.

•SD logo is a trademark.

•Other names of companies and products contained in these operating instructions may be trademarks or regis-

tered trademarks of their respective owners.

Monitor Images on a PC

The following are descriptions of how to monitor images from the camera on a PC.

Monitor images from a single camera

Notes:

•When "ON" is selected for "User Authentication", the

authentication window will be displayed before dis-

playing live images for the user name and password

entries. The default user name and password are as

follows.

User Name: admin

Password: 12345

To enhance the security, change the password for

the user "admin". It is recommended to change this

password periodically.

•When "Unicast" is selected for "Transmission type"

(☞page 23), up to 8 users can access the camera

concurrently. Depending on the set values for "Total

bit rate" and "Max bit rate (per 1 client)", the maxi-

mum concurrent access number may be less than 8

users. When 8 users have been concurrently

accessing already, the access limit message will be

displayed for users who accessed subsequently.

•When "ON" is selected for "MPEG-4 transmission"

(☞page 23), MPEG-4 image will be displayed.

When "OFF" is select, JPEG image will be dis-

played. It is possible to display JPEG image even

when "ON" is selected for "MPEG-4 transmission".

In this case, the refresh interval will be limited.

When "ON" is selected for "MPEG-4 transmission"

JPEG (VGA): 5 fps

JPEG (QVGA): 10 fps

When "OFF" is selected for "MPEG-4 transmission"

JPEG (VGA or QVGA): 30 fps

The refresh interval may be longer depending on a

network environment, PC spec, photographic sub-

ject, access traffic, etc.

Important:

When displaying multiple MPEG-4 images on a PC,

images may not be displayed depending on the per-

formance of the PC.

Refer to the next page for further information about the

"Live" page.

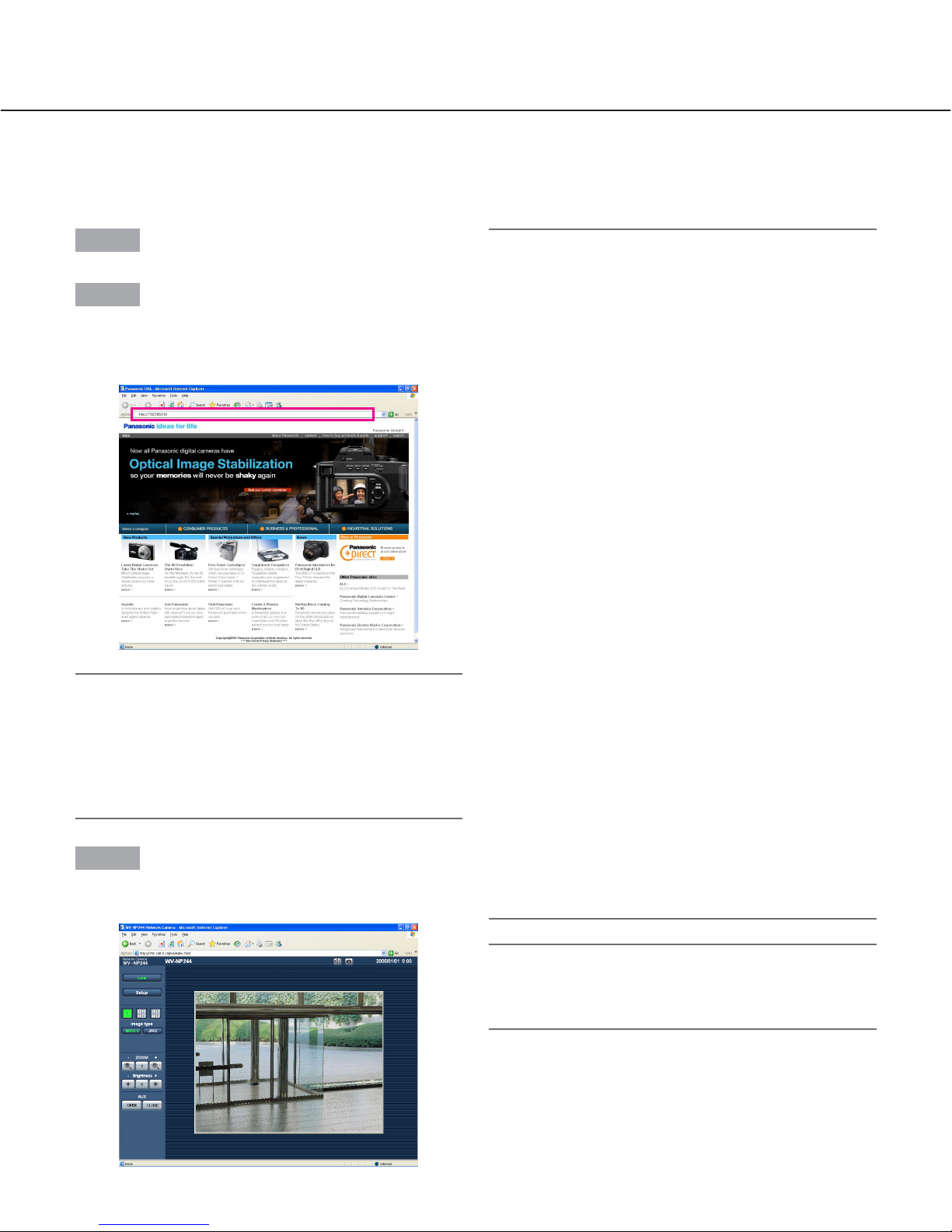

Step 1

Start up the web browser.

Step 2

Enter the IP address designated using the Panasonic IP

setup software in the address box of the browser.

(Example: http://192.168.0.10)

Important:

•When the HTTP port number is changed from "80",

enter "http://IP address of the camera + : (colon) +

port number" in the address box of the browser, for

example "http://192.168.0.11:8080".

•Configure the web browser to not use the proxy

server.

Step 3

Press the [Enter] key on the keyboard.

→Click this button to display the "Live" page.

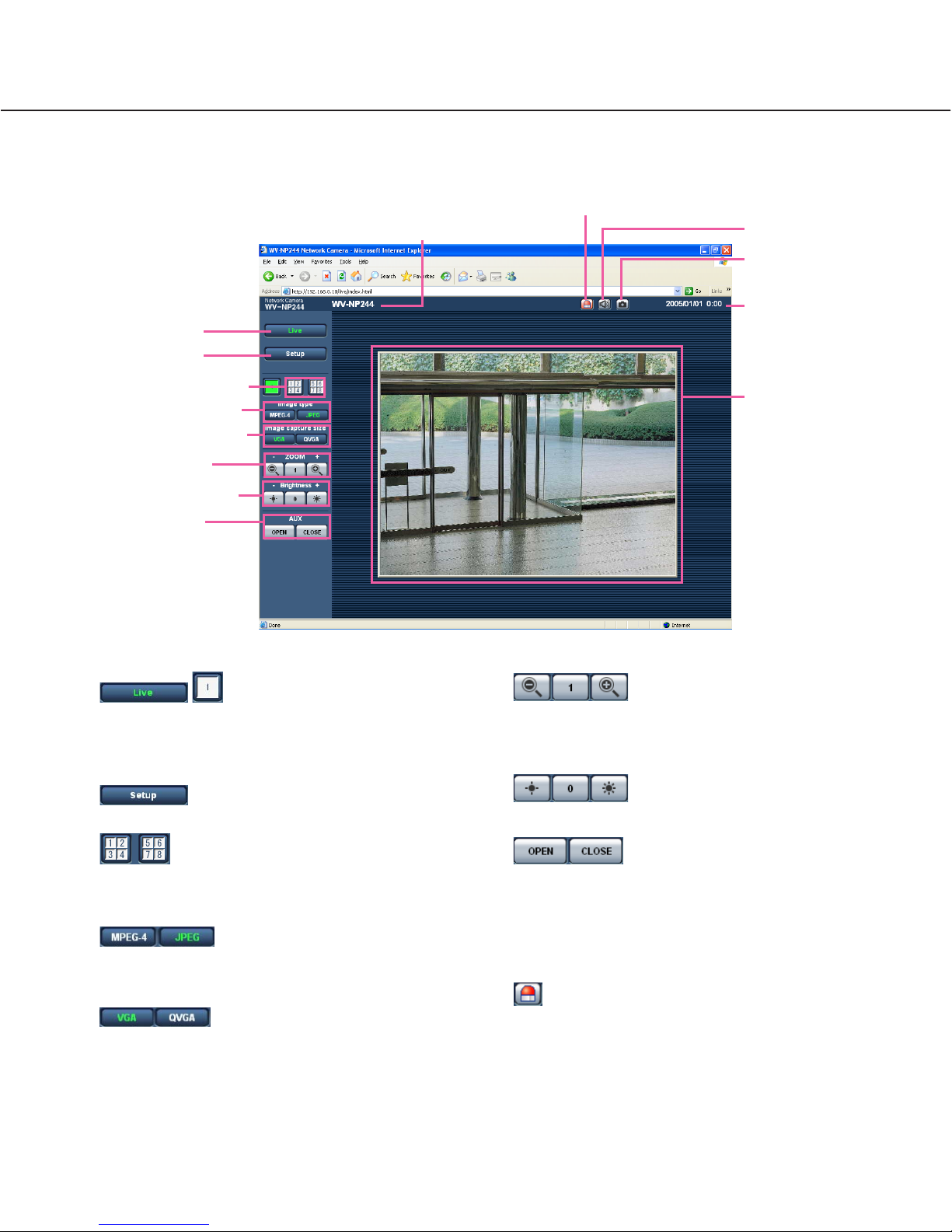

About the "Live" page

q[Live] button

Click this button to display the "Live" page. Refer to

page 7 for descriptions of how to operate the "Live"

page.

w[Setup] button (*1)

Click this button to display the setup menu.

eMulti-screen buttons

Click the desired multi-screen (1-4 or 5-8) button to

display images on a multi-screen.

rImage type buttons

Click the desired button to change the image type to

be displayed. The selected button will turn green.

tImage capture size buttons

The selected button will turn green and images in

the main area will be displayed in the selected size.

Only the image capture size for which "Use" is

selected for "Image capture size" on the

[JPEG/MPEG-4] tab is available. (☞page 22)

yZOOM buttons (*2)

Click the desire button to zoom in/out the displayed

image. To return the zoomed image to the original

size, click the [1] button.

uBrightness buttons (*2)

Adjust the brightness of images.

iAUX buttons (*2)

Click the desired button to open/close the AUX con-

nector.

oCamera name

The set camera name will be displayed.

!0 Alarm occurrence indication button (*2)

This button will be displayed and will blink when an

alarm occurred. When the button is clicked, the but-

ton will disappear and the alarm output connector

will be reset. (☞page 30)

q[Live] button

rImage type buttons

tImage capture size buttons

oCamera name

yZoom buttons

uBrightness buttons

iAUX buttons

!3 Time and date

!0 Alarm occurrence indication button

!1 Audio button

!2 One shot button

!4 Main area

wSetup button

eMulti-screen buttons

!1 Audio button

Click this button to turn on/off audio.

!2 One shot button

Click this button to take a picture (a still picture). The

picture will be displayed on a newly opened window.

!3 Time and date

Current time will be displayed in the set date/time

display format. (☞page 19)

!4 Main area

Images from the camera will be displayed in this

area.

*1: Operable by only users whose access level is "1.

Administrator"

*2: Operable by only users whose access level is "1.

Administrator" or "2. Camera control" when "ON" is

selected for "User authentication" (☞page 35).

Refer to page 35 for further information about the

access level.

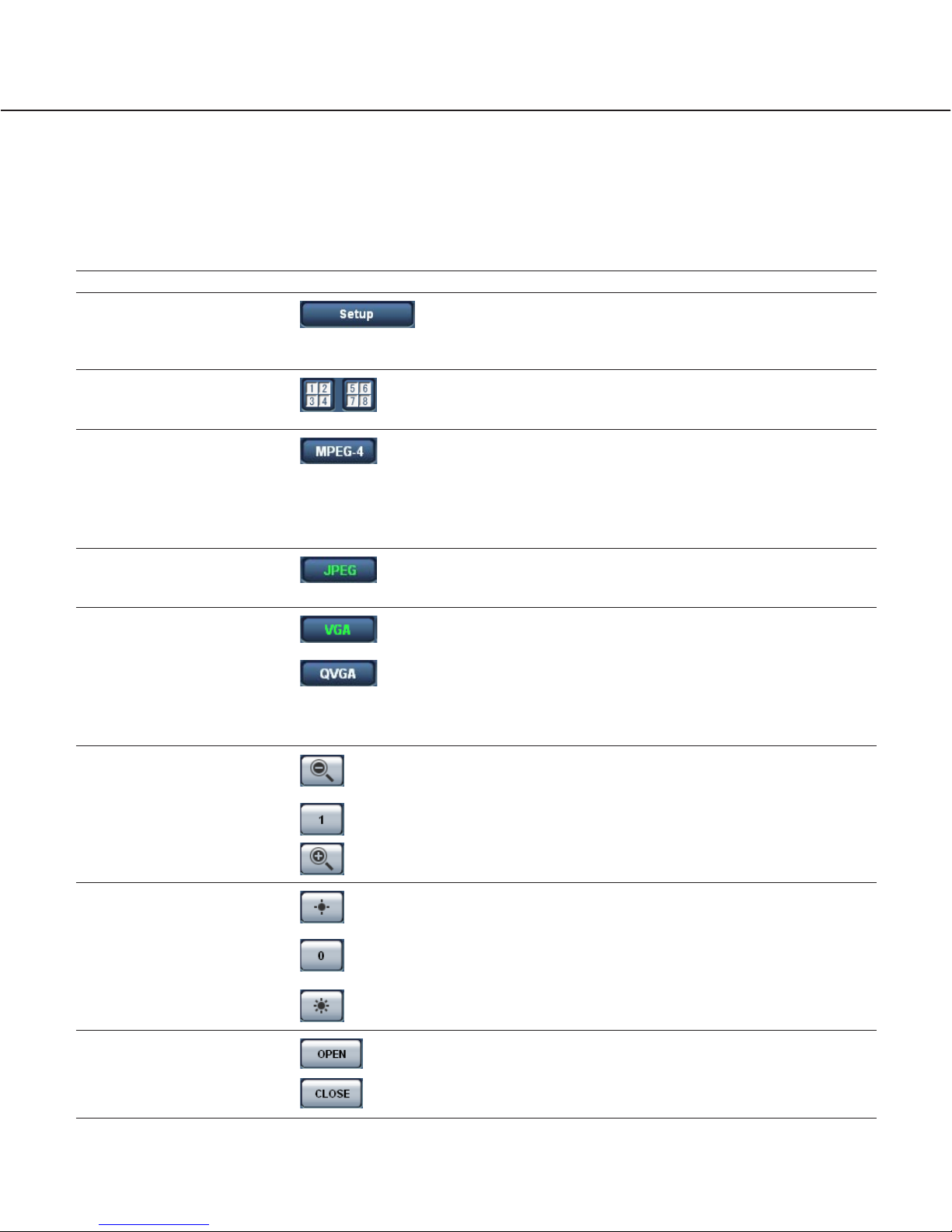

Operation

Available operations when live images are displayed

*1: Operable by only users whose access level is "1. Administrator"

*2: Operable by only users whose access level is "1. Administrator" or "2. Camera control" when "ON" is selected for

"User authentication" (☞page 35).

Refer to page 35 for further information about the access level.

Display the setup menu

(*1)

Display images on a multi-

screen

Display MPEG-4 image

Display JPEG image

Change the image capture

size

Zoom in/out of image (*2)

Change brightness (*2)

Open/close the AUX con-

nector (*2)

The letters "Setup" on the button will turn green and the setup

menu will be displayed.

To return to the "Live" page, click the [Live] button.

Images from multiple cameras can be displayed on a multi-

screen by registering cameras on the setup menu. (☞page 9)

The letters "MPEG-4" on the button will turn green and

MPEG-4 image will be displayed.

When "OFF" is selected for "MPEG-4 transmission" on the

setup menu, the [MPEG-4] button will not be displayed.

(☞page 23)

The letters "JPEG" on the button will turn green and JPEG

image will be displayed.

The letters "VGA" on the button will turn green and images

will be displayed in VGA size.

The letters "QVGA" on the button will turn green and images

will be displayed in QVGA size.

* The image capture size can be changed only when display-

ing JPEG image.

The zoomed image will be zoomed out. (Image displayed in

the original size cannot be zoomed out.)

The displayed image will be darker.

The AUX connector will open.

The AUX connector will close.

Image will be displayed with the default brightness (0).

(☞page 25)

The displayed image will be brighter.

The zoomed image will return to the original size.

The displayed image will be zoomed in.

Description

Operation Description

Acknowledge alarm occur-

rences (*2)

Turn on/off audio

Display a still picture (one

shot)

This button will be displayed and will blink when an alarm

occurred. When the button is clicked, the button will disappear

and the alarm output connector will be reset. (☞page 30)

When this button is clicked, the button will turn into the

button and audio will not be heard.

When this button is clicked, a new window will open and the

still picture (one shot) displayed on the "Live" page will be dis-

played on it.

To save this picture on a PC, right-click on the image and

select "Save" on the displayed pop-up menu.

When this button is clicked, the button will turn into the

button and audio will be heard.

* The [Audio] button will be displayed only when "ON" is

selected for "Mic mode" on the setup menu. (☞page 26)

Monitor images from multiple cameras

Images from multiple cameras can be displayed on a multi-screen. Images from up to 4 cameras can be displayed

simultaneously. To display images on a multi-screen, it is necessary to register cameras in advance. 4 cameras can

be registered as a group and up to 2 groups (8 cameras) can be registered. (☞page 27)

Important:

•Select "OFF" for both the user authentication and the host authentication of the camera to be registered.

(☞pages 35 and 36)

•Only JPEG images can be displayed on a multi-screen. Audio will not be heard.

•When the power is turned off or the LAN cable is disconnected while displaying images, displaying images on a

multi-screen from the "Live" page will become unavailable.

Step 1

Click the [Multi-screen] button.

→Images from the registered cameras will be displayed

on a 4-split screen.

qTo display images on a single screen, click the the

[1] button or [Live] button.

wClick a camera name. Live images from the camera

corresponding to the clicked camera name will be

displayed on the "Live" page of the newly opened

window.

Action at an Alarm Occurrence

The alarm action will be performed when the following alarm occur.

Alarm type

Terminal alarm: When connecting an alarm device such as a sensor to the alarm connector on the rear of the

camera, the alarm action will be performed when the connected alarm device activated.

VMD alarm: When a motion is detected in the set VMD area, the alarm action will be performed.

* VMD stands for "Video Motion Detection".

Command alarm: When received a Panasonic alarm protocol from the connected device via a network (☞page

34), the alarm action will be performed.

Action at an Alarm Occurrence

Display the [Alarm occurrence indication] button on the "Live" page. (☞page 5)

The [Alarm occurrence indication] button will be displayed on the "Live" page at an alarm occurrence.

Note:

The [Alarm occurrence indication] button will be refreshed in 30 seconds intervals. For this reason, it may take a

maximum of 30 seconds until the [Alarm occurrence indication] button is displayed on the "Live" page at an alarm

occurrence.

Notify of alarm occurrences to the device connected to the alarm connector.

It is possible to output signals from the alarm connector on the rear of the camera and sound the buzzer when an

alarm occurs. The settings for the alarm output can be configured on the [Alarm] tab of the "Alarm setup" page.

(☞page 28)

Transmit an image onto a server automatically

An alarm image can be transmitted at an alarm occurrence to the server designated in advance.

The settings required to transmit alarm image to a server can be configured on the [Alarm] tab of the "Alarm setup"

page (☞page 28) and the [FTP] tab of the "Server setup" page (☞page 38).

Notify of alarm occurrences by e-mail

Alarm mail (alarm occurrence notification) can be sent at an alarm occurrence to the e-mail addresses registered in

advance. Up to 4 addresses can be registered as recipients of the alarm mail. An alarm image can be transmitted at

an alarm occurrence to the server designated in advance. The settings for alarm mail can be configured on the

[Notification] tab of the "Alarm setup" page (☞page 33) and the [Mail] tab of the "Server setup" page (☞page 37).

Notify of alarm occurrences to the designated IP addresses (Panasonic alarm protocol)

This function is available only when Panasonic device, such as the network disk recorder, is connected to the sys-

tem. When "ON" is selected for "Panasonic alarm protocol", the connected Panasonic device will be notified that the

camera is in the alarm state. The settings for Panasonic alarm protocol can be configured on the [Notification] tab of

the "Alarm setup" page. (☞page 33)

Autres manuels pour WVNP244 - COLOR CCTV CAMERA

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Caméra de sécurité

Panasonic

Panasonic Super Dynamic III WV-CS954 Manuel utilisateur

Panasonic

Panasonic GP-US522CUE Manuel utilisateur

Panasonic

Panasonic CV-CFN203L Manuel utilisateur

Panasonic

Panasonic WV-CW370 Series Manuel utilisateur

Panasonic

Panasonic WV-SP500 Series Manuel utilisateur

Panasonic

Panasonic AW?HE60SN Manuel utilisateur

Panasonic

Panasonic OneHome KX-HCM110A Manuel utilisateur

Panasonic

Panasonic WV-SFV130 Manuel utilisateur

Panasonic

Panasonic KX-HNC600FX Manuel utilisateur

Panasonic

Panasonic VL-SDM100BX Manuel utilisateur

Panasonic

Panasonic AWHE50HN - HD INTEGRATED CAMERA Manuel d'utilisation

Panasonic

Panasonic BL-C1 Manuel utilisateur

Panasonic

Panasonic KX-HCM280 Manuel utilisateur

Panasonic

Panasonic WV-NP502 Manuel utilisateur

Panasonic

Panasonic AWHE50HN - HD INTEGRATED CAMERA Manuel utilisateur

Panasonic

Panasonic WV-CW370 Series Manuel utilisateur

Panasonic

Panasonic I-PRO EXTREME Series Manuel utilisateur

Panasonic

Panasonic KX-HCM280A Fiche technique

Panasonic

Panasonic WV-NW484S - i-Pro Network Camera Guide de l'utilisateur

Panasonic

Panasonic K-EF134L02E Manuel utilisateur

Panasonic

Panasonic WV-SW115 Manuel utilisateur

Panasonic

Panasonic WV-SW175 Manuel utilisateur

Panasonic

Panasonic GPMS112 - IND CCD CAMERA Manuel utilisateur

Panasonic

Panasonic WV-NP240 series Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
