ORDER NO. AVS0901083C8

Colour CCTV Camera

Model No. WV-CF102

SPECIFICATIONS

Panasonic Corporation

distribution is a violation of law.

Power source and power

consumption: 12 V DC, 180 mA

Image sensor: 1/4 inch interline transfer CCD

Effective pixels: 752 (H) x 582 (V)

Scanning area: 3.7 (H) x 2.7 (V) mm

Scanning system: 2 : 1 interlace

Scanning lines: 625 lines

Scanning frequency: Horizontal: 15.625 kHz

Vertical: 50.00 Hz

Synchronization: Internal, multiplexed vertical drive (VD2)

Resolution: Horizontal: 540 TV lines (at center)

Vertical: 400 TV lines (at center)

Video output: 1.0 V[p-p] PAL composite 75 Ω

White balance: ATW

Signal-to-noise ratio: 50 dB (equivalent to AGC Off, weight On)

Minimum illumination: 1.2 lx at F2.0

Switch function: Backlight compensation selector (ON/OFF), Adaptive Black

Stretch selector (ON/OFF), Simple day/night mode selector

(ON/OFF)

Fixed focal length lens:sneL

Focal length: f=2.5 mm

F number: F2.0

Angle of view: Horizontal: 90°

Vertical: 65°

The Product with PbF

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

This symbol warns the user that uninsulated voltage within the

unit may have sufficient magnitude to cause electric shock.

Therefore, it is dangerous to make any kind of contact with any

inside part of this unit.

This symbol alerts the user that important literature concerning

the operation and maintenance of this has been included.

Therefore, it should be read carefully in order to avoid any

problems.

IMPORTANT SAFETY NOTICE

About Lead Free Solder (PbF)

Distribution of PbF PCB:

PCBs (manufactured) using lead free solder (PbF) will have a stamp on the PCB.

Caution:

8Lead free solder has a higher melting point than standard solder. Typically the melting points is 35 °C – 40 °C

(95 °F – 104 °F) higher. Please use a soldering iron with temperature control and adjust it to 360 °C – 370 °C

(680 °F – 698 °F). In case of using high temperature soldering iron, please be careful not to heat too long.

8Lead free solder will tend to splash when heated too high (600 °C / 1112 °F).

8Lead free solder (Sn - 3.0Ag – 0.5Cu) or equivalents are recommended on repairing our lead free soldered PCB.

YWARNING

This service information is designed for experienced repair technicians only and is not designed for use by the

general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to

service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any

attempt to service or repair the product or products dealt with in this service information by anyone else could result

in serious injury or death.

8There are special components used in this equipment which are important for safety. These parts are indicated

by the ”

” mark on the schematic diagram and the replacement parts list. It is essential that these critical parts

should be replaced with manufacturer's specified parts to prevent X-radiation, shock, fire, or other hazards.

Do not modify the original design without permission of manufacture.

8If a wiring unit is supplied as a repair part, the entire wiring unit shall be replaced, rather than repairing

and connecting the wires, even when only some of its wires are broken.

STANDARD ACCESSORIES

Operating Instructions ...........................1 pc.

Top cover fixing screw (M3)...................1 pc.

Template ................................................1 pc.

Adjusting angle: Panning range: +180 ° to –140 °

Tilting range: ±75 °

Azimuth range: ±145°

Ambient temperature: –10 °C - +50 °C

Ambient humidity: Less than 90 %

Dimensions: ø108 mm x 83 mm (H)

Weight: 300 g

Wei

hts and dimensions indicated are approximate.

LIMITATION OF LIABILITY

THIS PUBLICATION IS PROVIDED "AS IS"

WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING

BUT NOT LIMITED TO, THE IMPLIED WAR-

RANTIES OF MERCHANTABILITY, FITNESS

FOR ANY PARTICULAR PURPOSE, OR

NON-INFRINGEMENT OF THE THIRD

PARTY'S RIGHT.

THIS PUBLICATION COULD INCLUDE

TECHNICAL INACCURACIES OR TYPO-

GRAPHICAL ERRORS. CHANGES ARE

ADDED TO THE INFORMATION HEREIN, AT

ANY TIME, FOR THE IMPROVEMENTS OF

THIS PUBLICATION AND/OR THE CORRE-

SPONDING PRODUCT (S).

DISCLAIMER OF WARRANTY

IN NO EVENT SHALL Panasonic Corporation

BE LIABLE TO ANY PARTY OR ANY PER-

SON, EXCEPT FOR REPLACEMENT OR

REASONABLE MAINTENANCE OF THE

PRODUCT, FOR THE CASES, INCLUDING

BUT NOT LIMITED TO BELOW:

(1) ANY DAMAGE AND LOSS, INCLUDING

WITHOUT LIMITATION, DIRECT OR

INDIRECT, SPECIAL, CONSEQUENTIAL

OR EXEMPLARY, ARISING OUT OF OR

RELATING TO THE PRODUCT;

(2) PERSONAL INJURY OR ANY DAMAGE

CAUSED BY INAPPROPRIATE USE OR

NEGLIGENT OPERATION OF THE USER;

(3) UNAUTHORIZED DISASSEMBLE,

REPAIR OR MODIFICATION OF THE

PRODUCT BY THE USER;

(4) INCONVENIENCE OR ANY LOSS ARIS-

ING WHEN IMAGES ARE NOT DIS-

PLAYED, DUE TO ANY REASON OR

CAUSE INCLUDING ANY FAILURE OR

PROBLEM OF THE PRODUCT;

(5) ANY PROBLEM, CONSEQUENTIAL

INCONVENIENCE, OR LOSS OR DAM-

AGE, ARISING OUT OF THE SYSTEM

COMBINED BY THE DEVICES OF THIRD

PARTY;

(6) ANY CLAIM OR ACTION FOR DAM-

AGES, BROUGHT BY ANY PERSON OR

ORGANIZATION BEING A PHOTO-

GENIC SUBJECT, DUE TO VIOLATION

OF PRIVACY WITH THE RESULT OF

THAT SURVEILLANCE-CAMERA'S PIC-

TURE, INCLUDING SAVED DATA, FOR

SOME REASON, BECOMES PUBLIC OR

IS USED FOR THE PURPOSE OTHER

THAN SURVEILLANCE.

CONTENTS

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS .............................................................................. 1-1

ADJUSTMENT PROCEDURE................................................................................................................................. 2-1

WIRING DIAGRAM.................................................................................................................................................. 3-1

OVERALL BLOCK DIAGRAM ................................................................................................................................ 3-2

SCHEMATIC DIAGRAM

SENSOR BOARD ................................................................................................................................................ 4-1

MAIN BOARD (1/2) .............................................................................................................................................. 4-2

MAIN BOARD (2/2) .............................................................................................................................................. 4-3

I/F BOARD ........................................................................................................................................................... 4-4

POWER BOARD .................................................................................................................................................. 4-5

CONDUCTOR VIEW

SENSOR BOARD ................................................................................................................................................ 5-1

MAIN BOARD....................................................................................................................................................... 5-2

I/F BOARD ........................................................................................................................................................... 5-3

POWER BOARD .................................................................................................................................................. 5-4

EXPLODED VIEW

(1/4) (MAIN UNIT-1) .............................................................................................................................................6-1

(2/4) (MAIN UNIT-2) .............................................................................................................................................6-2

(3/4) (CAMERA UNIT).......................................................................................................................................... 6-3

(4/4) (PACKAGING) ............................................................................................................................................. 6-4

REPLACEMENT PARTS LIST................................................................................................................................ 7-1

1-1

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

qVideo output connector

Composite video signals are transmitted.

If this unit is connected to the multiplex

unit, the multiplexed VD2 that is priori-

tized over INT is automatically selected.

wMarker

This marker is used when the top cover

is installed.

eDip switch

Selects ON/OFF of backlight compensa-

tion, Adaptive Black Stretch or Simple

day/night mode.

•Simple day/night mode selector [D/N]

ON: The camera selects black-and-white

mode if the picture is dark, or color

mode if the picture is bright enough.

OFF: Color picture is displayed normally.

Default setting: OFF

Note:

The simple day/night function is

established by utilising the SENSE UP

function for B/W images. The IR filter

is secured.

•Adaptive Black Stretch selector [B.S.]

ON: The dark area of the object is auto-

matically corrected to lighten it.

OFF: Does not compensate.

Default setting: OFF

Important:

In the case of "ON" setting, noise

may be increased in the dark area

of the object.

In addition, darkness and brightness

may be emphasized in the vicinity of

the boundary between the dark and

bri

ht areas.

1-2

•Backlight compensation selector [BLC]

ON: Compensates the background auto-

matically if it is brighter than the

object.

OFF: This mode is used when the front

of the object is extremely bright.

Default setting: OFF

Note:

Under some conditions, such as

extremely strong backlight, the

desired compensation effect may

not be achieved even if the mode is

set to ON to detect the backlight

level.

rLens unit

Rotate to adjust focus.

tAzimuth adjuster

Adjusts the azimuth angle of the cam-

era.

yTilting table

Adjusts the tilting position of the camera.

uPanning table

Adjusts the panning position of the cam-

era.

i-1 Panning table lock screw [LOCK]

Fixes the panning table.

i-2 Panning table lock screw hole [LOCK]

(backup)

oPower cable

Supplies 12 V DC from an external power

source.

!0 Cable access hole

!1 Fingerplate

2-1

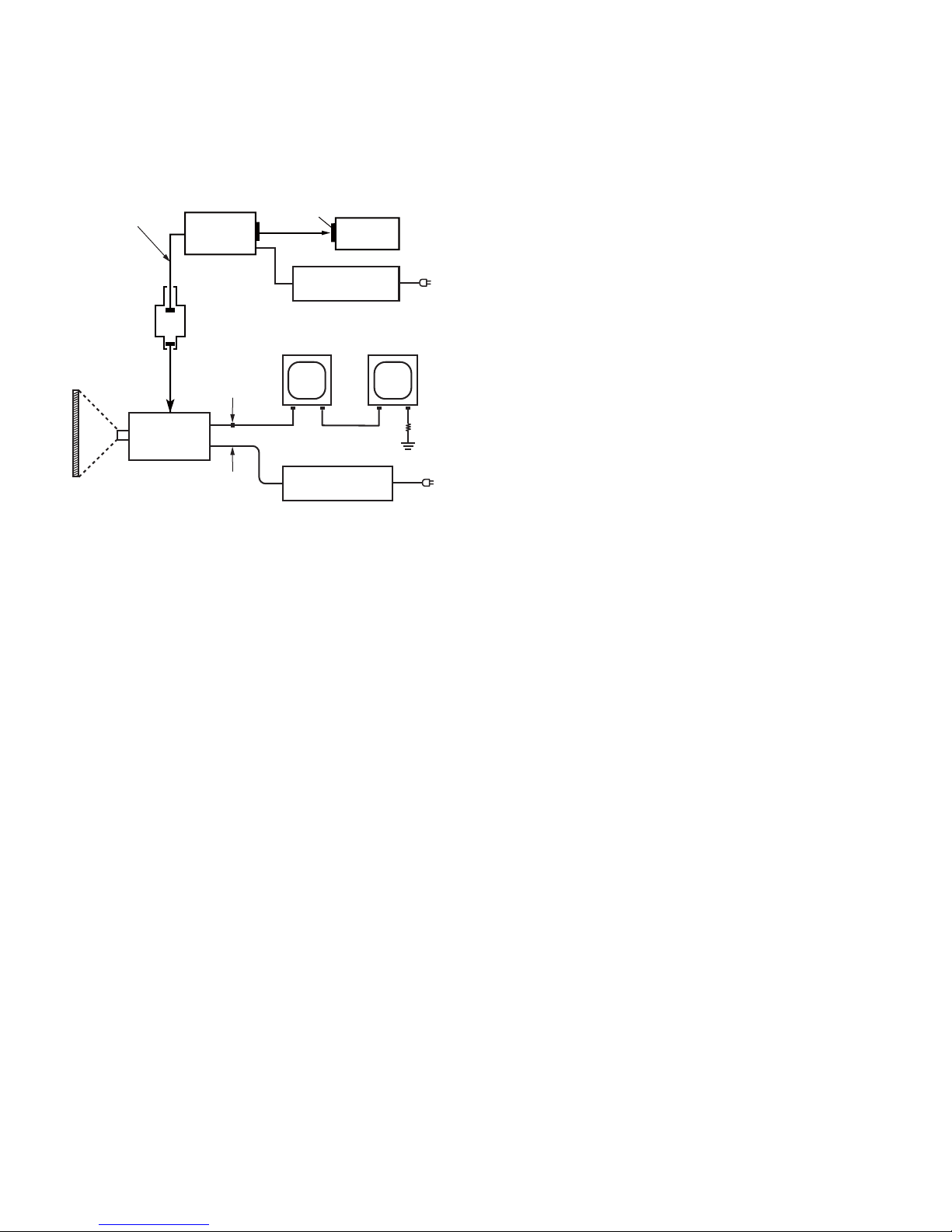

1. Test Equipment Required

The following Test Equipments are required for Adjustment

of the Colour CCTV Camera WV-CF102.

8 Oscilloscope

8 Frequency Counter

8 Vectorscope

8 Underscanned Colour Video Monitor

8 12 V DC Power Supply Unit

8 Personal Computer (Windows XP with 25-pin Parallel

Port)

8 Lux Meter

8 Lighting (140 footcandles (1 400 lx), Colour Temperature

3 200 K)

8 Colour Temperature Conversion Filters

Recommended manufacturer and part numbers are

shown in Table 1-1.

Table 1-1

8 Radiation Chart

8 Logarithmic Gray Scale Chart

(Part Number: YWV2310RB99)

8 Colour Chip Chart (Part Number: YWV2100RB98)

8 White Chart or White Paper

8 EVR (Electric Variable Resistor) Adjustment Kit as shown

in Fig. 1-1. (Part Number: YWV0JA0019AN)

8 EVR Interface Board as shown in Fig. 1-2.

(Part Number: V0JA0039AN)

ADJUSTMENT PROCEDURE

Conversion KENKO KODAK

3 200 K →5 100 K C12 80B

8 Extension Cable as shown in Fig. 1-3.

(Part Number: B50040BEGDD2)

8 Extension Board Ass'y as shown in Fig. 1-4.

(Part Number: V0JA0041AN)

Fig. 1-4

Fig. 1-1

Fig. 1-3

EVR Adjustment Kit

Cable of EVR

Adjustment Kit

Fig. 1-2

CN2

I/F Board

CN5

CN1

Cable of EVR

Adjustment Kit

CN2

CN1 CN4

CN5

Main Board

CN1

Sensor Board

CN2

Extension

Cable

Extension

Cable

2-2

2. Disassembling Procedure for

Adjustment

8 Referring to Fig. 2-1, turn the Top Cover in the Direction

of the arrow.

8 Referring to Fig. 2-2, remove three screws that secure

the Bottom Plate and remove the Button Plate from the

Main Unit.

8 Referring to Fig. 2-3, disconnect the connector CN3 on

the I/F Board and remove the Flexible Cable of the Main

Unit.

Fig. 2-1

Fig. 2-2

Fig. 2-3

8 Referring to Fig. 2-4, remove one screw (Special Screw)

that secure the Camera Unit.

8 Referring to Fig. 2-5, release the hook part of the Camera

Unit by using the pliers for lead or equivalent and remove

the Camera Unit from the Main Unit.

When you release the hook part, because there is a

risk of damege, please be careful.

8 Referring to Fig. 2-6, disconnect the connector CN3 on

the Main Board and remove the Flexible Cable from the

Camera Unit.

Fig. 2-4

Fig. 2-5

Top Cover

Remove three screws.

Bottom Plate

Remove one screw.

Camera Unit

Fig. 2-6

Camera Unit

CN3 on

Main Board Flexible

Cable

Main Unit

CN3 on I/F Board

Bottom Plate

Flexible Cable

Camera Unit

Hook

2-3

8 Referring to Fig. 2-7, remove two screws that secure the

CCD Bottom Case and remove the CCD Bottom Case

from the Camera Unit.

8 Referring to Fig. 2-8, disconnect the connectors between

CN2 on the Sensor Board and CN1 on the Main Board,

remove the Main Board from the Camera Unit.

8 Referring to Fig. 2-9, remove two screws that secure the

Sensor Board and remove the Sensor Board from the

Camera Unit.

Fig. 2-7

8Confirm that removed the Sensor Board and the Main

Board from the Camera Unit as shown in Fig. 2-10.

8 Referring to Fig. 2-11, reconnect the connectors by using

the Extension Cable (Refer to Fig. 1-3) and the Extension

Board Ass'y (Refer to Fig. 1-4) between CN2 on the

Sensor Board and CN1 on the Main Board for Servicing.

Fig. 2-8

Camera Unit CN2

Sensor Board

CN1

Main Board

Fig. 2-9

Remove two screws. Camera Unit

Sensor Board

Fig. 2-11

Main Board

Extension

Board Ass'y

Sensor Board

Extension Cable

Fig. 2-10

Sensor Board Main Board

Remove two screws.

CCD Bottom Case

Camera Unit

2-4

3.2. Setting Up for EVR Adjustment

(1) Preparation

8Personal Computer (Windows XP with 25-pin Parallel

Port)

8EVR Adjustment Kit (Refer to Fig. 1-1)

8EVR Interface Board (Refer to Fig. 1-2)

8Adjustment package (Download from BIG-WEB)

8SOFT EV2 package (Download from BIG-WEB)

(2) Connection for EVR Adjustment Kit

8Referring to Fig. 3-1, connect the Cable of EVR

Adjustment Kit to CN2 on the EVR Interface Board.

8Connect CN1 on the EVR Interface Board to CN5 on the

I/F Board of WV-CF102.

8Connect the connector of the EVR Adjustment Kit to the

Parallel Port of Personal Computer.

8Connect the 12 V DC Power Supply Unit to the EVR

Adjustment Kit.

3.3. Setting Up

8 An initial setting of the Dip Switch SW5 on the I/F Board

as follows.

Back Light Compensation Selector

(BLC ON,OFF) ............................................................OFF

Adaptive Black Stretch Selector

(B.S. ON,OFF) ............................................................OFF

Simple Day/Night Mode Selector

(D/N ON,OFF).............................................................OFF

8 The adjustments should be done with this initial setting,

uniess otherwise specified.

8 The adjustments should be done after 10 minutes warm

up.

3. Connection and Setting Up for

Adjustment

3.1. Connection

8The Fig. 3-1 shows the connecting diagram for the

Adjustment Procedure.

8Connect the Underscanned Colour Video Monitor to

the Video Output Connector of WV-CF102 through the

Vectorscope by using the coaxial cables.

8Terminate the input terminal of the Underscanned Colour

Video monitor with 75 Ω.

8Connect the 12 V DC Power Supply Unit to the Power

Cable of WV-CF102.

8Connect the Personal Computer to WV-CF102 through

the EVR Adjustment Kit and the EVR Interface Board.

(Refer to 3.2. Setting Up for EVR Adjustment)

8Connect the probe of the Oscilloscope or Frequency

Counter at the desired Test point in each adjustment

step.

Fig. 3-1

Test Chart

Underscanned

Colour

Video Monitor

75 Ω

WV-CF102

Vectorscope

Video Output

Connector

Power Cable 12 V DC

Power Supply Unit

12 V DC

Power Supply Unit

EVR

Adjustment

Kit

Cable of EVR

Adjustment kit

EVR

Interface

Board

Parallel

Port Personal

Computer

Autres manuels pour WV-CF102E

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Caméra de sécurité

Panasonic

Panasonic A47 Manuel utilisateur

Panasonic

Panasonic WV-SF135 Manuel utilisateur

Panasonic

Panasonic WV-CW504S Manuel utilisateur

Panasonic

Panasonic KX-HCM250 Manuel utilisateur

Panasonic

Panasonic WVBP312 - B/W CCTV Manuel utilisateur

Panasonic

Panasonic CV-CFW101AL Manuel utilisateur

Panasonic

Panasonic WV-S1132 Manuel d'utilisation

Panasonic

Panasonic WV-SW396A Manuel utilisateur

Panasonic

Panasonic BB-HCM381 Manuel d'utilisation

Panasonic

Panasonic WVCF254 - COLOR CAMERA Manuel utilisateur

Panasonic

Panasonic AWE860 - COLOR CAMERA Manuel utilisateur

Panasonic

Panasonic BL-C140 Manuel d'utilisation

Panasonic

Panasonic AKHC900 - COLOR CAMERA Manuel utilisateur

Panasonic

Panasonic BL-C30A - Wireless 802.11 b/g Network Camera Mode d’emploi

Panasonic

Panasonic Super Dynamic III WV-CS954 Manuel utilisateur

Panasonic

Panasonic WV-CP160E Manuel utilisateur

Panasonic

Panasonic WVCPR650 - CCTV CAMERA Manuel utilisateur

Panasonic

Panasonic WV-NP304 Manuel utilisateur

Panasonic

Panasonic WV-NW484S - i-Pro Network Camera Guide de l'utilisateur

Panasonic

Panasonic WV-SW174W Manuel utilisateur

Panasonic

Panasonic Super Dynamic III WV-CW484S Manuel utilisateur

Panasonic

Panasonic WVNP244 - COLOR CCTV CAMERA Manuel utilisateur

Panasonic

Panasonic WV-SP508 Manuel utilisateur

Panasonic

Panasonic WVNW474S - COLOR CCTV CAMERA Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
