Panasonic CZ-RTC4A Manuel utilisateur

Operating Instructions

Timer Remote Controller

Model No. CZ-RTC4A

ACXF55-38730

https://eu.datanavi.ac.smartcloud.panasonic.com/

documents/index.htm?model=CZ-RTC4A

ENGLISH

Before operating the unit, read these operating instructions thoroughly and keep them for future

reference.

Installation Instructions Separately Attached.

Thank you for purchasing the

Panasonic timer remote controller.

●Read the Operating Instructions

carefully for safe use. This

manual describes the Operating

Instructions of the timer remote

controller. Read this manual as

well as operating instructions

supplied with indoor units and

outdoor units.

●Be sure to read the “Safety

Precautions” (P.3) before

using.

●Keep this manual with operating

instructions supplied with indoor

units and outdoor units in a safe

place.

●Be sure to keep this manual in a

place easily accessible by users.

In the case of user change, be

sure to give this manual to the

new user.

The English text is the original

instructions. Other languages

are translation of the original

instructions.

NOTICE

CONTENTS Page

●Safety Precautions

..............................

●Part Names ...........................................4

• Control panel .......................................4

• Screen display

.....................................

Preparations

●Basic Operations .................................6

• How to Operate ...................................6

• Setting the Present Time .....................8

●Weekly Program Function

..................

• Checking the Weekly Timer

.................

• Changing the Program Timer ............10

• Deleting the Program Timer

..............

• Invalidating the Program Timer

.........

• Duplicating the Program Timer

..........

• Before Asking Repair Work ...............15

How to Use

●Outing Function .................................16

• Setting the Outing Function

...............

●Sleeping Function

.............................

●ECONAVI Function

............................

●nanoeTMX/ECONAVI Function

...........

• ON/OFF setting of nanoeTMX/

ECONAVI function

.............................

Setting Change

●Troubleshooting

................................

●Speciﬁcations

....................................

When

Necessary

WARNING

This symbol refers to a hazard or unsafe practice

which can result in severe personal injury or death.

This symbol refers to a hazard or unsafe practice which can

result in personal injury or product or property damage.

Matters to be observed Prohibited matters

WARNING

CAUTION

Do not use this appliance in a potentially explosive

atmosphere.

In case of malfunction of this appliance, do not repair by

yourself. Contact the sales or service dealer for repair.

• Do not operate with wet hands.

• Do not wash with water.

In case of emergency, remove the power plug from the

socket or switch off the circuit breaker or the means

by which the system is isolated from the mains power.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety. Children should be

supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

Safety Precautions

987

Control panel

1 Operation indicator

Illuminates during operation. Blinks during alarm.

2 Start/Stop button

Starts/Stops operation.

3 Fan speed

Changing the fan speed.

4 Swing/Air direction

Use this button to set the auto swing or air direction to a speciﬁc angle.

5 Unit select

When more than one indoor unit is operated by one remote control unit, this button is used to

select a unit when adjusting the air direction.

6 Sleeping

7 Ventilation

Use this button when you installed a fan available in the market. Pressing this button turns on

and off the fan. When turning off the air conditioner, the fan will be also turned off.

8 Filter reset

Use this button to reset the ﬁlter sign. When is displayed, press this button after cleaning the

ﬁlter.

9 Timer setting buttons

10 Remote control sensor

Normally, the temperature sensor of the indoor unit is used to detect the temperature.

However, it is also possible to detect the temperature around the remote control unit.

11 Mode select

Pushing this button selects an operation mode.

12 nanoeTMX/ECONAVI

Use this button to turn on/off the nanoeTMX/ECONAVI Function.

13 Temperature setting buttons

Changing the temperature setting.

Part Names

Screen display

1Displayed if the selected feature was disabled during installation.

2Displayed when a mistake is made during timer setting.

3Appears when the timer program is being set.

4Indicates today’s day of the week.

5Displayed when the timer has been turned OFF.

6Timer program indication

: The indoor unit starts operation at the programmed time.

: The indoor unit stops operation at the programmed time.

7Displays the present time on a 24-hour clock. Also, displays settings in the various setting

modes.

8Appears when the time program is being set.

9Indicates the unit No. of the selected indoor unit.

10 Appears when nanoeTMX is being set to ON.

Appears with displaying 28 if there is a problem on nanoeTMX.

11 Appears during the peak cut mode (Demand) if an electric heat pump (EHP) air conditioner is

used or during standby if a gas heat pump (GHP) air conditioner is used.

12 Appears when the fan of the indoor unit is stopped or in low fan speed.

13 The engine oil needs to be replaced. (Only when using a gas heat pump air conditioner.)

14 Appears when the maintenance function (monitoring sensor temperatures) is activated.

15 The indoor unit ﬁlter needs to be cleaned.

16 Appears during the sleeping function.

17 Appears when a fan available in the market is installed and is operating.

18 Switching operation modes is prohibited. (Switching to Auto mode is also prohibited.)

19 Remote control operation is restricted by a central control device.

20 Appears when the remote control sensor is used.

21 The selected fan mode is displayed.

22 Appears while in test operation.

23 Indicates the ﬂap position.

24 Indicates the set temperature.

25 Appears during the outing function.

26 Displays the selected operation mode.

(AUTO /HEAT /DRY /COOL /FAN )

27 Appears when ECONAVI is being set to ON.

28 When inspection is required.

29 Appears with displaying 27 if there is a problem on ECONAVI.

2827

20 19 18 17 16 15 14 13 12 11 10

29 1 2 3

Part Names

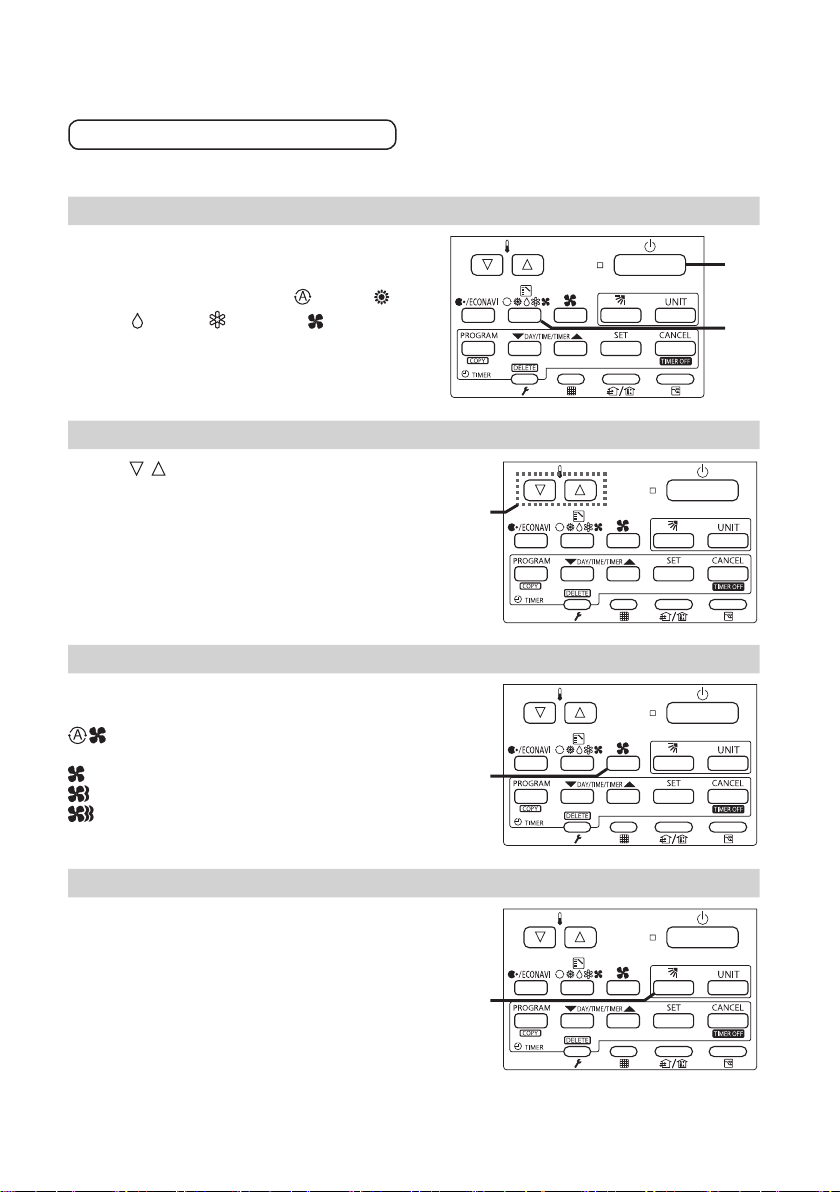

How to Operate

Turn on the indoor unit before operation. See operating instructions of the indoor unit.

Start/Stop operation / Operation mode

1. Press [Start/Stop] to start operation.

2. Press the mode select button to select

the mode among AUTO , HEAT ,

DRY , COOL and FAN .

* Auto: The mode is automatically switched to

Cool or Heat to achieve the set temperature.

Set temperature

Press [ / ] to set the desired

temperature.

Cannot be set in Fan mode.

Temperature

Fan speed

Press the fan speed button to set

the fan speed.

: Automatically switches the fan

speed.

: Low

: Medium

: High

Fan speed

Flap

Press the ﬂap button to adjust the

ﬂap position.

Flap

Basic Operations

Note

●If the heating performance is insufﬁcient in Low fan speed, change the fan

speed to Medium or High .

●The temperature range that can be set varies depending on the model.

●Temperature sensor detects temperature in the vicinity of the air inlet of the

indoor unit. The detected temperature slightly differs from the room temperature

depending on the installation condition. The set temperature is a guideline of

room temperature.

Basic Operations

Setting the Present Time

1Press and hold [SET] for more than

2 seconds to enter the present day

and time setting mode.

Once you enter the setting mode,

“SETTING”, “▼”(day) and “time” ﬂash.

2 / 3 / 4 1 / 3 / 4

2Set “▼” to today’s day of the week.

Press [▲] to move “▼” (ﬂashing on the

display) in the order of: Su →Mo →Tu →....

Press [▼] to move it in the order of: Su →

Sa →Fr →....

Press [SET] to store.

3Press [▼/▲] to change the present

“hour” in the range of 0 to 23*1.

Set the present hour and press [SET].

The “hour” digits light up, and the “minute”

digits start ﬂashing.

*1If the clock uses the 12 hours AM/PM

setting, the hour is displayed in the range of

AM 1 to 12 / PM 1 to 12.

4Press [▼/▲] to change the present

“minute” in the range of 0 to 59.

Set the present minute and press [SET].

The day and time are set and the unit

ﬁnishes the setting mode.

Note

●If the present time is invalid, “– – : – –” is displayed. If the power failure occurs,

check if the set data of day and time are valid.

Basic Operations

• Set the weekly program assigning a given timer to each day of the week.

Maximum of 6 programs a day and 42 programs a week can be set.

Select the day and the TIMER number you want to program.

1Press [PROGRAM] to enter the

program conﬁrmation mode

“ ” and start setting.

Once you enter the program conﬁrmation

mode, the present day is indicated as

TIMER No. “1”.

TIMER No. 1-6

program CHeck

2 / 31

2Select the day.

Press [▼/▲] to move the “ ” horizontally on

the day to select.

Press [▲] to move “ ” (ﬂashing on the

display) in the order of: Su →Mo →Tu....

Press [▼] to move it in the order of : Su →

Sa →Fr....

“– – : – –” is displayed when the program is

not set.

Press [SET] to ﬁx the day.

3Select a Timer number.

Press [▼/▲] to select a TIMER No. from 1

to 6.

Press [▲] to move up from 1.

Press [▼] to move down from 6.

Checking the Weekly Timer

Weekly Program Function

To set the weekly program, follow the steps.

1Select the program you want to

set in the program conﬁrmation

mode, and press [SET]. This enters

the setting mode of the program

currently displayed.

* In the program setting mode, [SETTING],

“hour”, “minute” and “item” ﬂash on the

display.

Program step1

Program step2

2 / 3 / 44 1 / 2 / 3 / 4

2Set the “hour”. (Program step 1)

Press [▼/▲] to set the “hour”.

Conﬁrm the “hour” and press [SET]. This

enters the program changing mode

(setting of the “minute”).

3Set the “minute”. (Program step 2)

Press [▼/▲] to set the “minute”.

Conﬁrm the “minute” and press [SET].

The unit enters (the program pattern

selection mode).

SET

CANCEL,DEL

program check

CANCEL

CANCEL,DEL

CANCEL

PROGRAM

Program Changing hour digits

Changing minute digits

Changing patterns

Selecting copy source

Selecting copy destination

normal remote controller

SET,CANCEL,DEL

SET,CANCEL

Changing the Program Timer

Weekly Program Function

Autres manuels pour CZ-RTC4A

Table des matières

Autres manuels Panasonic Télécommande

Panasonic

Panasonic AJRC10G - REMOTE CONTROL UNIT Manuel utilisateur

Panasonic

Panasonic AK-HRP1005G Manuel utilisateur

Panasonic

Panasonic EUR7502XB0 - REMOTE GUIDE-SAHE200K Manuel utilisateur

Panasonic

Panasonic EUR511111 Manuel utilisateur

Panasonic

Panasonic Palmcorder PV-DRC9 Manuel utilisateur

Panasonic

Panasonic FV-SCGPW1 Manuel utilisateur

Panasonic

Panasonic EUR511160 Manuel utilisateur

Panasonic

Panasonic AW-RM50AG Manuel utilisateur

Panasonic

Panasonic CZ-RELC2 Manuel utilisateur

Panasonic

Panasonic EUR501375 Manuel utilisateur

Panasonic

Panasonic CZ-RTC3 Manuel utilisateur

Panasonic

Panasonic WV-CU50E Manuel utilisateur

Panasonic

Panasonic CZ-RTC5A Manuel utilisateur

Panasonic

Panasonic EUR501453 Manuel utilisateur

Panasonic

Panasonic AW-CB400L Manuel utilisateur

Panasonic

Panasonic WVCU360C - SYSTEM CONTROLLER Manuel utilisateur

Panasonic

Panasonic EUR646494 Mode d'emploi

Panasonic

Panasonic CZ-RD52CU Manuel utilisateur

Panasonic

Panasonic CZ-01ESM11P Manuel utilisateur

Panasonic

Panasonic CZ-RD514C Manuel d'installation et d'exploitation

Panasonic

Panasonic EUR7702KE0 Manuel utilisateur

Panasonic

Panasonic CZ-RTC4 Manuel utilisateur

Panasonic

Panasonic AK-HRP1005G Manuel utilisateur

Panasonic

Panasonic CZ-RTC6WBL Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation

Invacare

Invacare G91S Manuel utilisateur
