Panasonic NR-BN211GKMY Manuel utilisateur

Order No. : PMIRF1609006C3

Glass Jet Black ( K )

Glass Gallant Blue ( A )

Glass Wine Red ( R )

Destination

Malaysia

Note :

PT Panasonic Manufacturing Indonesia

Jl. Raya Bogor km. 29, Pekayon, Pasar Rebo, Jakarta 13710, Indonesia

This service manual handbook can be owned but can not be reproduced without permission from Refrigerator Business Unit, PT Panasonic Manufacturing Indonesia.

There are special components used in this equipment which are important for safety. These parts are marked by in the Exploded Views and Replacement Parts List. It is

essential that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission

of manufacturer.

CFC & HCFC have been used in refrigerant as refrigerator and the insulation materials for many years. But it is now known that these compounds which once

seemed so ideal for use as cleaning agents and in refrigeration systems, destroy the earth's ozone layer as a result, an international body decided on a total

worldwide ban of harmful CFCs by the end of 1995.

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or

cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this service information by anyone else could

result in serious injury or death.

SERVICE MANUAL

NR-BN211GKMY

NR-BN211GAMY

NR-BN211GRMY

Refrigerator

Product Color

GLASS DOOR

NR-BN211GKMY

( JET BLACK )

WARNING

IMPORTANT SAFETY NOTICE

GLASS DOOR

NR-BN211GAMY

( GALLANT BLUE )

GLASS DOOR

NR-BN211GRMY

( WINE RED )

- 1 -

CONTENTS :

Item Pages

Content 2

1. Safety Cautions for Repairing 3

2. Specification and Components 4

3. Wiring Diagram and Wiring Connection 5

4. Cooling Performance Data 6

5. Cooling Circulation and Main Component Function 6

5.1 Function of Each Component 6

6. Reparation Standard 7

6.1 Repairing Devices Which are Exclusive - Use for HFC-134a Refrigerant 7

6.2 Repairing Standard of Refrigerating Unit HFC-134a 7

6.3 Tool for Repairing Refrigerating Unit HFC-134a 8

6.4 Refrigerating Unit Repairing Procedure 9

6.5 Method to Repairing Regrigerating Unit 10

6.6 Check pressure at high pressure side 13

6.7 Safety Check 20

7. Instruction to Assembly Parts 21 ~ 22

8. Part List 23 ~ 25

9. Packing Instruction 26

No.

-2-

I. SAFETY CAUTIONS FOR REPAIRING

When you repair refrigerator, please kindly take care of following cautions.

a) Warning

Before repairing unit, unplug power supply cord

●

Before you repair refrigerator, unplug the power supply cord.

Use authentic parts when repairing

●

When you replace the parts, please use authentic parts to replace defective parts.

Caution during brazing

●

When you use touch for brazing, please ensure ventilation. Otherwise, you will be poisoned by

carbon monoxide.

Pay attention to using refrigerant

●If refrigerant touches fire, the gas becomes poisonous gas.

Pay attention to getting electricity shock

●

When you check the voltage of terminal, please do not touch the electricity parts terminal.

●

When you replace the parts, please wait three minutes at least for discharging capacitor.

Check safety after repairing

●

Check the screws, parts, lead wires to take in place.

●

And check the repairing portion whether circumferential parts are damaged or not.

●

Check insulation resistance between power supply cord and earth.

●

When install refrigerator, check condition of power supply cord and plug.

●

Wipe off the dust on plug.

●

Cutting and seal the electric device carefully.

b) Caution

Watch the hot parts

●

During operation and after operation, compressor and pipes are hot.

●

Also, under these condition, heater are hot.

●

Do not burn your fingers when you touch it.

Pay attention to refrigerant

●

Do not touch liquid refrigerant.

●

Otherwise, your hands may be burnt.

Pay attention to edge of parts

●

Otherwise, your fingers may be cut.

Pay attention to fins of evaporator and condensor

●

Otherwise, your fingers may be cut.

Before transportation, adjust adjustable bolt

●

Otherwise, the floor may be damaged.

Do not touch the pipe after brazing

●

Otherwise, your hands may be burnt.

-3-

2. Specification and Components

*) Specification subject to change without prior notice.

**) Weight and dimension are actual condition.

Ampere

Input

Weight **)

Outside Dimension ( mm )

Inside Dimension ( mm )

Capacity

0.60 A

Model

DC Fan Motor

Lamp

PTC Relay

Motor Protector

Door Switch

Refrigerant Gharging Amt. ( NON-CFC)

Lubricating Oil Charging Amt.

Evaporator

50 mm

Dial Adjustment

Auto Defrost Start- Auto Defrost StopDefrosting System

Temperature Control

Material and Cabinet Color

Vacuum Formed HI-PS Resin

Thickness Insulation

Blowing Agent

( W ) 528 mm ( D ) 584 mm ( H ) 1455 mm

Indirect Cooling ( No Frost )

PCM Sheet Carbon Black Emboss

43 kg (Net)

Inner Liner

Cyclopenthane

Cooling System ( Evaporator )

195 ± 5 cc ( Freol Alpha - 22 )

SF51C91RAW5-S0YS, Cylinder cap A = 5.10 cc, rev.Capacity = 148W, Power Input = 110W

100 ± 5 gram ( HFC-134a )

Coil Evaporator

Main Parts For Cooling System

Compressor

Plug

Destination

Electric Devices

D3D-121 ( OMRON ), Rating = 1A 125VAC/0,5A 250V

5TM181NHBYY ( Opening Temp = 120±5

C, Closing Temp = 69±9

Rating = DC12V/3.6, Type = 3612JL-04W-S40-G03, Applied Fan = Æ 81 PROP FAN (BOX TYPE)

Type = MM6-8V48, Rating = 220V / 130W

PTH7M330MD2

LED LAMP PCB(PC) ( 12V / 60 Ma )

Temp. Fuse

Radiant Heater

Type = NTC, Rating = B=3819K±2% R10=3.899KΩ±3%

Type = 401405L, Rating = 4uF - 400VCapacitor

Sensor Defrost

Rating = MICRO TEMP ( 250V / 10A / 73

C )

NR-BN211GKMY, NR-BN211GAMY, NR-BN211GRMY

210 Liter

FC = ( W ) 404 x ( D ) 335.5 x ( H ) 411.5, PC = ( W ) 460 x ( D ) 435 x ( H ) 827

97 W

Malaysia

240V~/50Hz

Specification

Voltage / Frequency

- 4 -

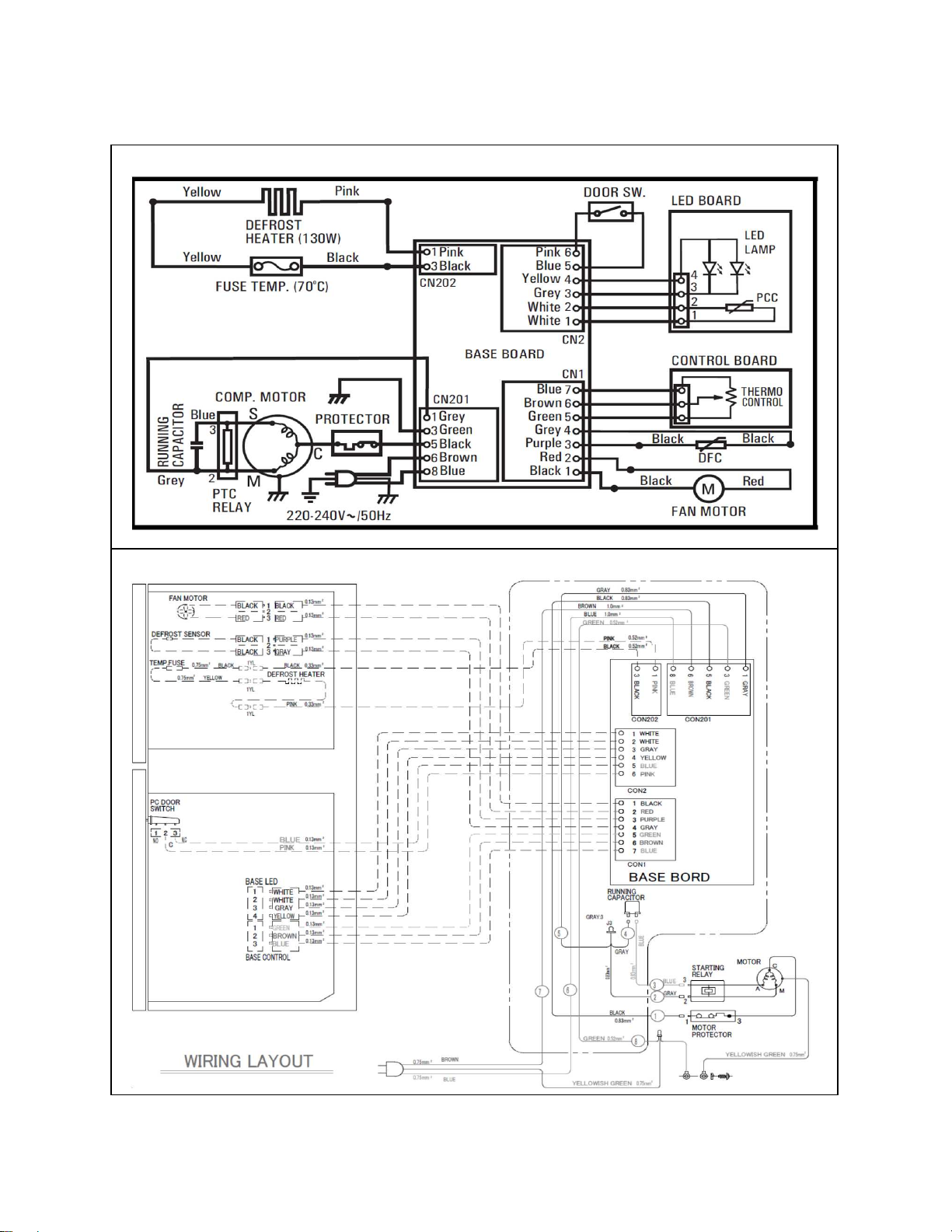

3. Wiring Diagram dan Wiring Connection

NR-BN211GKMY, NR-BN211GAMY, NR-BN211GRMY

a) Wiring Diagram

b) Wiring Connection

-5-

4. Performance Data

NR-BN211GKMY, NR-BN211GAMY, NR-BN211GRMY

(

(%)

Cooling performance at ambient temperature 32

5. COOLING CIRCULATION AND MAIN COMPONENT FUNCTION

5.1 FUNCTION OF EACH COMPONENT

1. Compressor

The function is to compress refrigerant gaseous so that make the temperature and pressure high.

2. Condensor

The function is to decrease the refrigerant temperature, so it is liquified with same pressure.

3. Pipe Mullion Dryer

Control Setting

Freezer Max

"3"

1.0±2.5

-22.5±2.5

PC door shelf

"2" "1"

Medium Refrige Max

6.0±2.5 -

5.5±2.5

-18.0±2.5

3.0±2.5

-12.0±2.5

The function is to pass the low

pressure gas to compressor.

Evaporator

Suction Pipe

The function is to prevent from sweating.

Dryer

Capillary Tube

It is contain silica gel and soft filter.

The dryer collect moisture and dust

in the refrigerant cycle, so that

capillary tube will not clogged up.

The function is to store cold air to

refrigerator so the refrigerant

change phase become gaseous

with low pressure .

4.0±2.5

60.0±15% 45.0±15%

100-15%

Mean fresh food compartment

Mean freezer compartment

Vegetable case

Tray egg

Running Ratio

The function is to reduce the

pressure of liquid refrigerant so that

make the temperature of refrigerant

low.

9.0±2.5 -

-6-

6. Reparation Standard

6.1. REPAIRING DEVICES WHICH ARE EXCLUSIVE - USE FOR HFC-134a REFRIGERANT

Important Notice :

1. Use repairing devices which are exclusive-use for HFC-134a refrigerating unit.

When pipe cleaning is so need :

When pipe cleaning is required :

3. Never use blowing agent containing chlorine.

CFC-12, CFC-113, HCFC-22, HCFC-141b, R-502

4. Be sure to use dryer which is exclusive - use HFC-134a.

Otherwise refrigerant HFC-134a will chemically decompose.

6.2. REPAIRING STANDARD OF REFRIGERATING UNIT HFC-134a

1. OMust be done

D Need to be done if compressor oil get dirty and no good quality (color changing)

Noise up normal

Motor burning

This refrigerator use compressor with Freol Oil. Freol Oil employed as new compressor oil for

refrigerant HFC-134a.

Freol oil is characteristic of higher hyroscopicity. When moisture leaks into the refrigerating

unit, it will chemically react with the moisture and solid substance clogging the pipe will form

It is also characteristic of less stability when chlorine is contain. Freol Oil will chemically

react with refrigerants containing chlorine and solid substance clogging the piping will form.

From the time just after pipe cleaning is completed until the process of setting compressor and

dryer (just before vacuum pumping process).

Since refrigerant HFC-134a has higher degree of swelling to the resin, charge hose and

packing should be made from good materials. Therefor when HFC-134a refrigerating unit,

repairing method and repairing devices axcept for vacuum pump are different from

conventional method and devices. This is to avoid mixture of different refrigerants and mixture

of different oil.

Do not keep the pipe open to air more than 30 minutes. Rubber caps of compressor parts

should be removed just before installation. It should be finished within 30 minutes.

From the process of removing compressor until the process of setting compressor and dryer

(just before vacuum pumping process).

CAUSE

Compressor broken

Compressor stop

Motor winding broken

Never re-use the pipes (example : charge pipe) which were once used for repairing CFC-12

refrigerant unit.

COMPRESSOR

FAULT

OO O

PART MUST BE CHANGE

PIPEDRYERCOMPRESSOR

OO D

O D

O O

OO D

Clogged by solid

material Inside of Inlet Eva.

Inside of Outlet Dryer O O

If gas charge fault cause solid material form, so compressor oil can not back flow to

compressor.

Clogged by liquid material

Gas Leakage*

Gas Charge fault ( example : CFC-12 ) CAN NOT REPAIRING

-7-

Caution :

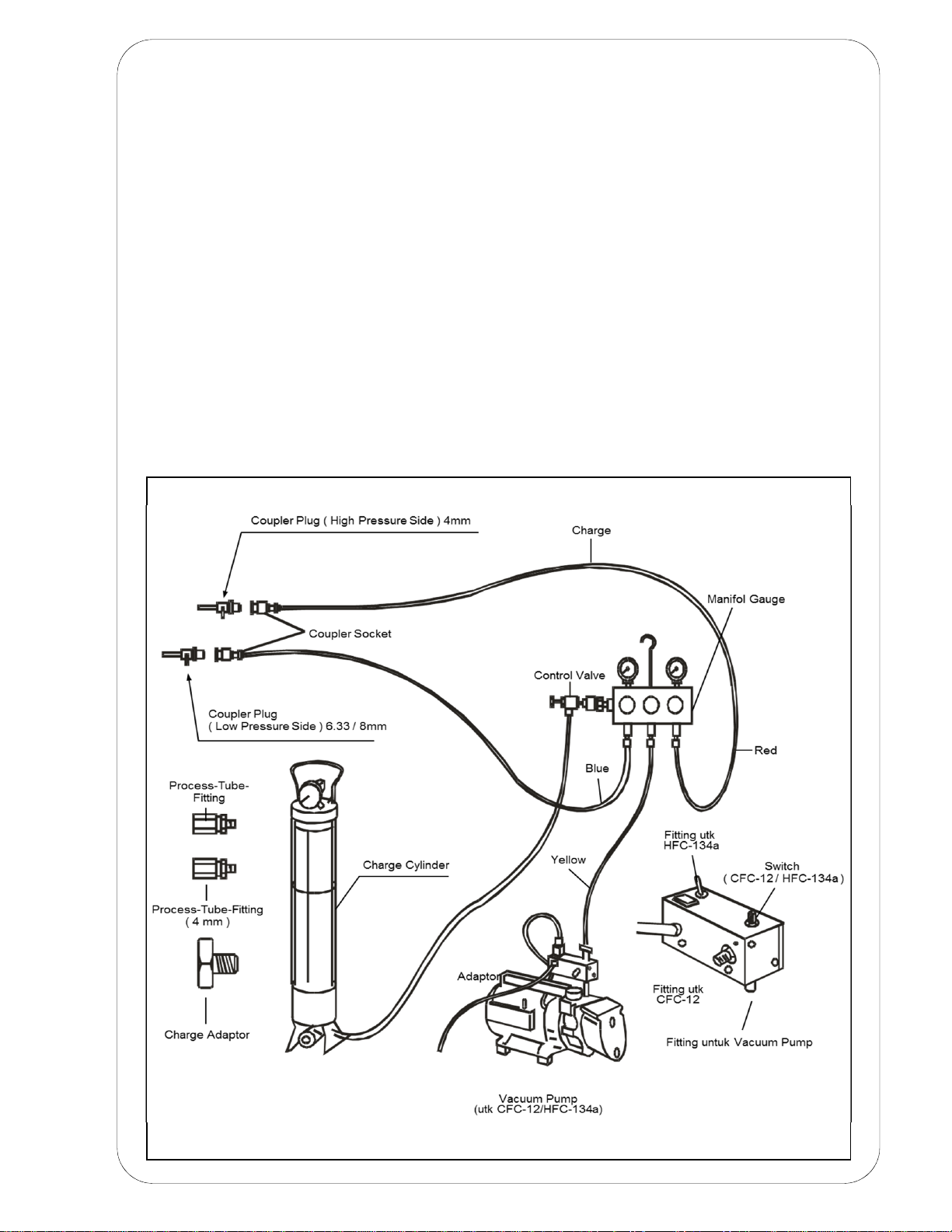

6.3. TOOL FOR REPAIRING REFRIGERATING UNIT HFC-134a

When the fitting for using CFC-12 is connected with the charge pipe (yellow), and then turn the

switch to be using CFC-12, the adaptor can be used for vacuum pumping of CFC-12

refrigerating unit.

Be sure to connect the adaptor with vacuum pump, so that it can be used for both CFC-12 and

HFC-134a.

Since the inside of manifold gauge and charge hoses are vacuum state after vacuum pumping,

the oil of vacuum pumping may flow into HFC-134a refrigerant unit. The adaptor prevents the oil

flowing into the refrigerating unit.

Before running the vacuum pump, connect the charge pipe (yellow) with the fitting for using

HFC-

1354a, and then turn the switch to be using HFC-134a.

Conventional repairing devices for CFC-12 can not connect with repairing devices for HFC-

134a. Because of the shape of fitting for HFC-134A (M10 x P1.5 mm) is different from

conventional ones.

-8-

6.4. REFRIGERATING UNIT REPAIRING PROCEDURE

STANDARD PROCEDURE

Diagnosing the trouble

Discharging the refrigerant

Removing the Compressor

Checking the compressor oil

A little discoloration

(light yellow) Severe discoloration

(light brown)

Purging the pipe at

high-pressure side

Purging the pipe at

low-pressure side

Joining compressor and

accumulator assy'

Setting the compressor and the dryer

Vacuum pumping and pot the electric parts

Charging the refrigerant

Leakage test

Test Run

Pinch-off seal of charge pipes

Finish

Refer to the TROUBLESHOOTING

* For purging the pipe, use HFC-134a as liquid state.

* Never use HCFC-141b, HCFC-22 for purging.

* o not keep the pipes open to air more than 30 minutes.

These process in total should be finished within

30 minutes.

* Rubber caps should be removed just before

compressor is used. Never leave the compressor

without the caps and open to the air.

Be sure to connect the adaptor with vacuum

pump.

Charge cylinder should be exclusive -

use for

HFC-134a.

This is to prevent different refrigerant ( CFC-12,

HCFC-22, CFC-113, HFCFC-141b, R-502) from

mixing with HFC-134a.

IMPORTANT THINGS

* At first, remove the refrigerant by cutting gas

charge pipe.

Check compressor oil

-9-

6.5. METHOD TO REPAIRING REFRIGERATING UNIT

CONDITION I. NOT COLD

Compressor not run

CONDITION II. LESS COLD

Release socket CN

201 and connect black

- brown wire and grey -

blue wire, then connect

AC Cord with electric

current.

CHECK CAUSE SUSPECT ANALYSIS ACTION

Short the wires

Change PAS ControlCheck with M TesterPas Control brokenCompressor run

Compressor not run

Change PCB in PCC

Check with M Tester on

PCC

Thermistor broken

Change motor protector

Check with M TesterMotor protector broken

Change PTC RelayCheck with M TesterPTC Relay broken

Change compressorCheck with M TesterMotor winding broken

Compressor noise but

not run

Power source broken

(starting voltage was

not enough

PTC Relay broken

Motor winding

disconnected

Starting motor burnt

Check starting PTC

voltage under load

Check with M Tester

Repair power source

Change PTC Relay

Change compressor

Compressor noise but

not compress Cooling unit broken

Compressor less

compression

Gas leakage

Be found residual gas

No gas

Repair gas leakage and

recharge

Sprayed with gas

Check the pressure of

outlet compressor Change compressor

Change PAS LEDPCC brokenOperation fault

Short time

Long time

Check defrost

component

Defrost component

problem

Evaporator closed by

too much frost

Repair at cooling unit

portion

Cooling unit broken

Evaporator not closed

by frost

Door not close fully

Compressor running

Outside of

evaporator

Repair gasket with

dryer or adjust the door

Gasket door have big

gap

Check the gap

between gasket and

cabinet

Less cold Open the door for long

time

Joint pipe leakage or

clogged

Door have big gap Adjust the door

The load inside

refrigerator is over

Repair at cooling unit

portion

Check cooling unit

Give the direction to

customer

Give the direction to

customer

Grey wire

Grey wireGrey wire

Grey wireBlack wire

Black wireBlack wire

Black wire

Brown

Brown Brown

Brown

wire

wirewire

wire Blue

Blue Blue

Blue

wire

wirewire

wire

-10-

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Réfrigérateur

Panasonic

Panasonic NR-B203G-S7 Manuel utilisateur

Panasonic

Panasonic NR-F657WX-X3 Manuel utilisateur

Panasonic

Panasonic Inverter NR-BW465V Manuel utilisateur

Panasonic

Panasonic NR-CY54B Manuel utilisateur

Panasonic

Panasonic NR-C370GH-N3 Manuel utilisateur

Panasonic

Panasonic NR-BE755ASQA Manuel utilisateur

Panasonic

Panasonic NR-B591B Manuel utilisateur

Panasonic

Panasonic NR-BC52MSSA Manuel utilisateur

Panasonic

Panasonic NR-CY54A Manuel utilisateur

Panasonic

Panasonic Easy Take NR-B182W Manuel utilisateur

Panasonic

Panasonic NR-BL302 Manuel utilisateur

Panasonic

Panasonic NR-BX421W Manuel utilisateur

Panasonic

Panasonic NR-BY551SS Manuel utilisateur

Panasonic

Panasonic NR-A191GW Manuel utilisateur

Panasonic

Panasonic NR-B32SX1 Manuel utilisateur

Panasonic

Panasonic NR-BC572VSAE Manuel utilisateur

Panasonic

Panasonic NR-BC752VSAE Manuel utilisateur

Panasonic

Panasonic NR-B181W Manuel utilisateur

Panasonic

Panasonic NR-B53V2 Manuel utilisateur

Panasonic

Panasonic ECONAVI NR-DZ600 Manuel utilisateur

Panasonic

Panasonic NR-D513XZ Manuel utilisateur

Panasonic

Panasonic BR-1271HP(AUH) Manuel utilisateur

Panasonic

Panasonic NR-BX418X Manuel utilisateur

Panasonic

Panasonic NR-B32FX2 Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
