Panasonic CQ-C8351N Manuel utilisateur

General

Power Supply DC 12V (11V - 16V),

Test Voltage 14.4V

Negative Ground

Tone Controls (Bass/Treble) Bass: ±12dB at 60Hz

Treble: ±12dB at 16kHz

Equalizer Center Frequency 60, 160, 400, 1k, 3k, 6k, 16k (Hz)

Variable Range of Equalizer -12dB to 12dB (2dB step)

Current Consumption Less than 2.2A

(CD mode; 0.5W × 4-speaker)

Maximum Power Output 50W × 4(at 4Ω)

Speaker Impedance 4-8Ω

Pre-amp Output Voltage

<CQ-C8351N,CQ-C8301N> 5V

<CQ-C7301N> 2.5V(CD mode)

Subwoofer Output Voltage

<CQ-C8351N,CQ-C8301N> 5V

<CQ-C7301N> 2.5V(CD mode)

Pre-amp Output Impedance

<CQ-C8351N,CQ-C8301N> 60Ω

<CQ-C7301N> 200Ω

Subwoofer Output Impedance

<CQ-C8351N,CQ-C8301N> 60Ω

<CQ-C7301N> 200Ω

CD Player

Sampling Frequency 8 Times Oversampling

Pick-up Type Astigma 3-Beam

rights reserved. Unauthorized copying and

distribution is a violation of law.

CQ-C8351N

CQ-C8301N

CQ-C7301N

WMA MP3 CD Player/Receiver with Full

Dot Matrix Display

Light Source Semiconductor Laser

Wave Length 790 nm

Frequency Response 20 Hz-20kHz (±1dB)

Signal to Noise Ratio 96dB

Total Harmonic Distortion 0.01% (1kHz)

Wow and Flutter Below Measurable Limits

Channel Separation 75dB

FM Stereo Radio

Frequency Range 87.5MHz - 108MHz

Usable Sensitivity 6dB/µV (S/N 30dB)

Stereo Separation 35dB (at 1kHz)

AM Radio(MW)

Frequency Range 531kHz - 1,602kHz

Usable Sensitivity 28dB/µV (S/N 20dB)

AM Radio(LW)

Frequency Range 153kHz - 279kHz

Usable Sensitivity 32dB/µV (S/N 20dB)

Dimensions (W×H×D)** 178×50×155mm

Weight** 1.6 kg

* Specifications and the design are subject to possible modification

without notice due to improvements.

** Dimensions and Weight shown are approximate.

** Above specifications comply with EIA standards.

AUTOMOTIVE AFTERMARKET

Specifications*

ORDER NO. ACED050211C8

1 ABOUT LEAD FREE SOLDER (PbF) 3

2 FEATURES 3

3 REPLACEING THE FUSE 3

4 MAINTENANCE 3

5 NOTES 3

6 DIMENSIONS 3

7 LASER PRODUCTS 3

8 WIRING CONNECTION 4

9 BLOCK DIAGRAM 6

10 DISASSEMBLY INSTRUCTIONS 10

11 TERMINALS DESCRIPTION 13

12 IC BLOCK DIAGRAM 17

13 REPLACEMENT PARTS LIST [CQ-C8351N/C8301N] 21

14 EXPLODED VIEW (Unit) [CQ-C8351N/C8301N] 27

15 REPLACEMENT PARTS LIST [CQ-C7301N] 28

16 EXPLODED VIEW (Unit) [CQ-C7301N] 34

17 CD PLAYER PARTS LIST 35

18 EXPLODED VIEW (CD PLAYER) 38

19 WIRING DIAGRAM 39

20 SCHEMATIC DIAGRAM 45

CONTENTS

Page Page

CQ-C8351N / CQ-C8301N / CQ-C7301N

1 ABOUT LEAD FREE

SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufactured) using lead free solder will have a PbF

stamp on the PCB.

Caution :

•

• •

• Pb free solder has a higher melting point than standard

solder; Typically the melting point is 50 - 70°F (30 -

40°C) higher. Please use a soldering iron with

temperature control and adjust it to 700 ± 20°F (370 ±

10°C). In case of using high temperature soldering iron,

please be careful not to heat too long.

•

• •

• Pb free solder will tend to splash when heated too high

(about 1100°F/600°C)

•

• •

• This lead free solder will be used for the products after

serial No. 1,000,001.

2 FEATURES

•

• •

• MP3/WMA Playback from CD-R/RW

•

• •

• Fully Motorized Front Panel

•

• •

• Innovated APM (Auto Preset Memory) method

•

• •

• Six Preset Modes (FLAT, ROCK, POP, VOCAL, JAZZ,

CLUB)

•

• •

• SQ7 (7 Bands Sound Quality)

•

• •

• CD Changer Control

•

• •

• DVD Changer Control

•

• •

• Customize the Display (Customize Function)

•

• •

• Delightful sound space thanks to system buildup

•

• •

• The difference among these models’ are mentioned below.

3 REPLACEING THE FUSE

Use fuses of the same specified rating 15 amps. Using different

substitutes or fuses with higher ratings, or connecting the unit

directly without a fuse, could cause fire or damage to the stereo

unit.

4 MAINTENANCE

Your products is designed and manufactured to ensure a

minimum of maintenance. Use a soft cloth for routine exterior

cleaning. Never use benzine, thinner or other solvent.

5 NOTES

[RADIO BLOCK]

Do not align the AM/FM package block. When the package

block is necessary, it will be supplied already aligned at the

factory.

[CD DECK BLOCK]

This model has no servo alignment points because

microcomputer controls the servo circuit

6 DIMENSIONS

7 LASER PRODUCTS

CQ-C8351N / CQ-C8301N / CQ-C7301N

8 WIRING CONNECTION

8.1. CQ-C8351N/C8301N

CQ-C8351N / CQ-C8301N / CQ-C7301N

8.2. CQ-C7301N

CQ-C8351N / CQ-C8301N / CQ-C7301N

9 BLOCK DIAGRAM

9.1. Main-1 Block [CQ-C8351N/C8301N]

CQ-C8351N / CQ-C8301N / CQ-C7301N

9.2. Main-1 Block [CQ-C7301N]

CQ-C8351N / CQ-C8301N / CQ-C7301N

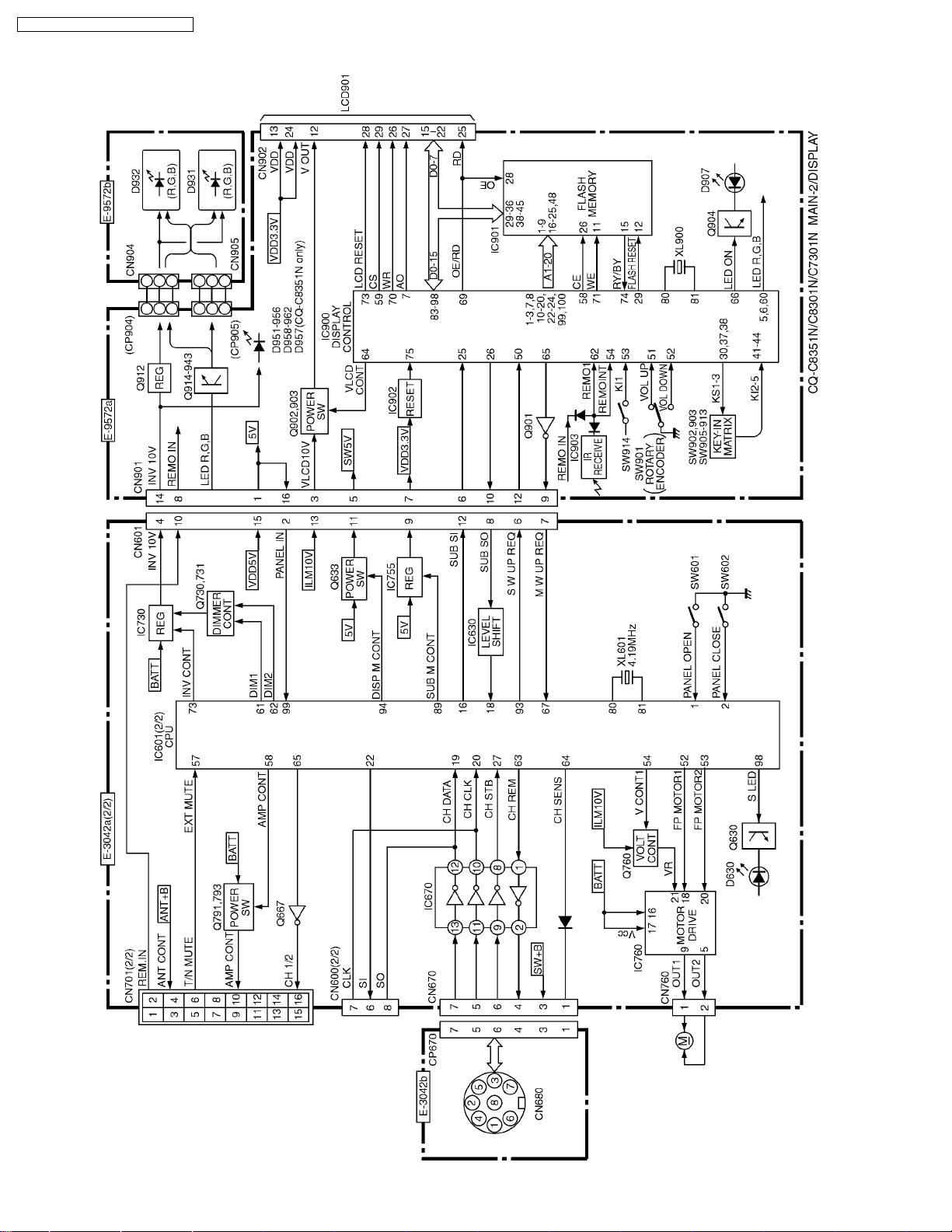

9.3. Main-2/Display/LED Block

CQ-C8351N / CQ-C8301N / CQ-C7301N

9.4. CD Servo Block

CQ-C8351N / CQ-C8301N / CQ-C7301N

10 DISASSEMBLY INSTRUCTIONS

10.1. How to Remove the Flexible PCB(AP2)

CQ-C8351N / CQ-C8301N / CQ-C7301N
