Panasonic CQ-C3503N Manuel utilisateur

ORDER NO.ACED060112C8

AUTOMOTIVE AFTERMARKET

CQ-C3503N / CQ-C3303N

MP3 CD Player/Receiver

SPECIFICATIONS

Specifications*

General

Power Supply DC 12V (11V - 16V),

Test Voltage 14.4V

Negative Ground

Current Consumption Less than 2.1A (CD mode ; 0.5W

4-channels)

Maximum Power Output 50W×4 (at 4 )

Power Output 22W×4 (DIN45 324, at 4 )

Tone Adjustment Range Bass ; ±12dB at 100Hz

Treble ; ±12dB at 10kHz

Speaker Impedance 4-8

Pre-Amp Output Voltage 2.5V (CD mode)

Pre-Amp Output Impedance 200

Front AUX Input

Input Impedance 10k

Allowable External Input 2.0V

Connector 3.5mm Stereo mini-pin

FM Stereo Radio

Frequency Range 87.5MHz - 108MHz

Usable Sensitivity 6dB/ V (S/N 30dB)

Stereo Separation 35dB (at 1kHz)

AM (MW) Radio

Frequency Range 531kHz - 1,602kHz

Usable Sensitivity 27dB/ V (S/N 20dB)

AM (LW) Radio

Frequency Range 153kHz - 279kHz

Usable Sensitivity 32dB/ V (S/N 20dB)

CD Player

Sampling Frequency 8 Times Oversampling

DA Converter 1bit DAC System

Pick-Up Type Astigma 3-beam

Light Source Semiconductor Laser

Wave Length 790nm

Frequency Response 20Hz to 20kHz (±1dB)

Signal to Noise Ratio 93dB

Total Harmonic Distortion 0.01% (1kHz)

Wow and Flutter Below measurable limits

Channel Separation 75dB

Dimensions** 178×50×160mm

Weight** 1.4kg

* Specifications and the design are subject to possible

modification without notice due to improvements.

** Dimensions and Weight shown are approximate.

-Above specifications comply with EIA standards.

Unauthorized copying and distribution is a violation of law.

1. ABOUT LEAD FREE SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufactured) using lead free solder will have a PbF stamp on the PCB.

Caution :

- Pb free solder has a higher melting point than standard solder; Typically

the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering

iron with temperature control and adjust it to 700 ± 20°F (370 ± 10°C). In

case of using high temperature soldering iron, please be careful not to

heat too long.

- Pb free solder will tend to splash when heated too high (about 1100°F/

600°C)

- This lead free solder will be used for the products after serial No.

1,000,001.

2. LASER PRODUCTS

3. FEATUERS

- Large-sized volume control.

- SQ (Sound Quality).

- SRS TruBass [CQ-C3503N].

- The AUX input terminal is equipped on the front panel.

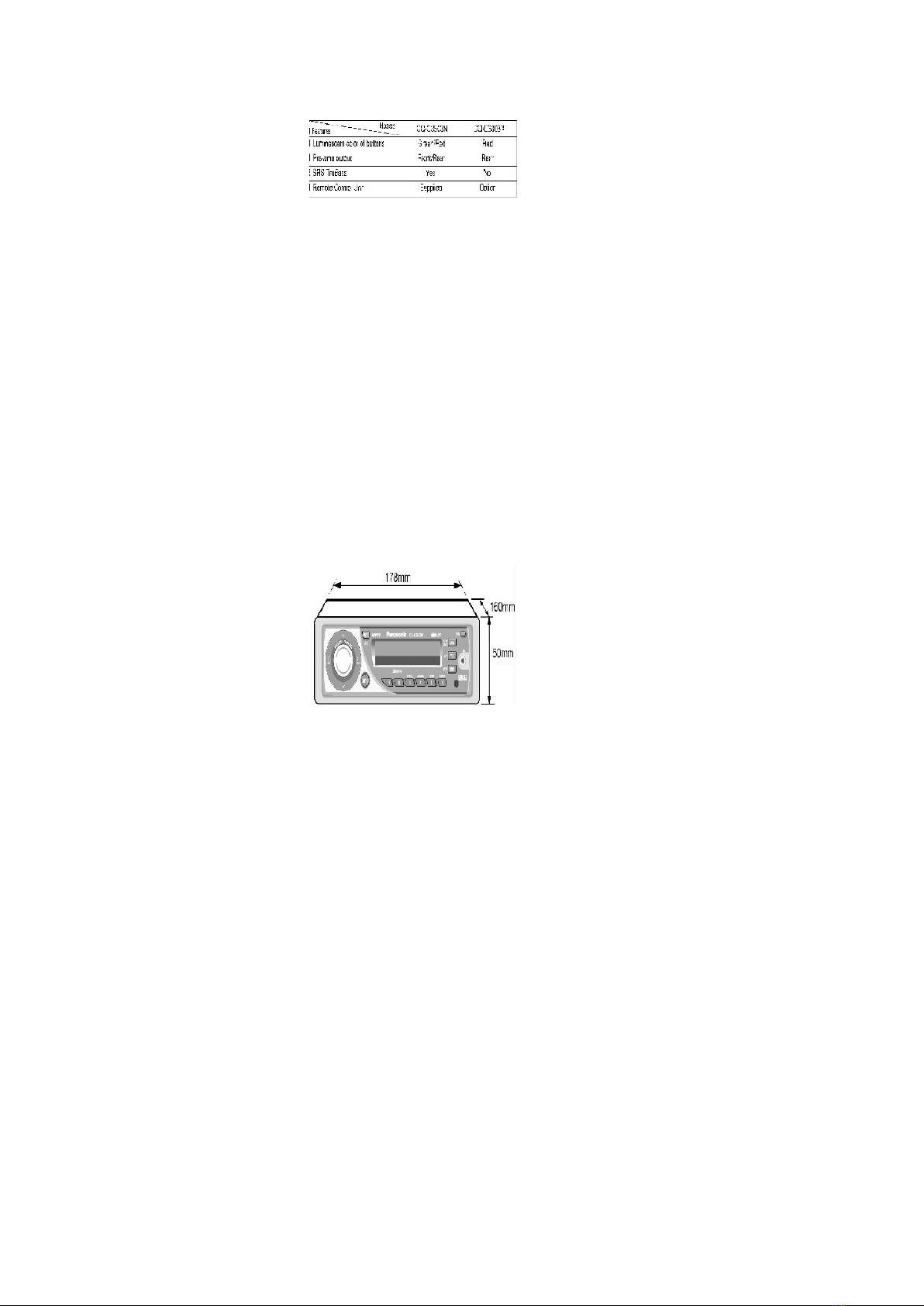

- This manual is for 2 models CQ-C3503N and CQ-C3303N. The following

table describes the differences between 2 models.

4. REPLACING THE FUSE

Use fuses of the same specified rating (15amps). Using different substitutes or fuses with higher

ratings, or connecting the product directly without a fuse, could cause fire or damage to the stereo unit.

5. MAINTENANCE

Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry, a soft

cloth for routine exterior cleaning. Never use benzine, thinner or other solvents.

6. NOTES

[RADIO BLOCK]

Do not align the AM/FM package block. When the package block is necessary, it will be supplied already

aligned at the factory.

[CD DECK BLOCK]

This model has no servo alignment points because microcomputer controls the servo circuit.

7. DIMENSIONS

8. WIRING CONNECTION

9. TERMINALS DESCRIPTION

9.1. Main Block

IC601 : YESAM356

No.

Port Description I/O (V)

FM AM CD

1 XIN Crystal oscillator I 2.5 2.5 2.5

2 TEST2 Ground I 0 0 0

3 VREG Bypass condenser

connected.

O 2.9 2.9 2.9

4VSSCPUGround - 0 0 0

5 NC - - - - -

6 NC - - - - -

7 NC - - - - -

8 NC - - - - -

9 LCD

LCD data output I 5 5 5

10 LCD DI LCD data input O 4.9 5 4.9

11 LCD

CLK

LCD clock O 5.1 5.1 5.1

12 LCD CE LCD chip enable

output

O 0 0 0.3

13 CD DO CD data output I 5.1 5.2 4

14 CD DI CD data input O 0 0 4.6

15 CD

CLK

CD clock O 4.9 49 4.9

16 CD CE CD chip enable O 0 0 1

17 CD LM

(+)

CD loading motor

control

O 0 0 0

18 CD LM

(-)

CD loading motor

control

O 0 0 0

19 CD S/L CD spindle motor

control

O 5.1 5.1 5.1

20 SUB

READY

Sub CPU ready

signal

I 0 0 5

21 CD

INSW1

CD insert SW input I 0 0 0

22 CD

SW2

CD mechanism

SW2

I 5.1 5.1 0

23 CD

LIMIT

CD limit SW I 0.2 0.2 5.1

24 CD

MUTE

CD Mute signal I 5.1 5.1 5.1

25 CD RST CD reset O 5.1 5.1 5.1

26 CD

DMUTE

CD mute O 0 0 5.1

No.

Port Description I/O (V)

FM AM CD

27 LOW

BATT

Battery low level

detect

I 5.1 5.1 0

28 NC - - - - -

29 PANEL Panel detect switch I 0 0 0

30 NC - - - - -

31 NC - - - - -

32 NC - - - - -

33 NC - - - - -

34 NC - - - - -

35 TBASS TruBASS IC

contorol

O 0 0 0

36 NC - - - - -

37 NC - - - - -

38 NC - - - - -

39 VDD

PORT

Power supply (+5V) - 5.1 5.1 5.1

40 VSS

PORT

Ground - 0 0 0

41 NC - - - - -

42 NC - - - - -

43 NC - - - - -

44 NC - - - - -

45 NC - - - - -

46 NC - - - - -

47 NC - - - - -

48 NC - - - - -

49 PWR

CNT

Power on control O 4.9 5 5

50 AMP

CNT

Amp control signal O 5.1 5.1 5.1

51 AMP

MUTE

Power IC mute

signal

O 5.1 5.1 5.1

52 STBY Power IC standby

control

O 5.1 5.1 5.1

53 SSC Tuner search

sensitivity change

O 0 0 5.1

54 AF

MUTE

AF mute O 5.1 5.1 5.1

55 I2C

DATA

Electronic VOL

data

O 5.1 5.1 5.1

56 I2C

CLK

Electronic VOL

clock

O 5.1 5.1 5.1

57 NC - - - - -

58 POWER

LED

Power LED O 0 0 0

59 NC - - - - -

60 NC - - - - -

No.

Port Description I/O (V)

FM AM CD

61 NC - - - - -

62 NC - - - - -

63 OP/CL Panel open/close

signal

I - - -

64 EJECT Eject switch signal I 5.1 5.1 5.1

65 EJ ILL Eject LED drive

control

O 5.1 5.1 5.1

66 TEL

MUTE

Telephone mute

signal

I 5.1 5.1 5.1

67 BATT Battery detection I 5.1 5.1 5.1

68 MODE

Rotary encoder

input B

I 5 5 5

69 RDS

CLK

RDS clock I 2.4 2.4 2.4

70 RM

DATA

Remote control

data

I - - -

71 MODE

Rotary encoder

input A

I 5 5 5.1

72 NC - - - - -

73 NC - - - - -

74 MONO FM MONO signal O 0 0 0

75 AM

MODE

Radio AM mode

control

O 8.2 0 8.2

76 FM

MODE

Radio FM mode

control

O 0 8.2 0

77 LEVEL Audio signal input

for level meter

I 0 0 1.5

78 INIT C Initial setting port I 0 0 0

79 INIT B Initial setting port I 0 0 0

80 INIT A Initial setting port I - - -

81 VSSADCGround - 0 0 0

82 RDS

DATA

RDS data I 2.6 0 2.5

83 ST FM stereo signal I 5.1 5.2 5.2

84 SD FM/

Radio signal

strength

I 0 0 0

85 NC Ground I 0 0 0

86 RESET Reset signal I 5 5 5

87 ACC ACC signal input I 5.3 5.3 5.3

88 NC Ground I 0 0 0

89 NC Ground I 0 0 0

90 FM/AM

IFC

FM/AM IF input I 1.4 1.3 1.3

91 NC - - - - -

92 NC - - - - -

93 VDDPLLPower supply of

PLL

- 5.1 5.1 5.1

No.

Port Description I/O (V)

FM AM CD

94 NC - - - - -

95 OSC

FM/AM

FM/AM osc input I 1.4 1.3 1.3

96 VSSPLL Ground - 0 0 0

97 NC - - - - -

98 EO1 PLL phase

comparison error

output

O 2.2 2.1 2.3

99 TEST1 Ground I 0 0 0

100 XOUT Crystal oscillator O 2.6 2.6 2.6

9.2. Display Block

IC901 : C0HBA0000195

No.

Port Description I/O (V)

1 GREEN

CNT

LED control (Green) O 0

2 RED CNT LED control (Red) O 4.9

3 -39 SEG3 -39 LCD segment data O 2.5

40 -43 COM1 -4 LCD common O 2.5

44, 45 SEG40,

LCD segment data O 2.5

46 -49 KS3-6 Key scan O 5.0

50 -54 Kl1-5 Key data I 0

55 TEST (Connecting to ground) - 0

56 VDD +5V power supply - 5.0

57 VDD1 VDD1 filter terminal - 3.3

58 VDD2 VDD2 filter terminal - 1.7

59 VSS Ground - 0

60 OSC Oscillator terminal - 3.8

61 DO Key data output O 5.0

62 CE LCD driver chip enable I 0.3

63 CLK LCD clock I 5.1

64 DI LCD data I 4.9

10. PACKAGE AND IC BLOCK DIAGRAM

10.1. Main Block

PA051 : YESAP403

IC201 : YESAM293

IC231 : YESAM320

IC501 : YESAM283
