Panasonic WV-Q169E Manuel utilisateur

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

The model number is abbreviated in some descriptions in this manual.

Instructions

Ceiling Mount Bracket

Model No. WV-Q169E

ENGLISHDEUTSCHFRANÇAIS

ESPAÑOL

ITALIANOêìëëäàâ

All work related to the installation of this product should be made by qualified service

personal or system installer.

Use this apparatus for indoor use only.

Installation area

• Consult the dealer about the installation area to select a strong ceiling area. Make sure that

the installation area is strong enough to hold the total weight of the camera assembly

before installation.

Refer to the following about the weight of the camera assembly in accordance with the

model:

• WV-NW484S: approx. 2.2 kg

• WV-NW502S: approx. 2.15 kg

• WV-CW504S: approx. 2.05 kg

•WV-CW500S: approx. 2.25 kg

• The installation area shall have 210 mm or more space behind the ceiling.

• The thickness of the ceiling board for installation can range from 9 to 40 mm.

210 mm or more

Ceiling board: from 9 to 40 mm

CONTENTS

Preface ....................................................................................................................................... 2

Precautions ................................................................................................................................ 2

Major Operating Controls and Their Functions .......................................................................... 4

Installations ................................................................................................................................ 4

Specifications ............................................................................................................................. 9

Standard Accessories ................................................................................................................ 9

Precautions

Preface

The WV-Q169 is a ceiling embedded bracket that is exclusively designed to mount the color

CCTV camera: WV-CW504S, WV-CW500S, and Network camera: WV-NW484S, WV-NW502S,

on a ceiling. This bracket can be used for an area with weak pull-out strength such as plaster-

board in a double ceiling, and the embedded type makes the visible part of the camera small-

er.

Avoid installing in the following locations.

• Locations where it may get wet from rain or water splash

• Locations where a chemical agent is used such as a swimming pool (not only outdoor)

• Locations subject to steam and oil smoke such as a kitchen

• Locations where radiation or x-ray emissions are produced

• Locations where it may be damaged by briny air such as seashores

• Locations where the temperature is not within –30 °C to +50°C.

• Locations subject to vibrations (This product is not designed for on-vehicle use.)

• Locations where the temperature may rapidly change such as the peripheral areas of the

air outlets of air conditioners or doors facing outside. (In case of installing the camera in

such locations, the dome cover may become foggy or condensation may be caused on the

cover.)

Tightening the screws and bolts

• The screws and bolts must be tightened with an appropriate tightening torque according to

the material and strength of the installation area. After tightening the screws or bolts, per-

form visual check to ensure tightening is enough and there is no backlash.

• Required pull-out capacity of a single screw/bolt is 196 N or more.

Do not rub the edges of metal parts with your hand.

Failure to observe this may cause injury.

Be sure to remove this apparatus if it is not in use.

Be sure to install the safety wire.

Use the specified camera only.

Failure to observe this may cause a fall of an inappropriate camera resulting in injury or acci-

dents. Mount WV-CW504S, WV-CW500S, WV-NW484S, WV-NW502S on this bracket exclusive-

ly.

Periodic inspections shall be conducted.

Rust on the metal parts or screws may cause a fall of the product resulting in injury.

Consult the dealer for the inspections.

ENGLISH

Major Operating Controls and Their Functions

WV-CW504S, WV-CW500S,

WV-NW484S, WV-NW502S

Roof space

Safety wire angle (Accessory)

Safety wire (Accessory)

* Read the manual of the camera as

well.

Installations

Be sure to read "Precautions" on the page 2 before installation. The manual of the camera, WV-

CW504S, WV-CW500S, WV-NW484S, WV-NW502S shall be read as well.

1. Put Template A (accessory) against the ceiling and make a hole.

qMake 4 holes of 12 mm in diameter.

wRemove the centre part from the tem-

plate.

eMake a hole of 180 mm in diameter.

The ceiling holes are shown

in the drawing at right. →

Ceiling face ø12 mm

(4 positions)

ø180 mm

Template A

Roof space

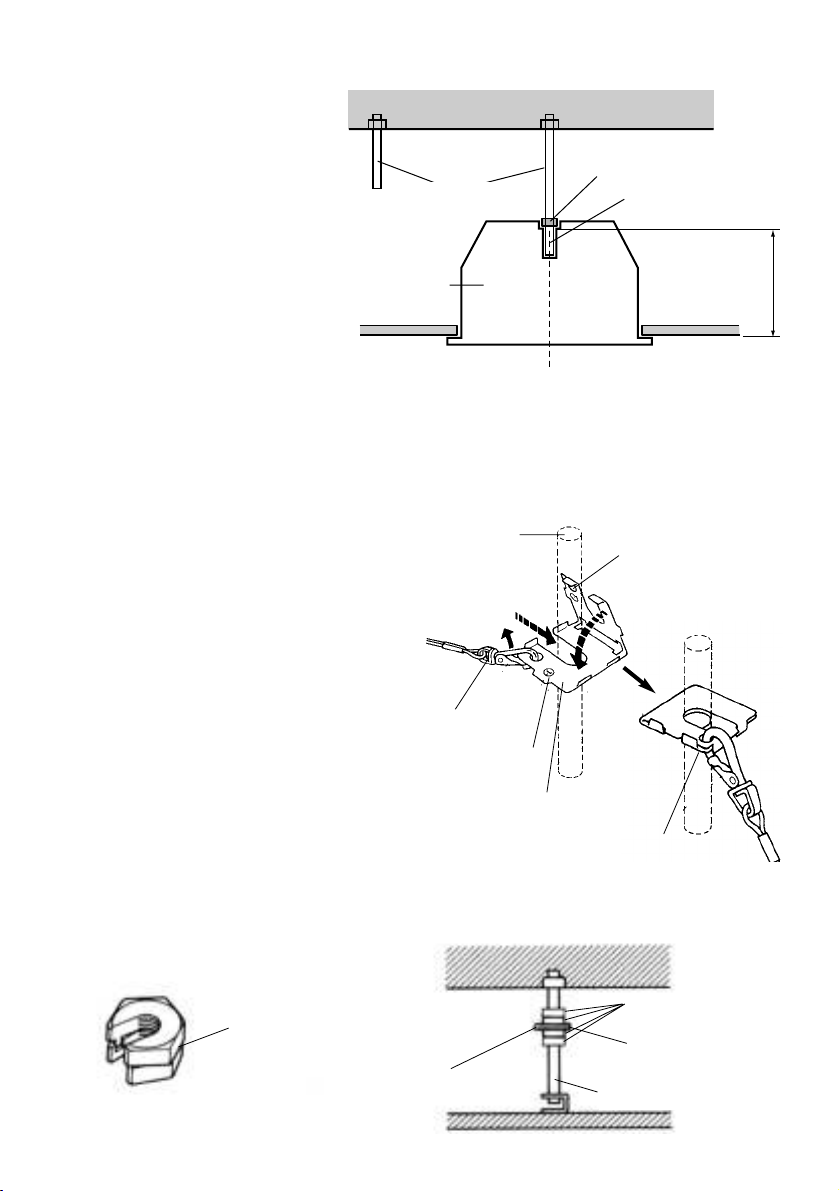

2. Install two anchor bolts (locally procured: M10 recommended) into the concrete ceil-

ing.

qInstall an anchor bolt in the

centre of the hole made in the

step 1.

wDetermine the anchor bolt

length by use of Template B

(accessory).

eUse Template B (accessory) to

decide the nut position, and fix

it.

(Mount the nut so that the dis-

tance between the bottom sur-

faces of the nut and ceiling is

adjusted to 134 mm.)

Note: If there is already an anchor bolt installed, the anchor bolt can be used as a 2nd anchor

bolt. Make sure that the distance between the 1st and 2nd anchor bolts is 1 000 mm or less

before use.

3. Mount the safety wire angle (accessory) on the 2nd anchor bolt and connect the safe-

ty wire (accessory) to the angle.

qDisconnect the safety wire from the safe-

ty wire angle.

wEngage the face marked qwith the

anchor bolt.

eBend the face marked w.

rConnect the safety wire to the safety wire

angle again.

Note: To use the anchor bolt that was already installed, the use of 2 spacer nuts (locally pro-

cured) is helpful.

Anchor bolts

Nut (locally procured)

Template B

Determine the anchor

bolt length

Ceiling board Install the anchor bolt in the centre

of the hole

134 mm

Upper side

Lower

side

Safety wire

wInsert

qDisconnect

eBend

Mark w

Mark q

rConnect

Safety wire angle

Anchor bolt

Spacer nuts

(locally procured)

Safety wire

Spacer nuts

Safety wire angle

Existing anchor bolt

2nd Anchor bolt

(locally procured) 1st Anchor bolt (locally procured)

Important: When securing this bracket on

the ceiling, make sure that the four ceil-

ing board fixing brackets are open as

shown in the following figure.

7. Use double nuts (locally procured) to

secure the mount bracket after insert-

ing the 1st anchor bolt.

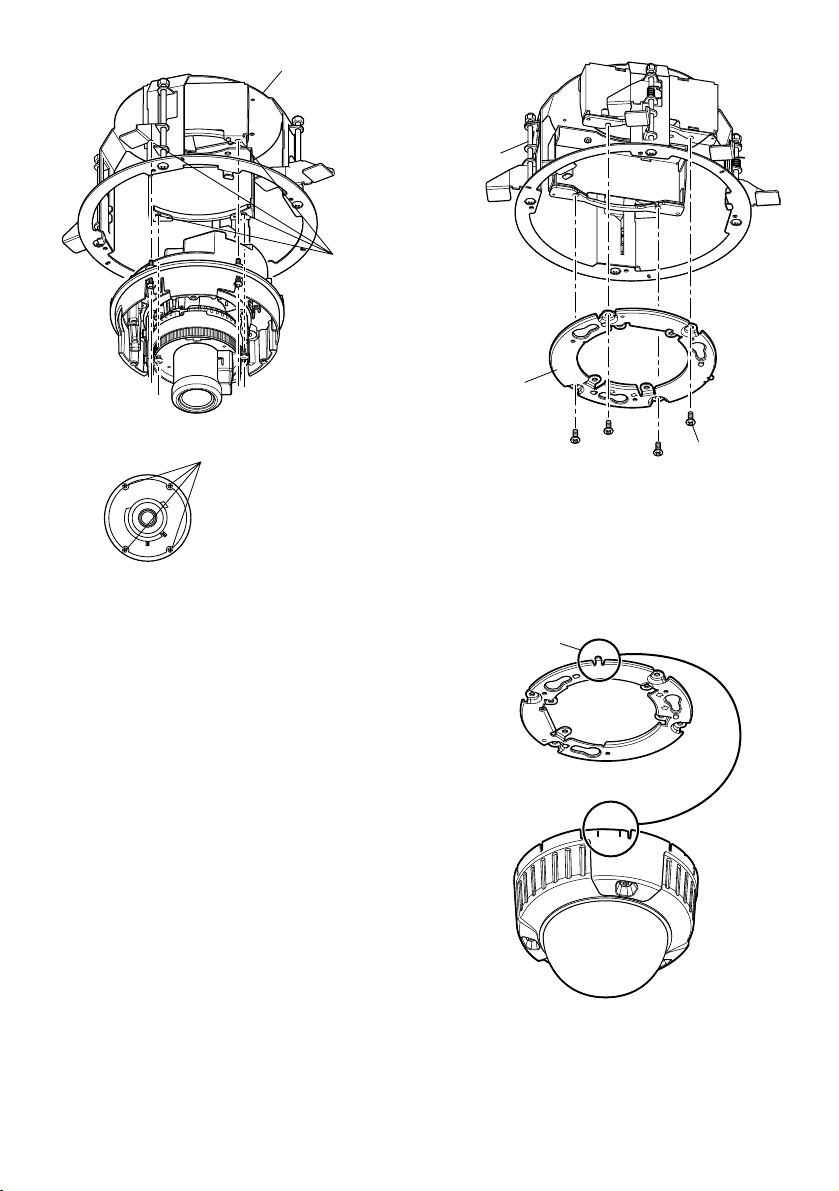

8. Follow the procedure according to the

model of the camera to be installed.

qUse the driver bit supplied with the cam-

era to remove the screws that secure the

camera enclosure and remove the enclo-

sure from the camera main body.

Important: Refer to the Operating inst-

ructions of the camera as well.

wPerform camera wiring.

eAlign the screw holes of the mount

bracket with the 4 mounting screws of

the camera main body and tighten them.

(Recommended tightening torque:

0.78 N·m)

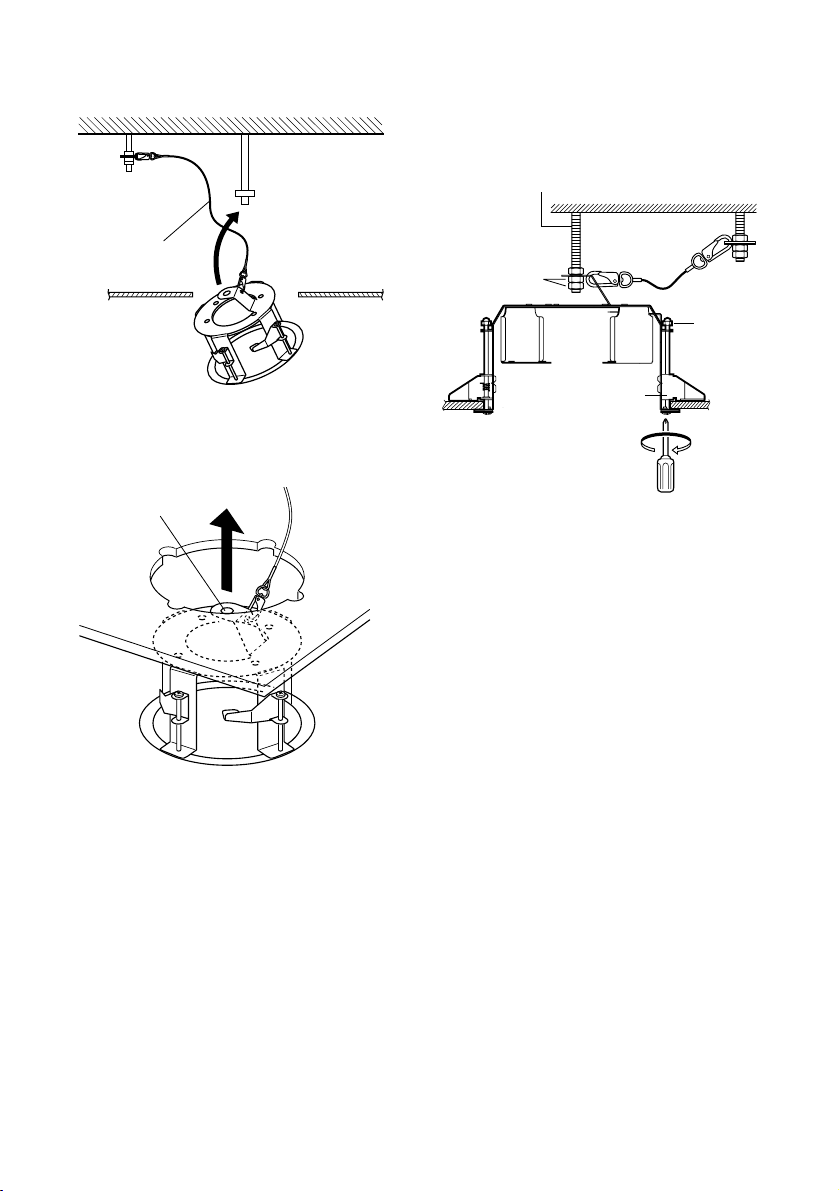

4. Connect this mount bracket to the tip

of the safety wire.

5. Insert the 1st anchor bolt into the

mounting hole of the mount bracket.

6. Secure the mount bracket to the ceil-

ing board with the ceiling board fixing

screws (4 positions).

Turning the ceiling board fixing screws

clockwise provides ceiling board

tightening between the bottom of the

mount bracket and ceiling board fixing

bracket resulting in mount bracket

securing.

(Recommended tightening torque:

0.78 N·m)

Safety wire (Accessory)

Roof space

Insert the mount

bracket into the hole

Mount bracket

Mounting hole

1st anchor bolt

Ceiling

board fixing

screw

Ceiling board

fixing bracket

Turn clockwise

Double nuts (locally

procured)

Ceiling board

Note: The mount bracket supplied with

the camera is not used.

rMount the camera enclosure on the cam-

era main body.

<Installing WV-CW504S, WV-CW500S,

WV-NW502S>

qMount the camera attachment (supplied

with the camera) to this bracket.

Use 4 M4-L8 screws (supplied with the

camera) to secure the camera attach-

ment firmly as shown in the drawing.

(Recommended tightening torque: 0.78

N·m {0.58 lbf·ft})

wConnect the camera cables.

eAlign the “OPEN” mark of the camera

with the protrusion of the camera attach-

ment.

Engage the camera with the camera

attachment.

FRONT TOP

Bracket

Camera

attachment

M4-L8 screw

Screws of the main camera body

Ceiling mount

bracket

Screw

holes

LOCK

OPEN

FRONT TOP

Protrusion

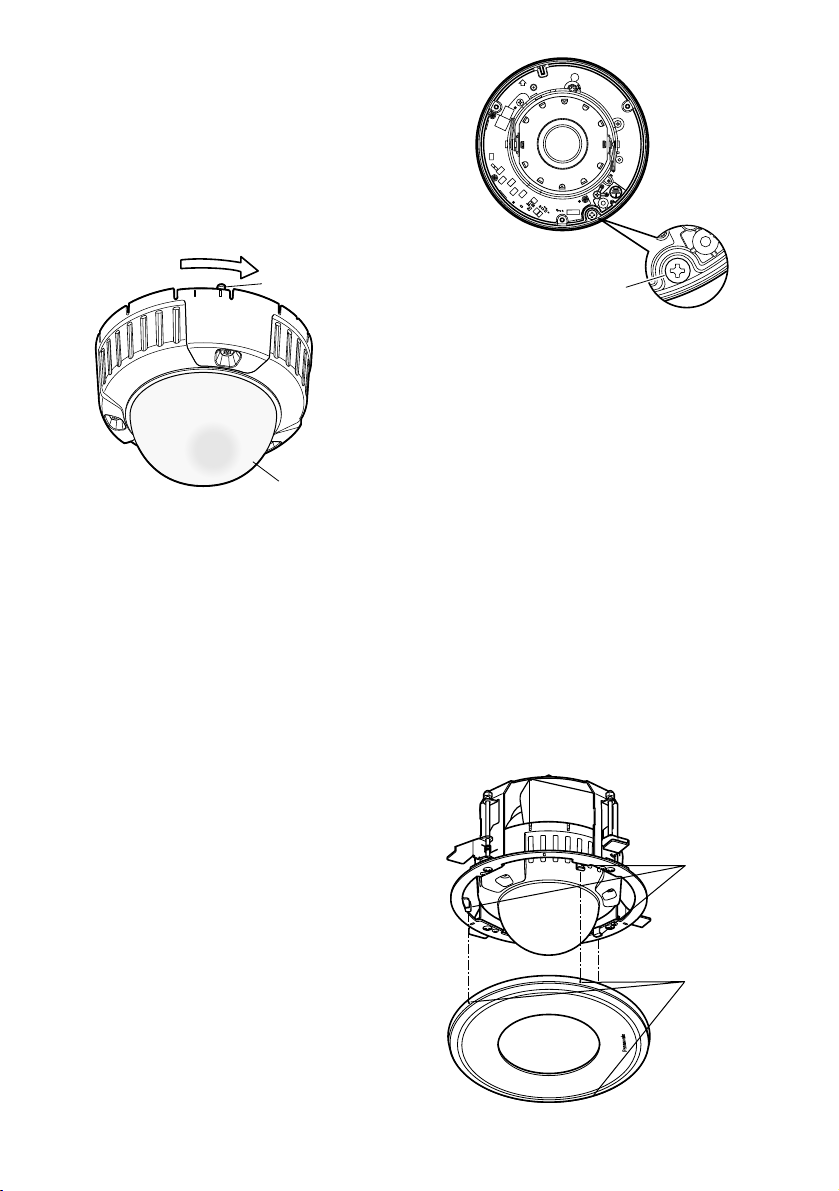

rRotate the camera in the arrow direction

so that the protrusion of the camera

attachment is aligned with the "LOCK"

position to eliminate any backlash

between the camera and camera attach-

ment.

Engage the camera with the camera

attachment.

tUse the driver bit (supplied with the cam-

era) to loosen the screws that secure the

camera enclosure and remove the enclo-

sure from the camera main body.

Secure the camera to the camera attach-

ment with the camera fixing screw (red):

(Recommended tightening torque: 0.78

N·m {0.58 lbf·ft})

Important: The camera fixing screw shall be

securely tightened. Otherwise, water

exposure may cause damage or mal-

function of camera, or camera dropping

may result in injury.

(Recommended tightening torque: 0.78

N·m {0.58 lbf·ft})

yAdjust the camera.

Refer to the manual of the camera.

uUse the driver bit (supplied with the cam-

era) to tighten the screws that secure the

camera enclosure and mount the enclo-

sure on the camera main body.

9. Mount the decorative cover on this

mount bracket.

• Mount the decorative cover on the cam-

era mounting plate with engaging the

projections of the decorative cover with

the hooks for the decorative cover.

• Turn the decorative cover clockwise until

the cover clicks while pressing the cover

upward to lock the cover.

LOCK

OPEN

Protrusion

Enclosure

Camera fixing screw

Hooks for the

decorative

cover

Projections

Specifications

Ambient temperature –30 °C to +50 °C

Dimensions 204.4 mm in diameter x 143.4 mm in height

Weight Approx. 700 g

Finish Main body: Metal

Decorative cover: ABS resin with light silver coating

Standard Accessories

Instructions (this book) .................................. 1 pc.

The following are for installation.

Safety wire ..................................................... 1 pc.

Safety wire angle ........................................... 1 pc.

Template A .................................................... 1 pc.

Template B .................................................... 1 pc.

Decorative cover ........................................... 1 pc.

Table des matières

Langues :

Autres manuels Panasonic Support et étagère

Panasonic

Panasonic WV-Q150CE Manuel utilisateur

Panasonic

Panasonic ET-JPF200BK Manuel utilisateur

Panasonic

Panasonic WV-Q119 Manuel utilisateur

Panasonic

Panasonic TY32G22M - TV STAND Manuel utilisateur

Panasonic

Panasonic ET-JPF200BU Manuel utilisateur

Panasonic

Panasonic CF-CDSM1VC Series Manuel utilisateur

Panasonic

Panasonic KX-TCA727EX Manuel utilisateur

Panasonic

Panasonic TY-S37PA60W Manuel utilisateur

Panasonic

Panasonic TY-ST43PE8 Manuel utilisateur

Panasonic

Panasonic TY-35G30M Manuel utilisateur

Panasonic

Panasonic TY-ST10-M Manuel utilisateur

Panasonic

Panasonic WV-Q151CE Manuel utilisateur

Panasonic

Panasonic WV-Q110E Manuel utilisateur

Panasonic

Panasonic TY-ST42PX5W Manuel utilisateur

Panasonic

Panasonic TY-WK85PV12 Manuel utilisateur

Panasonic

Panasonic TY27G22M - TV STAND Manuel utilisateur

Panasonic

Panasonic ET-JPF100BU Manuel utilisateur

Panasonic

Panasonic WV-Q204/1 Manuel utilisateur

Panasonic

Panasonic WV-Q70 Manuel utilisateur

Panasonic

Panasonic WV-Q158C Manuel utilisateur

Panasonic

Panasonic TY-ST20-K Manuel utilisateur

Panasonic

Panasonic PPMF12D Manuel utilisateur

Panasonic

Panasonic WV-QWL500-W Manuel utilisateur

Panasonic

Panasonic WV-Q204/1S Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
