RS-232C Protocol Manual For

LCD Projectors

PT-L711, PT-L701, PT-L701SD,

PTL511, and PT-L501

Version 1.0

Revision List

Date Revision Number Description

07/02/2001 1.0 Manual first release

Panasonic Broadcast and Television Systems Company

3330 Cahuenga Blvd. West

Los Angeles, CA 90068

Phone 323-436-3500

Web Site http\\www.panasonic.com

Panasonic RS-232 Protocol

for LCD Projector

Table of Content

1Introduction_________________________________________________ 5

2Connection __________________________________________________ 6

2.1 Communication Parameters _________________________________ 6

2.2 Address level______________________________________________ 6

2.3 RS-232C Connection_______________________________________ 6

2.4 Cable Specifications________________________________________ 7

3Communication ______________________________________________ 8

3.1 Command Format_________________________________________ 8

3.2 Replies___________________________________________________ 9

4The Command List___________________________________________ 10

5Command Explanation _______________________________________ 14

5.1 Details of Notation in Command Tables ______________________ 14

5.2 Audio Volume Down (AUD) _______________________________ 15

5.3 Audio Volume UP (AUU)__________________________________ 16

5.4 Audio Volume Set (AVL)__________________________________ 17

5.5 Control Panel (CPK) _____________________________________ 18

5.6 Digital Zoom Down (DZD)_________________________________ 19

5.7 Digital Zoom Up (DZU) ___________________________________ 20

5.8 Input Select (IIS)_________________________________________ 21

5.9 Keystone (KST) __________________________________________ 22

5.10 Auto Keystone (OAK)____________________________________ 23

5.11 Auto RGB Input (OAR)__________________________________ 24

5.12 Auto Set-up (OAS) ______________________________________ 25

5.13 Auto YPbPr (OAY)______________________________________ 26

Panasonic RS-232 Protocol

for LCD Projector

5.14 Background Color (OBC) ________________________________ 27

5.15 Cursor Down (OCD)_____________________________________ 28

5.16 Cursor Left (OCL) ______________________________________ 29

5.17 Cursor Right (OCR)_____________________________________ 30

5.18 Cursor Up (OCU) _______________________________________ 31

5.19 Enter (OEN)____________________________________________ 32

5.20 Function 1 (OFC) _______________________________________ 33

5.21 Freeze (OFZ) ___________________________________________ 34

5.22 Gamma Set (OGS) ______________________________________ 35

5.23 Input Display (OID) _____________________________________ 36

5.24 Installation (OIL) _______________________________________ 37

5.25 Index Window (OIX) ____________________________________ 38

5.26 Keystone (OKS)_________________________________________ 39

5.27 Language (OLG)________________________________________ 40

5.28 Lamp Power (OLP)______________________________________ 41

5.29 Menu (OMN)___________________________________________ 42

5.30 RGB Format (ORF) _____________________________________ 43

5.31 Resizing (ORZ) _________________________________________ 44

5.32 Shutter (OSH) __________________________________________ 45

5.33 Standard (OST)_________________________________________ 46

5.34 Power Off (POF) ________________________________________ 47

5.35 Power On (PON)________________________________________ 48

5.36 Query Auto Keystone (QAK)______________________________ 49

5.37 Query Auto RGB Input (QAR)____________________________ 50

5.38 Query Auto Set-up (QAS) ________________________________ 51

5.39 Query Volume Level (QAV) ______________________________ 52

5.40 Query Auto YPbPr (QAY)________________________________ 53

5.41 Query Background Color (QBC) __________________________ 54

5.42 Query Clock Phase Level (QCP) ___________________________ 55

5.43 Query Dot Clock Level (QDC)_____________________________ 56

5.44 Query Input Display (QDI) _______________________________ 57

Panasonic RS-232 Protocol

for LCD Projector

5.45 Query Function (QFC) ___________________________________ 58

5.46 Query Horizontal Frequency (QFH)________________________ 59

5.47 Query Vertical Frequency (QFV) __________________________ 60

5.48 Query Freeze (QFZ) _____________________________________ 61

5.49 Query H-Position Level (QHP) ____________________________ 62

5.50 Query Input Signal (QIN) ________________________________ 63

5.51 Query Index Window (QIX) ______________________________ 64

5.52 Query Keystone (QKS)___________________________________ 65

5.53 Query Language (QLG) __________________________________ 66

5.54 Query Lamp Power (QLP)________________________________ 67

5.55 Query Picture Mode (QPM)_______________________________ 68

5.56 Query Power Condition (QPW) ___________________________ 69

5.57 Query RGB Format (QRF) _______________________________ 70

5.58 Query Resizing (QRZ) ___________________________________ 71

5.59 Query Signal Mode (QSG)________________________________ 72

5.60 Query Shutter (QSH) ____________________________________ 73

5.61 Query Installation (QSP) _________________________________ 74

5.62 Query Brightness (QVB) _________________________________ 75

5.63 Query Color Level (QVC) ________________________________ 76

5.64 Query V-Position Level (QVP) ____________________________ 77

5.65 Query Contrast Level (QVR)______________________________ 78

5.66 Query Sharpness Level (QVS)_____________________________ 79

5.67 Query Tint Level (QVT)__________________________________ 80

5.68 Query Video Size Level (QVZ) ____________________________ 81

5.69 Query White Balance Blue (QWB)_________________________ 82

5.70 Query White Balance Green (QWG) _______________________ 83

5.71 Query White Balance Red (QWR) _________________________ 84

5.72 Query Lamp On Time (Q$L)______________________________ 85

5.73 Query Lamp On Condition (Q$S)__________________________ 86

5.74 Brightness (VBR) _______________________________________ 87

5.75 Contrast (VCN)_________________________________________ 88

Panasonic RS-232 Protocol

for LCD Projector

5.76 Color (VCO) ___________________________________________ 89

5.77 Clock Phase (VCP) ______________________________________ 90

5.78 Dot Clock (VDC)________________________________________ 91

5.79 H-Position (VHP) _______________________________________ 92

5.80 Picture Mode (VPM)_____________________________________ 93

5.81 Signal Mode Set (VSG)___________________________________ 94

5.82 Sharpness (VSR)________________________________________ 95

5.83 Video Size (VSZ) ________________________________________ 96

5.84 S1 Signal (VS1) _________________________________________ 97

5.85 Tint (VTN)_____________________________________________ 98

5.86 V-Position (VVP)________________________________________ 99

5.87 White Balance Blue (VWB) ______________________________ 100

5.88 White Balance Green (VWG) ____________________________ 101

5.89 White Balance Red (VWR) ______________________________ 102

6. ASCII CODE TABLE _______________________________________ 103

7List of Signals______________________________________________ 107

Panasonic RS-232 Protocol

for LCD Projector

1Introduction

This document describes the commands and data formats to control by RS-232C,

from a controller to the Panasonic projector.

This document should be used in conjunction with the Operation Instructions.

Information furnished in this document, is believed to be accurate and reliable.

However, no responsibility is assumed for its use.

Panasonic RS-232 Protocol

for LCD Projector

2Connection

2.1 Communication Parameters

Signal Level RS-232C

Sync Method Asynchronous

Data Speed 9600 bps

Data length 8bit

Parity None

Stop bit 1

X Parameter None

S Parameter None

Code (command) JIS X 0201 (Capital Letters Only)

The device controlling the projector must match the above parameters. There is no capability to

change the settings of the projector.

2.2 Address level

The address level of this Projector corresponds to address level 0 within the MIS standard. This unit

does not support multiple machine control from a single communication port.

Address level 0 only one projector and the address information is eliminated

2.3 RS-232C Connection

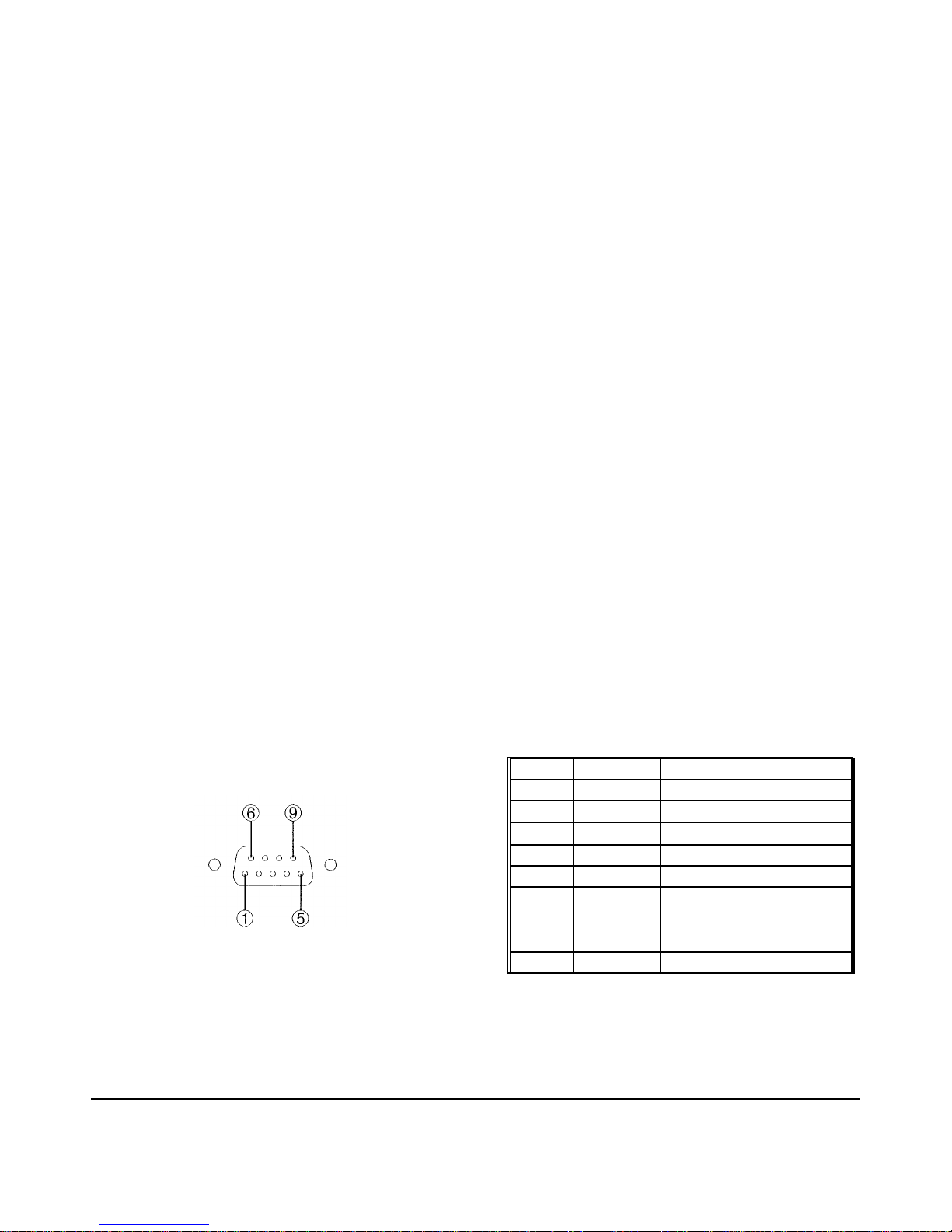

Connector is Dsub 9pin (Female) as seen from the outside

Pin # Signal Comment

1No connection

2TXD

3RXD

4Connected Internally

5GRD

6No connection

7CTS

8RTS Connected Internally

9No connection

Panasonic RS-232 Protocol

for LCD Projector

2.4 Cable Specifications

Use a RS-232C 9 pin to 9 pin straight cable. Pins 4,7 and 8 are internally shorted together in the

projector.

Panasonic RS-232 Protocol

for LCD Projector

3Communication

3.1 Command Format

Implement commands that are to be sent to the projector in the following manner.

[STX] COM1:P1P2P3P4 [ETX]

Head identifier -Send [STX] (Hex’02’or Ctrl B for ASCII), at the beginning of the command string.

This will allow the projector to receive the following command.

Command (COM1) –The Command is written by 3 characters. The Letters are capitalized. . See

the command tables in Section 5 for details.

Parameter (P1P2P3P4) -The Parameter data is required by certain commands. The parameter

data information can be 1 to 4 bytes in length, which is dependant on the individual commands. If no

parameter is required by the specific command, then this information does not need to be

transmitted. See the command tables in Section 5 for details.

End identifier -Send [ETX] (Hex’03’or CTRL C for ASCII) at the end of command string.

Command and its parameter should be separated by a ”:” colon (Hex’3A’). When a command that

does not require parameters is sent, then the separating colon can be eliminated.

Example of a command string

[STX] IIS:VID[ETX]

02 49 49 53 3A 56 49 44 03

CommandwithParameter

[STX] PON[ETX]

02 50 4F 4E 03

Command without Parameter
