Panasonic PTST10E - LCD PROJECTOR Manuel utilisateur

TQBH0228 (E/U/EA)

Operating Instructions

Network Operation Manual

LCD Projector

PT-ST10E

Model No. PT-ST10EA

PT-ST10U

AUTO

SETUP

MENU RETURN

ENTER

FREEZE AV

MUTE

COMPUTER

VIDEO

DEFAULT

FUNCTION

WIN.

INDEX-

DIGITAL ZOOM

VOLUME

Contents

RequestRegardingSecurity ·············································3

Whatyoucando·······················································3

Checkyourcomputer···················································4

Necessary environment for computers to be connected · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·4

Connecting with Wired LAN··············································4

Networksettingoftheprojector··········································5

Displaying the NETWORK menu ··············································5

NETWORK································································6

Wired LAN settings·····································································6

Default network settings· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·6

NAME CHANGE····························································7

NETWORK CONTROL·······················································7

STATUS ··································································8

INITIALIZE································································8

UsingWebBrowser·····················································9

Before using the WEB control ····························································9

AccessingfromtheWebBrowser············································10

Monitorinformationwindow····························································11

Projector control window·······························································12

Detailed set up window·································································12

Change password window······························································16

Switching Languages ··································································16

UsingPJLinkprotocol ·················································17

Applicablecommands·····················································17

Glossary·····························································18

Trademarks ··························································18

The illustrations and screenshots in this manual may be different from those on your computer.

Request Regarding Security

When using this product, security breaches of the type described below are conceivable.

Leakage of your private information via this product

•Illegal operation of this product by a malicious third-party

•Harm to or cessation of operation of this product by a malicious third-party

•

Be sure to implement sufficient security measures.

Set passwords, and limit the users that are permitted login access.

•Make sure the password is as hard to guess as possible.

•Change the password periodically.

•Panasonic Corporation and its affiliated companies never directly ask customers for their password.

•Do not give out your password even if directly asked by a third-party representing themselves as Panasonic Corporation.

Always use on a network that has safety protection such as a firewall implemented.

•

What you can do

<WEB control> (See page 9)

The following operations are possible when using WebBrowser.

Setting and adjusting the projector

•Displaying the projector status

•Setting for message transmission

•

<PJLink> (See page 17)

Compatible with PJLink Class 1. The following operations can be performed from a computer when PJLink protocol is used.

Setting the projector

•Querying the projector status

•

<Command control> (Refer to “SERIAL TERMINAL” in “Technical Information” of the Basic Manual.)

You can control the projector from a computer, using the control commands of the serial terminals.

If you use “WEB control”, “PJLink” or “Command control”, turn [ON] the [NETWORK CONTROL] in the NETWORK menu for the

projector. (See page 7)

Check your computer

Necessary environment for computers to be connected

First, check your computer to see whether or not it has a wired LAN

•function.

LAN : “Glossary” (See page 18)

Before connecting the computer to the projector, be sure to check the following settings.

•

Check 1 For LAN cable

Is the cable properly connected?

•Use LAN cable that is compatible with category 5 or above.

•

Check 2 Wired LAN settings

Is your wired LAN switched on?

•

Is your wired LAN adapter properly recognized?

•Is your wired LAN adapter switched on?

•Install the wired LAN adapter driver beforehand.

•For details on how to install the driver, refer to the instructions accompanying the wired LAN adapter.

Check 3 For WebBrowser

WebBrowser is necessary to use WEB control.

•Compatible WebBrowser : Internet Explorer 6.0/7.0/8.0

•

Do not touch the LAN terminal or the metal part of the LAN cable, the static electricity may discharge from our hand (body)

causing a malfunction.

Connecting with Wired LAN

Connection can be made with wired LAN. However, confirm to your system administrator on network settings before changing

any settings.

Turn on the computer.

1 Make the network setting according to your system administrator.

2 If the projector settings are the default settings (See page 6), the computer can be used with the following network

settings.

IPADDRESS 192.168.10.101

SUBNETMASK 255.255.255.0

DEFAULT GATEWAY 192.168.10.1

Network setting of the projector

When making a connection between a computer and a projector with settings other than the default settings, perform the

procedure below to display the menu required when changing the initial settings.

Displaying the NETWORK menu

Press the [MENU] button on the projector.

1 The main menu appears.

FUNCTION

ENTER

SELECT RETURN

LANGUAGE

PROJECTOR SETUP

SECURITY

NETWORK

POSITION

DISPLAY OPTION

PICTURE PICTURE MODE

CONTRAST

BRIGHTNESS

COLOR

TINT

DYNAMIC

−＋

SHARPNESS

COLOR TEMPERATURE

DAYLIGHT VIEW

NOISE REDUCTION

TV-SYSTEM

DEFAULT

AUTO

OFF

AUTO

−＋

Select [NETWORK] with the [▲▼] buttons.

2 The network menu appears.

LANGUAGE

PROJECTOR SETUP

SECURITY

NETWORK

POSITION

DISPLAY OPTION

WIRED LAN

NAME CHANGE

STATUS

INITIALIZE

NETWORK CONTROL ON


FUNCTION

ENTER

SELECT RETURN

Press the [ENTER] button

3 You can select the sub-menu item.

Depending on the signals which are input to the projector, it may not be possible to adjust some of the items and use some of

the functions. In the case of an item that cannot be adjusted or a function that cannot be used, the corresponding on-screen item

will not be displayed, and you will not be able to execute it even when you press the [ENTER] button.

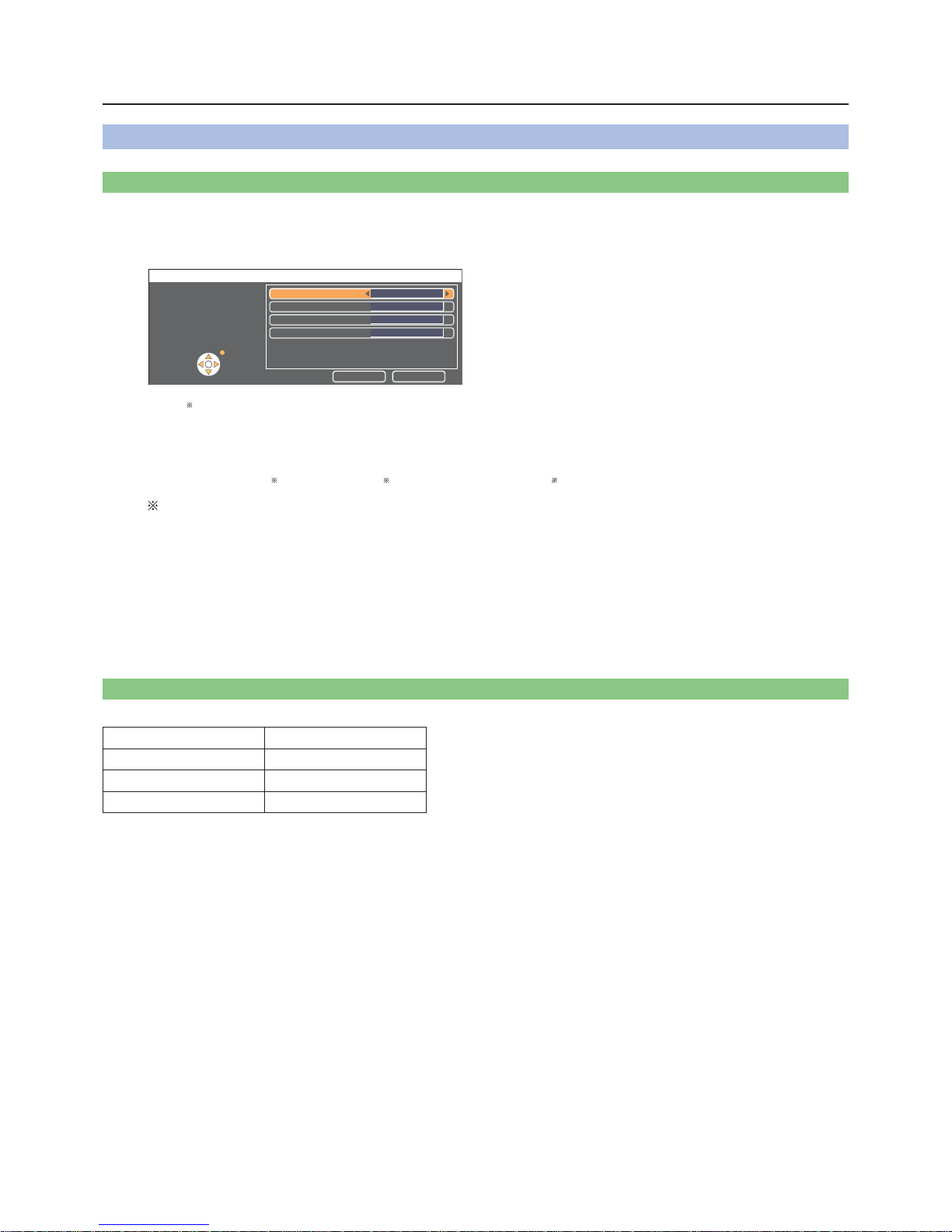

Network setting of the projector (cont.)

NETWORK

Wired LAN settings

You can make detailed wired LAN settings.

Select [WIRED LAN] in the NETWORK menu and press the [ENTER] button.

WIRED DETAILED SETUP

OK CANCEL

CANCEL

SELECT

DHCP

IP ADDRESS

SUBNETMASK

DEFAULT GATEWAY

192.168. 10.100

OFF

192.168. 10. 1

255.255.255. 0

DHCP

ON: If a DHCP server exists in the network to which the projector is connected, the IP address will automatically be

acquired.

OFF: If a DHCP server does not exist in the network to which the projector is connected, additionally set [IP

ADDRESS ], [SUBNETMASK ] and [DEFAULT GATEWAY ].

“Glossary” (See page 18)

Select each item with the [▲▼] buttons and change the settings following the

2 menu’s Operating guidance.

Select [OK] with the [▲▼] buttons and press the [ENTER] button.

Default network settings

The following settings are set before the projector leaves the factory.

DHCP OFF

IPADDRESS 192.168.10.100

SUBNETMASK 255.255.255.0

DEFAULT GATEWAY 192.168.10.1

Network setting of the projector (cont.)

NAME CHANGE

You can change the projector name on the network.

Select [NAME CHANGE] in the NETWORK menu and press the [ENTER] button.

LANGUAGE

PROJECTOR SETUP

SECURITY

NETWORK

POSITION

DISPLAY OPTION

WIRED LAN

NAME CHANGE

STATUS

INITIALIZE

NETWORK CONTROL ON


FUNCTION

ENTER

SELECT RETURN

2 Select characters with the [◄►▲▼] buttons and press

the [ENTER] button to enter the projector name.

Select [ALL DELETE] to remove all the entered characters. Press the [DEFAULT]

button on the remote-controller to clear a letter which is selected by the cursor in the

entry box.

Select [OK] with the [◄►▲▼] buttons and press the

3 [ENTER] button.

Select [CANCEL] to undo the changes.

NETWORK CONTROL

Set it to “ON”, if you want to control the projector from a computer that is network-connected.

Select [NETWORK CONTROL] in the NETWORK menu.

LANGUAGE

PROJECTOR SETUP

SECURITY

NETWORK

POSITION

DISPLAY OPTION

WIRED LAN

NAME CHANGE

STATUS

INITIALIZE

NETWORK CONTROL ON


FUNCTION

SELECT RETURN

Select [ON] or [OFF] with the [◄►] buttons.

If you turn [ON] the [NETWORK CONTROL], “WEB control”, “PJLink” and “Command control” are available.

NAME CHANGE

A B C D E F G H I J K L M

a O

b P

c Q

d R

e S

f T

g U

h V

i W

j X

k Y

l Z

SPACE

ALL DELETE

y z

! " # $ % & ’ * +

= ? @ ^

_ ` | ~ ( ) < > [ ] { } , . : ;

＊＊＊＊＊＊

OK CANCEL

RETURN

ENTER

SELECT

DELETE

Network setting of the projector (cont.)

STATUS

Your current settings appear.

Select [STATUS] in the NETWORK menu and press the [ENTER] button.

LANGUAGE

PROJECTOR SETUP

SECURITY

NETWORK

POSITION

DISPLAY OPTION

WIRED LAN

NAME CHANGE

STATUS

INITIALIZE

NETWORK CONTROL ON


FUNCTION

ENTER

SELECT RETURN

The status of the following will appear.

NETWORK

DHCP “ON” - “OFF”

IPADDRESS (See page 6)

SUBNETMASK (See page 6)

DEFAULT GATEWAY (See page 6)

MAC ADDRESS —

MAC ADDRESS : “Glossary” (See page 18)

INITIALIZE

You can reset the network settings to the factory default settings of the projector.

Select [INITIALIZE] in the NETWORK menu and press the [ENTER] button.

LANGUAGE

PROJECTOR SETUP

SECURITY

NETWORK

POSITION

DISPLAY OPTION

WIRED LAN

NAME CHANGE

STATUS

INITIALIZE

NETWORK CONTROL ON


ENTER

SELECT RETURN

The entry of the password is prompted if [PASSWORD] is turned [ON] in the “ SECURITY” menu.

2 Select [OK] with the [◄►] buttons and press the [ENTER]

button.

INITIALIZE

RETURN

ENTER

SELECT

INITIALIZE

OK CANCEL

Using WebBrowser

Control a projector through the WebBrowser of a computer. It is called “WEB Control”.

(The example is when using Microsoft Internet Explorer.)

Before using the WEB control

Connect the projector and a computer with a LAN cable. (See page 4)

Projector settings

Turn [ON] the [NETWORK CONTROL] in the NETWORK menu.

Select [NETWORK CONTROL] in the NETWORK menu.

Select [ON] with the [◄►] buttons.

2 ON : This enables control on the WebBrowser.

OFF : This disables control on the WebBrowser.

LANGUAGE

PROJECTOR SETUP

SECURITY

NETWORK

POSITION

DISPLAY OPTION

WIRED LAN

NAME CHANGE

STATUS

INITIALIZE

NETWORK CONTROL ON


FUNCTION

SELECT RETURN

Computer settings

Proxy server settings



Release the proxy settings of the WebBrowser used.

Open <Internet Properties> window.

1 Click [Start] → [Control Panel] → [Network and Internet Connections] → [Internet Option].

Click [Connections] tab → [LAN Settings].

3 If [Use a proxy server for your LAN] has been checked,

remove the check.

If [Use automatic configuration script] has been checked,

remove the check.

Click [OK].

Using WebBrowser (cont.)

Enabling JavaScript



If JavaScript has been set to disable, enable it.

Open <Internet Properties> window.

1 Click [Start] → [Control Panel] → [Network and Internet Connections] → [Internet Option].

Click the [Security] tab and set the security level to [Default Level], or select [Custom

2 Level] and check the [Enable] checkbox under [Active scripting].

Accessing from the WebBrowser

Start up the WebBrowser, and enter the IP address set to the projector.

1 The WebBrowser starts up and the authentication window appears.

http://10.69.104.56

Enter the User name and the Password.

Click [OK].

3 <Monitor information> window appears. (11 page)

The default user name and password settings are as follows:

•User name: user1 (with user authority) / admin1 (administrator authority)

Password: panasonic (lower case)

Administrator authority has full access to the all features. User authority has access to “Status”, “Projector control” and “Change

•password”. (User authority has no access to “Detailed set up”.)

Password used in this page is for accessing the web control window.

•(See page 16)

The system locks for several minutes if an incorrect password is entered three times in succession.

•If you initialize the network settings, the password is reset to “panasonic”. Change the password to an appropriate one.

•Make sure the password is as hard to guess as possible.

•Change the password periodically.

•If you have forgotten the password, perform [INITIALIZE] in the projector

•’s NETWORK menu (See page 8), and set a new one

in the “Change password” window of your WebBrowser. (See page 16)

Panasonic Corporation and its affiliated companies never directly ask customers for their password.

•Do not give out your password even if directly asked by a third-party representing themselves as Panasonic Corporation.

The Top window may not appear depending on the WebBrowser. In this case start up WebBrowser again, or press the [Ctrl] + [R]

•keys for example to update the screen.

Connection cannot be made while the WebBrowser is set to dial-up network. Cancel the dial-up network setting.

•It may take some moments for WebBrowser to start up.

•

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Projecteur

Panasonic

Panasonic PTL797U - LCD PROJECTOR Manuel utilisateur

Panasonic

Panasonic PT-LX22 Manuel du système

Panasonic

Panasonic PT-FX400 Manuel utilisateur

Panasonic

Panasonic PT-LB51NTE Manuel utilisateur

Panasonic

Panasonic PT-LB10U - Mobile Projector XGA 2000 Lumens Manuel utilisateur

Panasonic

Panasonic PT-VX431K Manuel utilisateur

Panasonic

Panasonic Presentation Solutions Manuel utilisateur

Panasonic

Panasonic PT-VX505NU Manuel utilisateur

Panasonic

Panasonic PT-TW230E Manuel utilisateur

Panasonic

Panasonic PLC-XP40 Manuel utilisateur

Panasonic

Panasonic PT-L780NTE Manuel utilisateur

Panasonic

Panasonic PT-DW730EL Mode d'emploi

Panasonic

Panasonic PT-EZ770 Series Manuel utilisateur

Panasonic

Panasonic PT-61G54 Manuel utilisateur

Panasonic

Panasonic PTL6600U - LCD PROJECTOR Manuel utilisateur

Panasonic

Panasonic PT-RZ570 Manuel utilisateur

Panasonic

Panasonic PT-VW340Z Manuel utilisateur

Panasonic

Panasonic PT-LW321 Manuel utilisateur

Panasonic

Panasonic PTFW100NTU - LCD PROJEC. WIRELESS Manuel utilisateur

Panasonic

Panasonic PT-DX820W Manuel utilisateur

Panasonic

Panasonic PTLW80NTU - LCD PROJECTOR - MULTI LANGUAGE Manuel utilisateur

Panasonic

Panasonic PT-F300 Series Manuel utilisateur

Panasonic

Panasonic PT-L712NTE Manuel utilisateur

Panasonic

Panasonic PT-DZ12000U - WUXGA DLP Projector Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
