Operating

.Instructions

Impact

Dot

Matrix

Printer

Panasonic

Before operating this unit, pleaseread these instructions completely.

This Manual: http://www.manuallib.com/file/2525964

1---------

FOR USE IN U.K.

------.....

I/I-M-P-O-R-T-A-N-T------------------------------------~,

The wires in this mains lead are coloured

accordance with the

following code:

Green and yellow: Earth

Blue: Neutral

Brown: Live

the colours of the wires

the mains lead of this apparatus may not

correspond with the coloures markings identifying the terminals

your

plug, proceed

follows:

-The

wire which is coloured green and yellow must

connected

the

terminal

the plug which is marked by the letter E or by the safety

earth symbol + or coloured green or green-and-yeITow.

-The

wire which is coloured blue must be connected to the terminal

which is marked·with the letter N or coloured black.

-The

wire which is coloured brown must be connected to the terminal

which is marked with the letter L or coloured

red.

WARNING:

This apparatus must be earthed.

. -This equipment is produced to B8800: 1977.

'-------------------------------------------------~

~------FORyOURSAFETy--------~,

To ensure safe operation the three-pin plug supplied (Not available for

U.K.) must be inserted only into a standard three-pin power point which

is effectively earthed through the normal household wiring.

Extension cords used with the equipment must

three-core

and

correctly wired

provide connection

earth. Wrongly wired exten-

sion cords

are

a major cause of fatalities.

The fact that the equipment operates satisfactorily does not imply that

the power point is earthed

and

that the installation is completely safe.

For your safety, if

any doubt about the effective earthing of the

power point, consult a qualified electrician.

Any details given

these Operating Instructions

are

subject to change

without notice.

This Manual: http://www.manuallib.com/file/2525964

WARNING

-Power

source voltage of this unit is listed

the nameplate. Do not

·fail to plug into the right voltage.

-To prevent fire

shock hazard, do not expose this product to rain

-any

type of moisture.

The serial number of the unit may be found

the label

the rear of

.the unit. For your convenience, note this number below, and retain

this book, along with your proof of purchase, to serve as a permanent

record of your purchase

the event of a theft, or for future reference.

MODEL NO. KX-P1124 NAME OF DEALER

____

SERIAL NO.

____

_ DATE OF PURCHASE

___

IBM and IBM-PC are registered trademarks of International Business

Machines Corporation.

Proprinteris a trademark of International Business Machines

Corporation.

Microsoft is a registered trademark of Microsoft Corporation.

Apple is aregi?tered trademark of Apple Computer, Inc.

Epson is atrademark of Seiko Epson Corporation.

This Manual: http://www.manuallib.com/file/2525964

Table of Contents

Introduction Page

1.1

ProductOverview. . . . . .. . . . .. . . . . . . . . . .. . . .. . . . . . .. . . . .

1-1

1.2 Specifications

........................................

1-3

1.3 Names ofthe Parts

....................................

1-6

The FrontView ofthe KX-P1124

........................

1-6

TheTop View

the KX-P1124

.........

...............

1-7

The RightView

ofthe

KX-P1124

........................

1-8

The RearView

ofthe

KX-P1124

........................

1-8

2. Set up

2.1

Site Requirements

....................................

2-1

2.2 Unpacking and Inspection

.......................

.....

2-1

2.3 Initial Setup

..........................................

2-2

Removing the Protective

Paper.

. . . . . . .. . . .. . . . . . .. . . . .

2-2

Removing the PrinterCovers . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2

Mounting the Ribbon Cassette

..........................

2-3

2.4 Power Up

............................................

2-4

2.5 Adjusting the Printing Head Gap

........................

2-4

2.6 Paper Installation. . . . . . . . . .. . . .. . . . .. . . .. . . . . . . . . . . . .

2-5

Single Sheets and Envelopes

..........................

2-5

Continuous Fanfold Paperwith Pull-Tractor

..............

2-7

Continuous Fanfold Paperwith Push-Tractor.

...........

2-10

2.7 Aligning theTop

Form.

. . . . . . . . ..

.... ..

. . . . . . . . . . .

2-13

2.8 SelfTest

............................

...............

2-14

2.9 Connecting to Computer. . . . . . . . .. . . . .. . . .. . . . . . .. . . . .

2-14

3. Operation

3.1

EZ SetOperator Panel

................................

3-1

FUNCTION switch

....................................

3-1

ON LINE

swMh

......................................

3-2

FF switch

............................................

3-2

LF switch

............................................

3-3

ROW switch

..................

.......................

3-4

COLUMN switch

......................................

3-5

SETswitch

..........................................

3-5

3.2 Function mode

......................................

" 3-6

Settingthe Control Table

..............................

3-7

MEMO LOAD

........................................

3-11

3.3 Initial Setup mode

....................................

3-12

3.4 Detectors

............................................

3-16

3.5 Initialization

..........................................

3-17

3.6 HexDump

..............

................

.......

3-18

This Manual: http://www.manuallib.com/file/2525964

Table of Contents

Software Introduction Page

4.1

Introduction......................................

4-1

4.2 Control Codes. . . . . . . . .. . . .. . . .. . . .. . . .. . . .. . . .

...

4-1

4.3 Entering Control Codes

through Commercial Software Packages

............

4-2.

4.4 Entering Control'Codes Directlyfrom the Keyboard. .

4-3

4.5 Entering Control Codes from Within a Program. . . . . .

4-4

4.6 Entering Hexadecimal Code. . . . . .. . . .. . . .. . . . .. . .

4-4

4.7 Control Codes. . . . . . . .. . . . .. . . .. . . .. . . .. . . . .. . . .

4-4

4.8 Special Code for IBM

series. . . . . . . .. . . .. . . . . . .

4-6

KX-P1124 Features

5.1

Print Feature Control

.............................

5-1

5.2 Down Line Load Characters. . . . . . . .. . . .. . . .. . . . . .

5-3

5.3 Bit Image (Graphics)

..............................

5-14

Epson LQ-2500 Mode

Commands..............

6-1

IBM

Proprinter X24 Mode Commands

..........

7-1

Interfacing

........................................

8-1

Maintenance............................

.........

9-1

APPENDIX A Character Set Chart

...........

......

...

A-1

APPENDIX B Proportional Spacing Tables

..........

...

B-1

APPENDIX C Structure of

IndexTable Entry

..........

C-1

APPENDIX D Down Line Load Character Matrix Blanks

, 0-1

APPENDIX E Paper

..................................

E-1

APPENDIX F Printing Area

............................

F-1

Index..................................................

1-1

Quick Reference

OPTIONS and SUPPLIES

This Manual: http://www.manuallib.com/file/2525964

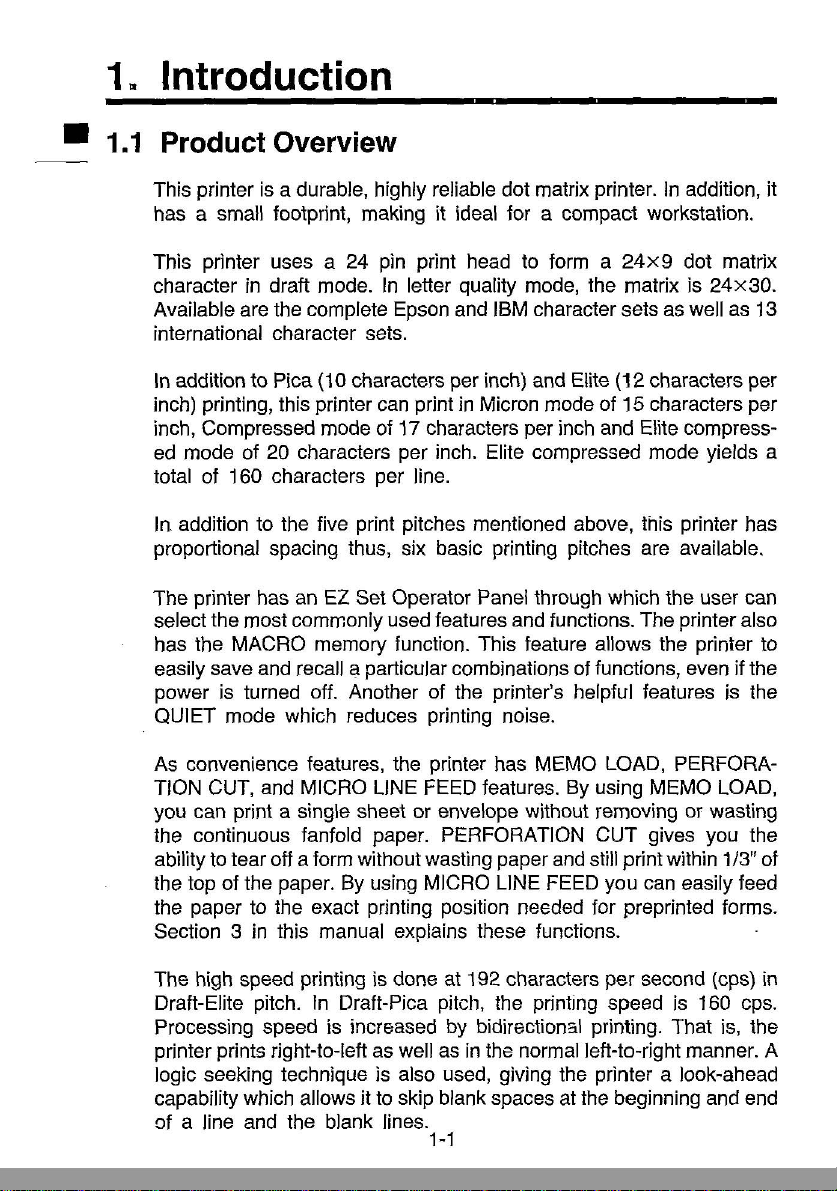

1m Introduction

•

1.1

Product Overview

This printer

a durable, highly reliable dot matrix printer.

addition, it

has a small footprint, making it ideal for a compact workstation.

This printer uses a 24 pin print head to form a

24x9

dot matrix

character in draft mode.

letter quality mode, the matrix is

24x30.

Available are the complete Epson and IBM character sets as well

international character sets.

addition to Pica (10 characters per inch) and Elite (12 characters per

inch) printing, this printer can print in Micron mode of 15 characters per

inch, Compressed mode of 17 characters per inch and Elite compress-

mode of 20 characters per inch. Elite compressed mode yields a

total of 160 characters per line.

addition to the five print pitches mentioned above, this printer has

proportional spacing thus, six basic printing pitches are available.

The printer has

EZ Set Operator Panel through which the user can

select the most commonly used features and functions. The printeralso

has the MACRO memory function. This feature allows the printer to

easily save and recall a particular combinations of functions, even ifthe

power is turned off. Another of the printer's helpful features is the

QUIET mode which reduces printing noise.

As convenience features, the printer has MEMO LOAD, PERFORA-

TION CUT, and MICRO LINE FEED features. By using MEMO LOAD,

you can print a single sheet or envelope without removing or wasting

the continuous fanfold paper. PERFORATION CUT gives you the

ability to tearoff a form without wasting paper

and

still printwithin 1/3" of

the top of the paper. By using MICRO LINE FEED you can easily feed

the paper to the exact printing

pOSition

needed for preprinted forms.

Section 3 in this manual explains these functions.

The high speed printing is done at 192 characters per second (cps) in

Draft-Elite pitch.

Draft-Pica pitch, the printing speed is 160 cps.

Processing speed is increased by bidirectional printing. That is, the

printer prints right-to-Ieft as well as in the normalleft-to-right manner. A

logic seeking technique is also used, giving the printer a look-ahead

capability which allows it to skip blank spaces at the beginning and end

of a line and the blank lines.

1-1

This Manual: http://www.manuallib.com/file/2525964

Introduction

A wide variety of printing styles allows the user to create unique

documents and drawings. By combining fonts, pitches and enhance-

ment modes such as double height, double width, underline, etc., you

can create more than 5,500 different print styles. Using bit-mapped

graphics, the printer can produce special effects ranging from company

logos to photo-like images.

User adjustable Pull/Push type tractor feed and friction feed are both

standard on this printer. This allows the printer to accommodate both

continuous fanfold and single sheet paper, and is very useful when

printing

non-standard paper sizes such as mailing labels. In "push"

tractor mode, continuous forms can

torn without the need

skip a

form when advancing to the next one.

"pull" tractor mode,

continuous fanfold paper can be fed from beneath or from in front ofthe

printer.

The print head life is designed for 100 million characters. The seamless

fabric ribbon has an operating life of three million characters. The

ribbon cassette design makes changing the ribbon easy and clean.

This printer comes with a Centronics parallel interface. An RS-232C

serial interface is available as

option. This interface supports the

XON/XOFF and DTR handshaking protocols at baud rates upto 19,200

bps.

The printer comes equipped with

internal 6K buffer. An additional

32K buffer is available as an option which expands the total buffer size

to 38K. The entire buffer area

c~\O

used

a receiving buffer or a

portion can

used as a download font area. The buffer area

assignment is selected by EZ

~et

Operator panel operation.

For software compatibility, this printer has two command sets: Epson

LQ-2500 and IBM proprinter

X24.

Either set can

selected from the

EZ Set Operator panel. Refer to Section 3.3 in this manual.

•

This Manual: http://www.manuallib.com/file/2525964

Introduction

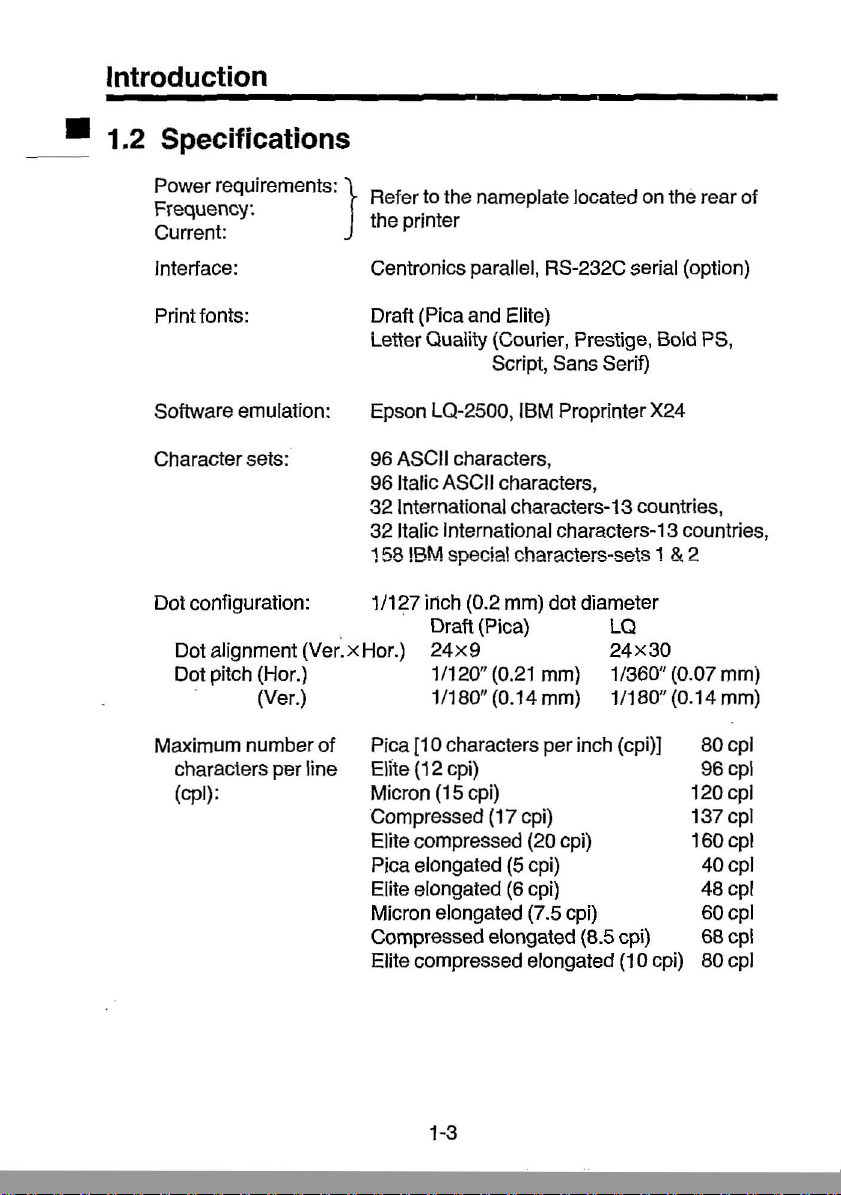

• 1.2 Specifications

- -

Frequency: Refer to the nameplate located on the rear

Power requirements: }

Current: the printer

Interface:

Printfonts:

Software emulation:

Charactersets:

Dot

configuration:

Centronics parallel, RS-232C serial (option)

Draft (Picaand Elite)

LetterQuality (Courier, Prestige, Boid PS,

Script, Sans Serif)

Epson

lQ-2500,

IBM ProprinterX24

96 ASCII characters,

96 italicASCII characters,

International characters-13 countries,

Italic International characters-13 countries,

158 IBM special characters-sets 1 & 2

1/127inch (0.2 mm) dotdiameter

, Draft(Pica)

Dot alignment

(Ver.xHor.)

24x9

24x30

Dotpitch (Hor.) 1/120" (0.21 mm) 1/360" (0.07 mm)

(Ver.) 1/180" (0.14

mm)

1/180" (0.14 mm)

Maximum

number

characters

per

line

(cpl):

Pica [10 characters

per

inch (cpi))

Elite (12 cpi)

Micron (15 cpi)

Compressed (17 cpi)

Elite compressed (20 cpi)

Pica elongated (5 cpi)

Elite elongated (6 cpi)

Micron elongated (7.5 cpi)

Compressed elongated (8.5cpi)

Elite compressed elongated (10 cpi)

1-3

BOcpl

96cpl

120cpl

137cpl

160cpl

40cpl

4Bcpl

60cpl

6Bcpl

BOcpl

This Manual: http://www.manuallib.com/file/2525964

Printing speed

[characters per

second (cps)]:

Printing direction:

Line feed time:

Paperfeed:

Paper used:

Copies:

Paperthickness:

Introduction

Draft-Elite

Draft-Pica

LQ-Elite

LQ-Pica

Text printing: Bidirectional

BitImageprinting: Unidirectional

(user can select bidirectional)

192cps

160cps

63 cps

53 cps

Approx. 100 msec[with 1/6 inch (4.2 mm) line

feeding]

Pull/Push (user selectable)-Tractorfeed (with

continuousfanfold paper)

Friction feed (with single sheet)

Continuous fanfold paper:

Width:·

4~1

0 inches

02~254

mm)

Thickness (paperweight in Ibs/gms. per

square meter):

in pull mode:

14-22/53~83

in push mode:

16~24/61

~90

Singlesheet:

Width:

4~11.7

inches

02~297

mm)

Height:

5-14.3

inches

(127~363

mm)

Thickness:

14~24

Ibs/53-90

gms. per

squaremeter

Original and 3 non carbon copies

Total thickness

sheets must be lessthan

0.013 inch (0.32 mm)

1-4

•

This Manual: http://www.manuallib.com/file/2525964

•Introduction

Operating

environment: 50°F (10°C) to 95°F (35°C) temperature,

30-80%

humidity

(Please allow the printerto stabilize at room

temperature within the operating temperature

range before operation)

Storage environment:

-4°F

(-20°C)

140°F(60°C) temperature,

10-90%

humidity

Head Life: Approximately 100million characters in draft

mode

Ribbon: Cassette seamless fabric ribbon

Inkcolor: Black

Dimensions:

Weight:

Life: Approx. 3 million characters in draft

mode

16.9

(W)x

14.1

(D)x5.6

(H)

in.

(430x359x

143 mm)

Approx. 18.7Ibs. (8.5 kg)

1-5

Autres manuels pour KX-P1124

Table des matières

Autres manuels Panasonic Imprimante

Panasonic

Panasonic PV-PD2000 Manuel utilisateur

Panasonic

Panasonic KX-P1131 - KX-P 1131 B/W Dot-matrix Printer Manuel utilisateur

Panasonic

Panasonic KX-P4410 Manuel utilisateur

Panasonic

Panasonic AGEP50 - COLOR VIDEO PRINTER Manuel utilisateur

Panasonic

Panasonic KX-PX20M - Photo Printer - 20 Sheets Manuel utilisateur

Panasonic

Panasonic KX-P3626 Manuel utilisateur

Panasonic

Panasonic JT-H340PR Series Manuel utilisateur

Panasonic

Panasonic SP22P Manuel utilisateur

Panasonic

Panasonic KX P2023 - KX-P 2023 B/W Dot-matrix Printer Manuel utilisateur

Panasonic

Panasonic SP22P Manuel utilisateur

Panasonic

Panasonic KX-P8415 Manuel utilisateur

Panasonic

Panasonic DP-CL21 Series Manuel utilisateur

Panasonic

Panasonic DP-MC210 Manuel utilisateur

Panasonic

Panasonic KX-P3123 - KX-P 3123 B/W Dot-matrix Printer Manuel utilisateur

Panasonic

Panasonic NV-MP20E Manuel utilisateur

Panasonic

Panasonic KX P2130 - KX-P 2130 Color Dot-matrix... Manuel utilisateur

Panasonic

Panasonic KX-P3131 Manuel utilisateur

Panasonic

Panasonic Jetwriter KX-P7305 Manuel utilisateur

Panasonic

Panasonic KX-P7100 Manuel utilisateur

Panasonic

Panasonic NV-APD1E Manuel utilisateur

Panasonic

Panasonic AGEP50 - COLOR VIDEO PRINTER Manuel utilisateur

Panasonic

Panasonic KX-P3200 - KX-P 3200 B/W Dot-matrix Printer Manuel utilisateur

Panasonic

Panasonic KX-P7105 Manuel utilisateur

Panasonic

Panasonic KX-MB2061CXB Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
