Panasonic TH-47LFT30W Manuel utilisateur

Please read these instructions before operating your set

and retain them for future reference.

English

TH-47LFT30W

Model No.

Operating Instructions

TOUCH PANEL Edition

FULL HD LCD Display

• Windows is a registered trademark of Microsoft Corporation in the USA and other countries. (The of¿cial name of

Windows is Microsoft®Windows®Operating System.)

• The names of other companies and products appearing in this publication are the trademarks, registered

trademarks or products names of their respective owners.

Accessories Supply

Check that you have the accessories and items shown

Note:

Remote Control

Transmitter is not

water protection type.

CD-ROM (1)

(Operating

instructions)

DISPLAY Edition of the

operating Instructions (14)

Remote Control

Transmitter

N2QAYB000535

Batteries for the Remote

Control Transmitter

(R6 (UM3) Size × 2)

USB cable 3 m (1)

Power supply cord

TOUCH PANEL Edition

of the operating

Instructions (1)

CD-ROM (1)

(Driver

software)

Contents

ŶAccessories Supply............................................. 2

ŶSetup Procedure .................................................. 4

ŶDriver Software Installation ................................ 5

ŶConnections and Plug-Ins .................................. 7

ŶDriver Software Uninstallation ........................... 9

ŶTouch Panel Setup............................................. 10

How to Use the Driver Software............................................. 10

Explanation of Setup Panel Items...........................................11

ŶBefore Calling for Service................................. 16

ŶDriver Software Operating Environment

The Driver software is supported by both the Japanese and English versions of Windows XP (SP3 or later),

Windows XP x64 Edition (SP2 or later), Windows Vista (SP1 or later), Windows Vista x64 Edition (SP2 or

later), Windows 7, and Windows 7 x64 Edition.

The following environment is required to correctly install and start up the Driver software.

• CPU … Pentium IV or later (2 GHz or faster Celeron or Pentium 4 recommended)

• Memory … 512 Mbytes or more

• HDD … 150 Mbytes or more available area

• Compatible with USB 1.1/2.0 interface

ŶDriver Software Restrictions

• The mouse emulation feature cannot be used on the login window that appears at Windows startup, when

restoring from the suspended state or when the screen saver is unlocked. The mouse emulation feature is

activated after you log in.

• There is no remote wakeup feature that activates the screen from the suspended state by touching the

touch panel.

• If your system does not meet the requirements above or the applications use up too much memory, the

response of the touch panel may slow down.

• Only Windows is supported. (Operation is not guaranteed in other environments than the above.)

• If using Windows Vista/7 and user account control, the touch panel does not respond to touch when

windows, such as the Properties window, that require administrator authority to access appear.

ŶRestrictions on competing drivers

• If you try to install a driver from another manufacturer in the same computer in which this Driver software

is installed or inversely try installing this Driver software in a computer where another driver is already

installed, the driver may not install properly.

In such case, uninstall the current driver and then install the new driver.

Also, if a driver from another manufacturer is started up while this Driver software is already running, the

error message “A driver is already running.” may be displayed.

In such case, quit both drivers and then start up the driver you want to use.

Setup Procedure

Connect the computer to the USB port of the display (P. 7)

1Install the Driver software to your computer (P. 5)

Do not connect the USB cable yet.

Restart your computer

• After restarting your computer, check appears in the task tray.

Calibrate the touch panel (P. 15)

This completes the basic setup.

Driver Software Installation

Notes on Installation

Connect the USB cable after installing the Driver software.

For Windows Vista/7 : For normal users to install the Driver software, users must input the administrator’s

password. However, if the user account control (UAC) is inactivated, you must log in

with administrator privileges.

For Windows XP : Log in with administrator privileges.

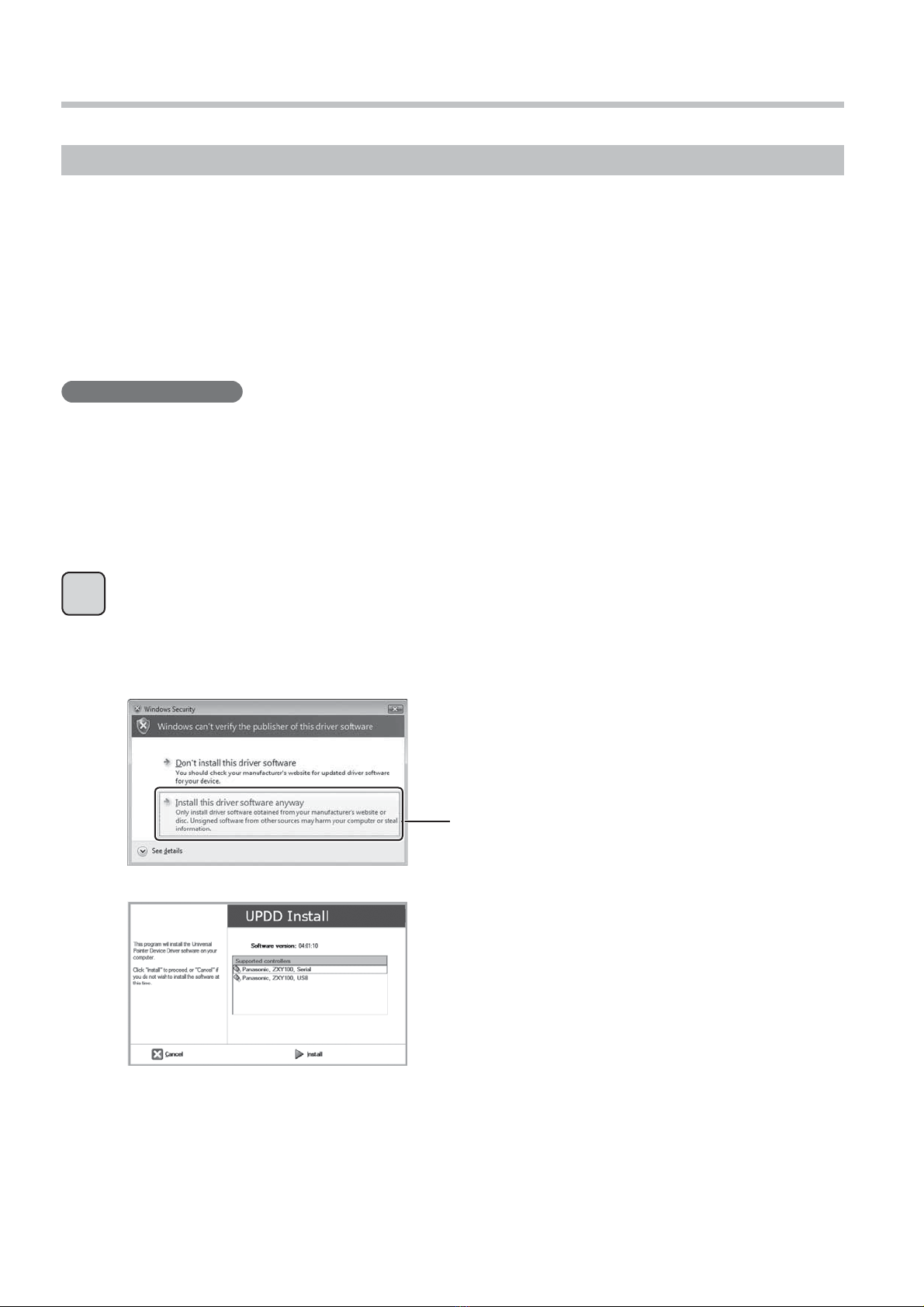

With Windows Vista/7, a warning message similar to that

at left may appear during the installation process.

Click on “Install this driver software anyway”.

Load the included CD-ROM into your computer.

Execute the setup program.

For Windows Vista/7 : Select [Start] (Windows mark button) ĺ[All Programs] ĺ[Accessories] ĺ

[Run...].

For Windows XP : Select [Start] ĺ[Run...] ĺsetup.exe.

When setup.exe in the supplied CD-ROM is executed,

the screen on the left is displayed.

* If a window for user account control appears, select “Yes” or similar selection to allow the access.

Cautions

• This software is driver software for Panasonic Touch Panel ZXY100 controller. Other touch panel controllers will

not be supported.

• Follow these operating instructions to use this software. The product may not operate if the instructions are not

followed.

• Do not use the product in an environment where other touch panel controller software is installed. The product

may not operate correctly in such an environment.

• Driver software is loaded by executing the installation program (setup.exe).

If previous version of this software is installed, make sure to uninstall the version before installing this software.

Driver Software Installation

Note on reinstallation (upgrading)

When installing the upgraded Driver software, uninstall the current version and then install the new version.

(p. 9)

2Select “Panasonic. ZXY100. USB” and click “Install” at the bottom of the screen.

The installation of the UPDD Driver software starts.

If a security warning is displayed during the installation, click “Install” to continue.

3When the installation is successfully ¿nished, the screen below is displayed.

Close the screen and restart the computer.

• The UPDD Driver software ¿les are saved under C:\Program Files\UPDD. To check the installation,

select [Start] ĺ[All Programs] ĺ[UPDD].

Connections and Plug-Ins

Activate power to the display and computer.

Check that the computer’s OS starts up.

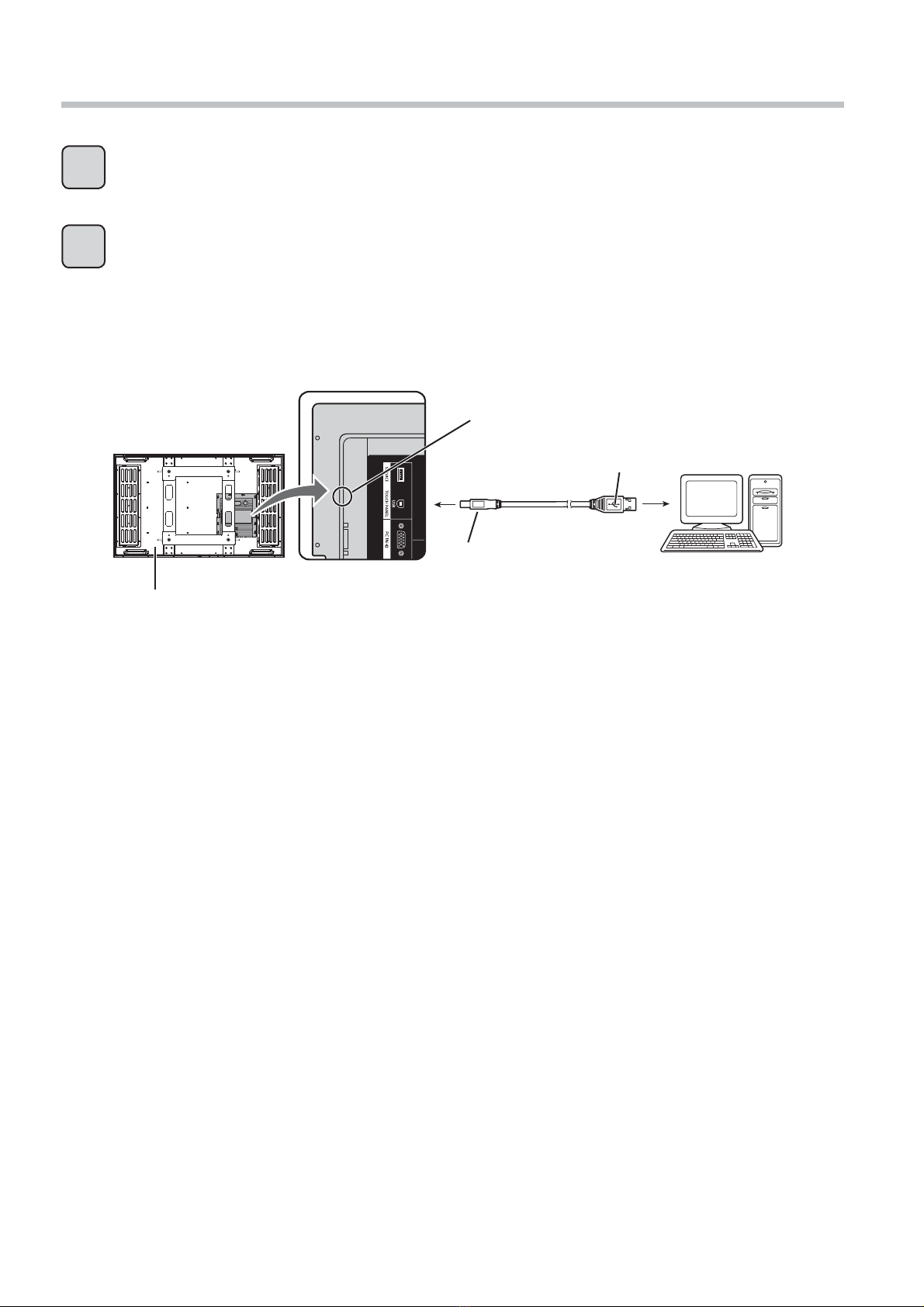

Connect the display and the computer with the USB cable.

When connected, Plug & Play starts.

Notes:

• Connect the USB cable only after installing the Driver software.

• Check that the USB power supply of your computer is a max. 500 mA.

Computer

USB cable

USB port

Display

Connect to the

USB port on

your computer.

(Rear view)

ŶPlug & Play

Using Plug & Play, the display is automatically detected as a USB device when the USB cable is connected.

(The operating window that appears after that differs slightly according to OS.)

Plug & Play starts up according to the number of connected display.

When a window similar to that at left appears,

installation is complete.

When a warning message similar to that at

left appears, click on the “Continue Anyway”

button.

Select “Install the software automatically

(Recommended)”.

When a window similar to that at left appears,

select “No, not this time”.

Connections and Plug-Ins

Windows Vista/7

The “Found New Hardware” window appears and the device driver is automatically installed. However, with

Windows Vista, installation ends without displaying any windows.

Windows XP

Click this button.

Driver Software Uninstallation

Note on Uninstallation

Quit the Driver software before uninstalling it. (p. 10)

Windows Vista/7

Windows XP

Select [Start] ĺ[Control Panel] ĺ[Add or Remove Programs].

Select “Universal Pointer Device Driver”.

Click on [Start] (Windows mark button) ĺ[Control Panel] ĺ[Programs] ĺ

[Programs and Features].

Select “Universal Pointer Device Driver” from the “Uninstall or change a program” window.

Select “Uninstall/Change” to uninstall the Driver software.

Click this button.

Touch Panel Setup

How to Use the Driver Software

ŶDriver Software Startup

The Driver software starts up automatically when the computer starts up.

The touch panel works only when the touch panel and computer are connected over a USB cable.

ŶControl Panel Startup

There are two ways to start up the setup panel. (The screen is Windows 7)

Click on the icon in the task tray and select “Adjust settings” from the

menu that appears.

The setup panel “UPDD Console” starts up.

Select [Start] ĺ[All Programs] ĺ[UPDD] ĺ[Settings].

The setup panel “UPDD Console” starts up.

Method 1

Method 2

Note:

The touch panel may not respond smoothly for a while after the Driver software starts up.

ŶExit Driver Software

When you click “Enabled” from the menu displayed when the task tray icon is clicked, an “Are you sure you

want to disable this device?” message is displayed. Click “Yes” to disable the driver.
