Panasonic CF-08TX1A1M Manuel utilisateur

ORDER NO. CPD0606050C1

Wireless Display

CF-08TX1A1M

This is the Service Manual for

the following areas.

M …for U.S.A.

reserved. Unauthorized copying and distribution is a violation

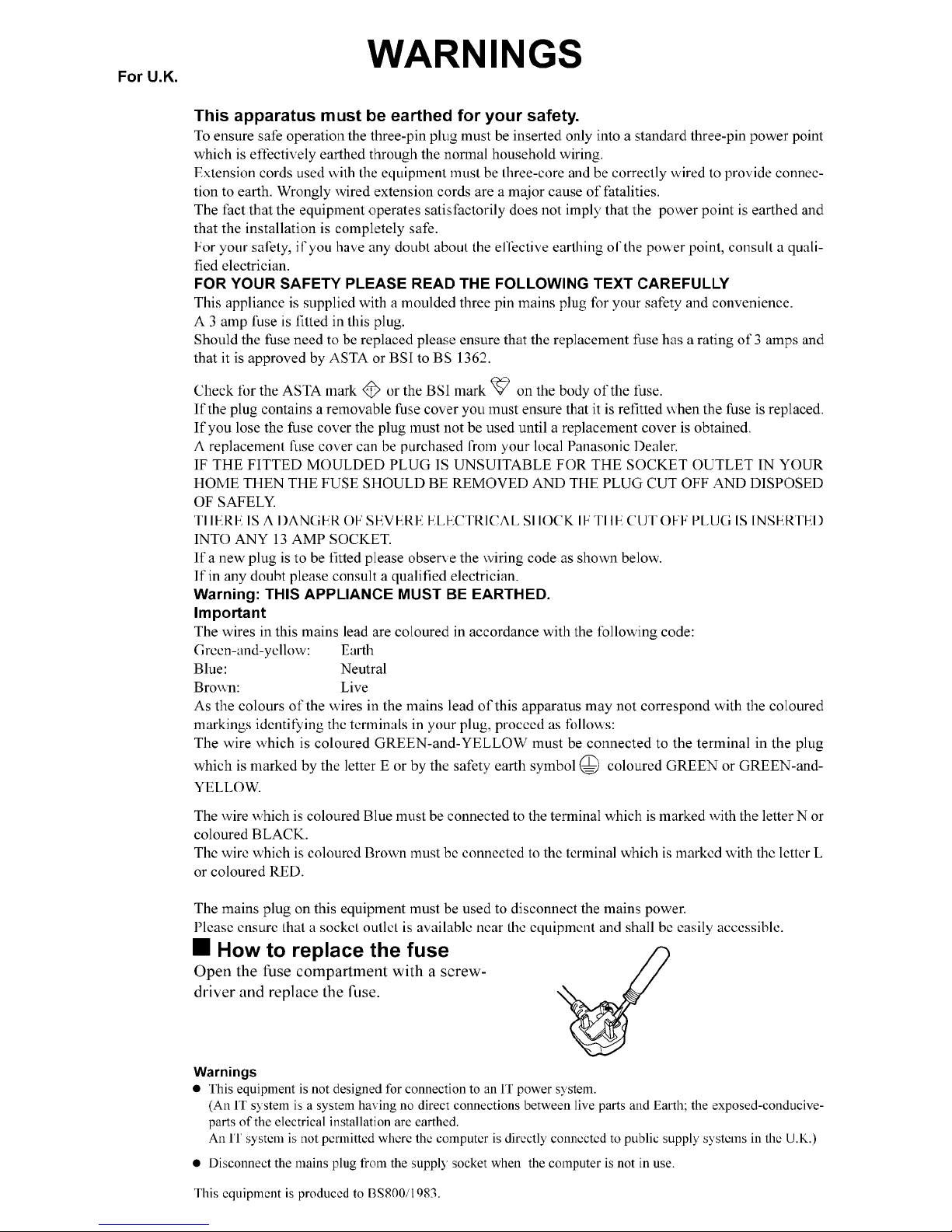

Precautions

Care should be exercised with

regard to the following in order to

avoid the possibility of overheating,

fire or damage.

Battery Pack

Avoid Heat

Do not throw the battery

pack into a fire or expose

it to excessive heat.

Keep Articles Away

Do not place the battery

pack together with arti-

cles such as necklaces

or hairpins when carry-

ing or storing.

Do Not Disassemble

Do not insert sharp

objects into the battery

pack, expose it to bumps

or shocks, deform, disas-

semble, or modify it.

Do Not Short

Do not short the positive

(+) and negative (-) con-

tacts.

Avoid Extreme Heat,

Cold and Direct Sun-

light

Do not charge, use or

leave the battery pack for

extended periods where

it will be exposed to

direct sunlight, in a hot

place (in a car on a

sunny day, for example),

or in a cold place.

Do Not Use With Any

Other Equipment

The battery pack is

rechargeable and was

intended for the speci-

fied equipment. Do not

use it with any equipment

other than the one for

which it was designed.

Do Not Use This Wire-

less Display with a Bat-

tery Pack Other Than

the One Specified

Use only the specified

Panasonic battery pack

(CF-VZSU44U) with your

CF-08. Use of batteries

other than those manu-

factured and supplied by

Panasonic may repre-

sent a safety hazard.

Do Not Put into a Micro-

wave

Do not put the battery

pack into a microwave

oven ora pressurized

chamber.

Do not touch the terminals on the

battery pack. The battery pack may

no longer function properly if the

contacts are dirty or damaged.

Do not expose the battery pack to

water, or allow it to become wet.

If the battery pack will not be used

for a long period of time (a month or

more), charge or discharge (use) the

battery pack until the remaining bat-

tery level becomes 30% to 40% and

store it in a cool, dry place.

This wireless display prevents over-

charging of the battery by recharging

only when the remaining power is

less than approx. 95% of capacity.

The battery pack is not charged

when the wireless display is first pur-

chased. Be sure to charge it before

using it for the first time. When the

AC adaptor is connected to the wire-

less display, charging begins auto-

matically.

Should the battery leak and the fluid

get into your eyes, do not rub your

eyes. Immediately flush your eyes

with clear water and see a doctor for

medical treatment as soon as possi-

ble.

NOTENOTE

The battery pack may become warm

during recharging or normal use.

This is completely normal.

Recharging will not commence if

internal temperature of the battery

pack is outside of the allowable tem-

perature range (0 °C to 45 °C {32°F

to 122°F}). Once the allowable range

requirement is satisfied, charging

begins automatically. Note that the

recharging time varies based on the

usage conditions. (Recharging takes

longer than usual when the tempera-

ture is 10 °C {50°F} or below.)

If the temperature is low, the operat-

ing time is shortened. Only use the

equipment within the allowable tem-

perature range.

The battery pack is a consumable

item. If the amount of time the equip-

ment can be run by using a particular

battery pack becomes dramatically

shorter and repeated recharging

does not restore its performance, the

battery pack should be replaced with

a new one.

When transporting a spare battery

inside a package, briefcase, etc., it is

recommended that it be placed in a

plastic bag so that its contacts are

protected.

Always power off the equipment

when it is not in use. Leaving the

equipment on when the AC adaptor

is not connected will exhaust the

remaining battery capacity.

Stop Using

Should the battery emit

an abnormal odor,

become hot to the touch,

become discolored,

change shape, or

become in any way dif-

ferent from normal,

remove it from the wire-

less display and stop

using it.

CONTENTS

1. Specifications ··················································································································1-1

2. Introduction······················································································································2-1

3. Description of parts ·········································································································3-1

4. Starting up/Shutting Down·······························································································4-1

5. Diagnosis & Repair··········································································································5-1

6. Troubleshooting···············································································································6-1

7. Block Diagram ·················································································································7-1

8. Wiring Connection Diagram ····························································································8-1

9. Disassembly/Reassembly ·····························································································9-1

10. Exploded View·············································································································10-1

11. Replacement Parts List ·······························································································11-1

Main Specifications

Model No. CF-08TX1A1M

CPU Intel®PXA270 Processor 312 MHz

Memory (ROM/RAM) 32 MB (Flash) /64 MB

Display Method 10.4 XGA type

Internal LCD Display 65,536 colors (1024 × 768 pixels)

Wireless LAN Built-in

Bluetooth Built-in

LAN IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

Sound WAVE playback, Monaural speaker

Card Slot SD Memory Card*1 × 1, Data transfer rate=4.8 MB per second*2

Interface USB Port × 1 (USB1.1), LAN Port (RJ-45), Expan-

sion BusConnector (Dedicated 16-pin), Microphone

Jack (Miniature jack, 3.5 DIA, Monaural), Head-

phone Jack (Miniature jack, 3.5 DIA, Impedance

32 , Output Power 4 mW × 2)

Button Power button, USER button, Keyboard button,

Cursor control button (with Enter key)

Pointing Device Touchscreen (Anti-Reflection, Stylus (included)

touch capable)

Power Supply AC adaptor or Battery pack

AC Adaptor*3 Input: 100 Vto 240 VAC, 50 Hz/60 Hz

Output: 16.0 VDC, 2.5 A

Battery Pack Li-ion 7.4 V, 5.2 Ah

Operating Time*4 Approx. 4.5 hours to 14 hours*5 (Approx. 7 hours)*6

Charging Time*4 Approx. 4 hours

Power Consumption*7 Approx. 10 W*8/ Approx. 30 W(Maximum when

recharging in the ON state)

Physical Dimensions (W × H × D) 267 mm × 208 mm × 36 mm (excluding protrusion)

{10.5 ’’ × 8.2 ’’ × 1.4 ’’}

Weight Approx. 1.2 kg {Approx. 2.6 lb.}

Operation Environment Temperature: 5 °C to 35 °C {41 °F to 95 °F}

Humidity: 30%to 80%RH (No condensation)

Storage Environment Temperature: -20 °C to 60 °C {-4 °F to 140 °F}

Humidity: 30%to 90% RH (No condensation)

Operating System Microsoft®Windows®CE 5.0 Professional

1Specifications

1-1

*1 This slot does not support the MultiMedia card.

Operation has been confirmed for Panasonic SD Memory Cards with up to 2 GB capacity.

*2 Theoretical value and not the actual speed. The transfer rate does not become higher

even if you use a card that supports the higher transfer rate.

*3 <Only for North America>

The AC adaptor is compatible with power sources up to 240 VAC adaptor. The wireless

display is supplied with a 125 VAC compatible AC cord.

*4 Varies depending on the usage conditions.

*5 Measured using BatteryMark™ Version 4.0.1 (LCD brightness: Maximum - Minimum)

*6 Measured using MobileMark™ 2002 (LCD brightness: 150 cd/m2)

*7 Approx. 0.9 Wwhen the battery pack is fully charged (or not being charged) and the

wireless display is OFF.

*8 Rated power consumption

Wireless LAN

*9 These are speeds specified in IEEE802.11b standards. Actual speeds may differ.

Bluetooth™

Software Microsoft®Remote Desktop Connection, Citrix®

ICA®Client, Microsoft®Internet Explorer 6.0

Data transfer rates*9 11/5.5/2/1 Mbps (automatically switched)

Standards supported IEEE802.11b

Transmission method OFDM system, DS-SS system

Wireless channels used Channels 1 to 11

RF frequency band 2412-2462 MHz

Bluetooth Version 1.2

Transmission Method FHSS system

Wireless Channels Used Channels 1 to 79

RF Frequency Band 2.402-2.48 GHz

1-2

2Introduction

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights

reserved. No part of this manual may be reproduced in any form without the prior

written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained

herein.

Disclaimer

Wireless display specifications and manuals are subject to change without notice.

Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred

directly or indirectly from errors, omissions or discrepancies between the wireless

display and the manuals.

Trademarks

Microsoft®, Windows®and the Windows logo are registered trademarks of

Microsoft Corporation of the United States and/or other countries.

SD Logo is a trademark.

Citrix®and ICA®protocol are registered trademarks of Citrix Systems, Inc.

Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to

Matsushita Electric Industrial Co., Ltd.

Panasonic®is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or regis-

tered trademarks of their respective own companies.

2-1

3Description of parts

A. LCD (Touchscreen)

B. Wireless LAN antenna

C. Bluetooth antenna

D. Power status

E. Power button

F. Battery status

G. DC-IN jack

H. LAN port

I. Cursor control button

J. Keyboard button

K. USB port

L. USER button

M. SD Memory Card slot

N. SD Memory Card status

A. Battery cover latch

B. Hand strap

Adjust the length of the belt so that

the wireless display does not fall

by mistake, and firmly hold the

wireless display when using it.

C. Battery pack

D. Headphone jack

You can connect headphones or

amplified speakers. When they are

connected, audio from the internal

speakers is not heard.

E. Microphone jack

Use only monaural condenser

microphone (miniature jack). Con-

necting another type of micro-

phone may interrupt audio input or

may cause a malfunction.

F. Stylus holder

G. Security lock

You can connect a Kensington

cable. Refer to the instruction

manual of the cable.

H. Speaker

I. Expansion bus connector

CAUTION

Do not put metallic objects or magnetic media close to the speaker.

Do not touch the expansion bus connector. The wireless display may no longer

function properly if the connector is dirty or damaged.

3-1

Autres manuels pour CF-08TX1A1M

Table des matières

Autres manuels Panasonic Moniteur

Panasonic

Panasonic BTLH2600W - 26" HD MONITOR Manuel utilisateur

Panasonic

Panasonic TH-42PW5 Manuel utilisateur

Panasonic

Panasonic SuperFlat CT-F3394 Manuel utilisateur

Panasonic

Panasonic TH-42PF30W Manuel utilisateur

Panasonic

Panasonic BT-L1500PJ Manuel utilisateur

Panasonic

Panasonic DTM3050W - 30" MONITOR Manuel utilisateur

Panasonic

Panasonic TH-42LF25U Manuel utilisateur

Panasonic

Panasonic TH32LRT12U - HD LCD DISPLAY Manuel utilisateur

Panasonic

Panasonic TH-50PH30E Manuel utilisateur

Panasonic

Panasonic CN-NVD905U - Strada - Navigation System Manuel utilisateur

Panasonic

Panasonic TH42LF20U - 42" HD LCD TV Manuel utilisateur

Panasonic

Panasonic TH-98SQ2HW Manuel utilisateur

Panasonic

Panasonic Toughbook CF-VDW07 Manuel utilisateur

Panasonic

Panasonic WV-BM900 Manuel utilisateur

Panasonic

Panasonic TH-42LFP30W Manuel utilisateur

Panasonic

Panasonic TH-32EF2U Manuel utilisateur

Panasonic

Panasonic CT-26WC15 Manuel utilisateur

Panasonic

Panasonic BTH1700BP - IND. MONITOR Manuel utilisateur

Panasonic

Panasonic TH-65PF20ER Manuel utilisateur

Panasonic

Panasonic TH-65PHD8BK Manuel utilisateur

Panasonic

Panasonic CF-VDL01 Manuel utilisateur

Panasonic

Panasonic TH-58PF20U TENTATIVE Guide de configuration

Panasonic

Panasonic TH-42PH10BK Manuel utilisateur

Panasonic

Panasonic TH-42PHW5BX Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

LG M1950D-PZ Manuel utilisateur
