Panasonic WX-LC10E Manuel de référence

Confidential, Internal Use Only

Infrared Wireless Microphone System

Product Introduction

Confidential, Internal Use Only

Receivers

WX-LR100E/A

Microphone

(handheld)

Microphone

(pendant-style)

Infrared sensor Infrared sensor

coupler

Charger Stand

WX-LR100E/B

WX-LT100E

WX-LT310E

WX-LS100E WX-LC10E WX-LZ10E

Battery

Charger

WX-LZ110/G

Product lineup

+ High Sound Quality for Speech Use

+ Hands-Free Operation

+ Remote Volume Controls on the Pendant Microphone

+ Light Weight Handheld Microphone

+ Accommodates Four(4)-Microphone Simultaneously

+ Microphone Aux input Allows Local Playback

from External Sources

+ Smart Circuitry for Batteries

Key Features

Confidential, Internal Use Only

The lightweight design eliminates

fatigue from long time use.

Lightweight and easy-to-use handheld microphone

OthersWX-LT100E

Grip

Panasonic: Approx 190 g

(rechargeable batteries included)

The infrared emitter is located right under the

microphone. By relocating the emitter from

the grip, sound interruption by inadvertently

blocking the emitter by the hand holding the

grip is prevented.

Emitter

The microphone weighs approximately

190 g including two rechargeable batteries.

It weighs approximately 170 g with alkaline

batteries. The weight is drastically reduced as

compared to that other manufacturers. The

design eliminates fatigue from long time use.

Exclusive Panasonic features

The emitter designed to prevent

problems

Confidential, Internal Use Only

Easy to wear

The innovative device worn around the neck.

It can be easily worn over clothes without pockets.

The microphone, emitter and main unit are

Integrated into one unit. The cloggy cord of the

conventional clip-type microphone is gone,

eliminating the risk of being caught or wire damages.

Volume control

buttons

The pendant-type microphone is equipped

with volume control buttons. The volume of the

microphones worn by the user and other person

can be controlled. (The two channels of the same

receiver are controlled.)

Exclusive Panasonic features

Innovative hands-free pendant-style microphone

The cordless design prevents

wire damages

The volume is controlled

on the microphone

WX-LT310E

OWN/ OTHER

Switch

*Future use

Confidential, Internal Use Only

Handheld Pendant-style

The microphone is equipped with a line

input terminal.Audio data from laptop

PCs and other devices can be easily

reproduced via the infrared microphone

thus providing effective presentation.

(The microphone is turned OFF while the

line input is used.)

Handheld Pendant-style

The PLL frequency conversion system is

adopted in the infrared microphone for

the first time.

The single microphone with a selector

switch to four channels allows using the

microphone in a more flexible way.

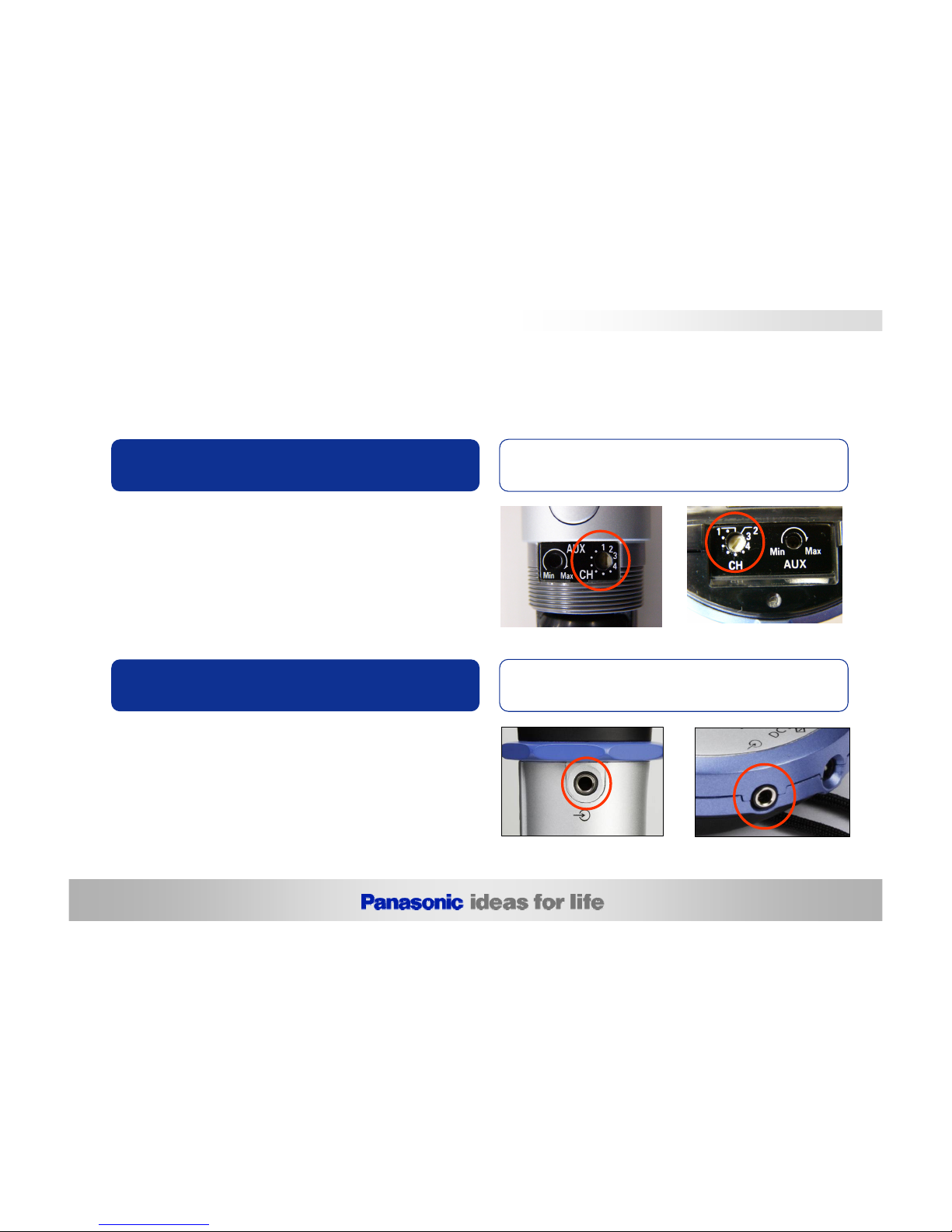

Line input terminal

3.5mm phone jack

Channel selector switch

Exclusive Panasonic features

Using the microphone in a more flexible way

The four channels are supported by

a single microphone

The microphone has a line

input terminal

Confidential, Internal Use Only

Battery type Rechargeable

battery

Dry battery

(Alkaline)

Operating

time

Approx

6 hours

Approx.

5 hours

Both rechargeable and dry batteries provide

the long battery life.

The user will enjoy carefree use of the

microphone in a prolonged meeting.

Basically, rechargeable batteries are used.

The commercially-available, easy-to-obtain

Panasonic size AA rechargeable batteries

can also be used. They are recharged while

installed in the main unit. The dual power

supply system supports size AA dry

batteries in an emergency.

Commercially available

Panasonic nickel hydrogen

rechargeable battery

Charger Stand

Exclusive Panasonic features

Using the microphone in a more flexible way

Commercially available rechargeable

batteries can be used

The energy-saving scheme allows up

to approx. Six(6) hours.

Confidential, Internal Use Only

Battery over discharging protection

67892345

1.0V

0.5V

0.0V

2.5V

3.0V

2.0V

1.5V

BATTERY VOLTAGE

OPERATING TIME [H]

Battery Indicator : GREEN

( 6.75H, 230mA )

OFF

20mA

OFF

10uA (Curent Cut)

Warning

Power Off

2.25V

2.10V

Panasonic

No cut off

Using Nickel- Hydrogen Battery

Panasonic infrared microphone will be automatically power off to protect

Ni-Hydrogen batteries from over discharging for long time usage.

Exclusive Panasonic features

Confidential, Internal Use Only

Others

WX-LS100E

A single infrared sensor covers a wide area with 360 horizontal degrees.

An area of a standard size can be covered by a single sensor.

The cable length alignment process in setting up multiple sensors is unnecessary and

the installation is facilitated.

Exclusive Panasonic features

Easy to install

The dome infrared sensor covers

360 horizontal degrees.

360 degree
