Service Manual

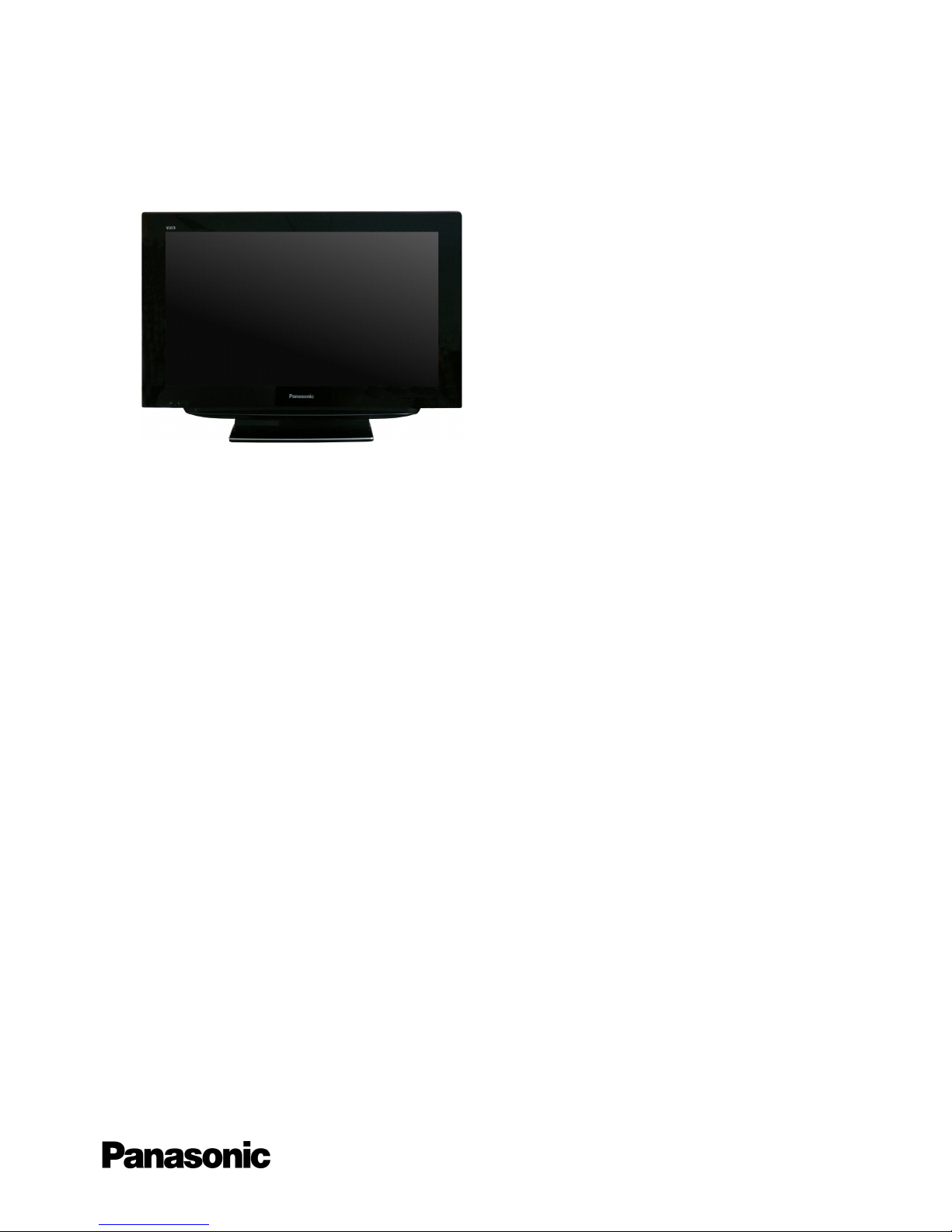

Colour LCD Television

TX-37LZD80

TX-37LZD80F

TX-32LZD80

TX-32LZD80F

LH69 Chassis

Specifications

(Informations in brackets [ ] refers to model 32”)

Power Source: 220-240V AC, 50/60Hz

Power Consumption 190W [150W]

Stand-by Power Consumption: 0.3W (Without monitor out recording)

19W (With monitor out recording)

Aerial Impedance: 75Ωunbalanced, Coaxial Type

Receiving System: LZD80 LZD80F

PAL-I, PAL-I/H, B/G, D/K,

PAL-525/60 (AV only) SECAM B/G, D/K, L/L’

DVB (via UHF aerial input) PAL-525/60 (AV only)

M.NTSC (AV only) DVB (via VHF/UHF aerial input)

NTSC (AV only) M.NTSC (AV only)

NTSC (AV only)

Receiving Channels: LZD80 LZD80F

UHF E21-E68 VHF E2-E12 VHF H1-H2 (ITALY)

VHF A-H (ITALY) VHF R1-R2

VHF R3-R5 VHF R6-R12

UHF E21-E69 CATV (S01-S05)

CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)

CATV S21-S41 (Hyperband)

Operating Conditions: Temperature: 0°C ÷35°C

Humidity: 20% ÷ 80% RH (non condensing)

Scanning format: 480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(60Hz), 720p(50Hz), 1.080i(60Hz),

1.080i(50Hz), 1.080p(60Hz), 1.080p(50Hz), 1080p(24Hz)

PC signals: VGA, SVGA, XGA, SXGA(compressed)

Horizontal scanning frequency 31 – 69 kHz

Vertical scanning frequency 59 – 86 Hz

ORDER No. PCZ0802006CE

Panasonic CS ( U.K. ) Ltd.

WILLOUGHBY ROAD,

BRACKNELL,

BERKS.,

RG12 8FT.

Intermediate Frequency:

Video/Audio LZD80 LZD80F

Video 38,9MHz 38,9MHz, 33,9MHz

Audio 32.90MHz 33,4MHz (B/G), 33,16MHz (A2)

32.35MHz(NICAM) 33,05MHz (NICAM B/G, D/K, L)

32,4MHz (D/K), 32,66MHz (CZ STEREO)

40,4MHz (L’), 39,75MHz (L’NICAM)

Colour 34,47MHz 34,47MHz (PAL)

34,5MHz, 34,65MHz (SECAM)

38,3MHz, 38,15MHz (SECAM L’)

Terminals:

AV1 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ

RGB (21 pin) 0,7V p-p 75Ω

AV1 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

AV2 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ

RGB (21 pin) 0,7V p-p 75Ω

S-video IN (21-pin)Y: 1V p-p 75Ω

C:0,3V p-p 75Ω

AV2 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

AV3 IN S-Video IN (4-pin) Y: 1V p-p 75Ω

C:0,3V p-p 75Ω

Audio (RCAx2) 500mV rms 10kΩ(used for HDMI3 AUDIO)

Video (RCAx1) 1V p-p 75Ω

HDMI1, HDMI2, HDMI3 Type A Connector

COMPONENT Video (RCAx3) Y:1V p-p 75Ω(including synchronization)

Pb, Pr: ±0,35V p-p 75Ω

AUDIO IN Audio (RCAx2) 500mV rms 10kΩ(for HDMI1, COMPONENT-AUDIO)

AUDIO OUT Audio (RCAx2) 500mV rms 1kΩ(high impedance)

DIGITAL AUDIO OUT PCM, Fiber optic

CARD SLOT SD CARD slot x1

PC HIGH-DENSITY D_SUB 15PIN R,G,B: 700mV p-p 75Ω

HD,VD/TTL Level 2-5V p-p (high impedance)

LCD screen: L5EDD9T00003 [L5EDD8T00001]

1920 x 1080 XGA, 16:9

Visible Diagonal 940mm [800mm]

Audio Output: 20W (2x10W)

Headphones: 3,5mm, 8ΩImpedance

Accessories supplied : Remote Control 2 x R6 (UM3) Batteries

Dimensions:

Height: Width: Depth:

Including TV stand 648mm 943mm 295mm

[579mm 831mm 225mm]

TV set only 606mm 943mm 108mm

[538mm 831mm 103mm]

Net weight:

Including TV stand 22.5kg [18.0kg]

TV set only 19.5kg [15.5kg]

Specifications are subject to change without notice.

Weights and dimensions shown are approximate.

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not

contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products

powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the

product or products deal within this service information by anyone else could result in serious injury or death.

Warning

CONTENTS

SAFETY PRECAUTIONS ........................................... 4

GENERAL GUIDE LINES...................................... 4

TOUCH – CURRENT CHECK............................... 4

PREVENTION OF ELECTROSTATIC DISCHARGE

(ESD) TO ELECTROSTATICALLY SENSITIVE (ES)

DEVICES .................................................................... 5

ABOUT LEAD FREE SOLDER (PBF)......................... 6

SUGGESTED PB FREE SOLDER........................ 6

APPLICABLE SIGNALS.............................................. 7

SERVICE HINTS ........................................................ 8

CHASSIS BOARD LAYOUT ....................................... 9

LOCATION OF LEAD WIRING………………………….9

SETTING INSPECTION............................................ 10

SELF-CHECK ........................................................... 11

POWER LED BLINKING TIMING CHART ................ 13

SERVICE ................................................................. 15

OPTION BYTES DESCRIPTION .............................. 16

ADJUSTMENT METHOD.......................................... 17

WIRING DIAGRAM ................................................... 18

BLOCK DIAGRAMS.................................................. 19

PARTS LOCATION................................................... 22

REPLACEMENT PARTS LIST.................................. 24

SCHEMATIC DIAGRAMS ......................................... 42

A-BOARD (1 OF 16) SCHEMATIC DIAGRAM .... 43

P-BOARD (1 OF 3) SCHEMATIC DIAGRAM ...... 59

M-BOARD SCHEMATIC DIAGRAM ................... 62

V-BOARD SCHEMATIC DIAGRAM ................... 63

G-BOARD SCHEMATIC DIAGRAM………………64

CONDUCTOR VIEWS………………………………….65

SERVICE MODE FUNCTION ................................... 14

Safety Precautions

General Guide Lines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated

or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.

4. Always ensure panel TKP0E16001 is correctly replaced before returning to customer (see Fig.1).

Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth

ground such as a water pipe, as shown in Fig. 2.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values:

For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);

For d. c.: U1 = 1.0 V,

Note:

The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and

2.0 mA d. c.

The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100

kHz.

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should

be repaired and rechecked before it is returned to the customer.

Fig. 2

APPLIANCES

EXPOSED

METAL PARTS

Resistance values in ohms (Ω)

R0=500

RS=1500

CS=0.22

10k

0.022

COLD

WATER PIPE

(EARTH GROUND)

V: Voltmetr or oscilloscope

(r.m.s. or peak reading)

Measuring network for TOUCH CURRENTS

Input resistance: ≥ 1M

Input capacitance: ≤ 200pF

Frequency range: 15Hz to 1MHz and d.c.respectively

NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms

U2(V)

Fig. 1

Prevention of Electrostatic Discharge (ESD) to Electrostatically

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are

called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect

transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of

component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on

your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD

wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD

protected)" can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it.

(Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil

or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective

material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the

brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity

(ESD) sufficient to damage an ES device).

There are special components used in this equipment which are important for safety.

These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that

these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do

not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work,

we’d suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol

stamped on the back of PCB.

Caution

•Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)

higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

•Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before

applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

•After applying PbF solder to double layered boards, please check the component side for excess solder which may

flow onto the opposite side. (see Fig.3)

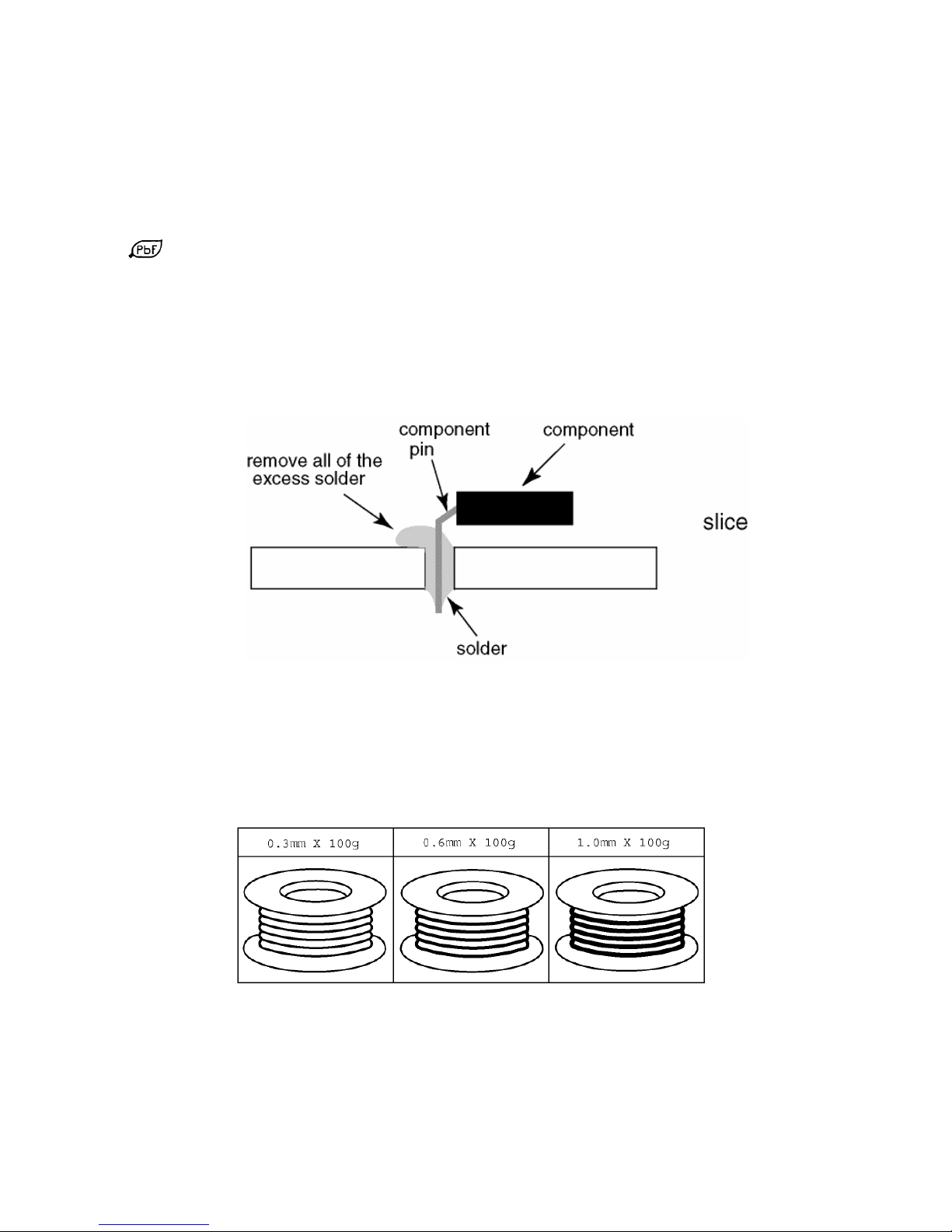

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.

However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)

Fig.3

Fig.4

Applicable Signals

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 ×400 @70 Hz 31.47 70.07

640 ×480 @60 Hz 31.47 59.94

640 ×480 @75 Hz 37.50 75.00

800 ×600 @60 Hz 37.88 60.32

800 ×600 @75 Hz 46.88 75.00

800 ×600 @85 Hz 53.67 85.06

852 ×480 @60Hz 31.44 59.89

1,024 ×768 @60Hz 48.36 60.00

1,024 ×768 @70Hz 56.48 70.07

1,024 ×768 @75Hz 60.02 75.03

1,024 ×768 @85Hz 68.68 85.00

1,280 ×1,024 @60Hz 63.98 60.02

1,366 ×768 @60Hz 48.39 60.04

Macintosh 13“ (640 ×480) 35.00 66.67

Macintosh 16“ (832 ×624) 49.73 74.55

Macintosh 21“ (1,152 ×870) 68.68 75.06

Note:

•Signals other than above may not be displayed properly.

•The above signals are reformatted for optimal viewing on your display.

•Applicable input signal for PC is basically compatible to VESA standard timing.

•PC signal is magnified or compressed for display, so that it may not be possible to show fine detail

with sufficient clarity.

Signal name COMPONENT HDMI

525 (480) / 60i * *

525 (480) / 60p * *

625 (576) / 50i * *

625 (576) / 50p * *

750 (720) / 60p * *

750 (720) / 50p * *

1,125 (1,080) / 60i * *

1,125 (1,080) / 50i * *

1,125 (1,080) / 60p *

1,125 (1,080) / 50p *

1,125 (1,080) / 24p *

PC (D-sub 15P)

Component (Y, Pb, Pr), HDMI

Service Hints

How to remove the backcover

Remove the 20 [21] fixing screws. (see Fig.5)

How to remove the Pedestal assembly

Lay the main unit face down. (see Fig.6)

Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)

Remotion of a Protection Cover

Remove a protection cover from new LCD Panel when replacing the LCD Panel.(see Fig.8)

This cover is for transportation LCD panel use only.

Fig.6

Fig.7

SCREWS

SCREWS SCREWS

Fig.5

Fig.8

Chassis Board Layout

Location of Lead Wiring

To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.

Board Name Function

A-Board AV Terminal, AV Switch, Sound Processor, Speaker out, TV tuner, PC,

SD,Global Core, HDMI, IDTV Processor, D/A Converter, Peaks Lite 2

P-Board Main Input, Power Supply, Power Supply Regulator, Speaker out

G-Board Side AV Terminal

V-Board Remote Receiver, R&G LED,Timer Rec LED,Main Switch

M-Board C.A.T.S.

G-BOARD

A-BOARD P-BOARD

M-BOARD

V-BOARD

P5-CN1

G51-A51

A1-V1

A11-M11

P3-SP

A11

G51

P2-CN501

TU2901

CN1

CN501

LVDS

A1 A51

M11

A10

A1-V1

(32’’)

(37’’)

A11-M11

(32’’)

(37’’)

(32’’)

(37’’)

(32’’)

(37’’)

P2-CN501

P5-CN1

P3-SP

(32’’)

(37’’)

LVDS (32’’)

(37’’)

Setting Inspection

Voltage Confirmation

Confirm the following voltages:

P board

Description Test point Position Normal mode Stand by mode Active stand by mode

Sound_Vcc TP7050 P7, pin 1,2 18V +/- 1V Max 3V Max 3V

BT_30V TP7060 P7, pin 5 31V +/- 1V Max 3V 31V +/- 1V

SUB_5V TP7059 P7, pin 12,13,14 5,1V +/- 0,2V Max 1V 5,1V +/- 0,2V

SUB_9V TP7055 P7, pin 17 9,1V +/- 0,3V Max 1V 9,1V +/- 0,3V

DTV_12V TP7057 P7, pin 20,21 12V +/- 0,4V Max 1V 12V +/- 0,4V

PANEL_12V TP7058 P7, pin 22,23 12V +/- 0,4V Max 2V Max 2V

5VS TP7061 P6, pin 11 5V +/- 0,2V 5V +/- 0,2V 5V +/- 0,2V

STB_5V TP7062 P6, pin 13 5V +/- 0,2V 5V +/- 0,2V 5V +/- 0,2V

SUB_6V TP7064 P6, pin 23 6,1V +/- 0,4V Max 1V 6,1V +/- 0,4V

V+ - V- TP7025-26 P5, pin 1,3 370V - 395V Max 1V 370V - 395V

12V TP7070 P2, pin 1 12V +/- 0,4V Max 3V 12V +/- 0,4V

A board

5VS TP1037 A1, pin 10 5V +/- 2%

DTV12V TP1016 A7, pin 20,21 12V +/- 2%

SUB9V TP1015 A7, pin 17 9V +/- 2%

SUB5V TP1011 A7, pin 12,13,14 5V +/- 2%

BT30V TP1010 A7, pin 5 30V +/- 2%

SUB6V TP1014 A6, pin 23 6V +/- 2%

PNL12V TP1012 A7, pin 22,23 12V +/- 2%

S_17V TP1013 A7, pin 1,2 17 +/- 2%

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Téléviseur LCD

Panasonic

Panasonic Viera TC-37LZ85 Manuel utilisateur

Panasonic

Panasonic TH-L55ET5S Mode d’emploi

Panasonic

Panasonic TH-L32X30R Manuel utilisateur

Panasonic

Panasonic TC23LX60 - 23" LCD TV Manuel utilisateur

Panasonic

Panasonic VIERA TH-L32U30A Manuel utilisateur

Panasonic

Panasonic Viera TX-32CS510B Manuel utilisateur

Panasonic

Panasonic TXP50VT65B Manuel utilisateur

Panasonic

Panasonic TCL32C12 - 32" LCD TV Manuel utilisateur

Panasonic

Panasonic TC-32LZ800 - 32" LCD TV Manuel utilisateur

Panasonic

Panasonic TC-26LX1H Manuel utilisateur

Panasonic

Panasonic Viera TX-26LXD71F Manuel utilisateur

Panasonic

Panasonic Viera TX-L32ET5Y Manuel utilisateur

Panasonic

Panasonic VIERA TH-L22X25A Manuel utilisateur

Panasonic

Panasonic TX-L42ETW60 Manuel utilisateur

Panasonic

Panasonic TX-26LX60A Manuel utilisateur

Panasonic

Panasonic TH-L32A10X2 Manuel utilisateur

Panasonic

Panasonic TX-22LX2 Manuel utilisateur

Panasonic

Panasonic Viera TH-L22X20ZK Manuel utilisateur

Panasonic

Panasonic Viera TX-L32U10B Manuel utilisateur

Panasonic

Panasonic TC15LT1 - 15"WIDE LCD TV Manuel utilisateur

Panasonic

Panasonic TC26LX20 - 26" LCD TV Guide de démarrage rapide

Panasonic

Panasonic Viera TC-L32E5 Mode d’emploi

Panasonic

Panasonic TCL22X2 - 22" LCD TV Manuel utilisateur

Panasonic

Panasonic TCL32U3 - 32" LCD TV Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Samsung

Samsung LA32E420 Mode d’emploi

Dell

Dell W1900 19 Instructions d'utilisation

Samsung

Samsung LN40C670M1F Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur
