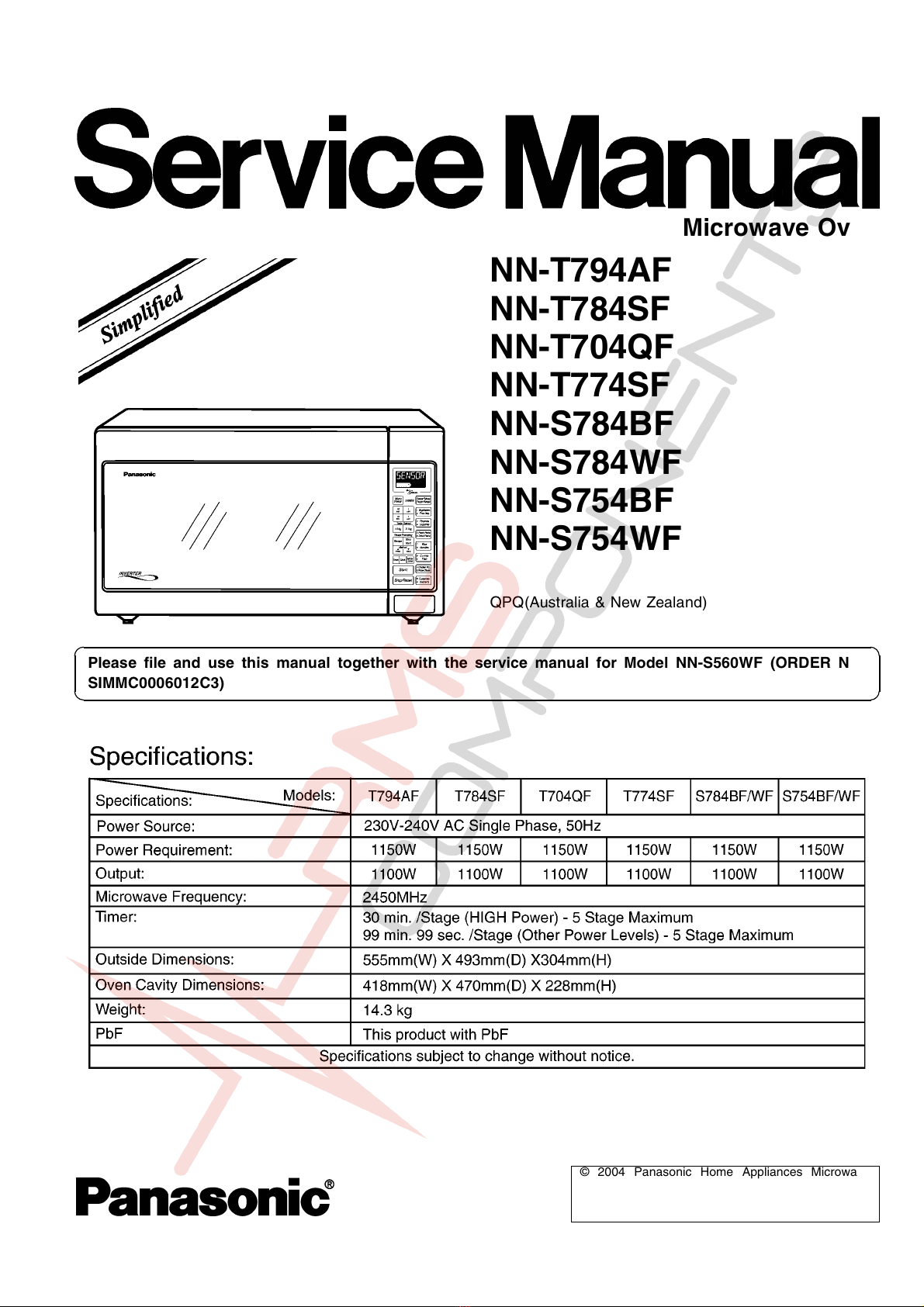

Panasonic NN-T794AF Manuel utilisateur

Unauthorized copying and distribution is a violation

of law.

NN-T794AF

NN-T784SF

NN-T704QF

NN-T774SF

NN-S784BF

NN-S784WF

NN-S754BF

NN-S754WF

QPQ(Australia & New Zealand)

Microwave Oven

Please file and use this manual together with the service manual for Model NN-S560WF (ORDER NO.

SIMMC0006012C3)

ORDER NO.SIMMC 0407020A3

4 EXPLODED VIEW AND PARTS LIST

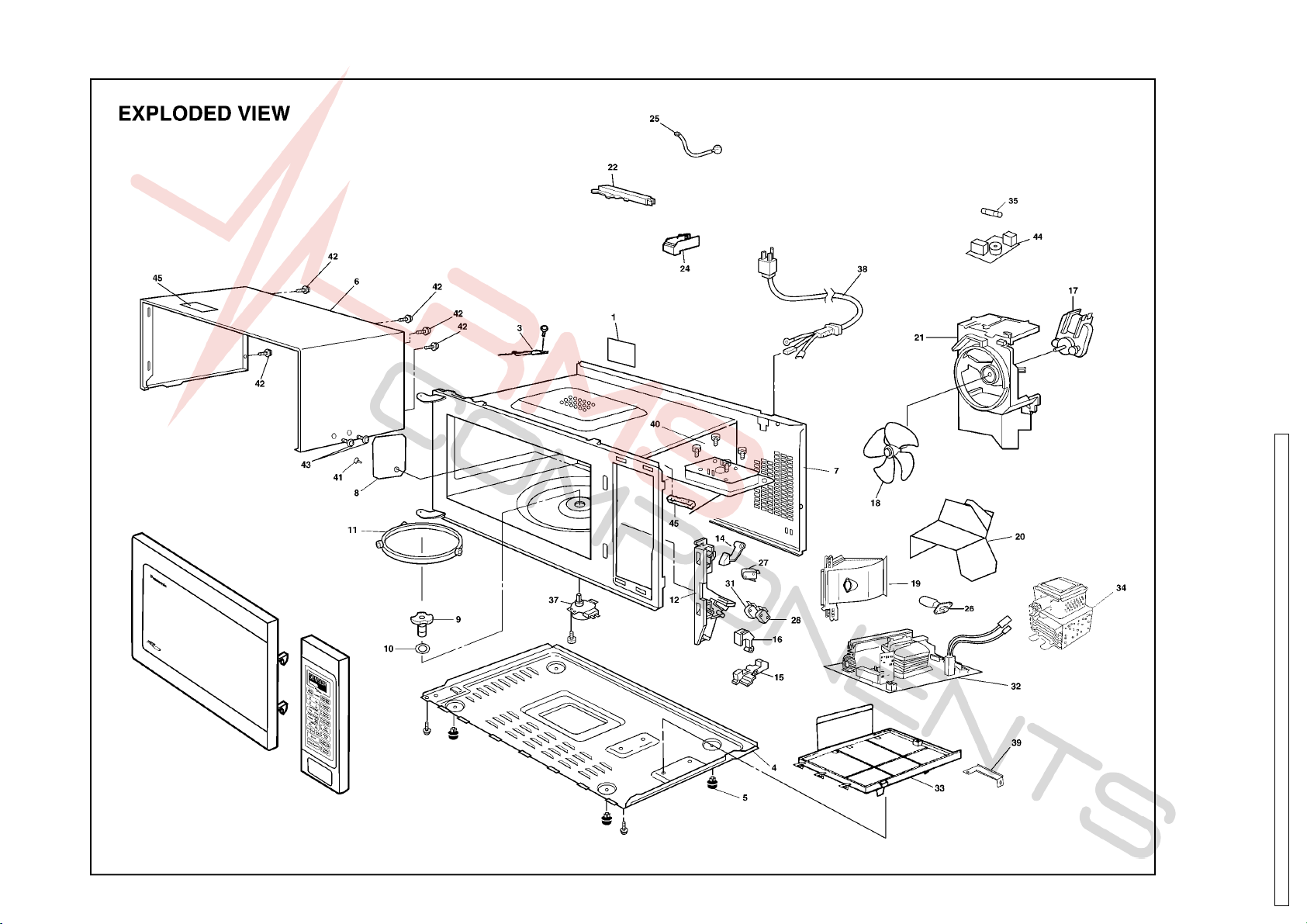

4.1. EXPLODED VIEW

NN-T794AF / NN-T784SF / NN-T704QF / NN-T774SF / NN-S784BF / NN-S784WF / NN-S754BF / NN-S754WF

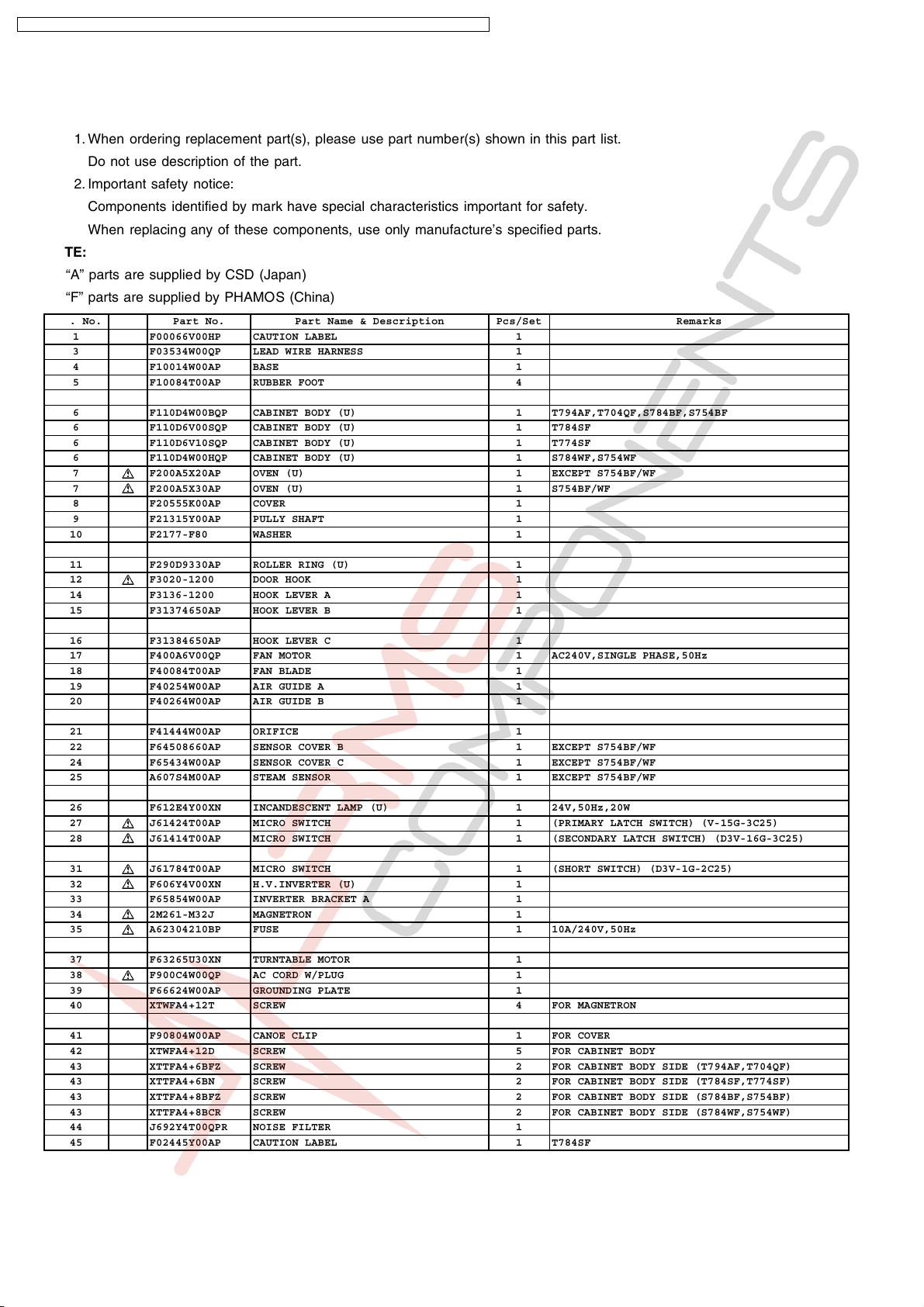

4.2. PARTS LIST

NOTE:

1. When ordering replacement part(s), please use part number(s) shown in this part list.

Do not use description of the part.

2. Important safety notice:

Components identified by mark have special characteristics important for safety.

When replacing any of these components, use only manufacture’s specified parts.

NOTE:

“A” parts are supplied by CSD (Japan)

“F” parts are supplied by PHAMOS (China)

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

1F00066V00HP CAUTION LABEL 1

3F03534W00QP LEAD WIRE HARNESS 1

4F10014W00AP BASE 1

5F10084T00AP RUBBER FOOT 4

6F110D4W00BQP CABINET BODY (U) 1T794AF,T704QF,S784BF,S754BF

6F110D6V00SQP CABINET BODY (U) 1T784SF

6F110D6V10SQP CABINET BODY (U) 1T774SF

6F110D4W00HQP CABINET BODY (U) 1S784WF,S754WF

7F200A5X20AP OVEN (U) 1 EXCEPT S754BF/WF

7F200A5X30AP OVEN (U) 1 S754BF/WF

8F20555K00AP COVER 1

9F21315Y00AP PULLY SHAFT 1

10 F2177-F80 WASHER 1

11 F290D9330AP ROLLER RING (U) 1

12 F3020-1200 DOOR HOOK 1

14 F3136-1200 HOOK LEVER A 1

15 F31374650AP HOOK LEVER B 1

16 F31384650AP HOOK LEVER C 1

17 F400A6V00QP FAN MOTOR 1AC240V,SINGLE PHASE,50Hz

18 F40084T00AP FAN BLADE 1

19 F40254W00AP AIR GUIDE A 1

20 F40264W00AP AIR GUIDE B 1

21 F41444W00AP ORIFICE 1

22 F64508660AP SENSOR COVER B 1EXCEPT S754BF/WF

24 F65434W00AP SENSOR COVER C 1EXCEPT S754BF/WF

25 A607S4M00AP STEAM SENSOR 1EXCEPT S754BF/WF

26 F612E4Y00XN INCANDESCENT LAMP (U) 124V,50Hz,20W

27 J61424T00AP MICRO SWITCH 1(PRIMARY LATCH SWITCH) (V-15G-3C25)

28 J61414T00AP MICRO SWITCH 1(SECONDARY LATCH SWITCH) (D3V-16G-3C25)

31 J61784T00AP MICRO SWITCH 1(SHORT SWITCH) (D3V-1G-2C25)

32 F606Y4V00XN H.V.INVERTER (U) 1

33 F65854W00AP INVERTER BRACKET A 1

34 2M261-M32J MAGNETRON 1

35 A62304210BP FUSE 1 10A/240V,50Hz

37 F63265U30XN TURNTABLE MOTOR 1

38 F900C4W00QP AC CORD W/PLUG 1

39 F66624W00AP GROUNDING PLATE 1

40 XTWFA4+12T SCREW 4FOR MAGNETRON

41 F90804W00AP CANOE CLIP 1FOR COVER

42 XTWFA4+12D SCREW 5FOR CABINET BODY

43 XTTFA4+6BFZ SCREW 2FOR CABINET BODY SIDE (T794AF,T704QF)

43 XTTFA4+6BN SCREW 2FOR CABINET BODY SIDE (T784SF,T774SF)

43 XTTFA4+8BFZ SCREW 2FOR CABINET BODY SIDE (S784BF,S754BF)

43 XTTFA4+8BCR SCREW 2FOR CABINET BODY SIDE (S784WF,S754WF)

44 J692Y4T00QPR NOISE FILTER 1

45 F02445Y00AP CAUTION LABEL 1T784SF

NN-T794AF / NN-T784SF / NN-T704QF / NN-T774SF / NN-S784BF / NN-S784WF / NN-S754BF / NN-S754WF

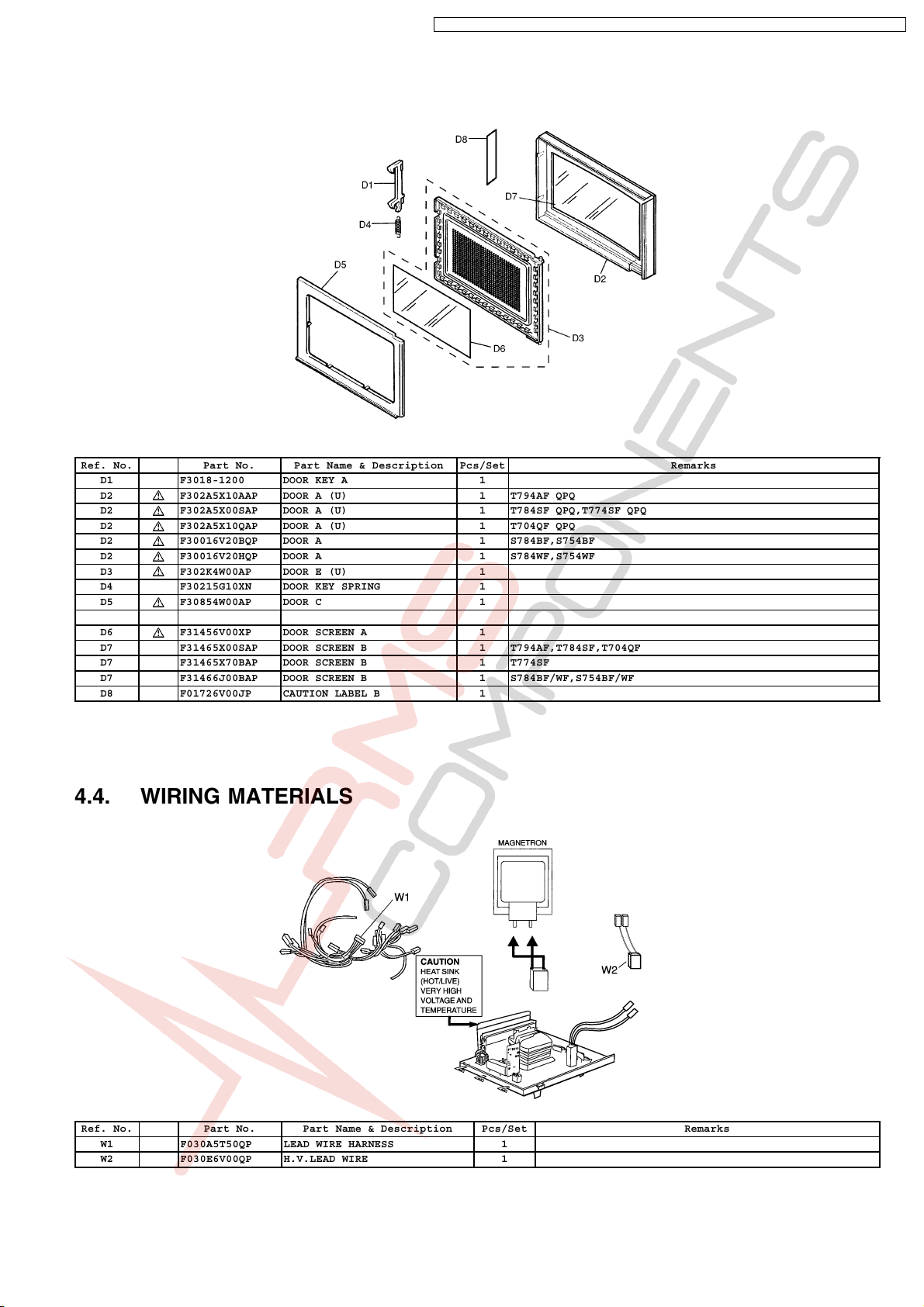

4.3. DOOR ASSEMBLY

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

D1 F3018-1200 DOOR KEY A 1

D2 F302A5X10AAP DOOR A (U) 1 T794AF QPQ

D2 F302A5X00SAP DOOR A (U) 1 T784SF QPQ,T774SF QPQ

D2 F302A5X10QAP DOOR A (U) 1 T704QF QPQ

D2 F30016V20BQP DOOR A 1 S784BF,S754BF

D2 F30016V20HQP DOOR A 1 S784WF,S754WF

D3 F302K4W00AP DOOR E (U) 1

D4 F30215G10XN DOOR KEY SPRING 1

D5 F30854W00AP DOOR C 1

D6 F31456V00XP DOOR SCREEN A 1

D7 F31465X00SAP DOOR SCREEN B 1T794AF,T784SF,T704QF

D7 F31465X70BAP DOOR SCREEN B 1T774SF

D7 F31466J00BAP DOOR SCREEN B 1S784BF/WF,S754BF/WF

D8 F01726V00JP CAUTION LABEL B 1

4.4. WIRING MATERIALS

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

W1 F030A5T50QP LEAD WIRE HARNESS 1

W2 F030E6V00QP H.V.LEAD WIRE 1

NN-T794AF / NN-T784SF / NN-T704QF / NN-T774SF / NN-S784BF / NN-S784WF / NN-S754BF / NN-S754WF

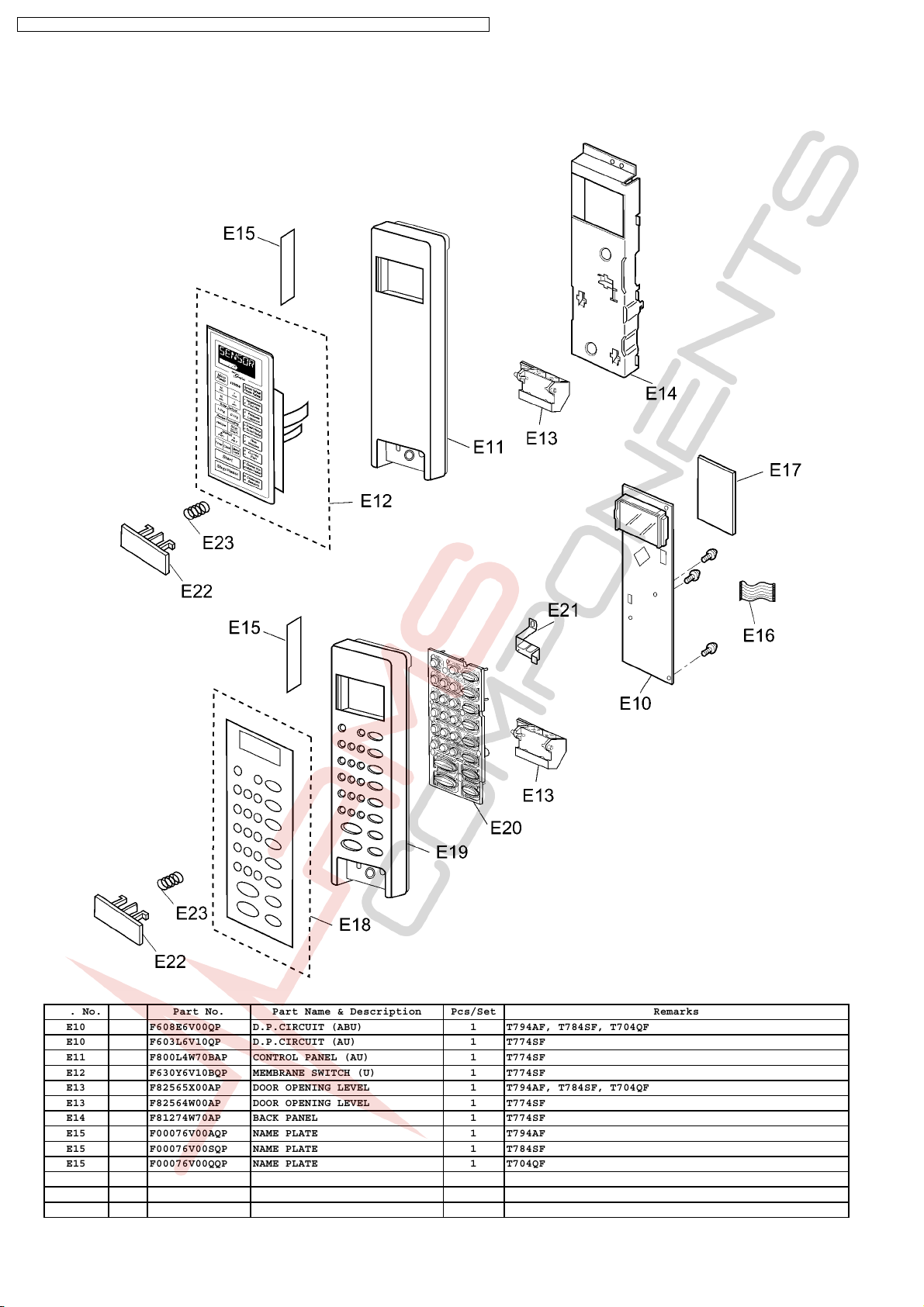

4.5. ESCUTCHEON BASE ASSEMBLY

4.5.1. NN-T7*4

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

E10 F608E6V00QP D.P.CIRCUIT (ABU) 1T794AF, T784SF, T704QF

E10 F603L6V10QP D.P.CIRCUIT (AU) 1T774SF

E11 F800L4W70BAP CONTROL PANEL (AU) 1T774SF

E12 F630Y6V10BQP MEMBRANE SWITCH (U) 1T774SF

E13 F82565X00AP DOOR OPENING LEVEL 1T794AF, T784SF, T704QF

E13 F82564W00AP DOOR OPENING LEVEL 1T774SF

E14 F81274W70AP BACK PANEL 1T774SF

E15 F00076V00AQP NAME PLATE 1T794AF

E15 F00076V00SQP NAME PLATE 1T784SF

E15 F00076V00QQP NAME PLATE 1T704QF

E15 F00076V10SQP NAME PLATE 1T774SF

E16 F66164W20AP FLAT CABLE 1T794AF, T784SF, T704QF

E17 F603Y6V00QP D.P.CIRCUIT (DU) 1T794AF, T784SF, T704QF

NN-T794AF / NN-T784SF / NN-T704QF / NN-T774SF / NN-S784BF / NN-S784WF / NN-S754BF / NN-S754WF

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

E18 F83376V00SQP MEMBRANE SHEET 1T794AF, T784SF, T704QF

E19 F800L5X00AAP CONTROL PANEL (AU) 1T794AF

E19 F800L5X00BAP CONTROL PANEL (AU) 1T784SF

E19 F800L5X00QAP CONTROL PANEL (AU) 1T704QF

E20 F82985X00AP BUTTON 1T794AF, T784SF, T704QF

E21 F90095X00AP GROUNDING PANEL 1T794AF, T784SF, T704QF

E22 F80724W70AAP DOOR OPENING BUTTON (U) 1T794AF

E22 F80724W70SAP DOOR OPENING BUTTON (U) 1T784SF, T774SF

E22 F80724W70QAP DOOR OPENING BUTTON (U) 1T704QF

E23 F80375K00AP COOK BUTTON SPRING 1

4.5.2. NN-S7*4

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

E1 F603L6V20QP D.P.CIRCUIT (AU) 1S784BF/WF

E1 F603L6V30QP D.P.CIRCUIT (AU) 1S754BF/WF

E3 F630Y6V20BQP MEMBRANE SWITCH (U) 1S784BF

E3 F630Y6V20HQP MEMBRANE SWITCH (U) 1S784WF

E3 F630Y6V30BQP MEMBRANE SWITCH (U) 1S754BF

E3 F630Y6V30HQP MEMBRANE SWITCH (U) 1S754WF

E4 F80346J00BAP ESCUTCHEON BASE 1S784BF, S754BF

E4 F80346J00HAP ESCUTCHEON BASE 1S784WF, S754WF

E5 F80726J00BAP DOOR OPENING BUTTON 1S784BF, S754BF

E5 F80726J00HAP DOOR OPENING BUTTON 1S784WF, S754WF

E6 F80375K00AP COOK BUTTON SPRING 1

E7 F82564W00AP DOOR OPENING LEVEL 1

E8 F00076V20BQP NAME PLATE 1S784BF QPQ

E8 F00076V20HQP NAME PLATE 1S784WF QPQ

E8 F00076V30BQP NAME PLATE 1S754BF QPQ

E8 F00076V30HQP NAME PLATE 1S754WF QPQ

NN-T794AF / NN-T784SF / NN-T704QF / NN-T774SF / NN-S784BF / NN-S784WF / NN-S754BF / NN-S754WF

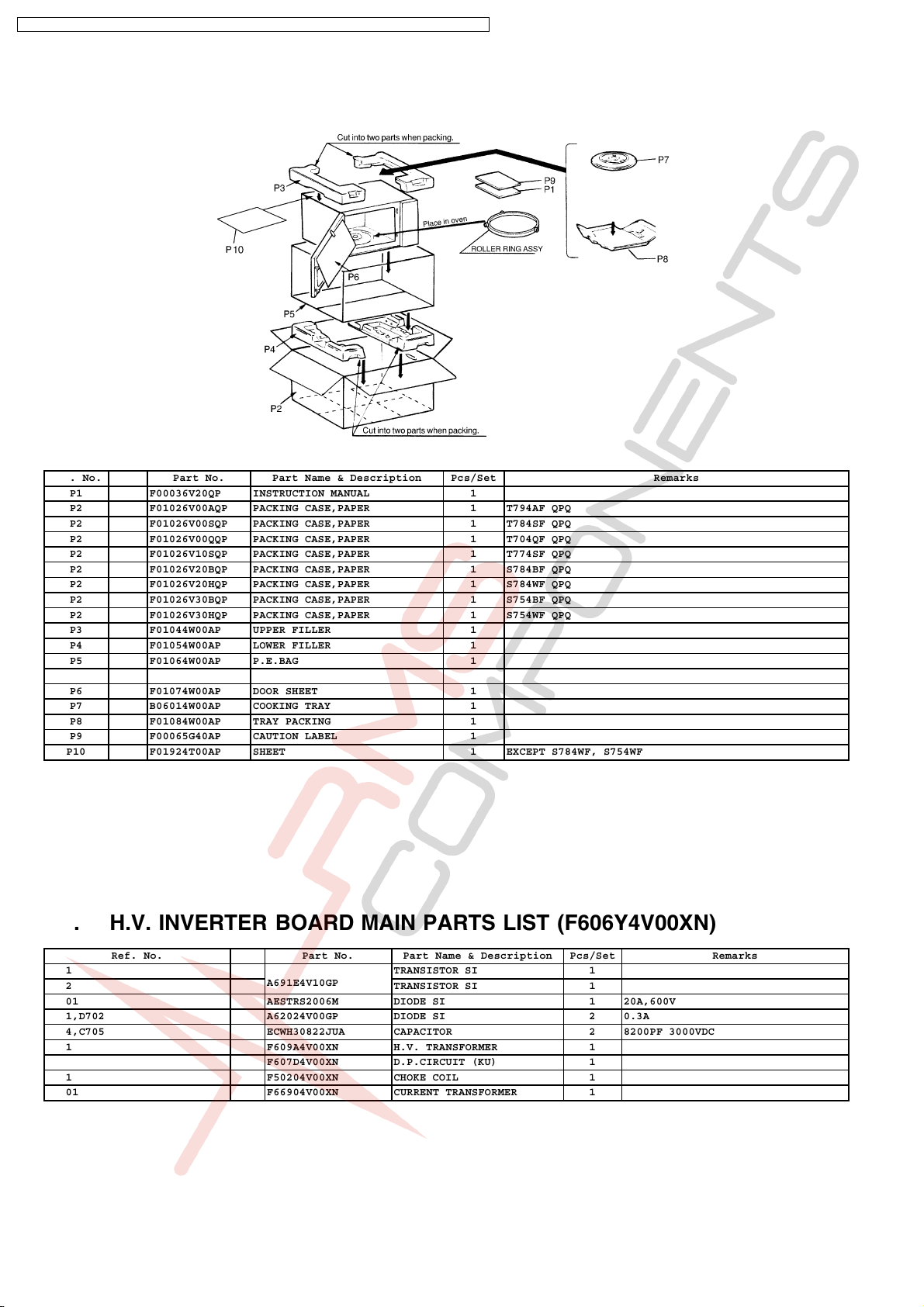

4.6. PACKING AND ACCESSORIES

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

P1 F00036V20QP INSTRUCTION MANUAL 1

P2 F01026V00AQP PACKING CASE,PAPER 1T794AF QPQ

P2 F01026V00SQP PACKING CASE,PAPER 1T784SF QPQ

P2 F01026V00QQP PACKING CASE,PAPER 1T704QF QPQ

P2 F01026V10SQP PACKING CASE,PAPER 1T774SF QPQ

P2 F01026V20BQP PACKING CASE,PAPER 1S784BF QPQ

P2 F01026V20HQP PACKING CASE,PAPER 1S784WF QPQ

P2 F01026V30BQP PACKING CASE,PAPER 1S754BF QPQ

P2 F01026V30HQP PACKING CASE,PAPER 1S754WF QPQ

P3 F01044W00AP UPPER FILLER 1

P4 F01054W00AP LOWER FILLER 1

P5 F01064W00AP P.E.BAG 1

P6 F01074W00AP DOOR SHEET 1

P7 B06014W00AP COOKING TRAY 1

P8 F01084W00AP TRAY PACKING 1

P9 F00065G40AP CAUTION LABEL 1

P10 F01924T00AP SHEET 1EXCEPT S784WF, S754WF

4.7. H.V. INVERTER BOARD MAIN PARTS LIST (F606Y4V00XN)

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

Q701

A691E4V10GP

TRANSISTOR SI 1

Q702 TRANSISTOR SI 1

DB701 AESTRS2006M DIODE SI 120A,600V

D701,D702 A62024V00GP DIODE SI 2 0.3A

C704,C705 ECWH30822JUA CAPACITOR 28200PF 3000VDC

T701 F609A4V00XN H.V. TRANSFORMER 1

F607D4V00XN D.P.CIRCUIT (KU) 1

L701 F50204V00XN CHOKE COIL 1

CT701 F66904V00XN CURRENT TRANSFORMER 1

NN-T794AF / NN-T784SF / NN-T704QF / NN-T774SF / NN-S784BF / NN-S784WF / NN-S754BF / NN-S754WF
