Panasonic SCR-CH100H Manuel utilisateur

Order Number Meiling/DF/Eng

Deep Freezer

SCR-CH100/150/200/300H*

Product Specification

Colour :White

Category :Hard Top

Destination

India

Oman

Kuwait

UAE

KSA

South Africa

Nigeria

Qatar

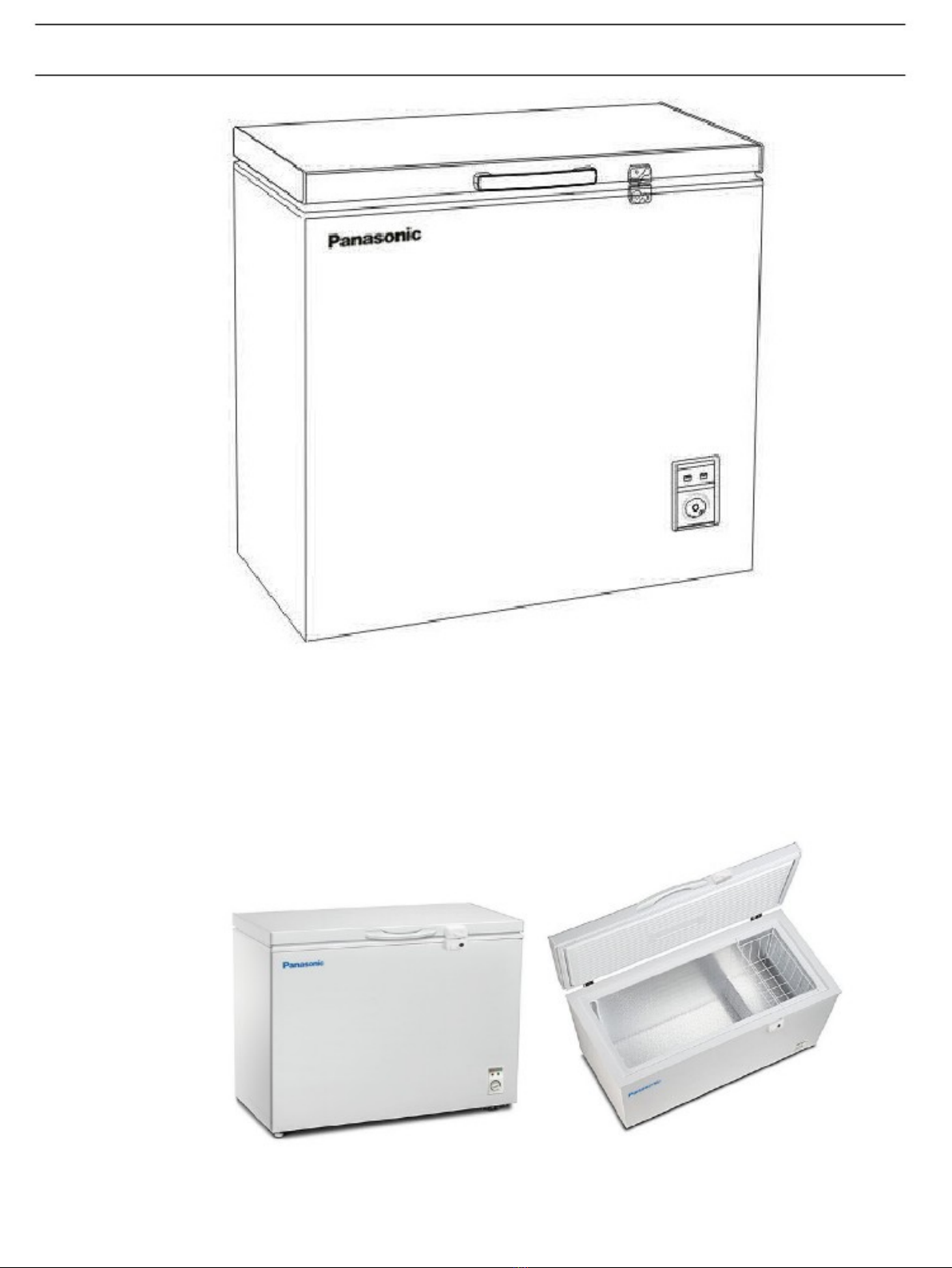

Picture is only for illustration

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warning or cautions to advice non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service

or repair the product of products dealt with in this service information by anyone else could result in serious injury or death.

INPORTANT SAFETY NOTICE

These are special components used in this equipment which are important for safety. These points are marked byin the Schematic

Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced

with manufacture’s specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

TABLE OF CONTENTS

1.Safety Cautions for Repairing

2.Specification and Components

3.Product Dimension

4.Installation Instructions

5.Operating Instructions

6.Schematic Diagram

7.Care and Maintenance

8.Troubleshooting Guide

9.Compressor Troubleshooting

10.Parts Exploded and Replacement Parts List

copying and distribution is a violation of law.

1. SAFETY CAUTIONS FOR REPAIRING

When you repair the deep freezer, please kindly take care for the following cautions.

1.1. Warning

Before repairing unit, unplug supply cord

・Before you repair the deep freezer, please unplug the supply cord.

Use authentic parts when repairing

・When you replace the parts, please use authentic parts to replace defective parts.

Caution during brazing

・When you use torch for brazing, please ensure ventilation.

Otherwise, you will be poisoned carton monoxide.

Pay attention to using refrigerant

・If deep freezer touches fire, the gas becomes poisonous gas.

Pay attention to getting electricity shock

・When you check the voltage of terminal, please do not touch the electricity part terminal.

・When you replace the parts, please wait for 3 minutes at least for discharging capacitor.

Check safety after repairing

・Check the screws, parts, lead wires to take in place.

・Check the repairing portion whether circumferential parts are damaged or not.

・Check insulation resistance between supply plug and earth.

・When install refrigerator, check condition of supply cord and plug.

・Wipe off the dust on plug.

・Cutting and seal the electric device carefully.

1.2. Caution

Watch the hot parts

・During operation and after operation, compressor and pipes are hot.

・Also, under these condition, heater are hot.

・Do not burn your fingers when you touch it.

Pay attention to refrigerant

・Do not touch liquid refrigerant. Otherwise, your hands may be burnt.

Pay attention to edge of parts

・Otherwise, your fingers may be cut.

Pay attention to fins of evaporator and condenser

・Otherwise, your fingers may be cut.

Before transportation, adjust the bolt

・Otherwise, the floor may be damaged.

Do not touch the pipe after brazing

・Otherwise, your hands may be burnt.

2. SPECIFICATION AND COMPONENTS

Model

Color code

Power source ( AC ), Plug

Frequency

Input Current ( Amp.)

Specification

Capacity (L)

Net weight (kg)

Product dimension (mm)

(WxDxH)

Side:100 mm (min) ,

Back:100mm (min)

4 Stars

MANUAL CONTROL

Manual

MANUAL CONTROL

Aluminium sheet

120g

R-134a

Side:100 mm (min) ,

Back:100mm (min)

4 Stars

MANUAL CONTROL

Manual

MANUAL CONTROL

Aluminium sheet

120 g

R-134a

Side:100 mm (min) ,

Back: 100mm (min)

4 Stars

MANUAL CONTROL

Manual

MANUAL CONTROL

Aluminium sheet

140 g

R-134a

Side:100 mm (min) ,

Back: 100mm (min)

4 Stars

MANUAL CONTROL

Manual

MANUAL CONTROL

Aluminium sheet

170 g

R-134a

SCR-CH100H*

White

AC 220~240 V , 3PIN PLUG

50 Hz

1.0 A

SCR-CH150H*

White

AC 220~240 V , 3PIN PLUG

50 Hz

1.5 A

SCR-CH200H*

White

AC 220~240 V , 3PIN

PLUG

50 Hz

1.5 A

SCR-CH300H*

White

AC 220~240 V ,

3PIN PLUG

50 Hz

2.0 A

100L

27 kg

150L

31 kg

1055 x 735 x 835

200L

36 kg

300L

44 kg

Installation space ( mm)

Energy label

Climate Type

Temperature control

Defrosting

Defrosting control

Inner liner

Refrigerant charge

Refrigerant Name

Oil charge

Electric parts

Thaermostat

Compressor

Fan motor

568 x 560 x 845 980 x 560 x 845

760 x 560 x 845

150±10ml

160±10ml

155ml

PW4.5VK

WV43H

PW5.5VK

ATD60L

w/o except 5

With fan

3. PRODUCT DIMENSION

4. INSTALLATION INSTRUCTION

This section explains how to install your appliance for the most energy-efficient, safe and quiet operation.

If possible avoid placing the appliance near cookers,

radiators or in direct sunlight as this will cause the

compressor to run for long periods. If installed next to a

source of heat or refrigerator, maintain the following

minimum side clearances:

From Cookers

From Radiators

From Fridges

4" (100 mm)

12" (300 mm)

(100 mm)

•Make sure that sufficient room is

provided around the appliance to ensure

free air circulation. Ideally, A space of no

less than 100mm must be left around the

freezer, and ensure you allow gaps as

shown in the below diagram.

The appliance should be located on a smooth surface.

It is forbidden to use the refrigerator outdoors.

Protection from moisture. Do not locate the freezer in moist space to avoid the metal parts rusty. And

do not spray water to the freezer, otherwise it will weaken the insulation and causes current leakage.

Refer to "Cleaning and Care" section to prepare your appliance for use.

If the freezer is installed in unheated areas, garages etc. condensation may form on the outer

surfaces in cold weather. This is quite normal and is not a fault. Remove the condensation by wiping

with a dry cloth.

5. OPERATING INSTRUCTION

Electrical Supply Connection

・Deep Freezer should be connected with AC220 ~ 240 V 50Hz single phase.

・Use of extension cord is not recommended.

・A separate circuit should be drawn from the mains to minimize the voltage drop.

WARNING:

・Keep ventilation openings in the appliance enclosure, clear of obstruction.

・Do not use mechanical devices or other means to accelerate the defrosting process, other than those

recommended by the manufacturer.

・Do not damage the refrigerant circuit.

・Do not use electrical appliances inside the food storage compartment of the appliances, unless they

are of the type recommended by the manufacturer.

6. CARE AND MAINTENANCE

Before you start to use the freezer, please check that:

The interior is dry and air can circulate freely at the rear.

Clean the interior as recommended under "CLEANING AND CARE"

Insert the plug into the wall socket and switch on the electricity supply, then the Red light is On.

Avoid accidental disconnection by taping over the switch. Green light will glow and the compressor

will start running (see Freezer Operation page 6).

You will hear a noise as the compressor starts up. The liquid and gases sealed within the

refrigeration system may also give rise to noise, whether the compressor is running or not which is

quite normal.

If you going to store already frozen food open the freezer lid and check that the freezer has reached

the correct temperature. Then you can put in your already frozen food.

Do not load the appliance immediately after it is Switched ON. Wait until the correct storage

temperature has been reached. We recommend that you check the temperature with an accurate

thermometer

Important Notes:

•If there is a power failure do not open the lid. Frozen food should not

be affected if the failure lasts for less than 20 hours. If the failure is

longer, then the food should be checked and eaten immediately or

cooked and then refrozen.

•If you find that the lid of the deep freezer is difficult to open just after

you have closed it, don’t worry. This is due to the pressure difference

which will equalize and allow the lid to be opened normally after a

few minutes.

6.1 CARE AND MAINTENANCE

Cleaning and Care

We recommend that you Switch OFF the freezer at the socket outlet and pull out the

mains plug before cleaning.

Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax

polish for cleaning.

Use lukewarm water to clean the cabinet of the freezer with a cloth and wipe it dry.

Caution: Do not pour water directly on your appliance near the compressor area

Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one

pint of water to clean the interior and wipe it dry.

Excess deposit of ice should be removed on a regular basis using a plastic ice scraper

available from your local store. Large accumulation of ice will impair the performance of

the freezer.

If the freezer is not going to be used for a long period of time switch it OFF, remove all

food, clean it and leave the lid ajar.

Check lid seals regularly to ensure they are clean and free from food particles.

Important Notes:

Never use water wash the compressor position, wipe it with a dry cloth thoroughly after

cleaning to prevent rust.

7.Temperature Control

Note : Picture is for illustration only, can vary from actual product

6.1 Temperature adjustment

The temperature of the freezer is adjusted by means of the knob assembled on the thermostat. “1,2,3,4,5” do not

represent a specific temperature. The smaller the No. the higher the temperature, whereas. So, position “5” is being the

lowest temperature.

Figures mean:

“ OFF”

1—5

：Forced Shutdown Point

：Frozen Interval （from -12 ℃to -26 ℃）

The achieved temperatures can vary according to the conditions of use of the appliance, such as: place of the appliance,

ambient temperature, and frequency of lid opening, extent of filling with food of the freezer. The position of the thermostat

knob will change according to these factors. Normally, for an

ambient temperature of approx. 25℃, the thermostat should be adjusted to the mild position.

We recommended that you check the temperature with a thermometer to ensure that the Freezer is kept to the desired

temperature. Remember you must take your reading very quickly since the thermometer temperature will rise very rapidly

after you remove it from the freezer.

Please remember each time the lid is opened cold air escapes and the internal temperature rises. Therefore never leave

the lid open and ensure it is closed: immediately after Food is put in or removed.

Indicator lights

The indicator light set is placed on the front side of the freezer for easy visibility.

Indicator lights mean the following:

Red LED – shows that the appliance is supplied with electric energy.

Green LED – shows that the compressor is working.

7.1Storing Frozen Food

Prepackaged commercially frozen food should be stored in accordance with the frozen food manufacturer’s

instructions for a freezer compartment.

To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained

the following should be remembered:

1 ．Put packets in the freezer as quickly as possible after purchase.

2 ．Do not exceed “Use By”, “Best Before” dates on the packaging.

Freezing Fresh Food

Place fresh food to be frozen near the side walls to ensure fast freezing and away from already frozen food,

if possible.

Freezing capacity of your appliance in a 24 hours period is as below:

Never exceed this maximum capacity. Do not freeze too large a quantity at any one time.

The quality of the food is best preserved when it is frozen right through to the center as quickly as possible.

Take special care not to mix already frozen food and fresh food.

Ce manuel convient aux modèles suivants

Autres manuels Panasonic Congélateur

Panasonic

Panasonic MDF-136 Series Manuel utilisateur

Panasonic

Panasonic MDF-C8V1 Series Manuel utilisateur

Panasonic

Panasonic MDF-U4186S Series Manuel utilisateur

Panasonic

Panasonic MDF-DC700VXC Manuel utilisateur

Panasonic

Panasonic MDF-U33V Manuel utilisateur

Panasonic

Panasonic MDF-U7586SC Manuel utilisateur

Panasonic

Panasonic MDF-U54V Series Manuel utilisateur

Panasonic

Panasonic KM-DU73Y1 Manuel utilisateur

Panasonic

Panasonic MDF-U5312 Manuel utilisateur

Panasonic

Panasonic MDF-DU900V Manuel utilisateur

Panasonic

Panasonic MDF-594C Manuel utilisateur

Panasonic

Panasonic MDF-137 Series Manuel utilisateur

Panasonic

Panasonic MDF-594 Manuel utilisateur

Panasonic

Panasonic MDF-U731 Series Manuel utilisateur

Panasonic

Panasonic MDF-U334 Series Manuel utilisateur

Panasonic

Panasonic SCR-CH500H Manuel utilisateur

Panasonic

Panasonic MDF-237 Manuel utilisateur

Panasonic

Panasonic MDF-U76VA Manuel utilisateur

Panasonic

Panasonic MDF-U731M Manuel utilisateur

Panasonic

Panasonic MDF-DC700VX Series Manuel utilisateur

Panasonic

Panasonic MDF-U76V Manuel utilisateur

Panasonic

Panasonic MDF-U7386S Manuel utilisateur

Panasonic

Panasonic MDF-U74V Manuel utilisateur

Panasonic

Panasonic MDF-U700VX-PB Manuel utilisateur

Manuels Congélateur populaires d'autres marques

Siemens

Siemens GU..D SERIES Manuel utilisateur

Omcan

Omcan FR-CN-0155 Manuel utilisateur

Beko

Beko FNE290E24W Manuel utilisateur

Electrolux

Electrolux ARCTIS G 8 60 50-6I Manuel utilisateur

Electrolux

Electrolux EUF2042AOX Manuel utilisateur

Dometic

Dometic CoolFreeze CFX95DZ Manuel utilisateur

Electrolux

Electrolux EUF7000W1 Manuel utilisateur

Polar Electro

Polar Electro CT330 Manuel utilisateur

MPM

MPM MPM-145-SK Series Manuel utilisateur

SAF

SAF PRESTOTIG 200AC/DC Guide rapide

Zanussi

Zanussi ZFT11407WA Manuel utilisateur

AEG

AEG A63190GT Manuel utilisateur

AEG

AEG A81000TNW0 Manuel utilisateur

Matsui

Matsui MUC50S15E Manuel utilisateur

NEFF

NEFF G4344X8 Manuel utilisateur

Frigidaire

Frigidaire FV 1246 H Manuel utilisateur

Frigidaire

Frigidaire FFC13K1AW Manuel utilisateur

Electrolux

Electrolux EU 2400C Manuel utilisateur
