Facsimile with Cordless Phone

Quick Reference Guide

KX-PW76CL

億

人

の

フ

ァ

ク

ス

Model No.

Finding the Controls ………………………………2

Set up ………………………………………………4

Connections ……………………………………4

Recording paper ………………………………6

Setting date and time …………………………8

Setting your facsimile telephone number……8

Setting your logo ………………………………9

Telephone Operations ……………………………10

Facsimile Operations ……………………………11

Setting the Answer Mode…………………………14

Answering Device Functions ……………………15

Using E-mail ………………………………………16

Using Hand Scanner………………………………20

Speciﬁcations ……………………………Back cover

Table of Contents

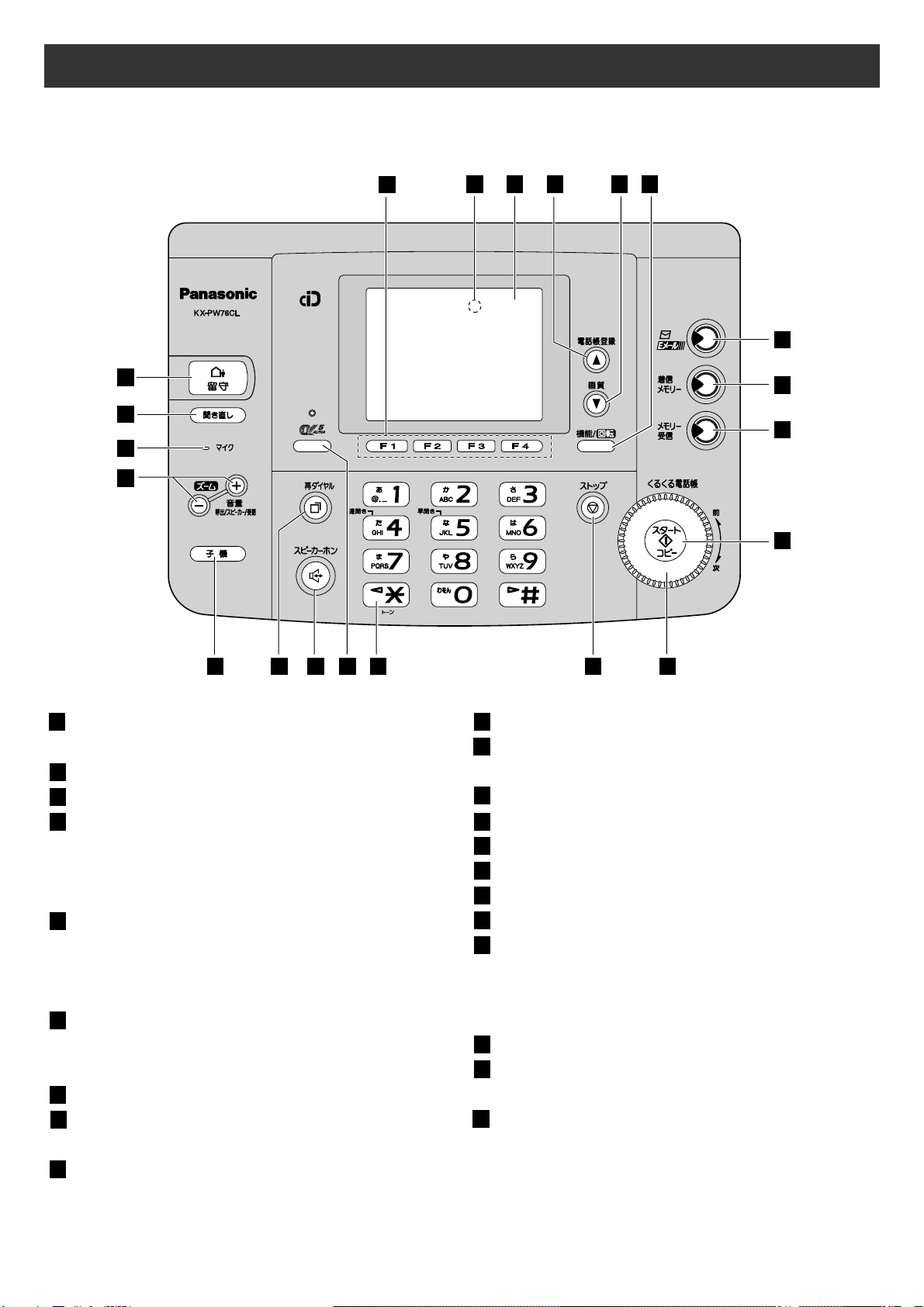

Finding the Controls

Main unit

Multi-operation buttons refer to the

function displayed on the display panel.

Reset key

Liquid crystal display

Store button stores information (phone

numbers, names etc.) into the telephone

directory.

Scroll button scrolls display contents up.

Resolution button selects the resolution

when faxing or copying.

Scroll button scrolls display contents

down.

Function button initiates programming.

Revolution button turns display contents

90˚ clockwise.

E-Mail button

Call Memory button & indicator store the

caller ID of incoming calls.

Memory button & indicator store received

fax and e-mail data.

Start/Copy button starts faxing or copying.

Search Dial searches the directory or

displays programming features.

Stop button

Tone button switches to tone dialing.

α-ALPHA5 button accesses α5 services.

Speakerphone button

Redial/Pause button

Intercom button

Volume buttons adjust ringer, speaker

and handset volume.

Zoom buttons enlarge or reduce display

contents.

Microphone

Replay button listens to recorded

messages.

Auto Answer button

—light on: answering device activated.

—light off: used as a telephone.

145 6

17 16 15 14 13 12

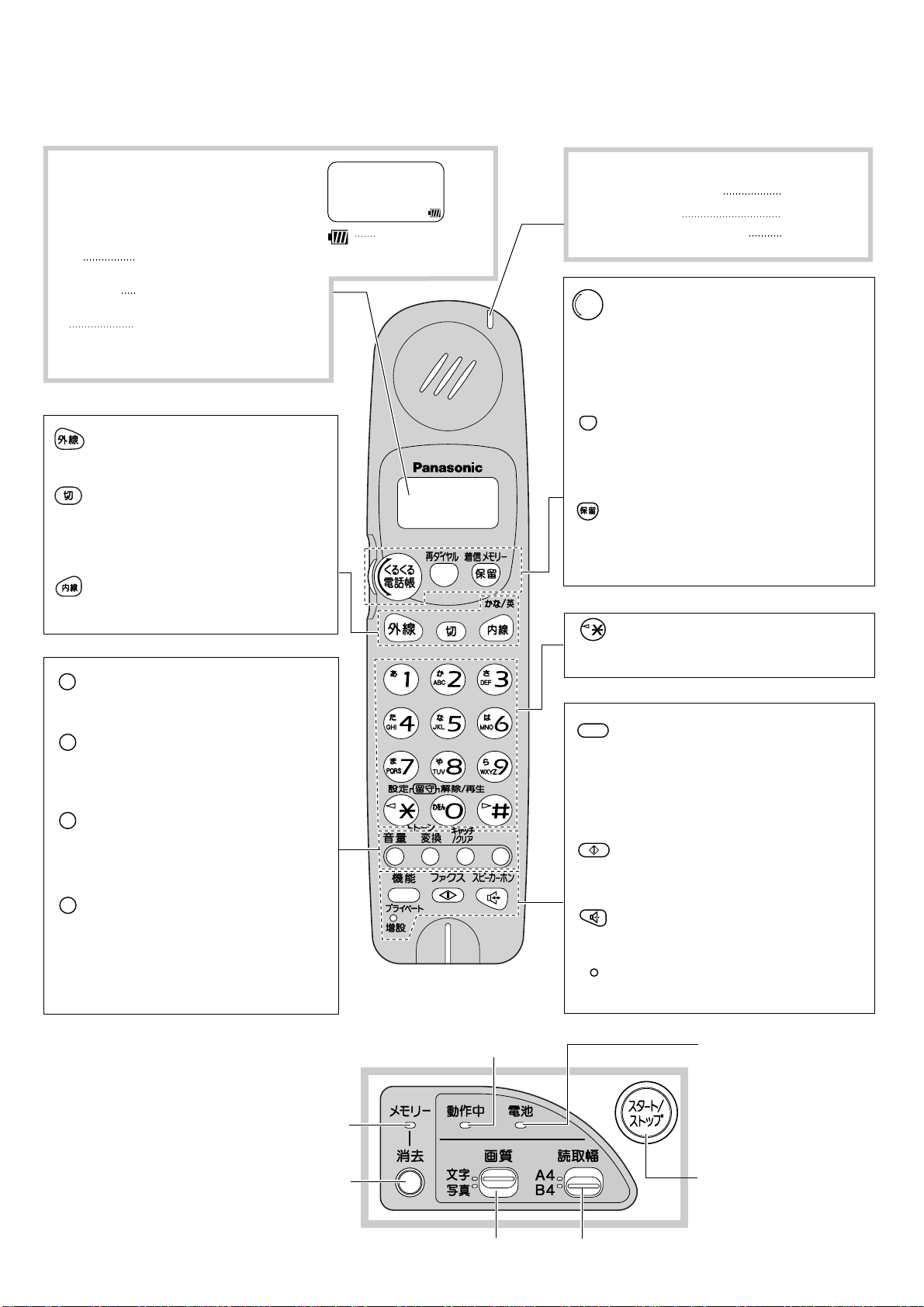

Portable Handset

To make/answer calls.

To change from pulse to tone

dialing.

Search dial, for telephone numbers

stored in memory.

For referring to telephone numbers

when using Number Display Service.

To adjust the volume.

To radial the last number dialed.

To insert a pause.

To make the handset ring first.

To operate the answering device.

To use the private message and

fax features.

Display

displays battery strength,

telephone numbers etc.

In use/charge indicator

To receive faxes.

To page the main unit.

To change the enter mode.

To end call.

To end storing and other

operations.

Used when installing additional

handsets.

When receiving a call

When charging

When charging complete

flashes red

lights red

lights green

くるくる

電話帳

再ダイヤル

To put a call on hold.

To start the search for telephone

numbers when using Number

Display Service.

To use the speakerphone.

For Call Waiting Service users.

To clear letters/numbers.

To change Hiragana into Kanji.

To store names and telephone

numbers in the search dial.

To edit/delete names and

telephone numbers in the search

dial.

To set quick call.

着信メモリー

音量

変換

機能

登録/修正・確定 スピーカーホン

かな/英

プライベート

増設

キャッチ

/クリア

ファクス

登録/修正

・

確定

プライベートかな



子機1

子機1

(Handset 1)



プライベート



(Private)



英

(English)

Handset number



Displayed when receiving

private massage or fax.

Displayed when entering

characters for the telephone

directory.

(ex)

Displays battery

strength

Battery indicator

(Shows the amount of

battery power left)

To start or stop scanning

Scanning width switchResolution switch

Delete button

(To delete the scanning contents)

Operation indicator

(Shows the condition of the scanner)

Memory indicator

(To show the amount of memory being used)

Hand Scanner

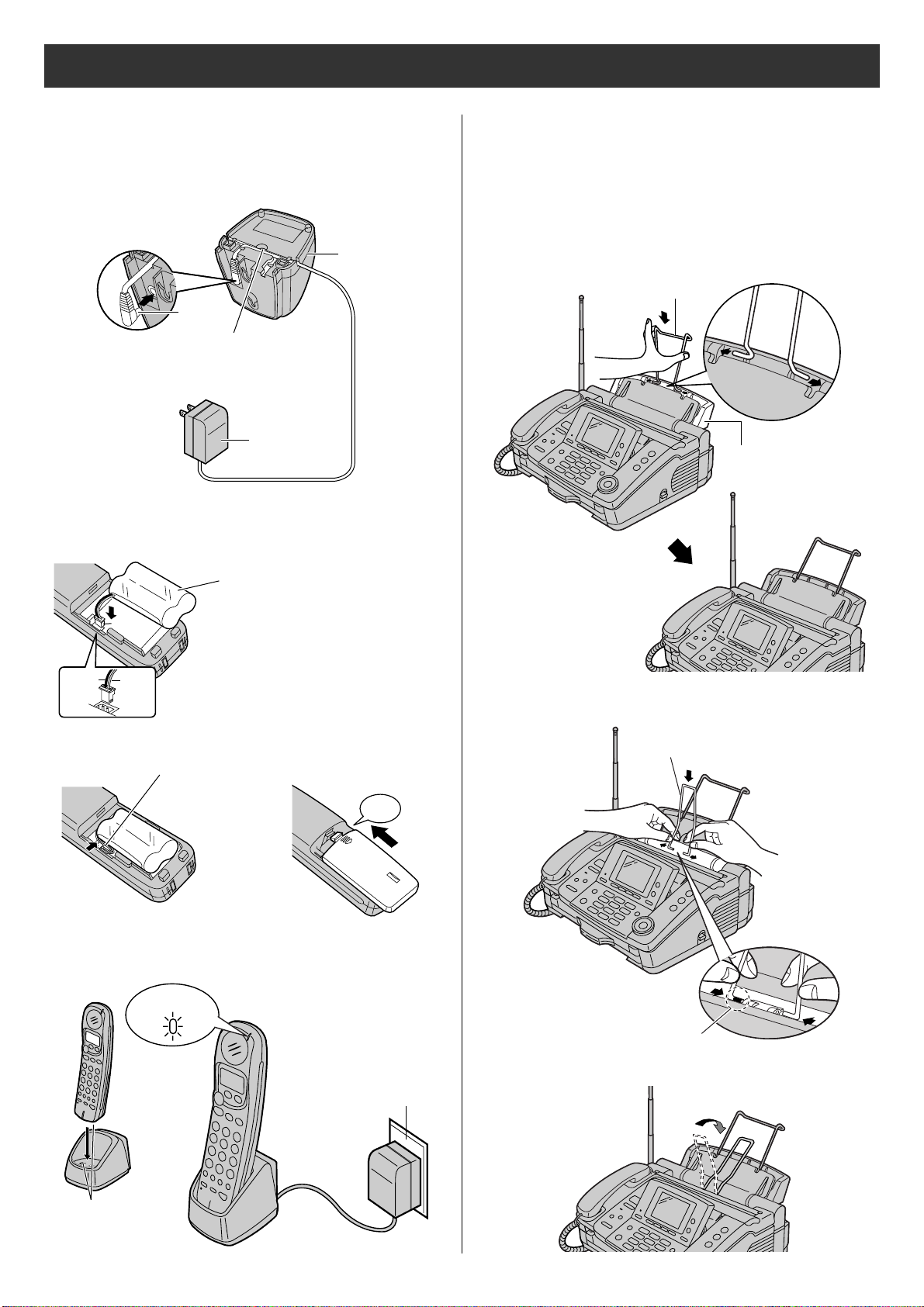

Setup ( Connections )

1Connect AC adaptor to the Charger.

2Connect the battery to the Handset.

3Charge the Handset Battery.

Charge the Handset Battery Insert the Recording paper sub-

tray and Recording paper arm-

spring in the main unit

1Insert the Recording paper sub-tray.

2Insert the Recording paper arm-spring.

Throw down the Recording paper arm-spring.

AC adaptor

Charger

Plug

Set the AC adaptor cord

in the cord guide

Connector

cord

(Black) cord

(Red)

Battery

Put the cord away near the battery

Click

Recording paper

sub-tray

Recording paper tray

Recording paper

arm-spring

(Black)

Charge indicator

Power outlet

Charging terminals

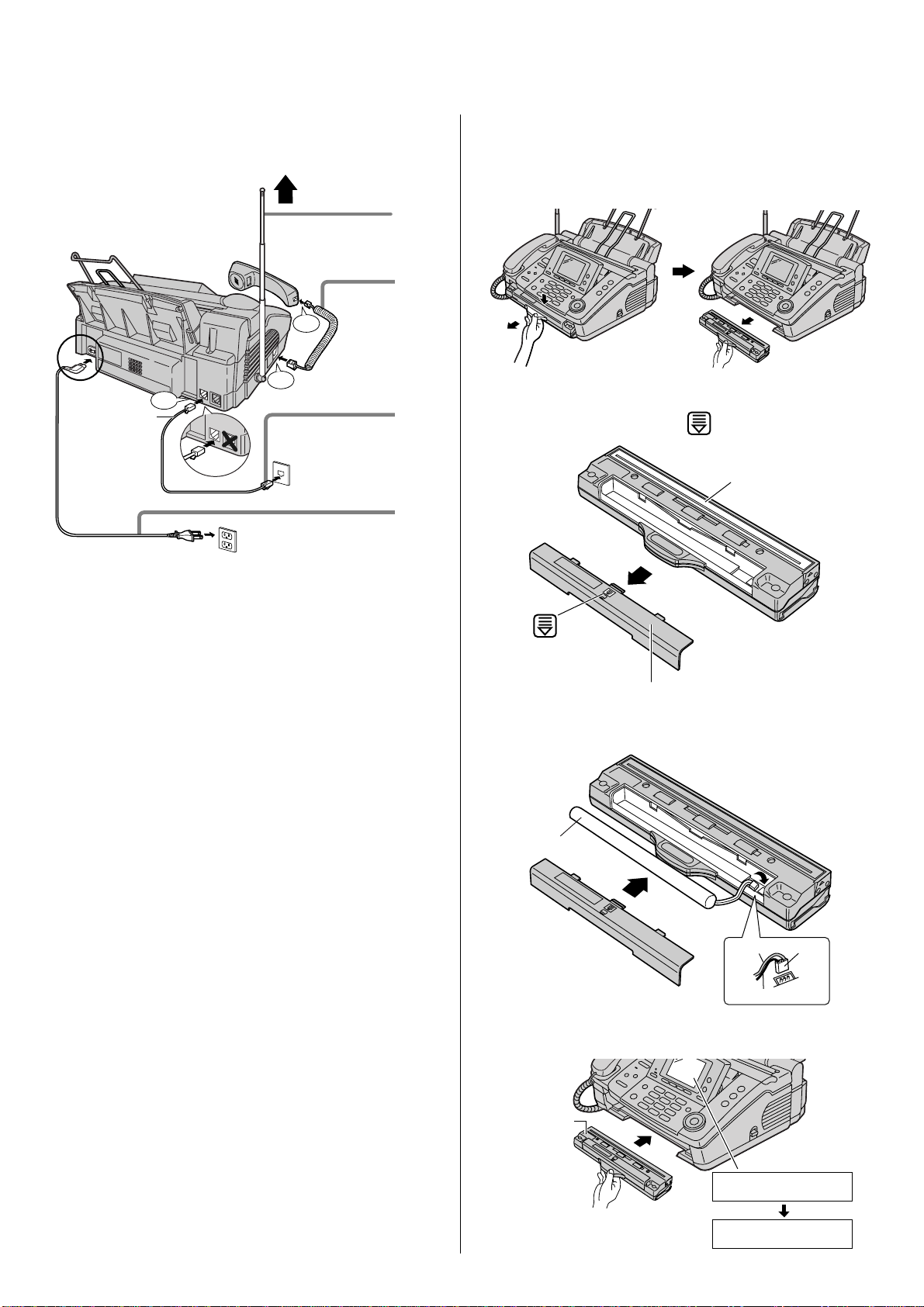

Connect the main unit Charge the Hand scanner battery

1Pull out the Hand scanner.

2Slide open the battery cover

by slightly pushing part.

3Connect the battery to the Hand scanner.

4Insert the Hand scanner.

Connect to

回線(line)

Pull the antenna take up

Telephone line cord Wall jack

Power outlet

Power cord AC 100V

(電話回線へ)

回線

電話機

停電用

Click

Battery cover

Imaging sensor

Cord (Red)

Cord (Black)

Connector

Battery

Bottom side

ｽｷｬﾅｰ設定中

読取枚数

枚



Display

Telephone line selection (pulse or tone) will start

automatically.

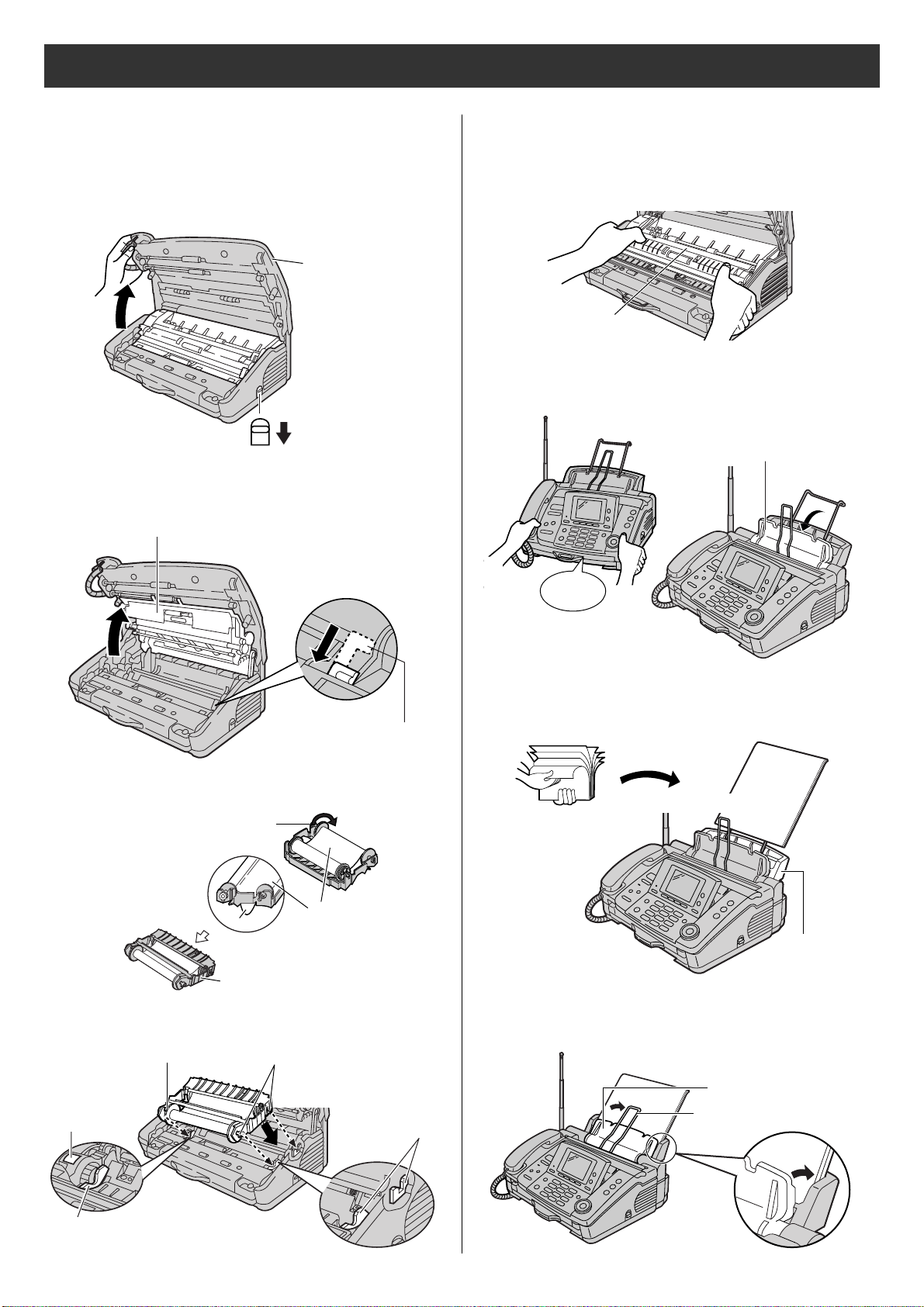

Setup ( Recording paper )

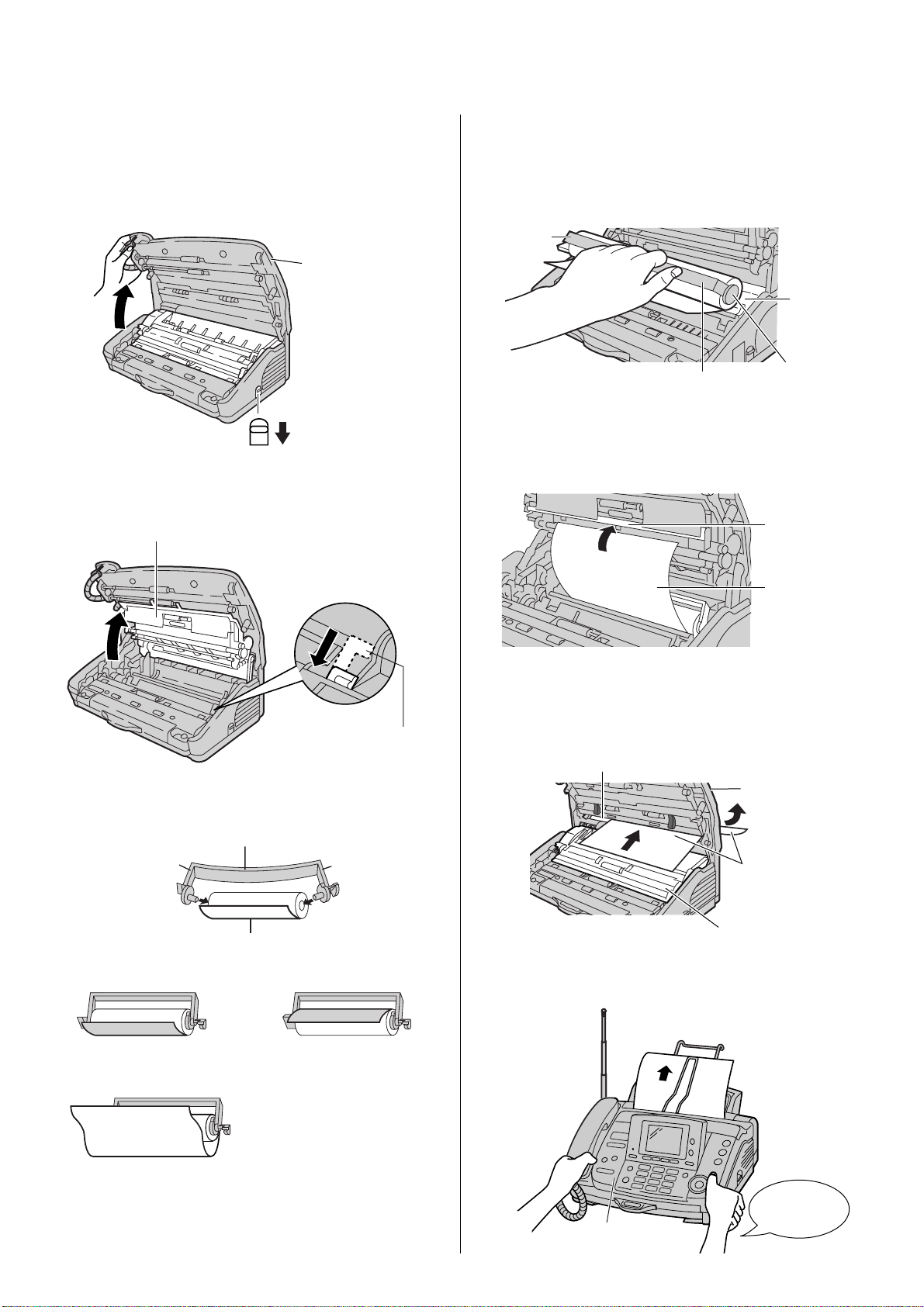

1Open the Control panel by pressing

down the Control panel open button.

2Open the Inner cover by sliding

down the Inner cover open lever.

5Close the Inner cover.

6Close the Control panel and open the

Recording paper cover.

7Fan the stack of paper to prevent a

paper jam, and then insert the paper.

8Throw down the Recording paper cover

and Recording paper arm-spring.

3Prepare the Film cassette.

4Put the Film cassette in the Main unit.

Installing the Plain paper

Control panel

Press down

Inner cover

lnner cover

open lever

Sag Ink film

Correct the ink film sag

by turning the gear

Turn inside out

Film cassette

Red gear Spindles of gears

Red label

Bearing

lnner cover

Click

Recording paper cover

Recording

paper tray

Printed on the back of paper

Recording paper cover

Recording paper arm-spring

1Open the Control panel by pressing

down the Control panel open button.

2Open the Inner cover by sliding

down the Inner cover open lever.

3Put the Thermal paper to the Paper

holder by spreading the Paper holder.

4Put the Paper holder in the set position

of the Main unit.

5Insert the Thermal paper to the slit of

Inner cover.

7Close the Control panel

6Close the Inner cover and pull out the

thermal paper (approx. 5cm) through the

outlet for recording paper.

Installing the Thermal paper

Control panel

Press down

Inner cover

lnner cover

open lever

Correct

Slack

Incorrect

Paper holder

Right side

Left side

Thermal paper

If the thermal paper has a slack, tighten it by

winding.

Left side

Right side

Set position

Paper holder

Slit

Thermal paper

Control panel

Thermal paper

Inner cover

Outlet

Click

Control panel

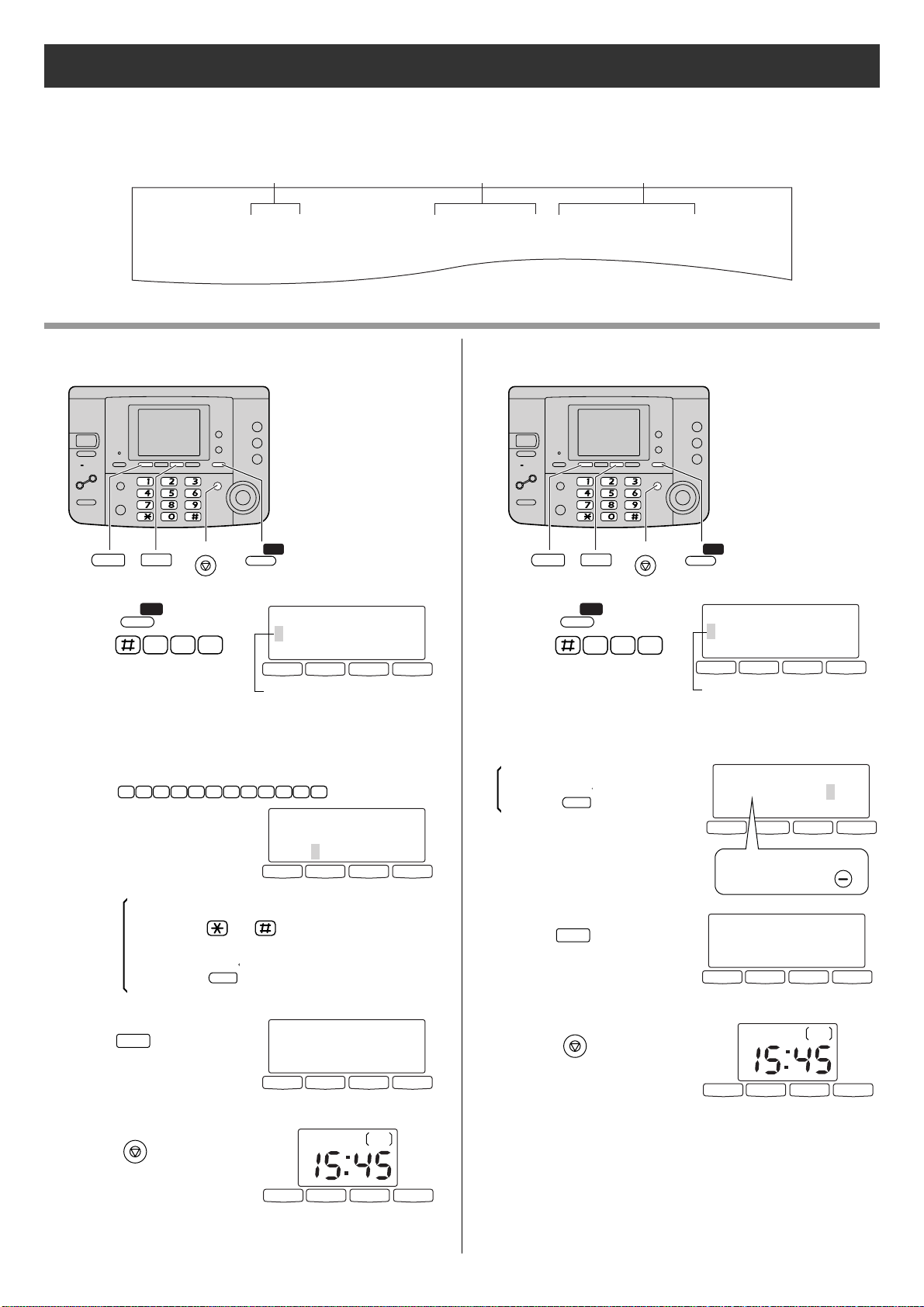

Setup

( Setting date and time, your facsimile telephone number and logo )

You can program the date and time, your facsimile telephone number and logo.

This information will be printed on each page transmitted from your unit.

発信元Micah

Your logo

電話番号：

0987654321 2000.3.1015:45P.1

Date and timeYour facsimile telephone number

1Press and then

press .

100

機能/回転

2Enter the correct year/month/day/time, using dial

keypad.

Example: Mar. 10, 2000 15:45

Press

20000310154 0

2Enter your facsimile telephone number, up to

20 digits, using the dial key pad.

Setting date and time

Setting your facsimile telephone number

F 3

F 1

機能/回転

ストップ

F 3

F 1

機能/回転

ストップ

3Press .

F 3

登録

4Press .

ストップ

Cursor

クリア 登録

日付時刻

2000

年

月

日

00：00

登録

日付時刻

2000

年

月

日

15：45

クリア

• To correct a mistake

1. Press or to move the cursor to

incorrect character/number.

2. Press and reenter.

F 1

クリア

• To correct a mistake,

press and reenter.

F 1

クリア

登録

しました



月

日

金

操作案内

スキャナー

ファクス

一覧

留守電

3Press .

F 3

登録

4Press .

ストップ

登録

しました



月

日

金

操作案内

スキャナー

ファクス

一覧

留守電

1Press and then

press .

400

機能/回転

Cursor

登録

電話番号

？



................

クリア

登録

電話番号

？



098



765



4321....

クリア

If you want to enter

space, press

音量

Setting your logo

F 3

F 1

機能/回転

ストップ

「かな」(Hiragana)

↓

「カナ」(Katakana)

↓

「英」 (English)

↓

「数」 (Numbers)

3Enter your logo, up to 30 characters, using the dial

keypad. See the table below for details.

Example: Micah

1 Press once.

2 Press six times.

3 Press six times.

4 Press to move the cursor to the next space

and press four times.

5 Press ﬁve times.

Cursor

4Press .

F 3

登録

5Press .

ストップ

Characters that you can enter (Character List)

Each time a dial key is pressed, the character set to that dial key will be shown in order.

1Press and then

press .

200

機能/回転

2Press repeatedly to choose

the「英」(English) character.

F 4

かな

名前印字用

？

クリア 登録 英

＿

名前印字用

？

名前印字用

？

名前印字用

？

Mic

名前印字用

？

Mica

名前印字用

？

Micah

名前印字用

？

Micah

登録

しました



• To correct a mistake

1. Press or to move the cursor to

incorrect character/number.

2. Press and reenter.

F 1

クリア

Character

Dial key

「かな」(Hiragana) 「英」(English)「カナ」(Katakana) 「数」

(Numbers)

、。! ？/ ー#, ;:｜・

 []

｛｝〈〉「」

ワヲン゛°、。ー

あいうえおぁぃぅぇぉ

かきくけこ

さしすせそ

たちつてとっ

なにぬねの

はひふへほ

まみむめも

やゆよゃゅょ

らりるれろ

わをん゛°、。ー

アイウエオァィゥェォ @ . ｰ  & ＄¥ %＋= 〜^

DEFdef

GHI gh i

JKL j k l

MNOmn o

PQRSpqrs

TUVtuv

WXYZwxyz

カキクケコ

サシスセソ

タチツテトッ

ナニヌネノ

ハヒフヘホ

マミムメモ

ヤユヨャュョ

ラリルレロ

︵

濁

点

︶

︵

半

濁

点

︶

︵

濁

点

︶

︵

半

濁

点

︶

ABCabc

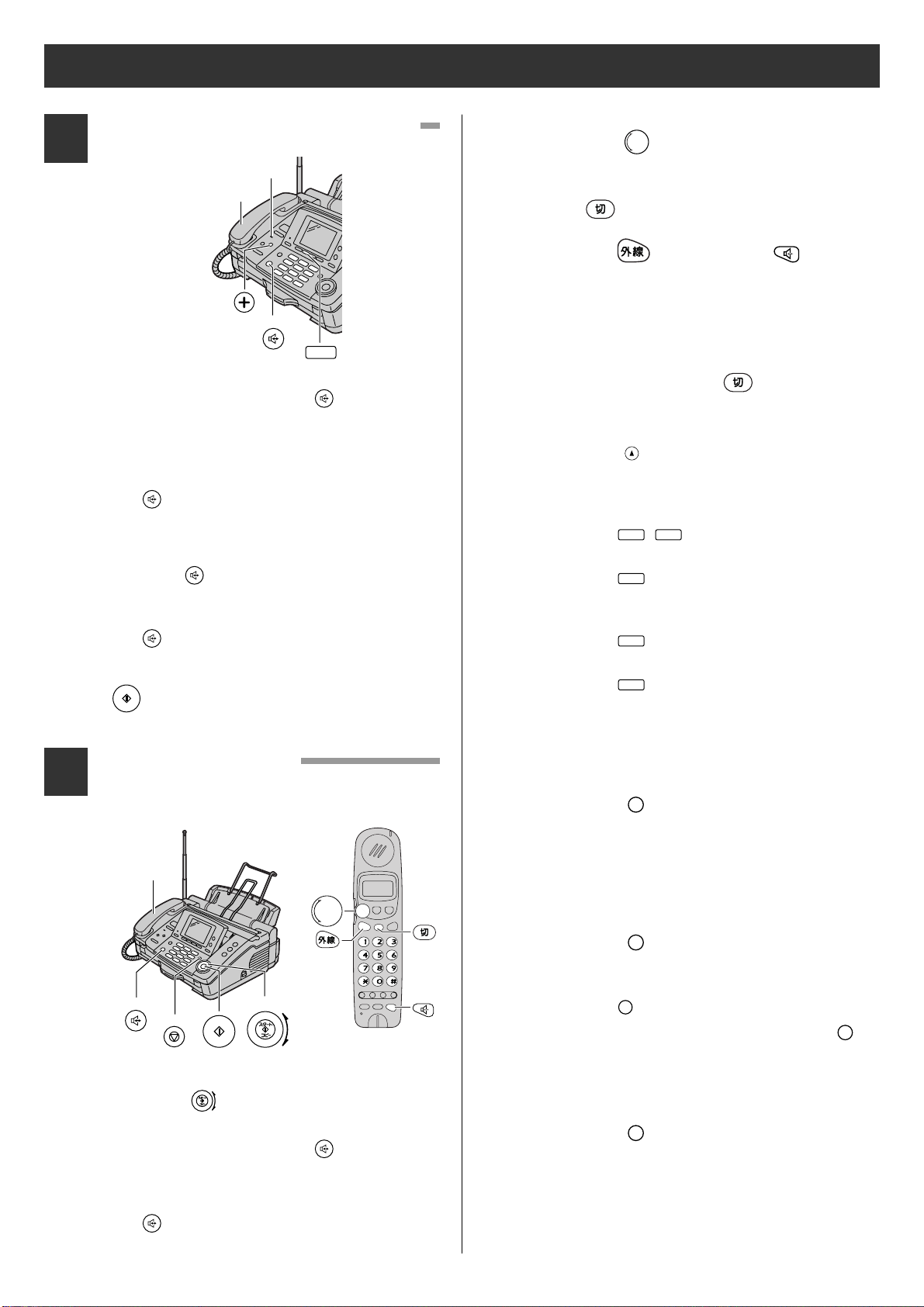

1Making/Answering voice calls

Telephone Operations

Making calls

1. Lift the handset or press

(speakerphone).

2. Dial the telephone number.

3. Talk to the other party.

4. When ﬁnished, replace the handset or press

Answering calls

1. When the phone rings, lift the handset or

press .

2. Talk to the other party.

3. When ﬁnished, replace the handset or press

Note:

When a slow beep or no sound is heard, press

(start/copy) and replace the handset.

The unit will start fax reception.

スタート

コピー

スピーカーホン

Handset

Microphone

スピーカーホン

F 2

2Automatic dialing

くるくる

電話帳

スピーカーホン

Handset

ストップ

スピーカーホン

スタート

コピー

くるくる電話帳

Main unit Portable handset

Automatic dialing with the main unit

1. Rotate (search dial) until the name

you want to dial appears on the display.

2. Lift the handset or press

(speakerphone).

3. Talk to the other party.

4. When ﬁnished, replace the handset or press

スピーカーホン

くるくる電話帳

Storing a phone number in the main unit

1. Press (telephone directory

store/edit).

2. Enter the station name, up to 12 characters,

using the dialing buttons.

3. Press .

4. Enter the phone number up to 30 digits.

5. Press .

– To program other stations, repeat from

step 2.

6. Press .

7. Enter the group number (1-9).

8. Press .

F 3

登録

F 3

登録

F 3

登録

F 3

登録

F 3

登録

電話帳登録

Automatic dialing with the portable handset

1. Rotate (search dial) until the name you

want to dial appears on the display.

●If the name has not been stored, press

(end) and store the name, or dial the

number manually.

2. Press (outside line) or

(speakerphone).

➡The number will be dialed.

●The last 12 digits (including spaces) will be

displayed.

3. Talk to the other party.

4. When ﬁnished, press .

スピーカーホン

くるくる

電話帳

Storing a phone number in the portable

handset

1. Press (store/edit/decide).

●xx will show how many items can still be

stored.

2. Use the dial buttons to enter the desired

name, up to 12 characters.

●If you do not want to store a name, go to

step 3.

3. Press .

4. Use the dial buttons to enter the phone

number, up to 30 digits.

Press (volume) to insert a space.

●If you enter a wrong number, press

(clear).

●If you enter 12 or more digits (including

spaces), numbers will disappear from the

screen from the left.

5. Press (store/edit/decide).

●To enter a 2nd or 3rd number, repeat from

step 4.

登録/修正・確定

音量

登録/修正・確定

キャッチ

/クリア

Table des matières

Autres manuels Panasonic Télécopieur

Panasonic

Panasonic KX-FM89BX Manuel utilisateur

Panasonic

Panasonic KX-FLB751E Manuel utilisateur

Panasonic

Panasonic KX-FLB756 Manuel utilisateur

Panasonic

Panasonic KX-FP343AL Manuel utilisateur

Panasonic

Panasonic KX-FL521 - B/W Laser - Fax Manuel utilisateur

Panasonic

Panasonic KX-FLB803EX Manuel utilisateur

Panasonic

Panasonic KX-FPC161 Manuel utilisateur

Panasonic

Panasonic KX-PD301DL Manuel utilisateur

Panasonic

Panasonic KX-FP155 Manuel utilisateur

Panasonic

Panasonic KX-FB421 Manuel utilisateur

Panasonic

Panasonic KX-FP215 Manuel utilisateur

Panasonic

Panasonic Panafax UF-311 Manuel utilisateur

Panasonic

Panasonic KX-FT25HG Manuel utilisateur

Panasonic

Panasonic KX-FM280 Manuel utilisateur

Panasonic

Panasonic KX-F580BR Manuel utilisateur

Panasonic

Panasonic KX-FP245 Manuel utilisateur

Panasonic

Panasonic KX-FL611 Manuel utilisateur

Panasonic

Panasonic KX-FB423CN Manuel utilisateur

Panasonic

Panasonic KX-FT33NZ Manuel utilisateur

Panasonic

Panasonic KX-FT902LS-B Manuel utilisateur

Panasonic

Panasonic KX-F900 Manuel utilisateur

Panasonic

Panasonic KX-FPG371 Instructions d'utilisation et d'installation

Panasonic

Panasonic Panafax UF-6000 Manuel utilisateur

Panasonic

Panasonic KX-F750 Manuel utilisateur

Manuels Télécopieur populaires d'autres marques

Samsung

Samsung SF-515 Manuel utilisateur

Radio Shack

Radio Shack TFX-1031 Manuel utilisateur

imagistics

imagistics 2030 Manuel

Furuno

Furuno FAX-30 Manuel utilisateur

Savin

Savin 3740 Manuel

Sharp

Sharp FO-51 Manuel utilisateur

Muratec

Muratec MFX-C3035 Manuel utilisateur

Canon

Canon FAX-L400 Manuel utilisateur

Ricoh

Ricoh 1000L Guide de démarrage rapide

Sharp

Sharp FO-3150 Manuel utilisateur

Kyocera

Kyocera KM-F1060 Manuel utilisateur

Sharp

Sharp FO-2970M Manuel utilisateur

Canon

Canon JX510P Manuel utilisateur

Mita

Mita LDC-870 Manuel

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Manuel utilisateur

Samsung

Samsung FX100 Manuel

Sharp

Sharp MX-FXX1 Manuel utilisateur

Develop

Develop ineo 25e Manuel utilisateur
