Panasonic KX-FM89BX Manuel utilisateur

ORDERNO. KMF0109511C3

Multi-Function PlainPaper Fax

KX-FM89BX / KX-FM89CX

(for Asia, MiddleNear East and Africa)

Unauthorized copying and distribution isaviolation of law.

1. INTRODUCTION

1.1. SAFETY PRECAUTIONS

1. Before servicing, unplug the AC power cord to prevent an electric

shock.

2. When replacing parts, use onlythe manufacturer's recommended

components.

3. Check the condition of the power cord. Replace ifwear or damage

isevident.

4. After servicing, be sure to restore the lead dress, insulation

barriers, insulation papers, shields, etc.

5. Before returning the serviced equipment to the customer, be sure

to perform the following insulation resistance test to prevent the

customer from being exposed to shock hazards.

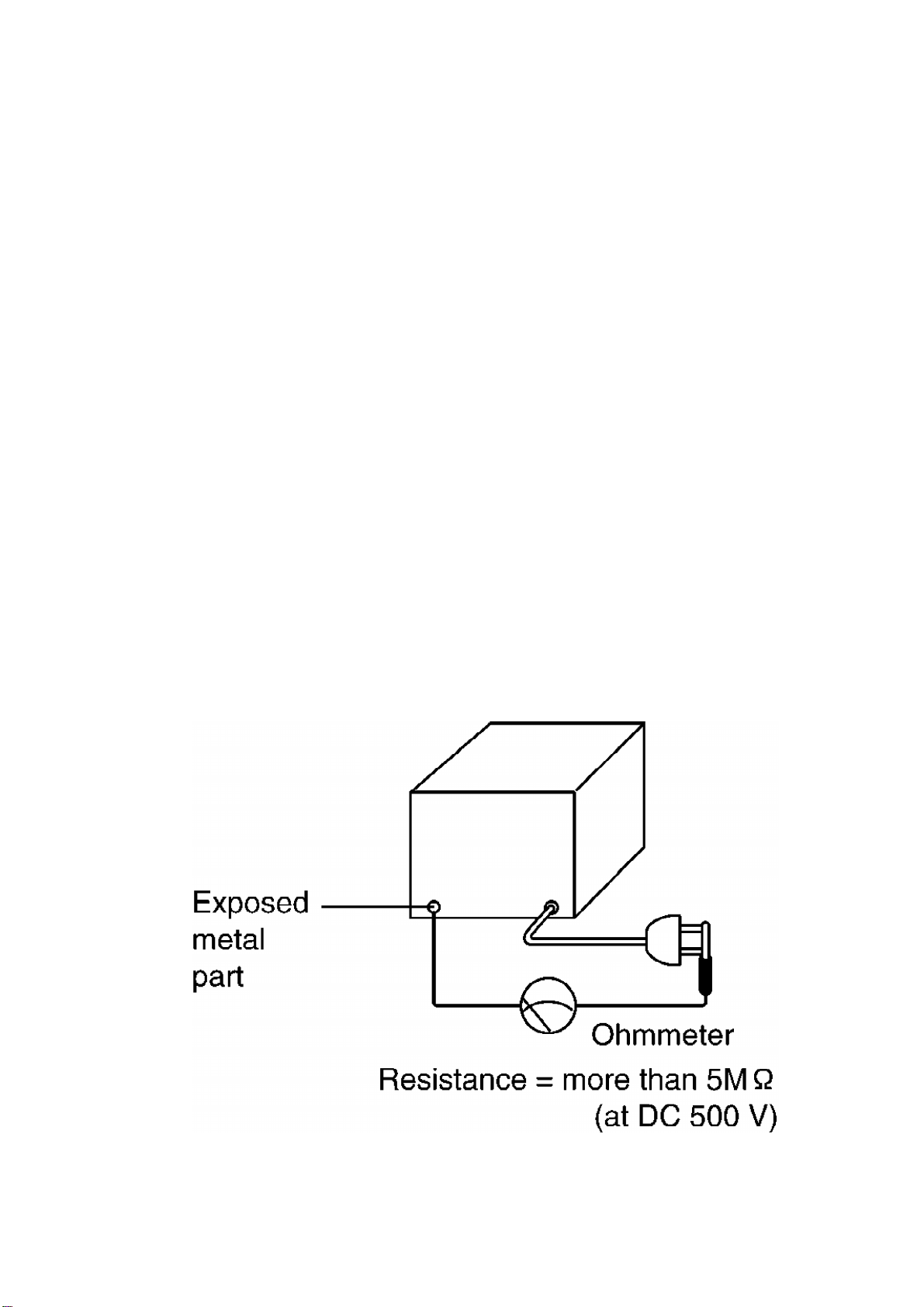

1.2. INSULATIONRESISTANCETEST

1. Unplug the power cord and short the twoprongs of the plug with

ajumper wire.

2. Turn on the power switch.

3. Measure the resistance value with an ohmmeter between the

jumpered AC plug and each exposed metal cabinet part

(screw heads, control shafts, bottom frame, etc.).

Note: Some exposed parts maybe isolated from the chassisby

design. These will read infinity.

4. Ifthe measurement isoutside the specified limits, there isa

possibilityof ashock hazard.

1.3. FORSERVICETECHNICIANS

ICs and LSIs are vulnerable tostatic electricity.

Whenrepairing, the following precautions will helpprevent recurring malfunctions.

1. Cover the plasticpart's boxes with aluminum foil.

2. Ground the soldering irons.

3. Use aconductive mat on the worktable.

4. Donot touch the ICor LSI pins with bare fingers.

1.4. BATTERYCAUTION

CAUTION

Danger of explosion ifthe batteryisreplaced incorrectly. Replace

onlywith the same or equivalent type recommended bythe

manufacturer. Discard used batteries according to following caution

Disposal of lithium batteries shouldbe performed bypermitted,

professional disposal firms knowledgeableinstate government

federal and local hazardous materialsand hazardous waste

transportation and disposal requirements.

Abatterycontinues to have no transportation limitations as long as

itisseparated to prevent short circuits and packed instrong

packaging.

Commercial firms that dispose of anyquantityof lithium cells

shouldhave amechanism inplace to account for theirultimate

disposition. Thisisagood practice for all types of commercial or

industrial waste.

Recommend Type Number:

CR2032 (BAT501) Manufactured byMATSUSHITA

CR2032 (BAT501) Manufactured bySONY

1.5. AC CAUTION

Forsafety, before closing the lowercabinet, please make sure of the following precautions.

1. The earth lead isfixed with the screw.

2. The AC connector isconnected properly.

3. Wrap the earth lead around the core 3times.

4. Wrap the AC lead around the core 2times (for KX-FM89BX).

Wrap the AC lead around the core 3times (for KX-FM89CX).

1.6. PERSONALSAFETY PRECAUTIONS

1.6.1. MOVING SECTIONS OFTHE UNIT

Be careful not tolet yourhair, clothes, fingers, accessories, etc., become caught inanymoving

sections of the unit.

The moving sections of the unit are the rollers and a gear. There is a separation rollerand a

document feedrollerwhichare rotatedbythe document feedmotor. A gearrotates the two

rollers. Be careful not totouchthemwithyourhands, especiallywhenthe unit is operating.

1.6.2. LIVE ELECTRICALSECTIONS

All the electrical sections of the unit suppliedwithAC powerbythe AC powercordare live.

Neverdisassemble the unit forservice withthe AC powersupplypluggedin.

CAUTION:

AC voltage issupplied to the primaryside of the power supplyunit.

Therefore, alwaysunplug the AC power cord before disassembling

for service.

1.7. SERVICEPRECAUTIONS

1.7.1. PRECAUTIONS TO PREVENTDAMAGE FROM STATIC ELECTRICITY

Electrical charges accumulate on a person. Forinstance, clothes rubbing togethercandamage

electric elements orchange theirelectrical characteristics. Inordertoprevent static electricity,

toucha metallic part that is groundedtorelease the static electricity. Nevertouchthe electrical

sections suchas the powersupplyunit, etc.

1.8. FEATURES

General

-Helpfunction

Please refer to WHEN YOU DON'T KNOW HOW TO OPERATE THE

UNIT, USE THE HELP FUNCTION.() to print below features.

Display:

1. SEND GUIDE

2. QUICK SET UP

3. FEATURELIST

4. EASY DIAL

5. TAD OPERATION

6. FAXRECEIVING

7. COPIER

8. ERRORS

9. REPORTS

-LCD (LiquidCrystal Display)readout

PlainPaperFacsimile Machine

-8second transmission speed *

-A4/Letter, G3compatible

-Automaticdocument feeder (10 sheets)

-Fax pager call

-Quick scan

-Resolution: Standard/Fine/Super fine/Halftone (64 level)

-Broad cast with EasyDial

-50-sheet paper capacity(20 lb.)

-Automaticfax/phone switching

-Distinctive ring detection **

*The 8 second speedis basedupon the ITU-TNo. 1 Test Chart on the condition that memory

transmission is performed.

** Subscription todistinctive ring services is required.

Large Memory(28 pages)... PerformedbyDRAM

Approx. 28 pages of memoryreception

Approx. 25 pages of memorytransmission

IntegratedTelephone System

-On-hook dialing

-Digital duplex speakerphone

-Voice muting

-Redialing function

-100-Station telephone directorywith EasyDial

EnhancedCopierFunction

-Multi-copyfunction (up to 50 copies)

-Enlargement and reduction

-Collate

-64-Level halftone

Digital Answering System

-Voice Time/DayStamp

-18-Minutes recording time

-Voice and fax paper call

Printerfunction

-200x400dpi printer capability

-Windows 95/98/ME-readyprinter driver

PC fax

-Send and Receive Faxes from your PC.

-500-name address book

Scanner

-200x400dpi scanning capability

-Easyto use document viewer

Note:

Windows is a registeredtrademark of Microsoft Corpporation inthe UnitedStates and other

countries.

1.9. SPECIFICATIONS

ApplicableLines:

PublicSwitched Telephone Network

Document Size:

Max. 216 mm (8 1/2") inwidth

Max. 600 mm (23 5/8") inlength

Effective Scanning Width:

208 mm (8 3/16")

Recording Paper Size:

Letter: 216×279 mm (8 1/2"×11")

A4: 210×297 mm (8 1/4"×11 11/16")

[Refer to INSTALLING THE RECORDING PAPER ()]

Effective Printing Width:

208 mm (8 3/16")

Transmission Time*:

Approx. 8s/page (Original mode)**

Scanning Density:

Horizontal:

8pels/mm (203 pels/inch)

Vertical:

3.85 lines/mm (98 lines/inch)—STANDARD mode

7.7lines/mm (196 lines/inch)—FINE/HALF TONEmode

15.4lines/mm (392 lines/inch)—SUPERFINEMode

Halftone Level:

64-level

Scanner Type:

Contact Image Sensor (CIS)

Printer Type:

Thermal Transfer on PlainPaper

Data Compression System:

Modified Huffman (MH), Modified READ (MR), Modified Modified

READ (MMR)

Modem Speed:

14,400/12,000/9,600/7,200/4,800/2,400 bps; AutomaticFallback

Operating Environment:

5—35°C(41—95°F), 20—80 %RH (Relative Humidity)

Dimensions (H×W×D):

185×345×276 mm (7 9/32"×13 19/32"×10 7/8")

Mass (Weight):

Approx. 3.2kg (8.5lb.)

Power Consumption:

Standby:Approx. 4W(for KX-FM89BX) / 4.5W (for KX-FM89CX)

Transmission: Approx. 15 W

Reception: Approx. 40 W(When receiving a20%black document)

Copy:Approx. 40 W(When copying a20%black document)

Maximum: Approx. 125 W(When copying a100%black document)

Power Supply:

220-240 VAC, 50/60 Hz

MemoryCapacity:

Voice memory****:

Approx. 18 minutes of recording time including greeting

messages

Fax memory:

Approx. 28 pages memoryreception

Approx. 25 pages memorytransmission

(Based on ITU-T No. 1Test Chart instandard resolution.)

*Transmission speeddepends upon the contents of the pages, resolution, telephone line

conditions and capabilityof the otherparty’s machine.

** The 8 second speedis basedupon the ITU-TNo. 1 Test Chart and original mode. (Referto

"1.11. ITU-TNo. 1 Test Chart".) If the capabilityof the otherparty's machine is inferiortoyour

unit, the transmission time maybe longer.

*** Recording time maybe reducedbythe calling party´s background noise.

Note:

-Anydetailsgiven inthese instructions are subject to change

without notice.

-The pictures and illustrations inthese instructions mayvary

slightlyfrom the actual product.

Design and specifications are subject tochange without notice.

1.10. OPTIONALACCESSORIES

-For best results, use genuine Panasonicreplacement filmModel

No. KX-FA53Aor KX-FA55A.

Model No. Description Specifications

KX-FA53A Replacement Film 1 roll-216 mm × 50 m(8 1/2”×164’)

KX-FA55A Replacement Film 2 rolls-216 mm × 50 m(8 1/2”×164’)

Note:

The ink filmis not reusable. Donot rewind and use the ink filmagain.

1.11. TEST CHART

1.11.1. ITU-TNo.1TESTCHART
