Panasonic KX-PW513DW Manuel utilisateur

Facsimile

Quick Reference Guide

Model No. KX-PW513DL

KX-PW513DW

KX-PW513DL

Thank you for purchasing a Panasonic facsimile.

lThis guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

lThis product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

lAny details given in this guide are subject to change without notice.

Table of Contents

Finding the controls …………………………………………………………… 2

Installations and connections ………………………………………………… 4

Setting the date and time……………………………………………………… 7

Setting your facsimile telephone number …………………………………… 7

Setting your logo ……………………………………………………………… 8

Character input and command key table …………………………………… 9

Automatic dialing on the main unit ………………………………………… 10

Automatic dialing on the portable handset (KX-FKN521) ……………… 11

Intercom ……………………………………………………………………… 12

Sending faxes ……………………………………………………………… 13

Receiving faxes ……………………………………………………………… 14

Operating the built-in answering device ………………………………… 15

Specifications ……………………………………………………………… 18

Main unit:

Portable handset:

KX-PW513

KX-FKN521

Finding the controls

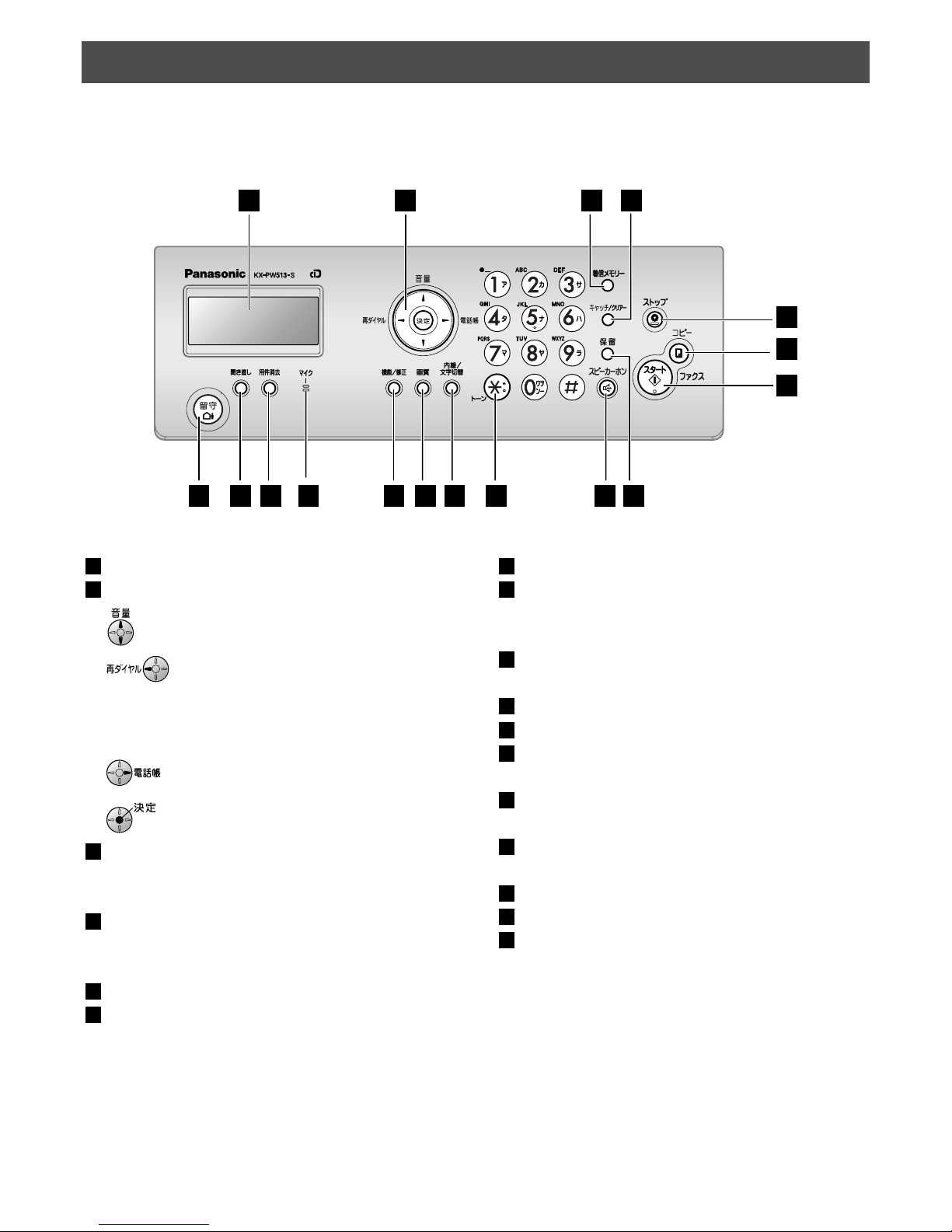

Main unit

1 2 4

98 12 1413 15 16

11 17

1Liquid crystal display

2Volume/Redial/Phonebook/Set key

To adjust the volume.

To redial the phone numbers in

the redial list. The last 10 phone

numbers dialed are stored in

memory.

To use the phonebook.

To store a parameter.

3Call Memory button starts a search in the

Number Display log.

(For caller ID display service users.)

4Flash button

(For call waiting service users.)

Clear button

5Stop button

6Copy button starts copying.

7Start/Fax button starts faxing.

8Auto Answer button & indicator

—light on: answering device activated.

—light off: used as a regular telephone.

9Replay button plays back recorded

messages.

Erase button

Microphone

Function button initiates programming.

Edit button

Resolution button selects the resolution

when faxing or copying.

Intercom button

Character Input Mode button

Tone button switches to tone dialing.

Speakerphone button

Hold button

Finding the controls

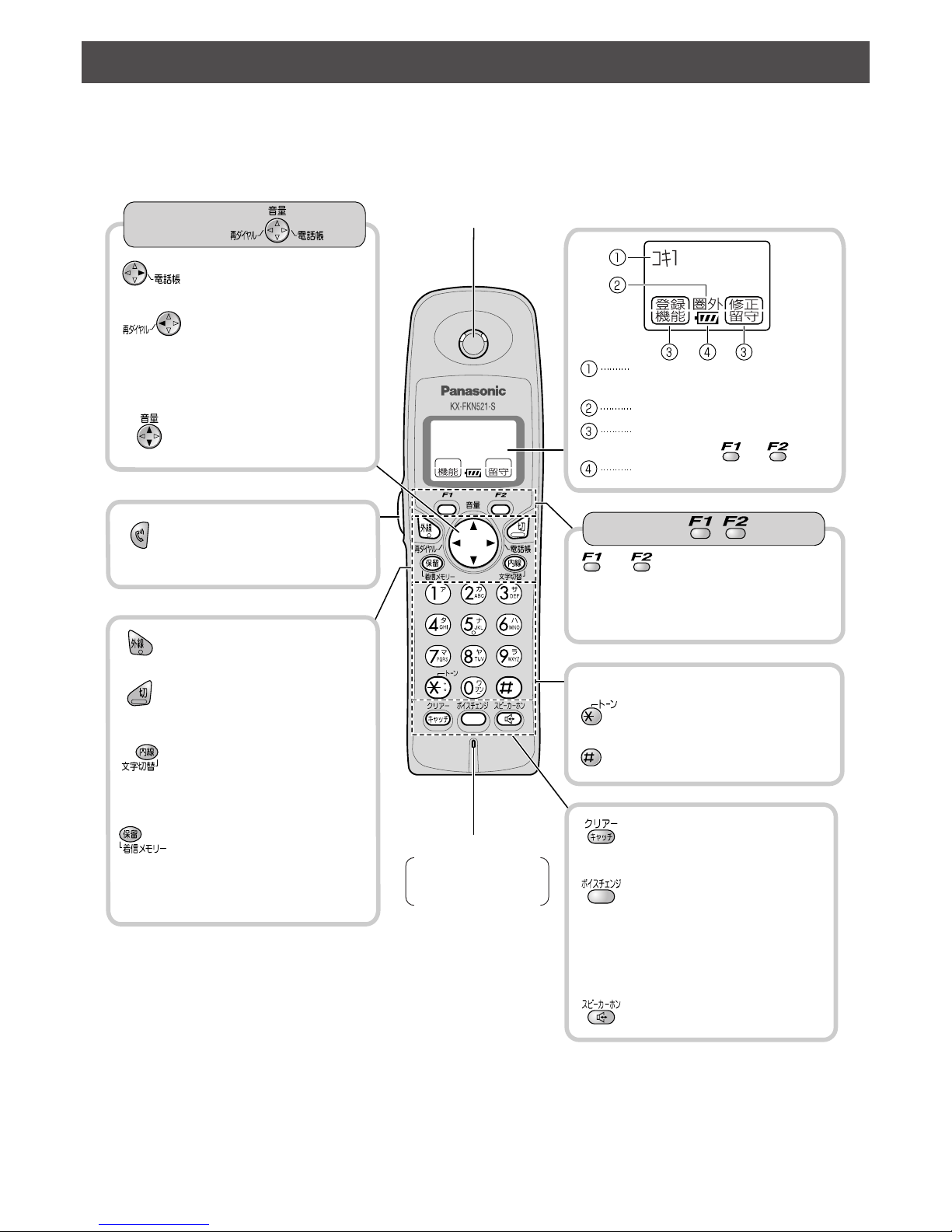

Portable handset (KX-FKN521)

●



To adjust the volume.

●



To redial the phone

numbers in the redial

list. The last 10 phone

numbers dialed are

stored in memory.

●



To make/answer calls.

●



To page the main unit

and/or portable handset(s).

●



To change the character

input mode.

●



To put a call on hold.

●



To start a search in the

Number Display log.

(For caller ID display

service users.)

●



For call waiting service

users.

●



To clear letters/numbers.

●



To change your voice.

●



To mute your voice to the

other party by pressing this

button for about 2 seconds.

(To release the mute,

press this button again.)

●



To use the speakerphone.

Sharp button

●



To use the phonebook.

and buttons refer to the function

displayed on the bottom of the display.

They function differently depending on

the mode.

Dial buttons

Earpiece Liquid crystal display

Microphone

Do not cover the

microphone while

talking.

How to use buttons

Function menu that is

controlled by or

Portable handset number

(and name)

No link to the base unit

Battery strength

●



To change the tone heard

from the earpiece.

Tone button

●To switch to tone dialing.

●



To end a call.

●



To end or exit from editing

or other operations.

How to use key

Installations and connections

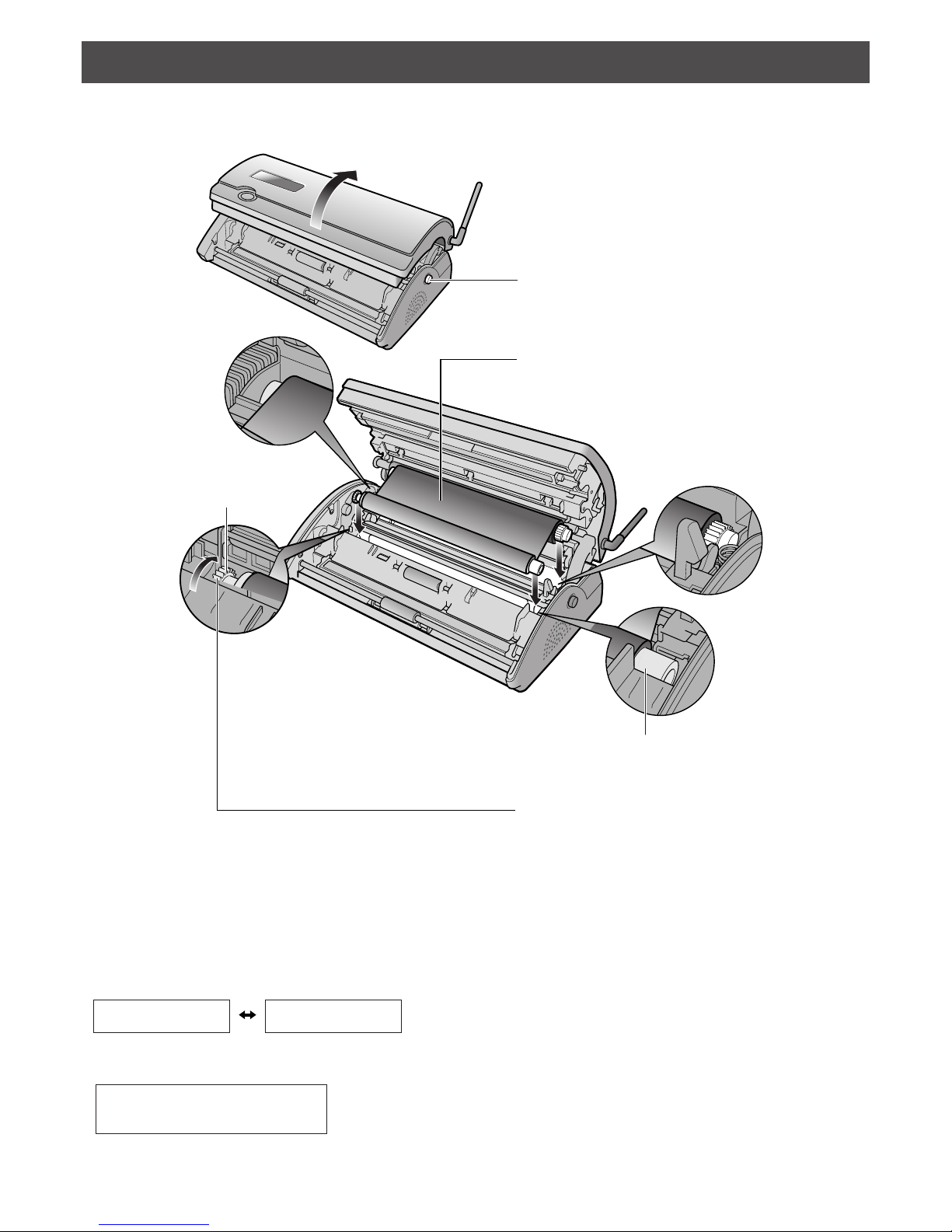

Installing the ink film

1Press here and open the control panel.

3If the ink film is slack, tighten it by

winding this gear (

orange)

4Close the control panel until it locks.

2Insert the ink film.

Insert the orange core into the right

slot of the main unit.

Insert the orange

gear

into the left slot

of the main unit.

lWhen the unit runs out of ink film, the following message will be displayed.

Install a new ink film.

・As of February 2005. ・Tax included.

ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀ

ｺｳｶﾝｼﾃｸﾀﾞｻｲｼ

U23

ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀ

ﾋﾝﾊﾞﾝ

K X - F A N 200

Replacement ink film:

KX-FAN200 (30 m) ￥1,208

Installations and connections

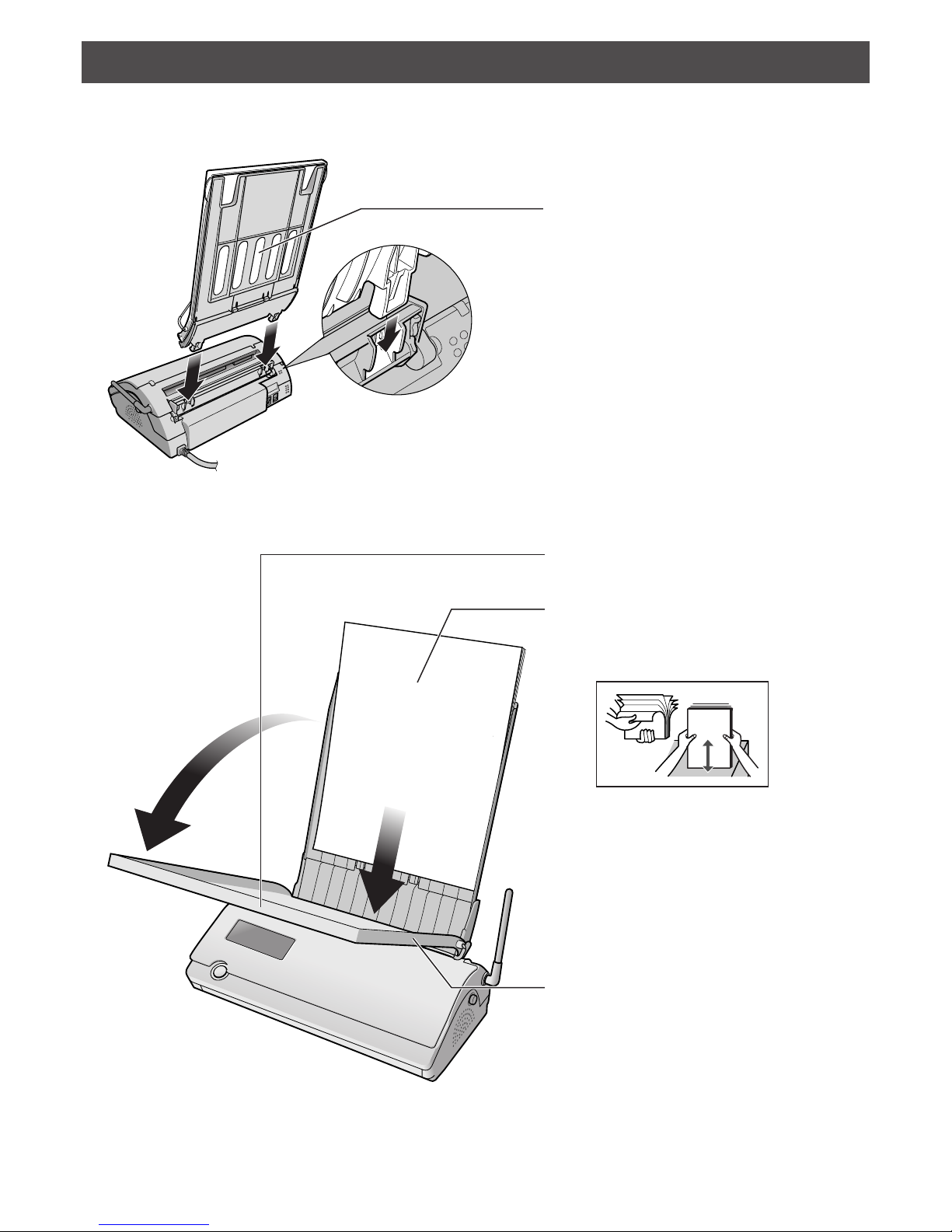

Installing recording paper (A4 size)

1Install the recording paper cover/tray.

2Open the recording paper cover.

3Insert the recording paper into the

recording paper tray. (Up to 20 sheets)

●Fan the stack of recording paper.

4Close the recording paper cover.

Recording paper

●Printing side is on

the back.

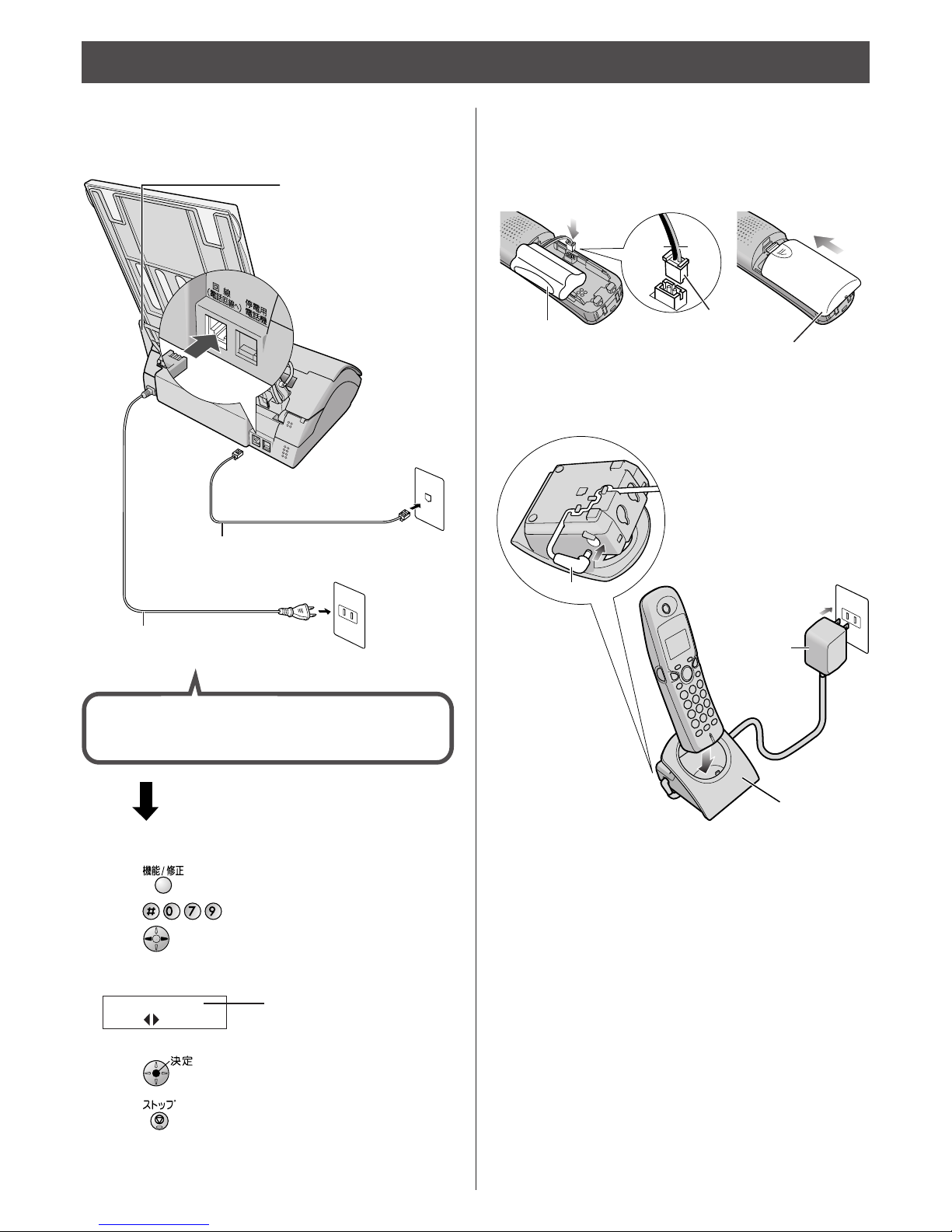

Connecting the main unit

Installations and connections

Setting up the portable handset

(KX-FKN521)

1Raise the antenna.

Power cord

Telephone line cord

(supplied accessory)

Wall jack

Power outlet

(AC 100 V)

2Connect the telephone line cord.

3Connect the power cord.

After the Power On...

This unit will automatically select the dialing mode

(Tone/Pulse).

3Charge the battery in the charger for 10 hours.

lAfter your Panasonic battery is fully charged,

it will last up to about 7 hours of conversation.

Battery

Connector

Black Red

Battery cover

Charger

Plug

Power outlet

(AC 100 V)

AC adaptor

If you can not make a call...

Set the dialing mode with the main unit.

1. Press (Function/Edit).

Press .

3. Press (Search button) repeatedly until the desired

setting is displayed.

4. Press (Set).

5. Press (Stop).

ｶｲｾﾝｼｭﾍﾞﾂ

＝

［

, ｹｯﾃｲ

］

ｵｽ

Example :

lﾌﾟｯｼｭ : Tone

20 : Pulse (20 PPS)

10 : Pulse (10 PPS)

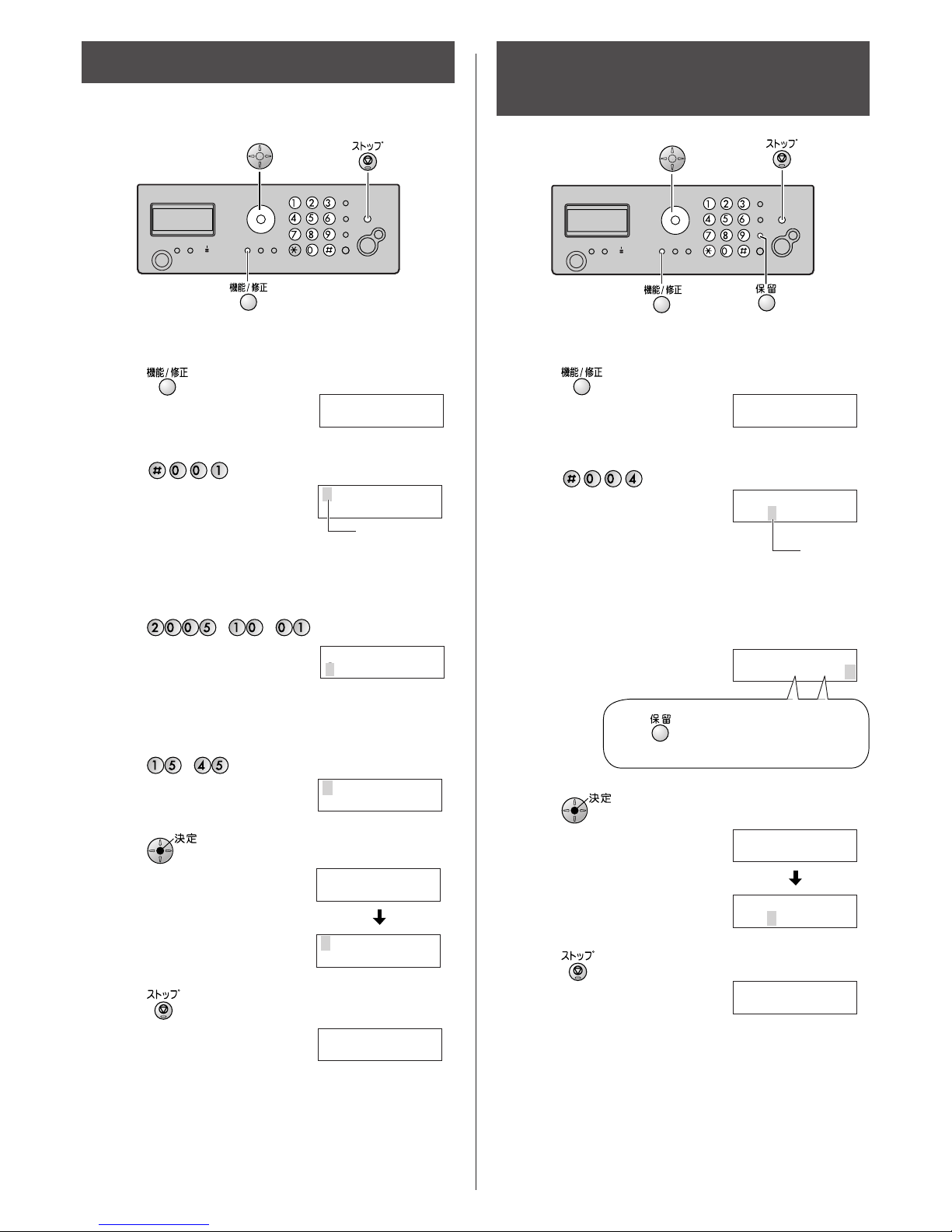

Setting the date and time Setting your facsimile

telephone number

1Press (Function/Edit).

ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ

ｸ[

▼▲

]ｵｽ

1Press (Function/Edit).

ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ

ｸ[

▼▲

]ｵｽ

5Press (Stop).

月

日

15:45

ﾖｳｹﾝﾛｸｵﾝ

ｹﾝ

Example :

6Press (Stop).

月

日

15 : 45

ﾖｳｹﾝﾛｸｵﾝ

ｹﾝ

Example :

3Enter your facsimile telephone number, up to

20 digits.

Example: 098 765 43·· ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?

TEL=0980765043

The (Hold) button replaces

the digit with a space.

3Enter the correct year/month/day.

Example: October 1, 2005

Press .

2005

年

月

日

20:10

2Press .

ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?

TEL=．．．．．．．．．．．

Cursor

4Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press .

2005

年

月

日

15:45

5Press (Set).

ﾄｳﾛｸｼﾏｼﾀ

2005

年

月

日

15 : 45

4Press (Set).

ﾄｳﾛｸｱｼﾏｼﾀ

ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?

TEL=098 765 43 ．

2Press .

Example :

2005

年

月

日

20 : 10

Cursor

3Enter your logo, up to 30 characters, using the dial

keypad.

lTo enter English characters easily, press

(Intercom/Character input mode) repeatedly and

select “ 英” (English and sign input mode).

lFor details, see the table on page 9 for instructions.

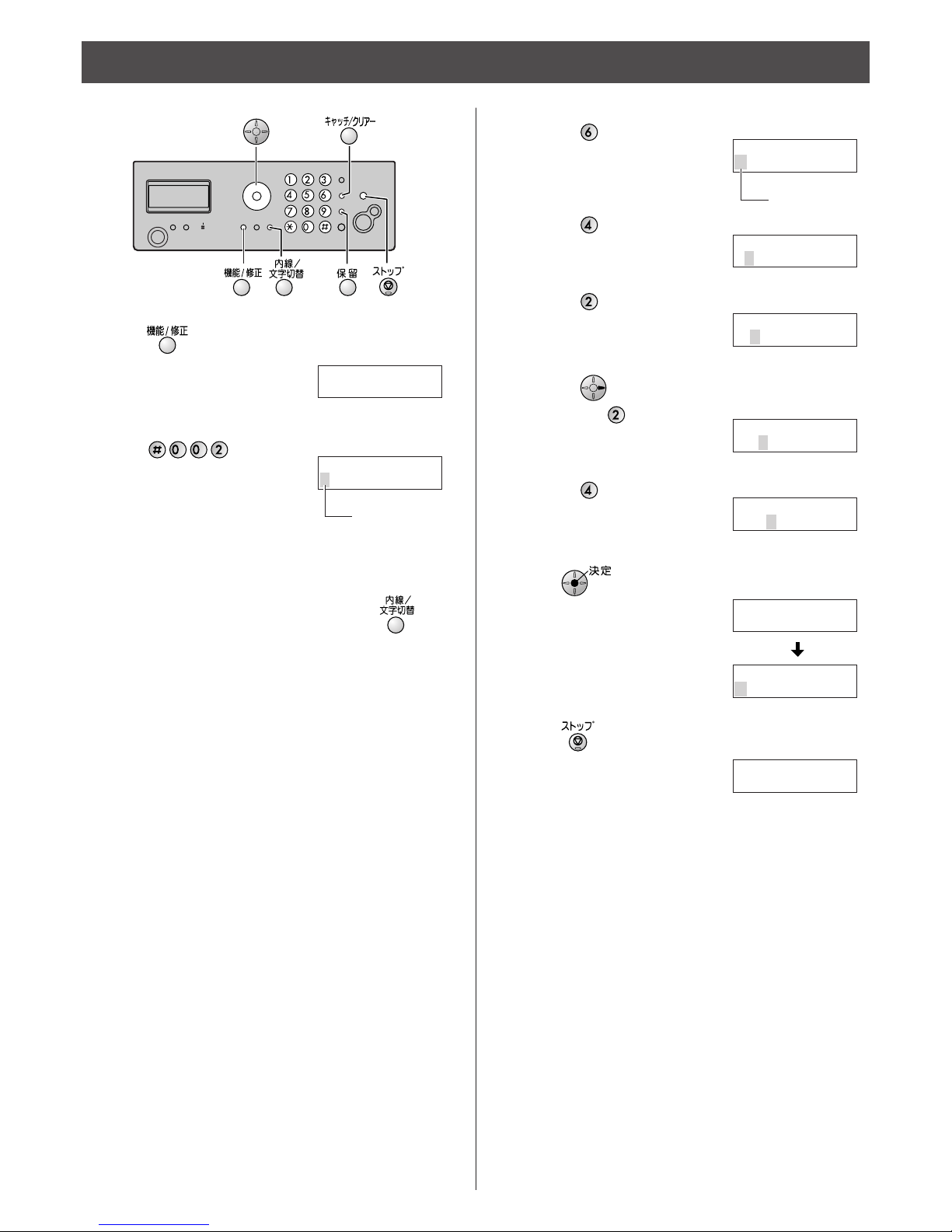

Setting your logo

1Press (Function/Edit).

ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ

ｸ[

▼▲

]ｵｽ

5Press (Stop).

月

日

15 : 45

ﾖｳｹﾝﾛｸｵﾝ

ｹﾝ

Example :

2Press .

ｱﾅﾀﾉﾅﾏｴ?

Cursor

Example: Micah

1. Press once. ｱﾅﾀﾉﾅﾏｴ?

Cursor

2. Press six times.

ｱﾅﾀﾉﾅﾏｴ?

3. Press six times.

ｱﾅﾀﾉﾅﾏｴ?

Mic

4. Press to move the cursor to the next space

and press four times. ｱﾅﾀﾉﾅﾏｴ?

Mica

5. Press five times.

ｱﾅﾀﾉﾅﾏｴ?

Micah

4Press (Set).

ﾄｳﾛｸｱｼﾏｼﾀ

ｱﾅﾀﾉﾅﾏｴ?

Micah

Character input and command key table

Pressing the dial keys will select a character as shown below.

Character Katakana English Numbers

Display of the

main unit

カナ英数

Display of the

portable handset

［カナ］［AB］［12］

Dial key

Main

(

unit

)

Portable

handset

(

KX-FKN521

)

アイウエオァィゥェォ @ .  ｰ &＄￥%＋= ˜ ^ 1

カキクケコ ABC a b c 2

サシスセソ D E F d e f 3

タチツテトッ GH I g h i 4

ナニヌネノ J K L j k l 5

ハヒフヘホ MNOmn o 6

マミムメモ PQRS p q r s 7

ヤユヨャュョ TUV t u v 8

ラリルレロ WXYZw x y z 9

ワヲンー！？ () ! ？/ー #‚;:｜・’”（ ）[]｛｝〈〉「」 0

゛°、。 、。

Command keys

(Main unit), (Portable handset)

Used to change the character input

mode.

(Main unit), (Portable handset) Used to move the cursor to the left

and right.

(Main unit), (Portable handset) Used to delete a character.

(Main unit), (Portable handset) Used to insert a space.

lThe characters on the display are somewhat different from those shown in the character input and command key table.

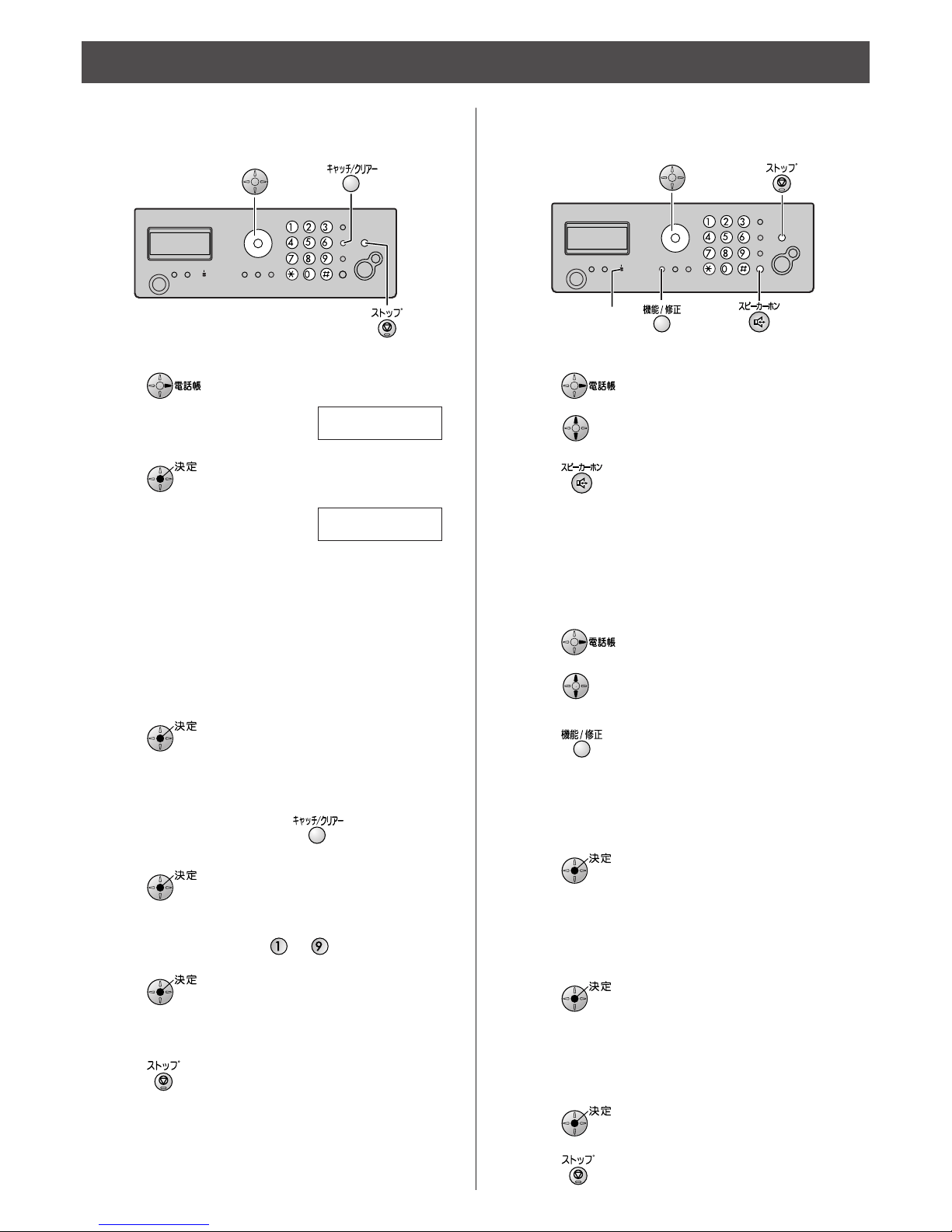

Automatic dialing on the main unit

Storing names and telephone

numbers in the phonebook

Making a voice call using the

phonebook

Microphone

1Press (Phonebook).

2Press (Set).

l“XXX” shows the remaining

station numbers you can

store.

lYou can program up to

150 stations, including

4 pre-programmed stations.

ﾃﾞﾝﾜﾁｮｳｱｷ

XXX

ｹﾝ

3Enter the name, up to 12 characters (see the table on

page 9 for instructions).

4Press (Set).

5Enter the telephone number, up to 24 digits.

lTo correct a mistake, press (Flash/Clear).

6Press (Set).

7Enter the group number ( to ).

2Press (Search button) repeatedly until the

desired name is displayed.

3Press (Speakerphone).

lWhen the other party answers, speak to the

microphone.

Editing a stored name or number

in the phonebook

3Press (Function/Edit).

4Edit the name (see the table on page 9 for

instructions).

lIf you do not need to edit the name, skip to step 5.

5Press (Set).

6Edit the telephone number.

lIf you do not need to edit the telephone number,

skip to step 7.

8Edit the group number.

lIf you do not need to edit the group number,

skip to step 9.

1Press (Phonebook).

2Press (Search button) repeatedly until the

desired name is displayed.

1Press (Phonebook).

ﾄｳﾛｸｸﾊｸ[ｹｯﾃｲ]ｵｽ

ｹﾝｻｸｸﾊｸ[

▼▲

]ｵｽ

8Press (Set).

lTo program other items, repeat steps 3 to 8.

9Press (Stop) to exit the program.

Press (Stop).

9Press (Set).

7Press (Set).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Télécopieur

Panasonic

Panasonic Panafax UF-6200 Manuel utilisateur

Panasonic

Panasonic KX-FL613FX Manuel utilisateur

Panasonic

Panasonic KX-FT33NZ Manuel utilisateur

Panasonic

Panasonic KX-FP141E Manuel utilisateur

Panasonic

Panasonic KX-FC971CX-S Manuel utilisateur

Panasonic

Panasonic KXFLM600NZ Manuel utilisateur

Panasonic

Panasonic KX-F206TW Manuel utilisateur

Panasonic

Panasonic KX-FLB851 - All-in-One Flatbed Laser Fax Manuel utilisateur

Panasonic

Panasonic KX-PW38CL Manuel utilisateur

Panasonic

Panasonic KX-FPG372 Manuel utilisateur

Panasonic

Panasonic DX-600 Manuel utilisateur

Panasonic

Panasonic KX-F700C Manuel utilisateur

Panasonic

Panasonic KX-FLB756E Manuel utilisateur

Panasonic

Panasonic KX-FC255CX-S Manuel utilisateur

Panasonic

Panasonic KXF120 - CONSUMER FACSIMILE Manuel utilisateur

Panasonic

Panasonic KX-FL611 Manuel utilisateur

Panasonic

Panasonic Panafax UF-120 Manuel utilisateur

Panasonic

Panasonic KX-F680BX Manuel utilisateur

Panasonic

Panasonic KX-FP105 Manuel utilisateur

Panasonic

Panasonic KXF130 - CONSUMER FACSIMILE Manuel utilisateur

Panasonic

Panasonic Panafax DX-800 Instructions d'installation et d'entretien

Panasonic

Panasonic KX-FLM600E Manuel utilisateur

Panasonic

Panasonic KX-F7B Manuel utilisateur

Panasonic

Panasonic KX-PW503DL Manuel utilisateur

Manuels Télécopieur populaires d'autres marques

Samsung

Samsung SF-515 Manuel utilisateur

Radio Shack

Radio Shack TFX-1031 Manuel utilisateur

imagistics

imagistics 2030 Manuel

Furuno

Furuno FAX-30 Manuel utilisateur

Savin

Savin 3740 Manuel

Sharp

Sharp FO-51 Manuel utilisateur

Muratec

Muratec MFX-C3035 Manuel utilisateur

Canon

Canon FAX-L400 Manuel utilisateur

Ricoh

Ricoh 1000L Guide de démarrage rapide

Sharp

Sharp FO-3150 Manuel utilisateur

Kyocera

Kyocera KM-F1060 Manuel utilisateur

Sharp

Sharp FO-2970M Manuel utilisateur

Canon

Canon JX510P Manuel utilisateur

Mita

Mita LDC-870 Manuel

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Manuel utilisateur

Samsung

Samsung FX100 Manuel

Sharp

Sharp MX-FXX1 Manuel utilisateur

Develop

Develop ineo 25e Manuel utilisateur
