Panasonic KX-PW301DL Manuel utilisateur

Facsimile with Digital Cordless Phone

Quick Reference Guide

KX-PW301DL

メ

ー

ル

Model No.

Table of Contents

Finding the controls ……………………………………………………………2

Installations and connections …………………………………………………4

Setting the date and time ……………………………………………………8

Setting your facsimile telephone number ……………………………………8

Setting your logo ………………………………………………………………9

Character input and command key table …………………………………10

Automatic dialing on the main unit …………………………………………11

Automatic dialing on the portable handset…………………………………12

Intercom between the main unit and portable handset …………………13

Sending faxes …………………………………………………………………14

Receiving faxes ………………………………………………………………15

Operating the built-in answering device ……………………………………17

Using the hand scanner ……………………………………………………18

Individual e-mail services ……………………………………………………23

Connecting a computer ………………………………………………………29

Connecting a BS digital tuner / Digital CS tuner …………………………30

Specifications …………………………………………………………………31

Thank you for purchasing a Panasonic facsimile.

●This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

●This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

●Any details given in this guide are subject to change without notice.

KX-PW301DL has one portable handset.

KX-PW301DL

Finding the controls

Main unit (control panel)

10 11 12 13 1514 16 17 18

1 2 3 4 5 6

(KX-PW301DL is shown.)

Multi-operation buttons refer to the

function displayed on the display panel.

Liquid crystal display

Function button initiates programming.

Replay button plays back recorded

messages. / Record button records

telephone calls.

Auto Answer button

—light on: answering device activated.

—light off: used as a regular telephone.

Microphone

Store button stores information (phone

numbers, names etc.) into the telephone

directory. / Search button searches the

telephone directory.

Search button searches the directory by

pressing the up and down buttons.

Volume button adjusts ringer, speaker

and handset volume by pressing the up

and down buttons.

Start/Copy button starts faxing or copying.

Stop button

Intercom button

0077 SELECTY button & indicator

accesses 0077 SELECTY services.

Speakerphone button

Redial button

E-Mail button & indicator

Call Memory button & indicator stores

the caller ID of incoming calls.

Resolution button selects the resolution

when faxing or copying.

Tone button switches to tone dialing.

Finding the controls



機能 留守

着信メモリー着信メモリー



●To receive faxes.

●To insert a space.

●To use the speakerphone.



●

To adjust the volume.

●To change the character

input mode.

●To redial the last number

dialed.

●To store/search in the

directory.

Dial buttons



Do not cover the

microphone while

talking.

●To switch to Tone dialing

mode.

●To end a call.

●To end or exit from editing or

other operations.

●To turn on/off the power by

pressing for two seconds or

longer.

Charging

Full

Red

Off

(Charge indicator)

Microphone

●To make/answer calls.

●To page the main unit.





up down

right

up and down

left

left and right



Speakerphone

Fixed antenna

再ダイヤル

電話帳

音量

トーン

ファクス

スピーカーホン

F1 F2 F3

外線

切

内線

●Used when installing

additional portable handsets.

増設

充電

key

再ダイヤル

電話帳

音量

How to use



How to view

Indicates which directions the

key can be tilted.

F1 F2 F3

How to use buttons

and and buttons refer to the

function displayed on the bottom of the

display. They function differently depending

on the mode.

再ダイヤル

電話帳

音量

To view stored information:

Phonebook: Press , then press .

Dialed numbers: Press ,

then press .

Operation indicator (Shows the

condition of the scanner)

Battery indicator (Shows the

amount of battery power left)

Memory indicator (Shows the amount of memory being used)



Scanning width button

To start or stop scanning

Delete button (To delete the last page of scanned content)

Resolution button

Portable handset

Hand scanner

Installations and connections

Installing the ink film

2Insert the ink film.

Insert the white core into the slots shown in the

picture below.

1Open the control panel.

Find the “T”shaped gear (blue).

Ink film

Insert the blue core into the right slot of the main unit.

Insert the “T”shaped gear (blue) into the left slot of

the main unit.

Blue core

“T”shaped gear (blue)

Right slot

White core

Ink film

is slack.

“T”shaped gear (blue)

Control panel

Press here.

Open the control

panel until it locks.

If the ink film is slack, tighten it by winding the “T”

shaped gear.

3Close the control panel until it locks.

Installations and connections

Installing recording paper

(A4

size)

1Install the recording paper tray.

Insert the left tab on the recording paper tray into

the left slot of the main unit.

Insert the right tab into the right slot of the main unit.

3Close the paper entrance cover by leaning it back.

4Install the recording paper cover on the recording

paper tray by sliding it down from the top.

1Recording

paper tray

Slot Tab

Paper entrance cover

Printing

side is on

the back

Paper entrance cover

Recording paper

tray

Recording paper

cover

Fan the stack of recording paper (A4 size).

Insert the recording paper into the recording paper tray.

(Up to 30 sheets)

2Insert the recording paper into the recording paper tray.

Open the paper entrance cover until it locks.

Installations and connections

Connecting the main unit

1Raise the antenna.

2Connect the cord and place the handset on the

main unit.

3Connect the telephone line cord (Supplied accessory).

4Connect the power cord.

(電話回線へ)

回線

Click

Click Click

Power cord

Telephone line cord Wall jack

Power outlet

AC 100V

機能

スタート/コピー

(77 SELECTY indicator)

After you will hear the following message about KDDI’s 77

SELECTY service in Japanese (for about 2 minutes), this

unit will automatically set up for 77 SELECTY service.

After the Power On...

スタート/コピー

This unit will automatically select the dialing mode

(Tone/Pulse).

77 SELECTY indicator will light in green to show

that 77 SELECTY service is ready to be used.

(in an hour)

●During the online setup, your telephone number

will be sent to KDDI.

Thank you for purchasing a Panasonic facsimile.

This unit will automatically select using KDDI’s

“0077”long distance call service. If you do not

want to use this service, press “ (Function)”,

“ (77 SELECTY)”, and “ ”. Then,

please make sure the “ (77 SELECTY

indicator)” is turned off.

機能

●If you want to start setting up for 77 SELECTY

immediately, press (Start).

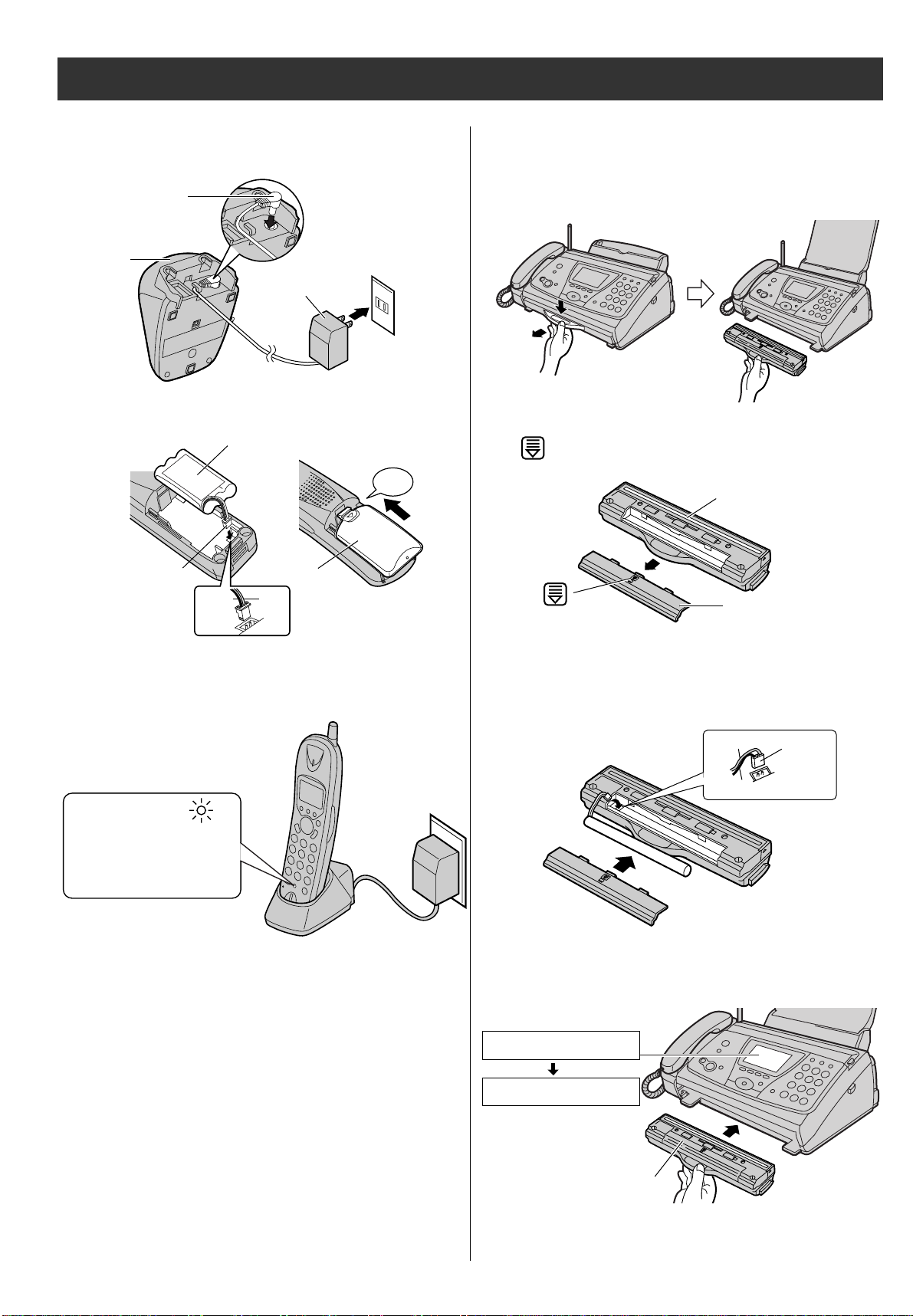

Charge indicator

—lights red:

while charging.

—lights off:

charging completed.

コード

(赤)

Battery

Connector

Black

Red

Battery cover

Click

(Orange label side facing up)

Plug

AC adaptor

Charger

Power outlet

(AC 100 V)

3Charge the battery in the charger for 6 hours.

Setting up the portable handset

●After your Panasonic battery is fully charged,

it will last up to about 7 hours of conversation.

●The hand scanner battery is charged when the

hand scanner is inserted into the main unit.

Installations and connections

Setting up the hand scanner

2Slide and open the battery cover by slightly pushing

part.

3Connect the battery to the hand scanner, and close

the battery cover.

1Press down the knob of the hand scanner, and pull

out the hand scanner from the main unit.

4Insert the hand scanner, and charge the battery

for 10 hours.

Imaging sensor

Battery cover

Cord(Red) Connector

Cord(Black)

読取枚数 

枚



ｽｷｬﾅｰ設定中

Display

Bottom side

機能登録ﾓｰﾄﾞ

Setting the date and time

1Press (Function).

機能



1Press (Function).

機能

2Press (Search button) repeatedly until the

following is displayed.

4Enter the correct year/month/day.

Example: May 1, 2001

Press .

機能登録ﾓｰﾄﾞ

Example :

Cursor

2001

年

月

日

：

2Press (Search button) repeatedly until the

following is displayed.

2001

年

月

日

：

5Enter your facsimile telephone number, up to 20

digits.

Example: 098 765 43 · ·

TEL=9876543

・・

5Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press .

6Press (Register).

登録

2001

年

月

日

：

6Press (Register).

登録

7Press (Stop).

ストップ

Example :

月

日

115

：

用件録音ｱｱｱｱ

件7Press (Stop).

ストップ

Setting your facsimile

telephone number

2001

年

月

日

：

登録

しました

ストップ

機能

スタート/コピー

ストップ

機能

スタート/コピー

画質

最初

の

設定

ｱｱｱｱｱｱｱ[ｽﾀｰﾄ]押

す

3Press (Start).

スタート/コピー

The (Space) button

replaces the digit with a space.

画質

Example :

2001

年

月

日

：

3Press (Start).

スタート/コピー

最初

の

設定

ｱｱｱｱｱｱｱ[ｽﾀｰﾄ]押

す

4Press (Search button) repeatedly until the

following is displayed.

Cursor

TEL

=.1

．．．．．．．．．．．

TEL=09876543

・・

登録

しました

Example :

月

日

115

：

用件録音ｱｱｱｱ

件

1Press (Function).

機能



2Press (Search button) repeatedly until the

following is displayed.

5Enter your logo, up to 30 characters, using the dial

keypad.

●To enter English characters easily, press

(Character input mode) repeatedly and select

“英” (English and sign input mode).

●For details, see the table on page 10 for instructions.

文字切替

Example: Micah

1. Press once.

2. Press six times.

3. Press six times.

4. Press to move the cursor to the next space

and press four times.

5. Press five times.

6Press (Register).

登録

7Press (Stop).

ストップ

Setting your logo

ストップ

機能

スタート/コピー

機能登録ﾓｰﾄﾞ

最初

の

設定

ｱｱｱｱｱｱｱ[ｽﾀｰﾄ]押

す

3Press (Start).

スタート/コピー

4Press (Search button) repeatedly until the

following is displayed.

Cursor

名前(印字用)

＞＿

Cursor

Mic

Mica

Micah

＞＿

登録

しました

Character input and command key table

、、。、。

“かな”

Hiragana

“英”

English

“カナ”

Katakana

“数”

Numbers

!？/ー#‚;: ｜・’”

（）

[]

｛｝〈〉「」

ワヲンー！？ ( )

あいうえおぁぃぅぇぉ

かきくけこ

さしすせそ

たちつてとっ

なにぬねの

はひふへほ

まみむめも

やゆよゃゅょ

らりるれろ

わをんー！？ ( )

アイウエオァィゥェォ @・ｰ&＄¥%＋=

〜^

DEFdef

GHI gh i

JKL j k l

MNOmn o

PQRSpqrs

TUVtuv

WXYZwx yz

カキクケコ

サシスセソ

タチツテトッ

ナニヌネノ

ハヒフヘホ

マミムメモ

ヤユヨャュョ

ラリルレロ

ABCabc

、。

Pressing the dial keys will select a character as shown below.

Character

Dial key

Used to change the character input mode.

Used to move the cursor to the left and right.

Used to delete a character.

Used to insert a space.

Command keys (Main unit), (Portable handset)

(Main unit), (Portable handset)

かな

文字切替

(Main unit), (Portable handset)

クリアー

キャッチ

クリアー

(Main unit), (Portable handset)

ファクス

画質

●When entering e-mail address, the small letters are displayed before the capital letters.

●When entering e-mail address, you can not enter the following symbols: 、。− .「」

●When entering e-mail address, you can enter only English and Numbers.

●When entering e-mail message, pressing enables you to begin the new line. ( “ ” is displayed.)

●The display items of the main unit are somewhat different from that of the portable handset.

Table des matières

Autres manuels Panasonic Télécopieur

Panasonic

Panasonic KX-FP121NZ Manuel utilisateur

Panasonic

Panasonic Panafax UF-733 Manuel utilisateur

Panasonic

Panasonic KX-F280 Manuel utilisateur

Panasonic

Panasonic KX-FLB851E Manuel utilisateur

Panasonic

Panasonic KX-FP365CX Manuel utilisateur

Panasonic

Panasonic KX-PW308DW Manuel utilisateur

Panasonic

Panasonic KX-F230 Manuel utilisateur

Panasonic

Panasonic KX-FP121 Manuel utilisateur

Panasonic

Panasonic Panafax UF-150 Mode d'emploi

Panasonic

Panasonic KX-FP300E Manuel utilisateur

Panasonic

Panasonic KX-FPC141 Manuel utilisateur

Panasonic

Panasonic KX-FHD301 Manuel utilisateur

Panasonic

Panasonic KX-FB422CX Manuel utilisateur

Panasonic

Panasonic kx-ft902 Manuel utilisateur

Panasonic

Panasonic KX-FHD301 Manuel utilisateur

Panasonic

Panasonic KX-PD625DL Manuel utilisateur

Panasonic

Panasonic KX-FP70CX Manuel utilisateur

Panasonic

Panasonic KX-FPW111 Manuel utilisateur

Panasonic

Panasonic KX-FT988FX Manuel utilisateur

Panasonic

Panasonic KXFG2451 - B/W Thermal Transfer Manuel de la liste des pièces

Panasonic

Panasonic UF 8200 - Panafax - Multifunction Manuel utilisateur

Panasonic

Panasonic KX-FA101 Manuel utilisateur

Panasonic

Panasonic Panafax UF-4100 Manuel utilisateur

Panasonic

Panasonic KX-F206TW Manuel utilisateur

Manuels Télécopieur populaires d'autres marques

Samsung

Samsung SF-515 Manuel utilisateur

Radio Shack

Radio Shack TFX-1031 Manuel utilisateur

imagistics

imagistics 2030 Manuel

Furuno

Furuno FAX-30 Manuel utilisateur

Savin

Savin 3740 Manuel

Sharp

Sharp FO-51 Manuel utilisateur

Muratec

Muratec MFX-C3035 Manuel utilisateur

Canon

Canon FAX-L400 Manuel utilisateur

Ricoh

Ricoh 1000L Guide de démarrage rapide

Sharp

Sharp FO-3150 Manuel utilisateur

Kyocera

Kyocera KM-F1060 Manuel utilisateur

Sharp

Sharp FO-2970M Manuel utilisateur

Canon

Canon JX510P Manuel utilisateur

Mita

Mita LDC-870 Manuel

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Manuel utilisateur

Samsung

Samsung FX100 Manuel

Sharp

Sharp MX-FXX1 Manuel utilisateur

Develop

Develop ineo 25e Manuel utilisateur
