Ventilating Fan/Light Combination

FV-07VQL3

FV-08VQL3

FV-11VQL3

INSTALLATION

INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Please read instructions carefully before attempting to install, operate or service the

Panasonic Ventilating Fan/Light Combination. Failure to comply with instructions could

result in personal injury and/or property damage. Please retain this booklet for future

reference.

Table of Contents

List of components

Description

Dimensions

Specifications

Unpacking

General safety Information

Installation I(Joist mounting Installation)

Installation II (Wooden header Installation)

Installation III (Between joist mounting Installation)

Installation IV (ln existing construction)

Maintenance I (Replacement of fluorescent lamp or night lamp)

Maintenance II (Cleaning)

Product Service

2-3

3-4

5-8

10-13

Pages

List of components

These Panasonic ceiling mount ventilating fan models use a sirocco fan driven by a capacitor motor.

The motor is designed to have an extended service life with reduced energy consumption.

It also incorporates a thermal-cutoff for safety. The grille can be quickly detached from the main unit. Adamper for

preventing air counterflow is provided. The blower uses a high-capacity sirocco fan developed to reduce the noise

level.

The light unit is an energy-saving, lighting device which uses two 13W fluorescent lamps and produces almost the

same illumination as a standard 100W incandescent lamp.

FV-07VQL3, FV-08VQL3, FV-11VQL3 Unit: mm (inch)

FV-07VQL3, FV-08VQL3, FV-11VQL3

Grille

Long screw (M4 x 30)

13W Fluorescent Lamp

Plastic screw (M4 x 13)

4W incandescent lamp

Spacer

Short screw (M4 x 12)

200 (7 7/8")

45 (1 7/8")

22 (7/8")

16.5 (5/8")

79(3 1/8")

117(4 5/8")

350 - 430(13 7/8" - 17")

550 - 640(22" - 25")

34 (1 1/8") 32 (1 1/4")

350 - 430(13 7/8" - 17")

45 (1 3/4")

Lamp cover 1

Description

Dimensions

Installation bracket

Light unit

Installation bracket*

Thumb screw

Screw (M4 x 6)

Part name Drawing Quantity

Short screw (M4 x 10)

Part name Drawing Quantity

Installation bracket *

()

230 9"

() ( )

108 4 1/4"

3 11/16"

()

110

4 3/8"

73 (2 7/8")

Dimensions continued

Specifications

* At 0.0" Static pressure, (Pa)

Unpacking

Unpack and carefully remove unit from carton. Refer to the Supplied components list to verify that all parts are

present.

General safety information

Do not install this ventilating fan/light combination in ducts where air temperature may exceed 104 F. (40 C)

Make certain that the electric service supply voltage is 120V 60Hz.

Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the Occupation

Safety and Health Act (OSHA).

Always disconnect the power source before working on or near the fan, motor or light fixture.

Grille

Junction box

Junction box cover

Body

Damper

Night lamp connector

13W lamp connector

Motor connector

15 Lamp cover

16 Night lamp

17 Bracket cover

Adapter

14 Fluorescent lamp (13W x 2)

13 Light unit

12 Thumb screw

(4W x 1)

Model Air direction V Hz

Power consumption* (W)

Fan unit Light unit

Speed*

(RPM)

Air deliver at 0.1"WG

(CFM)

Weight

lb.(kg)

17.4

(7.9)

110

725

875

995

60120Exhaust

FV-07VQL3

FV-08VQL3

FV-11VQL3

No. Part name No. Part name

Installation bracket ,

***

Installation bracket *,*

Fluorescent lamp Night lamp

105(4 1/4")

13 12 2

268 (10 5/8" )

330 (13" )

228 (9" )

Protect the power cord from sharp edges, oil, grease, hot surfaces,

chemicals, or other objects.

Do not kink the power cord.

Do not install the unit where ducts are configured as shown in Fig. A.

Provide suction parts with proper ventilation.

This unit is acceptable for use over a bathtub or shower when installed

in a GFCI protected branch circuit.

General safety information continued

Fig. A

CAUTION:

1. For general ventilating use only. Do not use to exhaust hazardous

or explosive materials and vapors.

2. Not for use in cooking area. (Fig. B)

3. This product must be grounded.

WARNING:

Do not install this equipment in heating or air conditioning, air processing, or any other recirculated air ductwork.

WARNING:

To reduce the risk of fire, electric shock, or injury to persons, observe the following;

Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the

manufacturer.

Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable

codes and standards,including fire-rated construction.

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel

burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and

safety standards such as those published by the National Fire Protection Association (NFPA), and the

American Society for Heating Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code

authorities.

When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

Ducted fans must always be vented to the outdoors.

If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.

Do not use this unit with any solid-state control device.

Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting

means to prevent power from being switched on accidentally. When the service disconnecting means

cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

NEVER place a switch where it can be reached from a tub or shower.

Do not insulation rated greater than R40.

(Cooking area)

Do not install above or

inside this area.

Cooking

equipment Floor

Fig. B

Remove junction box cover and secure conduit to

junction box knockout hole.(7/8 inch)

Refer to wiring diagram.

Using wire nuts, connect house power wires to ventilating

fan wires:

black to blacks; white to whites; green to greens.

Replace junction box cover.

Remove adapter from body and fix to ceiling joists

using long screws (M4X30). Slide the installation bracket

*into slot next to the junction box. If longer extension

is needed, assemble brackets *and *as shown below.

Secure the angular end of the bracket to the ceiling

joist. (See Fig.2.) Make sure the adapter is level and

square (perpendicular) with the joists.

Keep the distance B (21.6mm,0.85 inch) for the thickness

of ceiling board. (Fig.2)

(Fig.3)

CAUTION:

Remove the bracket cover by loosening 4 (M4x6)

screws before installation (Fig.1)

Fig. 1

Fig. 2

(Fig.3)

Fig. 3

Bracket cover

(Fig.1)

Disconnect plug connector from receptacle before

starting installation.

Lead wires

Conduit

Installation (Joist mounting installation)

Installation bracket II

Screw I

Installation

bracket I

(M4x6)

Screw

Plug connector

Screw driver

Receptacle

Junction box

Ceiling joist

Installation

bracket

Adapter Long screw

Ceiling joist

Fan body

Duct

Junction box cover

Junction box

Wire nut

Green wires

Separate connection Lump-sum connection

Installation (Joist mounting installaton) continued

Slide 4" dia. duct onto adapter and secure with tape.

Remove ceiling section. (Fig.4)

When connecting the light unit and the fan unit to the

different power sources, connect the conduit to their

respective junction box shown in Fig. 3 on page 5 and

connect the wires according to the wiring diagram.

NOTE

Fig. 4

Wiring Diagram

Night Lamp

Fan unit

Red

Black

Motor

Capacitor

Black

White

Green Green

Ballast

Light unit Lamp Lamp

Power supply

AC 120V 60 Hz

Earth ground

Junction box

Ballast

WARNING:

Make all electrical connections in accordance

with the National Electric Code (NEC) and all

local electrical codes.

CAUTION:

Mount junction box cover carefully so that lead wires

are not caught.

Ceiling joist

mm (inches)

235

Adapter

Ceiling

(9.25)

Tape Duct

Adapter

Two 2-pin sockets (white and black) is used in the

light unit.

A 3 pin socket (white,black and green) is used in

the fan unit.

Connect the earth grounding wires (green) first.

Black

White Power Supply

AC120V 60Hz

Installation (Joist mounting installaton) continued

IMPORTANT:

Make sure that body "Claws" are properly inserted

into adapter slots.

In case body and blower are installed separately.

Remove 3 screws.

Remove blower section.

Insert fan body into ceiling.

Mount blower section

and fix with 3 screws.

IMPORTANT:

Make sure that frame is

properly inserted into

groove of blower section.

Secure fan body to adapter using two thumb screws.

(Fig.6-1)

(Fig.6-2)

(Fig. 5)

(Fig.6-3)

(Fig. 5)

Insert fan body into ceiling.

Fig. 6-1

Fig. 6-2

Fig. 6-3

Fig. 5

Fig. 7

(Fig. 7)

Ceiling

Body

Claws

Adapter slots

Thumb screws

Groove

Frame

section

Frame section

Blower section

Screws

Blower

Claws

Tape

Duct

Frame section

Ceiling

Fluorescent lamp

Light unit

Plastic screws

Ceiling

Installation (Joist mounting installaton) continued

Insert plug connector Ito receptacle I.

(Fig. 8)

Insert the plug connector II , plug connector III into

the receptacle II, receptacle III respectively, and

attach the light unit to the fan unit with 3 plastic screws

(M4X13) and one short screw I(M4x12) .

Insert the fluorescent lamps and screw the night lamp

into the light unit. (Fig. 10)

11.

12.

Insert the lamp cover to the grille and attach the grille

to the fan unit. (Fig. 11)

13.

Fix fan body to ceiling joists using long screws

(M4X30) in horizontal or vertical direction.

(Fig. 9)

10.

Receptacle II

Plug connector III

Receptacle III

(for 13w lamp)

Plug connector II

Receptacle III

4W Night Lamp

Receptacle II

(for night lamp)

Receptacle I

(for fan) Fig. 8

Fig. 9

Fig.10

(Fig. 10)

Plug connector

Fan

Ceiling

Plug connector

Short screw

Fig.11

Mounting spring

Light unit

Slot

Grille

Lamp Cover

Grille

Ventilating fan

Adapter

Long screws

Ceiling Flange

Fig. 14

Fig. 15

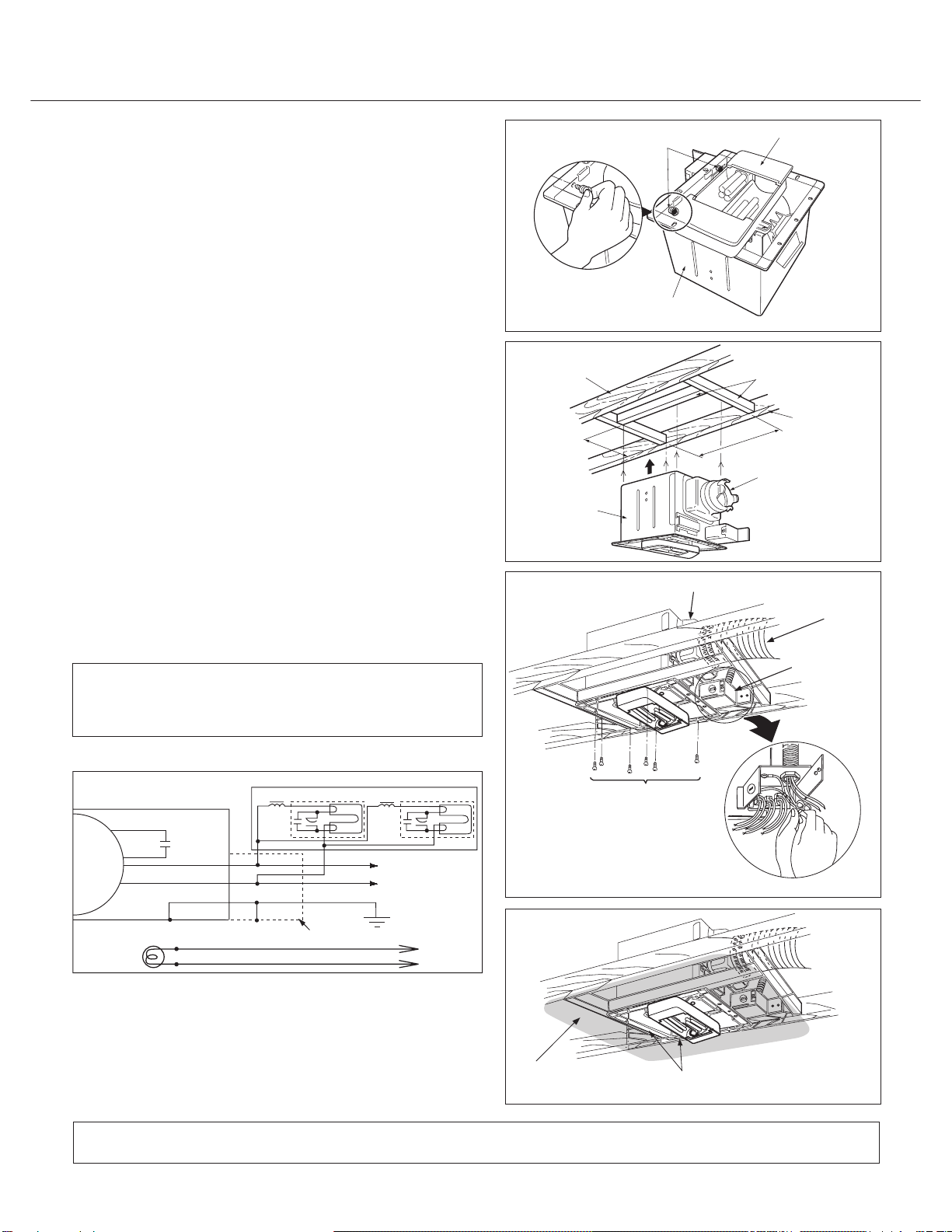

Installation (Wooden header installaton)

Before installation, secure adapter to fan body using

two thumb screws.

Install header between ceiling joists using nails or screws.

Secure the Fan/Light assembly to the header with long

screws (M4X30).

Slide the 4" circular duct onto the adapter and secure

with tape. Remove the junction box cover and secure

conduit to junction box knockout hole. (7/8 inch)

Refer to wiring diagram.

Using wire nuts, connect house power wires to ventilating

fan wires:

black to blacks; white to whites; green to greens.

Replace junction box cover.

Wiring Diagram

Finish ceiling work. Ceiling hole should be cut at the

edge of the flange.

Insert the lamp cover into the Grille and attach the grille

to the fan unit.

(Fig. 12)

(Fig. 13)

(Fig. 14)

(Fig. 3)

(Fig. 15)

(Fig. 11)

Mount junction box cover carefully so that lead wires

are not caught.

CAUTION: Junction box cover

Circular duct

Adapter

When connecting the light unit and fan unit seperately, read the note on page 6 before making connections.

Fig. 12

Fig. 13

(Fig. 14)

mm(inch)

Thumb screws Light unit

Fan body

Ceiling joist Header

Ceiling joist

235

(9 1/4)

345

(13 9/16)

Night Lamp Black

White Power Supply

AC120V 60Hz

Earth ground

Red

Black

Motor

Capacitor

White

Green

Lamp

Light unit

Ballast

Black

Fan unit

Junction box

Green

Ballast

Power supply

AC 120V 60 Hz

Insert the plug connector II and plug connector III into the

receptacle II and receptacle III respectively. Install the light

unit to the fan body by using plastic screws (M4x13)

and one short screw I(M4x12). Insert the fluorescent

lamps and screw the night lamp into the light unit.

(Fig.10, Fig. 12)

Thumb screws

Installation (Between joist mounting installation)

1. Before installation, secure adapter to fan body by using

two thumb screws.

2. Insert the installation bracket III into slot of the adapter

side.

III

(Fig. 16)

(Fig. 17)

Fig. 18

installation bracket I

installation bracket IV

Frame

Fig. 16

3. Insert the installation brackets Iand IV into slot.

(Fig. 18)

Fig. 17

Fan body

installation bracket III

Fan body

adapter

Autres manuels pour FV-08VQL3

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Ventilateur

Panasonic

Panasonic F-48XZ2 Manuel utilisateur

Panasonic

Panasonic Whisper Green FV-11VK3 Manuel utilisateur

Panasonic

Panasonic F-302BH Manuel utilisateur

Panasonic

Panasonic Intelli-Balance 100 Manuel utilisateur

Panasonic

Panasonic WhisperCeiling FV-20VQ3 Manuel utilisateur

Panasonic

Panasonic F-60WWK Manuel utilisateur

Panasonic

Panasonic FV-0511VQ1 Manuel utilisateur

Panasonic

Panasonic FV-30BY1 Manuel utilisateur

Panasonic

Panasonic FV-10NLF1 Manuel utilisateur

Panasonic

Panasonic FY-E15DZ1 Manuel technique

Panasonic

Panasonic ECONAVI F-M15H5VBSQH Manuel utilisateur

Panasonic

Panasonic FV-10BAT1 Manuel utilisateur

Panasonic

Panasonic FV-0511VK2 Manuel utilisateur

Panasonic

Panasonic Whisper-Lite FV-08VQL4 Manuel d'exploitation et d'entretien

Panasonic

Panasonic Whisper Value-Lite FV-08VSL1 Manuel utilisateur

Panasonic

Panasonic RG-C811A Manuel utilisateur

Panasonic

Panasonic WhisperCeiling FV-05 Manuel utilisateur

Panasonic

Panasonic FV-07VF1 Manuel utilisateur

Panasonic

Panasonic F-M12D2 Manuel utilisateur

Panasonic

Panasonic WhisperRemodel RG-R811LA Manuel utilisateur

Panasonic

Panasonic Whisper Green FV-11VK3 Manuel utilisateur

Panasonic

Panasonic FV-05VF2 Manuel utilisateur

Panasonic

Panasonic FV-0510VS1 Manuel utilisateur

Panasonic

Panasonic FV-0511VK2 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage

Litex Industries

Litex Industries E-CGL52CB5C1 Manuel utilisateur

Lindab

Lindab LTDF Manuel utilisateur
