Ventilating Fan

FV-05VF2 FV-08VF2 FV-11VF2

READ AND SAVE THESE INSTRUCTIONS.R

Please read these instructions carefully

before

attempting to install,

operate or service the Panasonic Ventilating Fan. Failure to comply

with instructions could result in personal injury and/or property

damage. Please retain this booklet for future reference.

Specifications

Dimensions

Description

Table of Contents

Supplied Accessories

Unpacking

General Safety Information

Wiring Diagram

4-5

8-9

Installation

( Wooden Header )

( -Joist Mounting )I

10-11

Installation ( Between Joist Mounting )

Installation

( In Existing Construction )

Installation ( Joist Mounting- )II

Installation

Maintenance

Practical Guide to Installation

Product Service

6-8

Installation ( Joist Mounting- )I

III

FV-05VF2

FV-08VF2

FV-11VF2

These Panasonic ceiling mount ventilating fan models use a sirocco fan with dolphin-shaped blades driven by

a capacitor motor. The motor is designed to have an extended service life with reduced energy consumption.

Double orifice technology is used to reduce noise. It also incorporates a thermal-cutoff for safety. The grille

covering the main body is a spring-loaded, quickremove type. A damper for preventing counterflow is provided.

Thumb screw

Long screw

(M4X30)

Quantity

Appearance

Part name

Grille

Suspension

bracket I

Suspension

bracket II

Screw

(M4X8)

Suspension

bracket III

Screw

(M4X10)

3 inches adaptor

connector

(optional part)

Unit: ( )inches mm

Damper

Body

Adaptor

Grille

Part namePart name

No. No.

Suspension bracket

Orifice

Orifice cover

Bracket cover

Junction box

Adaptor connector 11

Motor

Blade

(For 16 inches on center joists, only use suspension bracket , for 19.2 inches on center joists, only use

suspension bracket , If more than 19.2 inches on center,use suspension bracket & .)

III II III

FV-05VF2

FV-08VF2 FV-11VF2

37/898()

43/8 110()

5 5/8 (141)

3 1/4 (81)

1 3/4 (43.5)

2 15/16 (74)

13 330()

10 1/4 261()

16 1/8 (410)

1 (25)

37/898()

3 5/8 (92) 1(25)

43/8 110()

5 5/8 (141)

3 1/4 (81)

1 3/4 (43.5)

10 1/4 259()

11 7/8 (301)

2 15/16 (74)

13 330()

10 1/4 261()

16 1/8 (410)

1 (25)

13 1/4~15 1/2 ( 336~394 )

16 1/2~18 3/4 ( 419~480 )

21 1/4~23 1/2 ( 540~597 )

1 (25)

10 1/4 259()

11 7/8 (301)

13 1/4~15 1/2 ( 336~394 )

16 1/2~18 3/4 ( 419~480 )

21 1/4~23 1/2 ( 540~597 )

3 5/8 (92)

Specifications are based on HVI standard.

Unpack and carefully remove unit from carton.

Refer to the Supplied Accessories list to verify that all parts are present.

1. Do not install this ventilating fan where air temperature may exceed 40 C (104 F).

2. Make certain that the electric service supply voltage is 120V, 60 Hz.

3. Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and

the Occupation Safety and Health Act (OSHA).

4. Always disconnect the power source before working on or near the fan, motor or junction box.

5. Protect the power cord from sharp edges, oil, grease, hot surfaces, chemicals or other objects.

6. Do not kink the power cord.

7. Do not install the unit where ducts are configured as shown in Fig. A.

8. Provide suction parts with proper ventilation.

9. This unit is UL listed for use over a bathtub or shower when installed in a GFCI protected

branch circuit.

Air directionModel No.

FV-05VF2

FV-08VF2

FV-11VF2

Exhaust

120

(W)

Power consumption

Speed

(rpm)

Air deliver

(cfm)

3.5 (7.7)

3.7 (8.2)

3.8 (8.4)

Weight

(Ib.)

Duct

diameter

(inches)

Noise

(sone)

Adaptor

Fig. A

110

635

755

830

0.8

1.5

0.4

50740

0.5

70845

0.8

901230

1.5

Power Supply

AC120V 60Hz

Fan unit

Red

Capacitor

White

Black

Green

Earth ground

Junction box

Green

Neutral

Live

Earth

CAUTION:

1. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

2. Not for use in cooking area. (Fig. B)

3. This product must be properly grounded.

Floor

Do not install above or

(Cooking area)

inside this area

45o

equipment

Cooking

Fig. B

WARNING:

To reduce the risk of fire, electric shock or injury to persons, observe the following;

A. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact

the manufacturer.

B. Installation work and electrical wiring must be done by qualified person(s) in accordance with all

applicable codes and standards, including fire-rated construction.

C. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)

of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's

guideline and safety standards such as those published by the National Fire Protection Association

(NFPA), and the American Society for Heating Refrigeration and Air Conditioning Engineers

(ASHRAE) and the local code authorities.

D. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

E. Ducted fans must always be vented to the outdoors.

F. These models are UL listed for tub and shower enclosures.

G. Solid state controls may cause harmonic distortion which can cause motor humming noise. Do not use

this unit with any solid-state control device.

H. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting

means to prevent power from being switched on accidentally. When the service disconnecting means

cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

I. NEVER place a switch where it can be reached from a tub or shower.

J. Not to be installed in a ceiling thermally insulated to a value greater than R40.

Press and hold the claw of orifice cover to open

the orifice cover.

1. Before installation, open the orifice cover. Secure the fan

body to adaptor by using thumb screw. (Fig. 1)

Fig. 1

2. Insert the supension bracket into the fan body and

adaptor. (select the suspension bracket acc rding

to Fig. 2)

Remove the tape

IMPORTANT:

Adaptor

Remove the tape from damper and adaptor

before installation.As show below:

Damper

2-Screw (M4X8)I

Suspension bracket III

Suspension bracket II

If spacing A on center joists is 24 inches, connect

suspension bracket and (C4 mark to C4 mark)

as show below :

II III

Orifice cover

Claw

3 inches adaptor connector

Connection method for 3 inches adaptor connector

Duct tape

Orifice cover

Fan body

Thumb screw

Suspension

bracket III

Suspension

bracket I

Fig. 2-3

A = 19.2 inches vertical joists

Fan body

Suspension

bracket I

Fig. 2-1

Fan body

A = 12 inches

Suspension

bracket I

Suspension

bracket III

Fig. 2-2

A = 16 inches

Fan body

Fig. 2-4

Fan body

Suspension

bracket I

Suspension

bracket III

Suspension

bracket II

A = 24 inches

Joist

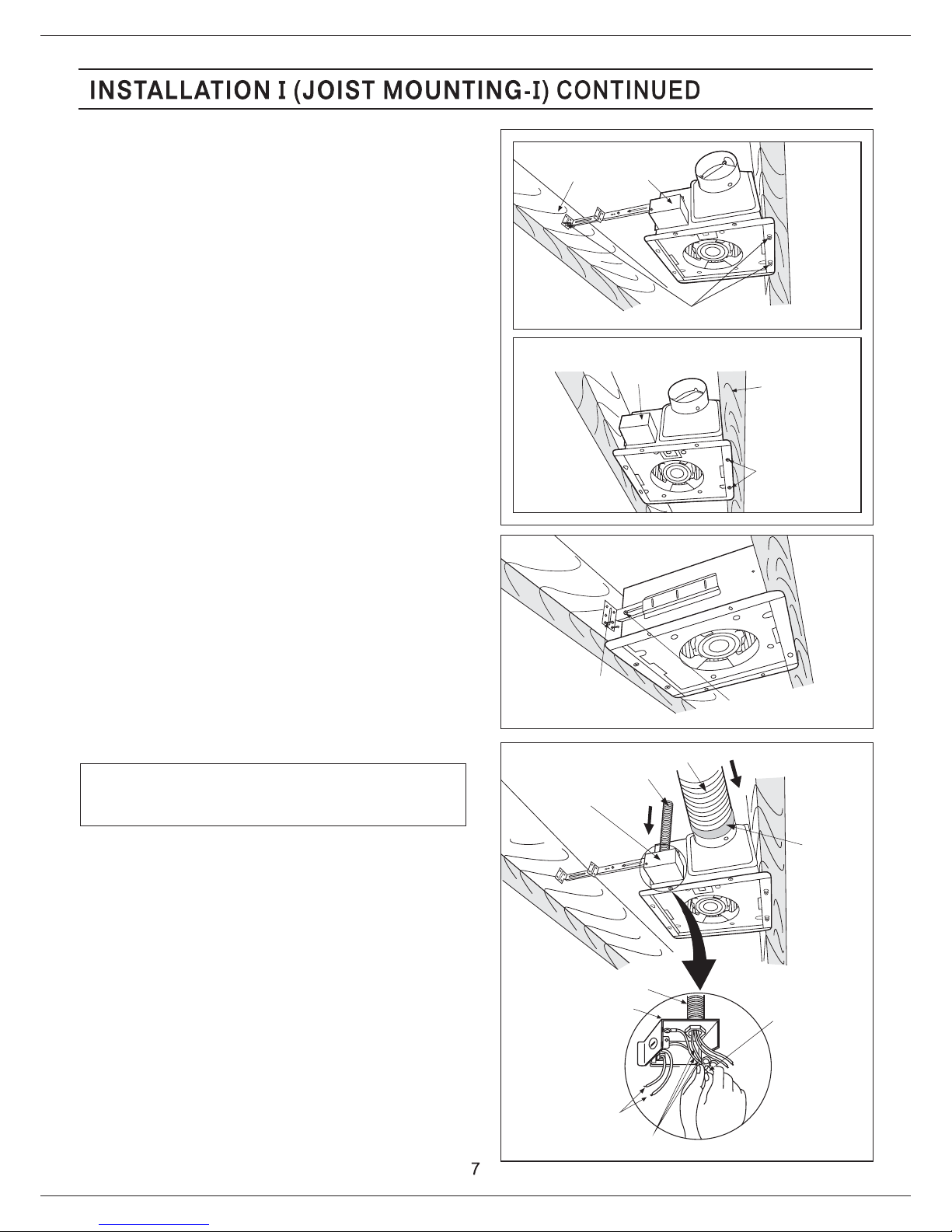

5. Remove junction box cover and secure conduit or

stress relief to junction box knock-out hole. (Fig. 5)

6. Refer to wiring diagram (page 5).

Using wire nuts, connect house power wires to

ventilating fan wires:

black to black; white to white; green to green;

Replace the junction box cover.

CAUTION:

Mount junction box cover carefully so that lead

wires are not pinched.

4. Install the suspension bracket to joists by using long

screws (M4X30) and secure it to the fan body by

using screw (M4X10) (Fig. 4)II

3. Install the suspension bracket and the flange of fan

body to joists by using long screws (M4X30) according

to Fig. 3.

7. Install a circular duct and secure it with duct tape

or clamps.

2-Long screws

(M4X30) screw (M4X10)II

Junction box cover

Conduit

Wire nut

Conduit

Junction box

Green wires

Lead wires

Circular duct

Fan body

Joist

4-Long screws(M4X30)

Joist

Fan body

2-Long screws

(M4X30)

Others

A = 10 1/4~12 inches

Duct tape

Fig. 4

Fig. 5

Fig. 3-2

Fig. 3-1

inches mm()

2-Long screws

(M4X30)

Adaptor

Suspension bracket &III

Ceiling joist

Adaptor

2-Long screws

(M4X30)

Fig. 8

7/8 (21.6)

13 1/4~15 1/2 ( 336~394 )

16 1/2~18 3/4 ( 419~480 )

21 1/4~23 1/2 ( 540~597 )

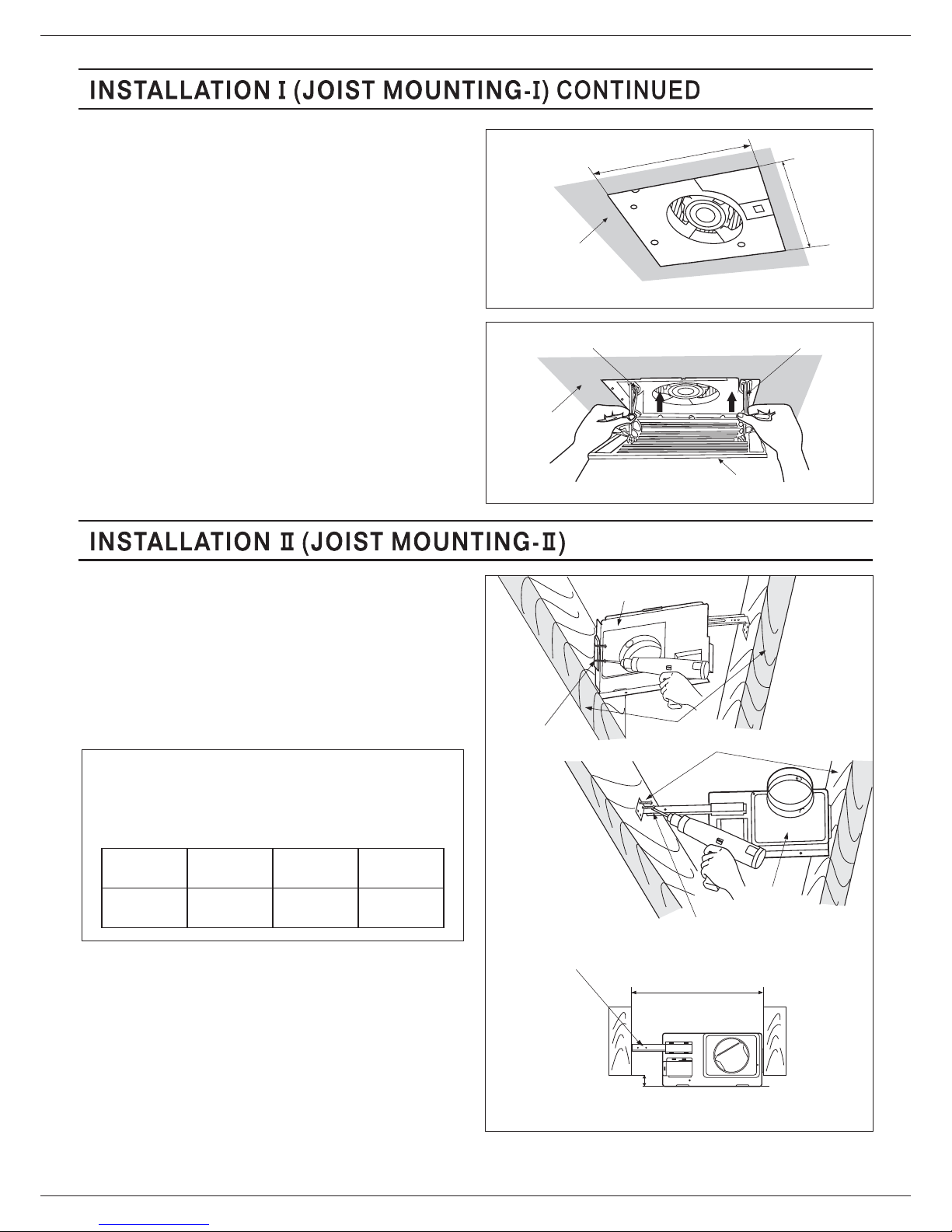

8. Finish ceiling work. Ceiling hole should be aligned

with the edge of the flange. (Fig. 6)

9. Insert mounting springs into slots as show and

mount grille to fan body. (Fig. 7)

Fig. 7

Ceiling

Slot Mounting spring

Grille

1. Open the orifice cover, disconnect plug connector

from receptacle and remove adaptor from fan body

before starting installation.

2. Insert the suspension bracket into the adaptor and

secure it to joists by using long screws(M4X30) (Fig. 8)

Keep the distance B (7/8 inch, 21.6mm) for the

thickness of ceiling board.

3. Follow steps 5 to 7 of the Installation (page 7) to

complete the duct work and wiring.

If spacing A between joists is 21 1/4 to 23 1/2

inches, connect suspension bracket and

(C4 mark to C4 mark) according to page. 8

Select the suspension bracket according to

spacing A as show below.

II III

suspension

bracket

suspension

bracket I

suspension

bracket III

suspension

bracket &II III

Spacing A

between Joists

inches (mm)

13 1/4~15 1/2

( 336~394 )

16 1/2~18 3/4

( 419~480 )

21 1/4~23 1/2

( 540~597 )

Fig. 6

Ceiling

10 7/8 (275)

inches (mm)

4. Insert to fan body

(refering to step 2 of Installation , page 6)

the suspension bracket in

Fig. 11

Fig. 10

Fig. 9

When mounting

body and blower

separately

1. Loosen 4 screws (but

do not remove them

from blower). (Fig. 12-1)

2. Remove blower section.

(Fig. 12-2)

4. Insert fan body (without

blower section) into

joists. (Fig. 9)

5. Secure the adaptor to

fan body by using thumb

screw. (Fig. 10)

7. Insert the blower into the

fan body. (Fig. 12-3)

3. Remove adaptor from fan

body and secure it to

joists as in Fig. 8 of

page 8.

Make sure that adaptor claws are properly inserted

into body slots.

IMPORTANT:

5. Insert the fan body into joists. (Fig. 9)

6. Open the orifice cover, secure the fan body to

adaptor by using thumb screw and plug connector

to receptacle (Fig. 10)

7. Secure to joists by using

long screws(M4X30) and secure it to fan body by

using screw (M4X10) in vertical direction (Fig. 11)

the suspension bracket

8. Follow steps 8 to 9 of Installation (page 8) to

complete the installation work.

6. Secure the fan body

to joists by using long

screw(M4X30) (Fig. 11)

8. Secure the blower.

(Fig. 12-4) and plug

connector to receptacle

(Fig. 10)

Fan body

Blower

Fan body

Ceiling joist

Adaptor

4-Screws

Screw driver

4-Screws

Slots

Adaptor

claws

Fan body

Joist

Conduit

Junction box cover

Circular duct

Duct tape

Fig. 12-2

Fig. 12-3

Fig. 12-1

Fig. 12-4

Thumb

screw Plug connector

Receptacle

Screw (M4X10)II

2-Long screws

(M4X30)

4 kinds of -joist

inches (mm)

9/16 ( )14.3

11/16 (17.5)

31/32 (24.6)

1 17/32 38.9()

Suspension bracket

The suspension can comply with

different kinds of -joist.

III

bracket

1. Before installation, open the orifice cover. Secure the

fan body to adaptor by using thumb screw. (Fig. 1 of

page 6)

2. Connect the suspension to fan body. (Fig. 13)

(Select the hole by checking joist size fix the screw

to the frame hole.)

bracket III

I-

3. Connect the ventilating fan to the joist. (Fig. 14)I-

4. Follow steps 5 to 9 of installation (page 7, page 8) to

complete the installation work.

2. Insert the suspension bracket into the bracket cover of

adaptor side and the back of the fan body. (Fig.15)

(select the suspension bracket according to spacing A

as show below)

1. Before installation, open the orifice cover. Secure the

fan body to adaptor by using thumb screw. (Fig.1 of

page 6)

Fig. 13

Fig. 14

Screw (M4X10)II

Suspension

bracket III

4-Long screws

(M4X30)

Ijoist

C4 C1

Suspension bracket I

Suspension bracket III Suspension bracket II

A = 16 inches and 19.2 inches horizontal joist

16 inches and 19.2

inches horizontal joist

and

19.2 inches vertical joist

Suspension bracket III

A = 19.2 inches vertical joist

Suspension bracket II

Suspension bracket I

Fig.15-2

Fig.15-1

Autres manuels pour FV-05VF2

Ce manuel convient aux modèles suivants

Autres manuels Panasonic Ventilateur

Panasonic

Panasonic F-M14C2VBHH Manuel utilisateur

Panasonic

Panasonic WhisperWelcome FV-05VFM2 Manuel utilisateur

Panasonic

Panasonic FV-05VFL1 Manuel d'exploitation et d'entretien

Panasonic

Panasonic FV-11VQD2 Manuel utilisateur

Panasonic

Panasonic K14Y2 Manuel utilisateur

Panasonic

Panasonic Whisper-Lite FV-08VQL4 Manuel d'exploitation et d'entretien

Panasonic

Panasonic FV-0511VQL1 Manuel utilisateur

Panasonic

Panasonic WhisperGreen FV-13VKML3 Manuel utilisateur

Panasonic

Panasonic FV-10EGF1 Manuel utilisateur

Panasonic

Panasonic WhisperCeiling FV-20VQ3 Manuel utilisateur

Panasonic

Panasonic FV-05VF2 Manuel utilisateur

Panasonic

Panasonic FV-08VRE2 Manuel utilisateur

Panasonic

Panasonic FV-0511VKS2 Manuel utilisateur

Panasonic

Panasonic EcoVent FV-07VBA1 Manuel utilisateur

Panasonic

Panasonic F-307KH Manuel utilisateur

Panasonic

Panasonic FV-0511VQ1 Manuel utilisateur

Panasonic

Panasonic F-M14E2 Manuel utilisateur

Panasonic

Panasonic FV-10CG2H Guide de l'utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Panasonic

Panasonic WhisperSense FV-08VQCL6 Manuel utilisateur

Panasonic

Panasonic WhisperGreen FV-08VKML3 Manuel utilisateur

Panasonic

Panasonic FV-0511VQ1 Manuel utilisateur

Panasonic

Panasonic FV-0811RQ1 Manuel utilisateur

Panasonic

Panasonic FV-05VS1 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage

Litex Industries

Litex Industries E-CGL52CB5C1 Manuel utilisateur

Lindab

Lindab LTDF Manuel utilisateur
