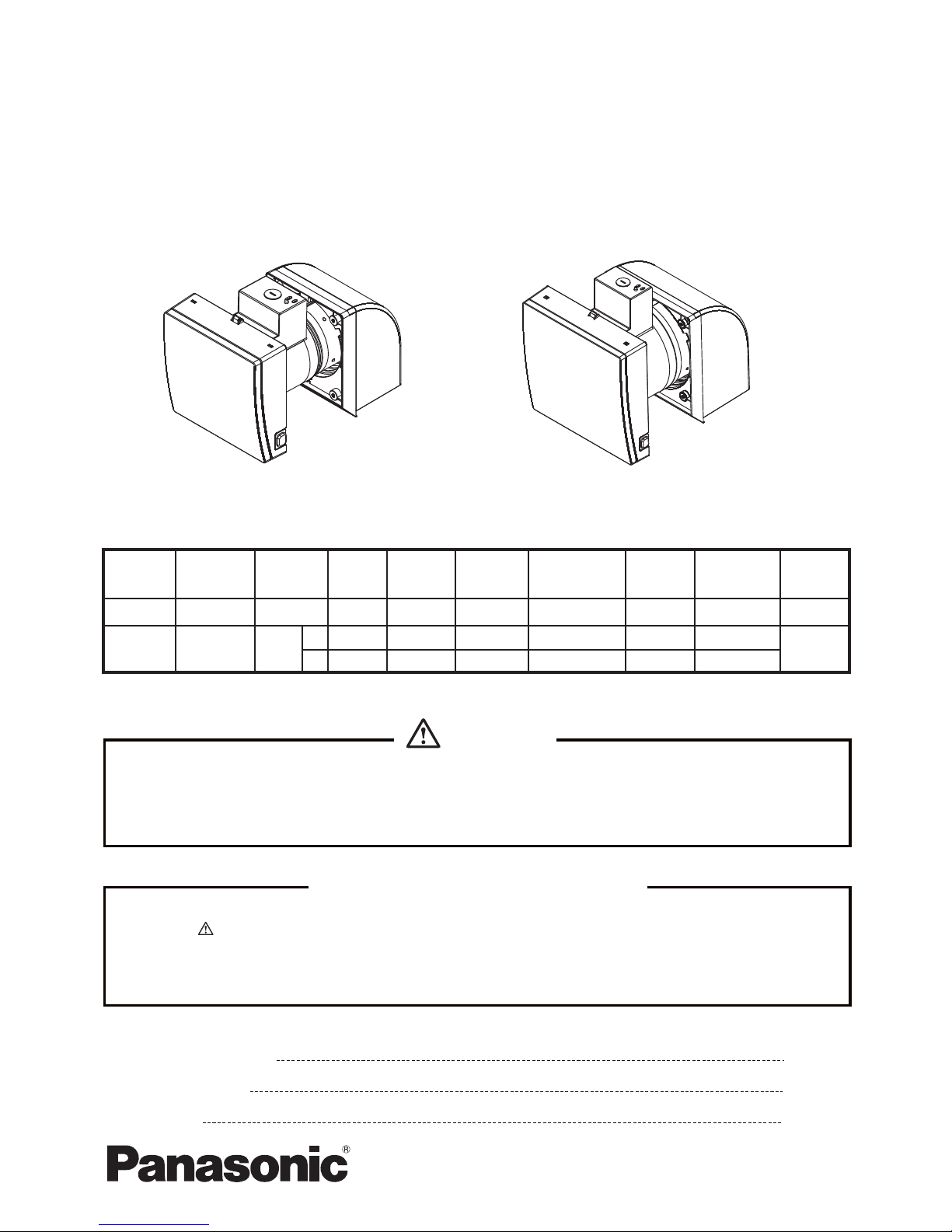

Panasonic FV-04WS2 Manuel utilisateur

Service Manual

PEG1312056CE

Version:1301

CONTENTS

1 Parts Identification

2 Wiring Diagram

3 Parts List

PAGE

5~6

Ventilating Fan

FV-01WS2

1~4

7~10

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

FV-04WS2

FV-01WS2

FV-04WS2

Model No.

Duct

diameter

(inches)

Air

direction

Voltage

(V)

Frequency

(Hz)

Noise

(sones)

Speed

(r/min)

Power

consumption

(W)

Air volume

at 0.03"WG

(CFM)

Weight

lb.(k )g

Intake

120

<0.3

1.2

<0.3

3.0

8.5

5.5

2590

2520

1680

5.3(2.4)

6.8(3.1)

HVI Certified performance based on HVI Procedures 915,916 and 920.

1. Parts Identification

FV-01WS2

Main Body Section

aaaaaaaa

615

(4pcs)

(3pcs)

After replacing motor unit,Please DO NOT press

the wire when cover condenser case.

(3pcs)

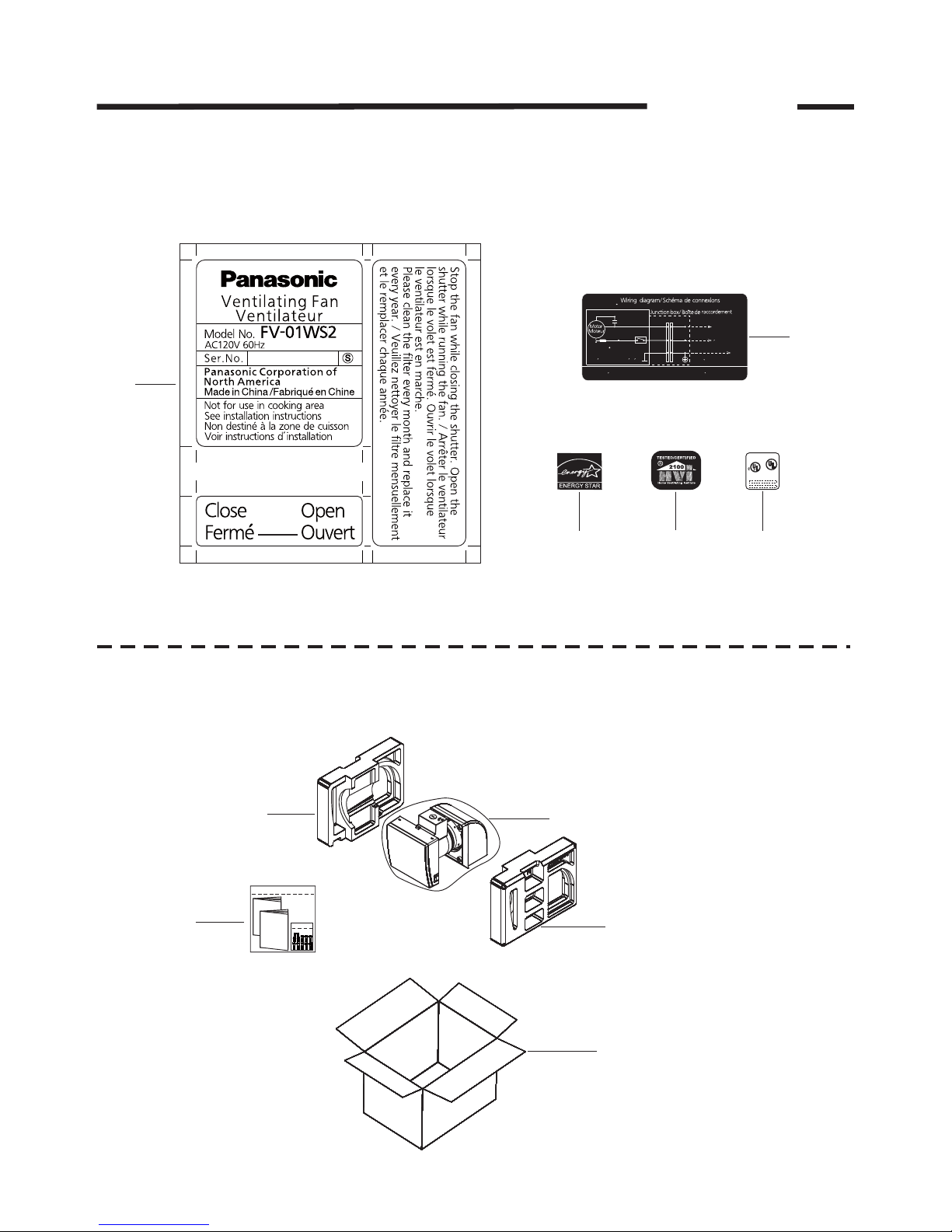

1. Parts Identification

Main Labels

Panasonic

Main Packing Section

(For Style Reference)

FV-01WS2

0.0275A

Impedance - protected/

Fan body/Boitier du ventilateur

Red/Rouge Capacitor/

Condensateur

White/Blanc

Black/

Noir

(Fusible 114 C dans le Moteur)

(114 C Fuse in Motor)

Impedance - protege

White/

Blanc

Black/

Noir

Green/

Vert

White/

Blanc

Black/

Noir

Green/

Vert

Earth ground/

Mise a la terre

Neutral/

Neutre

Live/ Sous

Power supply

AC120V 60Hz

Alimentation

electrique

120VCA 60Hz

Suitable for use with motor Model 01WS1M200

Approprie pour une utilisation avec le moteur Modele 01WS1M200

tension

Switch/

Commutateur

FAN

LISTED

E78414

1. Parts Identification

Main Body Section

aaaaaaaa

(4pcs)

(3pcs)

After replacing motor unit,Please DO NOT press

the wire when cover condenser case.

(3pcs)

FV-04WS2

(2pcs)

(3pcs)

910

1. Parts Identification

Main Labels

Panasonic

Main Packing Section

(For Style Reference)

FV-04WS2

0.0836A

Wiring diagram/

Schema de connexions

Black/

Noir Black/

Noir

Switch/

Commutateur

(Fusible 114 C dans le Moteur)

FAN

LISTED

E78414

2. Wiring diagram

FV-01WS2

Motor

Red

Fan Body

Capacitor

White

Black Switch

Junction box

White

Black

Green

(114 C Fuse in Motor)

Impedance-protected

White

Black

Green

Neutral

Live

Earth ground

Power supply

AC120V 60Hz

Lead Wire Assembly

Switch Wire Assembly

Bule

Black

White

Green

Butt Connector

Condenser

Red

Black

White

3pcs-Connector

Motor Assembly

Motor Plate

2. Wiring diagram

FV-04WS2

(47K )

Motor

Red

Fan Body

White

Black

(114 C Fuse in Motor)

Thermally-protected/

(3 )

Resistor Resistor

Capacitor(1.1 F)

(2.0 F)

Capacitor

Switch Hi

Junction box

White

Black

Green

White

Black

Green

Neutral

Live

Earth ground

Power supply

AC120V 60Hz

Bule

Black

Red

Orange

Black

White

Green

Condenser

2pcs-Connector

250V,1.1 Fμ

Red

Black

White

Condenser

250V,2.0 Fμ

3pcs-Butt Connector

Switch Wire Assembly

Lead Wire Assembly

8 1

This wire need

to cut as below:

3. Parts List

FV-01WS2

No. Part No. Part Name Q'ty Remark

1 FFV3420040S Louver Panel Assembly 1

2 FFV3420081S Louver Base Assembly 1

3 FFV3100002S Knob 1

4 FFV3440004S Lever 1

5 FFV3440005S Lever Cover 1

6 FFV1610047S Filter Assembly 1

7 FFV3402170S Lead Wire Assembly 1

8 FFV3470004S Butt Connector 1

9 FFV5580014S Switch Wire Assembly 1

10 FFV0750223S Condenser 1 250V,0.5μF

11 FFV0900057S Connector 3

12 FFV3730120S Motor Unit 1

13 FFV3730095S Motor Support 1

14 FFV4670007S Blade Assembly 1

15 FFV1600118S Frame Assembly 1

16 FFV5580012S Switch Box 1

17 FFV5580013S Switch Box Cover 1

18 FFV0750210S Condenser Case 1

19 NK4N Cord Clip 1

20 FFV0750211S Connector Assembly 1

21 FFV2800017S Junction Box 1

22 FFV0720012S Cord Bushing 1

23 FFV2800016S Junction Cover 1

24 FFV3450010S Lead Wire 1

25 FFV3710038S Duct Assembly 1

26 FFV2200003S Hood Base 1

27 FFV6400006S Vent Assembly 1

28 FFV2200004S Hood 1

A FFV7000102S Screw 4 For Fixing Lever Cover

B FFV7000139S Screw 6

C FFV7000099S Screw 1

D FFV7000108S Screw 3

E FFV7000211S Earth Lead Wire Screw 2 Include Spring Washer

F FFV7000140S Screw 1 For Fixing Hood

Main Body Section

3. Parts List

FV-01WS2

No. Part No. Part Name Q'ty Remark

29 FFV4020825S Louver Label Assembly 1 Stuck On Frame Assembly

30 FFV6730085S Wiring Diagram 1 Stuck On Frame Assembly

31 FFV1320001S ESP Mark 1 Stuck On Frame Assembly

32 FFV2260002S HVI Mark 1 Stuck On Frame Assembly

33 FFV2260003S UL Mark 1 Stuck On Frame Assembly

No. Part No. Part Name Q'ty Remark

34 FFV4710336S Left Pad 1

35 FFV0450013S Poly Cover 1

36 FFV4710337S Right Pad 1

37 FFV0010241S Accessory Set 1 For America Market

(37) FFV0010242S Accessory Set 1 For Canada Market

38 FFV9001118S Packing Case Assembly 1

Main Labels

Main Packing Section

3. Parts List

FV-04WS2

No. Part No. Part Name Q'ty Remark

1 FFV3420042S Louver Panel Assembly 1

2 FFV3420082S Louver Base Assembly 1

3 FFV3100003S Knob 1

4 FFV3440006S Lever 1

5 FFV3440007S Lever Cover 1

6 FFV1610048S Filter Assembly 1

7 FFV3470004S Butt Connector 3

8 FFV3402171S Lead Wire Assembly 1

9 FFV5580015S Switch Wire Assembly 1

10 FFV0750224S Condenser 1 250V,1.1μF

11 FFV0750225S Condenser 1 250V,2.0μF

12 FFV0900057S Connector 2

13 FFV3730121S Motor Unit 1

14 FFV3730097S Motor Support 1

15 FFV4670008S Blade Assembly 1

16 FFV1600119S Frame Assembly 1

17 FFV5580012S Switch Box 1

18 FFV5580013S Switch Box Cover 1

19 FFV0750222S Condenser Case 1

20 NK4N Cord Clip 1

21 FFV0750213S Connector Assembly 1

22 FFV2800019S Junction Box 1

23 FFV0720012S Cord Bushing 1

24 FFV2800018S Junction Cover 1

25 FFV3450010S Lead Wire 1

26 FFV3710039S Duct Assembly 1

27 FFV2200005S Hood Base 1

28 FFV6400007S Vent Assembly 1

29 FFV2200006S Hood 1

A FFV7000102S Screw 4 For Fixing Lever Cover

B FFV7000099S Screw 4

C FFV7000139S Screw 6

D FFV7000108S Screw 3

E FFV7000211S Earth Lead Wire Screw 2 Include Spring Washer

F FFV7000140S Screw 1 For Fixing Hood

Main Body Section
