Panasonic ES7036-E8 Manuel utilisateur

ORDERNO. SD0509E44C8

Wet/DryRechargeableShaver

ES7036-E8/ ES7038-E8

SPECIFICATIONS

SPECIFICATIONS

2005 Matsushita ElectricWorks, Ltd. All rights reserved.

Unauthorizedcopying and distribution isaviolation oflaw.

1

1. SCHEMATICDIAGRAM

1.1. ES7036

1.2. ES7038

2. WIRING CONNECTIONDIAGRAM

3. DISASSEMBLYINSTRUCTION

Followtheprocedurebelowtodisassemblethemainunit.

1. Removethecap, theouterfoil withfoil frameand theinnerblade.

2

2. Slidethetrimmerhandleup toopenthetrimmerand unhookthe

trimmerhandlebyinserting something like aslotedscrewdriveror

plasticspatulaintoaslit.

NOTE:Make surenottoscratchor damageon thehousing.

3. Removetrimmerand trimmerhandle.

3

4. To removethetrimmerdriving barortheslitbladedriving bar,

press barsoutward.

5. Loosenascrew and removethebottomcover.

6. Slidedownthesidepanelsforbothsides.

4

7. Loosentwoscrewson frontand fourscrewson theback side, and

removetwohousing clips.

8. Take outthehousing B.

5

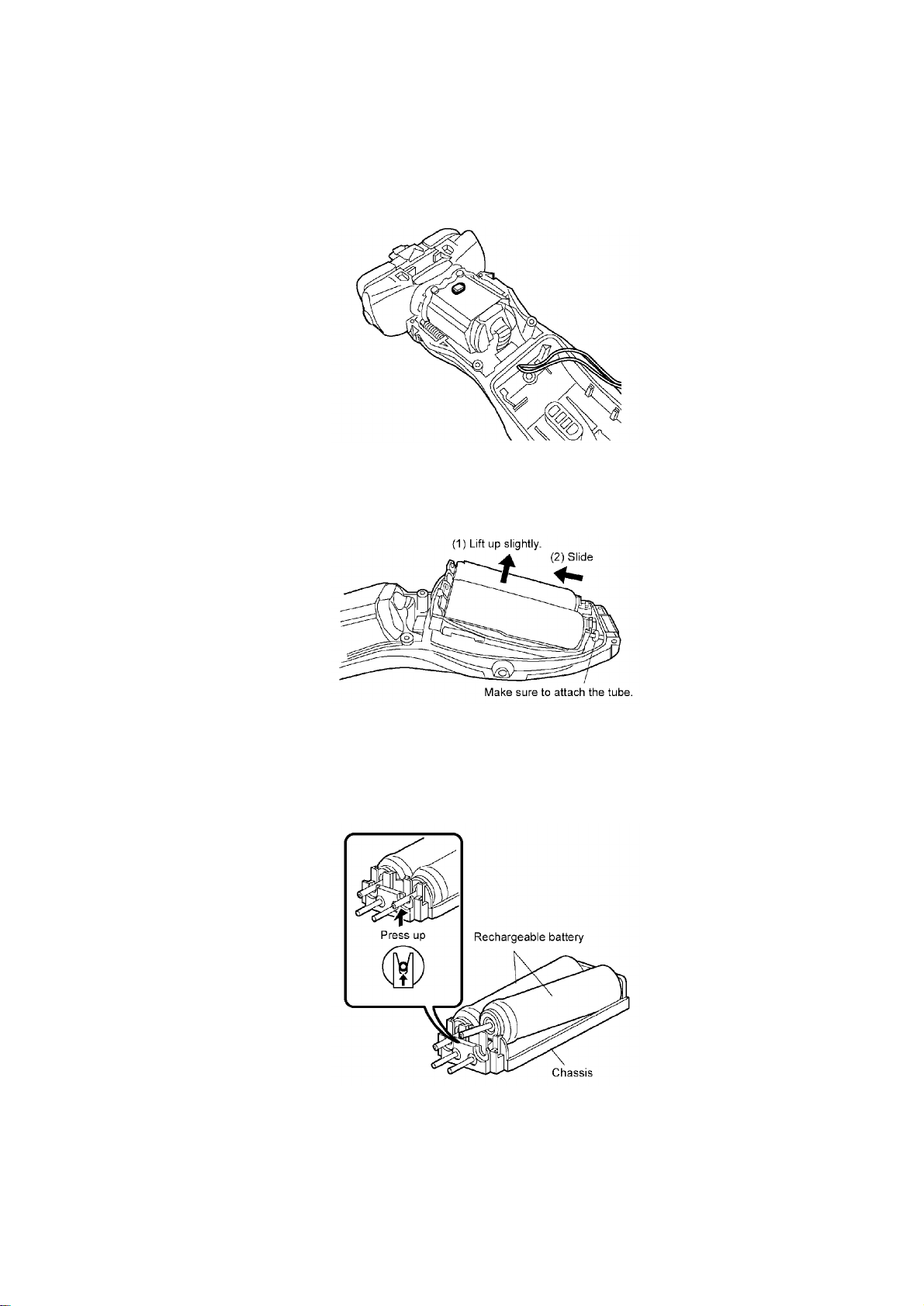

9. Removethemotorassemblyand tubeholder.

10. And take outthebatteryassemblyfromhousing A.

11. Removethebatteryo-ring and washerineachbattery. Take out

therechargeablebatteries fromthechassis.

4. CAUTIONINASSEMBLY

6

NOTE:Whenreassembling, replace thenewwaterproofrubber. Make surewhetherthereisNO

foreign substance sticking around apartcoveredwithwaterseal.

4.1. Motor

Insertthemotor and press fitthewaterprooftubeneatlyunderthetubeholder. And putthefloat

spring propery.

4.2. Rechargeablebatteries

Inserttherechargeablebatteries intochassis. Attachthebatteryo-ring and washertothebattery.

Putthebatteryassemblyfrom thebatteryterminal sideintohousing A, and insertthemotor side

intohousing A.

NOTE:Press fittheleadwireneatlyinordertopreventpinching.

7

4.3. Module

Align theprojection ofswitchselectbutton on housing Awiththegroove ofswitchplateon

module.

4.4. Driving bars

Setthetrimmerdriving barand theslitbladedriving bar.

8

4.5. Sidepanel

Setthesidepanel on thebodyand slideitup until clicking thehookofpanel atthree locations.

NOTE:Make surethattheleft and rightsidepanelsarefirmlyfittedon bothrearand frontside.

Fitthefrontsideofhookfirst, thenon top and rearside.

4.6. Trimmer

1. Make sureifthebosses ofhandlearm insertintotheholes of

trimmer.

2. Align thebosses ofhousing withtheholes oftrimmer, and hook

thetrimmerhandle.

3. Confirm its operation orsmoothmovementoftrimmer.

9

5. TROUBLESHOOTING GUIDE

(Referto WIRING CONNECTION DIAGRAM)

<TROUBLE> <CHECK.> <

REMEDY>

Motor does not

rotate. <CHECK CHARGINGADAPTOR.> NO Replace

charging

Does not

charge.

Connecttheratedvoltagetothenormal mainunitbythe

charging adaptor.

adaptor.

Functionsfor a

mo- Check ifthechargestatuslampofmainunitislit.

mentand stops. Supplytheratedvoltagetotheadaptor and measurethe

voltage. OKifitis

Does not

operateby approximatelyDC 4.0V betweentheterminalsoftheplug

withno-loadoperation.

ACpower

source.

OK

<CHECK RECHARGEABLE BATTERIES.> NO Replace

both

recharge-

Okay ifthevoltageofrechargeablebatteries ismorethan

approximately

able

batteries

thesame

1.2V DC between(+)and (-) terminals. time.

10
