■Connection with Digital Disk Recorder WJ-RT416 Series

Notes:

• Consult with service personnel for details on connecting with a recorder to operate via a LAN or the Internet.

• Confirm the recorder firmware is Ver. 1.41 or later.

• Only one recorder can be connected to the DATA HDR connector of this unit. (Multiple unit connections, such as a cas-

cade connection, are not available.)

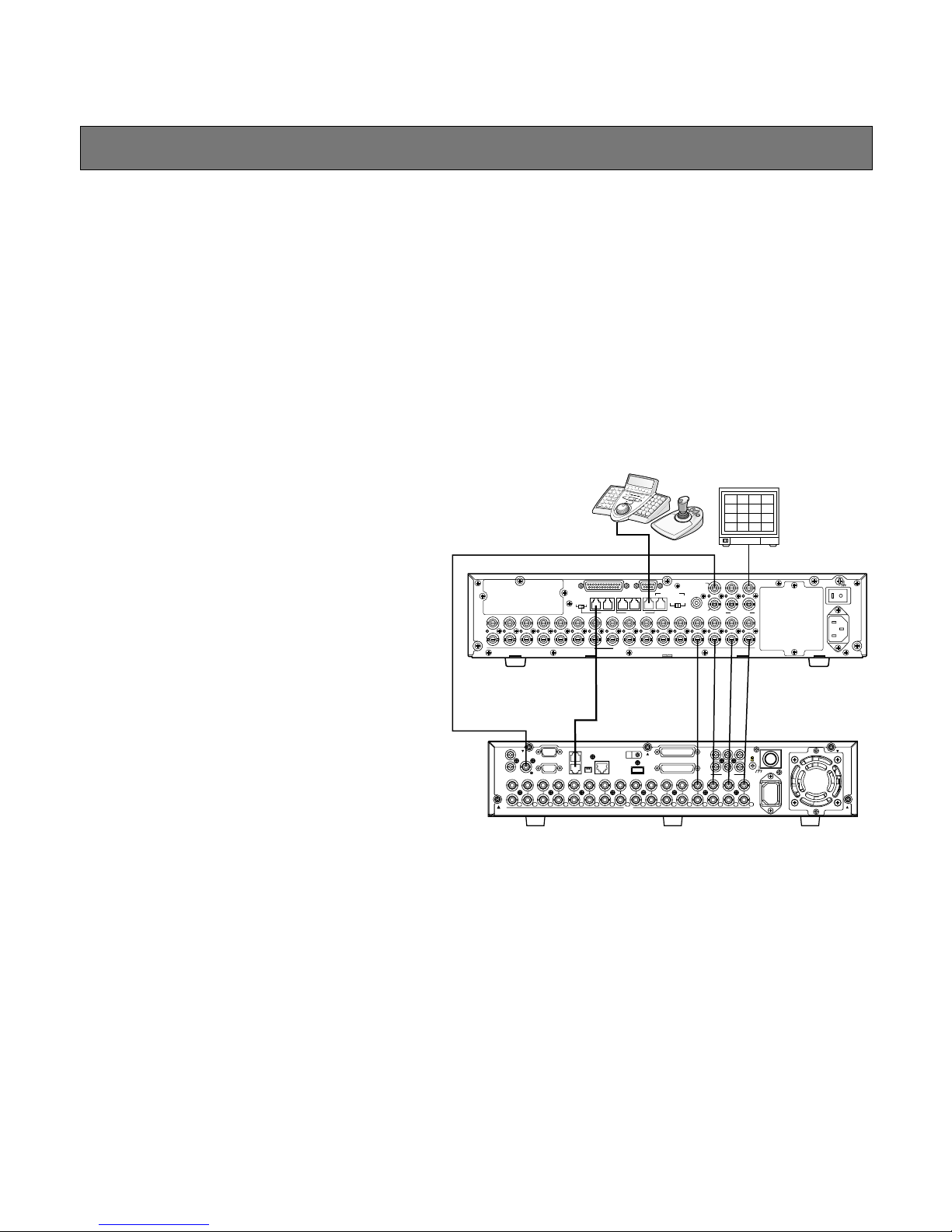

●Basic Connection

The following describes the connection between a recorder and this unit to confirm the images are arriving from the recorder.

1. Set the unit address of the recorder to 1.

2. Set the [Camera control] setting to "PSD" for all cam-

eras in the recorder SETUP MENU.

3. Connect the unit's CAM OUT 1 to 16 connectors to

the recorder's VIDEO IN 1 to 16 connectors with a

coaxial cable.

4. Connect the unit's EXT IN connector to the

recorder's MULTISCREEN OUT connector with a

coaxial cable.

5. Connect the unit's DATA HDR connector to the

recorder's DATA port with a modular cable.

Notes:

• Make sure that recorder's unit address is set to 1

through the SETUP MENU or SX150A administrator

Console. (Refer to this unit's operating instructions.)

If another number is selected, you cannot control

the recorder.

• From system controllers connected to the unit (WJ-

SX150A), you cannot control monitors connected to

the MONITOR 1 connector of the recorder.

SIGNAL GND

POWER

AC IN

CAMERA

DATA 3 DATA 2

SERIALALARM

TERM

OFF ON 4

CAMERA

SW IN

RS485(CAMERA)

LINE

SELECT

MONITOR OUT

EXT IN

(PLAY IN)

EXT OUT

(REC OUT)

OUT

RS485(CAMERA)

DATA 4DATA HDR

PS•DATA

DATA 1

System controller

(Terminal Mode)

EXT IN MONITOR OUT

Recorder*

DATA HDR

MONITOR 1 DATA

* Set the recorder unit address to 1.

Monitor

AUX IN

AUDIO OUT

OUT

16 15 14 13 12 11 10 9 8 7 6 5 4 3

531

642

14 13 12 11 10 9 8 7 6 5 4 3 2 116 15

MONITOR1 MONITOR2

RS485(CAMERA)

MODE

DATA

10/100BASE-T COPY1 ALARM IN/CONTOROL

AUDIO IN

SIGNAL GND

POWER

OFF

AC IN

AUDIO IN/ALARM OUT

VIDEO

SERIAL

SYSTEM CONNECTIONS AND SETUPS (WJ-RT416 SERIES)

Addendum for WJ-RT416 and WJ-SX150 Series

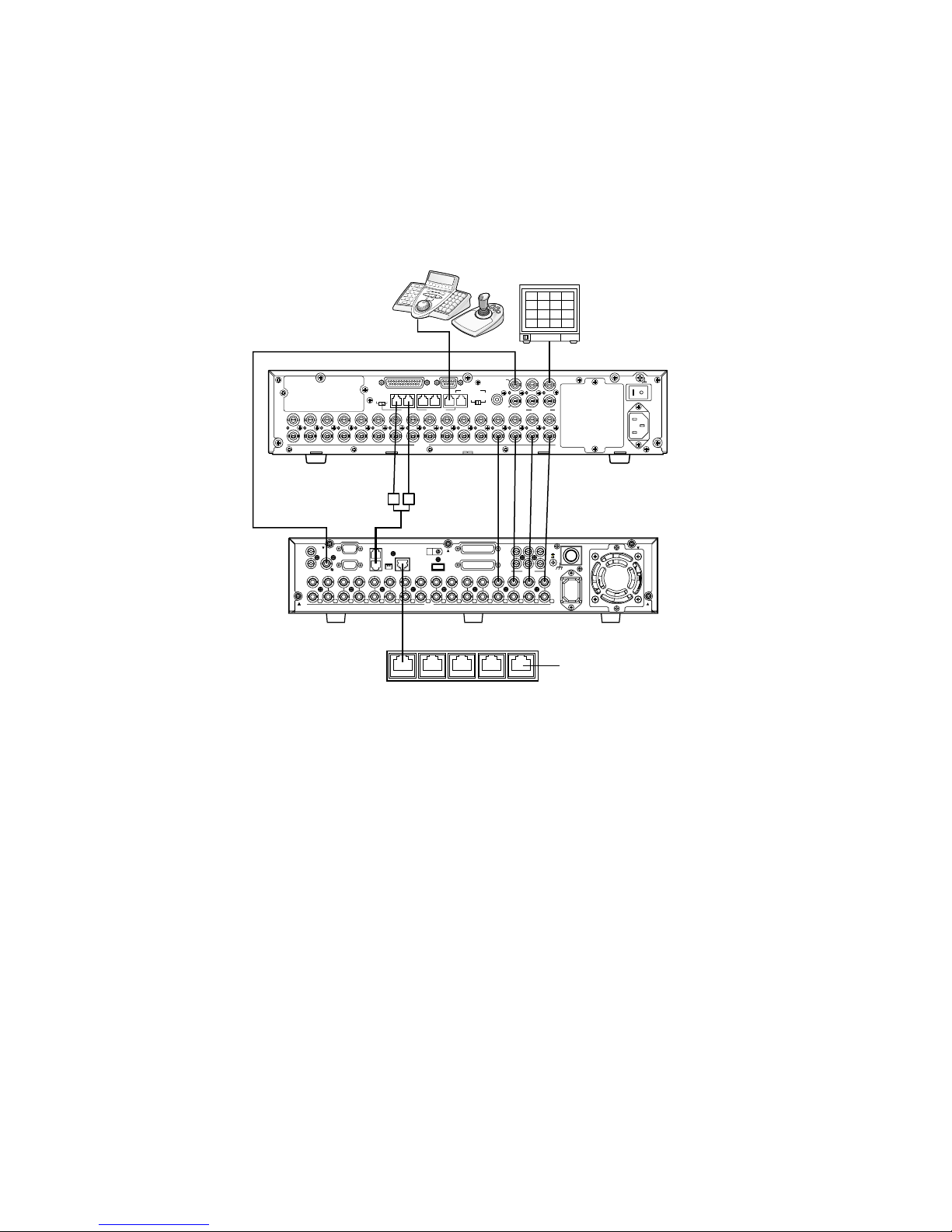

●To Control a Recorder and Cameras via the Network

The following describes the connection between a recorder and this unit to control the recorder and camera via the network.

1. Set the unit address of the recorder to 5 or higher. (Refer to the recorder's operating instructions.)

2. Set the [Camera control] setting to "PSD" for all cameras in the recorder SETUP MENU.

3. Connect the unit's CAM OUT 1 to 16 connectors to the recorder's VIDEO IN 1 to 16 connectors with coaxial cable.

4. Connect the unit's EXT IN connector to the recorder's MULTISCREEN OUT connector with a coaxial cable.

5. Connect the unit's DATA HDR and DATA 4 connectors to the recorder DATA port with a branched modular cable.

6. Select the recorder's new unit address, which is set in Step 1, in 600 RECORDERS of SETUP MENU or the Recorder win-

dow of WJ-SX150A Administrator Console. (Refer to this unit's operating instructions.)

Notes:

• Select the PS.Data protocol for the DATA 4 setting. (Refer to this unit's operating instructions.)

• If the recorder unit address, set in Step 1, and the recorder setting, set in Step 6, are different, the recorder will not be

operable.

• You cannot use a PS.Data system controller with these connections.

• From system controllers connected to the unit, you cannot control monitors connected to the MONITOR OUT 1 connector

of the recorder.

AUX IN

AUDIO OUT

OUT

16 15 14 13 12 11 10 9 8 7 6 5 4 3

531

642

14 13 12 11 10 9 8 7 6 5 4 3 2 116 15

MONITOR1 MONITOR2

RS485(CAMERA)

MODE

DATA

10/100BASE-T COPY1 ALARM IN/CONTOROL

AUDIO IN

SIGNAL GND

POWER

OFF

AC IN

AUDIO IN/ALARM OUT

VIDEO

SERIAL

SIGNAL GND

POWER

AC IN

CAMERA

DATA 3 DATA 2

SERIALALARM

TERM

OFF ON 4

CAMERA

SW IN

RS485(CAMERA)

LINE

SELECT

MONITOR OUT

EXT IN

(PLAY IN)

EXT OUT

(REC OUT)

OUT

RS485(CAMERA)

DATA 4DATA HD R

PS•DATA

DATA 1

System controller

(Terminal Mode)

EXT IN MONITOR OUT

Recorder*

* Set the recorder's unit address to 5 or larger.

** LAN: Local Area Network

DATA 4

(PS·Data)

DATA

DATA HDR

MONITOR 1

HUB/Router

LAN**

Monitor

WV-CA48/10K

●PS·Data Connection

1. Set the unit address of the recorder to 5 or higher.

2. Set the [Camera control] setting to "PSD" for all cameras in the recorder SETUP MENU.

3. Connect the unit's CAM OUT 1 to 16 connectors to the recorder's VIDEO IN 1 to 16 connectors with coaxial cable.

4. Connect the unit's DATA 4 Port connector to the recorder's DATA port with branched modular cable.

5. Select the recorder's new unit address, which is set in Step 1, in 600 RECORDERS of SETUP MENU or the Recorder win-

dow of WJ-SX150A Administrator Console. (Refer to this unit's operating instructions.)

Notes:

•Select the PS.Data protocol for the DATA 4 setting. (Refer to this unit's operating instructions.)

•If the recorder's unit address, set in Step 1, and the recorder setting, set in Step 5, are different, the recorder will not be

operable.

•Do not connect the recorder to the DATA HDR port.

•From system controllers connected to the unit, you cannot control the recorder.

•Only one matrix switcher can be connected in the PS.Data mode.

SIGNAL GND

POWER

AC IN

CAMERA

DATA 3 DATA 2

SERIALALARM

TERM

OFF ON 4

CAMERA

SW IN

RS485(CAMERA)

LINE

SELECT

MONITOR OUT

EXT IN

(PLAY IN)

EXT OUT

(REC OUT)

OUT

RS485(CAMERA)

DATA 4DATA HD R

PS•DATA

DATA 1

MONITOR OUT

Monitor

System controller

(Terminal Mode)

System controller

(PS·Data)

DATA 4

(PS·Data)

MONITOR 1 Recorder*

* Recorder control from system controllers connected to the matrix switcher is not available.

AUX IN

AUDIO OUT

OUT

16 15 14 13 12 11 10 9 8 7 6 5 4 3

531

642

14 13 12 11 10 9 8 7 6 5 4 3 2 116 15

MONITOR1 MONITOR2

RS485(CAMERA)

MODE

DATA

10/100BASE-T COPY1 ALARM IN/CONTOROL

AUDIO IN

SIGNAL GND

POWER

OFF

AC IN

AUDIO IN/ALARM OUT

VIDEO

SERIAL

WV-CA48/10K

DATA

●Settings of Administrator Console and SETUP MENU (OSD)

If the WJ-SX150A Administrator Console is Ver. 2.03 or later,

select "HD300".

5. Press the F1 button.

The WJ-RT416 Series SETUP MENU will appear on the

active monitor, and "B" mark will light up beside "On".

The following functions and buttons are valid in SETUP

MENU.

JogDial clockwise: Increases a parameter.

JogDial counterclockwise: Decreases a parameter.

CAM (SET) button: Executes the selections and dis-

plays a submenu.

+ button: Increases a parameter.

– button: Decreases a parameter.

MON (ESC) button: Returns to the SETUP MENU or the

previous menu.

<3D joystick unit>

3D joystick upward (D): Moves the cursor up.

3D joystick downward (C): Moves the cursor down.

3D joystick to the left (A): Moves the cursor to the left.

3D joystick to the right (B): Moves the cursor to the

right.

WJ-RT416 SERIES CONTROL (WJ-CU950/650 TERMINAL MODE)

The matrix switcher can control the following function of the

Digital Disk Recorder WJ-RT416 Series. The following is the

procedure for the WJ-RT416 Series SETUP MENU:

Notes:

•The following operating procedures are for the terminal

mode. If you are using a PS.Data system controller,

refer to page 6.

•When a Multiplexer board is installed in the matrix

switcher, you can neither connect nor control a WJ-

RT416 Series recorder. You need to remove the board

from the matrix switcher.

•Some parts of monitor displays described in this docu-

ment may differ from the actual parts.

■Displaying WJ-RT416 Series

SETUP MENU

To display the WJ-RT416 Series SETUP MENU, follow the

procedure below:

1. Confirm that the WJ-RT416 Series is correctly and

securely connected.

2. Select the desired monitor.

3. Activate the recorder mode.Then, the selected monitor

number, recorder number, and "/HD300" will appear on

the LCD.

4. Press the MENU button repeatedly until "System Setup"

appears on the LCD.

Mon4 Cam-- R4

/HD300

System Setup 301

On Off

System Setup 301

On Off

600 RECORDER

CONTROL ADR EXT IN

610 MASTER ---

620 SLAVE1 HD300 01 GENLOCK OFF

630 SLAVE2 HD300 01 GENLOCK OFF

640 SLAVE3 HD100 01

650 SLAVE4 OFF GENLOCK OFF

--COMMUNICATION STATUS--

DATA BIT 7bit

PARITY BIT ODD

STOP BIT 1bit

BAUD RATE 9600bps

COMM PORT SERIAL PORT

If the firmware of this unit is Ver. 2.03 or later,

select "HD300" for "CONTROL" in 600 RECORDER of

SETUP MENU (OSD).

6. To end the setting and return to normal view, press the

F2 button when the SETUP MENU is displayed. The "B"

mark will disappear from the LCD.

Note: Both the JogDial and +/–buttons allow users to

move the cursor in the numeric field.

■Controlling Digital Disk

Recorder WJ-RT416 Series

The following are the operating procedures of the WJ-

RT416 Series via the system controller.

●Recorder Mode

Before operating the recorder, it is necessary to activate

the recorder mode.

1. Select the desired monitor.

2. Press the recorder button. The system will activate the

recorder mode.

•The images from the recorder are displayed on the

active monitor in multiscreen segment.

•The monitor number, camera number, recorder

number, and “/HD300”will appear on LCD.

3. To exit the recorder mode, press the recorder button or

select the camera. The monitor number and camera

number appear on the LCD again.

●Multiscreen Segment Switching

Note: The multiscreen segment patterns can be switched

as follows. (applicable for WJ-RT416)

16 segment (channels 1-16) →4 segment (channels 1-

4) →4 segment (channels 5-8) →4 segment (channels

9-12) →4 segment (channels 13-16) →6 segment

(channels 1-6) →6 segment (channels 7-12) →9 seg-

ment (channels 1-9) →16 segment (channels 1-16)

●Normal Playback

The operations are the same as for the WJ-HD500 Series.

(Refer to page 19 of "Addendum for WV-CU950/650 and

WJ-SX150 Series".)

Note: Refer to the recorder's operating instructions for

details and other playback modes.

●Manual Recording

The operations are the same as for the WJ-HD500 Series.

(Refer to page 20 of "Addendum for WV-CU950/650 and

WJ-SX150 Series".)

●Stopping REC ONLY Alarm

Recording

The operations are the same as for the WJ-HD500 Series.

(Refer to page 20 of "Addendum for WV-CU950/650 and

WJ-SX150 Series".)

■Search Playback

You can search for recorded images by time and date.

Every time you press the SEARCH/T&D SEARCH button in

the recorder mode, the monitor display will change as fol-

lows.

Live image →Time & Date Search →List Search →Time &

Data Search ...

The following are the details on LCD display patterns.

Note: The thumb and text menus are not available.

●Time & Date Search

The recorder images can be searched by time and date.

1. Activate the recorder mode. (Press RECORDER button)

2. Press the SEARCH button.

3. Enter the camera number and the start date and time.

4. The video of the selected date, time, and camera num-

ber is played back.

Note: The Factory’s default setting is the current data

and time.

Search Mode /HD300

Thumb Text Copy

Time & Date Search

Camera No.

10-22-2006 11:30:30

Start

OK Cancel

Month-Day-Year

[SEARCH]:List Search

2. Move the cursor to a position to be edited by perform-

ing either of the following:

•Move the 3D joystick controller to the right or left.

•Rotate the shuttle ring clockwise or counterclock-

wise.

3. Enter the desired date and time by performing either of

the following:

•Rotate the JogDial clockwise or counterclockwise.

•Press the + or –button.

4. Press the PLAY/PAUSE button. The image with the

specified date and time will be played back on the

active monitor.

After the image has been played back, the LCD will

return to the default status.

3. Enter the camera number, search start date and time,

and search end date and time.

4. A list appears in accordance with the entered informa-

tion. Select an item from the list, and press the CAM

(SET) button.

5. The selected video is played back.

WJ-RT416 SERIES CONTROL (PS·DATA)

The recorder control details are described in the WV-

CU950 / WV-CU650 Operating Instructions.

However, when the system controller (WV-CU950 / WV-

CU650) is connected to the recorder via the matrix switcher

(WJ-SX150 Series), the following differences will occur.

■Function Only Available with

WJ-RT416 Series

The following functions are available only when the system

controller (WV-CU950 OR WV-CU650) is connected to the

WJ-RT416 series via the matrix switcher (WJ-SX150 Series).

●Time & Date Search Playback

You can search playback images by entering a desired

recording date and time.

Note: To cancel the entry, press the MON (ESC) or EXIT

button. The LCD display will return to the normal status.

1. Press the SEARCH/T & D SEARCH button while holding

down the SHIFT button. The time-and-date entry form

will appear on the LCD.

Mmm/DD/YYYY HH:MM 12

Mar/17/2004 12:00 AM

●List Search

1. Activate the recorder mode.

2. Press the SEARCH button during the Time & Date

Search screen, then List Search screen appears.

List Search

Camera No.

Off

Filtering

10-21-2006 11:30:30

Start

OK Cancel

Month-Day-Year

10-22-2006 11:30:30

End

Month-Day-Year

[SEARCH]:Time & Date Search

Prev Next Return

Search List

Cam Quality Start

01-24-2006

10:43:22

01-24-2006

10:53:22

End

Page 001/002

Mmm/DD/YYYY HH:MM 12

Mar/17/2004 12:00 AM

●List Search

1. Activate the recorder mode.

2. Press the INDEX button during the Time & Date Search

screen, then the List Search screen appears.

3. Enter the camera number, search start date and time,

and search end date and time.

4. A list appears in accordance with the entered informa-

tion. Select an item from the list, and press the CAM

(SET) button.

5. The selected video is played back.

WJ-RT416 SERIES CONTROL (WJ-CU360C/CJ PS·Data)

Available operations are the same as for the WJ-HD500 Series. (Refer to the unit operating instruction.)

WJ-RT416 SERIES CONTROL (WJ-CU360C/CJ TERMINAL MODE)

Available operations are the same as for the WJ-HD500

Series. (Refer to the unit operating instructions.)

This document describes operations applicable to the WJ-

RT416 Series.

For the WJ-RT416 series, only the functions described

below are available.

■Controlling Digital Disk

Recorder WJ-RT416 Series

●Search playback

You can search playback images using the SEARCH table.

Every time you press the INDEX button, the display will

change as follows:

Live image →Time & Date Search →List Search →Time &

Data Search ...

●Time & Date Search

The recorder images can be searched by time & date.

1. Activate the recorder mode.(Press RECORDER button)

2. Press the INDEX button.

3. Enter the camera number and the start date and time,

and press the SET key.

4. The video of the selected date, time, and camera num-

ber is played back.

Note: The Factory’s default setting is the current data

and time.

Time & Date Search

Camera No.

10-22-2006 11:30:30

Start

OK Cancel

Month-Day-Year

[SEARCH]:List Search

List Search

Camera No.

Off

Filtering

10-21-2006 11:30:30

Start

OK Cancel

Month-Day-Year

10-22-2006 11:30:30

End

Month-Day-Year

[SEARCH]:Time & Date Search

Prev Next Return

Search List

Cam Quality Start

01-24-2006

10:43:22

01-24-2006

10:53:22

End

Page 001/002

n = 0:Search playback*

n = 1:Time & date search playback**

* Transmission command changes the moni-

tor display as follows.

Time & date search →List search →Time

& date search ...

** Date & time entry from matrix switcher

appears.

COMMUNICATION PROTOCOL (FOR USERS OF WJ-RT416 SERIES)

Parameter (ASCII)

Stop

Index

Multiscreen segment

switching

Item

CMD:RmmML ANSmmML Segment pattern change.

Transmission command Changes the multi-

screen segment pattern as follows.

16 segment (1-16ch) → 4 (1-4ch) → 4 (5-

8ch) → 4 (9-12ch) → 4 (13-16ch) → 6 (1-

6ch) → 6 (7-12ch) → 9 (1-9ch) → 16...

ANS:RmmSPn mm = Monitor No.

n = 0:Stop playback

n = 1:Stop recording

The following commands have been described in the operating instructions of this unit. However, while the Digital Disk

Recorder WJ-RT416 Series is being connected to the unit, the commands will be changed as follows:

CMD:RmmSCn ANS:RmmSCn

Transmission Command

(ASCII) Response (ASCII)

CMD:RmmPn

Recorder Control

Panasonic System Solutions Company,

Unit Company of Panasonic Corporation of North America

www.panasonic.com/business/

For customer support, call 1.800.528.6747

Three Panasonic Way 2H-2, Secaucus, New Jersey 07094

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada

(905)624-5010

http://www.panasonic.ca

Panasonic Sales Company

Panasonic Puerto Rico, Inc.

AVE 65de Inf, Km 9.5 Carolina, PR 00985

(787)750-4300

Autres manuels pour WJRT416 - 16CH DIGITAL RECORDER

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic DVR

Panasonic

Panasonic DMR-E53EG, DMR-E55EB, DMR-E55E Manuel utilisateur

Panasonic

Panasonic WJHD500 - DIGITAL DISC RECORDE Manuel utilisateur

Panasonic

Panasonic WJRT416 - 16CH DIGITAL RECORDER Manuel utilisateur

Panasonic

Panasonic WJND400 - NETWORK DISK RECORDER Manuel utilisateur

Panasonic

Panasonic CJ-HDR216A Manuel utilisateur

Panasonic

Panasonic WJND400 - NETWORK DISK RECORDER Manuel utilisateur

Panasonic

Panasonic WJ-NV200K Manuel utilisateur

Panasonic

Panasonic DMRHS2 - DVD RECORD.W/HD DRIV Manuel utilisateur

Panasonic

Panasonic k-nl308k Instruction manuelle

Panasonic

Panasonic WJHD500A - Digital Disk Recorder Manuel utilisateur

Panasonic

Panasonic WJ-HD616/1000 Manuel utilisateur

Panasonic

Panasonic DMR-E65S - DVD Recorder With SD Card Slot Manuel utilisateur

Panasonic

Panasonic Diga DMR-E95H Manuel utilisateur

Panasonic

Panasonic DMR-ES20EG Manuel utilisateur

Panasonic

Panasonic DMR-ES10PL Manuel utilisateur

Panasonic

Panasonic WJ-GXD400 Manuel utilisateur

Panasonic

Panasonic X-Plus Series SP-DRH04 Manuel utilisateur

Panasonic

Panasonic DMR-E60S Manuel utilisateur

Panasonic

Panasonic Diga DMR-E60 Manuel utilisateur

Panasonic

Panasonic WJHD500A - Digital Disk Recorder Manuel utilisateur

Panasonic

Panasonic AG-CPD20P Manuel utilisateur

Panasonic

Panasonic ShowStopper PV-HS3000 Manuel utilisateur

Panasonic

Panasonic DMR-ES30VGN Manuel utilisateur

Panasonic

Panasonic DMR-E60PP Manuel utilisateur

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
